Feed Wagons

We carry Bale King grain feeders, Kelly Ryan horizontal feed wagons, and TMR mixer wagons from Cloverdale and Penta. The Bale King GT40 is a stand-alone feeder. Kelly Ryan 4x10 and 5x12 wagons use apron-chain and lift-chain unloading, while Cloverdale and Penta mixers use one or two augers.

Bale King GT40 Grain Feeders

The GT40 is a 40-bushel stand-alone feeder for grain, pellets, and range cubes. The Bale King GT40 with three-point kit and forkable frame adds a three-point hitch to the forkable frame and leaves the fork pockets accessible. The forkable Bale King GT40 uses the same forkable frame without the three-point hitch.

Feed Wagon and TMR Mixer Capacities

Brand and Models Feeding or Mixing System Capacity
Kelly Ryan 4x10 feed wagon and 5x12 Apron-chain and lift-chain unloading 4x10: 115 bushels; 5x12: 190 bushels
Cloverdale 420T, 500T, and 720T Single-auger trailer mixers 420T: 410 cubic feet standard or 498 with rubber extensions; 500T: 455 standard or 560 with rubber extensions; 720T: 600 standard or 715 with rubber extensions
Cloverdale 650T and Cloverdale 1100T feed wagon Twin-auger trailer mixers 650T: 650 cubic feet standard or 830 with rubber extensions; 1100T: 1,100 standard or 1,300 with rubber extensions

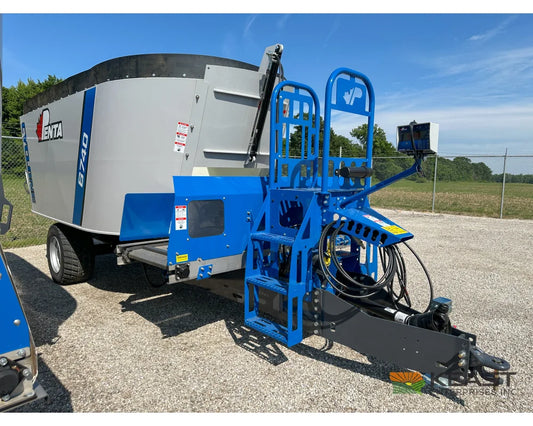

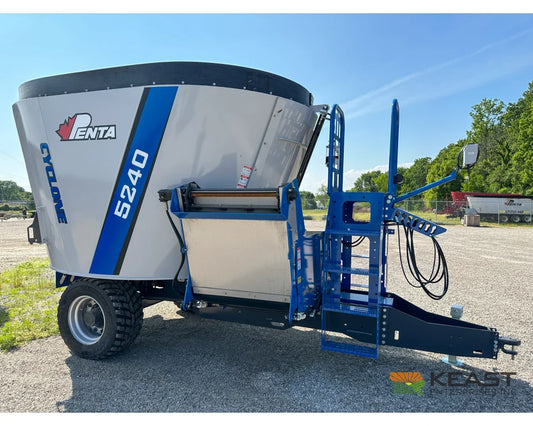

Penta 4540 TMR mixer, 5240, and 6740 The 4540 and 5240 use one auger; the 6740 uses two 437, 523, and 650 cubic feet

Scales, Discharge, and Power Details

Kelly Ryan lists electronic scales as optional on the 4x10 and 5x12, and both models use a 48-inch discharge height. Penta offers onboard weighing. Discharge locations may be front, rear, or dual, and conveyor choices include chain or belt. When ordering a Penta mixer, specify the scale and conveyor.

For a GT40 quote, send the required mount. For a Kelly Ryan wagon, send the model and whether an electronic scale is required. For a Cloverdale or Penta mixer, send the cubic-foot capacity, ration ingredients, tractor PTO horsepower and speed, discharge side and height, and scale requirements.

Email sales@keastenterprises.com with the feeder or mixer details. We offer competitive financing on this equipment.
