We sell self-loading bale carriers from Anderson, Cloverdale, and Farm King. Anderson RBM and Cloverdale Mega carriers handle round bales; Farm King includes round-bale models and the 4480XD square-bale carrier. Match the carrier to bale width, diameter or cross-section, bale weight, and deck arrangement. Also confirm the loading system, tractor hydraulics, and transport requirements.
Anderson RBM Models
Both Anderson models handle round baleage, dry hay, and straw up to 6 ft. in diameter. Each uses a tubular self-loading arm, hydraulic unloading, and a hydraulic push-off system. The RBM2000 adds a telescopic arrangement for a second row.
Each loading arm is rated at 2,500 lb., and each carrier is rated for a maximum loaded machine weight of 42,000 lb. The RBM1400 and RBM2000 are both 8 ft. 4 in. wide and 38 ft. 5 in. long; height including the loading arm is 11 ft. 11 in. on the RBM1400 and 12 ft. on the RBM2000. Tandem axles and a safety chain are standard, while braked axle configurations and a rear camera are options.
Cloverdale Mega Series
Cloverdale equipment includes 8/10 and 12/14 Mega self-loading round-bale carriers. The loading arm adjusts for 4- or 5-ft.-wide bales, and the carriers handle round bales up to 6 ft. 6 in. in diameter. Both models use a walking tandem axle with flotation tires.
The 8/10 has a 2,500-lb. loading-arm limit, 39,000-lb. maximum total load, and approximately 28,000 lb. of payload. The Cloverdale 12/14 Mega Bale Carrier has the same 2,500-lb. arm limit with a 49,000-lb. maximum total load and approximately 36,000 lb. of payload. Bale weight and the total loaded-weight limit govern the load; the model names are not universal bale-count ratings.
Farm King Round- and Square-Bale Models

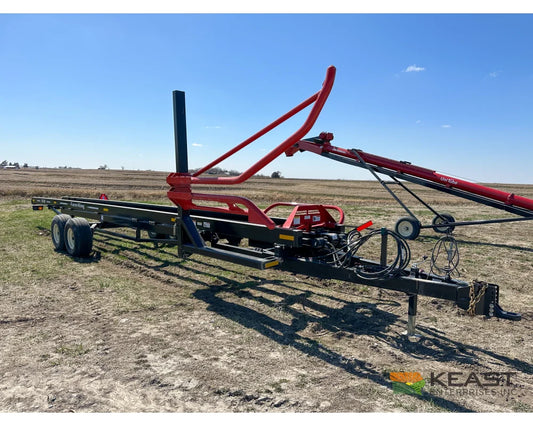

Our Farm King equipment includes single-row and double-width round-bale carriers plus the 4480XD square-bale carrier. The Farm King 1450SH round-bale carrier is the single-width model.
The Farm King 2400 carries up to ten 4x6 round bales or eight 5x6 round bales. A right-side pickup arm loads the deck, a hydraulic pusher moves bales rearward, and the deck tilts for unloading. The 2400 requires 80 hp and two double-acting hydraulic circuits.
The Farm King 4480XD handles 8-ft.-long square bales with a 25,000-lb. maximum load. Its base arrangement carries nine 48x48-in. bales in one row, eighteen 36x48-in. bales in two rows, or twenty-four 32x35-in. bales in two rows. An optional quarter-turn arrangement changes bale orientation and count. Farm King specifies 100 hp and 25 US gpm at 3,000 psi for the 4480XD. The carrier also uses 12-volt electrical power and a hand-held control, with open-center, closed-center, or load-sensing closed-center hydraulics.
Transport and Rental Options
Loaded dimensions and running gear differ substantially among these carriers. The Farm King 2400 is 12 ft. 7 in. wide for transport, while the 4480XD is 10 ft. 2 in. wide. Confirm machine width, height, axle and brake configuration, loaded weight, hitch, drawbar, and applicable transport requirements before moving the carrier on the road.
For temporary bale hauling, use our Bale Carriers for Rent. For Anderson's RBM round-bale carrier family, see our Anderson equipment.
Email sales@keastenterprises.com with bale dimensions and weight, tractor power and hydraulic connections, hitch and drawbar details, and transport requirements. Nationwide delivery is available.
