Brandt

We are an authorized Brandt dealer for XT grain carts, GrainVacs, GrainBelt and GrainDeck conveyors, C550 and H450 on-highway RGN trailers, A HP high-speed discs, and swing-away augers.

For replacement components, browse Brandt parts by part number or description.

Brandt XT Grain Carts

Brandt rates the 1120XT grain cart at 1,100 bushels and the 1320XT grain cart at 1,300 bushels. Both use a 20-inch auger, and Brandt rates their unload speed at 600 bushels per minute. Confirm the undercarriage, tarp, scale, and other equipment on the machine being quoted. For a different capacity or undercarriage, our grain carts collection includes models from other manufacturers.

Brandt GrainVacs

The Brandt 1300HP GrainVac is rated at 8,000 to 8,500 BPH with a 120-horsepower requirement, 13-inch unload auger, and 103-inch transport height. The Brandt 5200EX GrainVac is rated at 5,200 BPH and 70 horsepower with a 10-inch unload auger and 85.5-inch transport height. Throughput depends on the grain, hose arrangement, and operating conditions.

We sell and rent the Brandt 5200EX. Our grain vacuums include other models for purchase, and our grain-vac rentals cover short-term grain handling.

Brandt GrainBelts and GrainDecks

Brandt field GrainBelts move grain from a truck to an air cart or from storage to a transport truck. Our Brandt 1535TD electric conveyor has a 10-horsepower single-phase electric drive, 15-inch belt, 10-inch tube, and 35-foot length. It is rated up to 6,500 BPH. Alongside the 1535TD, our grain conveyors include other receiving and field-transfer configurations.

GrainDecks let trucks drive over a low-profile conveyor for unloading. The Brandt 2010A GrainDeck and 2015A use a 20-inch belt, are offered with 10- or 15-foot tubes, and have a 5.75-inch deck height. Drive choices include electric, hydraulic, and self-contained gas. Crop-specific peak ratings reach 12,000 BPH in canola and 15,000 BPH in durum; drive-specific rates may be lower. For truck receiving beyond Brandt's 2010A and 2015A, drive-over conveyors from other manufacturers provide different layout choices.

Brandt C550 and H450 RGN Trailers

Brandt rates the C550 on-highway RGN trailer at 110,000 pounds in 12 feet only with a 14-foot-6-inch booster and gooseneck extension. The H450 on-highway RGN trailer is rated at 90,000 pounds fully distributed and 80,000 pounds in 16 feet. Those ratings are not legal-payload limits. Allowable payload depends on the tractor, axle and load configuration, permits and the hauling limits where you operate.

Brandt A HP High-Speed Discs

Brandt A HP high-speed discs cut and size residue, prepare seedbeds, and level ruts. Brandt recommends an operating speed of 10 to 14 mph. Our Brandt 221A HP high-speed disc has a 20-foot-9-inch working width and 9-foot-11-inch transport width. Our Brandt 326A HP high-speed disc has a 26-foot-8-inch working width and 14-foot-5-inch transport width. Both are equipped with 22-inch discs, U-notch front discs, smooth rear discs, and a spring roller. Field speed and finish depend on soil, residue, depth, tractor power, and machine configuration. Our disc harrows collection offers additional tillage widths and finishing systems beyond these two Brandt models.

Brandt Swing-Away Augers

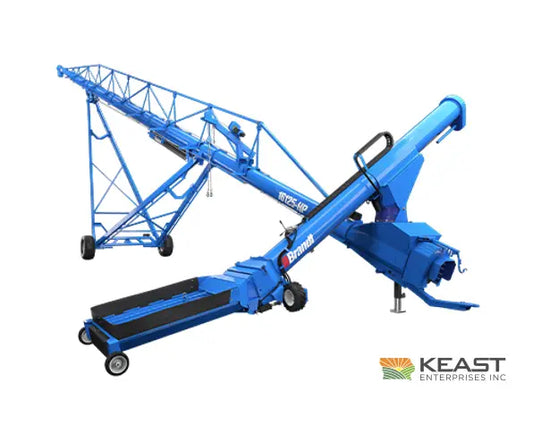

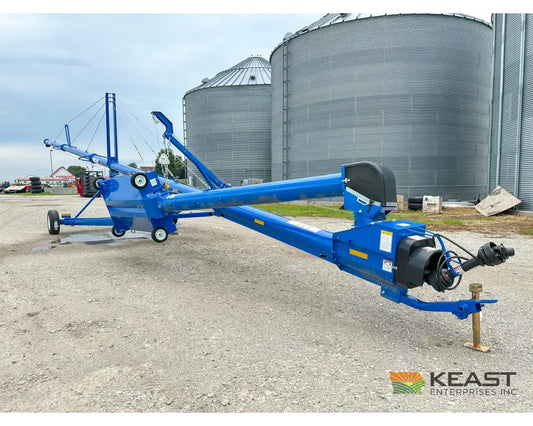

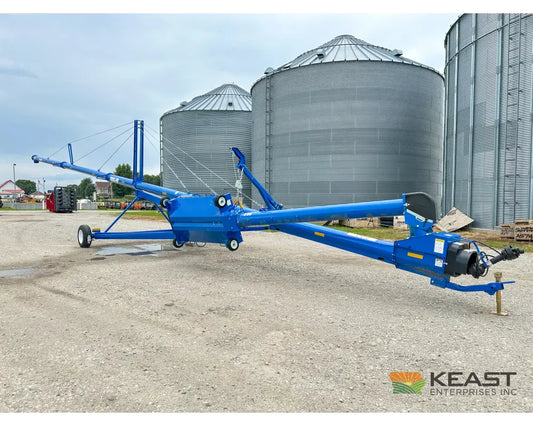

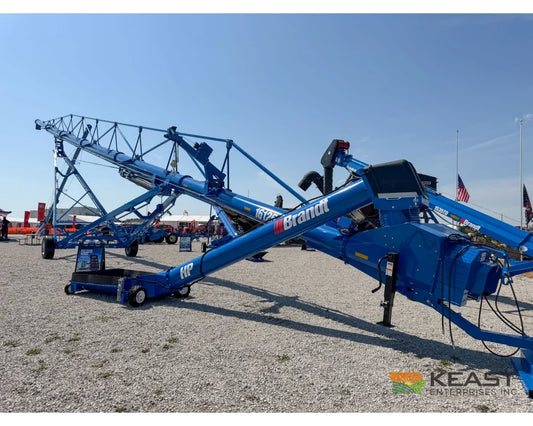

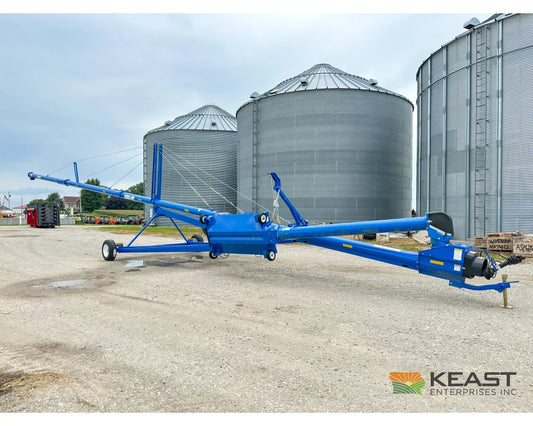

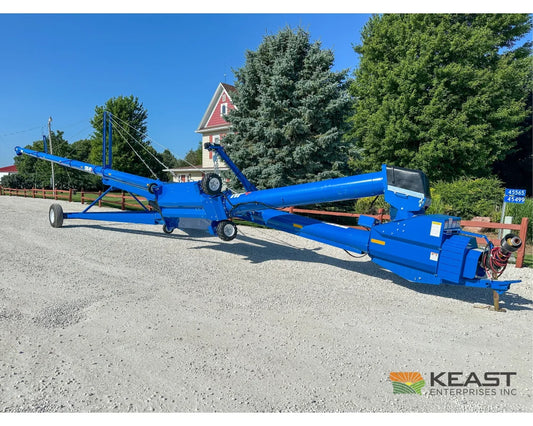

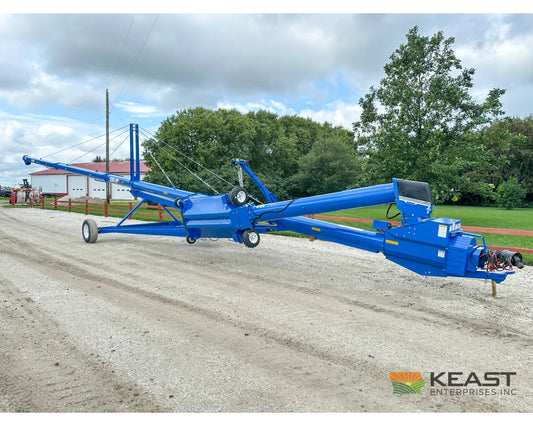

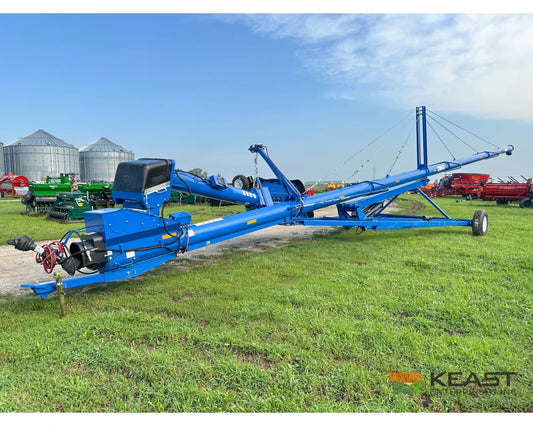

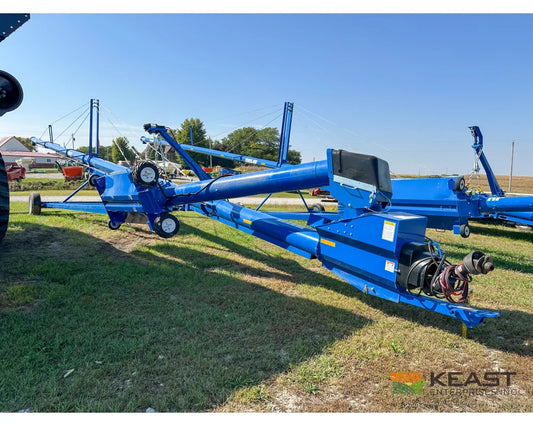

Brandt 10HP swing-away augers are available in 60-, 70-, and 80-foot lengths. The 1060HP, 1070HP, and 1080HP use 10-inch tubes; Brandt rates the 60-foot 1060HP at 7,200 BPH. The 13-inch lineup includes the 80-foot 1380HP and 1380XL+, along with the 90-foot 1390HP and 1390XL+. HP models use a 1000-rpm PTO and are built for higher throughput; XL+ models use a 540-rpm PTO. The 16HP augers are offered in 105- and 125-foot lengths with capacity up to 23,000 BPH. Capacity varies with crop and moisture. Our grain augers include other lengths and capacity ranges.

Equipment Sales

Email sales@keastenterprises.com with the machine you are considering and how you will use it. We can help compare Brandt models and arrange delivery. Equipment can also be reserved online.
