PTO Generators

Our Baumalight PTO generators span 7 to 100 kW rated output for farm, acreage, and standby power. The TX, KR, and QC products in this collection provide single-phase 120/240-volt output, with model-specific amperage, rated and surge output, and tractor PTO horsepower.

Match Electrical Load and Tractor Power

Size the generator from a complete inventory of continuous and starting loads, then match the required output to the tractor's available PTO horsepower and PTO speed. Baumalight provides separate rated and surge output figures, along with PTO-horsepower figures at 50 percent and 100 percent output for each model.

TX, KR, and QC PTO Generator Families

Series Rated Output Alternator Internal Speed Amperage

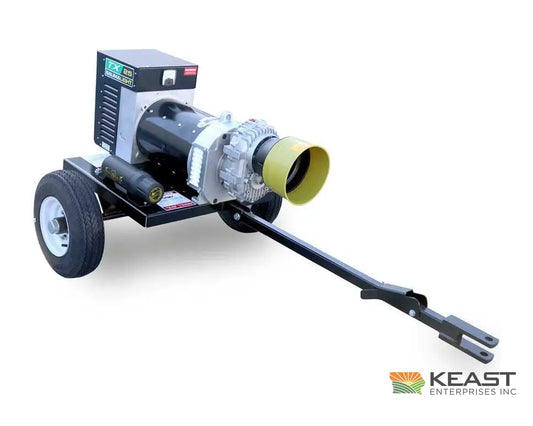

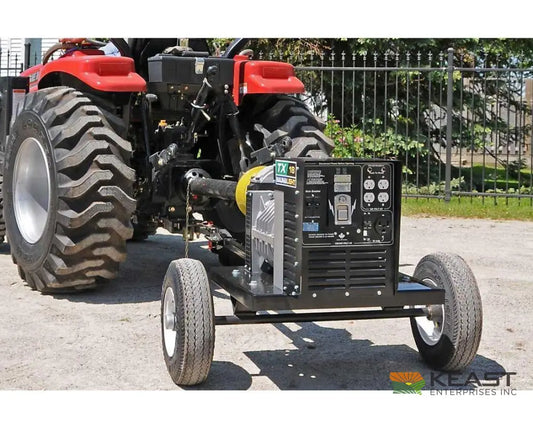

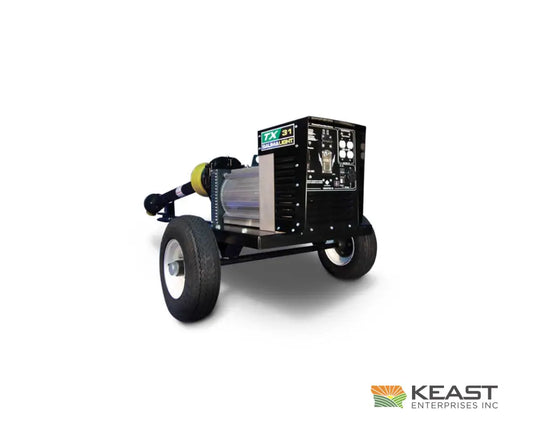

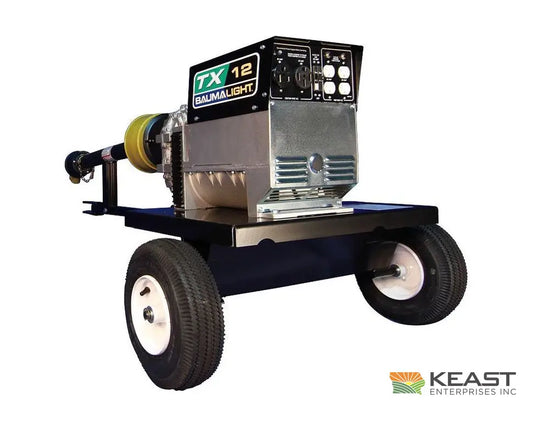

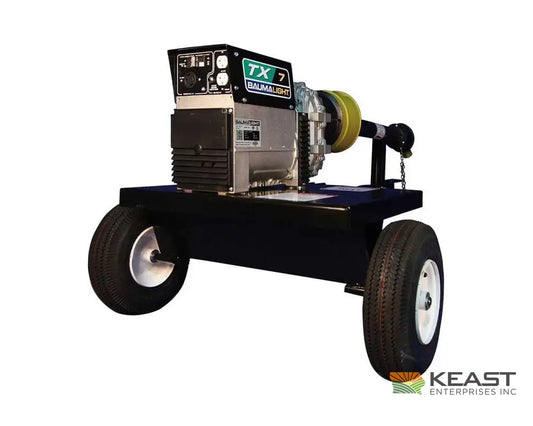

TX 7-31 kW Two-pole 3,600 rpm 30-125 amps

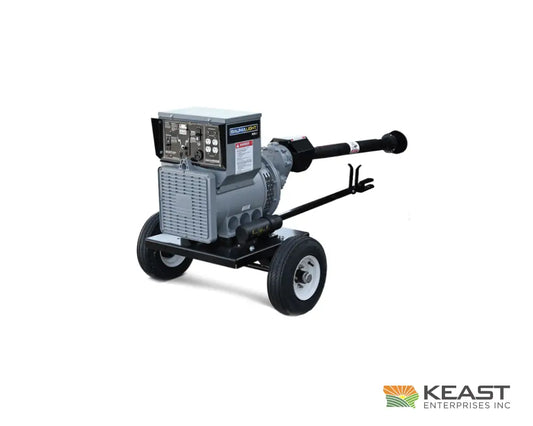

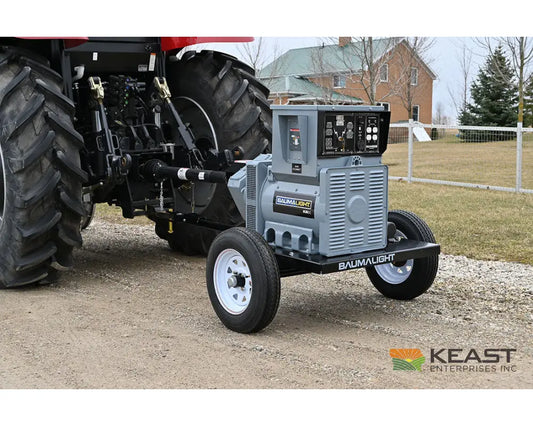

KR 30-65 kW Four-pole 1,800 rpm 125-250 amps

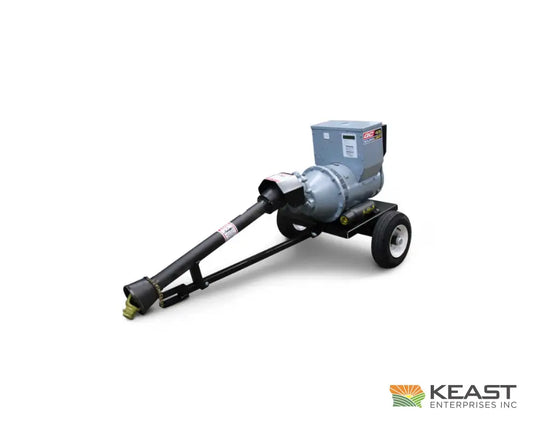

QC 12-100 kW Four-pole 1,800 rpm 50-400 amps

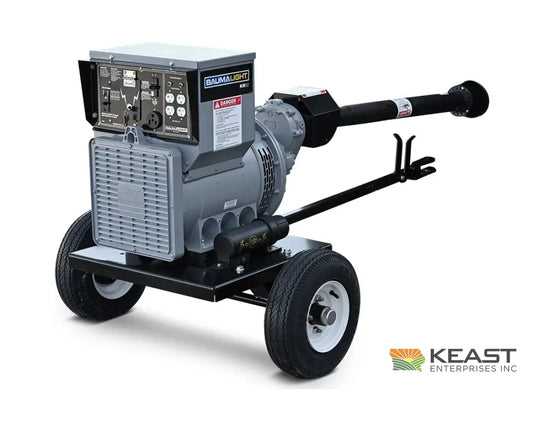

The Baumalight KR30 PTO generator is rated at 30 kW, and Baumalight lists 45 PTO horsepower at 100 percent output. QC12 through QC65 use 540 PTO rpm; QC80 and QC100 use 1,000 PTO rpm.

Power Details for a PTO Generator Quote

Email sales@keastenterprises.com with the continuous and starting loads, required voltage and phase, and tractor make and model. Include the available PTO horsepower and speed, required receptacles, breaker, cord connection, and transfer equipment. We can help with PTO generator questions.
