Choosing a Grain Vac: Cleanup, Transfer, PTO, and Self-Powered Options

When you start looking for your next grain vac, begin with the hardest part of the job. That might be the distance from the grain to where the vac can sit, limited access, the truck-loading capacity you need, available tractor horsepower, or the budget for the machine and pipe package. Keast Enterprises offers compact cleanup vacs, high-capacity fan vacs, blower-style vacs, PTO machines, and self-powered builds, so we can match the grain vac to the work it needs to handle every time.

Compact grain vacs are built for access and portability, including tight areas inside factories and distribution facilities when the correct power source is used. The Walinga 3510G, for example, is 34 inches wide and uses a 26.5-horsepower gasoline engine. Electric and three-point versions are also available. Walinga rates the 3510G at up to 700 bushels per hour for corn or barley under its stated conditions. That makes it a strong choice for pit cleanup, spill recovery, seed and feed reclamation, and buildings where a larger vac cannot be placed. It is a compact cleanup machine, not a grain vac designed to load trucks throughout the day.

For regular bin unloading and truck loading, larger machines such as the AGI REM VRX and VR12, Brandt 5200EX and 1300HP, and Walinga 7614 and 7816 families use larger pipe packages and require more power. AGI and Brandt fan-style grain vacs prioritize high truck-loading capacity and use relatively simple air systems. Walinga blower-style grain vacs produce more pressure for moving grain through longer or more vertical pipe runs. The tradeoff is generally lower peak capacity than a fan-style vac of a comparable size, but greater flexibility when distance or lift makes the job harder.

Walinga designs and manufactures its own blowers, so the blower, replacement parts, and overhaul support come from the same manufacturer. That can simplify a repair when the grain vac needs to return to work quickly.

If your grain vac will move among several sites or crews, the power and transport package can matter as much as maximum capacity. A self-powered vac arrives as one complete unit without tying up a tractor at every location. Keast Enterprises designs and manufactures self-powered grain vac packages with gasoline, diesel, and electric drive systems, depending on the machine and application. Contact us for a package built around your required capacity, reach, transport needs, and available power.

Understanding grain vac capacity

Manufacturer capacity ratings usually describe favorable loading conditions with a free-flowing crop, short suction line, adequate power, and an unobstructed discharge. Those conditions often differ from the full job in the field.

A grain vac moves grain in a controlled stream of air. Anything that makes the airflow work harder, or prevents grain from entering the nozzle steadily, reduces capacity. As a bin empties and the operator adds pipe for reach and flexibility, the grain vac will normally slow down.

Use straight aluminum pipe wherever the layout allows it. Flexible hose is necessary for positioning the intake and cleaning the bin floor, but its corrugated interior and tighter bends create more resistance than straight pipe. Reducing couplers also restrict airflow when operators connect smaller pipe they already have on hand. Place the grain vac as close to the grain as the site safely allows so the pipe run stays as short and straight as possible.

Blower-style grain vacs generally handle longer or more vertical runs better than fan-style machines, but distance still reduces the performance of either design. Several other conditions also affect the rate:

• Vertical lift makes the grain vac work harder. Pulling grain out of a pit or through a raised opening is different from moving it across a level floor.
• The intake needs the right mixture of grain and air. A buried or poorly adjusted nozzle can restrict airflow, while a nozzle drawing mostly air moves fewer bushels. The best adjustment changes as the job moves from freely flowing grain to floor cleanup.
• Crop condition matters. Corn, wheat, soybeans, and other products do not flow or convey the same way. Moisture, fines, foreign material, and uneven feeding can all change capacity.
• The power source must maintain the required operating speed. The unloading auger, truck, conveyor, or other receiving equipment must also keep up so the discharge does not become the bottleneck.

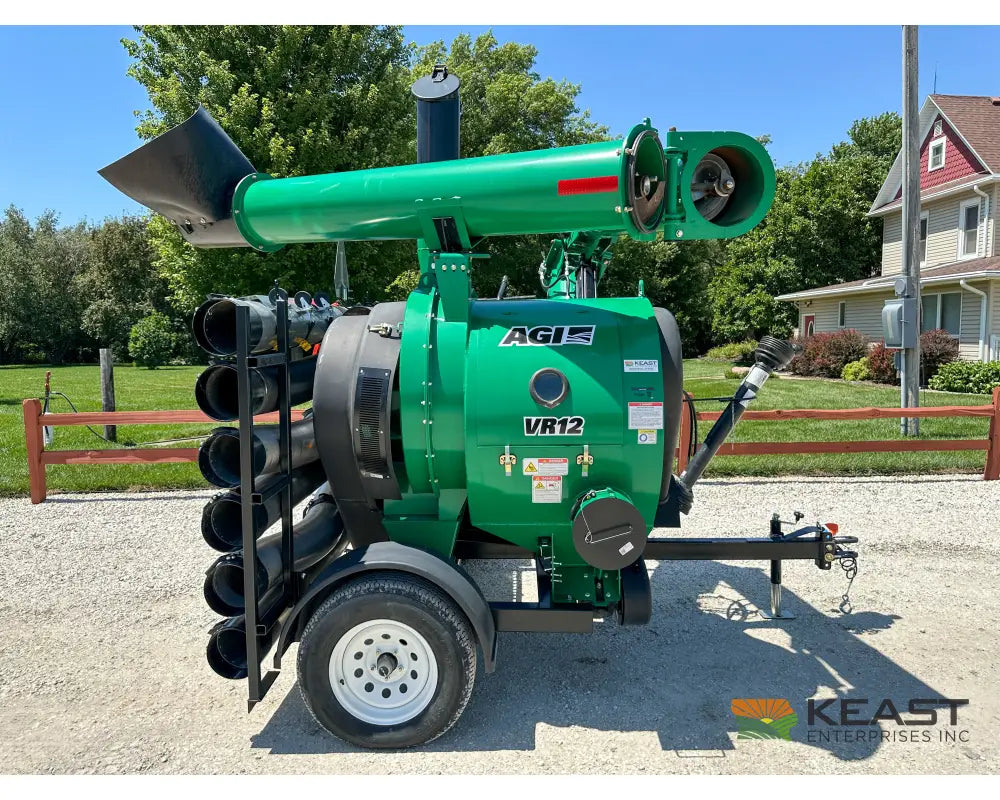

The AGI REM VR12 shows why the rating conditions matter. AGI publishes 9,000 to 10,000 bushels per hour with one hose drawing from freely flowing grain and specifies 130 horsepower for the PTO model. The standard pipe package provides a 52-foot cleanup radius, but the operating manual calls for adding pipe as cleanup progresses. The farther the intake moves from the grain vac, the more important the pipe arrangement and nozzle adjustment become.

Walinga also publishes the conditions behind its capacity figures. Its 3510 ratings identify the crop, power source, a 12-foot suction line, and a truck-loading kit. Walinga also notes that product condition, humidity, and barometric pressure can affect capacity.

When comparing two grain vacs, ask what crop was used, how much pipe and hose were connected, how the grain entered the intake, what power source drove the machine, and how the grain was discharged. A brochure number without those conditions is not a reliable estimate of how long it will take to empty and clean your bin.

Choosing between PTO and a dedicated engine

A PTO grain vac is usually the simpler and lower-cost choice when a tractor with sufficient horsepower is available every time the vac will run. Confirm the required PTO speed, hydraulic flow, and remote outlets for the exact grain vac. Also make sure the tractor can cool properly while operating at PTO speed for long periods without moving and can remain with the grain vac for the entire job.

Horsepower requirements vary substantially by model. Brandt specifies 70 horsepower for the 5200EX. AGI specifies 85 horsepower for the VRX and 130 horsepower for the VR12. A tractor that works well on one grain vac may not be suitable for the next size.

A dedicated engine becomes more valuable when tractors are busy, the vac moves between farms, or more than one crew needs it. Our current self-powered AGI packages pair the VRX with a 90-horsepower Isuzu diesel and the VR12 with a 177-horsepower Isuzu diesel. Both use custom tandem-axle trailers, electric-over-hydraulic auger controls, and trailer-mounted pipe storage. The VRX package carries 45 feet of 7-inch hose for a 49-foot cleanup radius. The VR12 carries 48 feet of 8-inch hose for a 52-foot cleanup radius.

Our current self-powered Walinga packages pair the 7614DLX with a 160-horsepower Isuzu diesel and the 7816DLX with a 180-horsepower Isuzu diesel. The 7614DLX uses a tandem-axle trailer, while the 7816DLX uses a triple-axle trailer. Both include electric-over-hydraulic controls and pipe storage built into the transport package.

If the tractor is already available and can stay with the machine, PTO is often the most economical choice. If that tractor is needed for harvest, feeding, tillage, or another location, a self-powered grain vac can save scheduling problems and move as one complete unit. Compare tractor hours, operator time, transport, fuel, engine service, and the cost of waiting when another job has priority.

Build the pipe package for the longest regular run

The pipe and hose package is part of the grain vac purchase, not an afterthought. It determines where the machine can sit, how far the intake can reach, and how closely real performance will match the quoted capacity.

Start with the longest pipe run you expect to use regularly. Record where the vac can sit, the farthest point in the bin or building, any vertical lift, the truck or receiving position, and the turns needed to reach the grain.

Extra pipe adds reach, not capacity. Use rigid aluminum pipe for straight portions of the run, then use flexible stainless or rubber hose where the intake needs to turn, move, or sweep the floor. Follow the manufacturer's operating instructions for the exact machine and pipe arrangement.

Compare included equipment line by line. Check the quantity and diameter of rigid pipe, flexible stainless hose, rubber cleanup hose, loadout and cleanup nozzles, floor-sweep equipment, hose caddies, couplers, and transport storage. A lower machine price may come with a shorter reach, smaller pipe, or fewer cleanup tools.

Renting versus buying

Rental is a flexible option for a recovery job, occasional cleanout, or trying a different model before buying. It can also help determine how much pipe, capacity, and power a site actually needs.

However, we generally recommend ownership when the grain vac will be used several times each year, cleanout dates are difficult to predict, or several locations can share the machine. After several rental periods, the delivered rental expense can begin to approach the annual cost of financing a grain vac, while ownership also provides availability and resale value.

Compare the exact rental quote with the proposed payment or cost of capital, storage, insurance, wear parts, service, tractor hours, and expected resale value. The better choice depends on how often the vac will be used and what it costs when the machine is not available at the right time.

Keast Enterprises offers grain vac rentals ranging from the compact Walinga 3510G to higher-capacity truck-loading machines such as the AGI REM VR12 and Walinga 7614DLX.

What we need to quote a grain vac

A simple sketch or set of photos is more useful than bin size alone. Mark where the vac can sit, the farthest point the intake must reach, any vertical lift, the truck or receiving position, and the narrowest doorway or lane.

Also provide:

• The crop, its current condition, and the estimated volume moved each year.
• The number and size of bins, pits, piles, or buildings the grain vac will serve.
• How the grain flows during initial unloading and how much floor cleanup remains afterward.
• The longest suction run, expected bends, and required vertical lift.
• The truck, wagon, auger, conveyor, bin, or other receiving equipment.
• Available tractor horsepower, PTO speed, hydraulic flow and remotes, electrical service, or preferred engine type.
• Whether a tractor can remain with the vac for the entire job.
• Transport distance and timing if rental is being considered.

Keast Enterprises sells and rents grain vacuums for cleanup, bin unloading, and truck loading. With the site, crop, power, and transport information, we can compare the machines under similar conditions, build the pipe package for the longest regular run, and quote the PTO or self-powered grain vac that fits your operation.
