Anderson Fusion720 Xtractor Round Bale Wrapper, Inline and Individual

The Anderson Fusion720 Xtractor wraps round bales inline or individually with one machine. Use continuous rows for your feeding supply, then wrap individual bales for separate storage or sale. This package includes a 13 HP Honda engine, two 30-inch film stretchers and wireless controls.

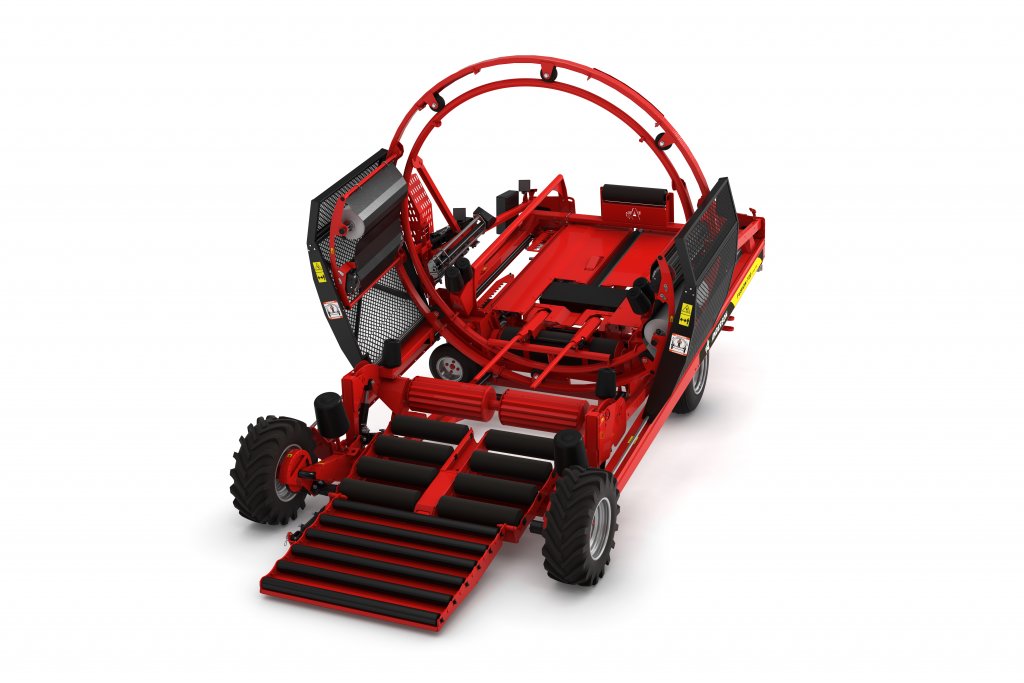

Photos show the Fusion720 Xtractor model. The supplied engine and controls are specified below.

The wrapping modes have different bale limits: inline wrapping accepts bales up to 6 feet in diameter, while individual wrapping accepts bales up to 5 feet in diameter. Both modes accept bales up to 5 feet long. The Fusion720 is for round bales.

Row wrapping and individual bales

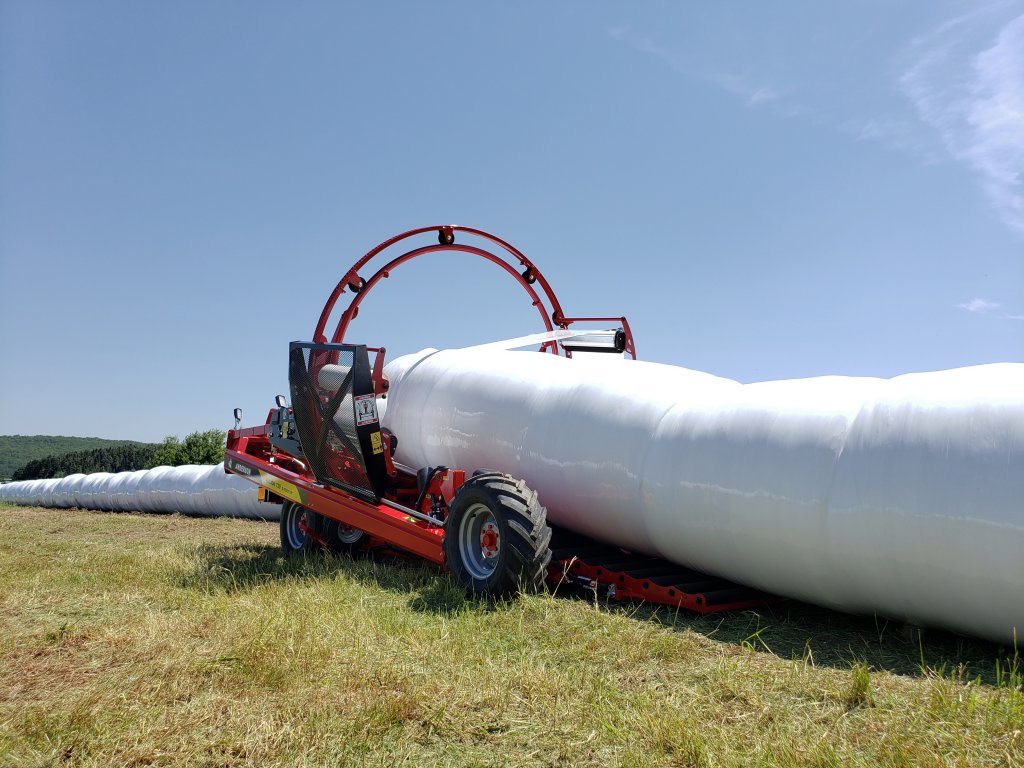

In inline mode, adjustable hydraulic compaction controls bale-to-bale pressure as the row forms. Four alignment rollers guide bales across the bed. The two film stretchers apply film around the bales, and individually wrapped bales can also serve as plugs at the ends of a row.

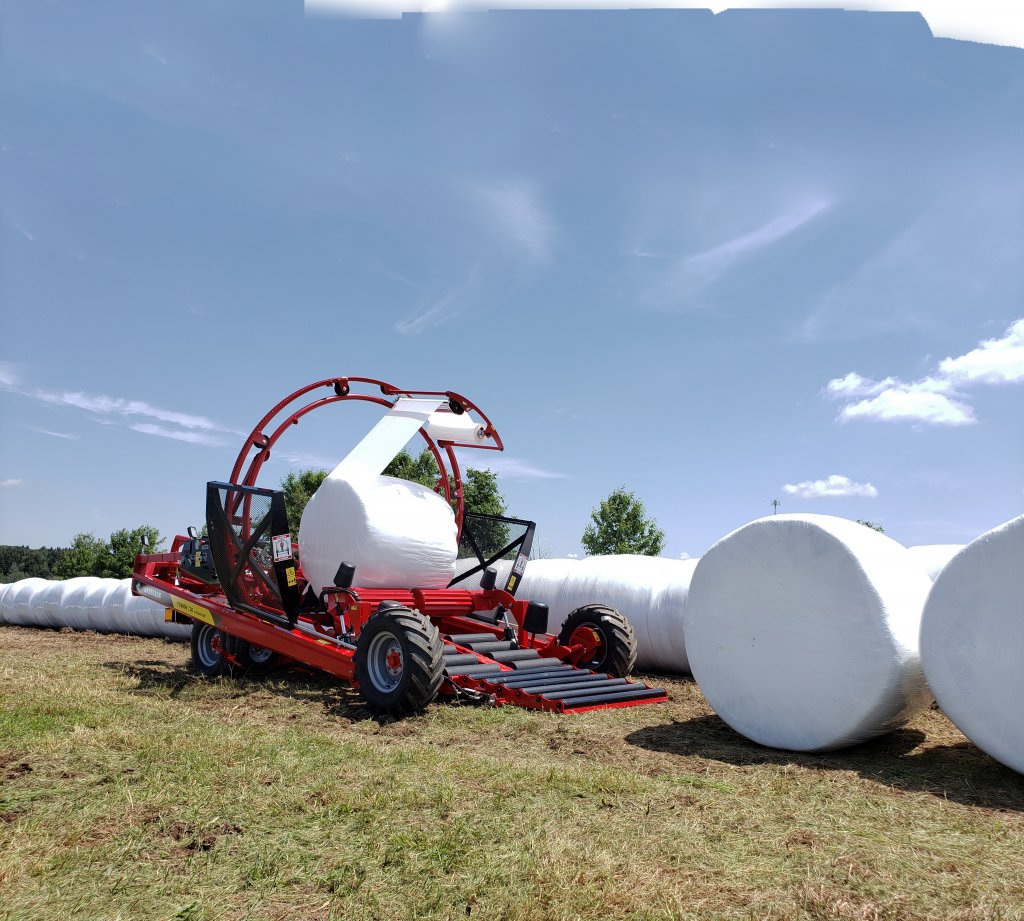

The Xtractor push-off system hydraulically discharges the final bale to finish the row. A hydraulic lifting axle provides machine-height adjustment. Switching to individual wrapping lets you keep a portion of the crop separate instead of committing every bale to a continuous tube.

Fusion720 configuration

For inline wrapping of round and large square bales, including double-stacked squares, consider the Evolution Xtractor in our bale wrappers collection. Send us your bale dimensions and whether you plan to wrap in rows, individually or both, and we can help you choose between them.
