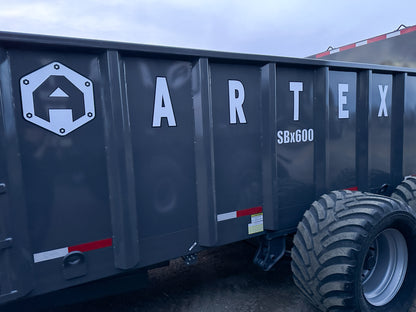

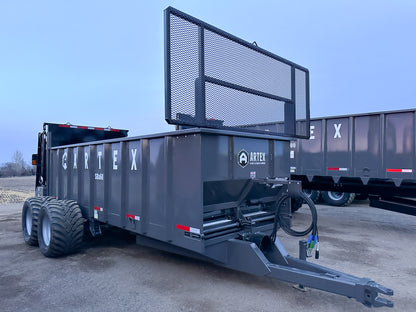

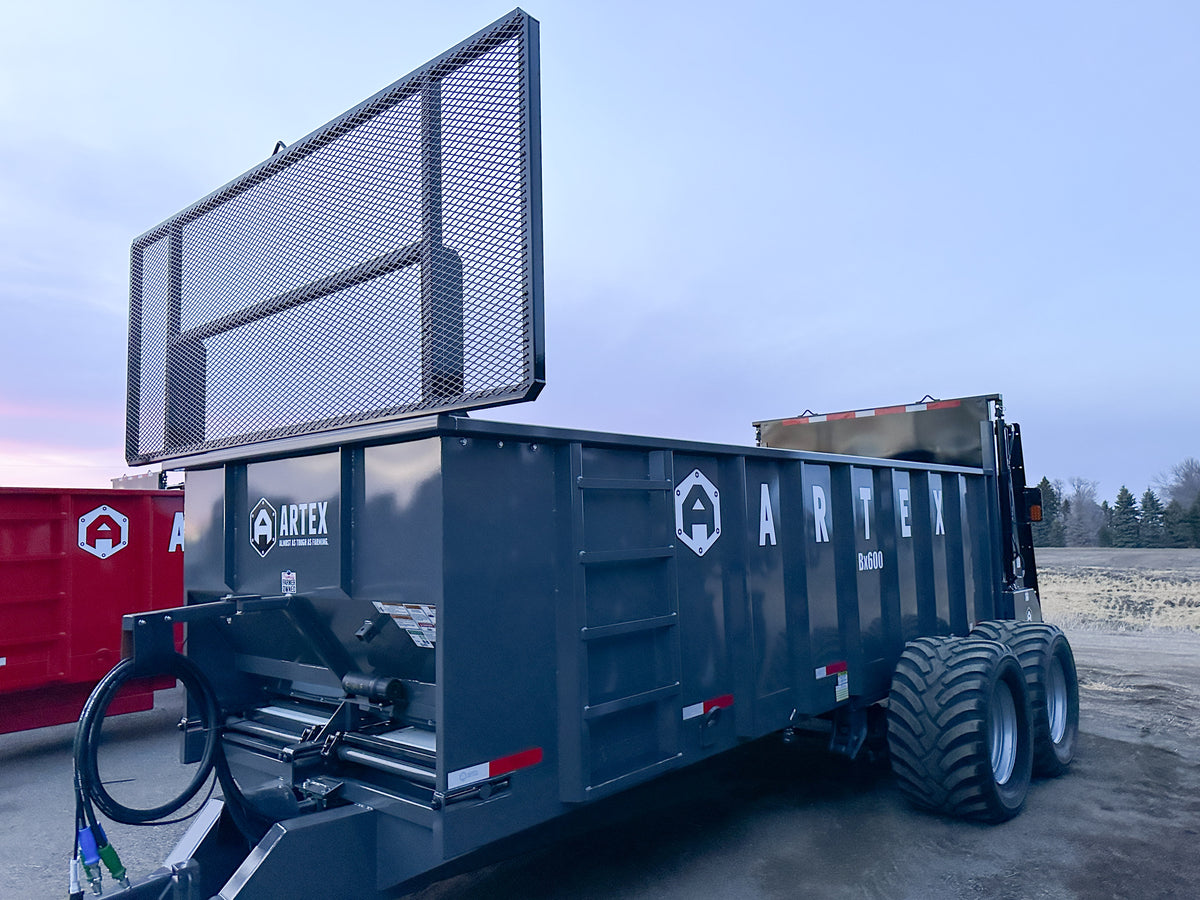

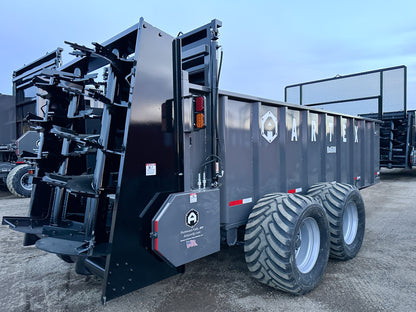

Artex SBX600 Vertical Beater Manure Spreader, 520 cu ft Struck

The Artex SBX600 combines a 20 ft box, twin vertical beaters and 520 cu ft of struck capacity for moving and spreading solid manure. The upright beaters break up clumps as material leaves the box, then throw it across the spreading pass. This is a useful choice for manure that needs breakup before distribution, with a shorter box than the larger SBX800 and SBX950 models.

SBX600 model references. The quoted package has no scale; supplied equipment follows the listing specifications.

How the SBX600 feeds and spreads

The quoted floor-drive upgrade uses two rear Parker TG0530 hydraulic motors. Tube cross-slats in the floor chain carry the load toward the rear attachment, while the hydraulic guillotine gate adjusts the opening feeding the beaters. That gives the operator a way to meter material into the beaters as the box empties.

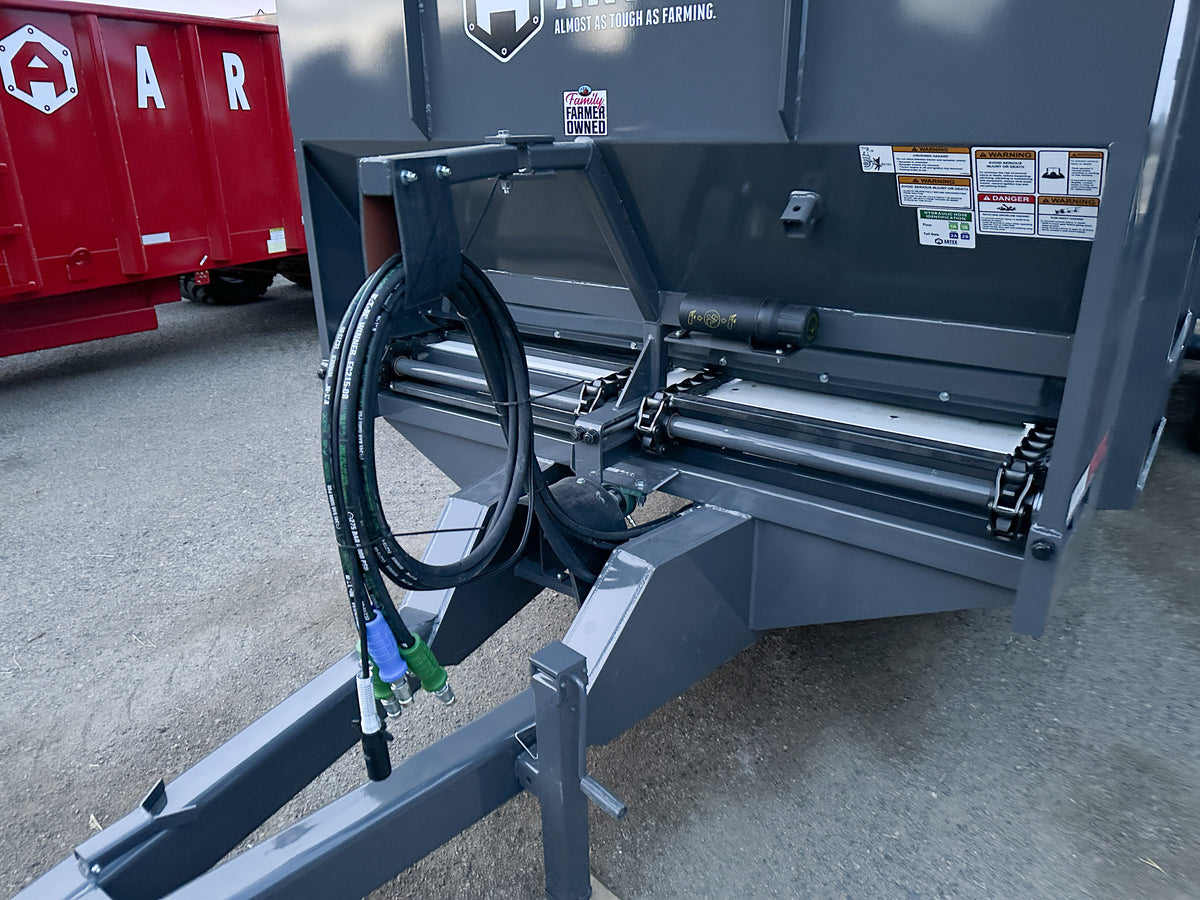

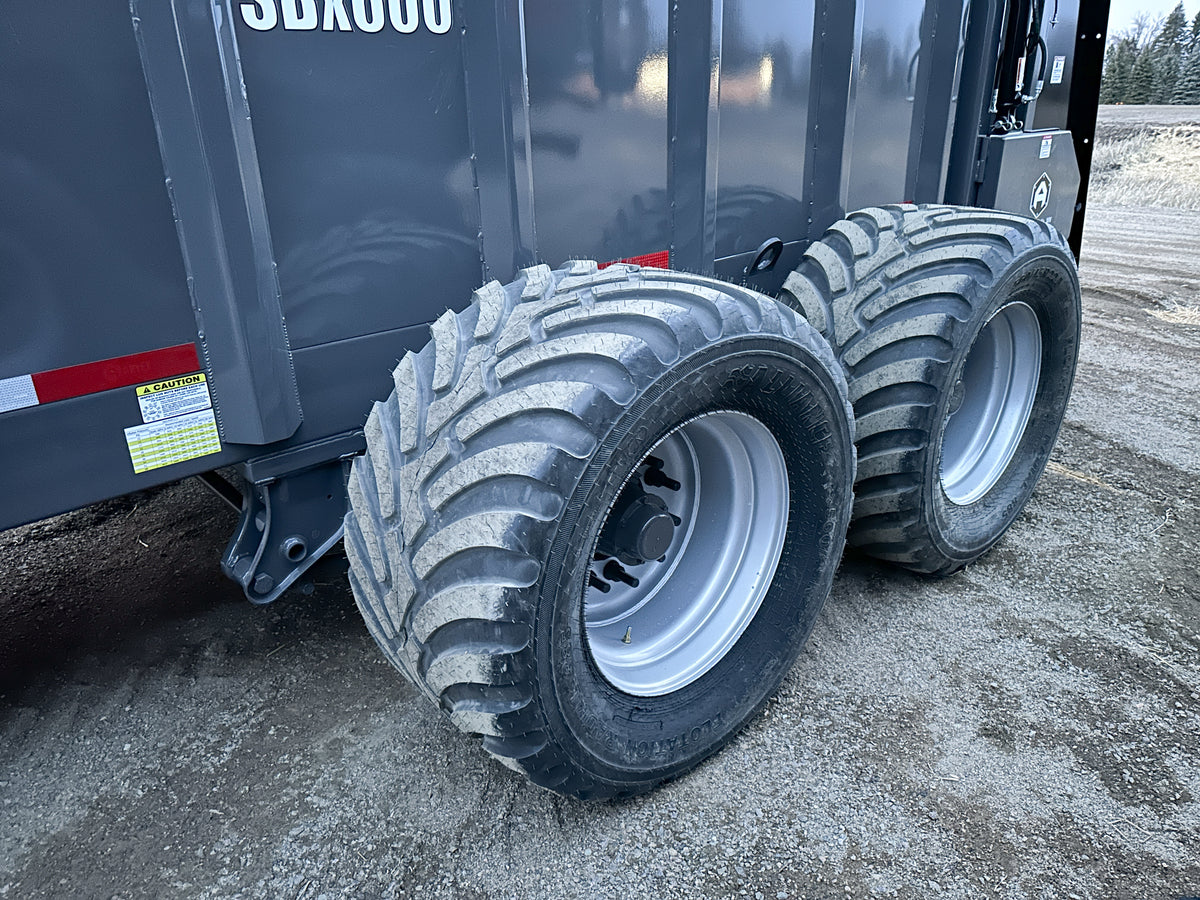

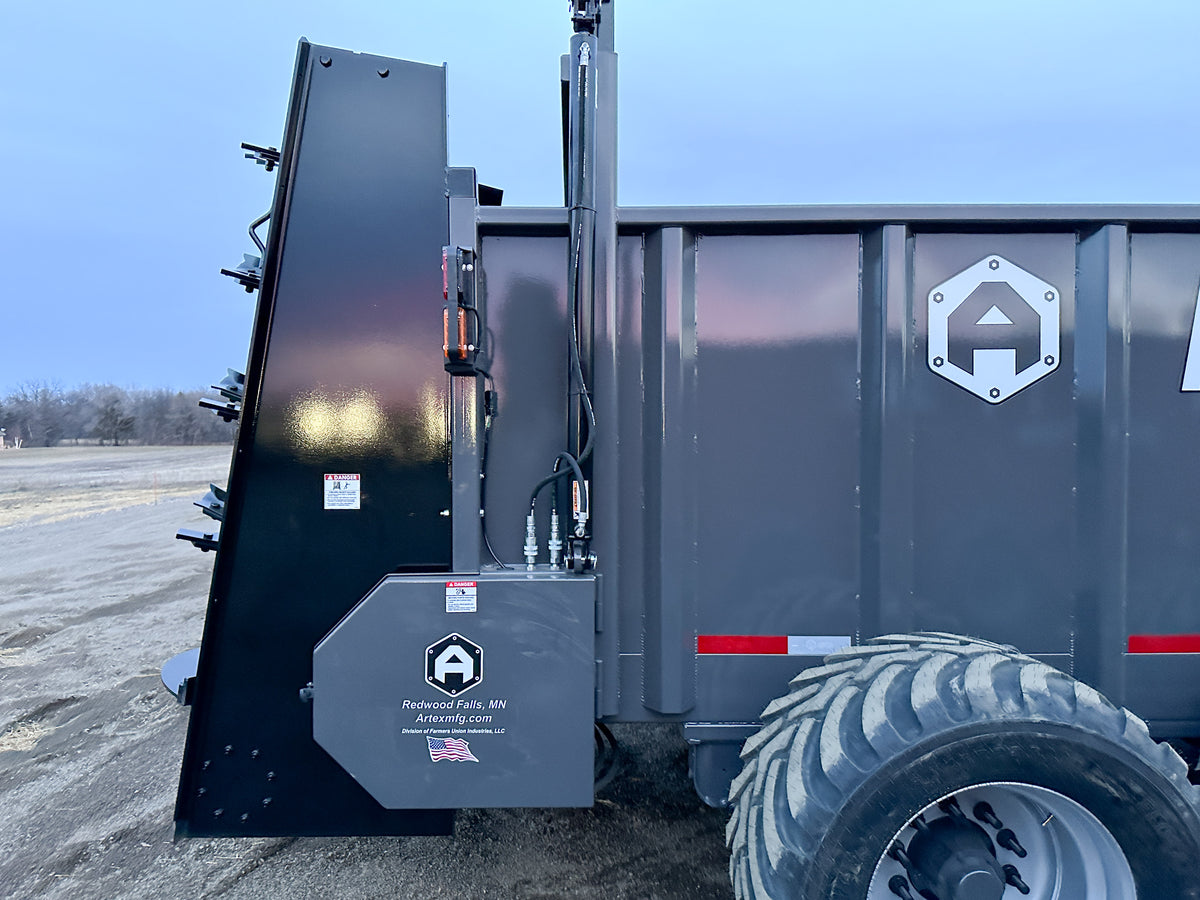

A half-inch poly floor provides the wear surface beneath the moving apron. Remote grease banks bring lubrication points together for routine service. Removable rear chain doors provide access to the conveyor drive. This package includes 560/45R22.5 tires and is supplied without a scale.

SBX600 specifications

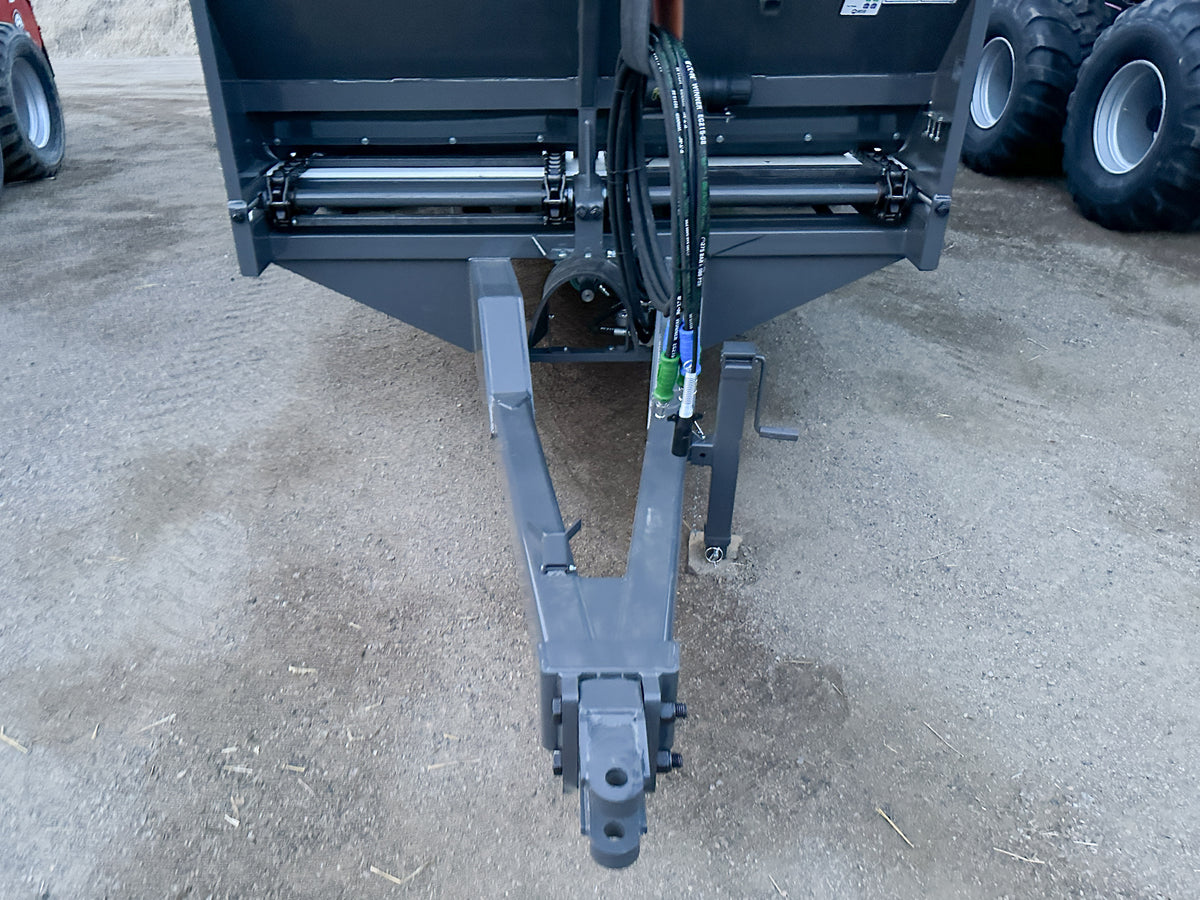

Artex lists a 1,000 RPM PTO driveline for the SBX platform. Confirm that the supplied driveline and hitch match your tractor, along with the hydraulic connections for this package.
