Art's Way LS1600 Rear Blade – 16' Width, 15° Tilt, 43° Swing

Art's Way LS1600 Rear Blade – 16' Width, 15° Tilt, 43° Swing

$22,338.00 USD
$22,338.00 USD
Sale Sold out
Free Shipping on Palletized Items, Truck Rates at Checkout

In Stock
  • Pay with Credit Card, Check, ACH, Wire, or EFBW Financing at Checkout

Overview

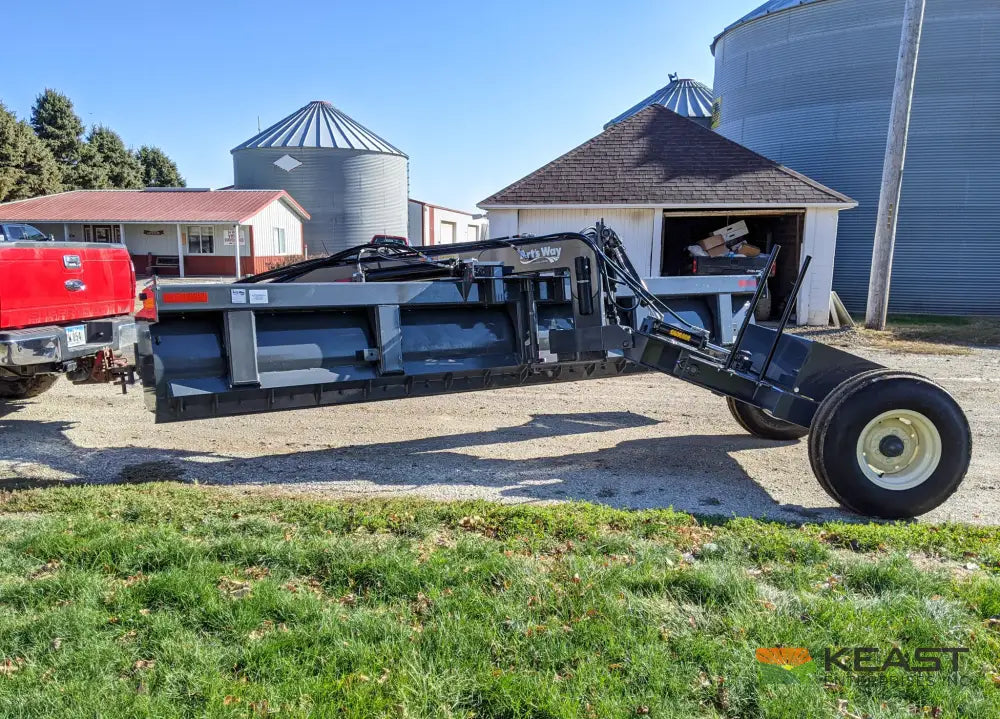

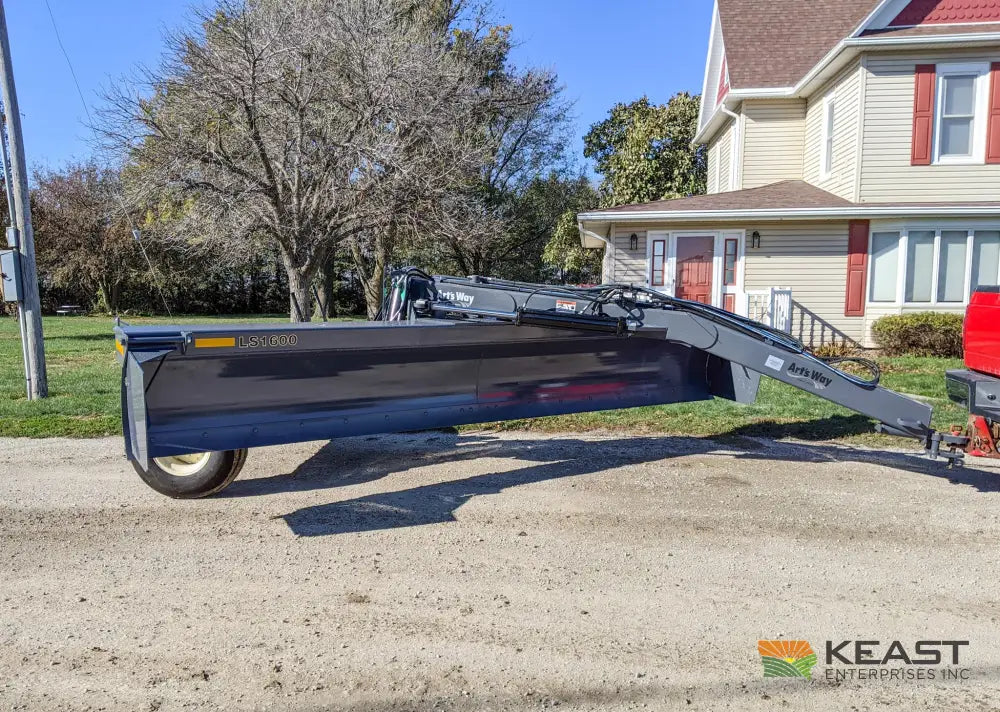

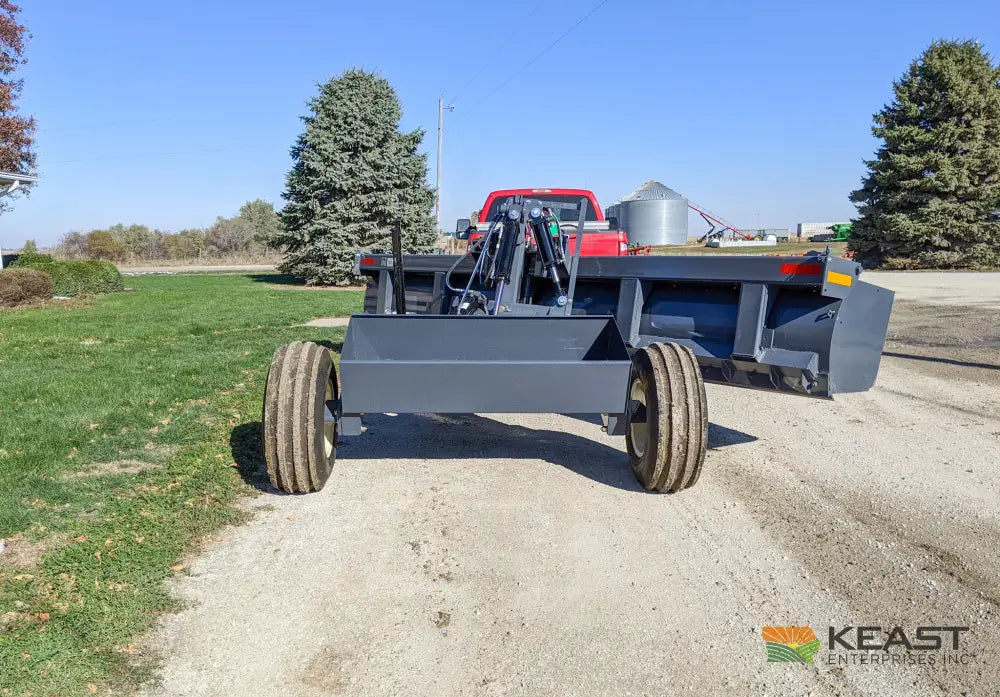

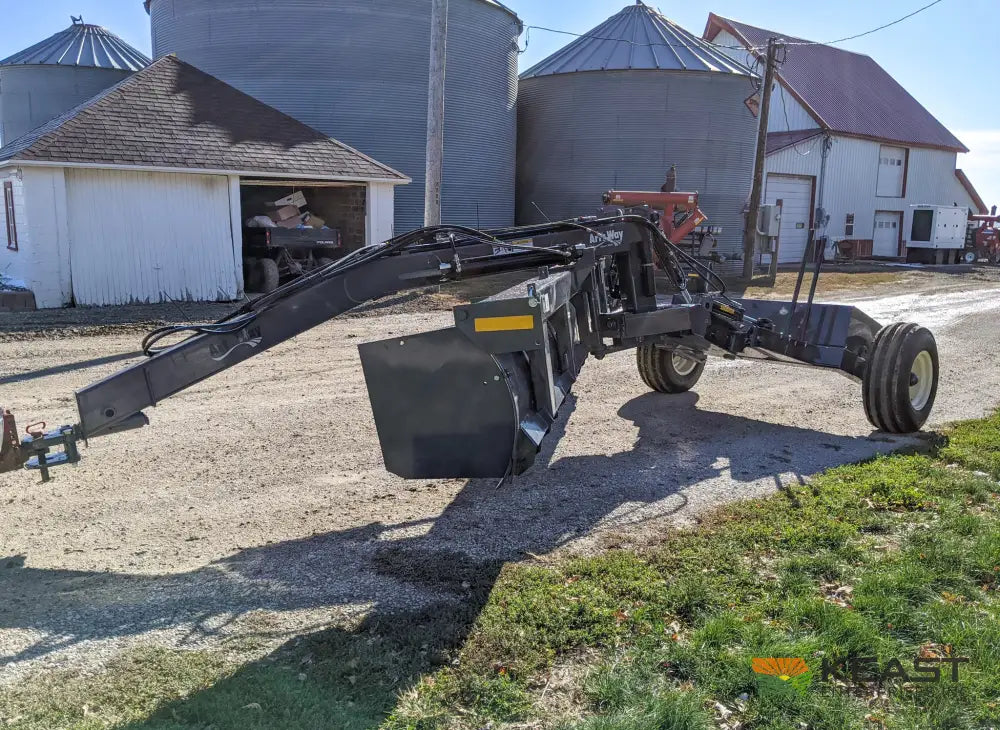

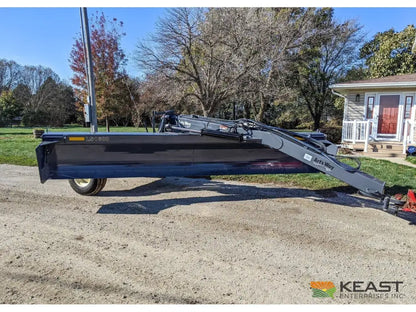

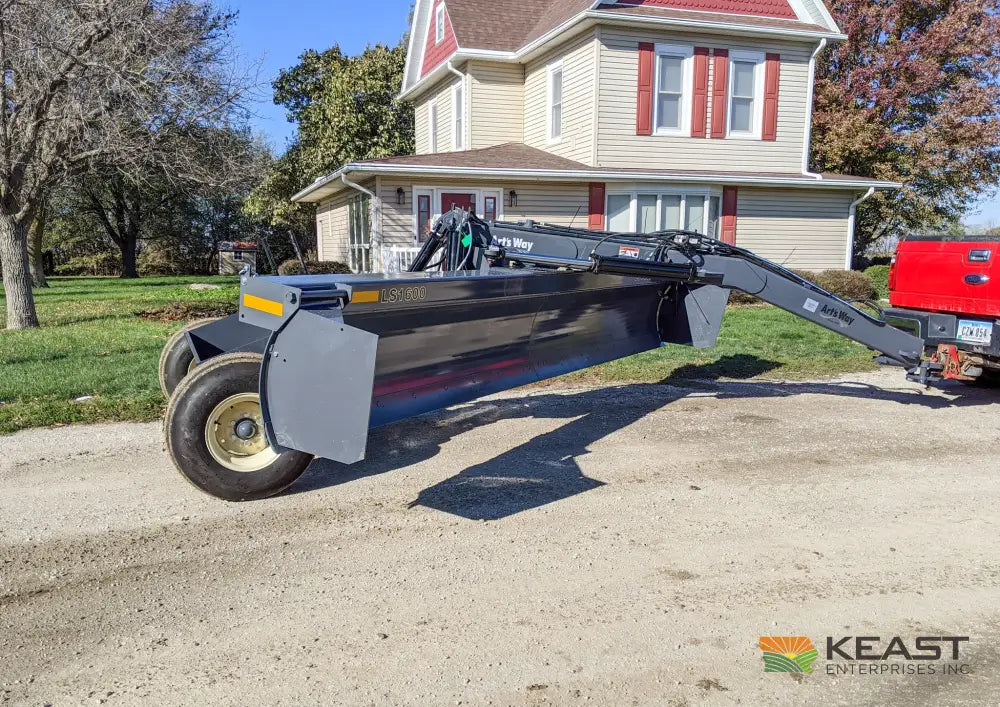

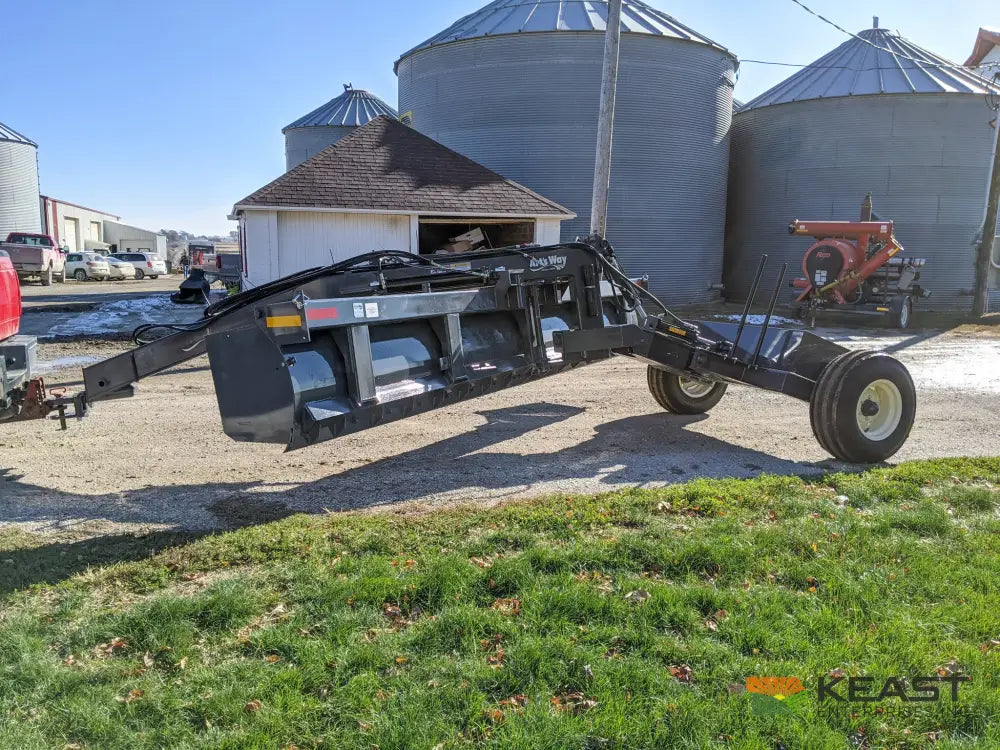

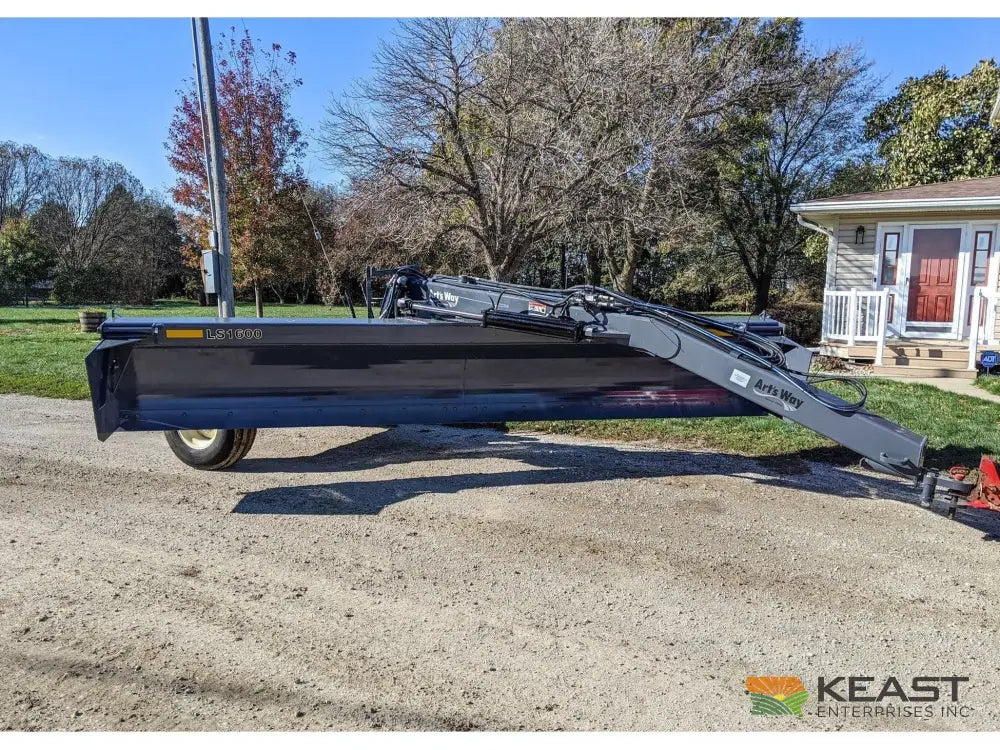

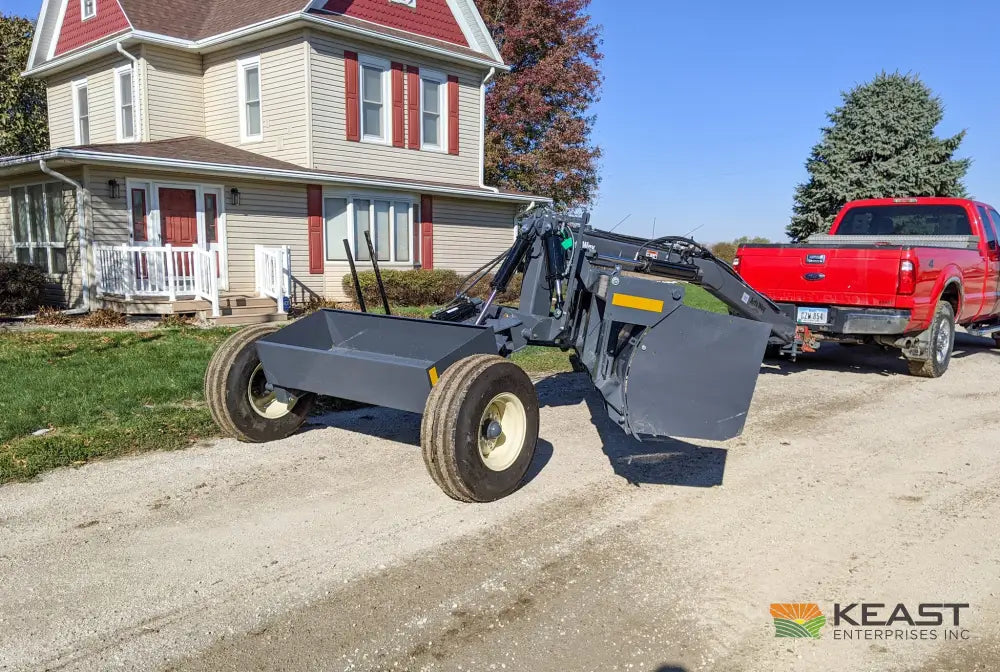

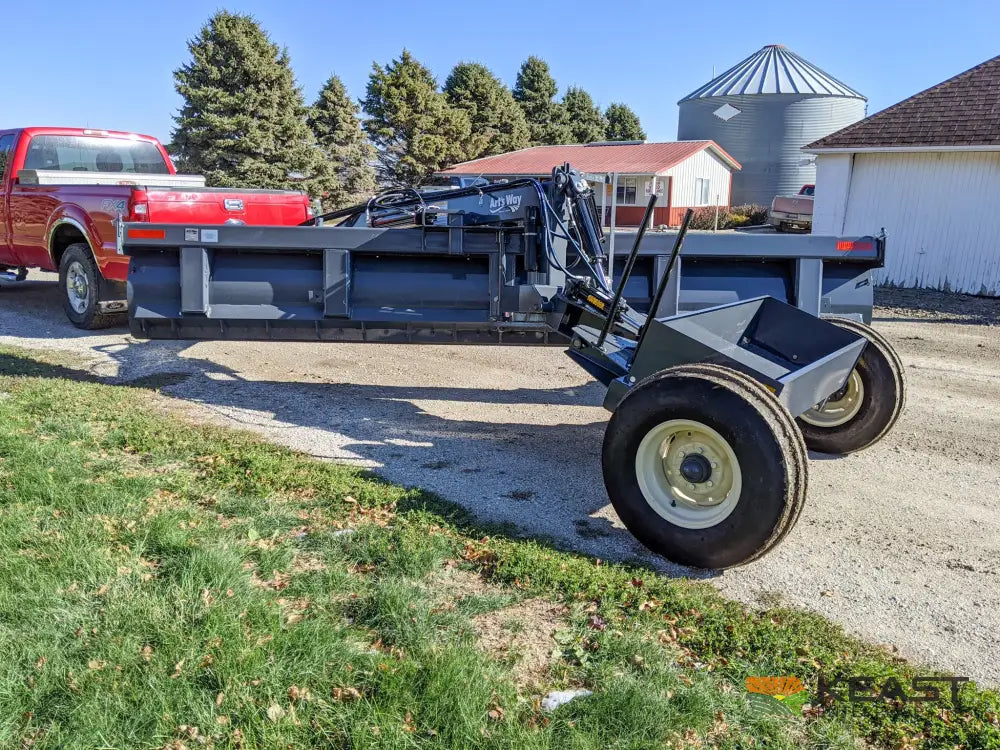

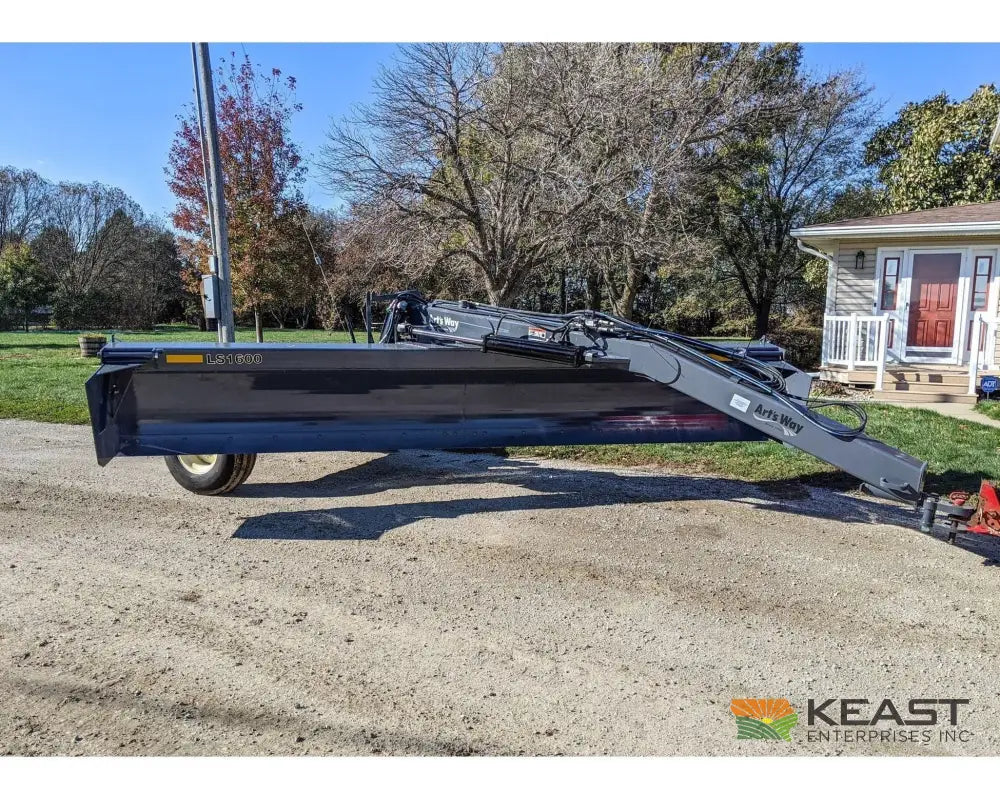

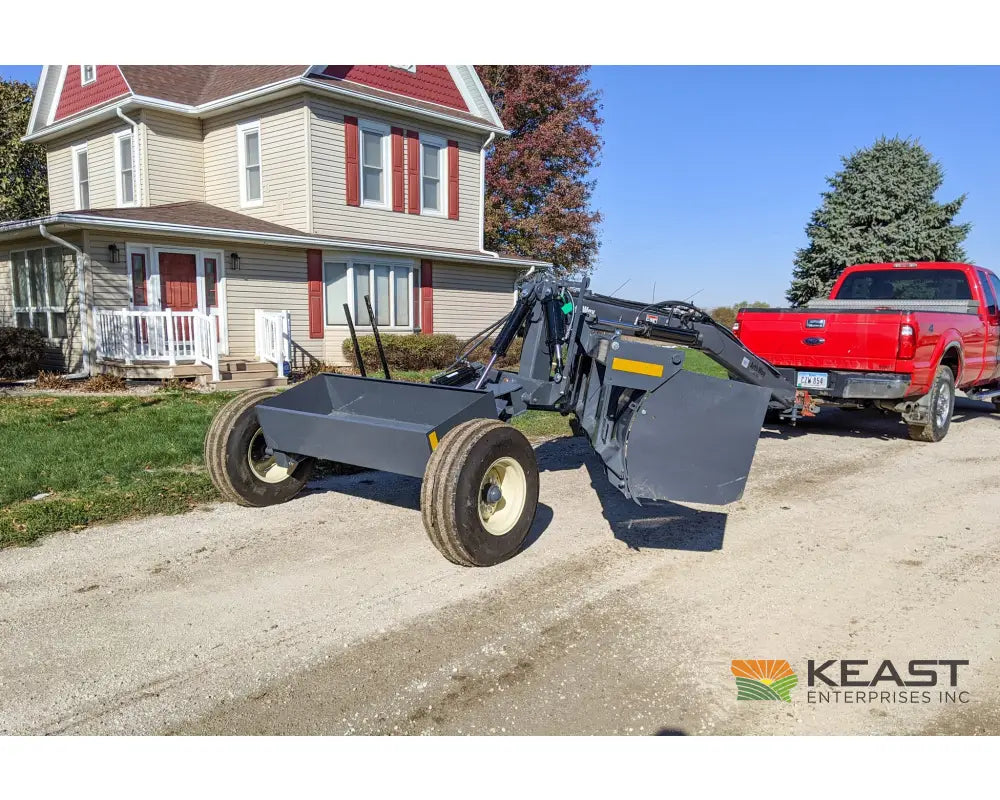

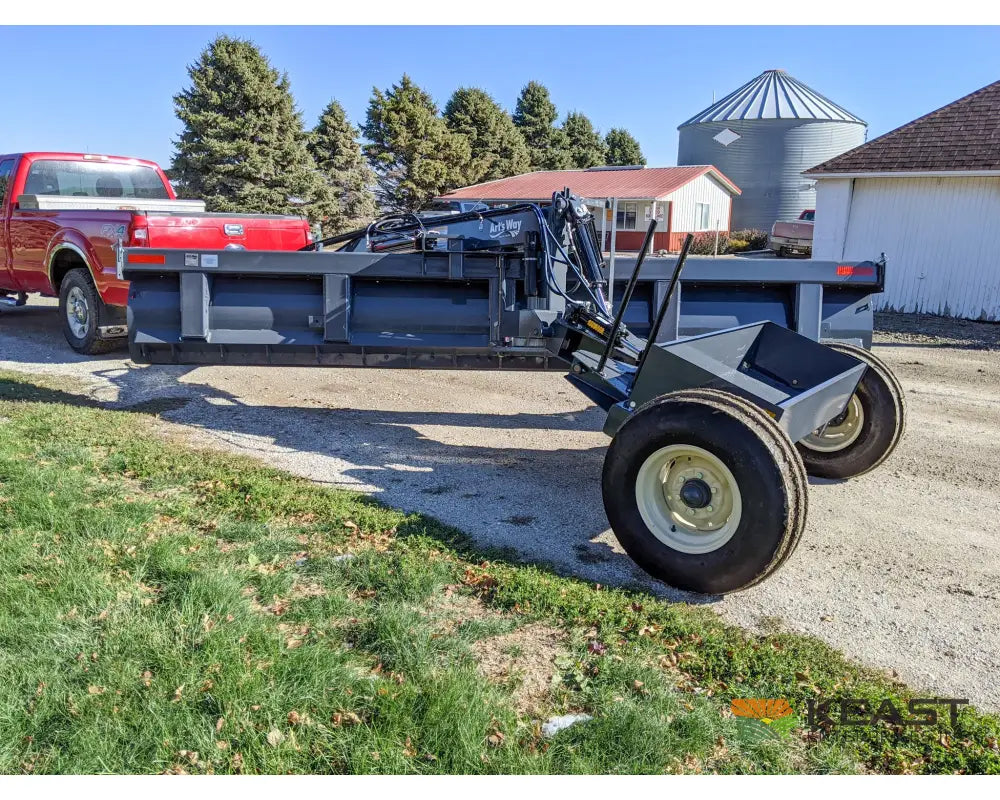

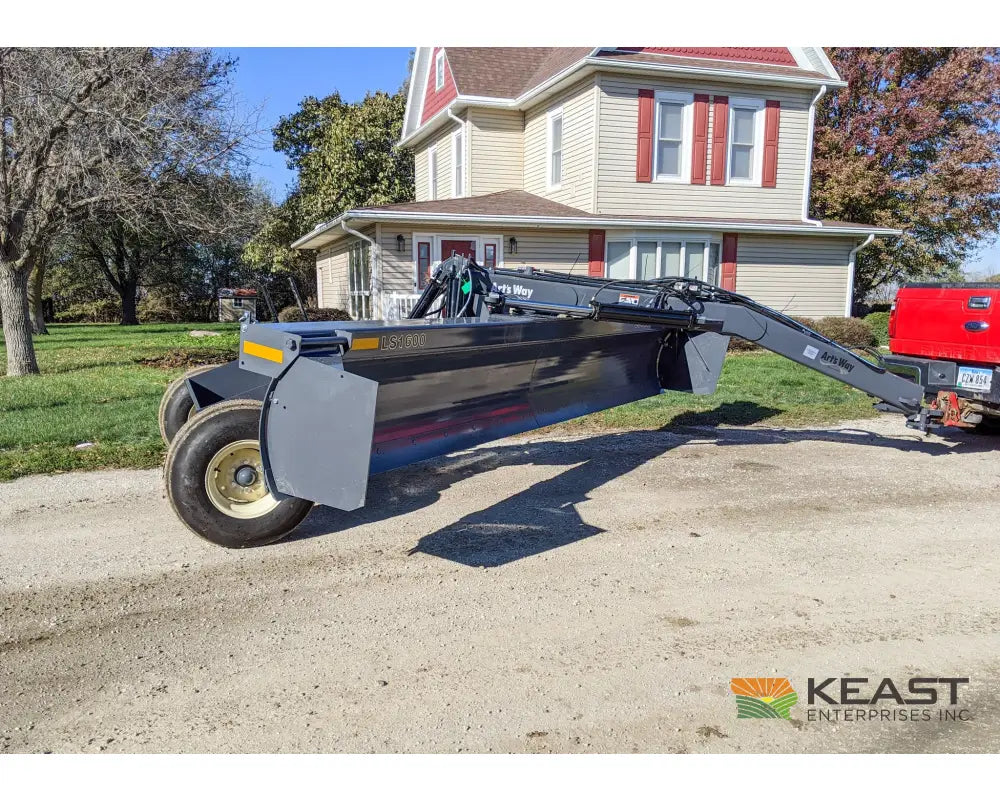

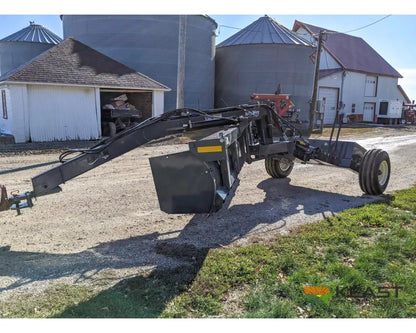

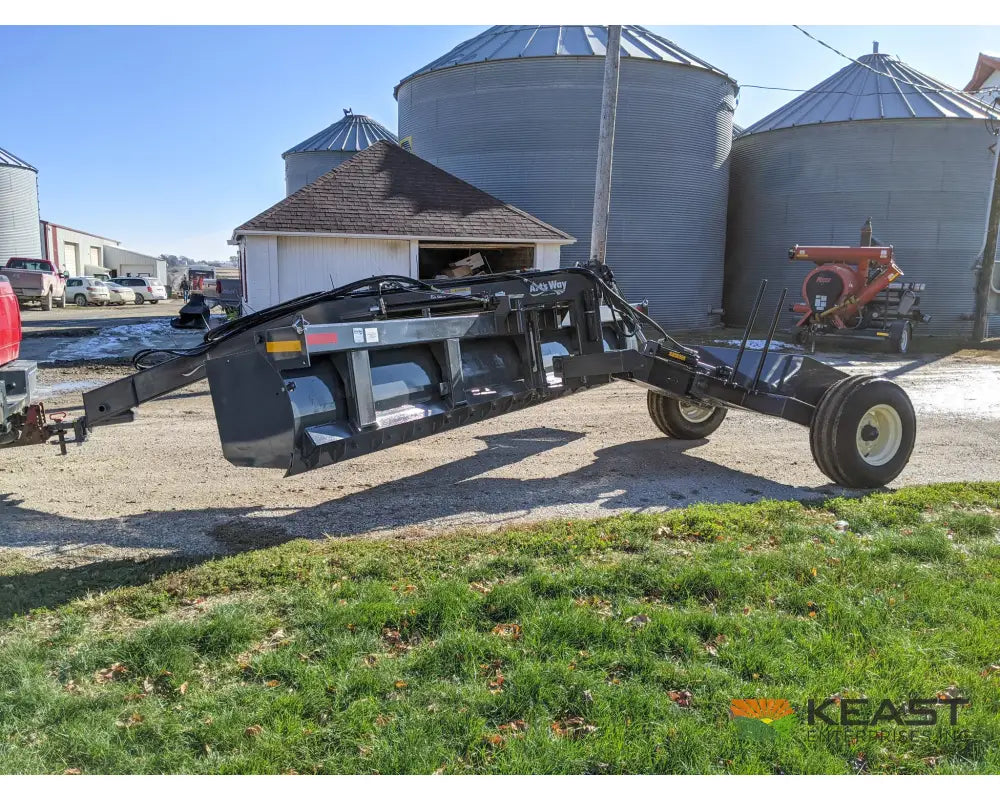

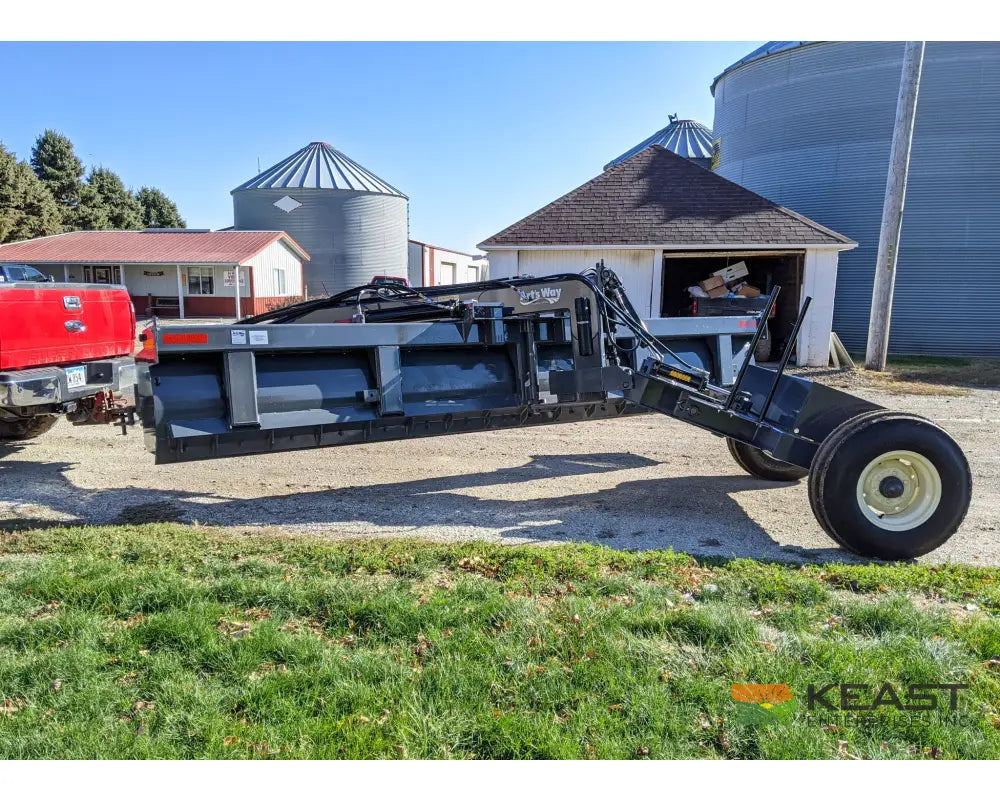

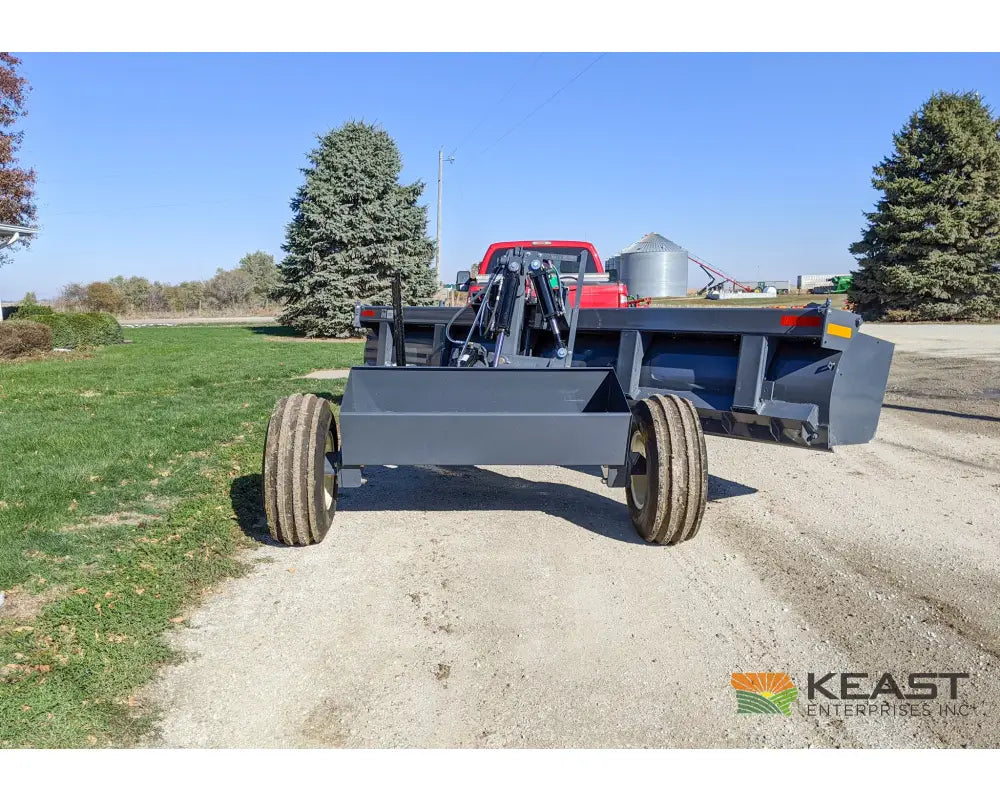

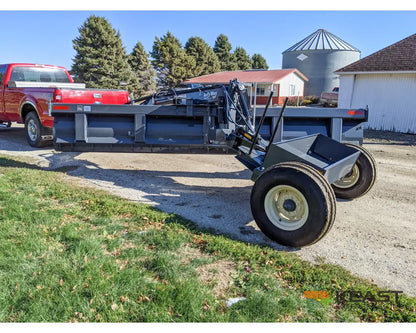

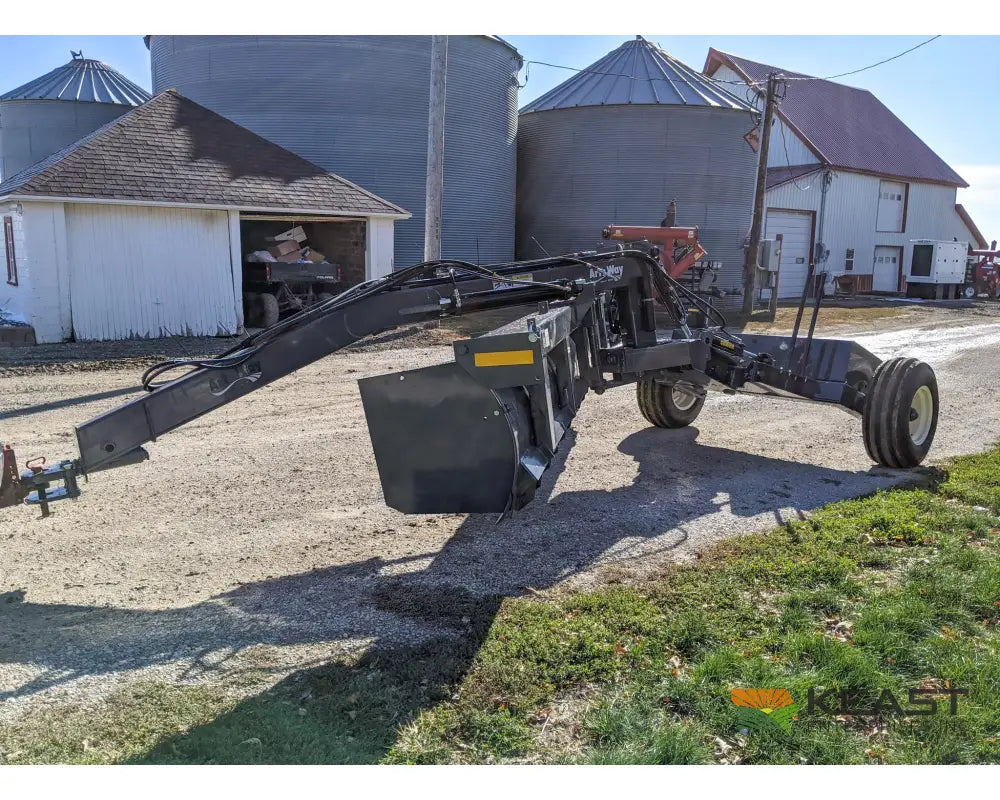

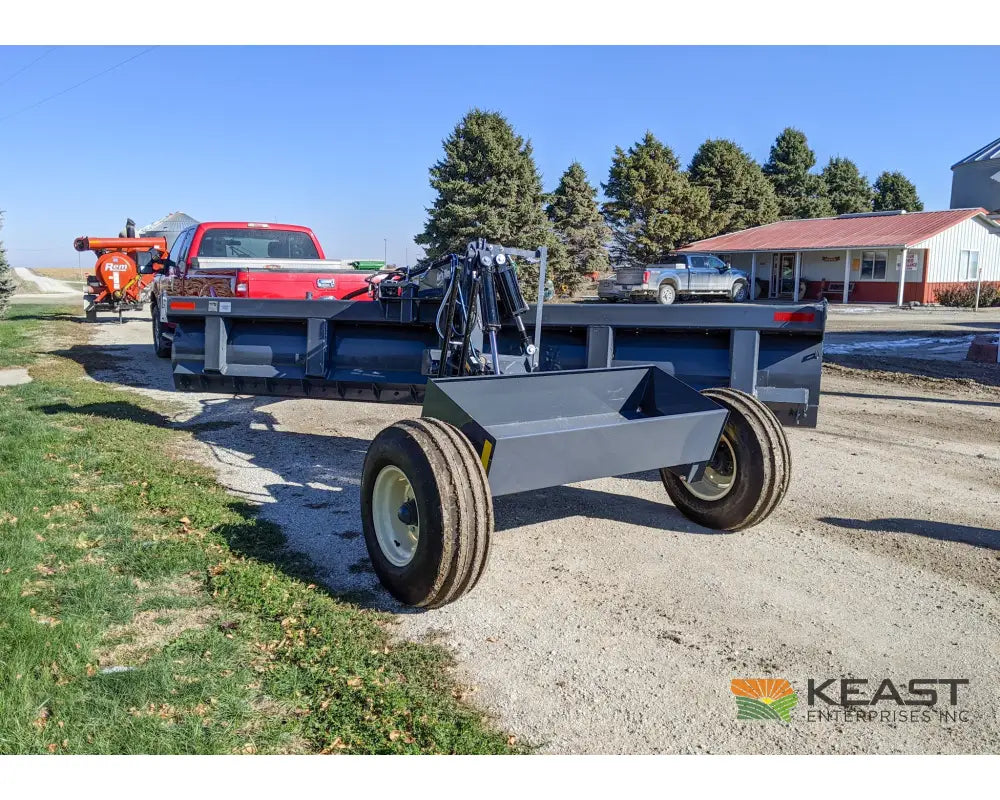

The Art’s Way LS1600 Pull‑Type Grader is a heavy‑duty blade built to tackle land grading, ditching, and leveling. It features a 16-foot blade with 15 degrees of tilt and 43 degrees of swing, so you can shape slopes and shoulders efficiently in just one pass. With 15 inches of ground clearance and a 30-inch blade height, it tackles debris and rough terrain easily. Designed for tractors rated 100–220 HP, the LS1600 offers rugged performance whether you're on the farm, maintaining roads, or prepping job sites. Hydraulic rear steer is included to help navigate tight corners.

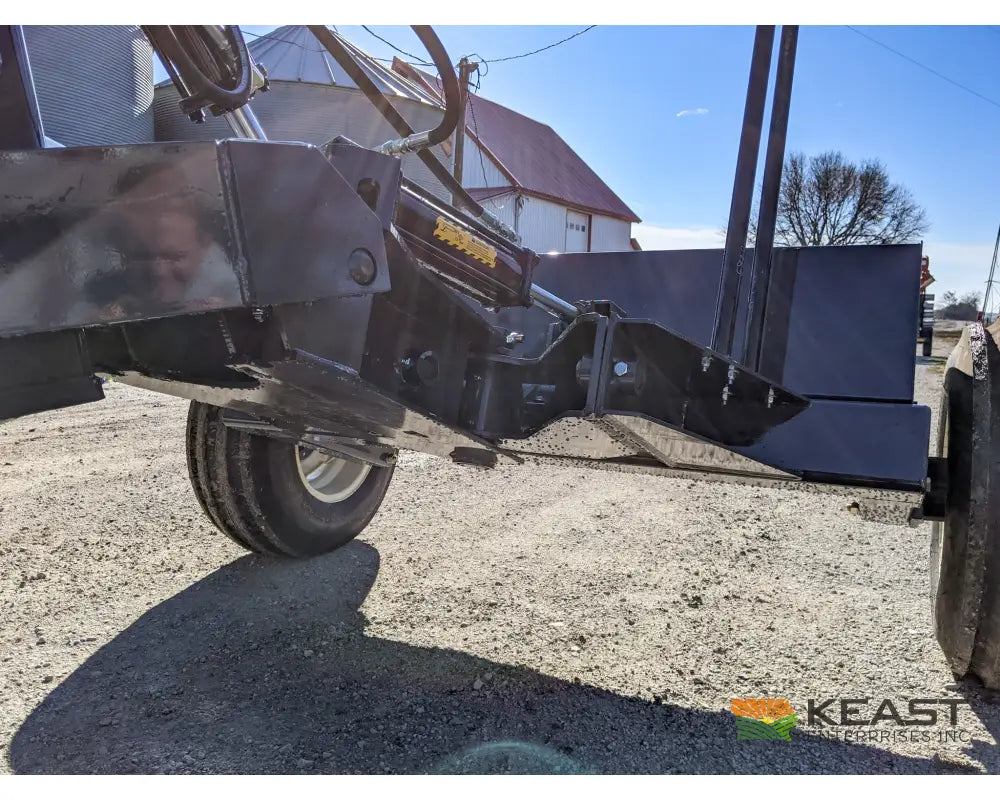

Constructed with an 8×6×5/16 steel-tube frame and a replaceable high‑carbon steel cutting edge, this grader is built to last. The unit weighs approximately 3,305 lb, with a 680 lb tongue weight for stable towing. Transport width is 9 ft 8 in, making it manageable on narrow roads or through gates.

Key Features

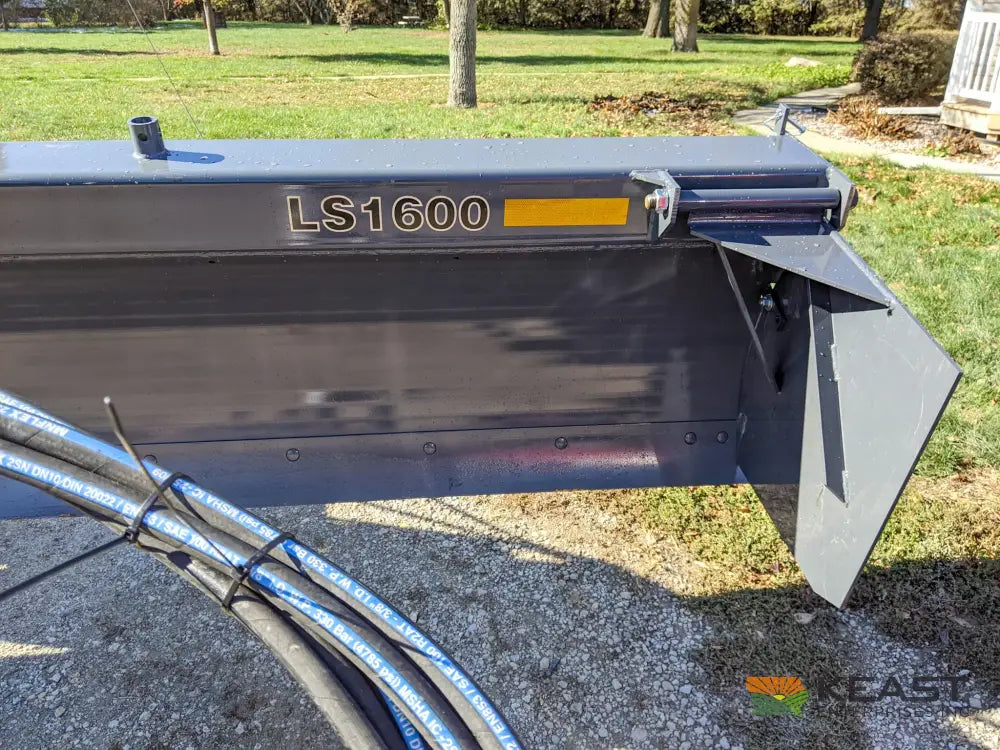

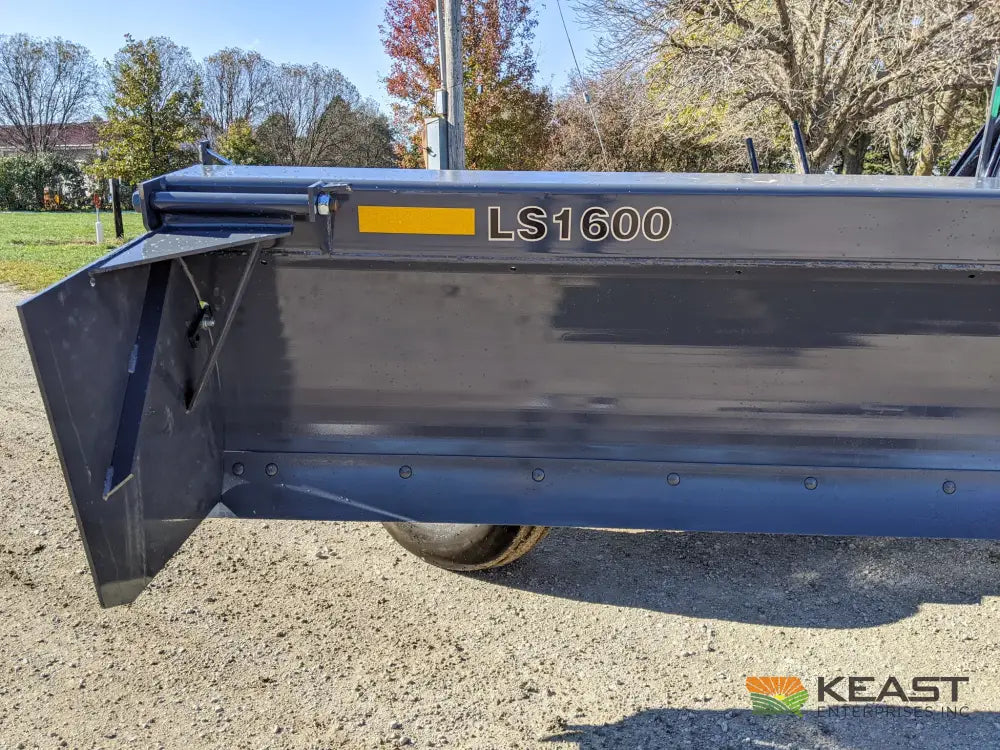

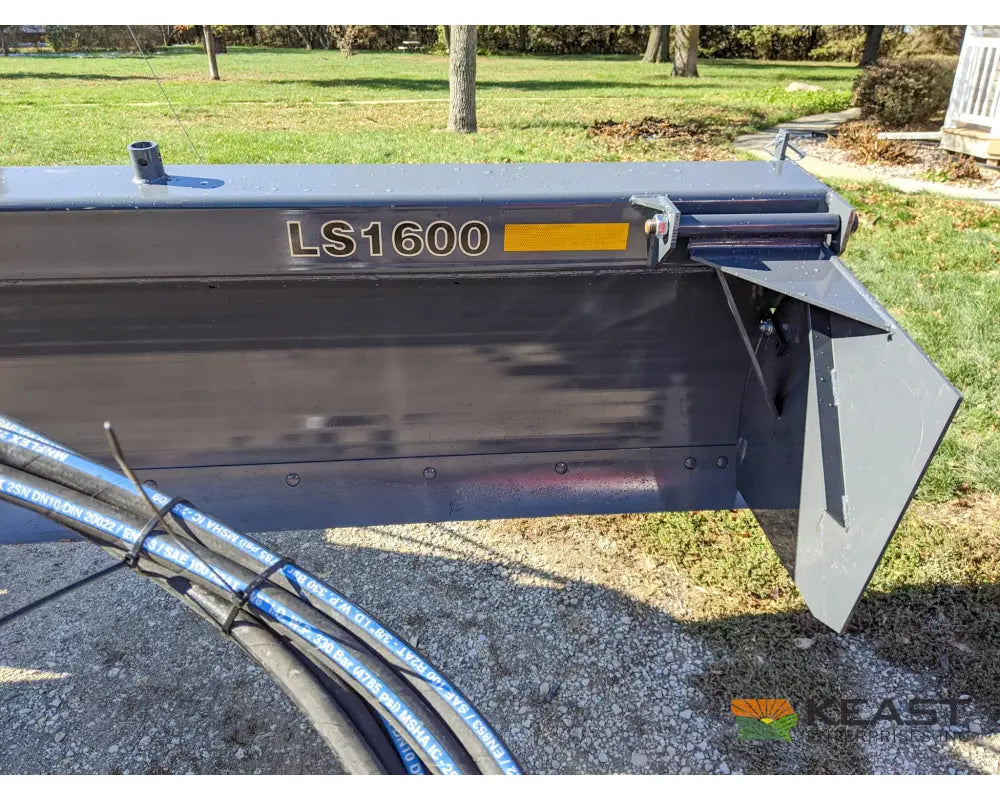

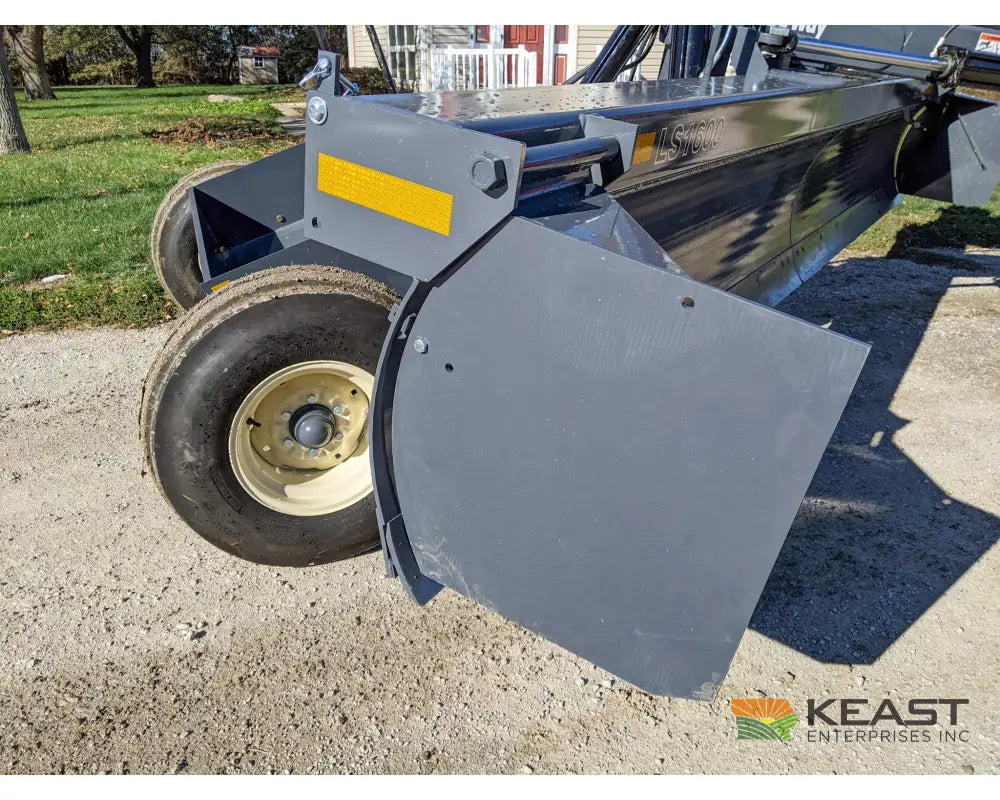

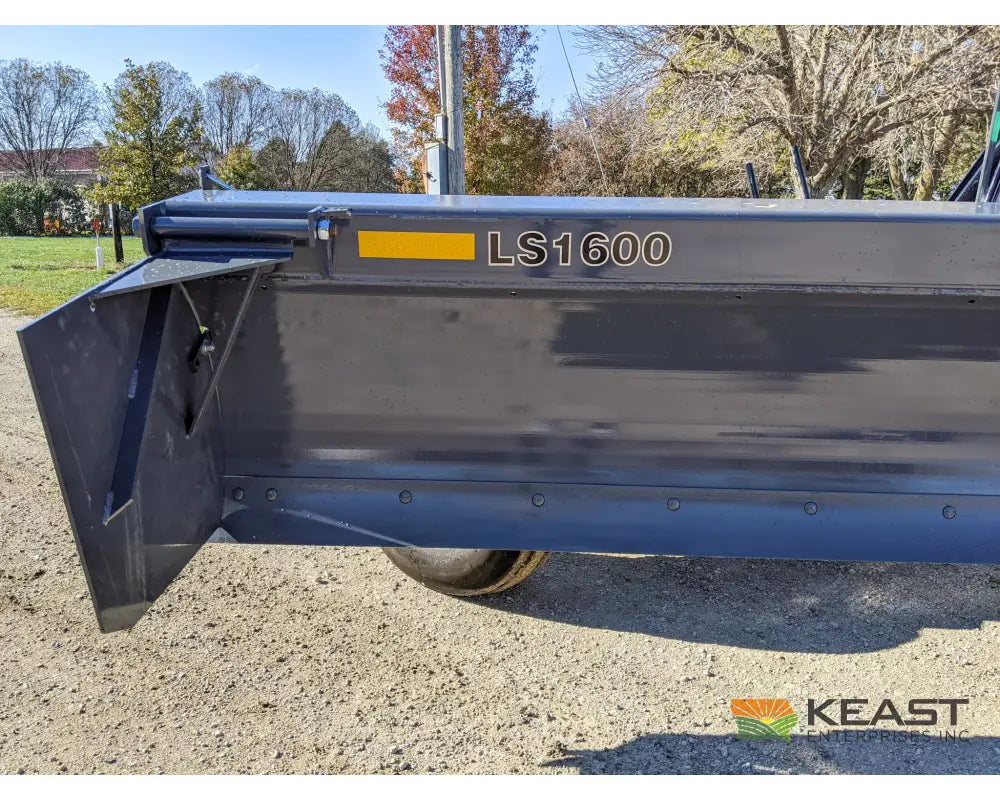

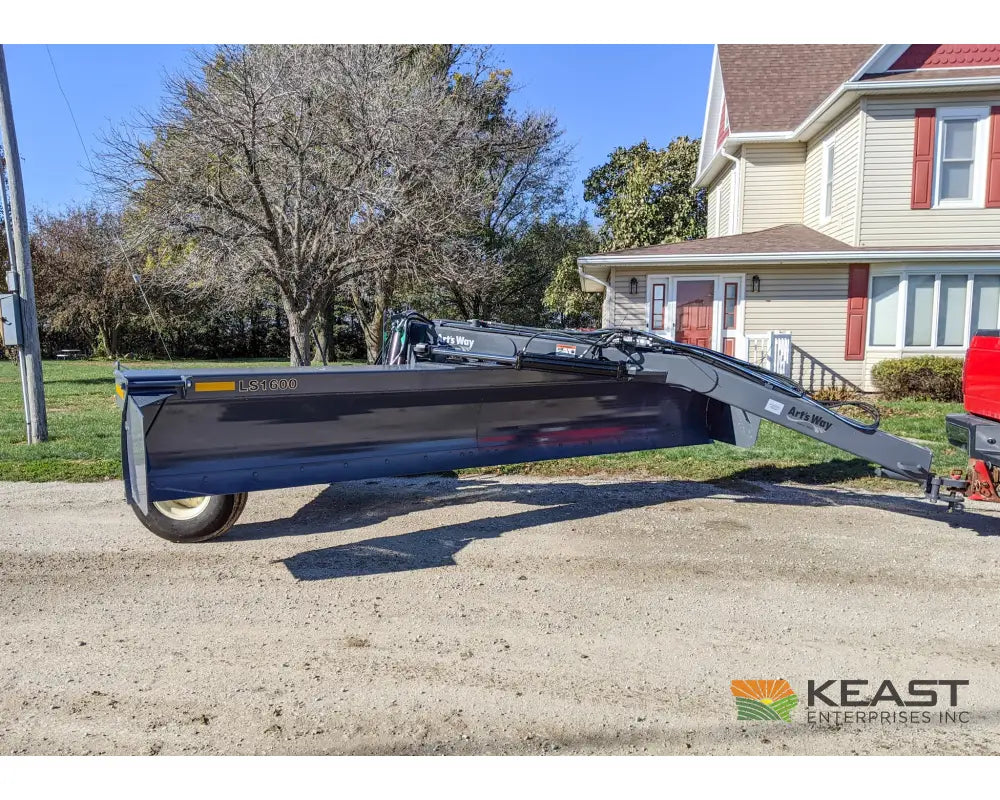

Heavy-Duty 16‑Foot Blade
The 16' blade with 15° tilt and 43° swing lets you finish grading slopes and ditches in fewer passes.

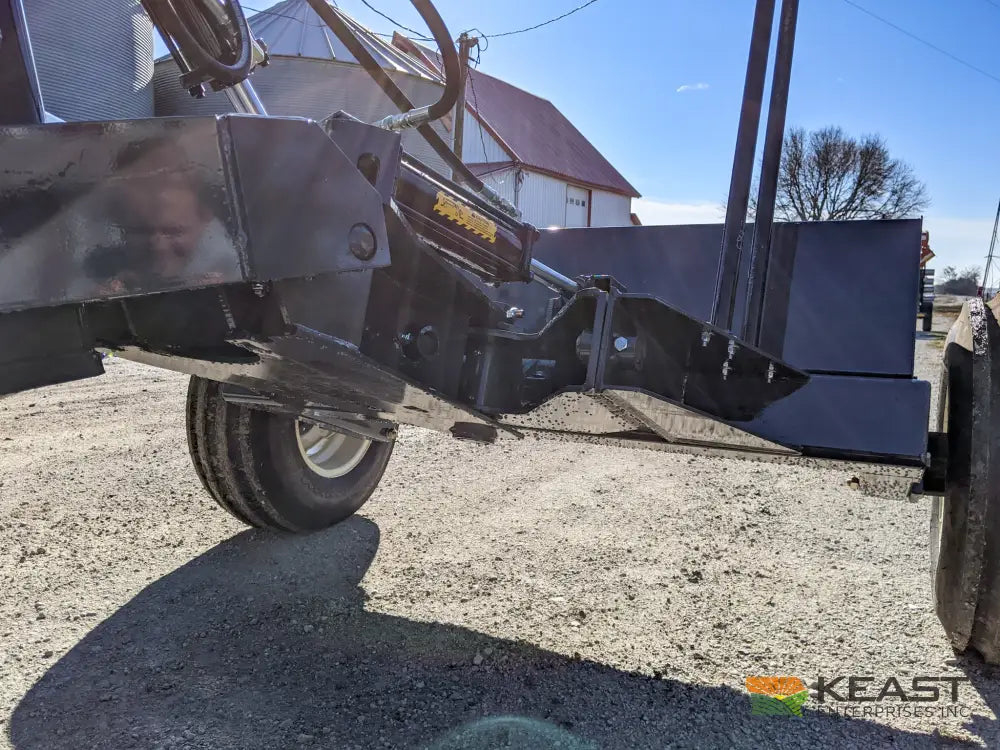

High Ground Clearance
With 15″ of clearance and 30″ blade height, the LS1600 powers through uneven ground and debris easily.

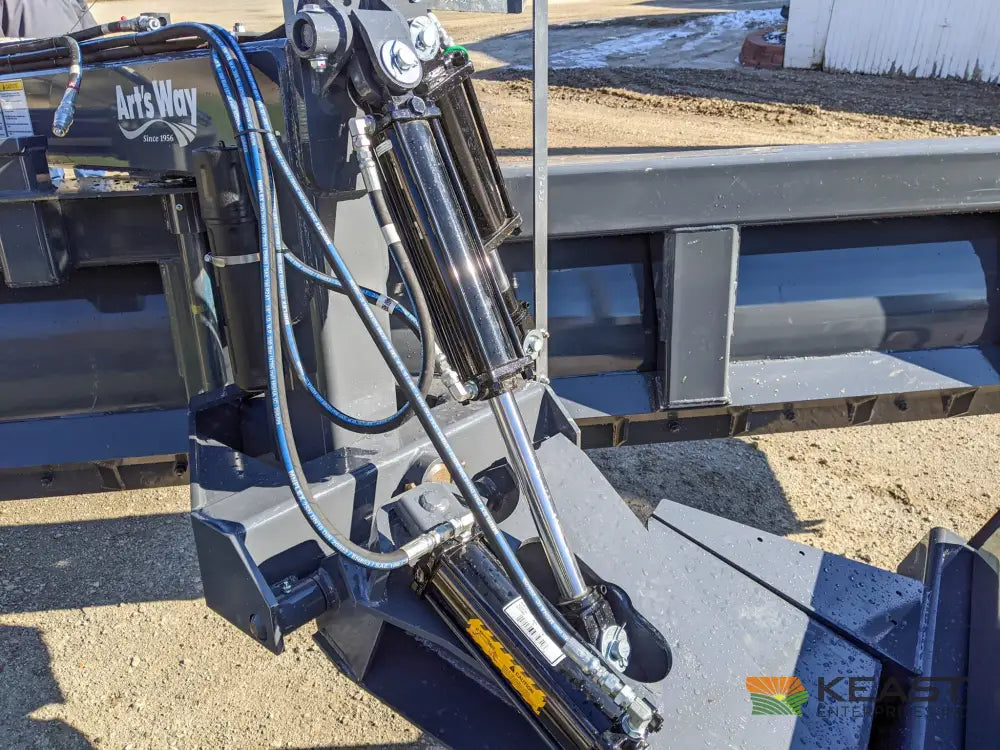

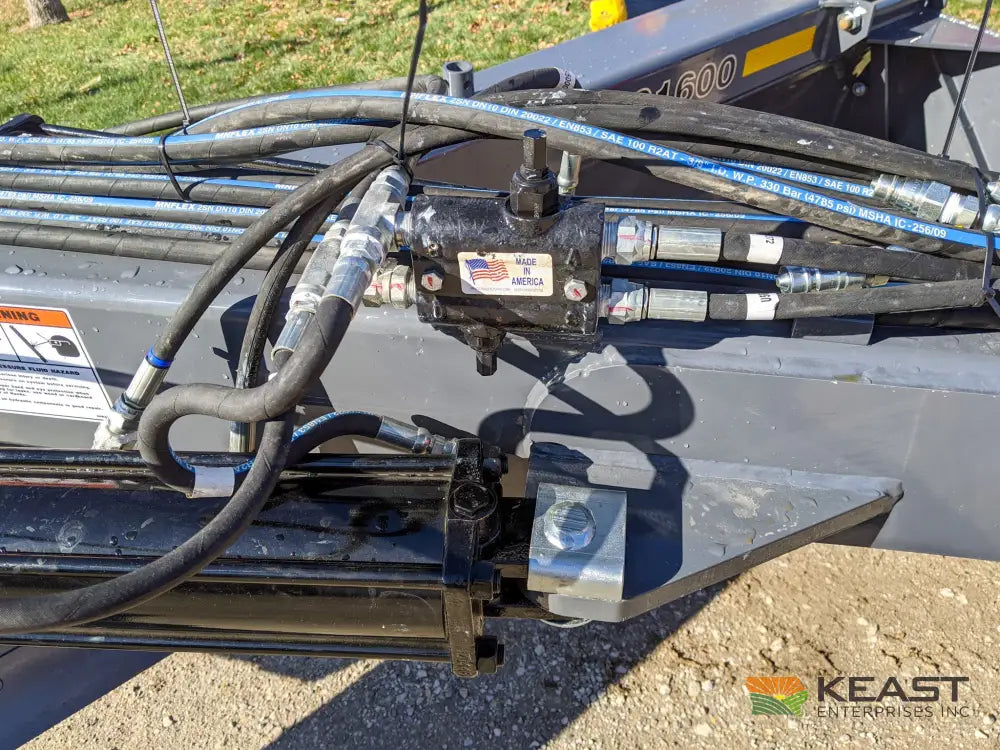

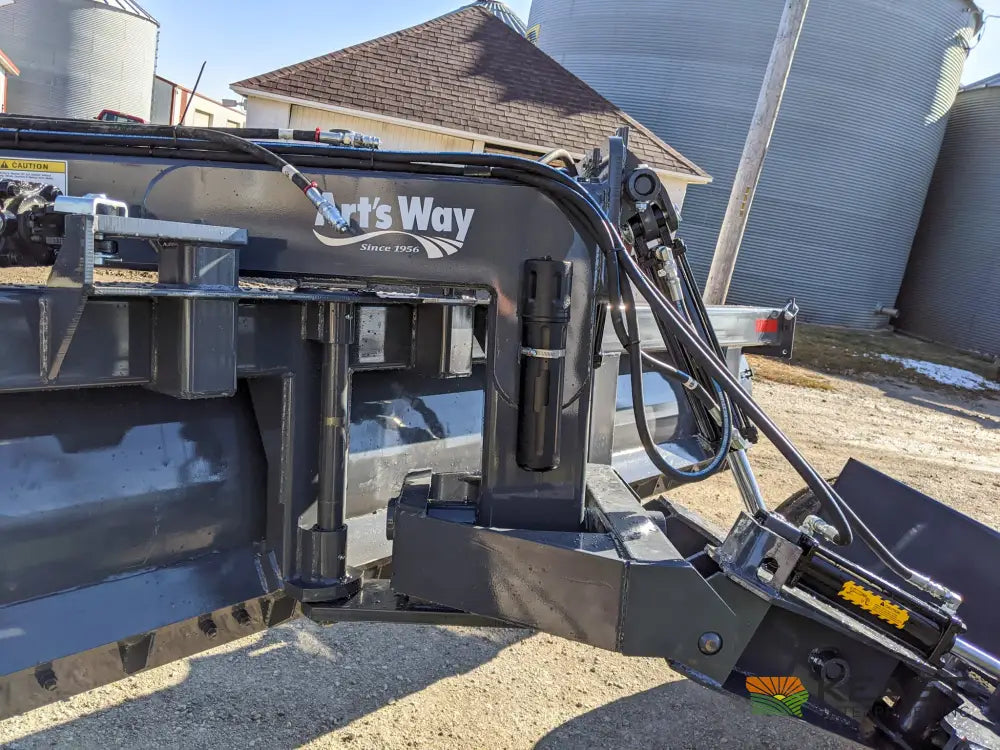

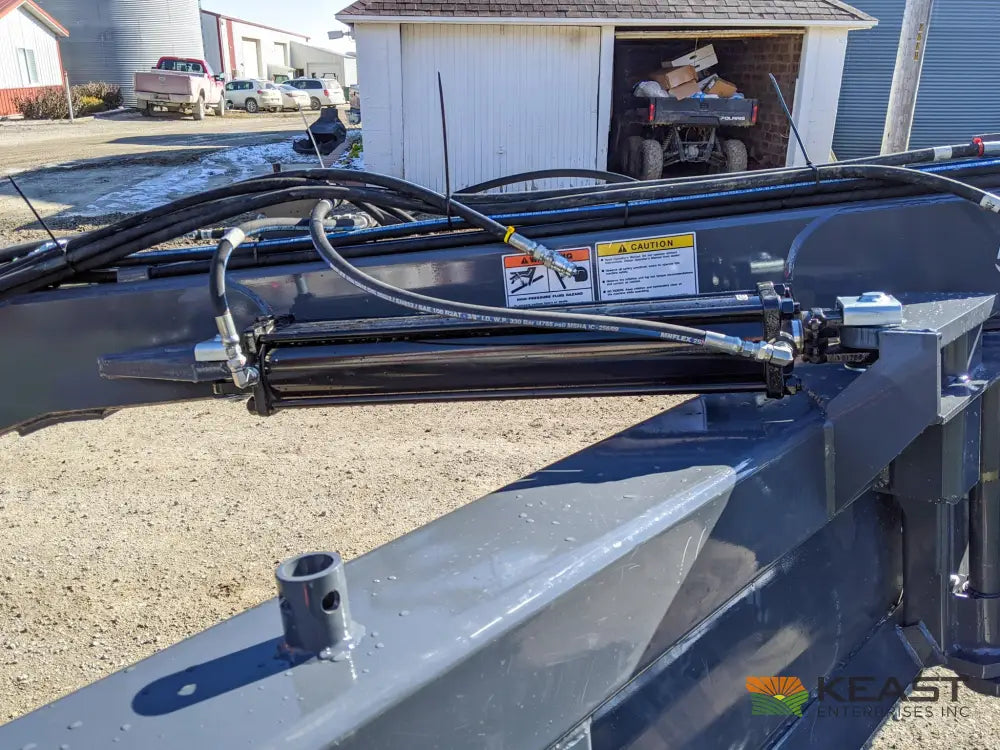

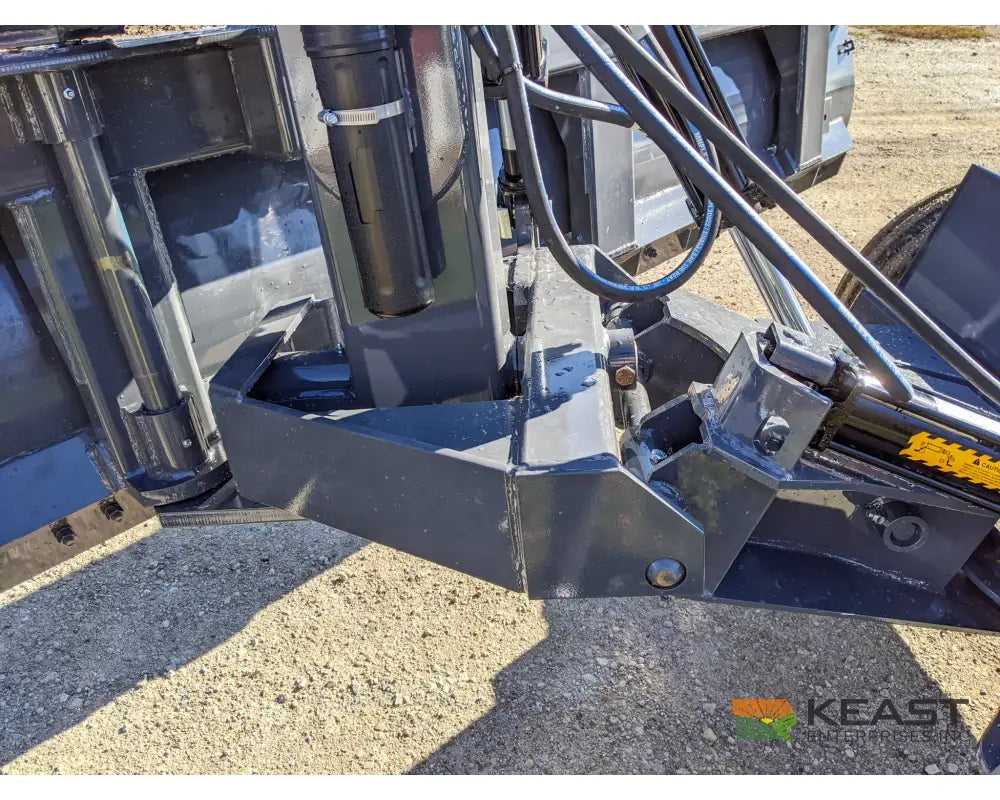

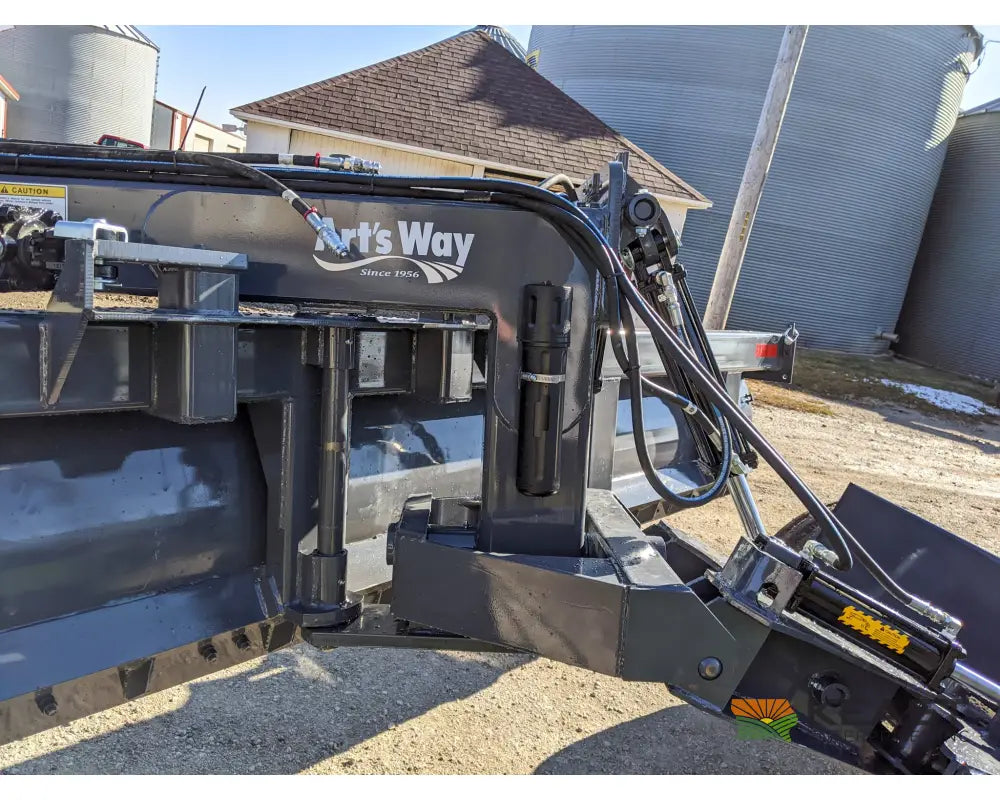

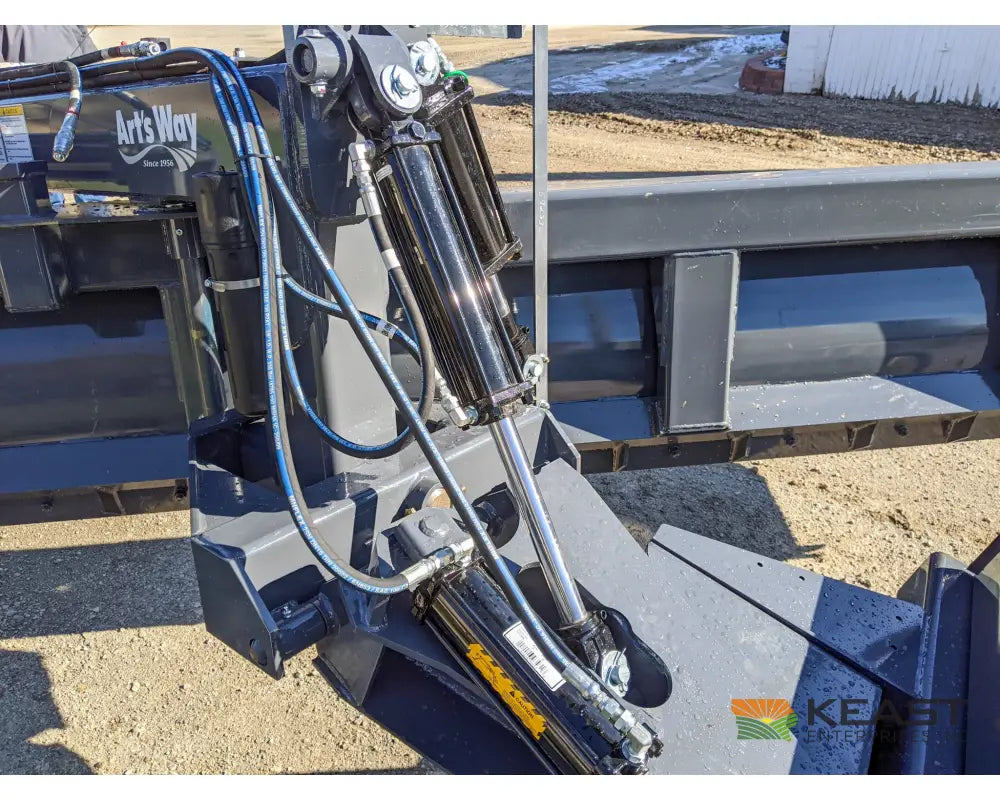

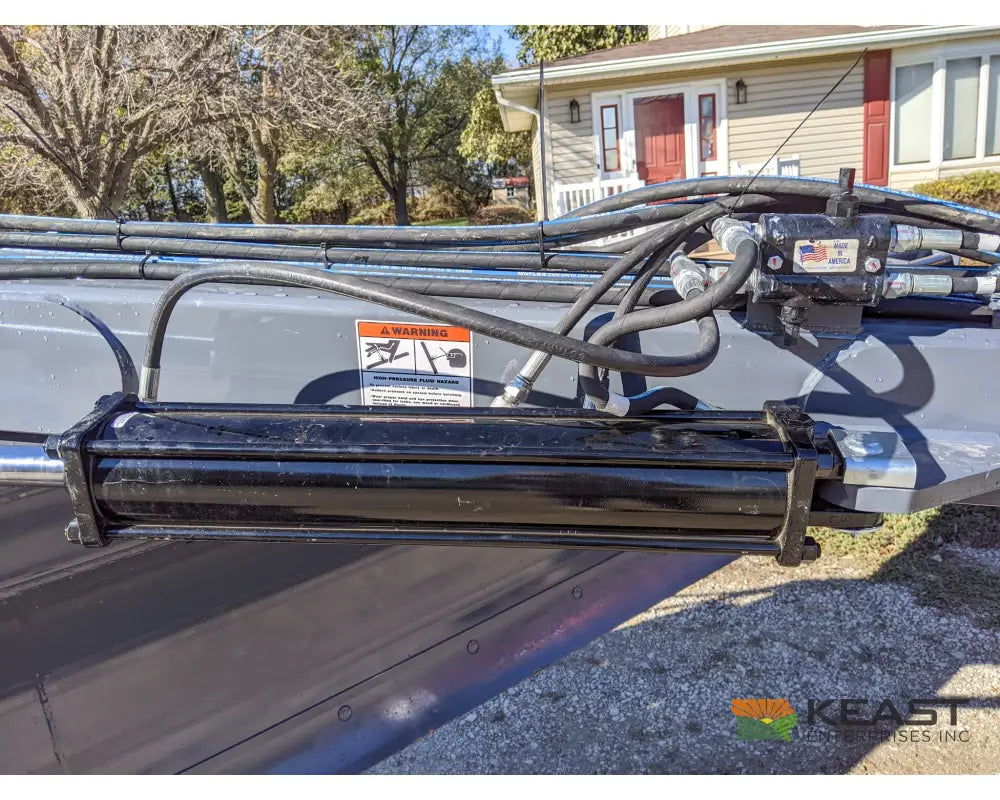

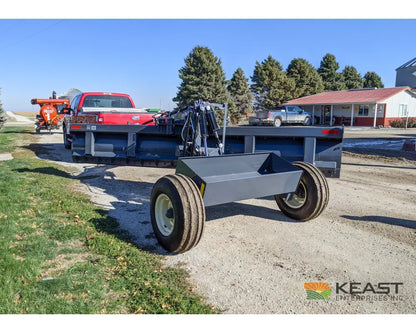

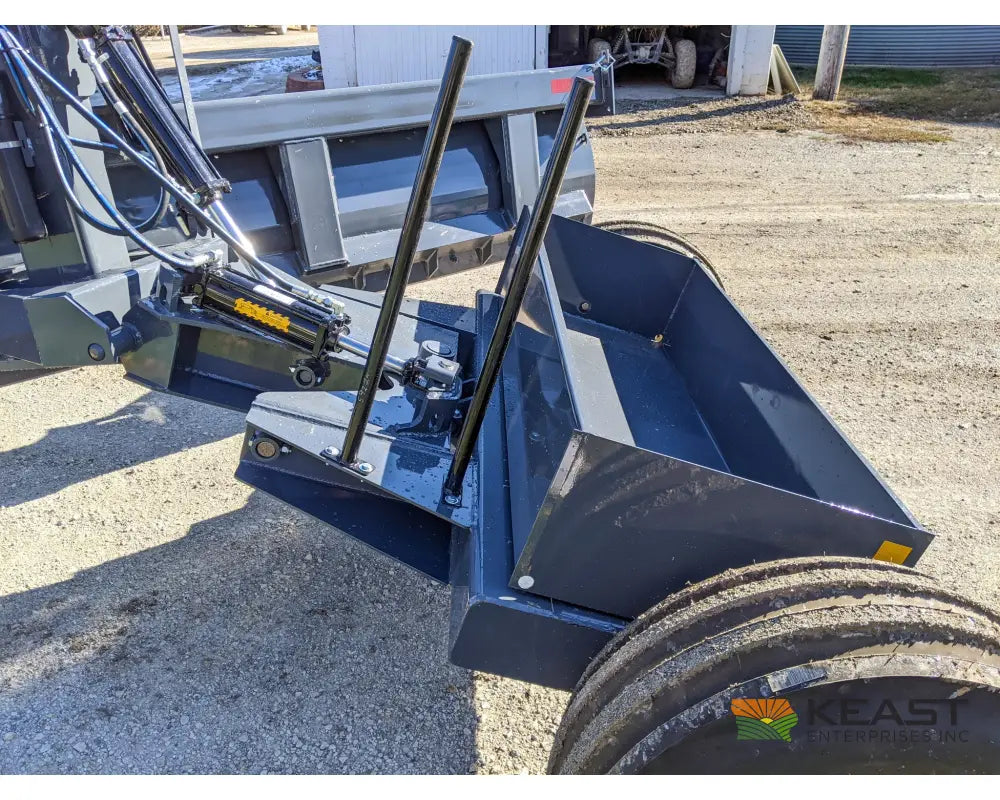

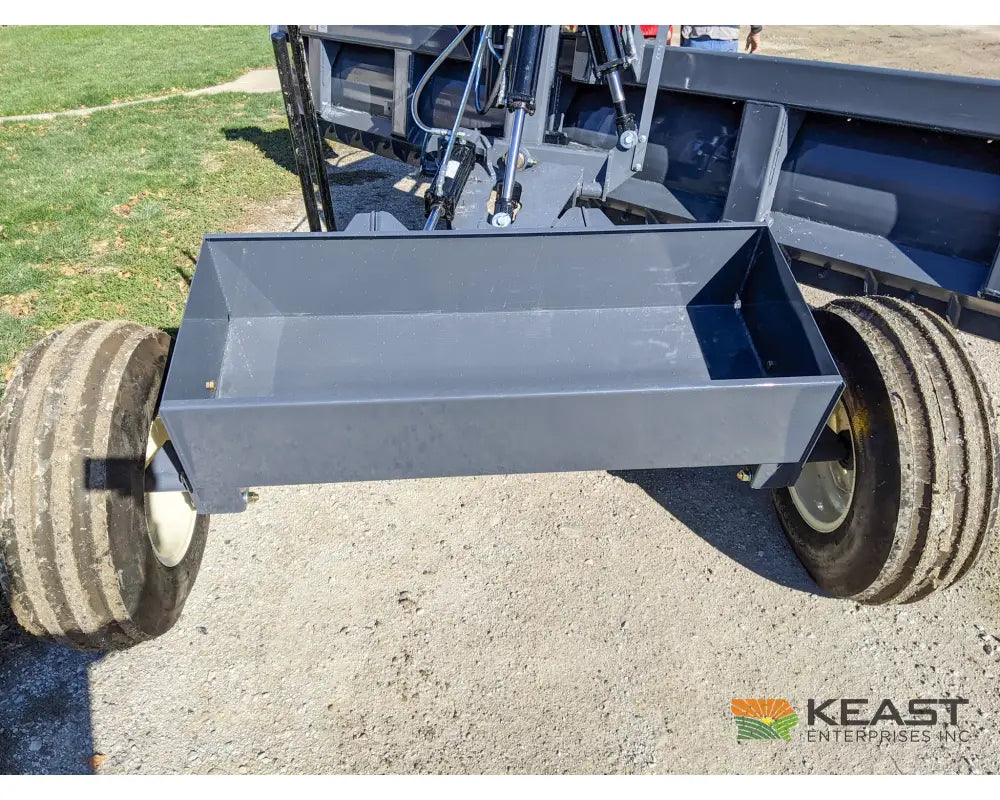

Rear Steer Option

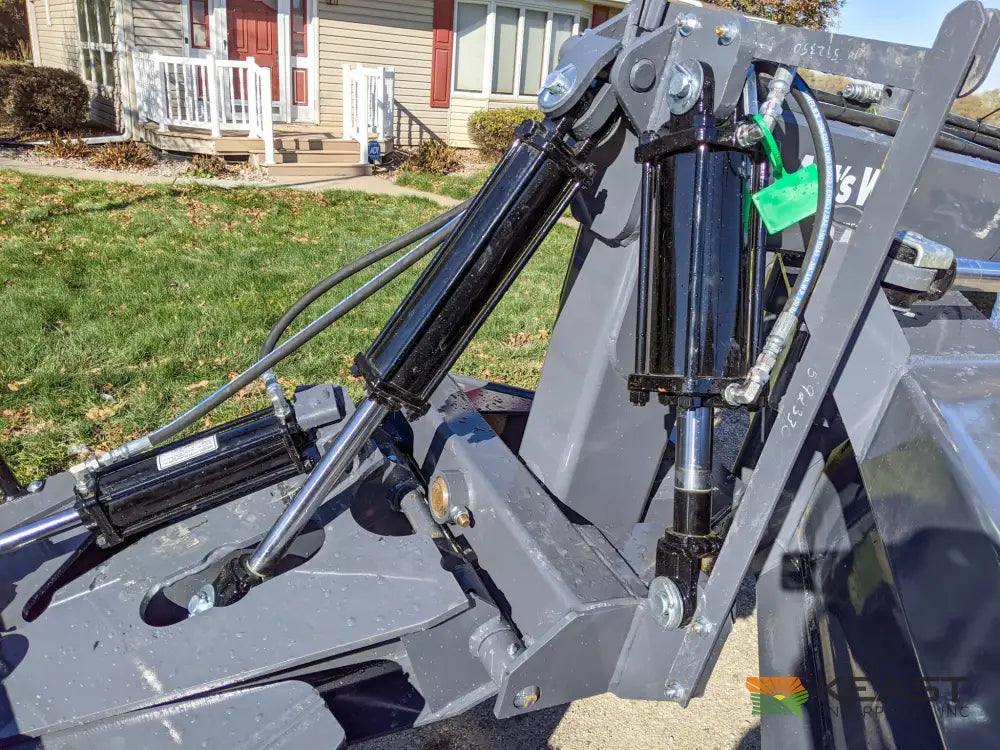

Hydraulic rear steer lets you offset the blade up to five feet for precise work near fencelines or structures.

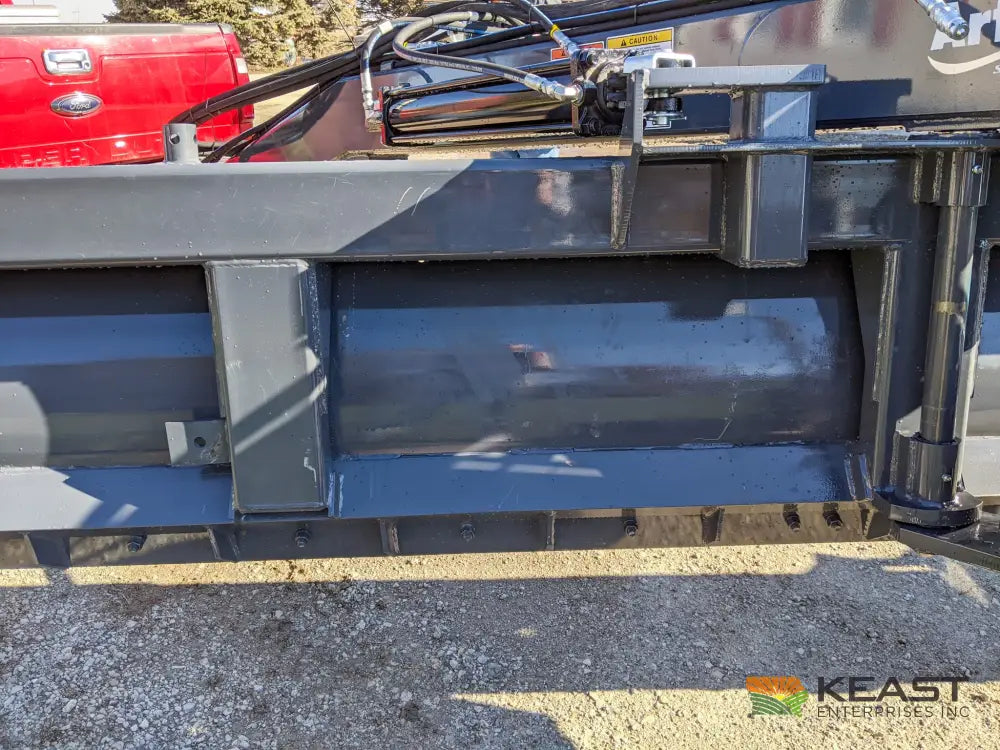

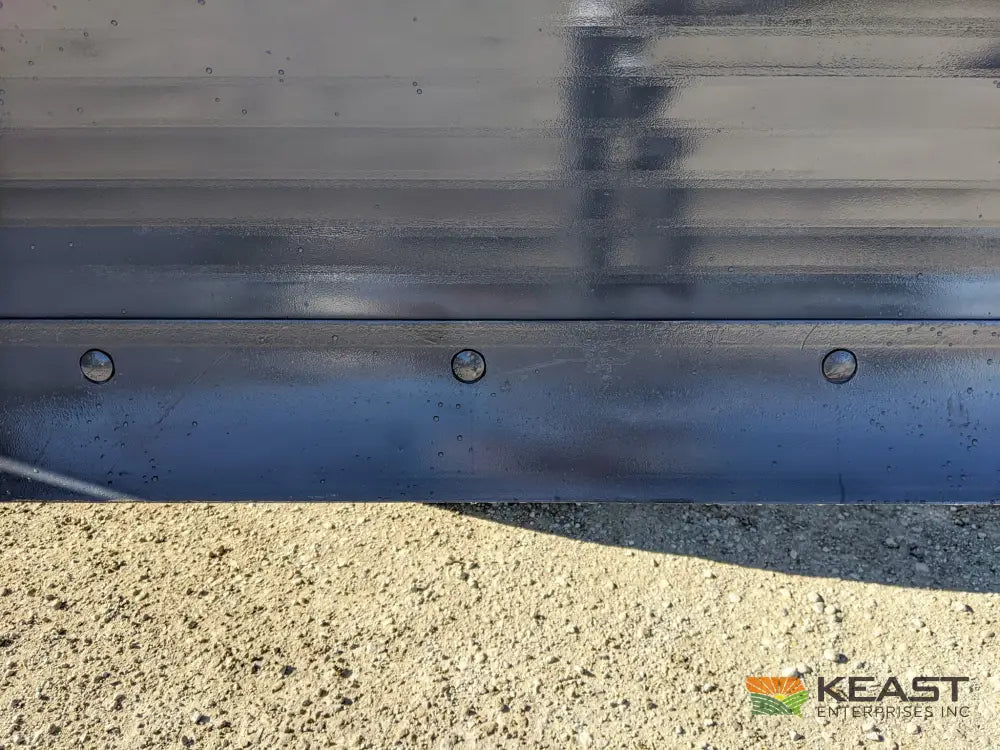

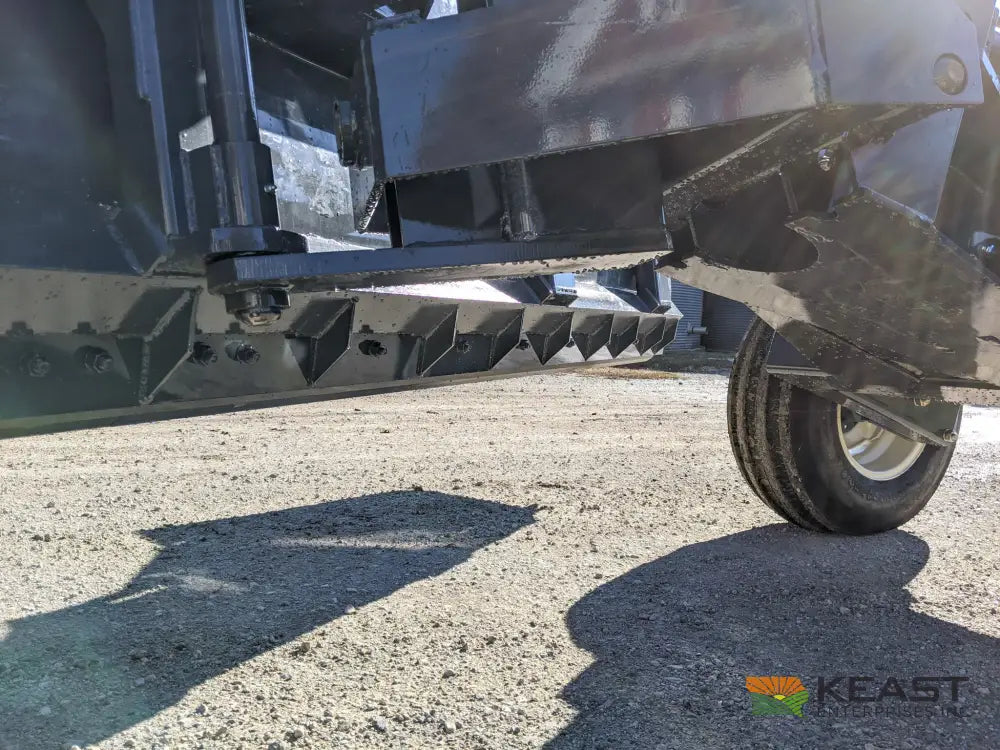

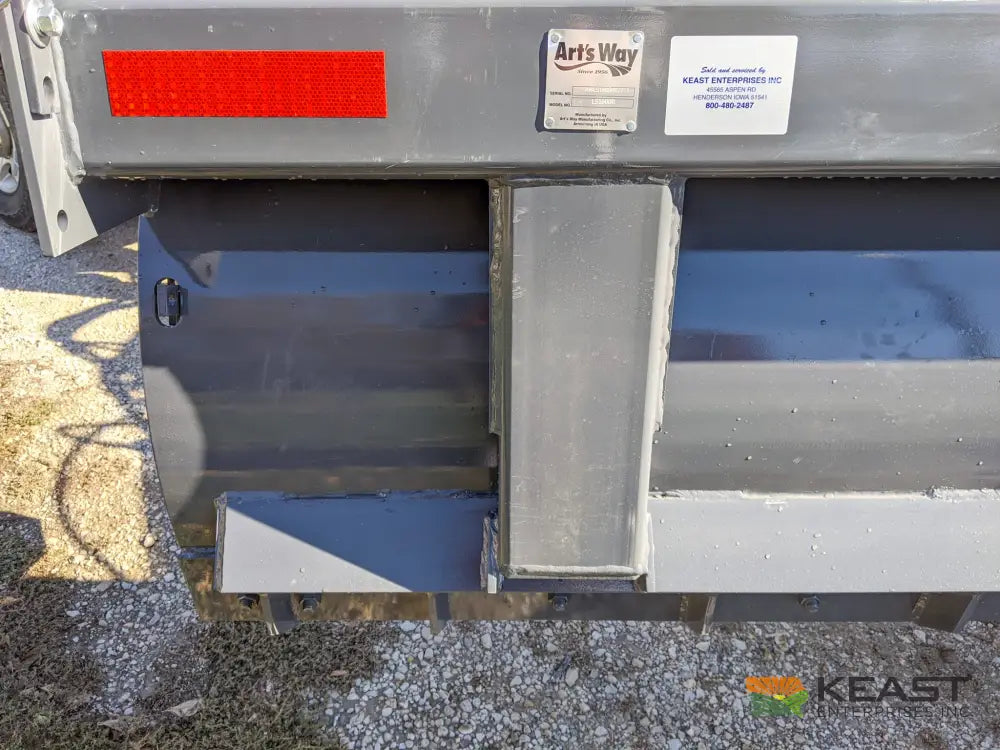

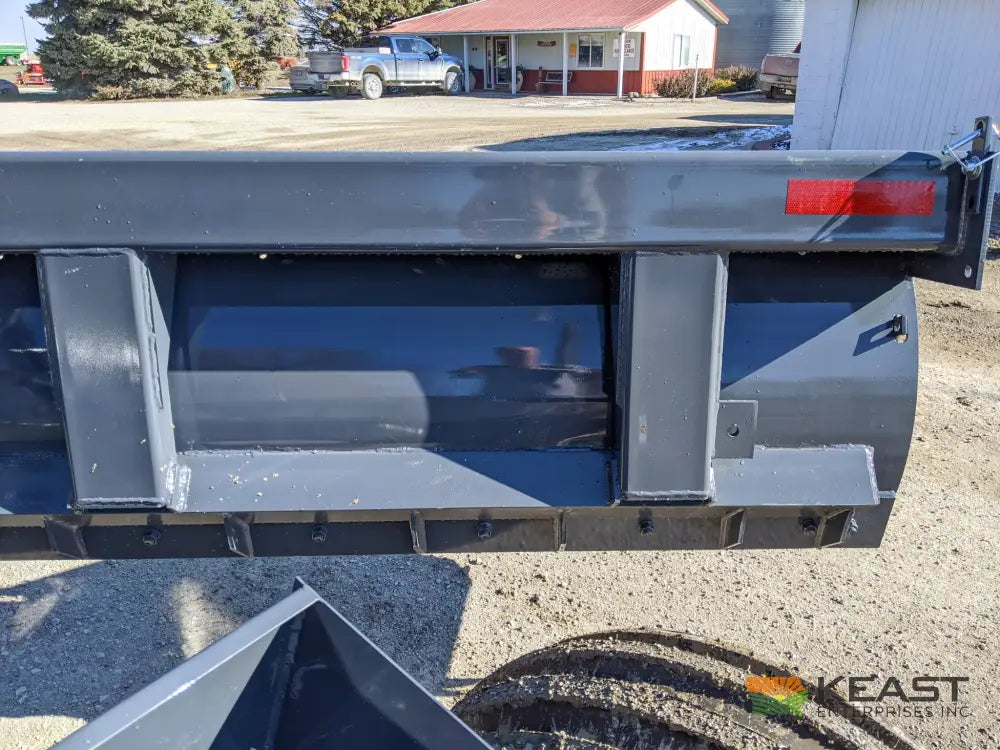

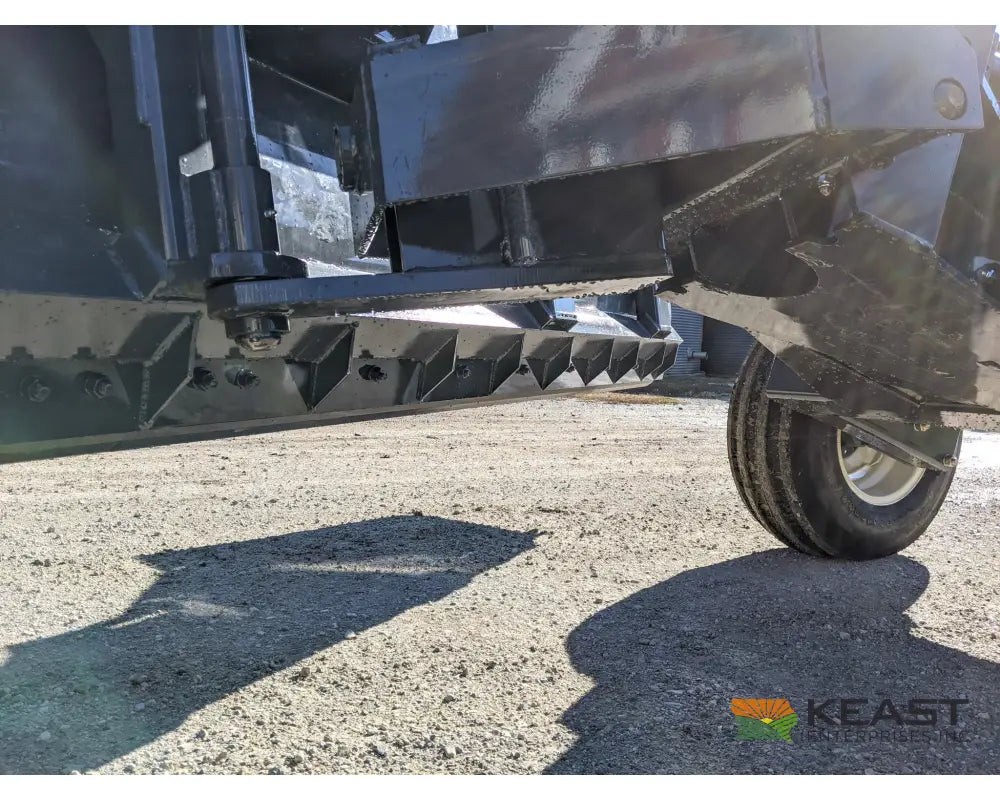

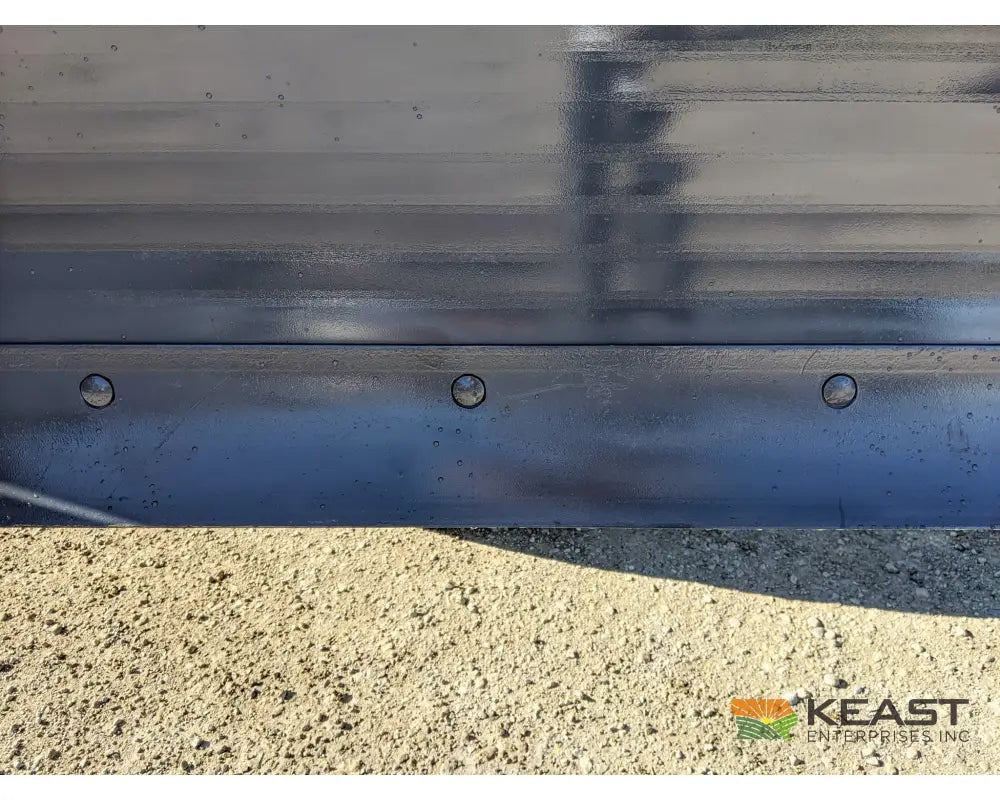

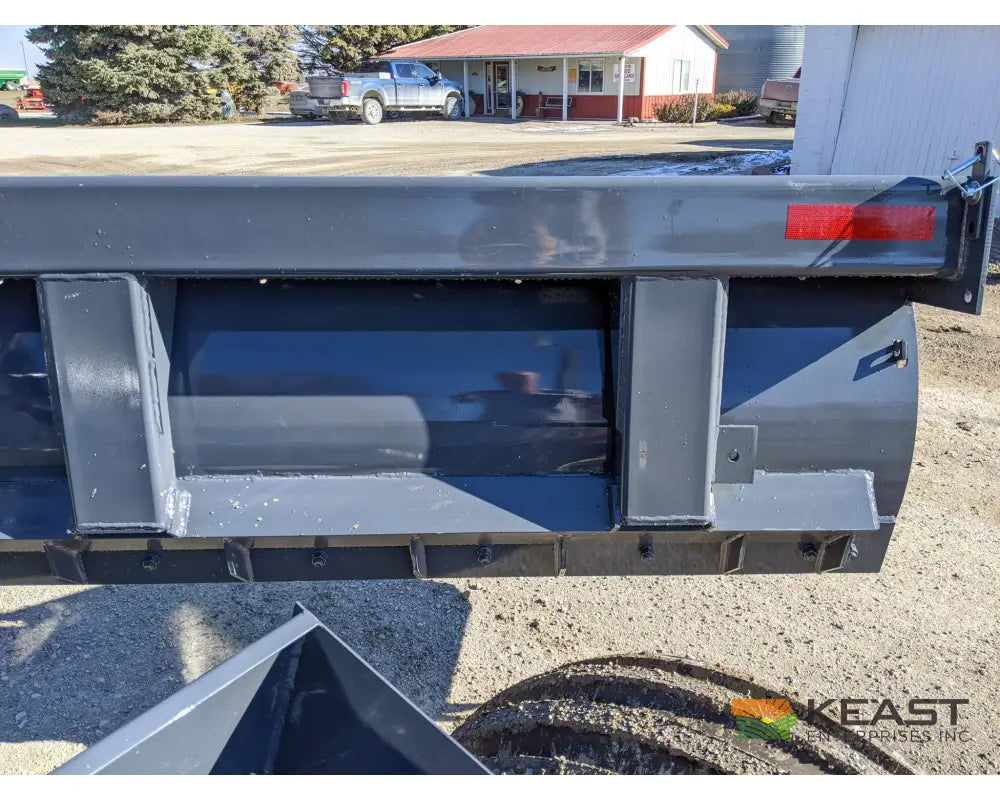

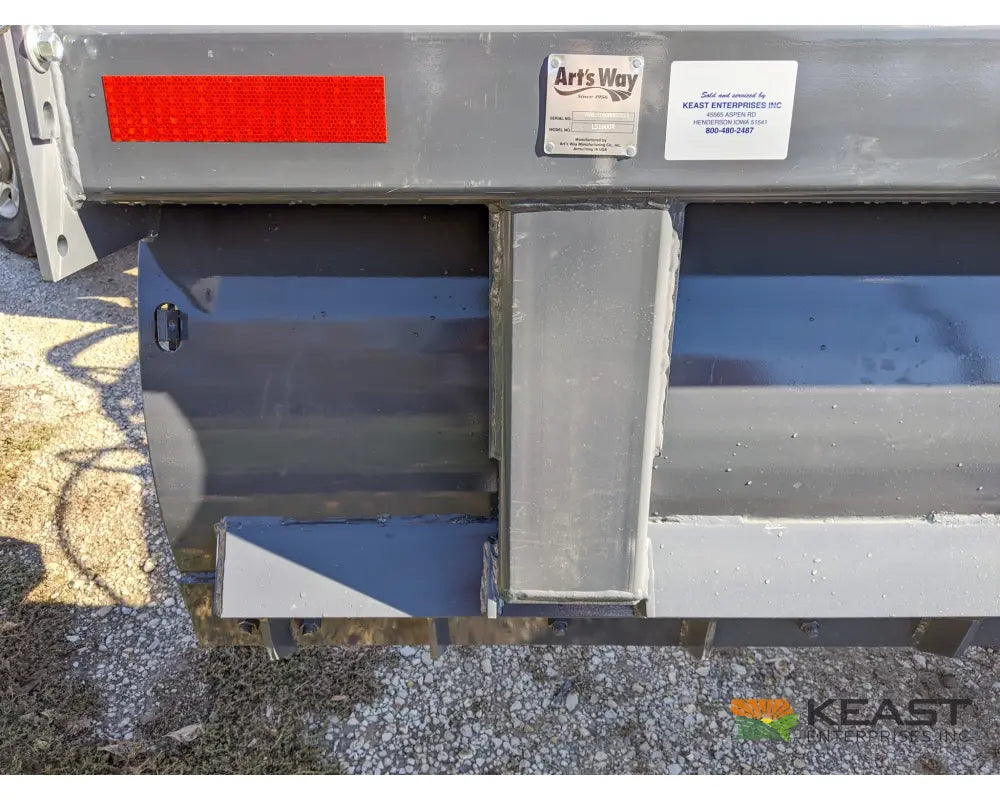

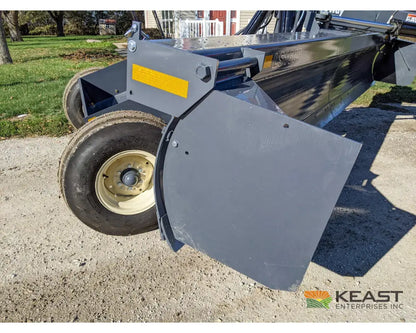

Replaceable Cutting Edge
High-carbon edge can be swapped out in the field, reducing downtime and maintenance costs.

Technical Specifications

Feature Specification
Working Width 16 ft
Blade Height 30 in
Ground Clearance 15 in
Blade Tilt 15° for effective slope cuts
Blade Swing Angle 43° for extended reach
Transport Width 9 ft 8 in
Overall Length 17 ft 5 in

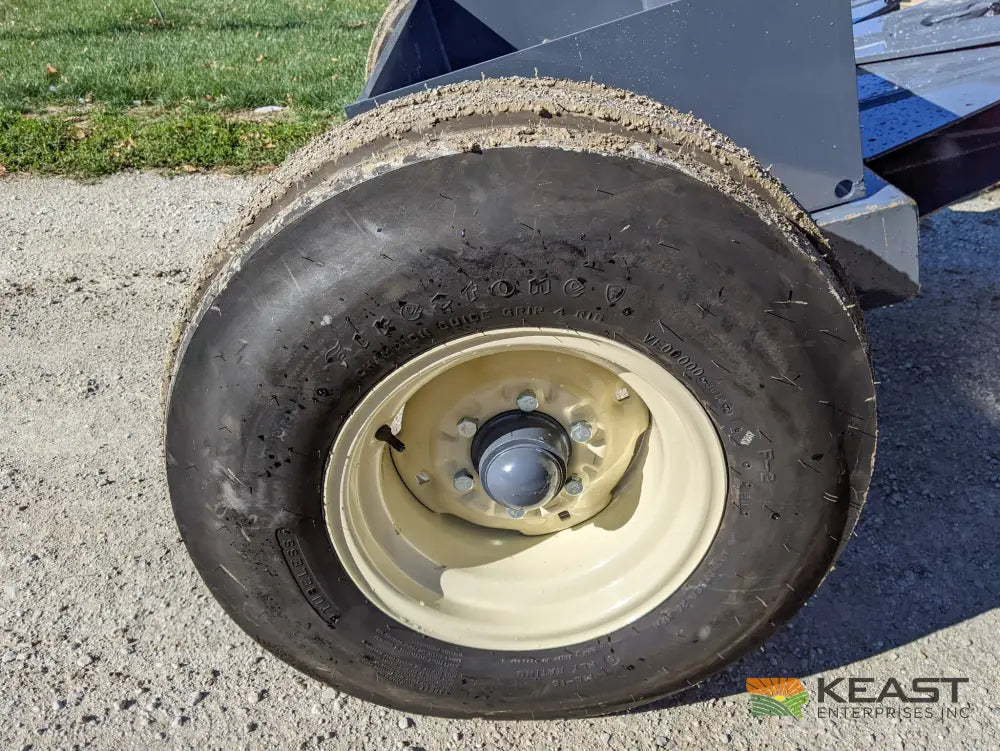

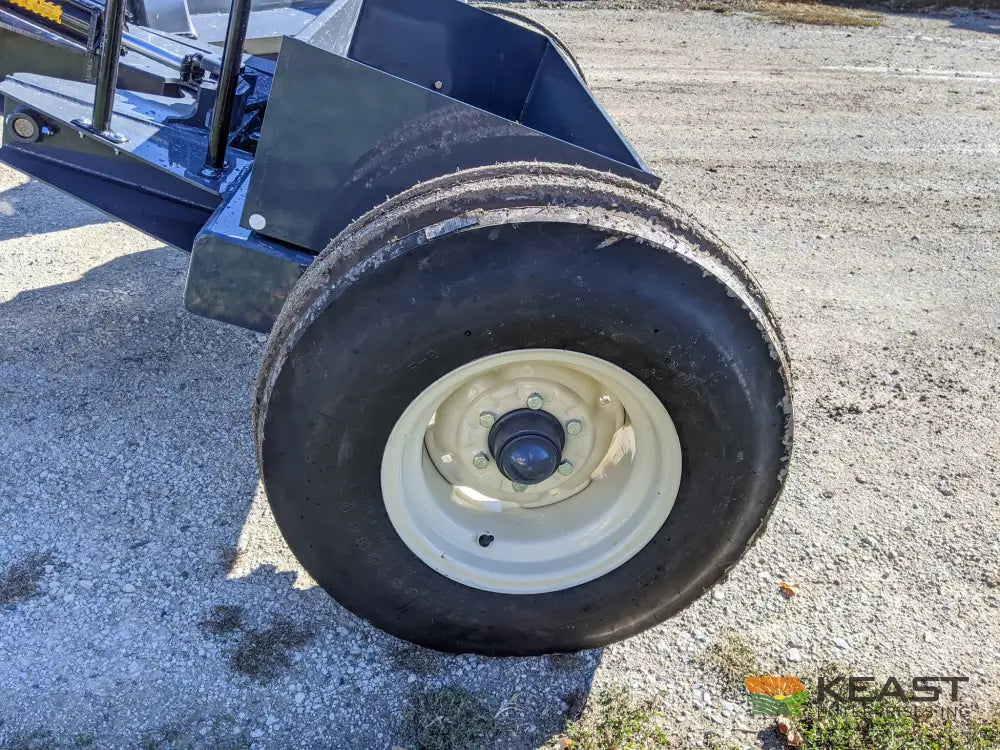

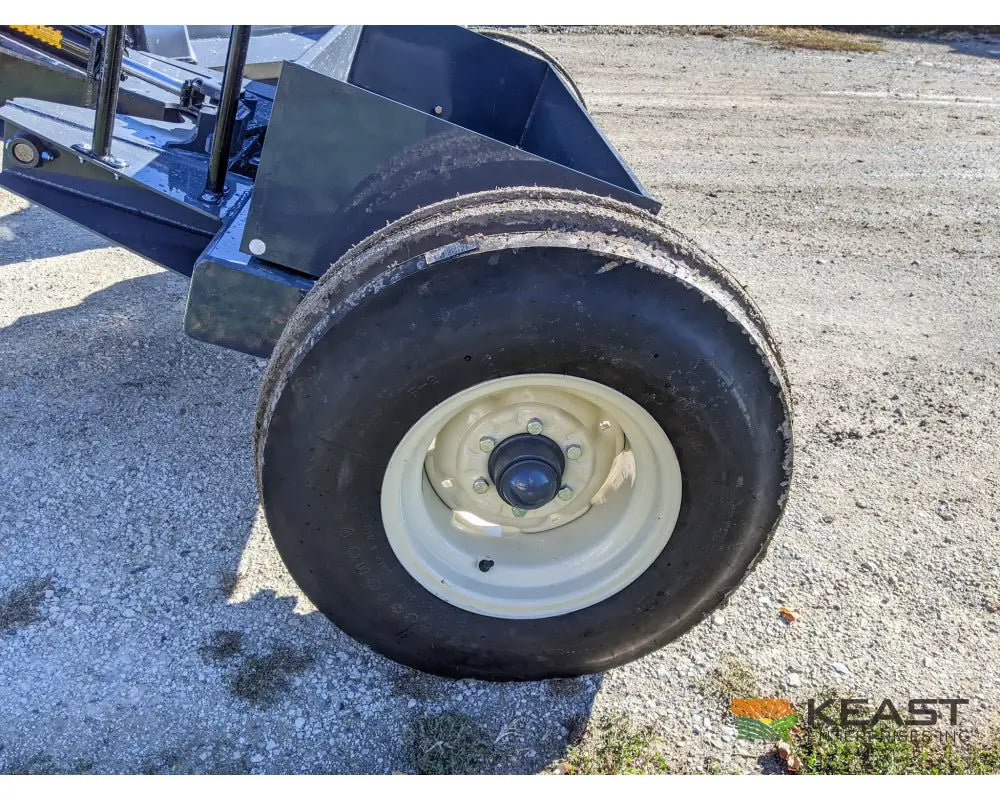

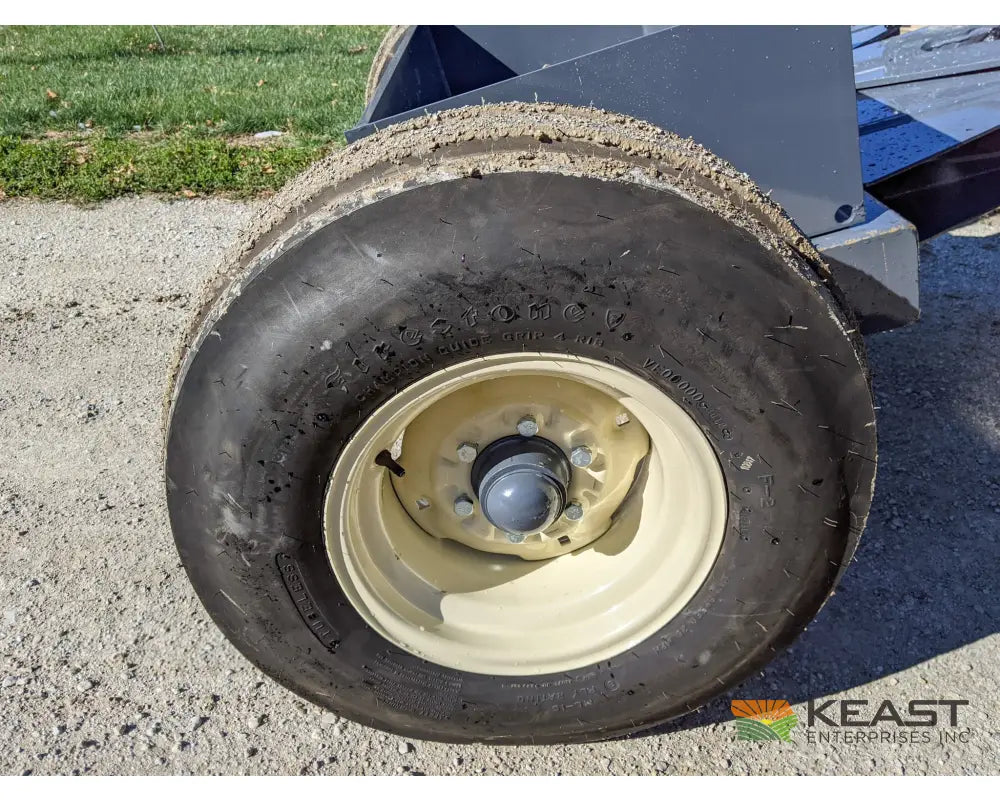

Tire Size 11L×15, 6-bolt hubs
Tractor HP Requirement 100–220 HP
Total Weight ~3,305 lb

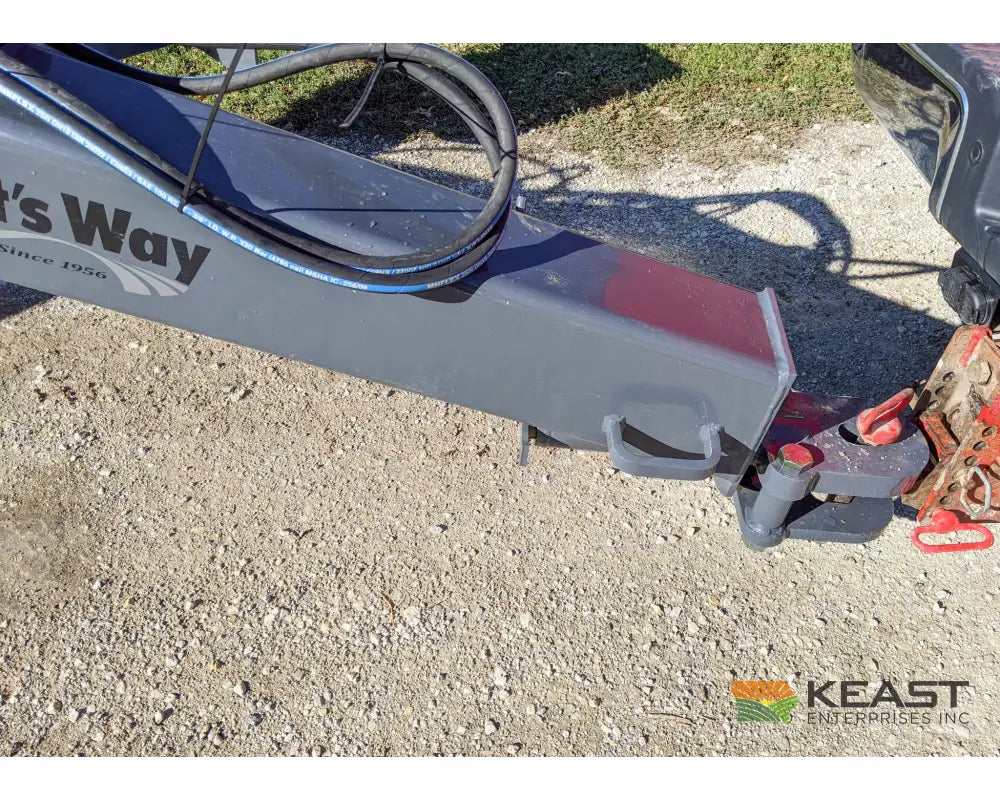

Tongue Weight ~680 lb

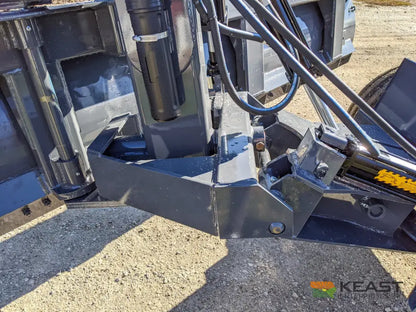

Frame Construction 8×6×5/16 steel tubing

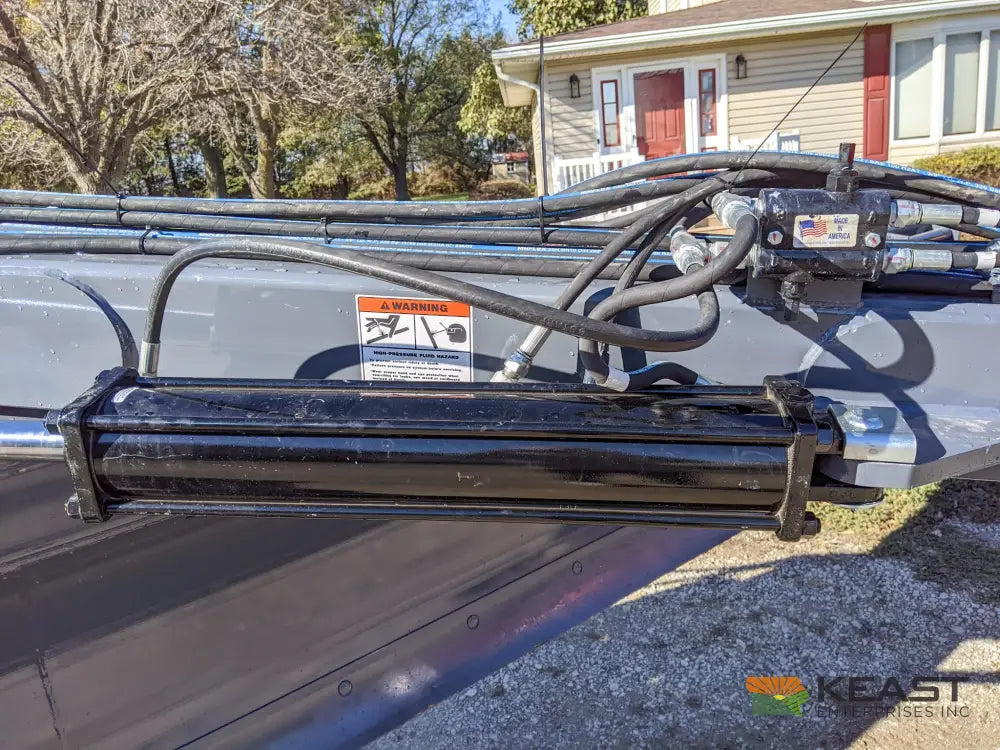

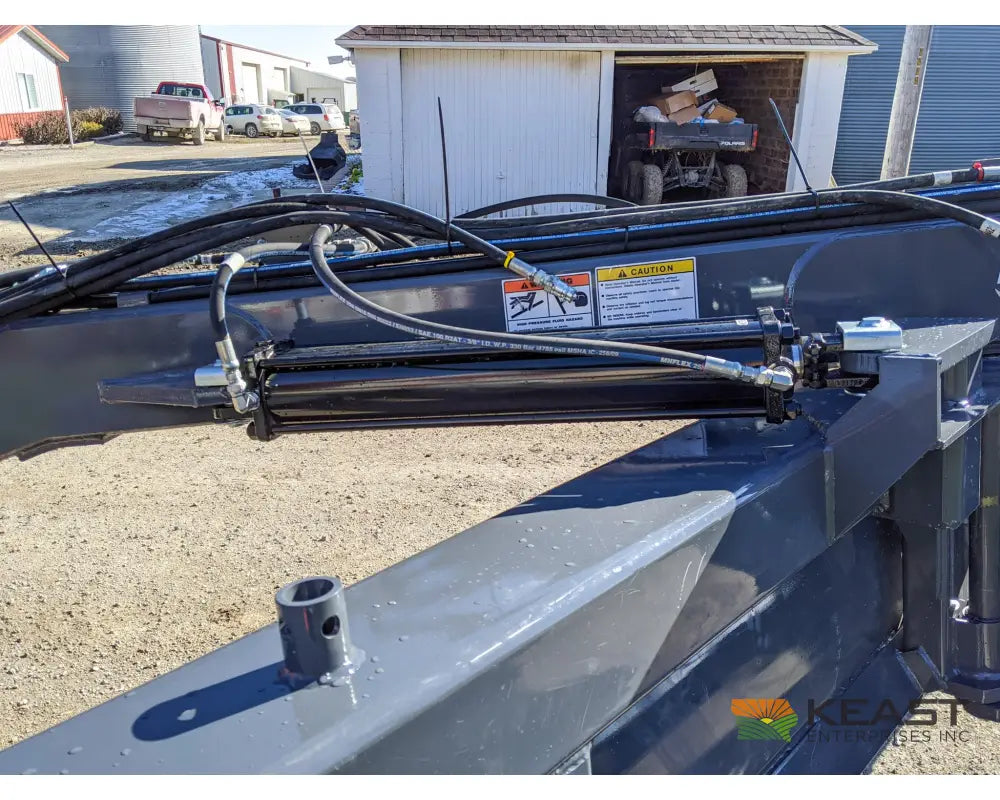

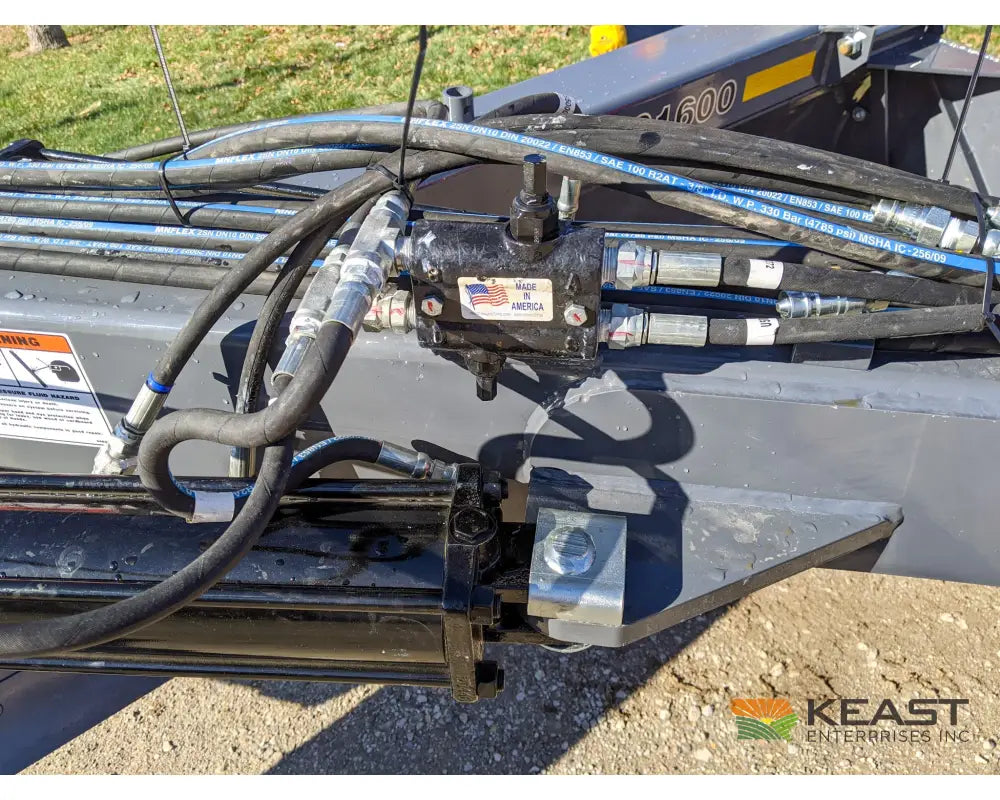

Rear Steer Hydraulic
