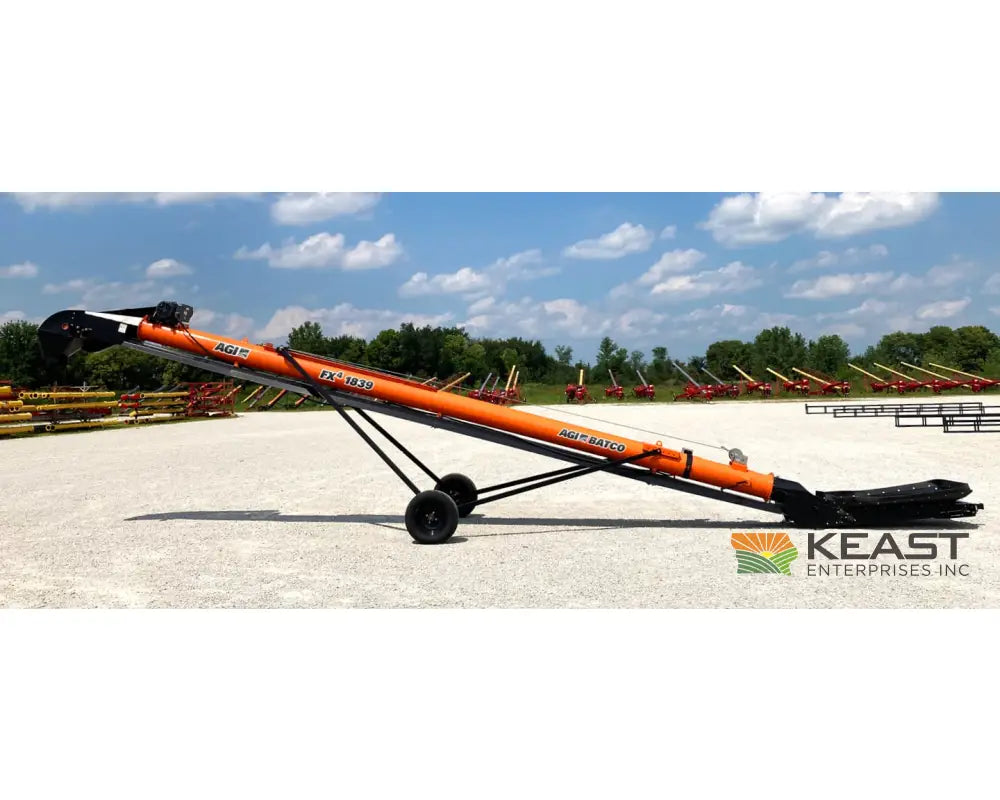

Batco 1839 Electric Belt Conveyor, 39′ Length, 18″ Belt, Up to 10,500 BPH

Name: Batco 1839 Electric Belt Conveyor, 39′ Length, 18″ Belt, Up to 10,500 BPH
Brand: Batco
Price: 18780.00 USD
Availability: InStock

$18,780.00 USD

Sale Sold out

In Stock

How Reservations Work

Click Reserve Now - No Payment Required at checkout to reserve this product for 7 days. After you checkout, our team will reach out to accept tax exemptions, offer financing options, collect payment, and arrange pickup or delivery. No payment needed until you're ready.

How Shipping Works

We ship equipment nationwide using trusted freight carriers and parcel services to make sure your order arrives safely and on time.

Orders are usually processed within 1–2 business days, you’ll receive tracking information as soon as your shipment is on the way.

Most deliveries arrive within 4-9 business days, depending on your location.

For questions about shipping or delivery, call us at 712-566-1033 or email sales@keastenterprises.com

Accepted Payment Methods

We offer several payment options to make your purchase as easy as possible. At checkout, you can pay securely via credit card, or reserve products with no money down.

After completing checkout with a product reservation, we will reach out with flexible payment options including check, ACH, wire transfer, or financing on approved credit.

Payments are processed safely through our website's secure platform, which uses 256-bit SSL encryption and PCI DSS Level 1 compliance to protect your personal and financial information.

If you have questions about payment methods or want to learn more about our financing options, our team is happy to help. Call us at 712-566-1033 or email sales@keastenterprises.com.

Overview

The Batco FX4-1839FLTD Electric Field Loader is a high-capacity belt conveyor designed to load grain trucks quickly from low bin unloads and hoppers. With a 39' conveyor and 18" chevron belt, it delivers gentle grain handling at up to approximately 10,500 bushels per hour (setup dependent), making it an great fit for modern harvest speeds.

This configuration is equipped with a 13 HP single-phase electric motor and field-loader top drive, giving you plug-in convenience where farm power is available. The low-profile, collapsible hopper lines up easily under short unload augers, while the straight-drop discharge, rugged A-frame undercarriage, and hand-winch height adjustment make daily operation fast, simple, and reliable.

Key Features

High-Capacity FX4 18-Series Design
Built on the FX4 18-series platform with a 12 ¾" tube and 18" belt, the FX4-1839FLTD is engineered for serious throughput, ideal for fast truck loading and efficient bin cleanout during harvest.

18" Chevron Belt, 39' Conveyor Length
An 18" two-ply chevron belt inside a 39' conveyor provides long reach and strong carry, keeping grain centered and moving even at steeper working angles, with less damage than a conventional auger.

13 HP Single-Phase Electric Drive
Factory-equipped 13 HP single-phase electric motor provides smooth, quiet operation with no fuel, oil changes, or choke issues, just plug into farm power and run.

Field Loader Top Drive (FLTD)
Top-drive layout keeps the drive components up out of the crop stream, improving cleanliness and service access while maintaining excellent belt traction for high-volume transfers.

Low-Profile, Collapsible Hopper
Field-loader style hopper with a wide intake is built for low unload heights, helping you get under older bin unloads, shallow pits, and swing-away spouts without fighting clearance.

Straight-Drop Discharge Hood
Simple, straight-down discharge directs grain cleanly into trucks, wagons, or pits for predictable fill patterns and less spillage.

Technical Specifications

Feature	Specification
Model	Batco FX4-1839FLTD Field Loader
Conveyor Type	FX4 18-series field loader, top drive (FLTD)
Drive Type	Electric top drive
Motor	13 HP single-phase electric
Belt Width	18" chevron belt
Conveyor Length	39' overall length
Tube Diameter	Approx. 12 ¾" tube (FX4 18-series design)
Capacity Rating	Up to approx. 10,500 BPH (configuration dependent)
Hopper Style	Low-profile, field-loader collapsible hopper
Undercarriage	A-frame with hand-winch lift
Discharge Hood	Straight-drop discharge
Typical Use Case	Truck loading from bin unloads, pits, and transfer augers
Grain Handling Style	Gentle belt conveying for reduced damage
