Baumalight QC30 PTO Generator, 30 kW, Single-Phase 120/240V, 540 PTO, 125 Amps

The Baumalight QC30 is a 30 kW single-phase PTO generator for 120/240V backup and portable power. It is rated for 85 kW of momentary surge and uses a 540 RPM tractor PTO.

PTO Generator Design

The QC design uses four oversized copper windings and operates at 1,800 internal RPM. Three speed-indicator lights help the operator bring the generator to the correct operating speed before applying the electrical load.

• 30 kW continuous output
• 85 kW momentary surge rating
• 125-amp full-output main breaker
• Four-pole generator operating at 1,800 internal RPM

QC30 Specifications

QC30 Fitment

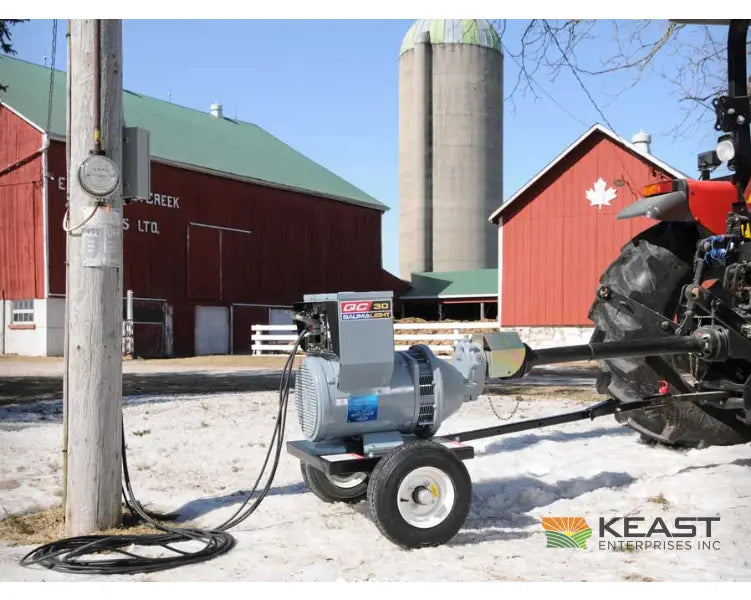

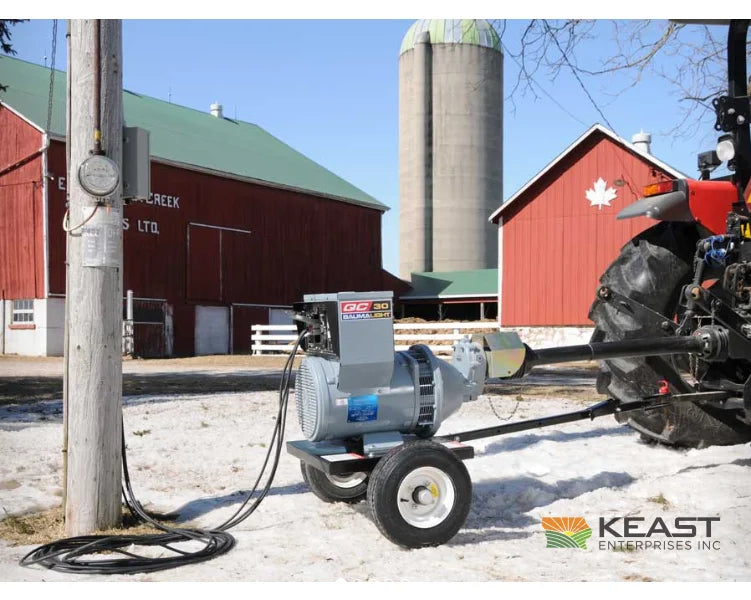

Full rated output requires approximately 49 tractor horsepower, while 50 percent load requires approximately 20 horsepower. Confirm the tractor's 540 RPM PTO, available horsepower, driveline guarding, electrical load, transfer equipment, grounding, and connection plan with qualified electrical personnel.

Compare the QC30's output and PTO requirements with other models in our PTO generators. Browse our Baumalight equipment for additional tractor-powered equipment.

How much tractor power does the QC30 require?

Baumalight specifies approximately 20 horsepower at 50 percent load and 49 horsepower at full load.

What PTO speed does the QC30 use?

The QC30 uses a 540 RPM PTO.

What voltage and phase does it produce?

The QC30 provides 120/240V single-phase output with a 125-amp main breaker.
