Baumalight TX31 PTO Generator, 31 kW, Single-Phase 120/240V, 125 Amps

Name: Baumalight TX31 PTO Generator, 31 kW, Single-Phase 120/240V, 125 Amps
Brand: Baumalight
Price: 6882.00 USD
Availability: InStock

$6,882.00 USD

Sale Sold out

Free continental U.S. shipping

In stock

We’ll confirm availability, options, and delivery before fulfillment.

Need help choosing?

Talk to an equipment specialist

Call Us 712-566-1033

Prefer email? sales@keastenterprises.com

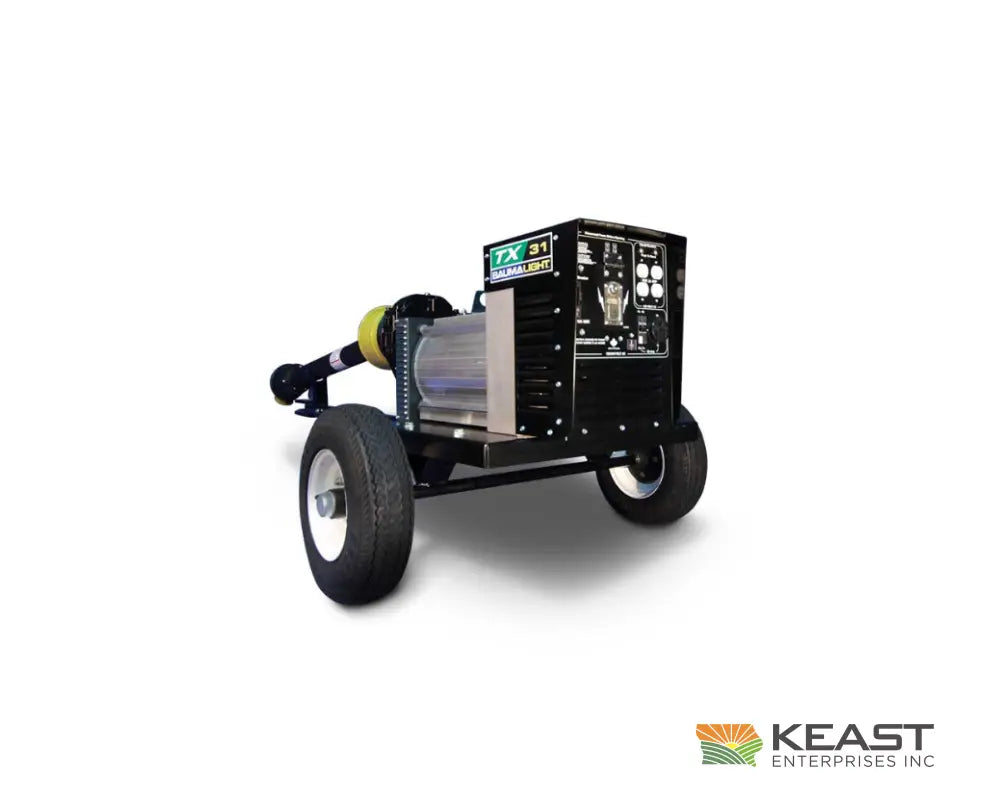

Baumalight TX31 PTO Generator, 31 kW, Single-Phase 120/240V, 125 Amps

The Baumalight TX31 PTO Generator supplies 31 kW of single-phase 120/240V power from a tractor PTO for backup or remote loads on farms, acreages, and job sites.

The TX31 uses a two-pole generator operating at 3,600 internal RPM with capacitor voltage regulation. The trailer-mounted package includes a voltmeter, main breaker, and receptacles for household circuits, shop equipment, and emergency loads.

Key Features

31 kW Continuous Output with Surge Capacity
Provides 31 kW rated output with momentary surge capacity for motor starts and short load spikes (surge capacity varies by configuration).

Single-Phase 120/240V Power, 125 Amp Output
Delivers 120/240V single-phase power with up to 125 amps at full output, used for farmyards, shops, and home backup applications.

Capacitor-Regulated Voltage Stability
Capacitor regulation helps maintain consistent power quality under varying load conditions—especially important for mixed loads and longer runs.

2-Pole Generator Design (3,600 RPM Internal)
A 2-pole generator head produces power at 3,600 RPM internal speed to support 60 Hz output when the tractor is set correctly.

Outlet Panel with Breaker Protection
Integrated main breaker and outlet protection for safer operation and load management.

Onboard Voltage Meter
The onboard voltage meter helps the operator adjust tractor RPM while monitoring generator output.

Trailer-Mounted for Transport
The trailer frame and pneumatic tires support movement between buildings, yards, and sites.

Technical Specifications

Feature	Specification
Model	Baumalight TX31 PTO Generator
Rated Output	31 kW
Phase	Single-phase
Voltage	120/240V
Full Output Amps	125 A
Generator Type	2-pole PTO generator
Internal RPM	3,600 RPM (generator)
Voltage Regulation	Capacitor regulated (typically within ±6%)
Surge Output	Momentary surge capacity (configuration dependent)
Mounting	Trailer-mounted
Monitoring	Onboard voltage meter
Protection	Main breaker + outlet circuit protection
Typical Tractor Size	Approx. 22 HP @ 50% load; ~50 HP @ 100% load (load dependent)

Related Equipment

How much tractor power does the TX31 require?

The TX31 requires approximately 50 HP at full output. Baumalight lists approximately 22 HP at 50 percent load; actual demand depends on the connected load. A larger tractor can be used when the PTO speed and driveline setup are correct.

Is the TX31 single-phase?

Yes. The TX31 supplies single-phase 120/240-volt power. Load planning and transfer equipment should be reviewed with a qualified electrician.
