Brandt 1545TD Electric Belt Conveyor, 45′ Length, 15″ Belt, Up to 6,500 BPH

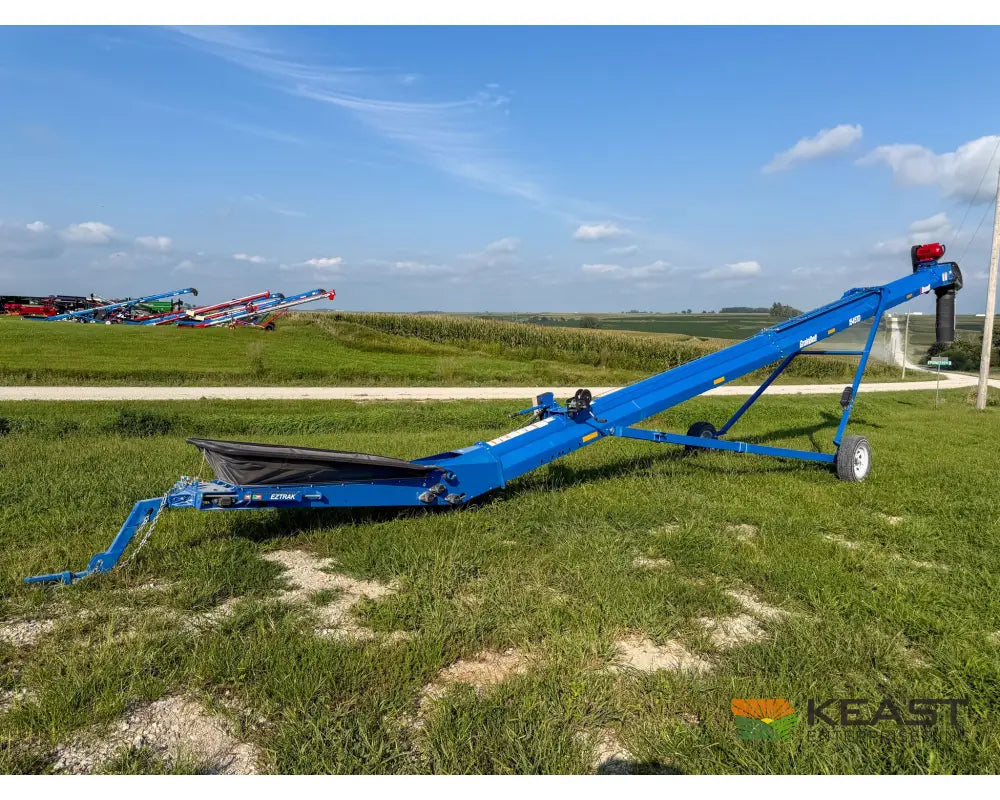

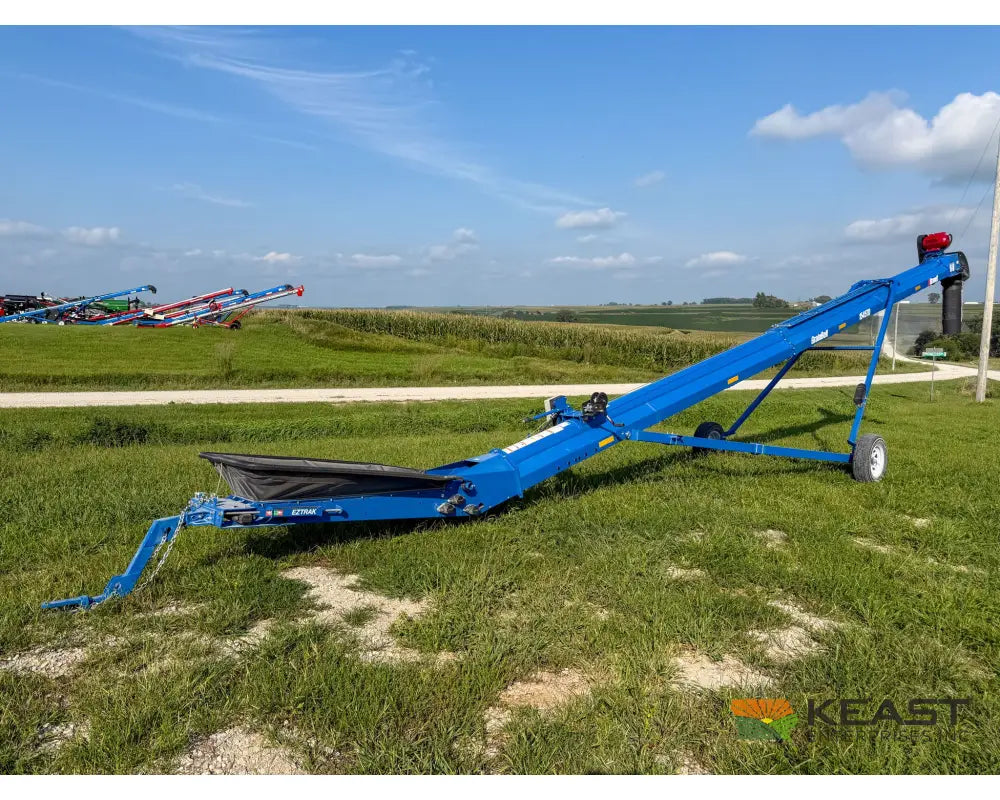

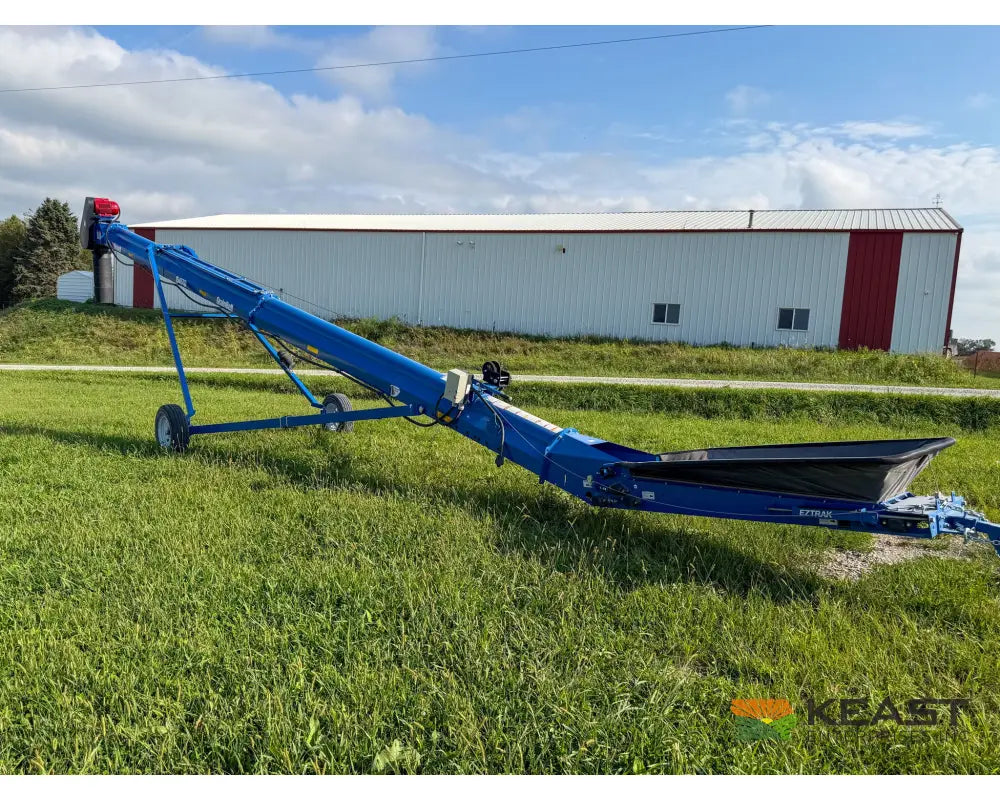

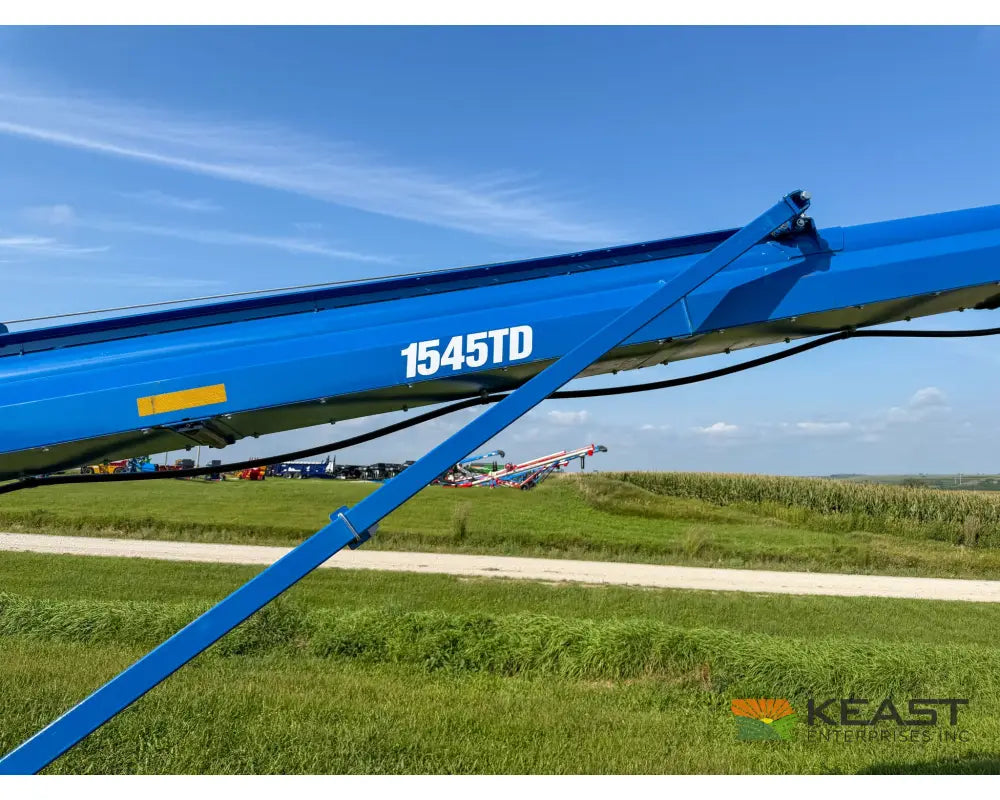

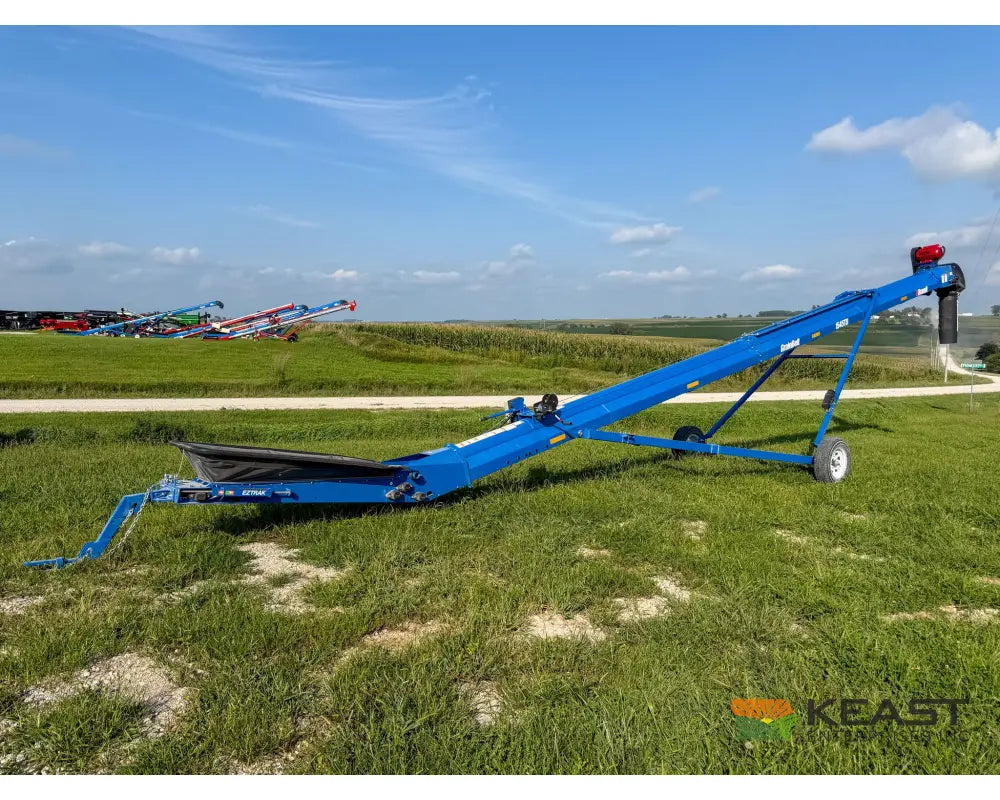

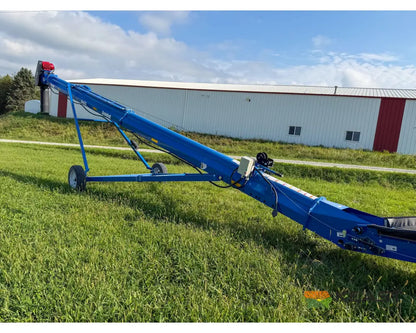

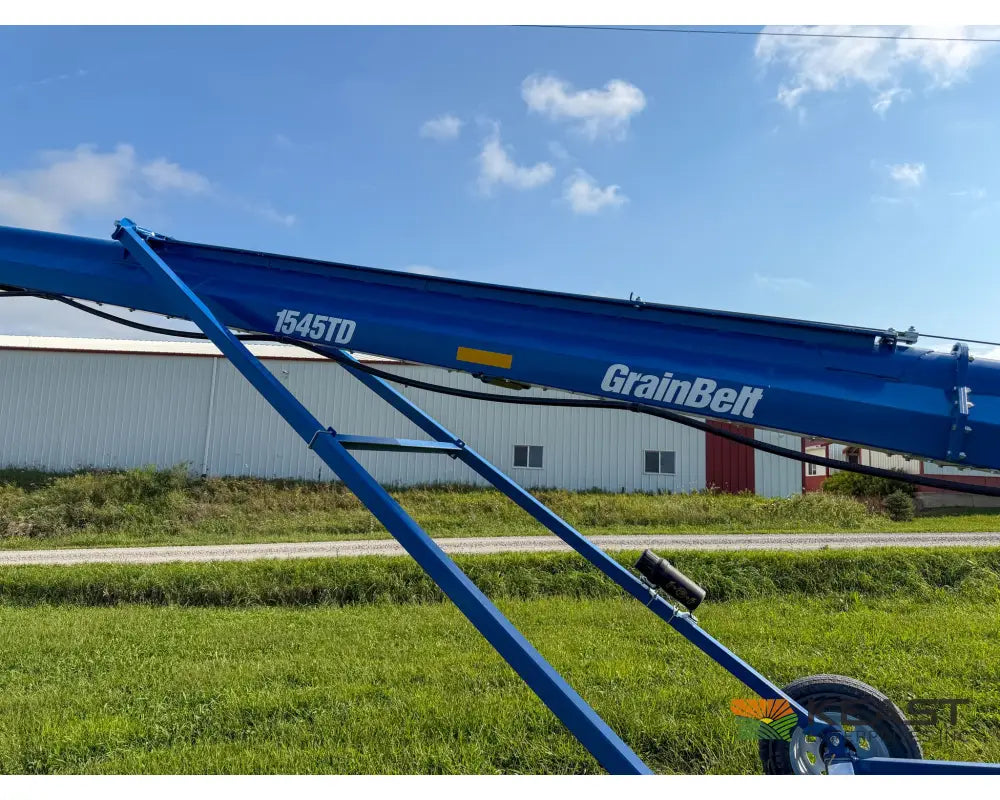

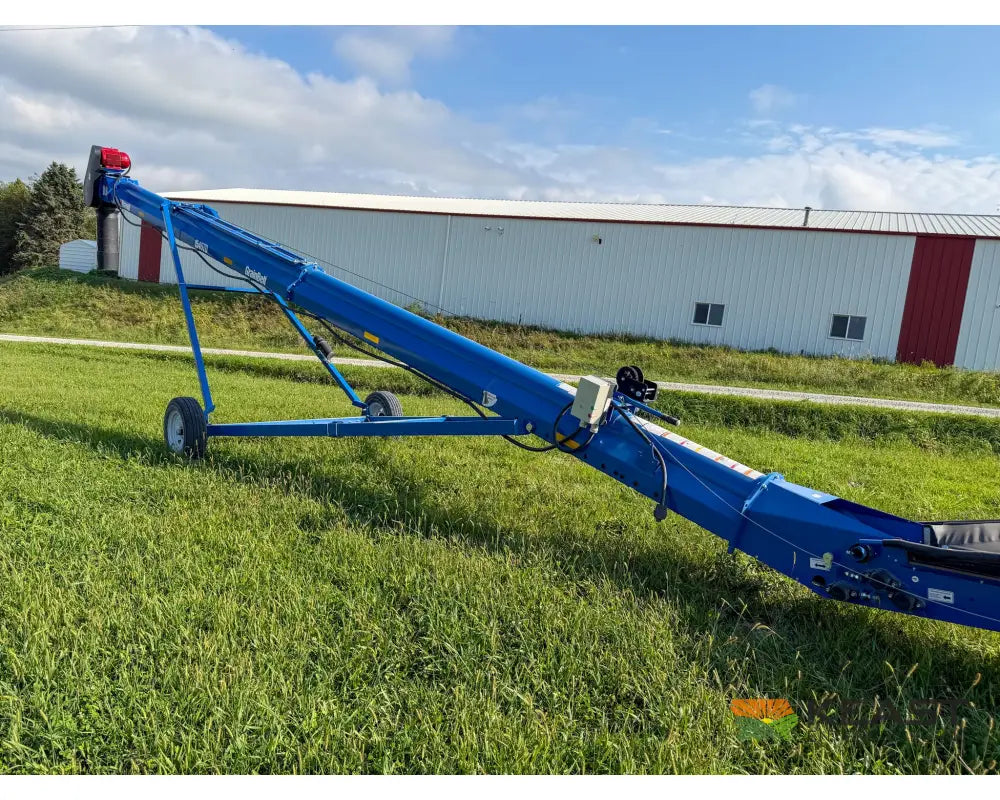

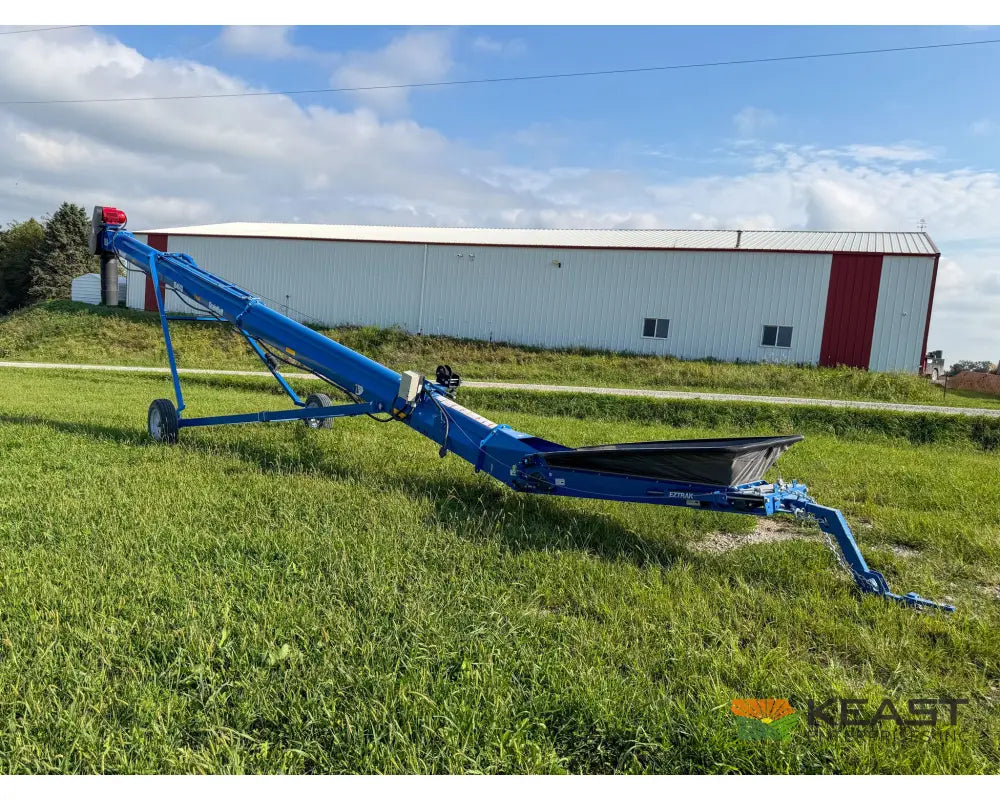

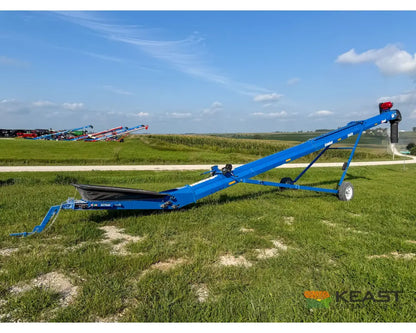

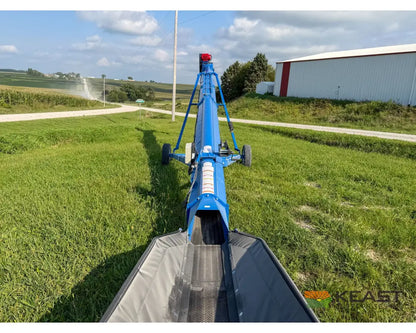

This Brandt 1545TD grain belt conveyor combines a 45-foot conveyor, 15-inch belt, and 10 HP single-phase electric drive in a compact setup for loading trucks and moving grain from hopper-bottom bins. Brandt rates the conveyor for up to 6,500 bushels per hour under suitable operating conditions. The belt runs inside a 10-inch tube for controlled handling of corn, soybeans, seed, and other free-flowing crops.

Brandt 1545TD Equipment

45-foot conveyor with a 15-inch chevron belt
10 HP single-phase electric motor

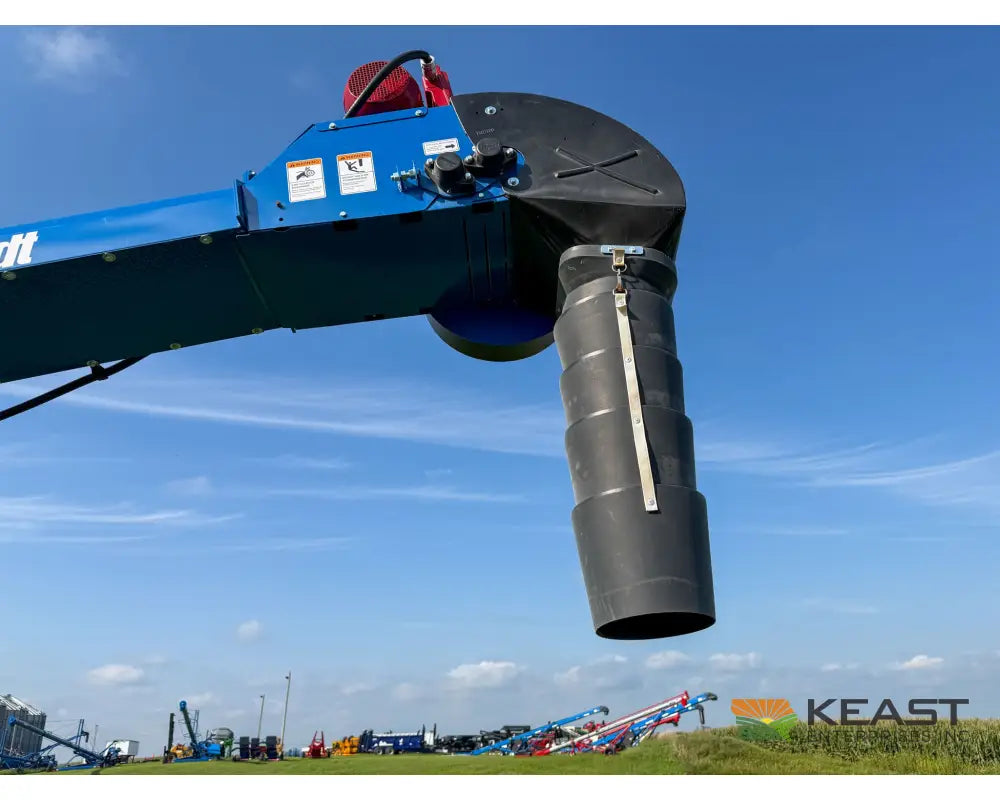

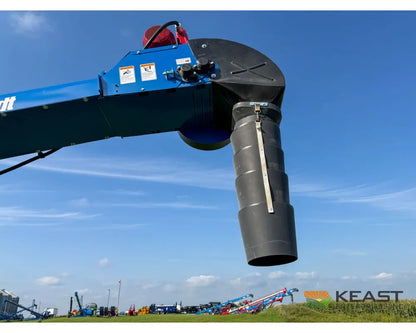

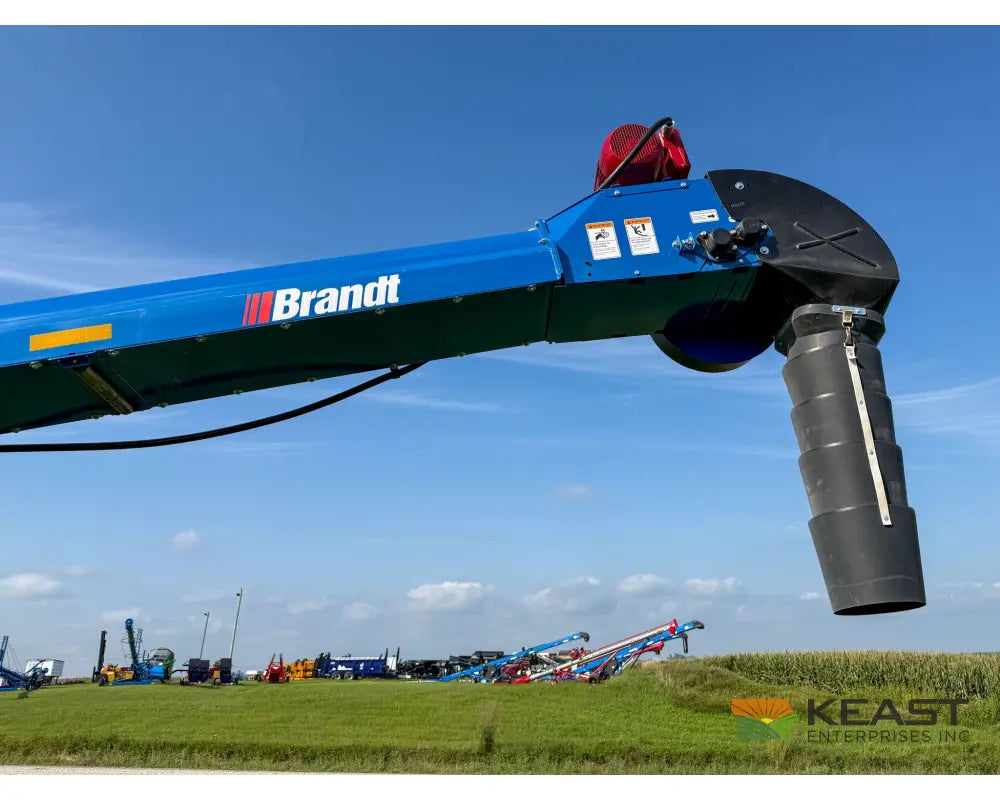

Top-drive system with wrap roller upgrade

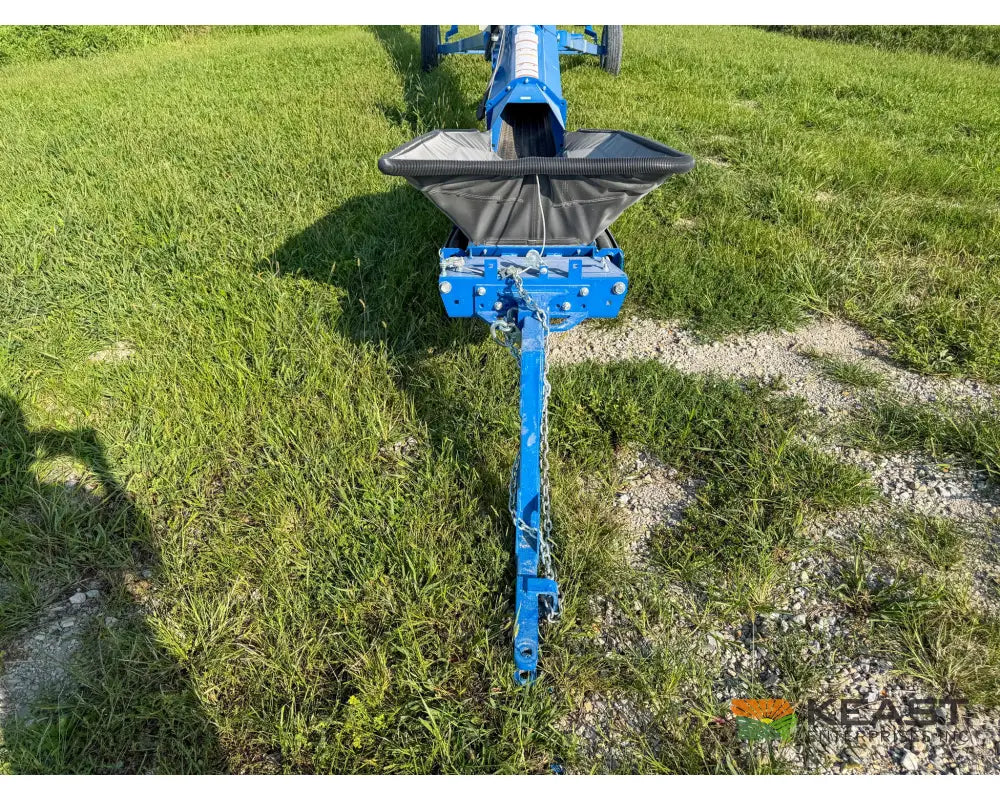

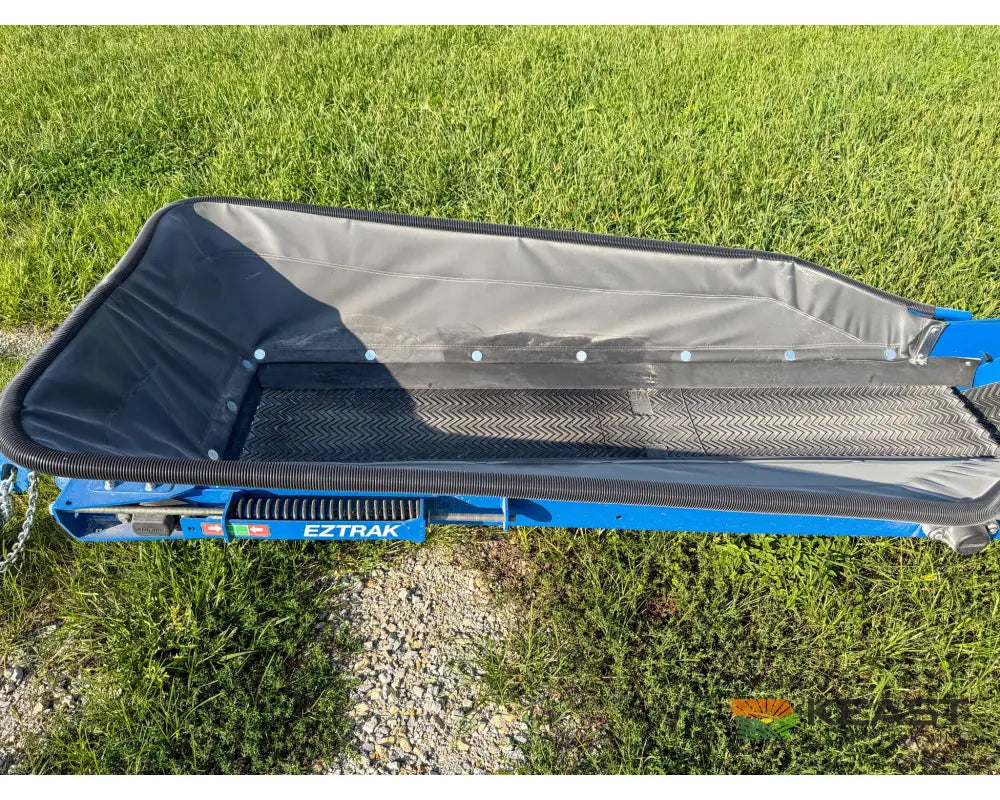

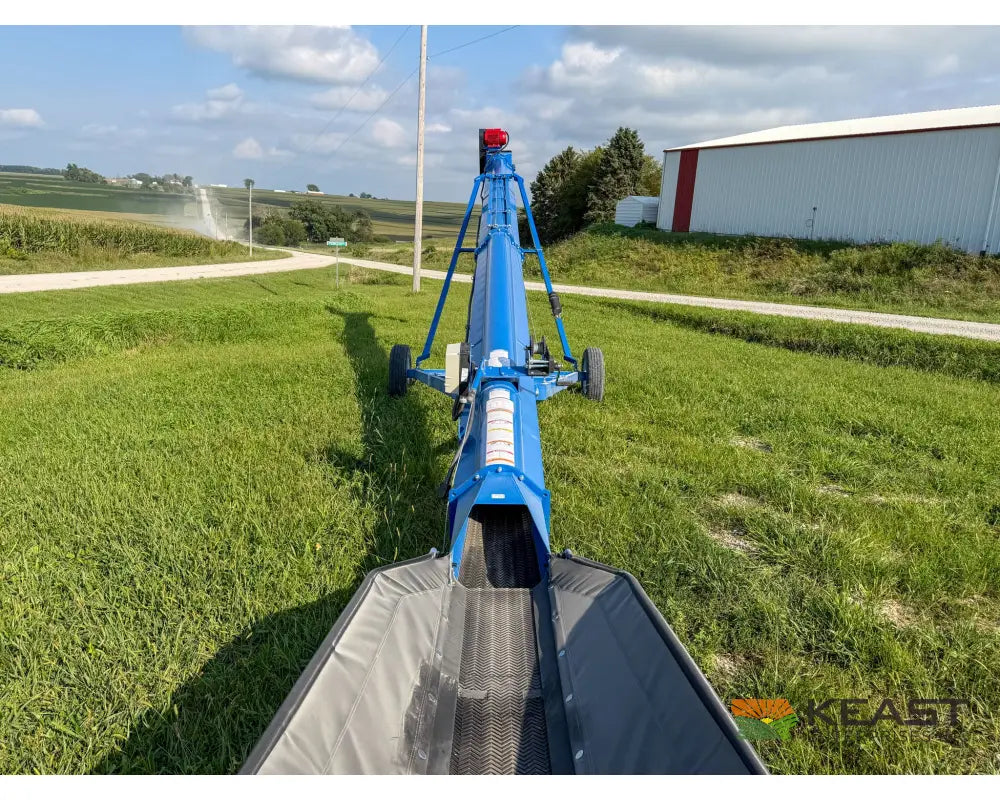

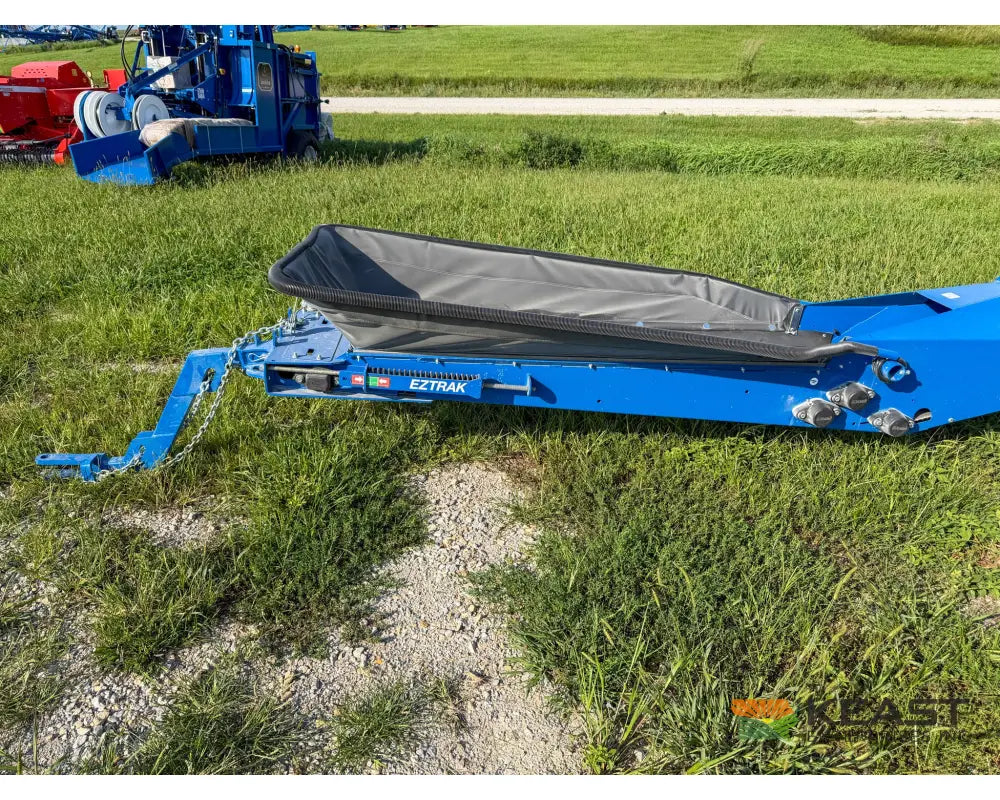

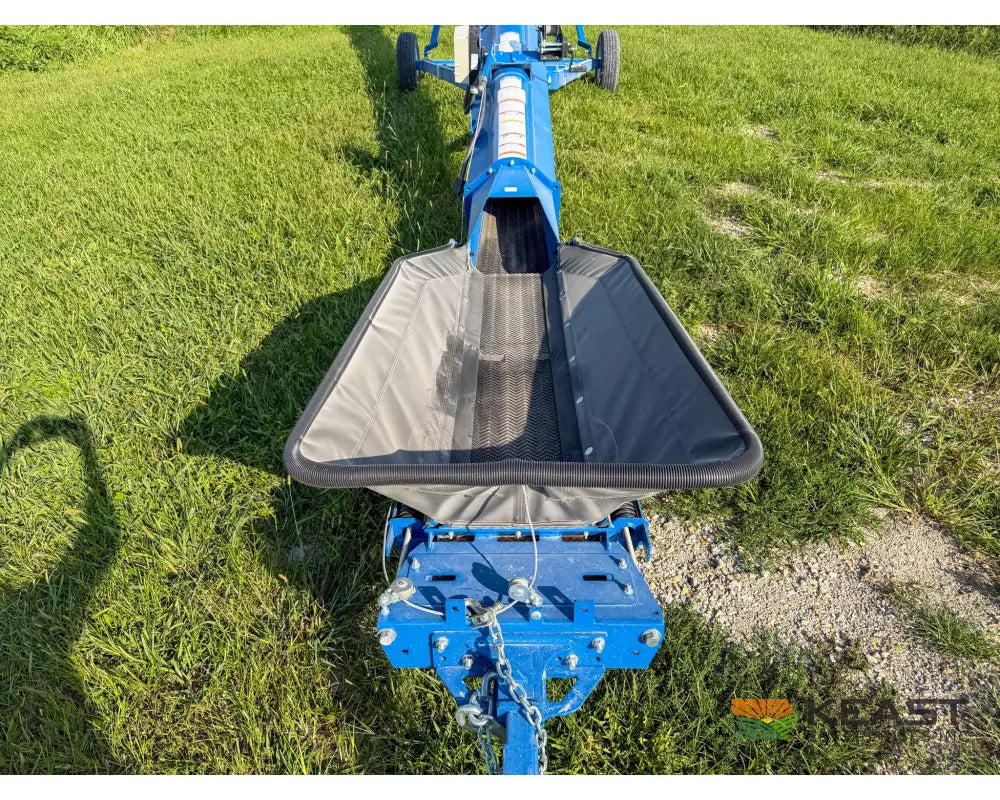

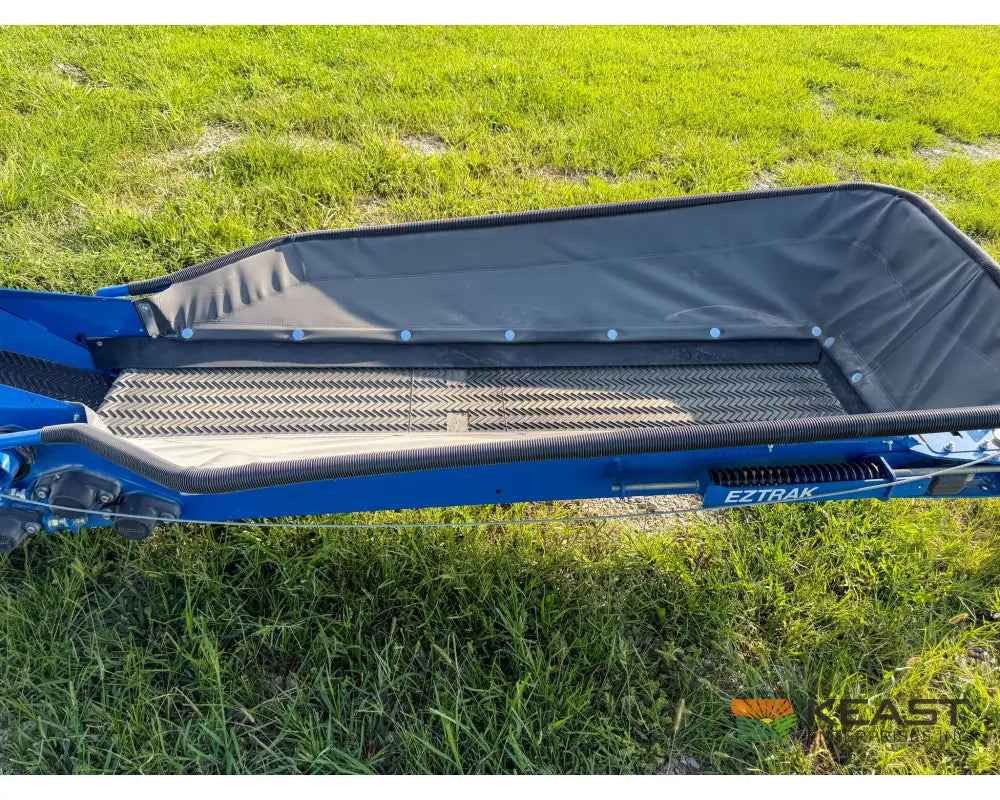

Low-profile intake hopper, 8 inches high when collapsed and 16 inches when extended

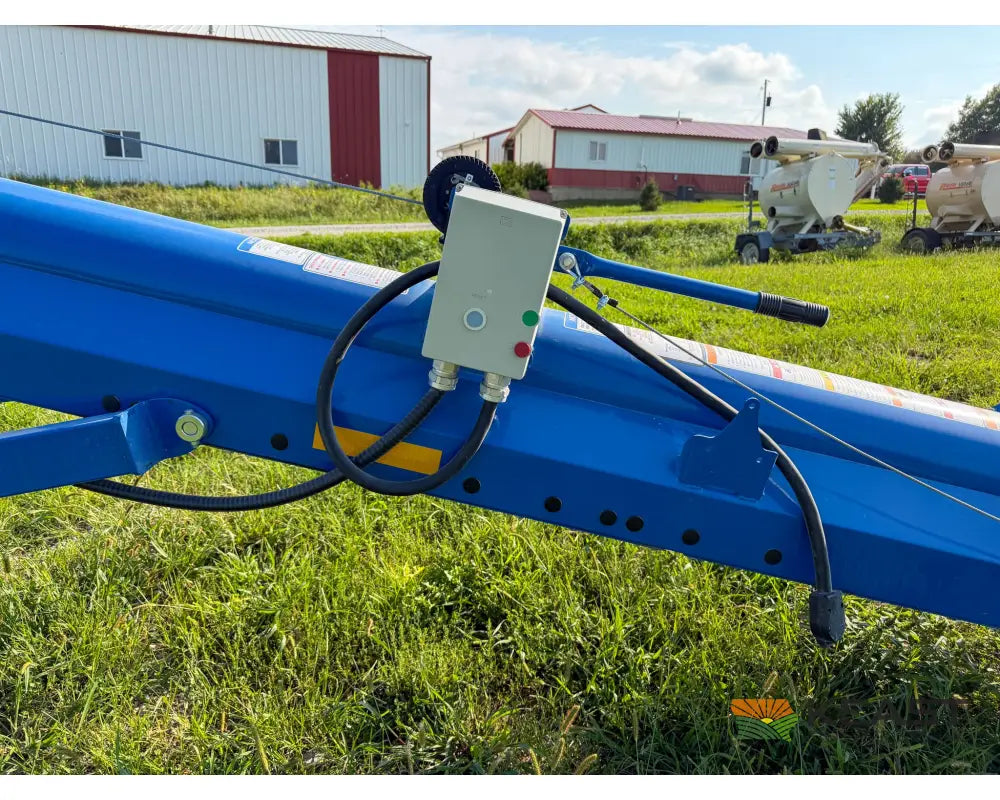

Factory-prewired switch box and plug
Enclosed windguards

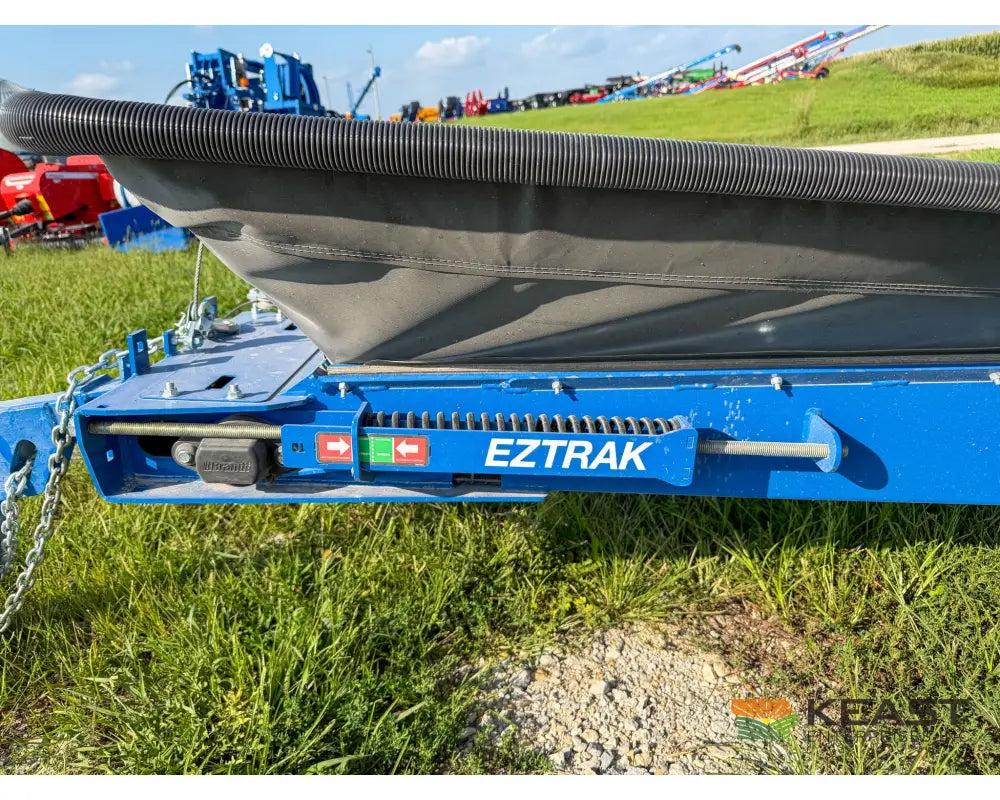

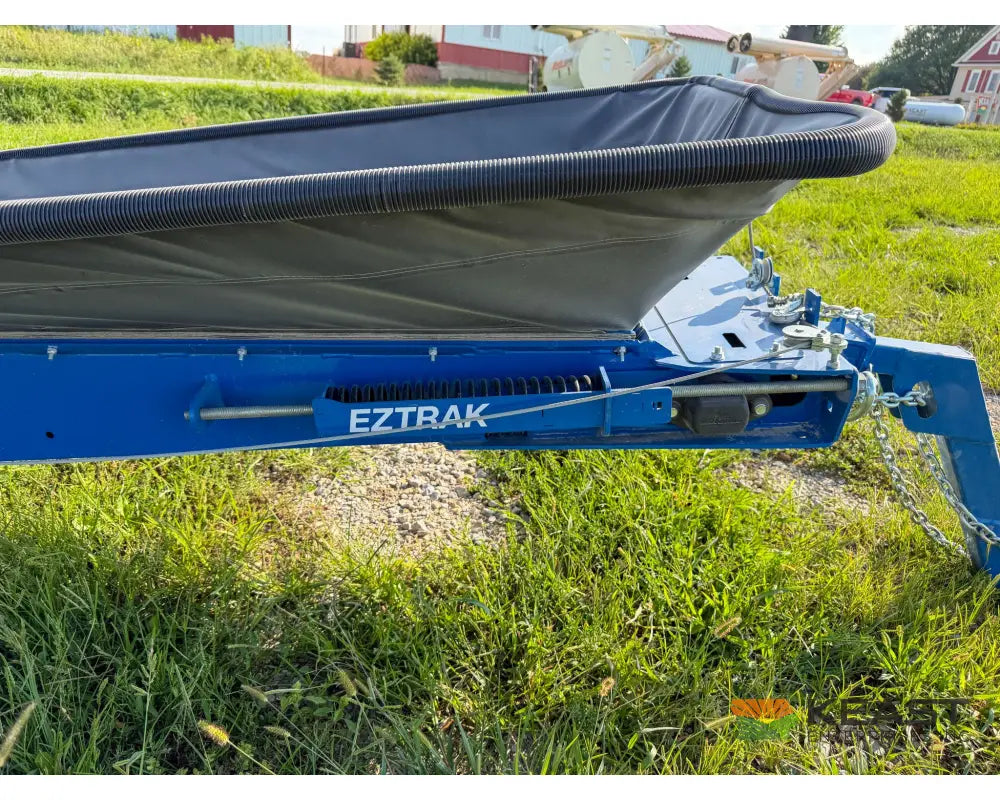

EZTRAK belt tensioning and tracking system

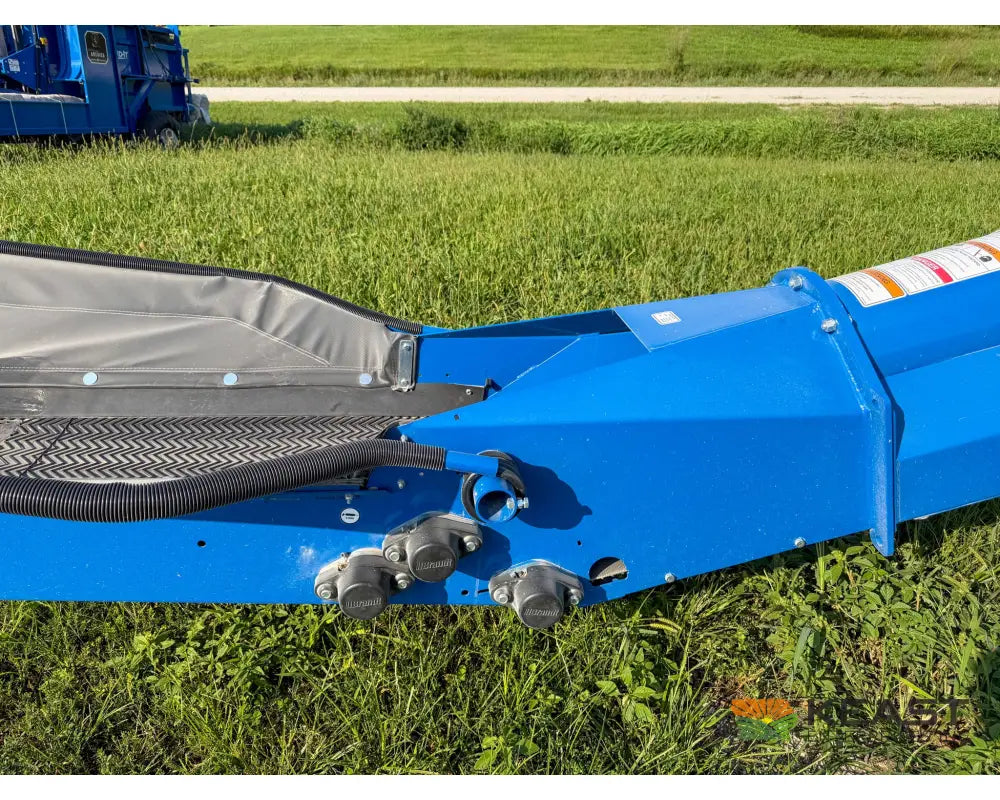

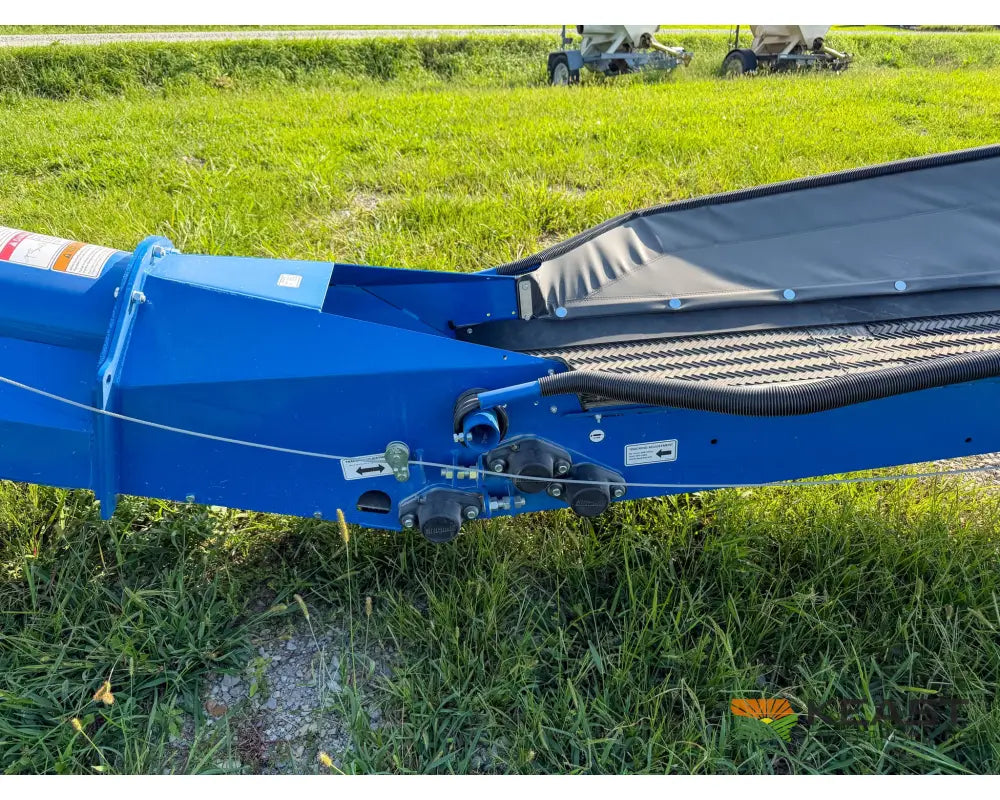

The low-profile hopper is designed to fit beneath hopper bins and center-dump grain trailers. The wrap roller increases belt contact at the drive roller, helping maintain traction as load and conveyor angle change.

Specifications

Specification	Brandt 1545TD
Conveyor length	45 ft.
Rated capacity	Up to 6,500 BPH
Belt width	15 in.
Tube diameter	10 in.
Motor	10 HP, single phase
Drive location	Top drive
Hopper height	8 in. collapsed; 16 in. extended
Pulleys and rollers	Wrap roller upgrade included

Electrical Requirements

This conveyor is configured for single-phase electric power. Confirm the available voltage, amperage, disconnect, plug, and cord requirements at the installation site before delivery. Actual conveying capacity varies with crop, moisture, conveyor angle, belt speed, and loading conditions.
