Brillion FPSB-6 6' 3-Point Food Plot Seeder – 2.62 + 2.62 Bu Seed Boxes

Overview

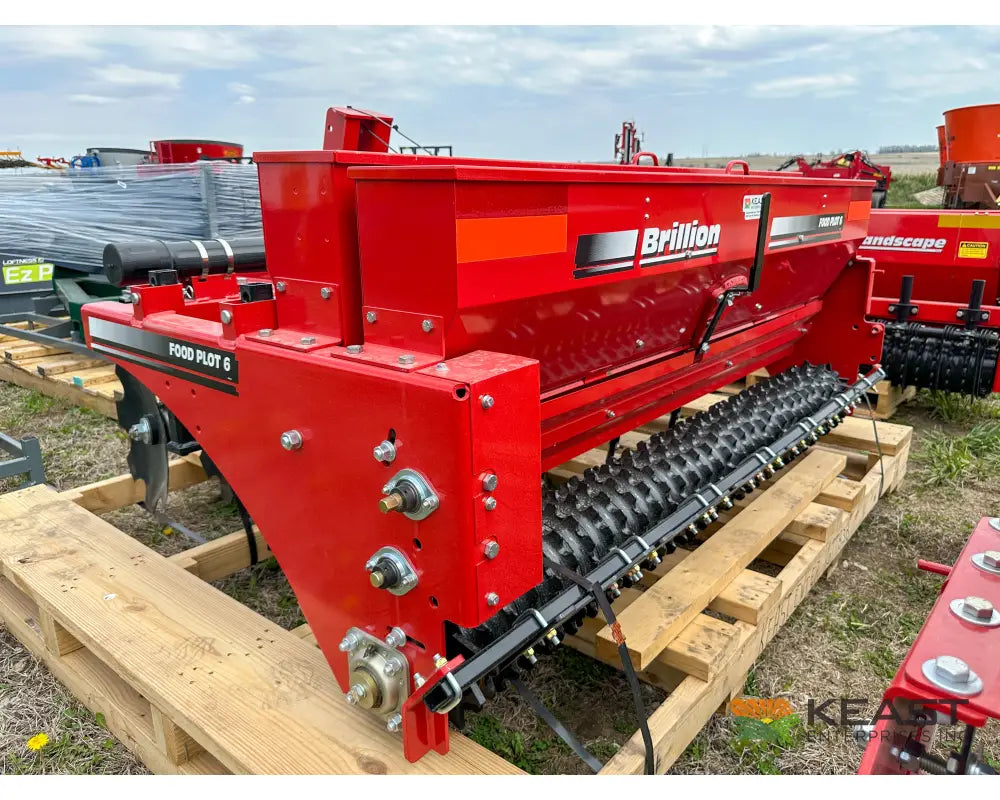

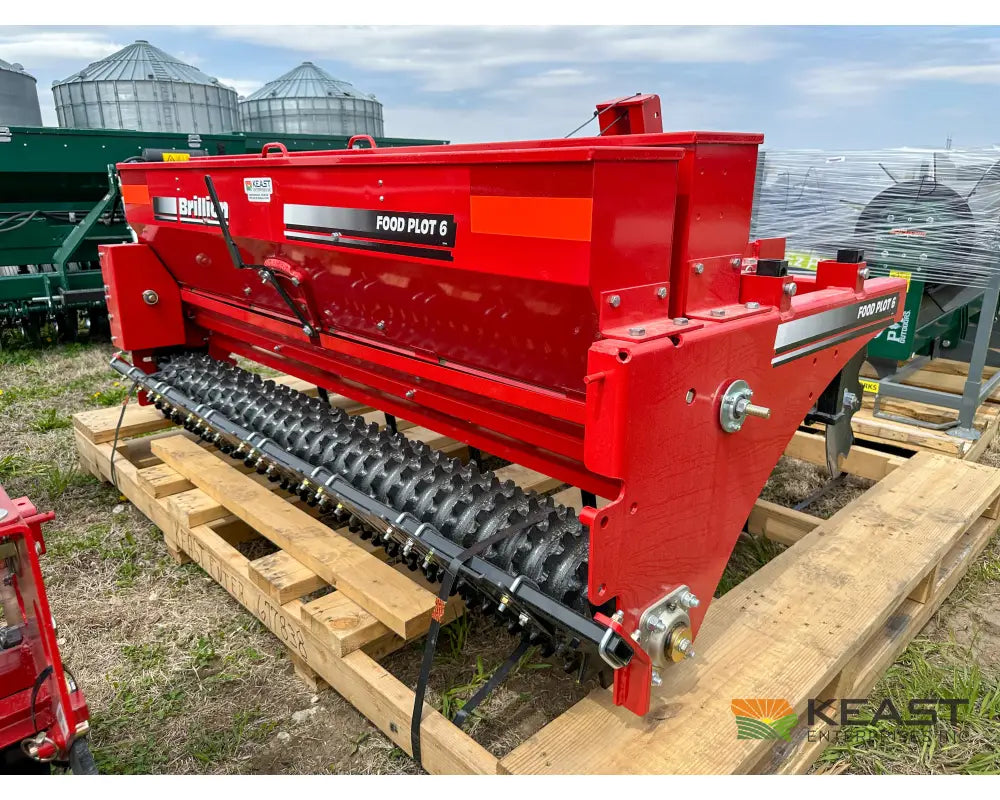

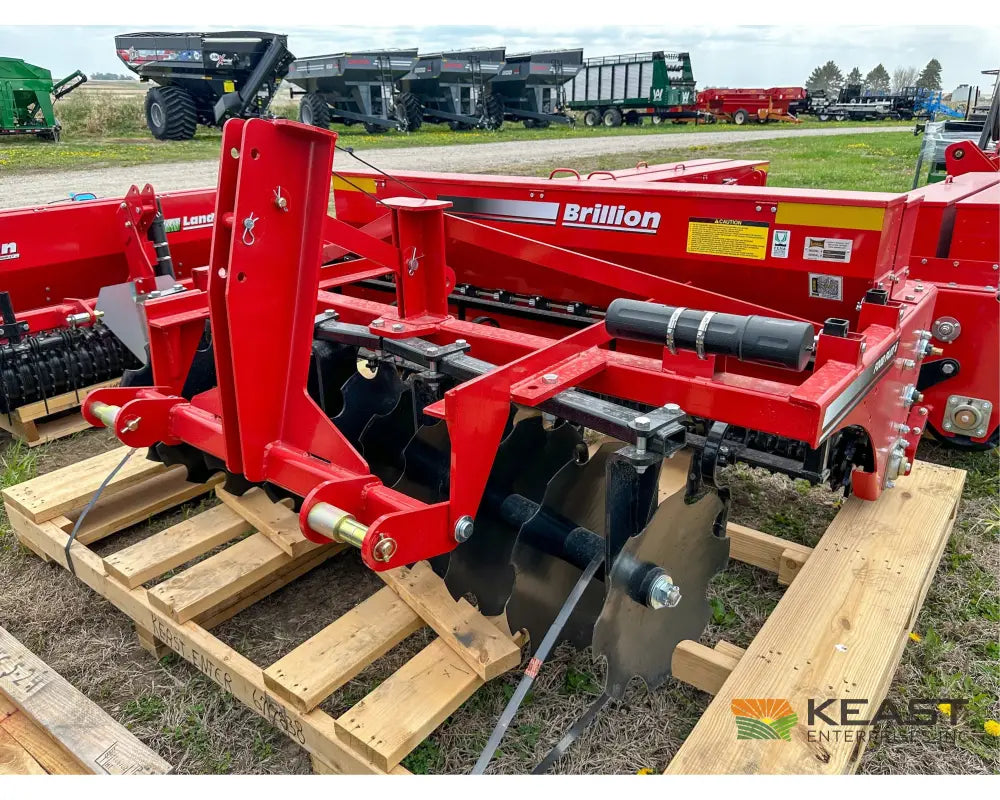

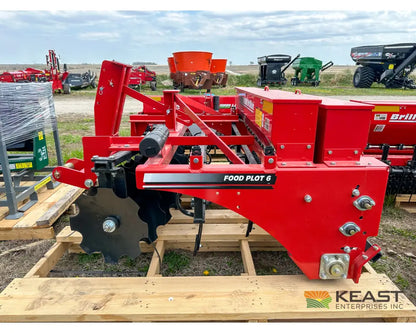

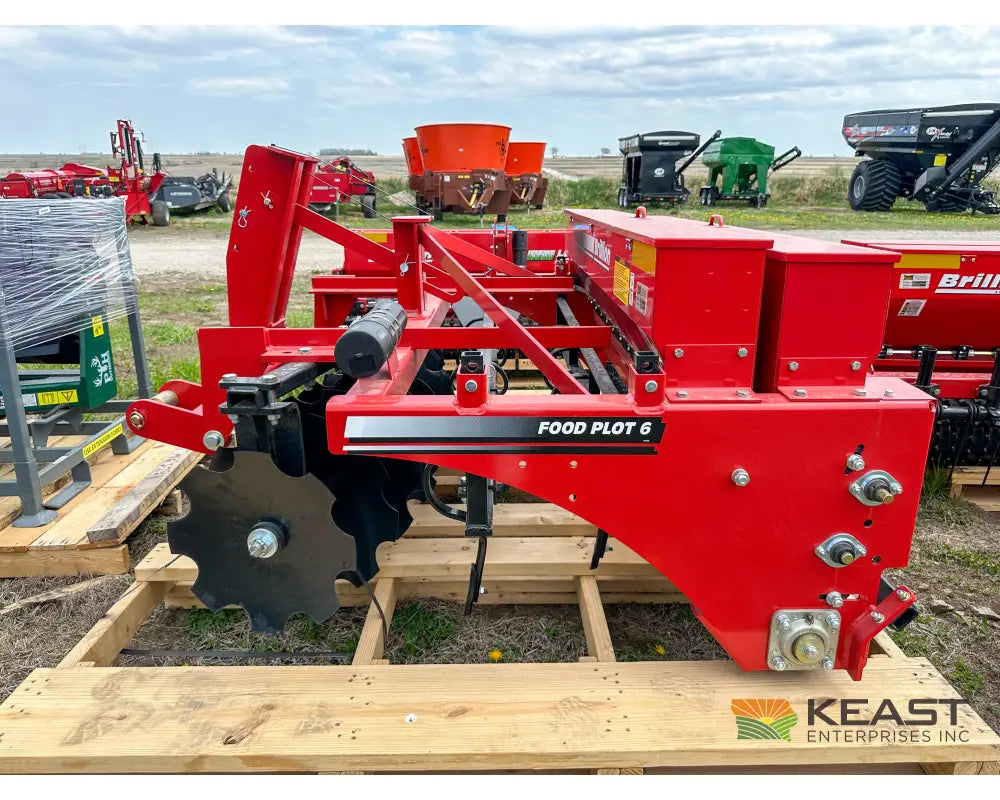

The Brillion FPSB‑6 Food Plot Seeder is a rugged, 6-foot three-point hitch seeder built to prep, seed, and pack in a single pass. It features a floating front hitch, aggressive tillage tools, and dual ground-driven seed boxes, no hydraulics required. Its welded steel frame supports adjustable 18" disc gangs, mini S‑Tine cultivators, a pulverizer/packer roller, and two 2.62 bu seed boxes, offering precision seeding for wildlife plots, pastures, and cover crops.

Key Features

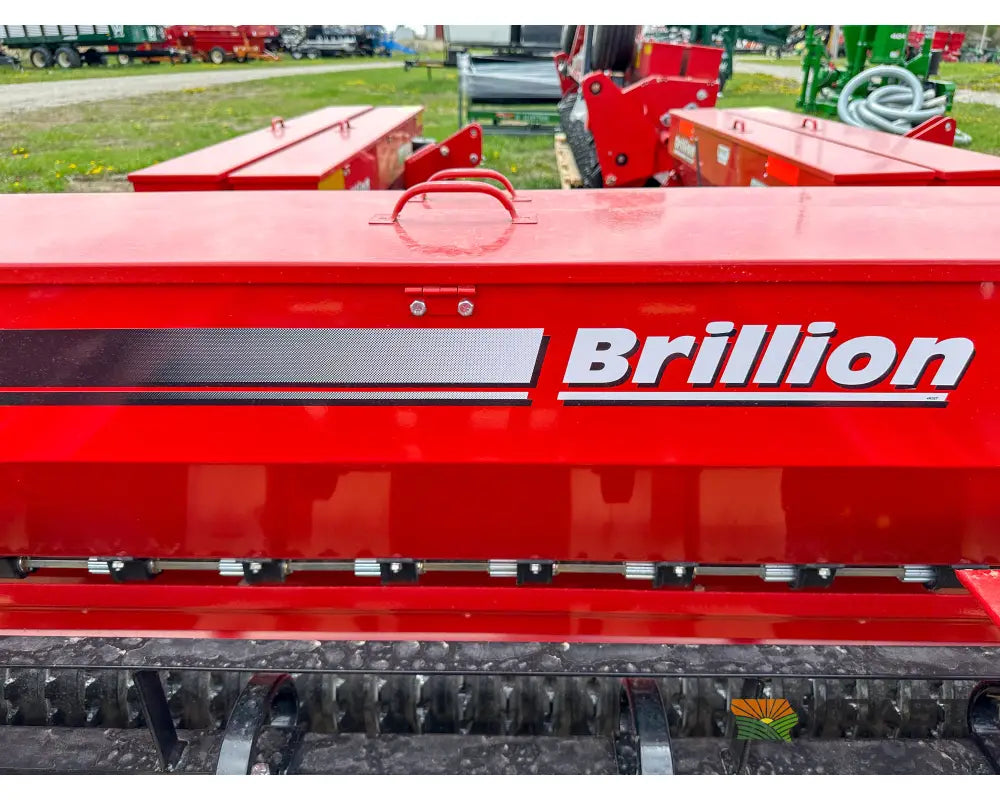

Dual Seed Boxes
The seeder includes two 2.62 bushel seed boxes. The front micro-meter box delivers granular seed precisely, while the rear brush agitator handles chaffy or mixed seeds. Both boxes are ground-driven and equipped with seed-drive disconnect pins for tillage-only operation.

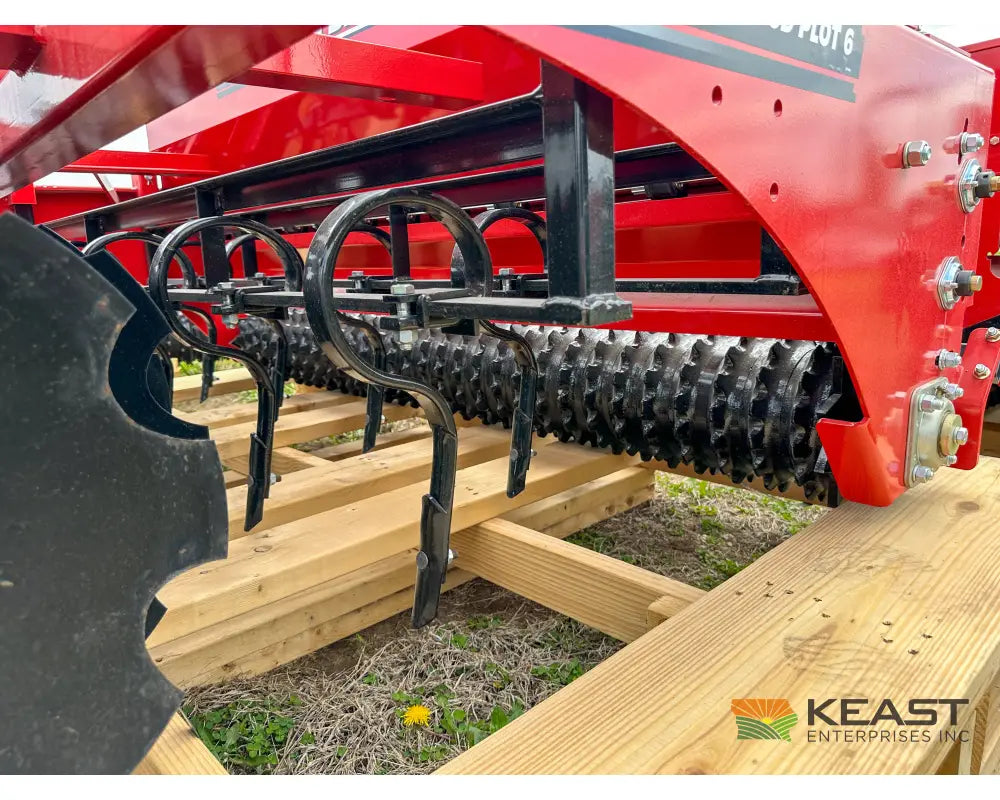

Adjustable Tillage Tools

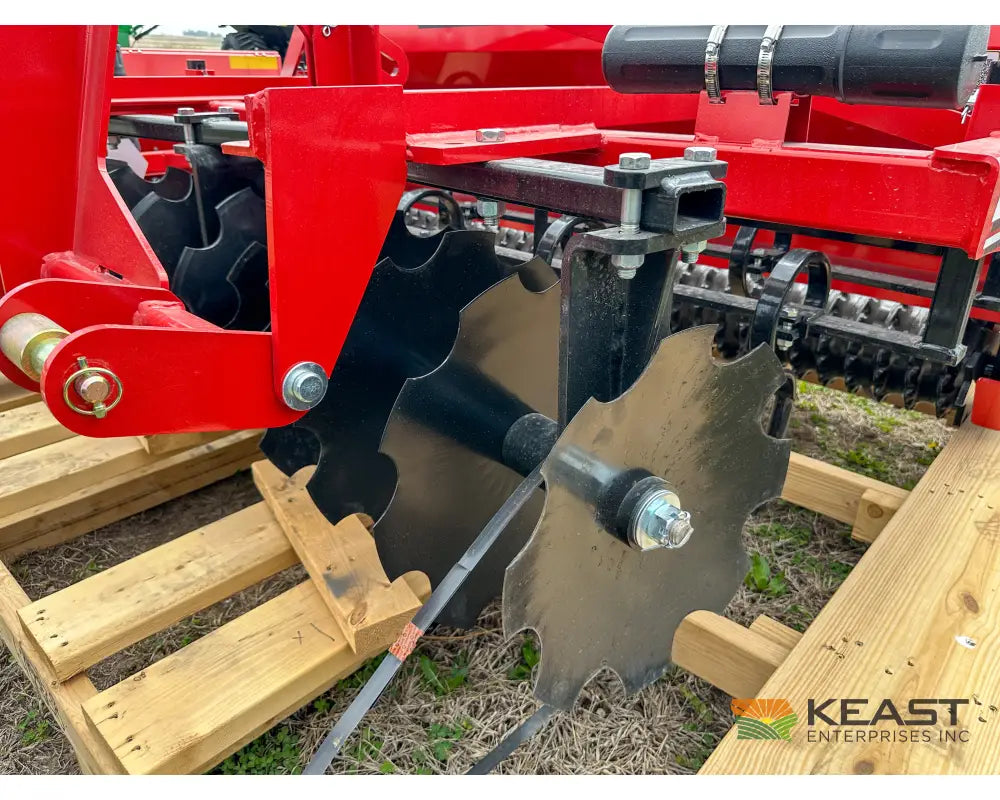

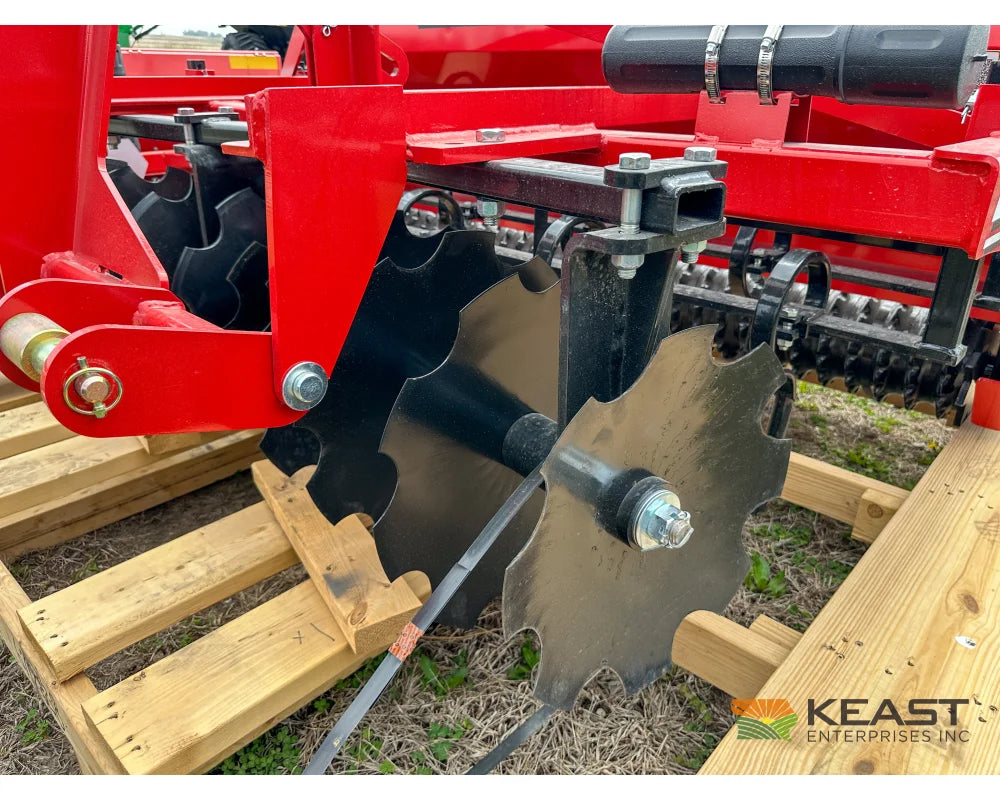

Eighteen-inch notched disc gangs can be set at 10° or 15° to slice soil aggressively. They are followed by two bars of adjustable mini S‑Tine cultivator teeth that loosen deeper soil layers. Both tools can be easily removed if less intense tillage is needed.

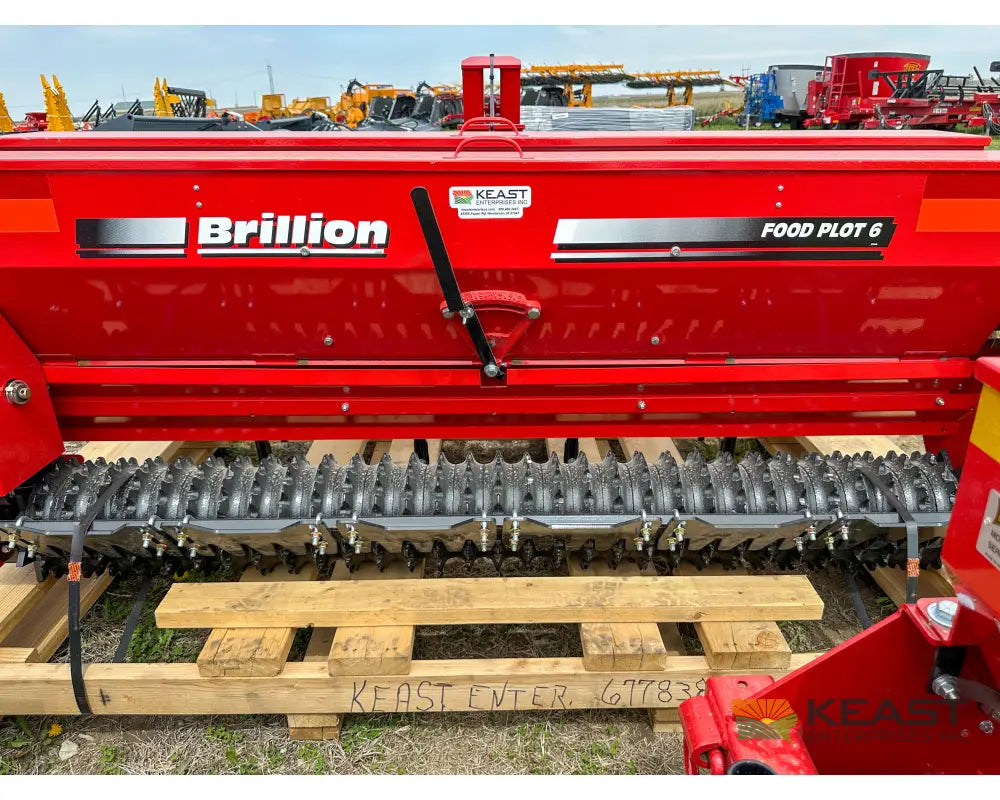

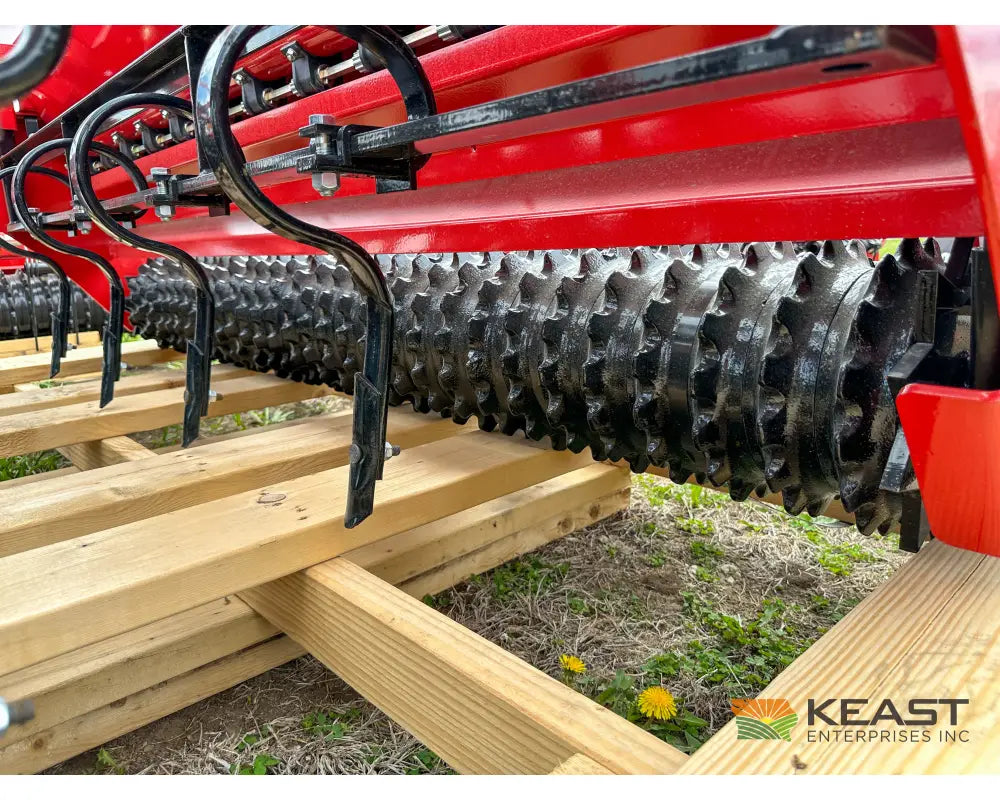

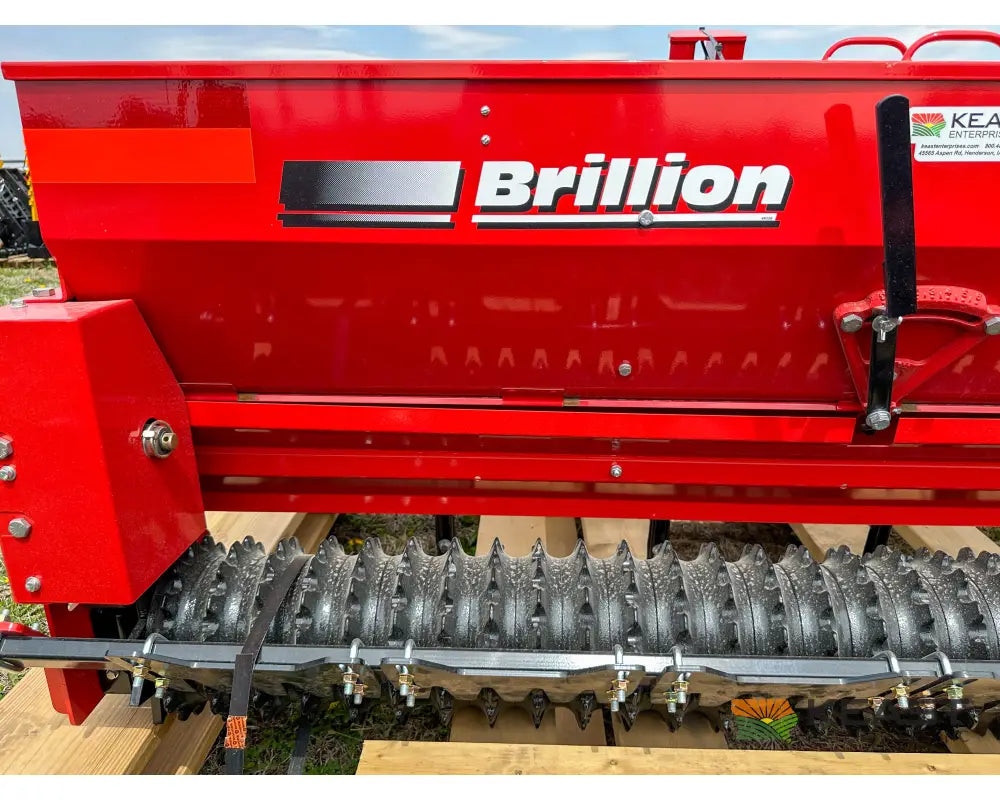

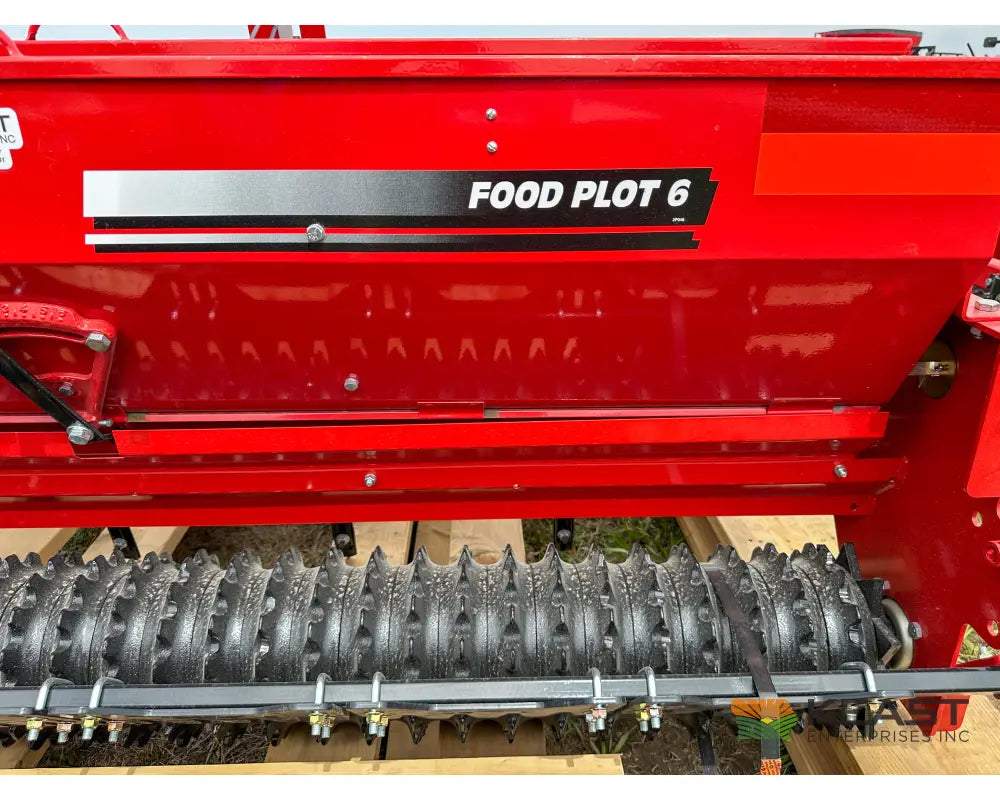

Pulverizer/Packer Roller
The trailing pulverizer roller firms the seedbed and powers the seed meters. An optional Posi‑Drive roller kit provides extra packing force in loose or dry soils, ensuring precise seed-to-soil contact.

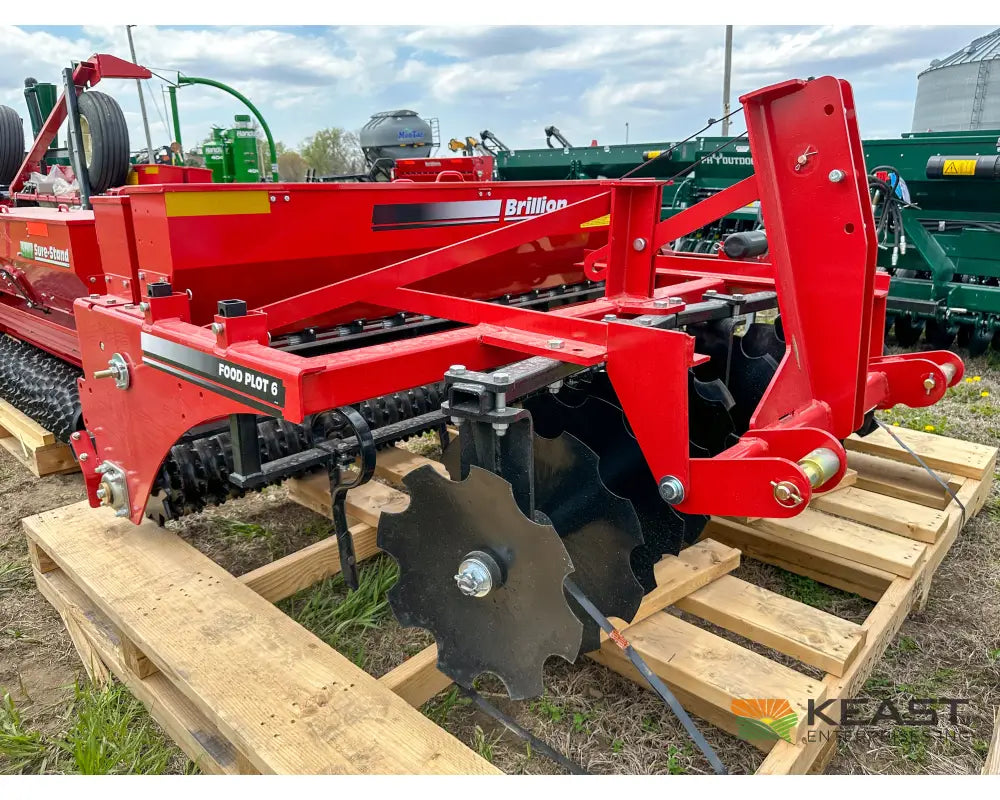

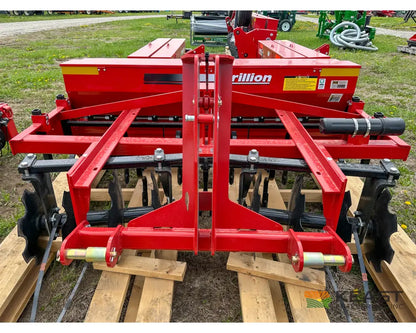

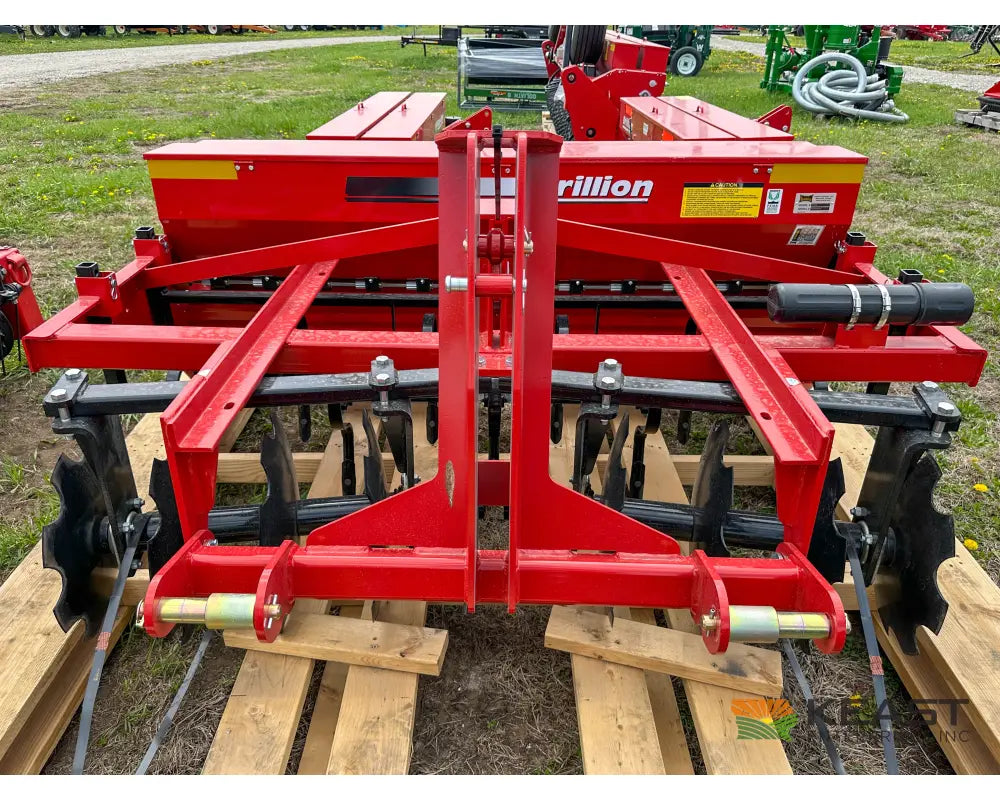

Floating Hitch System
A front-mounted floating hitch allows the seeder to follow ground contours, maintaining consistent tillage and planting depth across uneven terrain, reducing skips or uneven seed distribution.

Ground-Driven Precision
Mechanical, ground-driven seed meters maintain consistent delivery regardless of speed. A seed-drive disconnect pin allows operators to disable seeding functions and use the unit for tillage only.

Versatile Configuration
Easily switch between tillage-only, seed-and-till, or seed-and-pack by adjusting the hitch. Optional coil tine drag or cargo/rock box accessories improve versatility.

Technical Specifications

Performance

Ideal operating speeds range from 3 to 5 MPH, planting and conditioning plots at roughly 3–5 acres per hour. In a single pass, disc gangs cut into the soil while S‑Tines and the pulverizer roller condition it and power the seed boxes. Ground-driven meters deliver consistent seeding rates across terrain variations, and the floating hitch system maintains planting depth on uneven ground. Calibration trays and quick-adjust meters simplify rate changes.

FAQ

What size tractor is required?
A tractor with at least 35 HP and a Cat I/II three-point hitch is sufficient. The seeder is fully mechanical and does not require hydraulics or PTO.

Can it plant both small and large seeds?
Yes. The front micro-meter box precisely plants small seeds, while the rear brush agitator handles larger or chaffy seeds and seed blends.

Can it be used without planting seed?
Yes. Use the seed-drive disconnect pin and adjust hitch position to shift usage to tillage-only or packing-only modes.

How deep does it till?
Disc gangs cut shallow (approximately 2–3 in), mini S‑Tines adjust deeper based on settings, and the pulverizer roller firms the bed at the set depth mechanically driven by the roller.

Is calibration user-friendly?
Yes. Both seed boxes include calibration trays, and adjustable sprocket settings allow rapid rate changes verified with simple weighing.
