Brillion BPSB-6' 3-Point Till N Seed Seeder, 4.5 + 1.4 Bu Seed Boxes

Overview

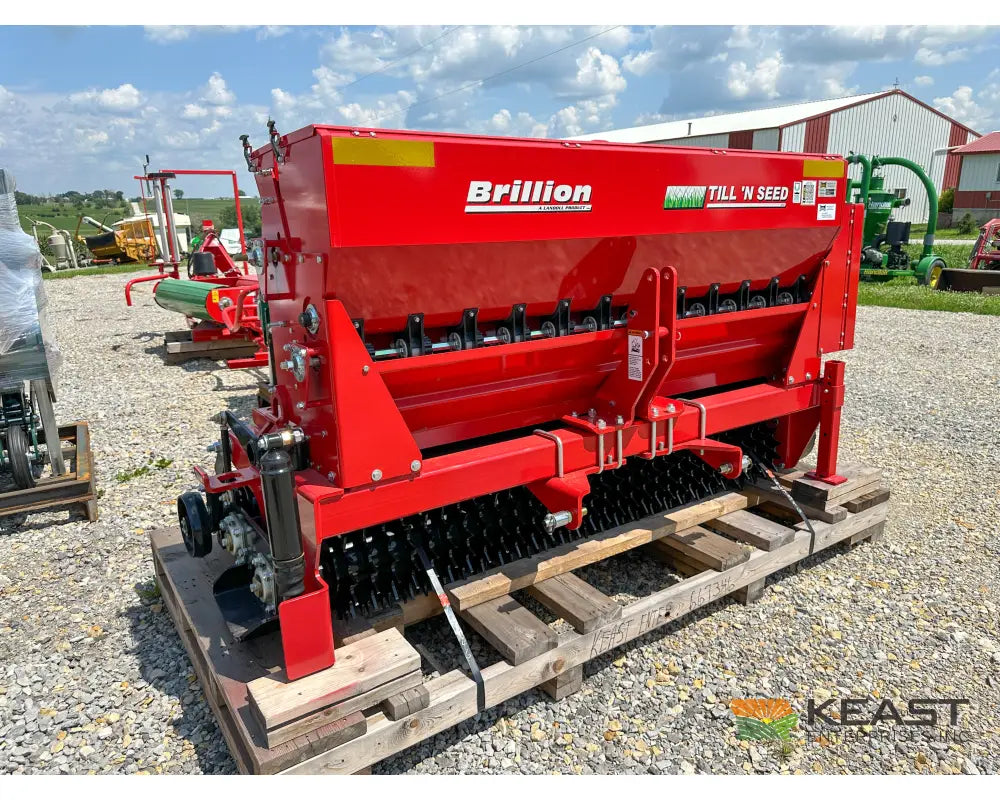

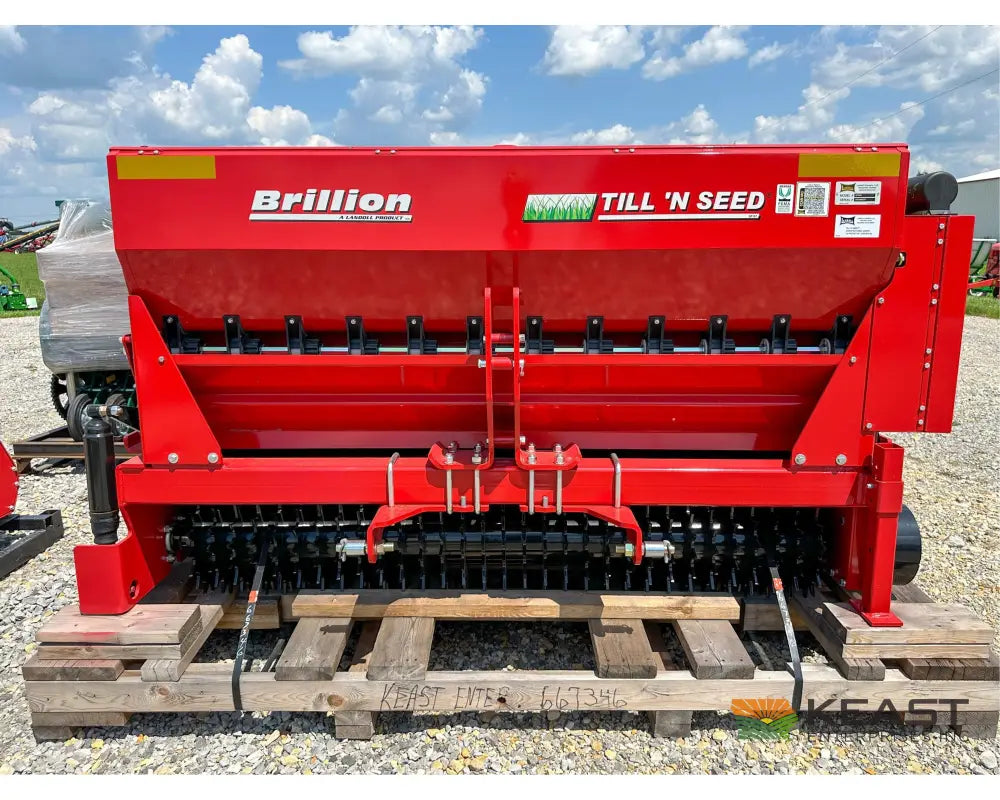

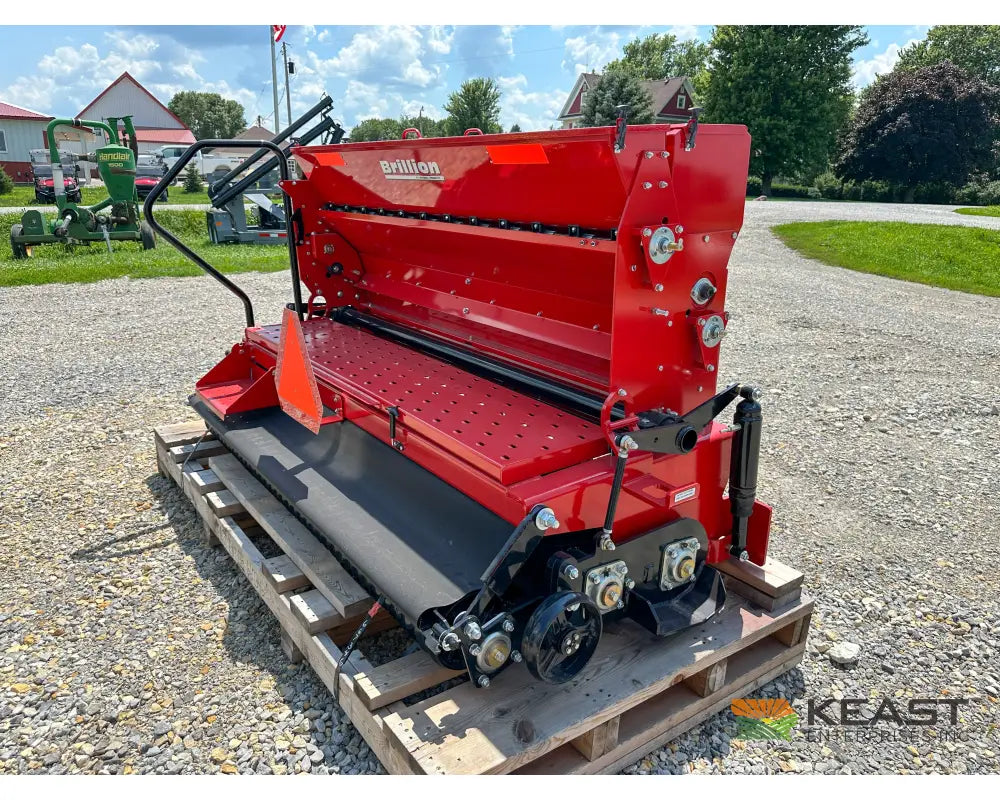

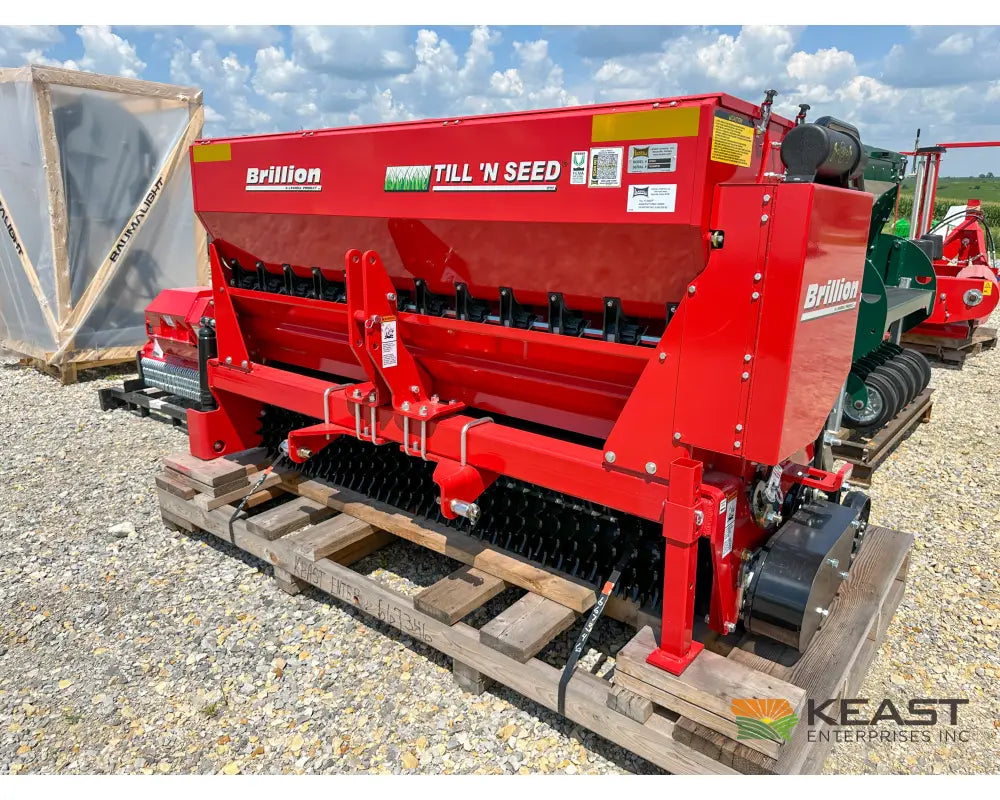

The Brillion BPSB‑6 Till ’N Seed Seeder is a heavy-duty, ground-driven overseeder designed for precise interseeding across pastures, athletic fields, lawns, food plots, and turf areas. Its robust welded steel frame supports a front drive rotor, a fast-spinning tillage rotor, a floating firming roller, and two ground-driven seed boxes, no hydraulics or PTO required. Calibration trays and sprocket-adjustable meters deliver consistent seed placement across uneven terrain and varied seed mixes.

Key Features

Dual Seed Boxes

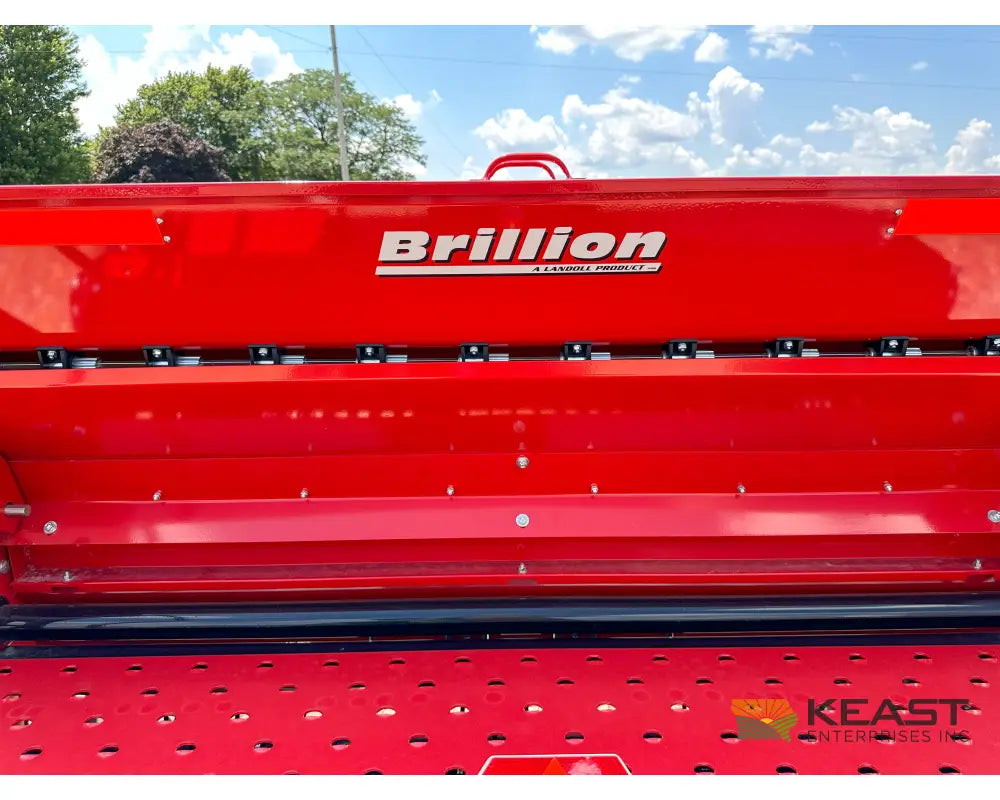

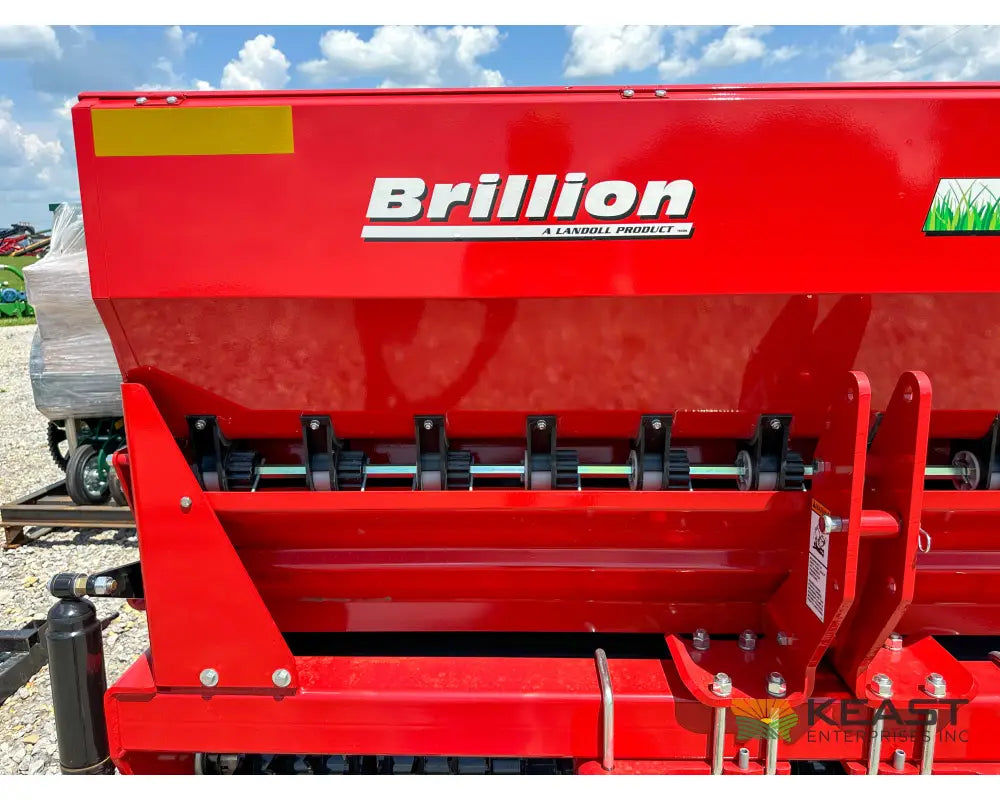

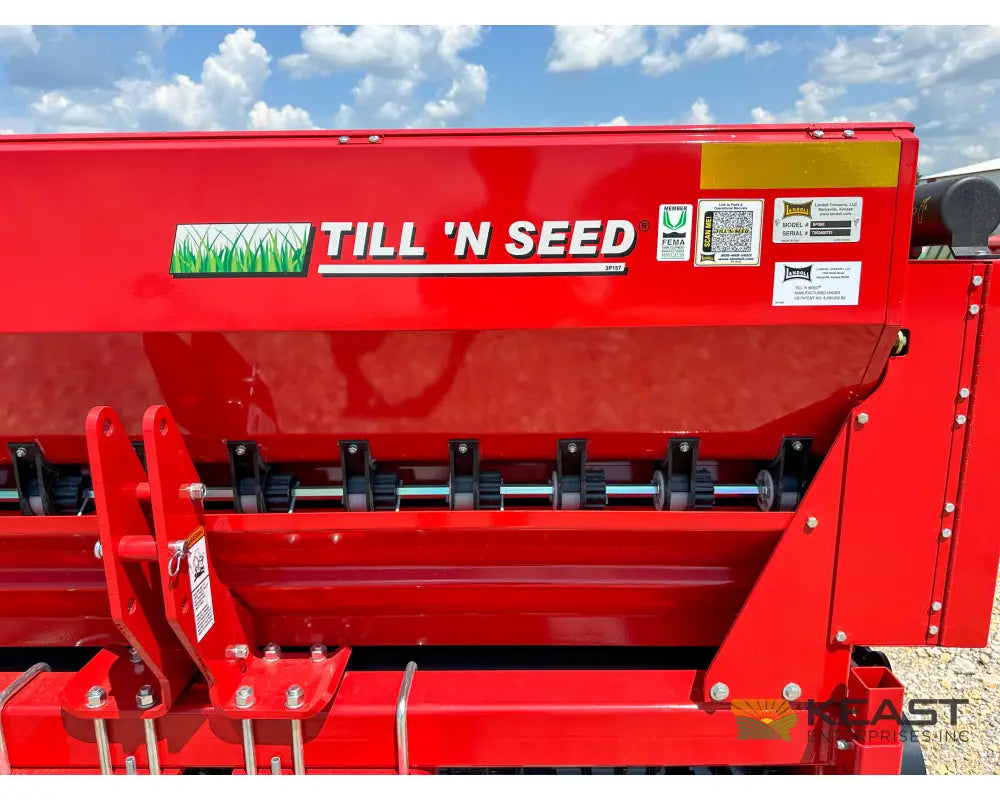

The front 4.5-bushel micro-meter box (with agitator) handles medium and coarse seeds, while the rear 1.4-bushel box is built for fine seeds like clover and brassicas. Both are driven directly from the rear firming roller and include on-board calibration trays for fast rate adjustment.

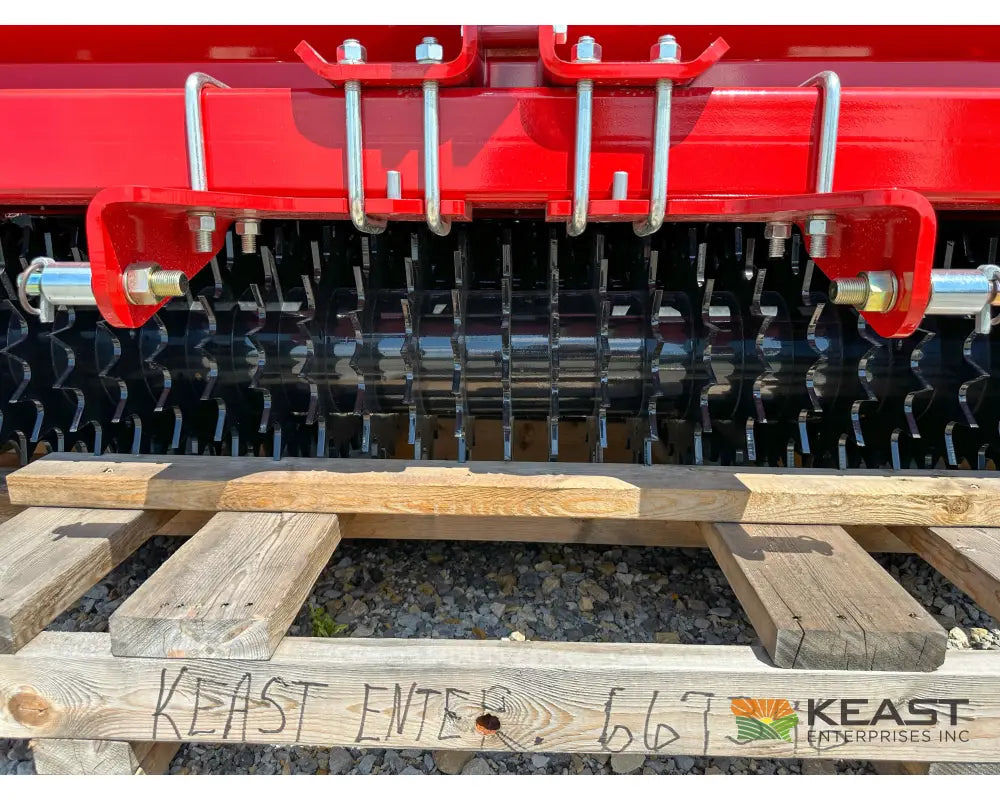

Integrated Tillage Rotors

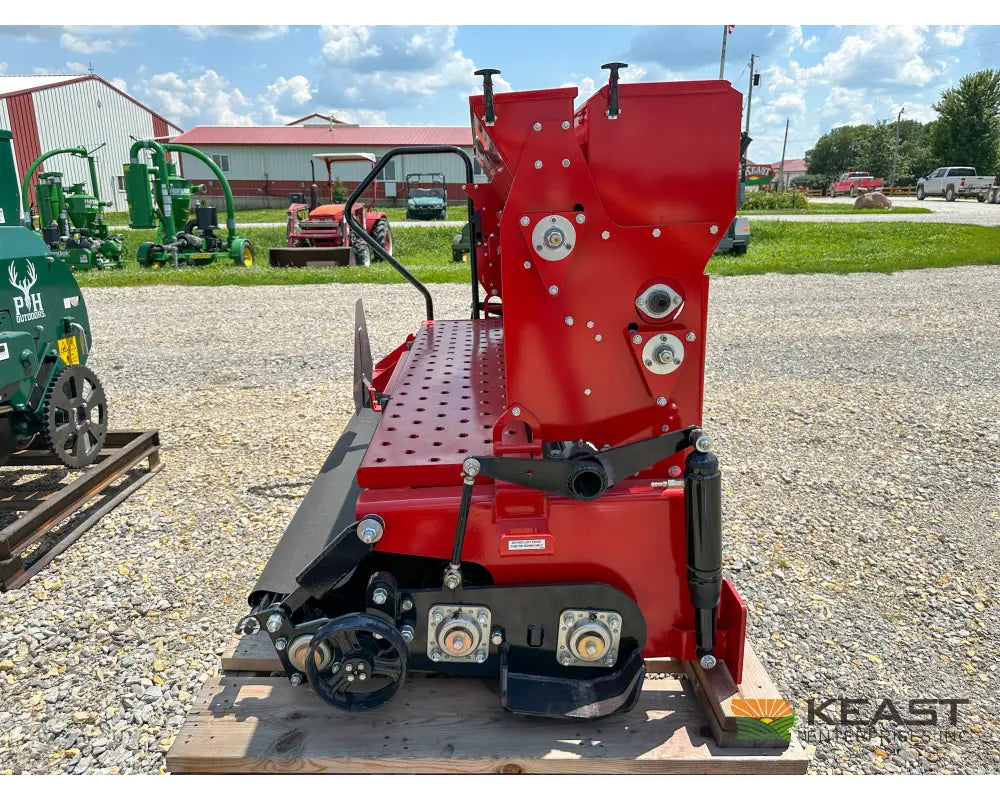

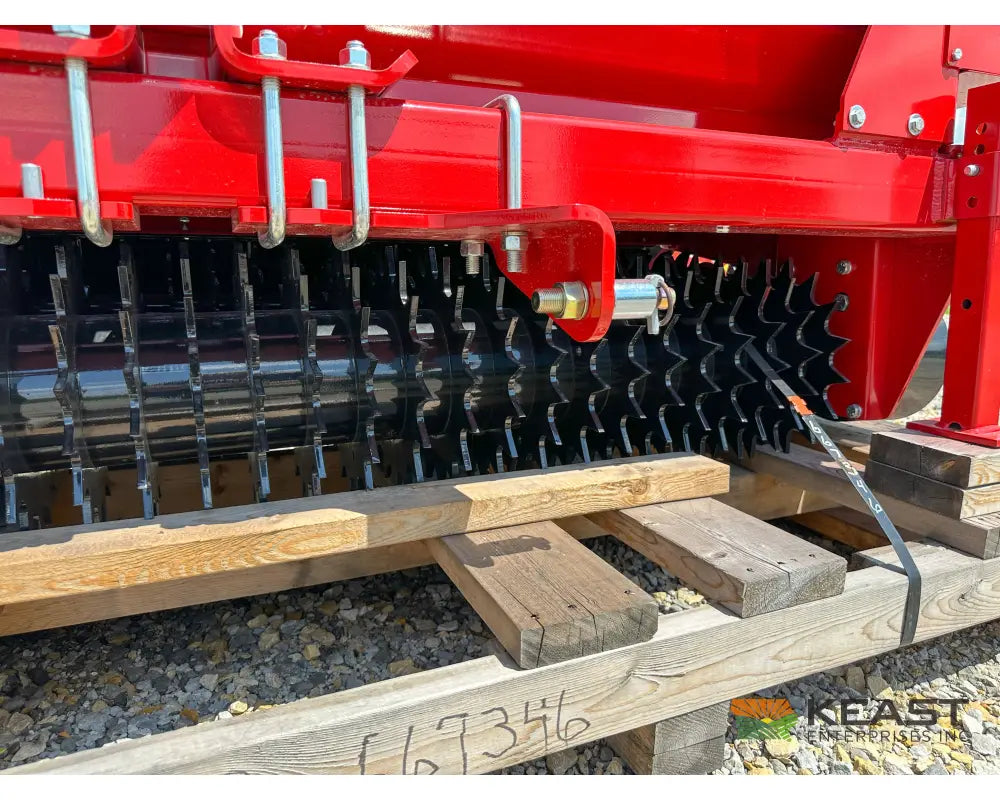

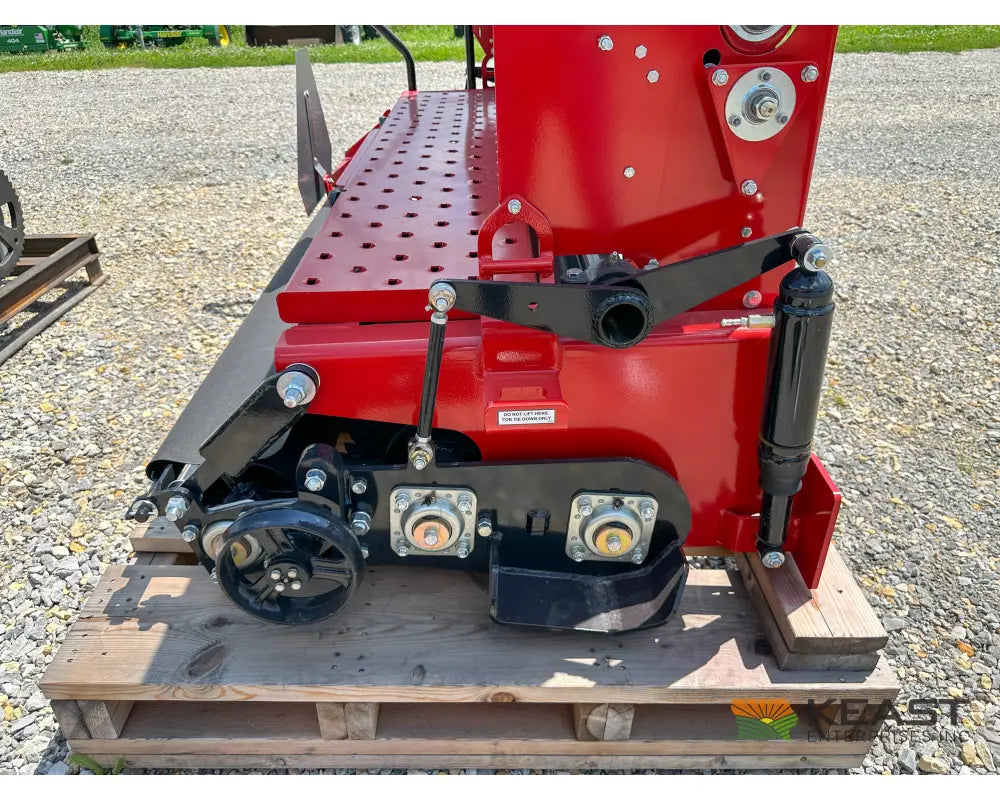

A drive rotor leads, followed by a tillage rotor spinning about 2.5 times faster. This opens seed furrows lightly, while floating mounting and air-shock downforce keep the blades in consistent contact with uneven ground.

Floating Firming Roller
The trailing cast iron roller beds seeds into the soil without crushing them, enhancing seed-to-soil contact and improving germination rates.

Adjustable Depth Control

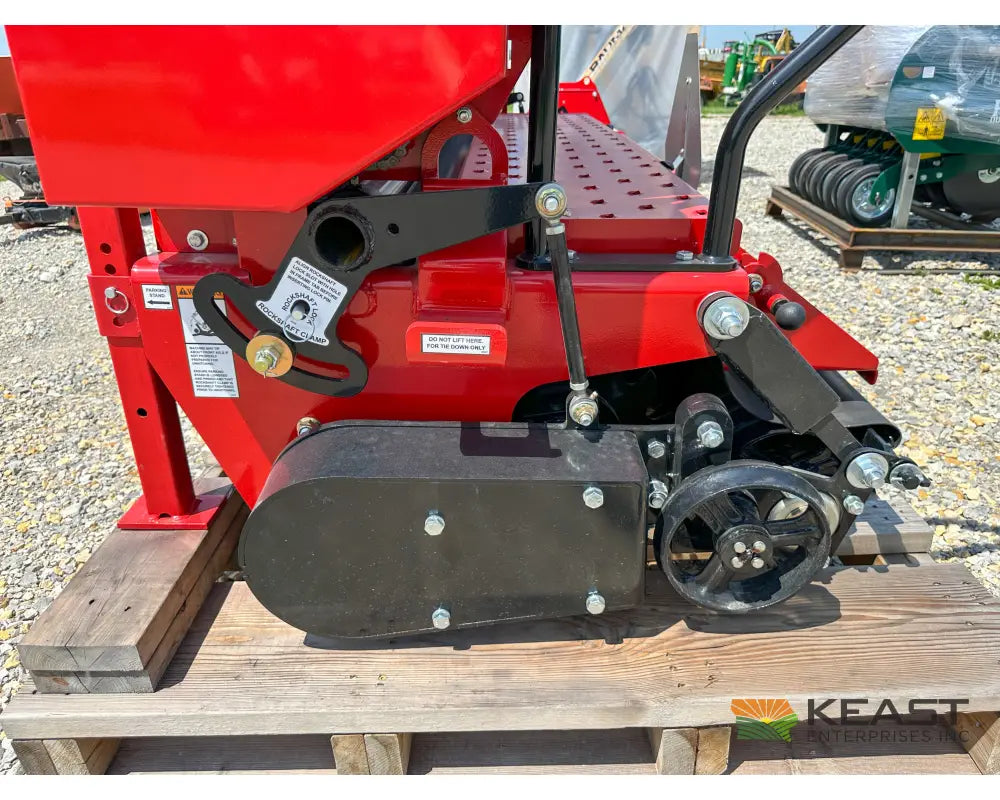

Side-mounted gauge wheels allow easy adjustment of seeding depth, ensuring uniform coverage even in varying soil conditions.

Heavy-Duty Drive System
The BPSB‑6 features a welded steel frame, #80 roller chain drive, and sealed 1.5" greaseable bearings, delivering long-term durability under frequent use.

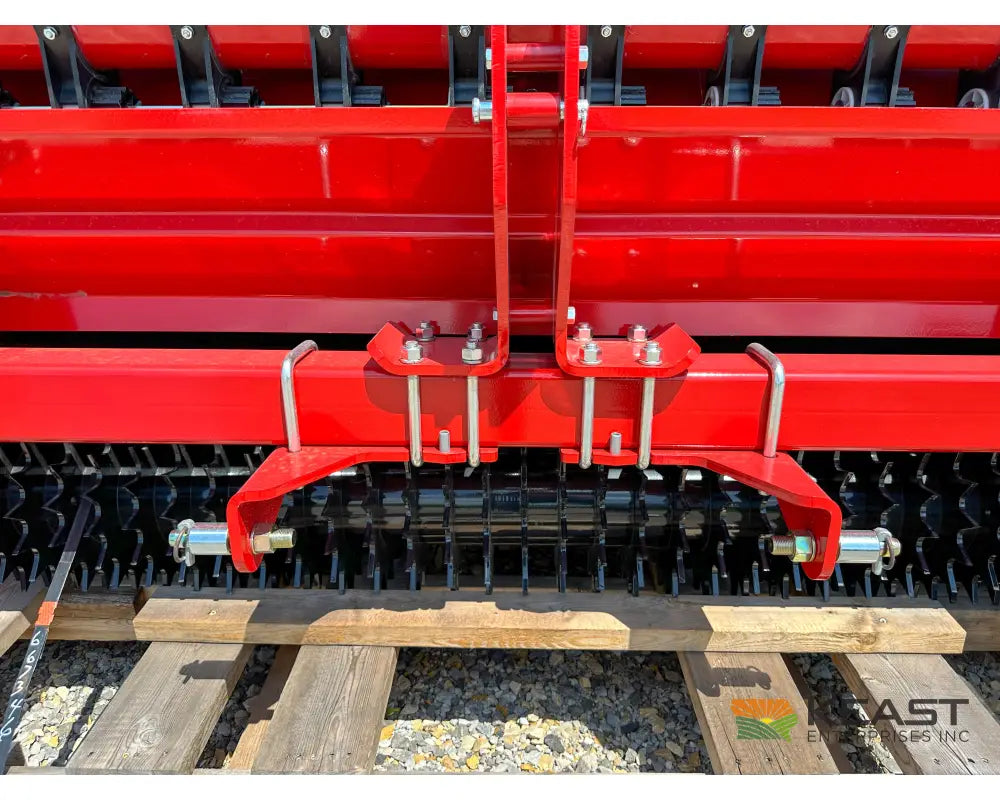

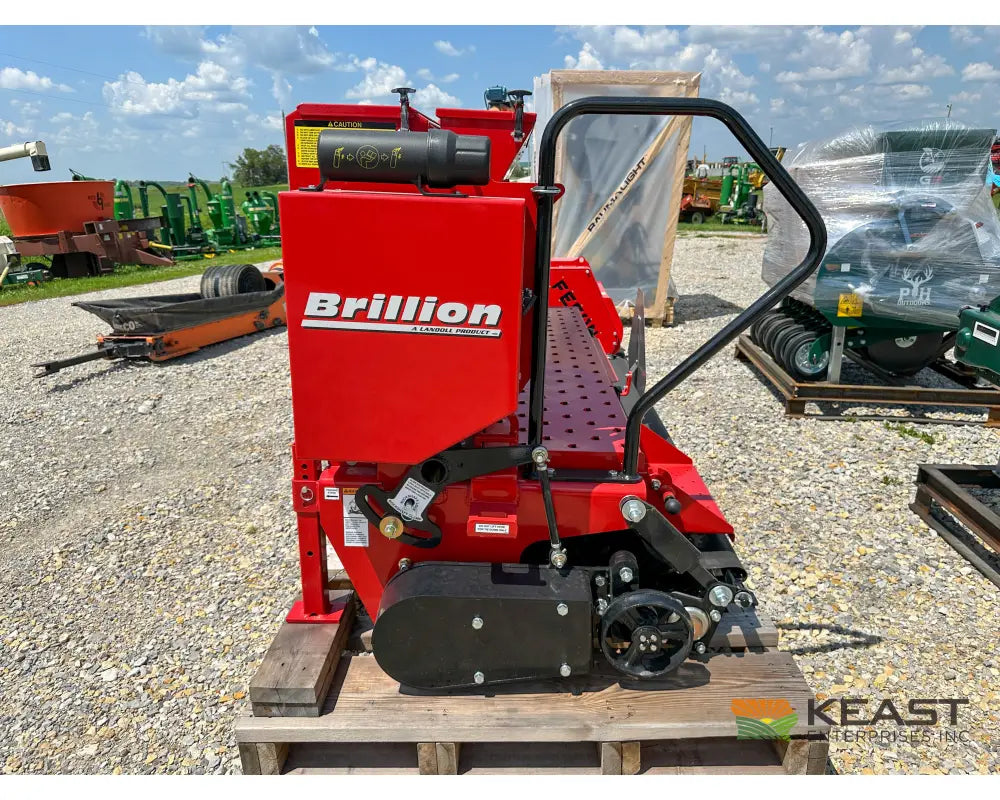

3-Point Hitch with Offset

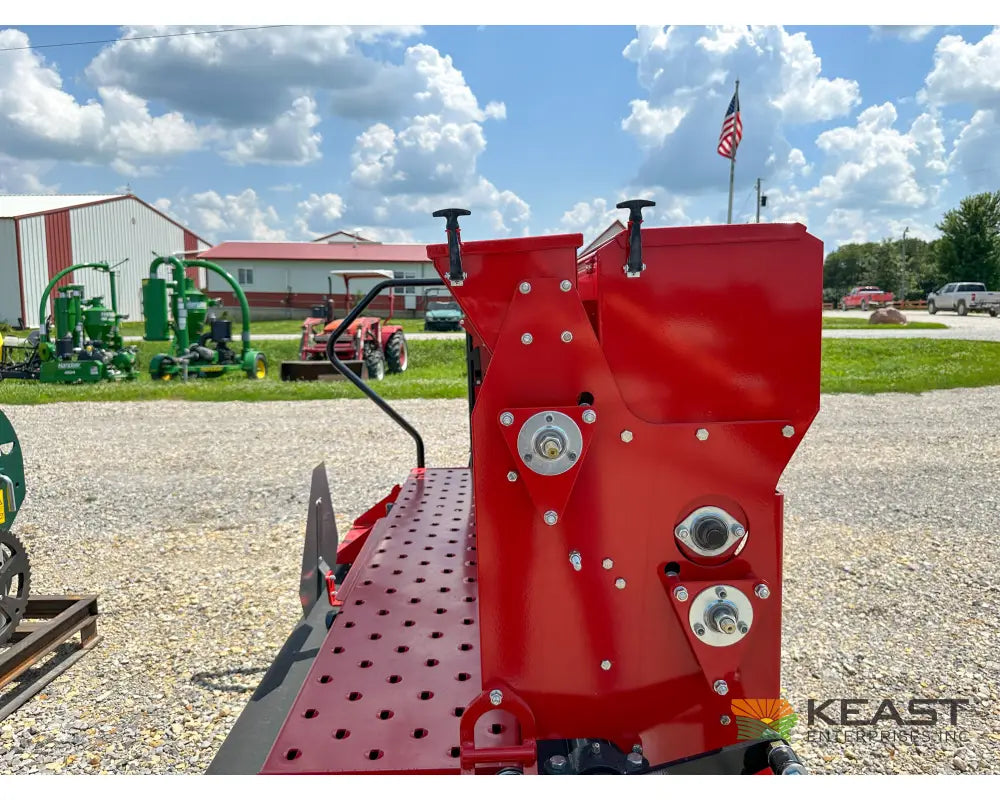

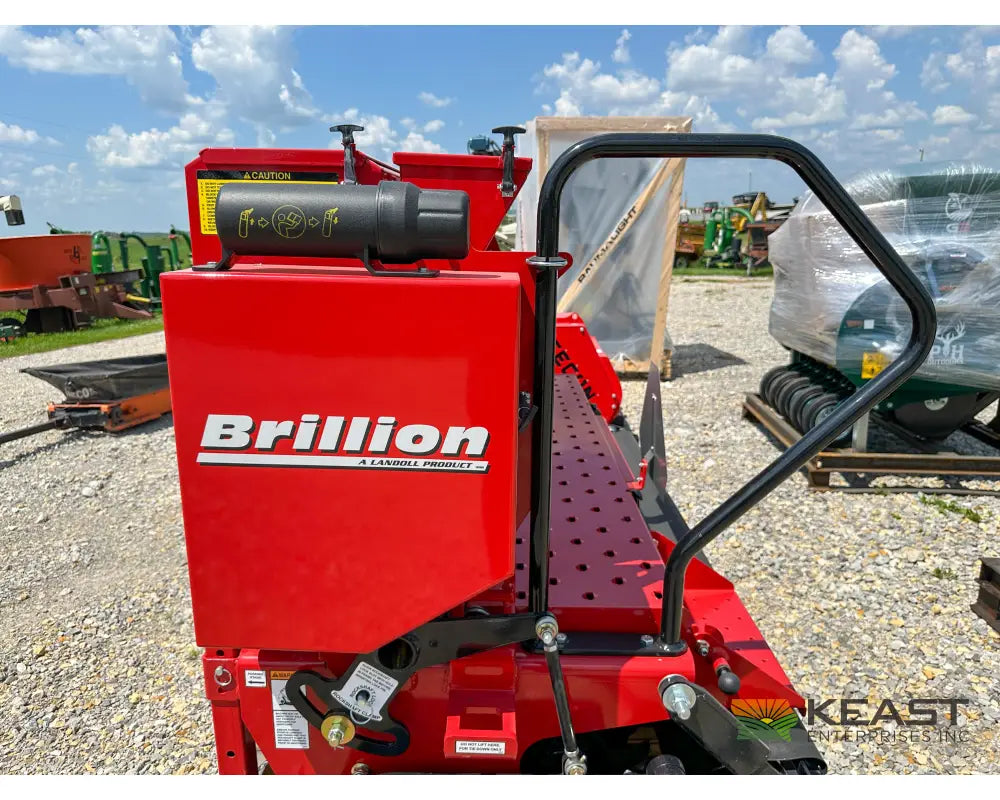

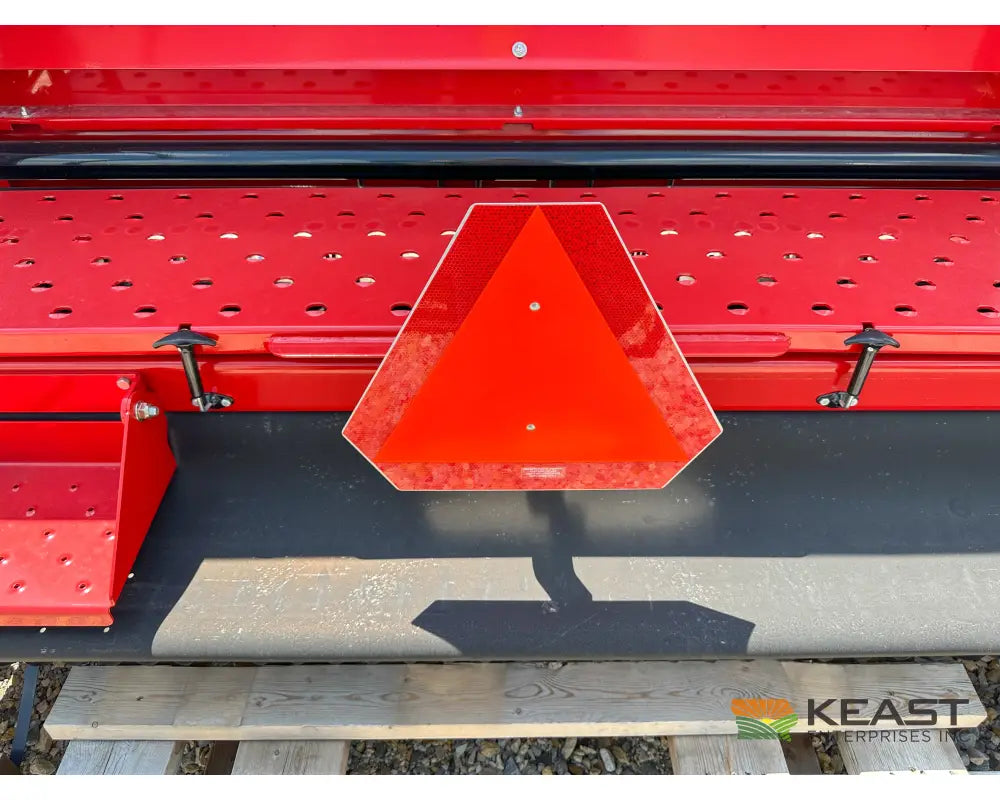

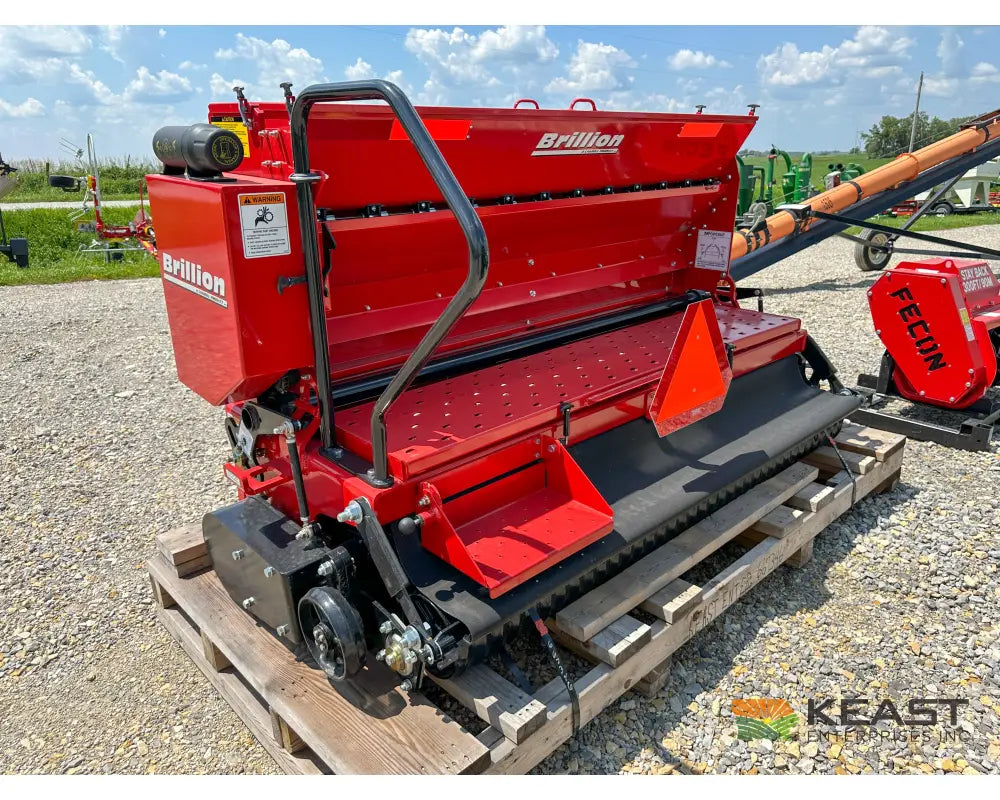

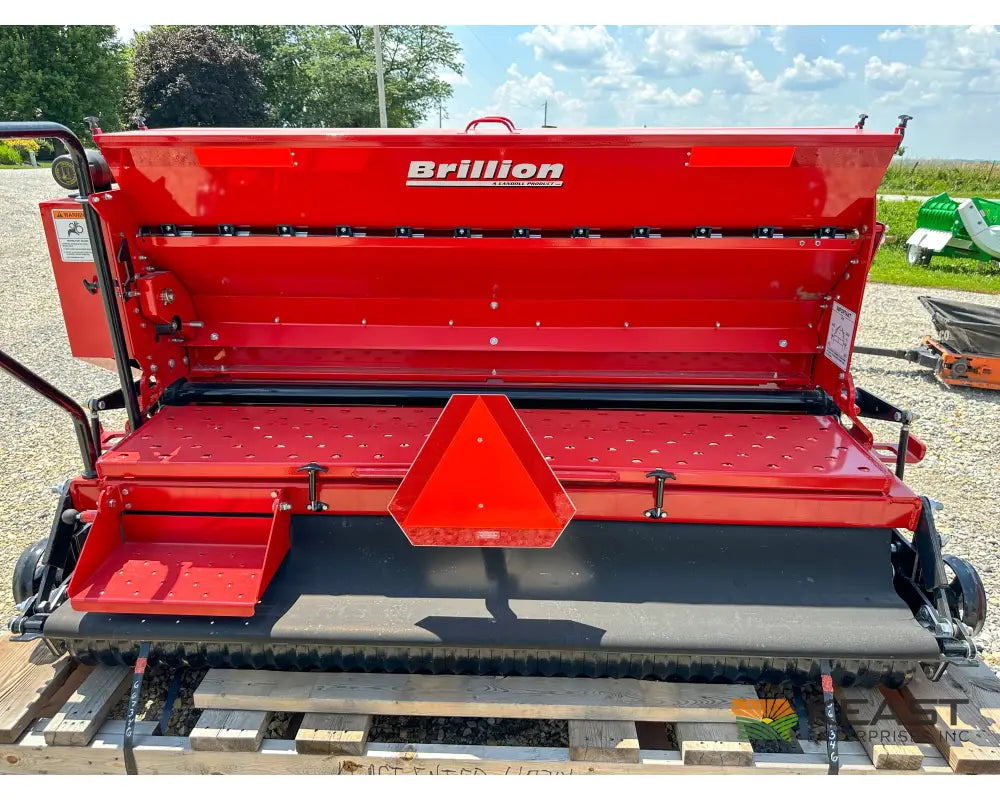

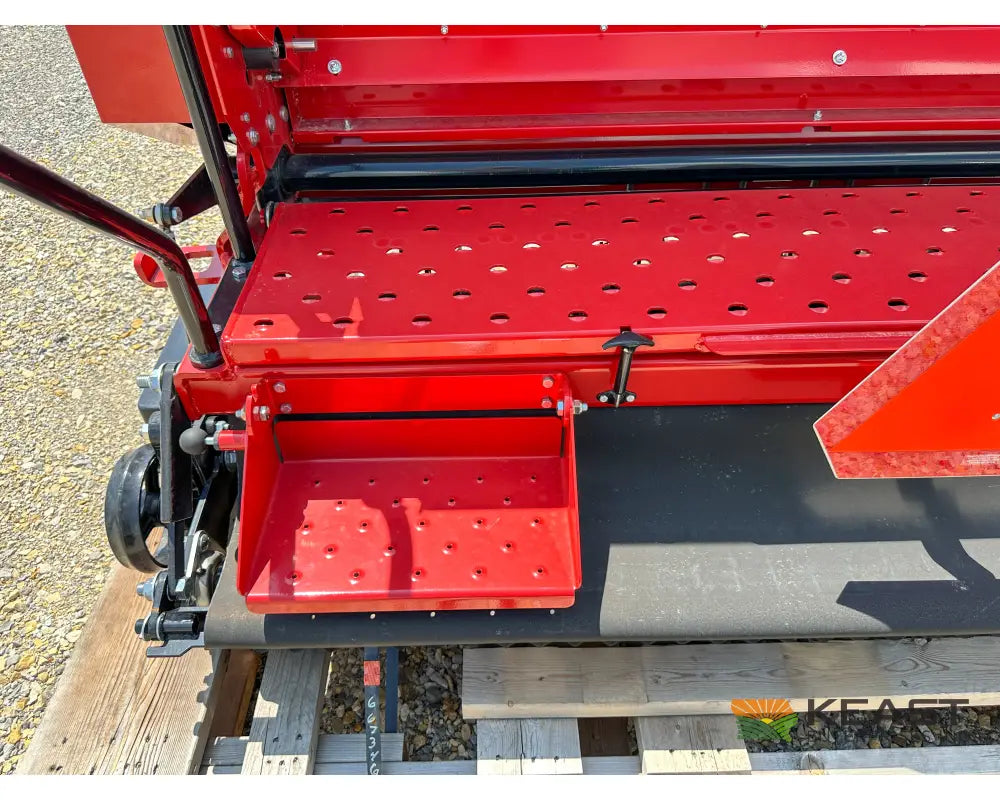

Compatible with Category I/II hitch systems, the hitch can be offset to avoid seed overlap with tractor wheels. It includes a walkboard with handrail, tie-down lugs, parking stand, wind-deflector tray, and seed-drive disconnect pin for added convenience.

Technical Specifications

Performance

At field speeds of 4–8 MPH, the BPSB‑6 seeds approximately 2.9 acres/hour at 4 MPH, increasing to 5.8 acres/hour at 8 MPH. Its mechanical ground-drive meters maintain consistent seed rates regardless of speed, and the rotor setup ensures reliable placement without needing full tillage. The floating firming roller settles the seedbed for uniform emergence, while calibration trays simplify rate changes mid-operation.

FAQ

What size tractor do I need?
A Category I or II tractor rated between 35 and 60 HP, equipped with a Cat I/II three-point hitch. No PTO or hydraulics required.

Can it plant small seeds like clover or brassicas?
Yes. The rear 1.4-bushel micro-meter seed box handles fine seeds.

How deep can it plant?
Seeding depth is controlled by gauge wheels and ground conditions, typically ranging from barely surface-level up to about an inch deep.

Can I use it for light tillage?
Yes. A seed-drive disconnect pin allows you to disable seeding components and use the unit as a thatcher, aerator, or light tillage tool.
