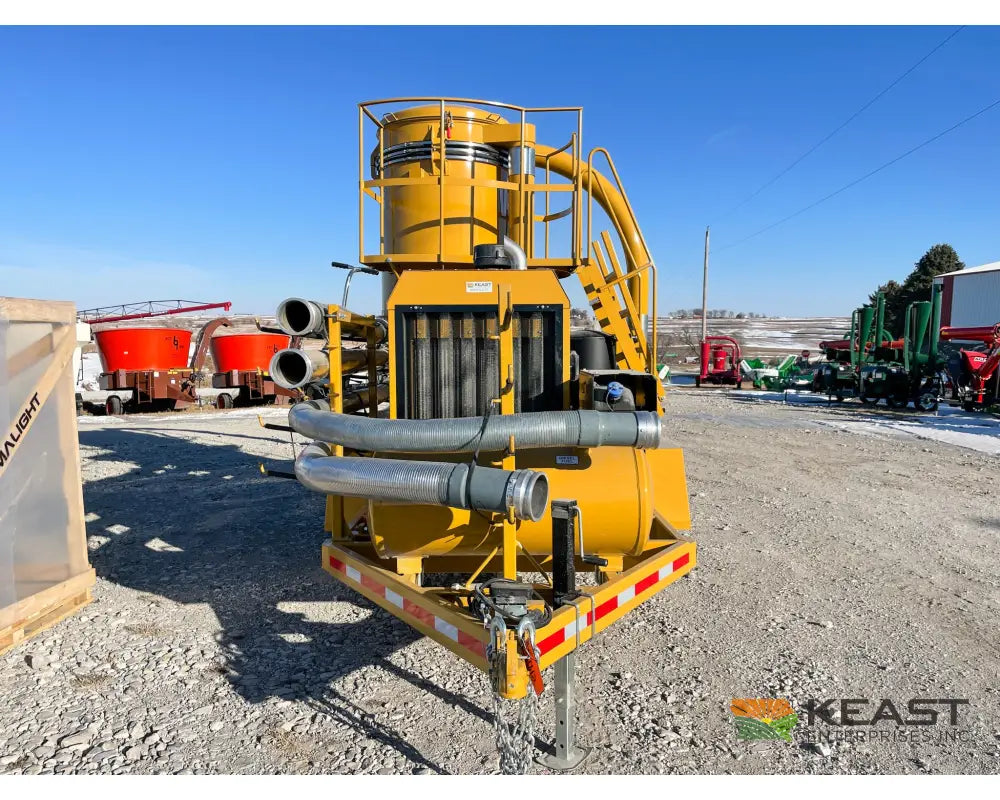

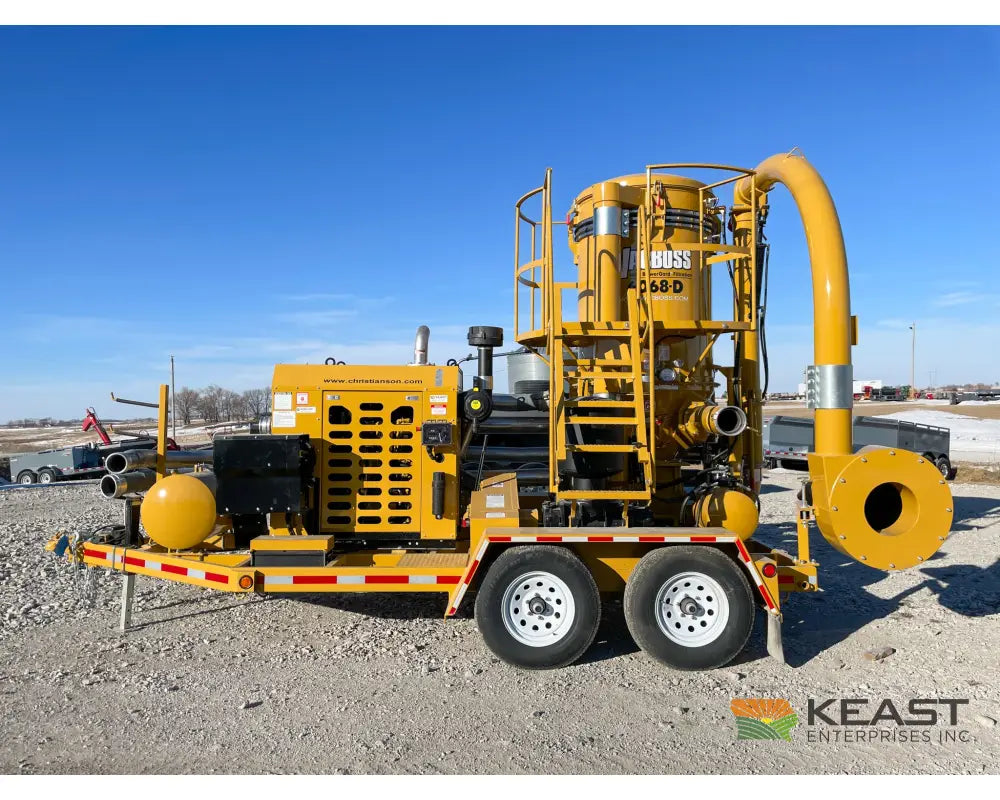

Christianson VacBoss 6068D Grain Vac, Diesel, 6" Intake, 5,000 Bu/Hr

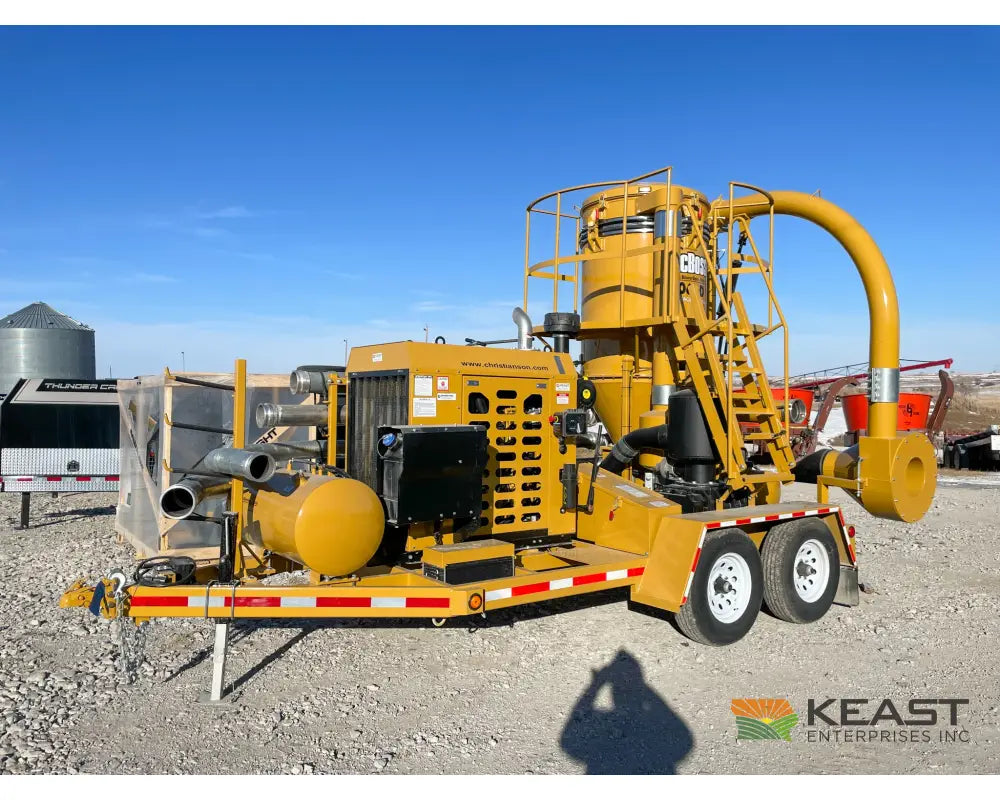

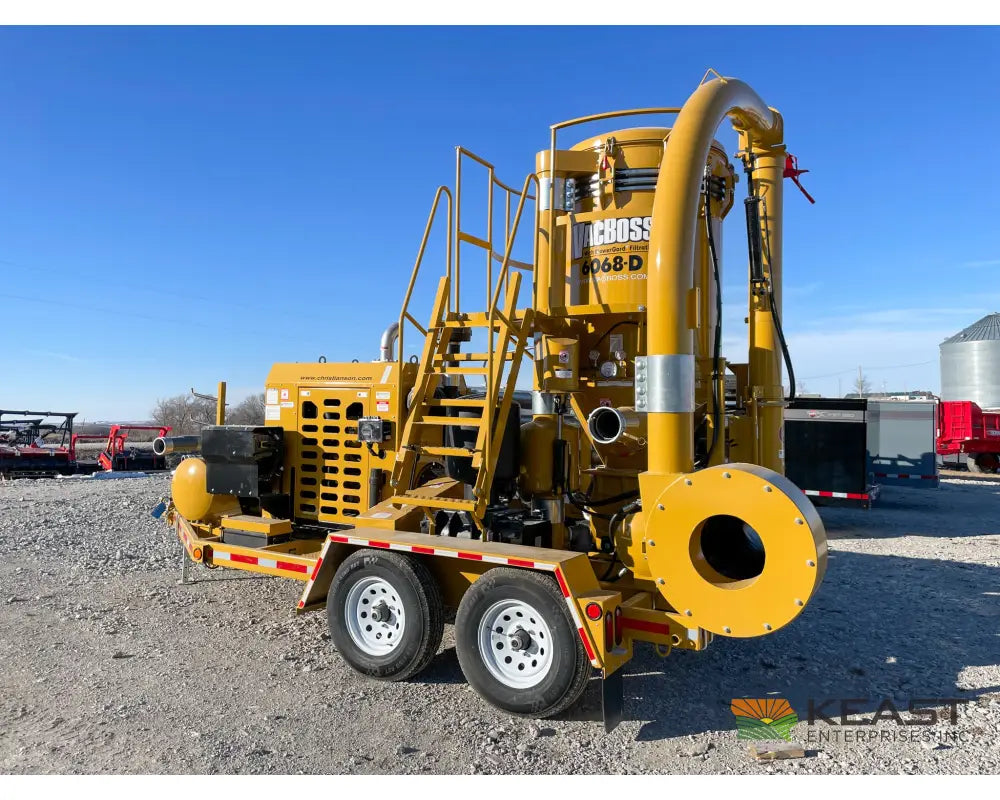

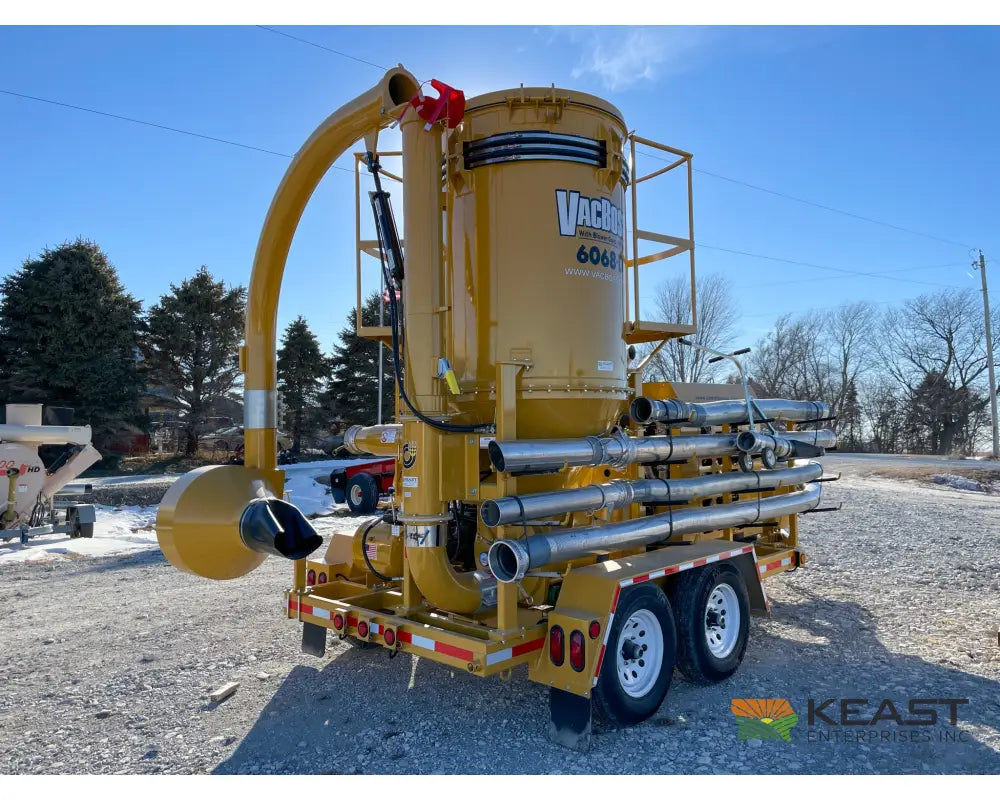

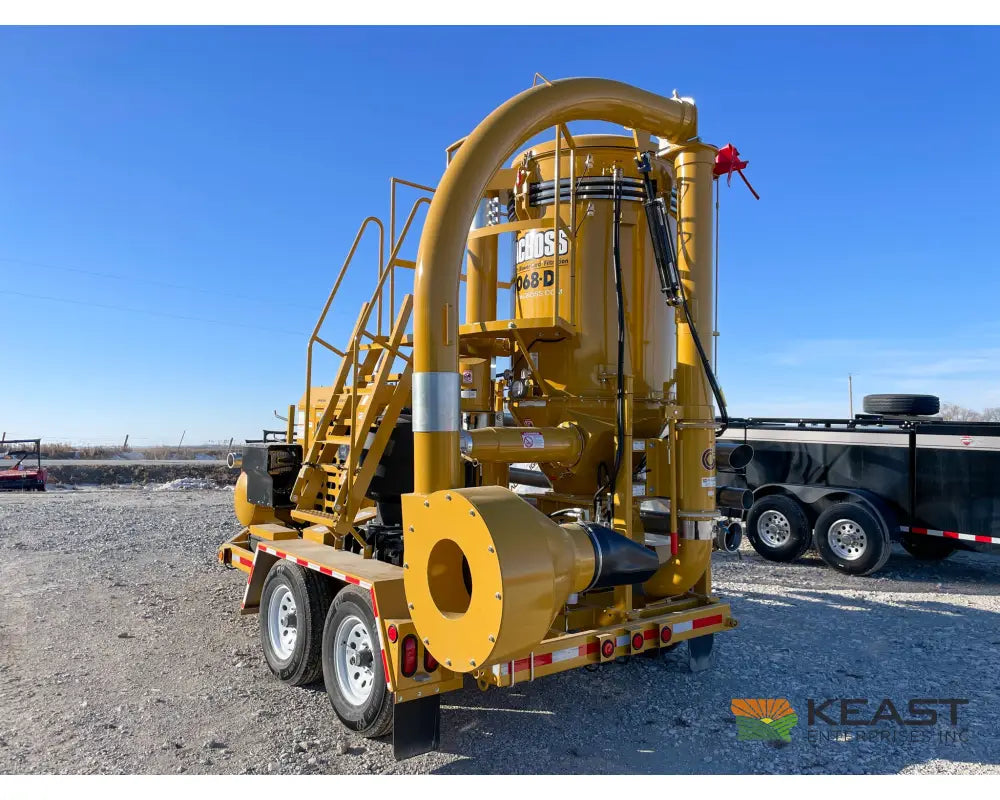

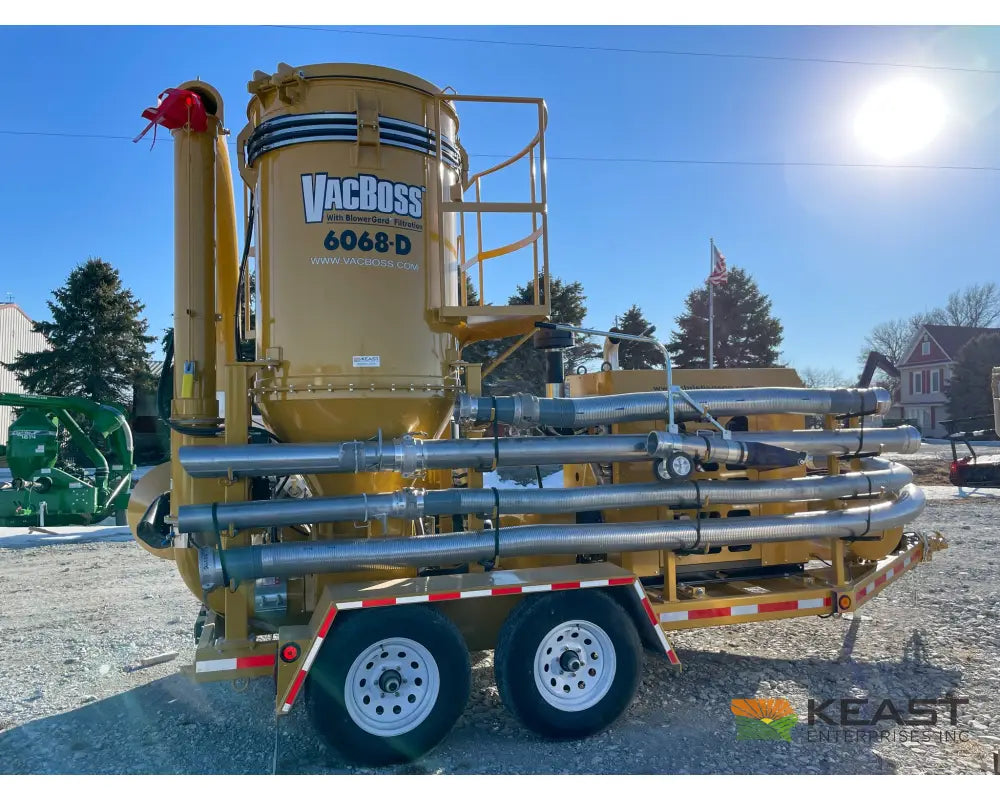

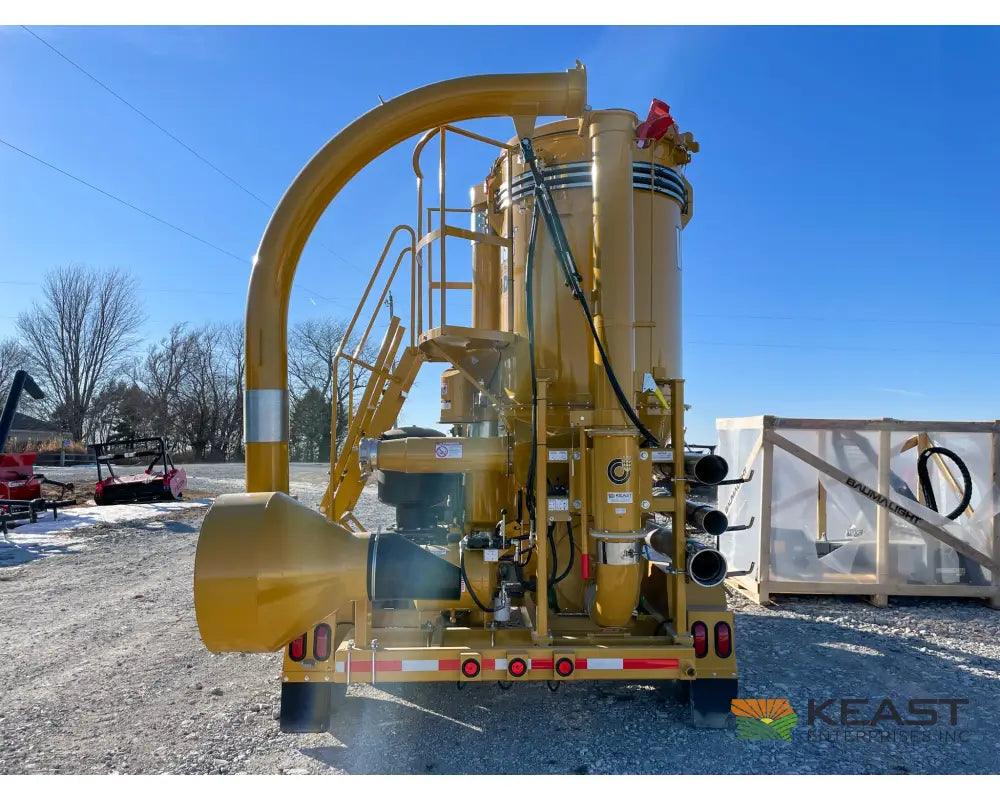

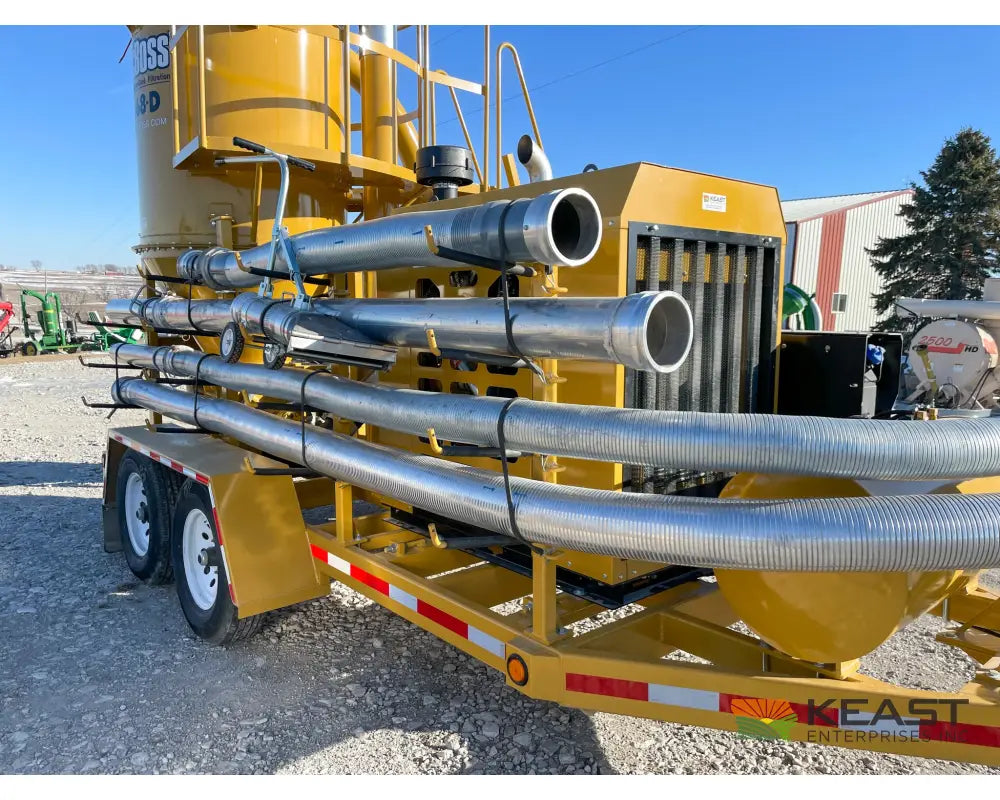

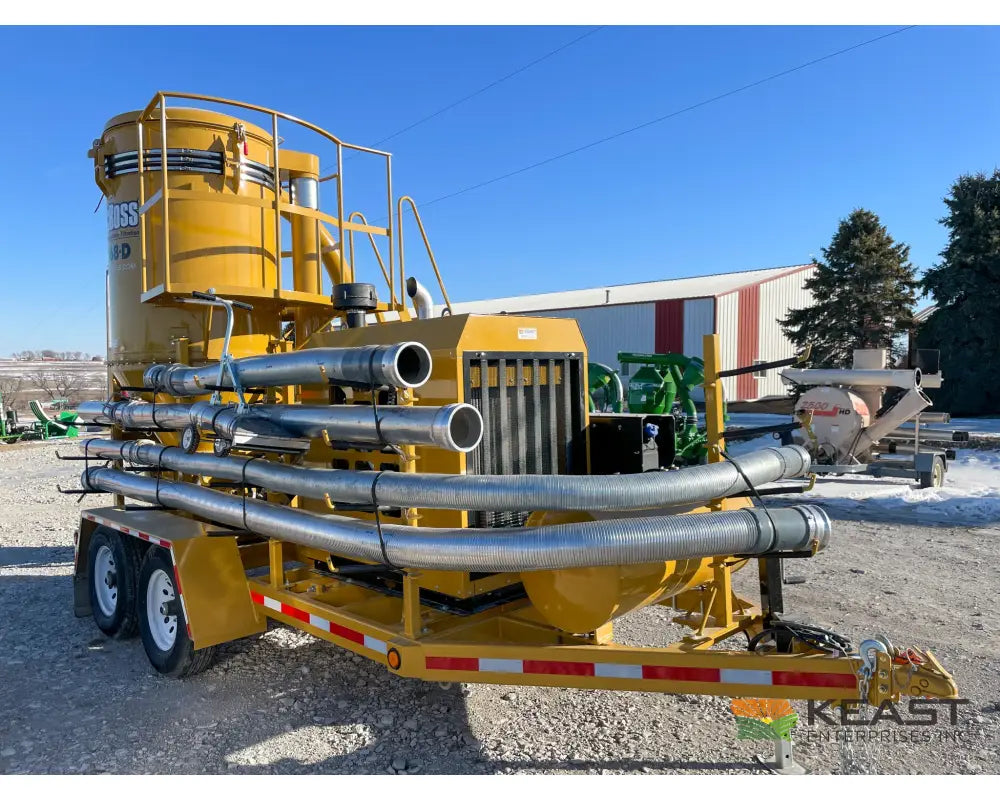

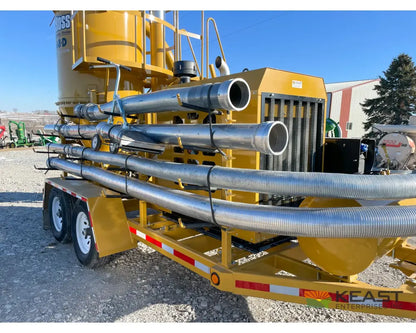

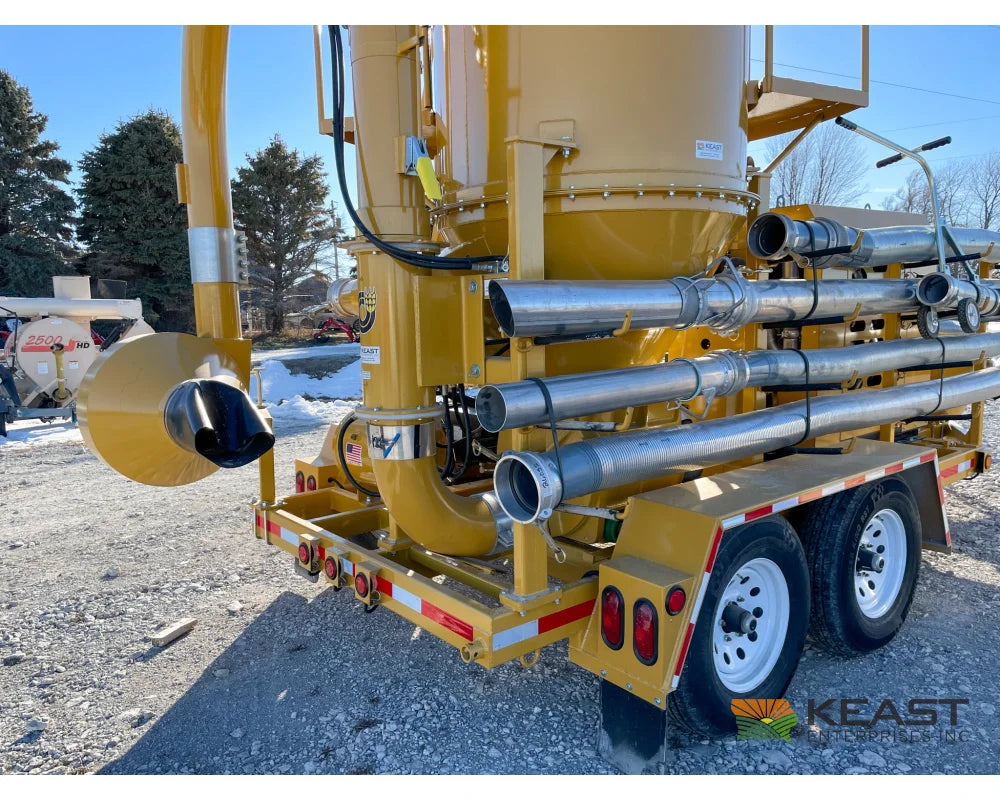

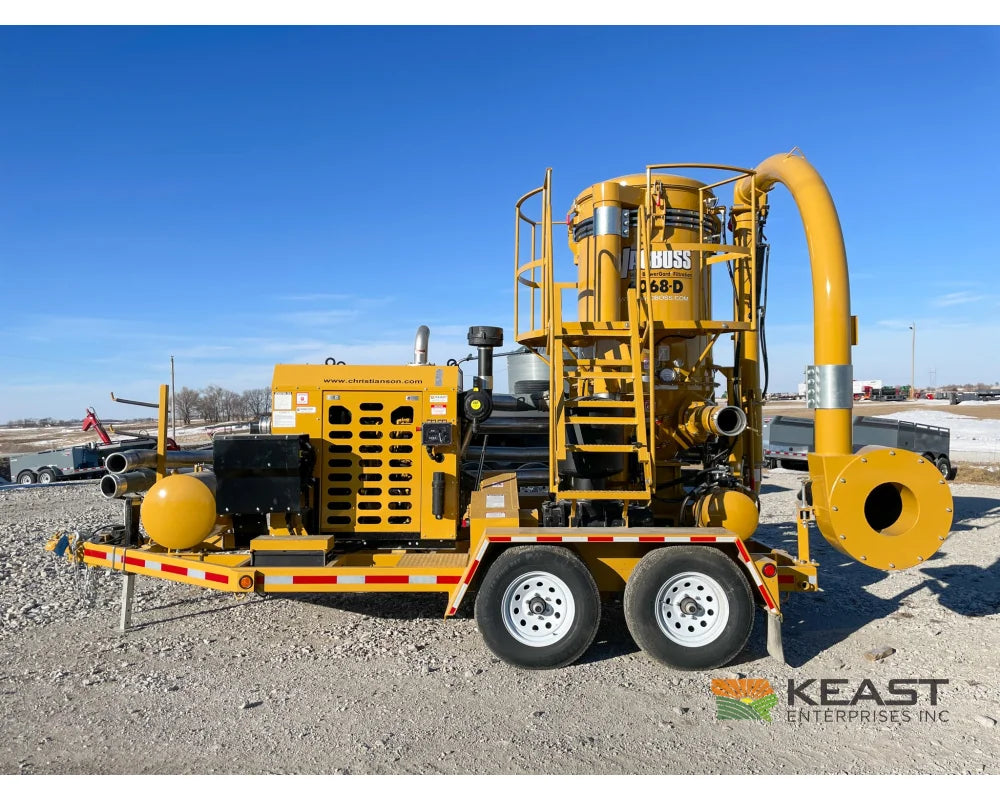

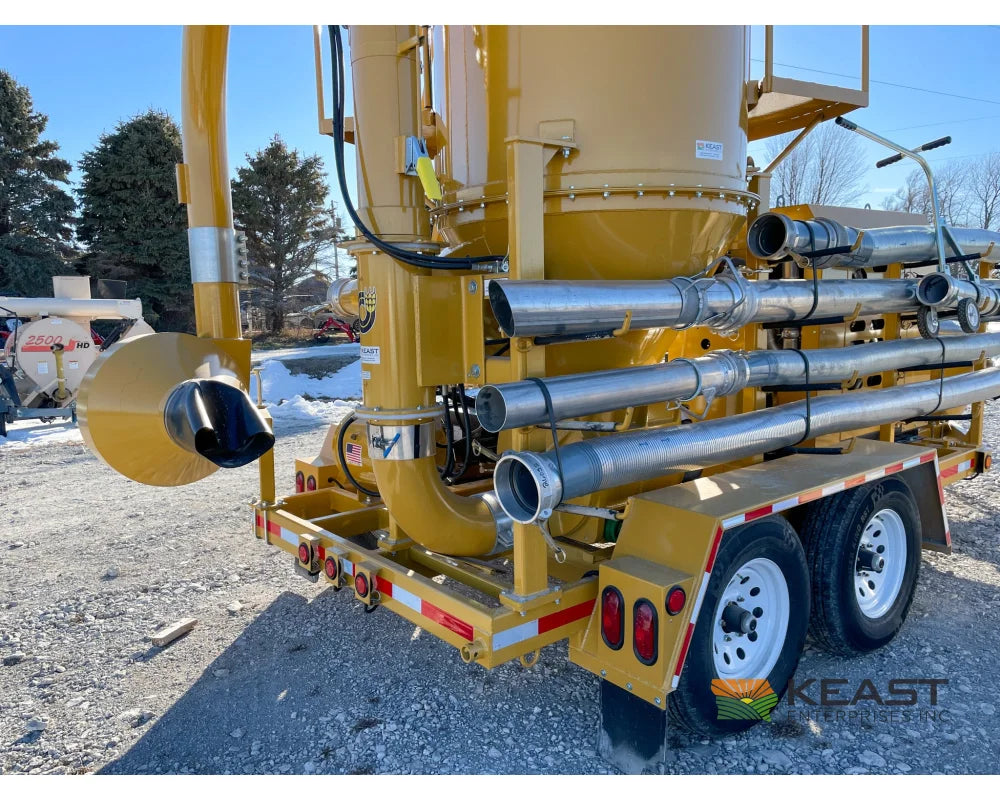

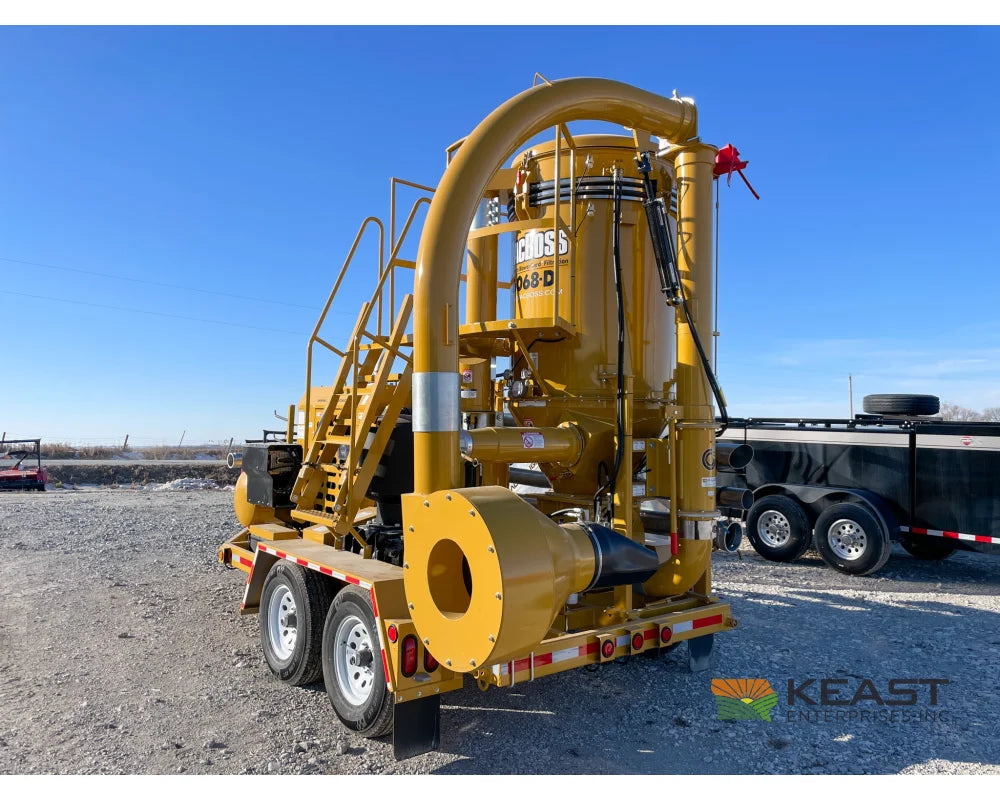

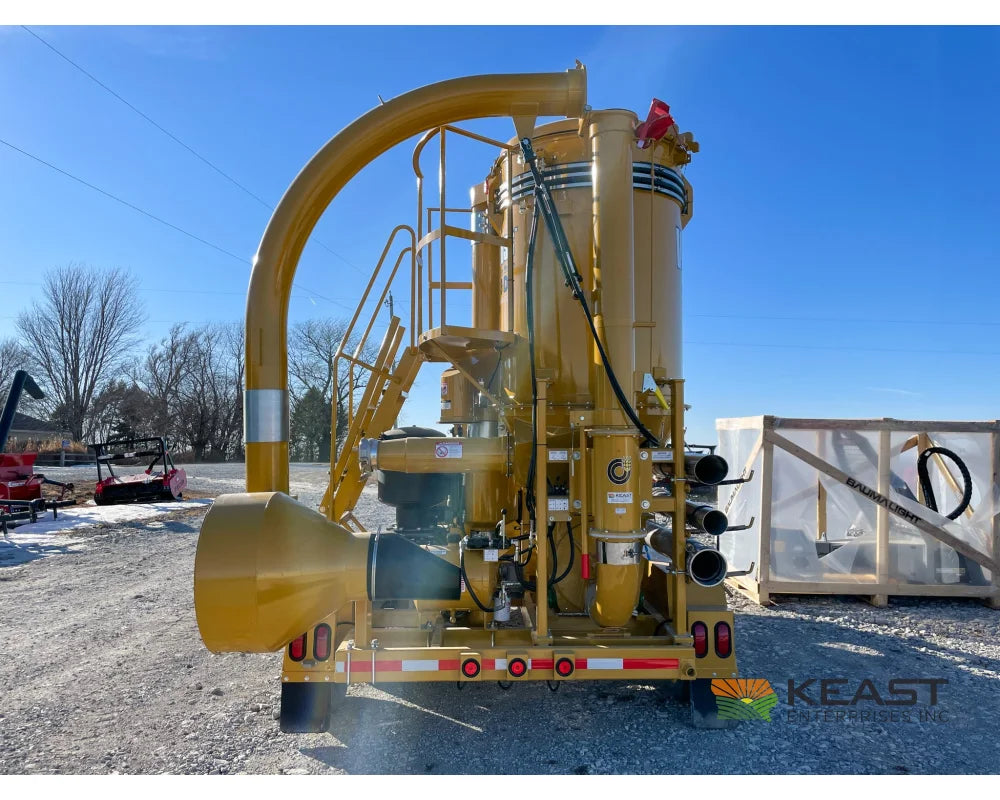

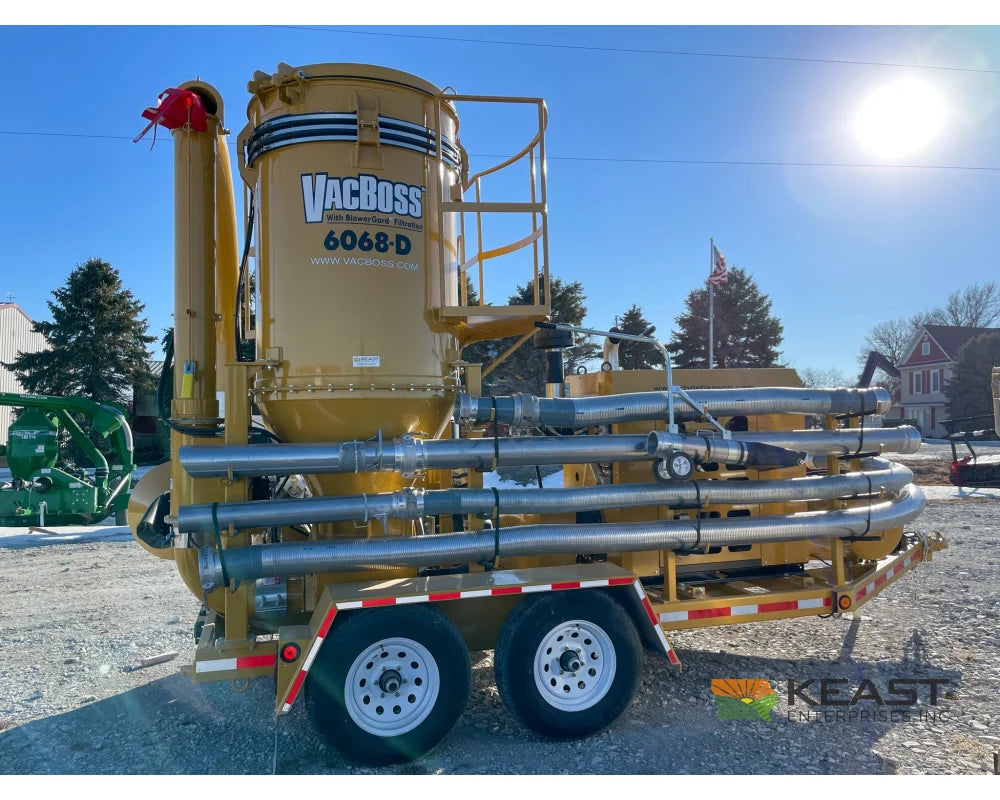

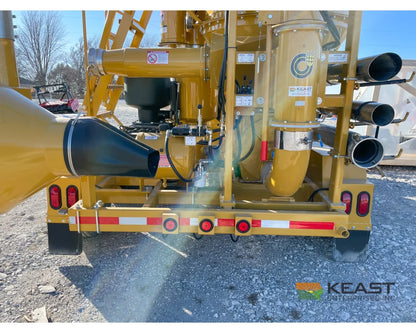

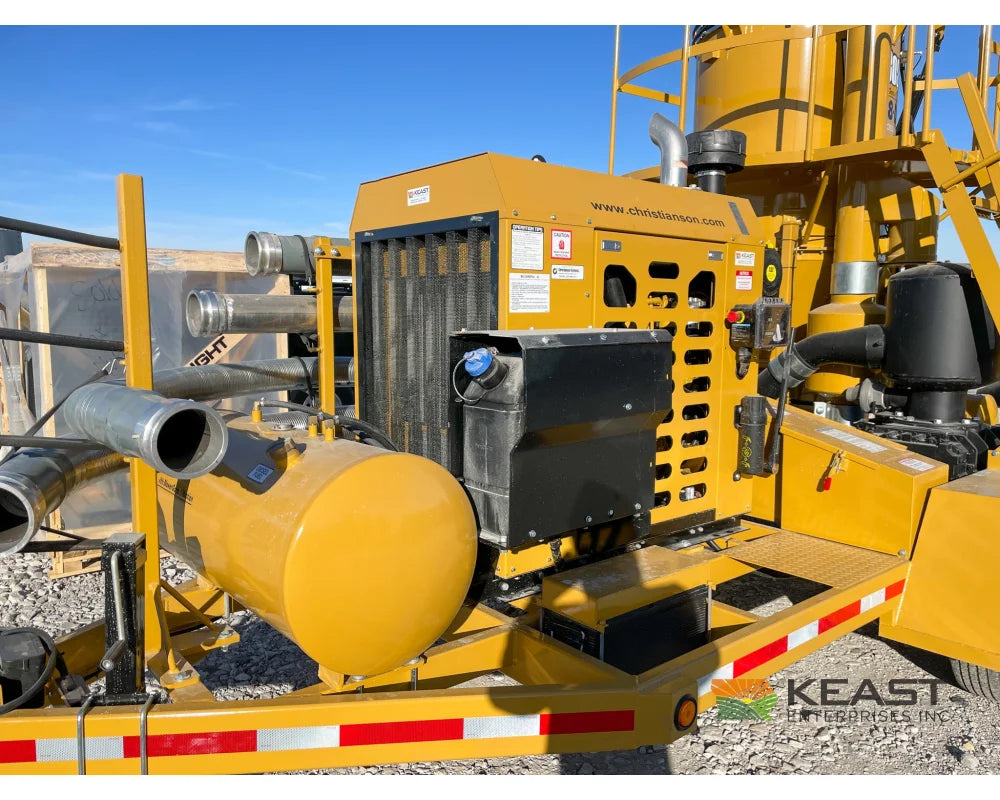

The Christianson VacBoss 6068D is a diesel-powered, filtered pneumatic grain vac for truck loading and unloading, bin cleanout, railcar work, and grain-pile handling. Its equipment includes a pipe rack, wear protection at the receiving cone and cyclone, an extended discharge, and hydraulic swivel control for discharge positioning.

Key Features

5,000 Bu/Hr Rated Capacity: Rated capacity is 5,000 bushels per hour, depending on the application.

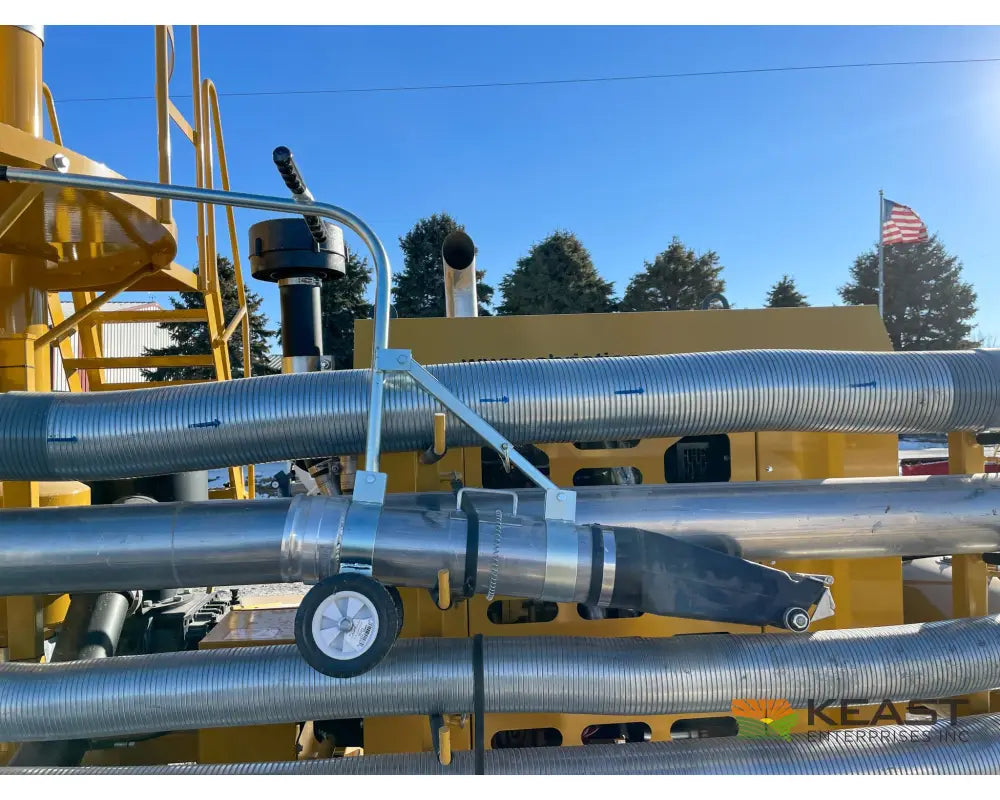

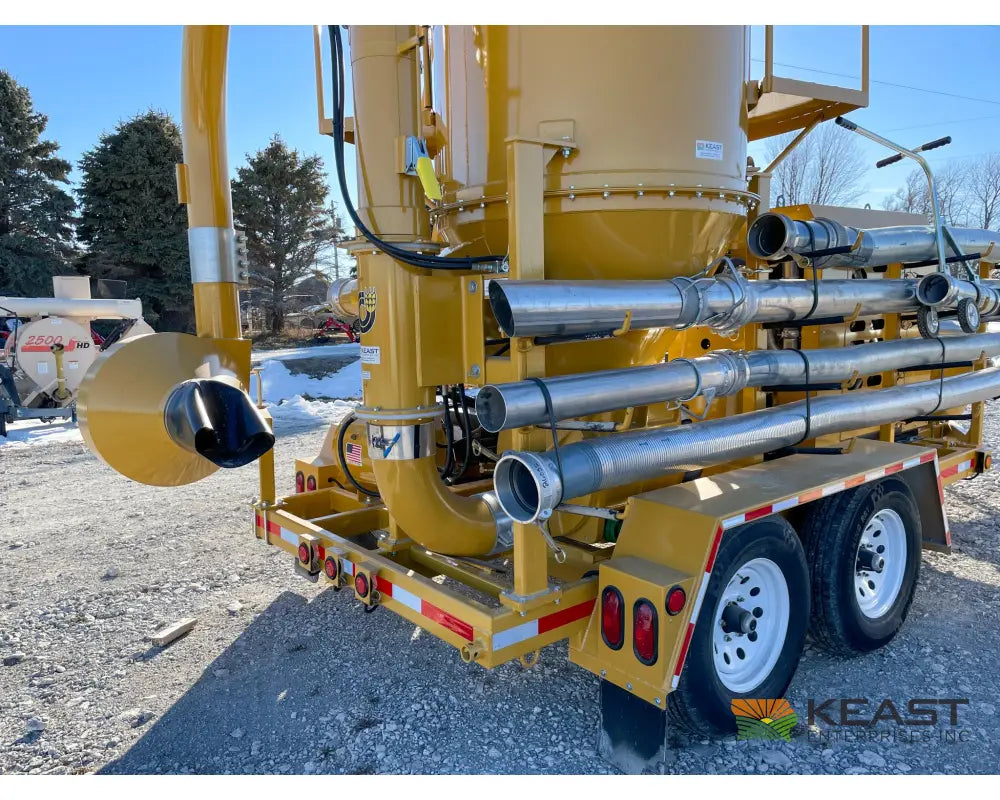

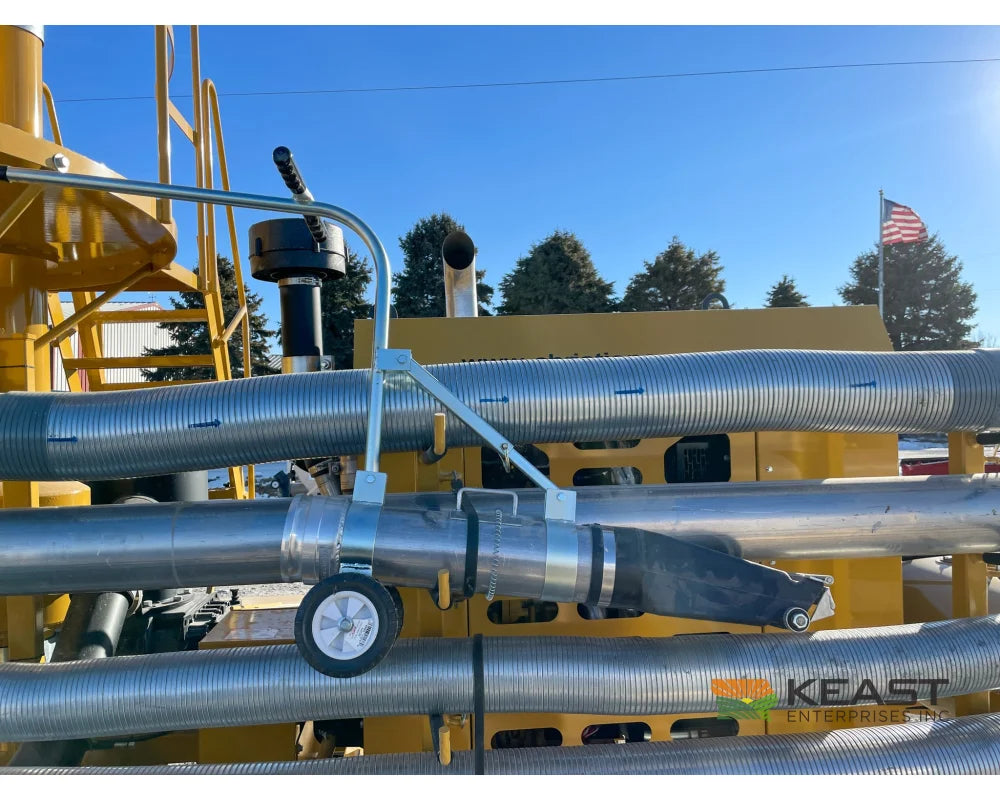

6" Pipe System: The 6" intake pipe is used at grain piles, bins, and trucks.

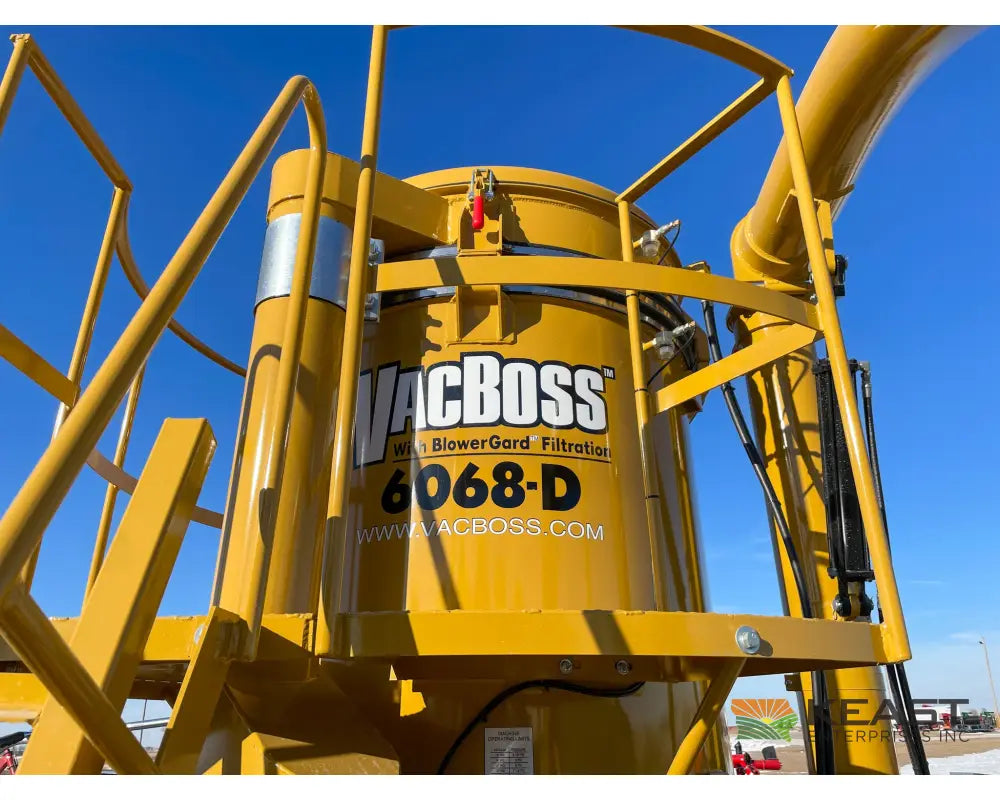

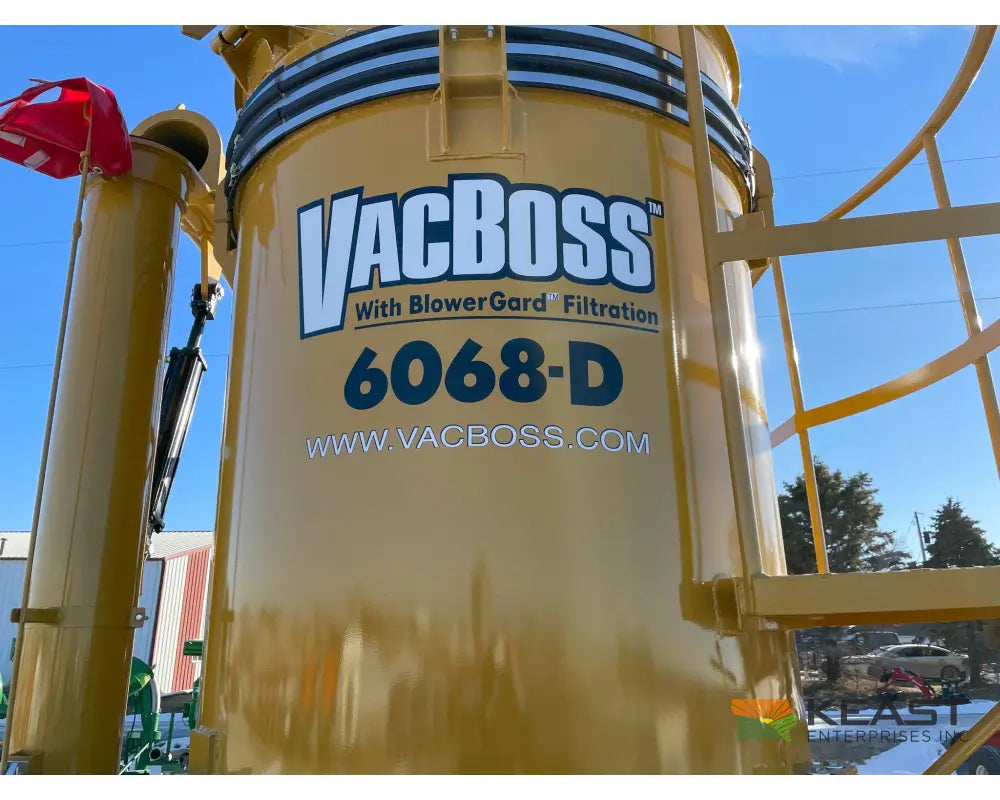

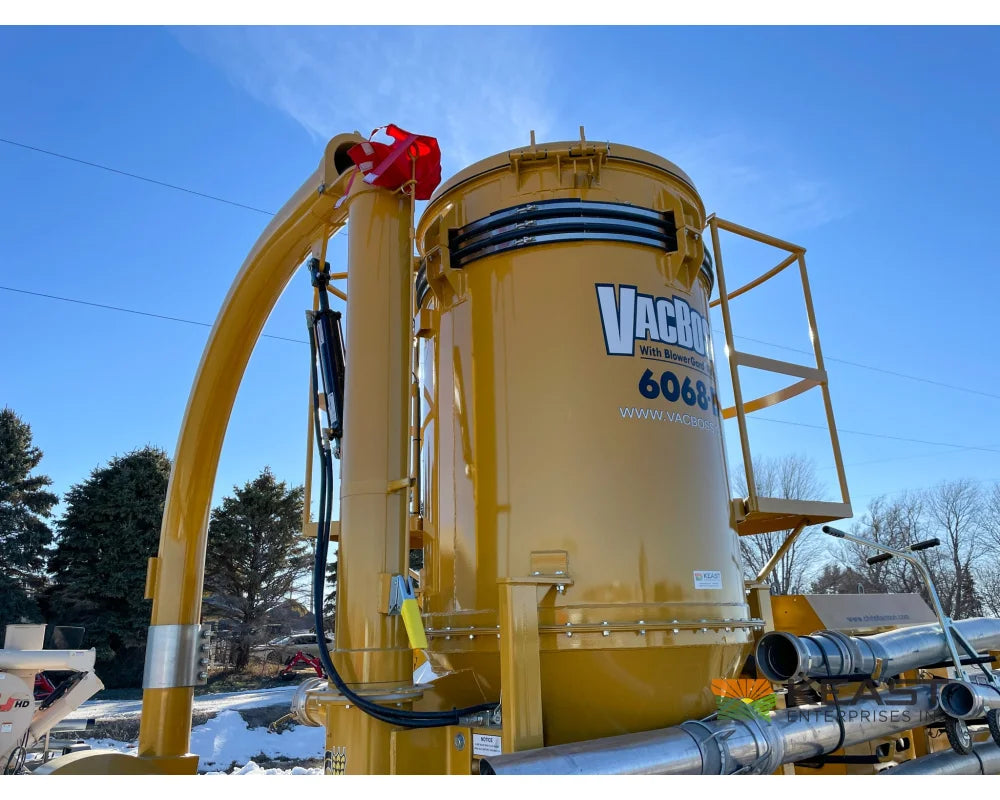

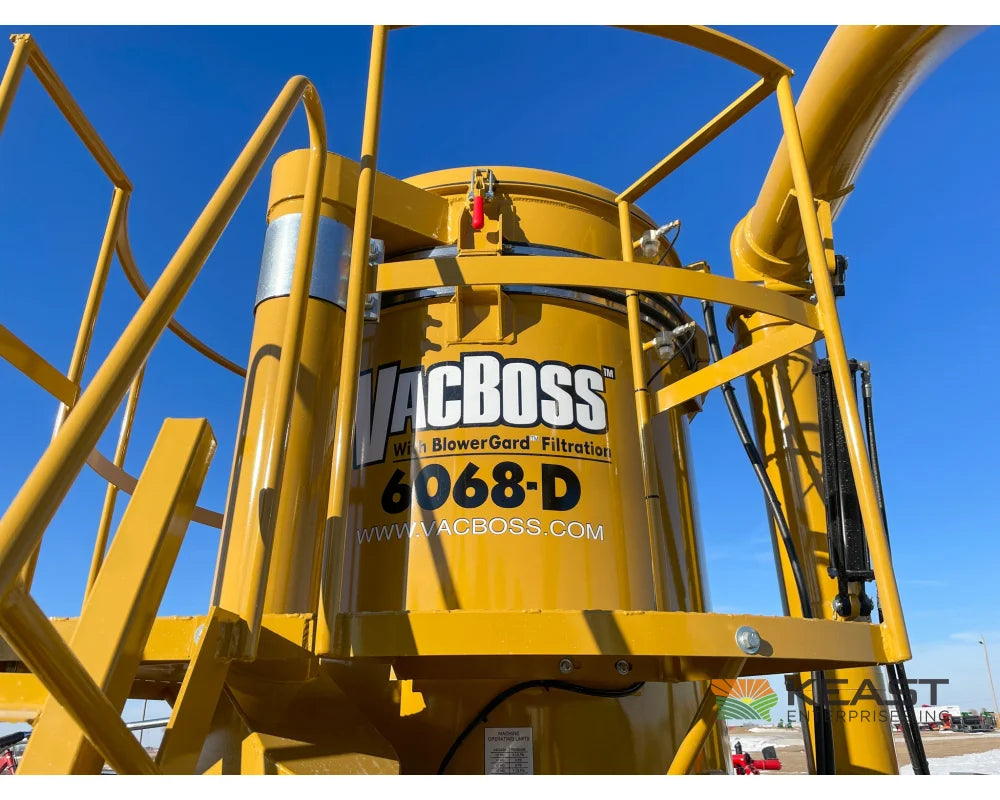

BlowerGard Filtration System: The integrated filtration system reduces abrasive dust entering the blower.

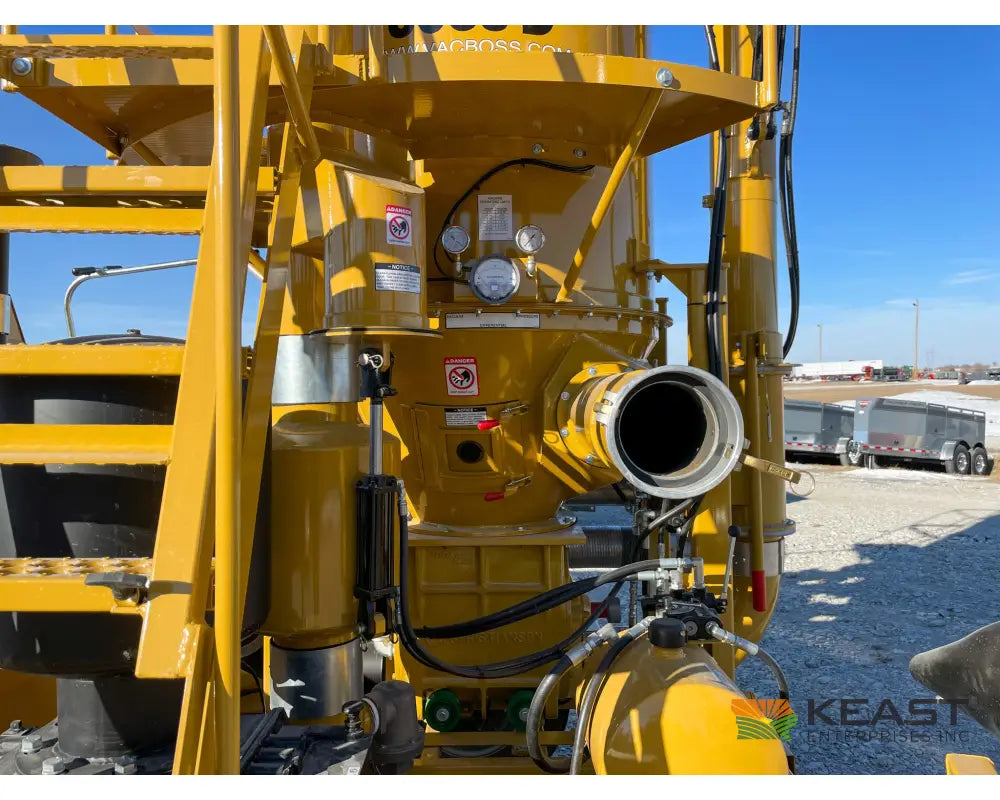

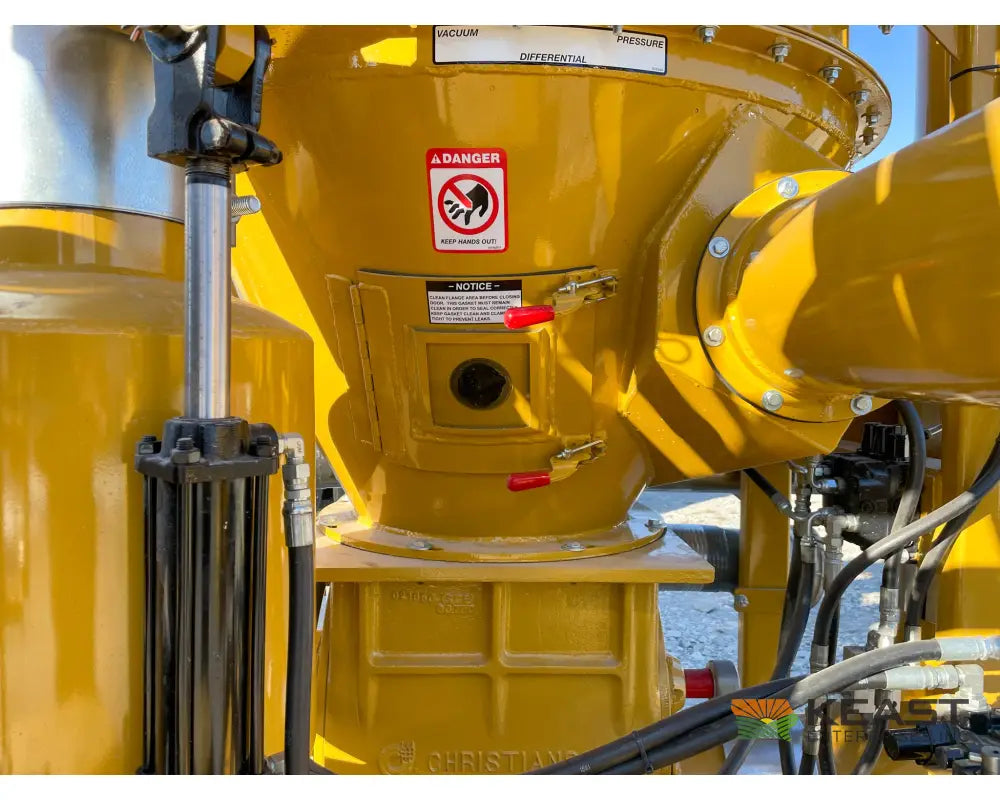

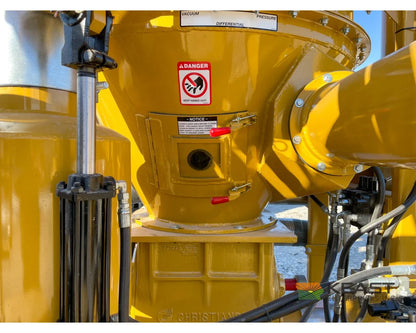

Receiving Cone Wear Liner: Wear protection at the receiving/discharge cyclone area to handle abrasive materials and high-hour use.

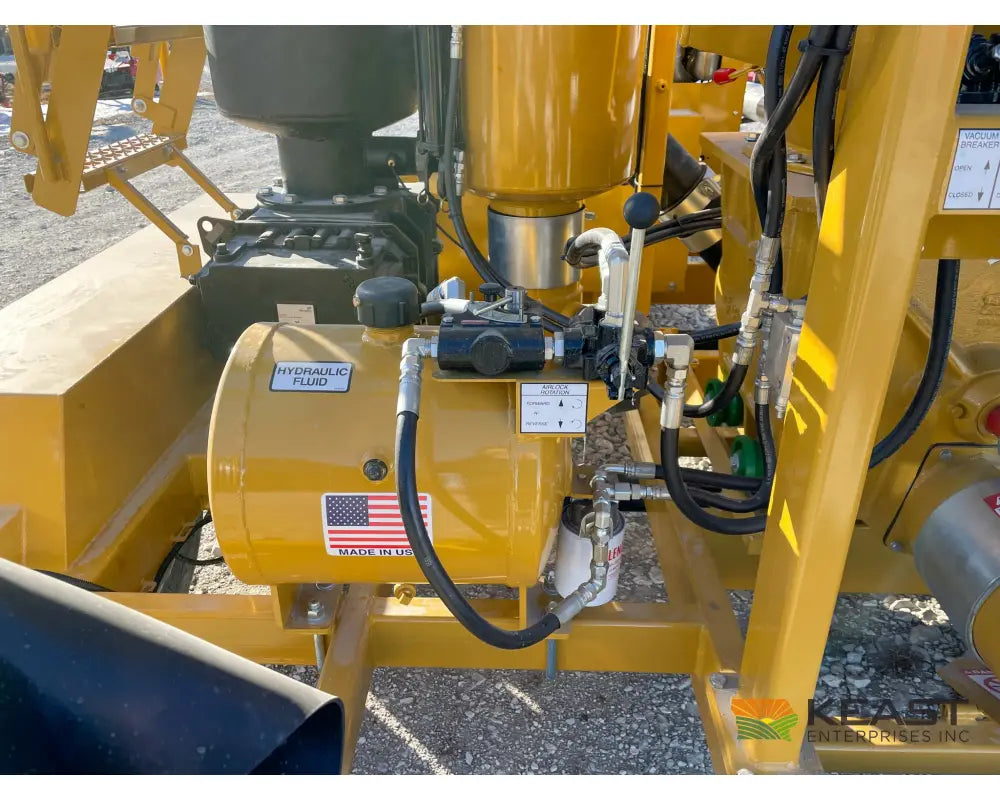

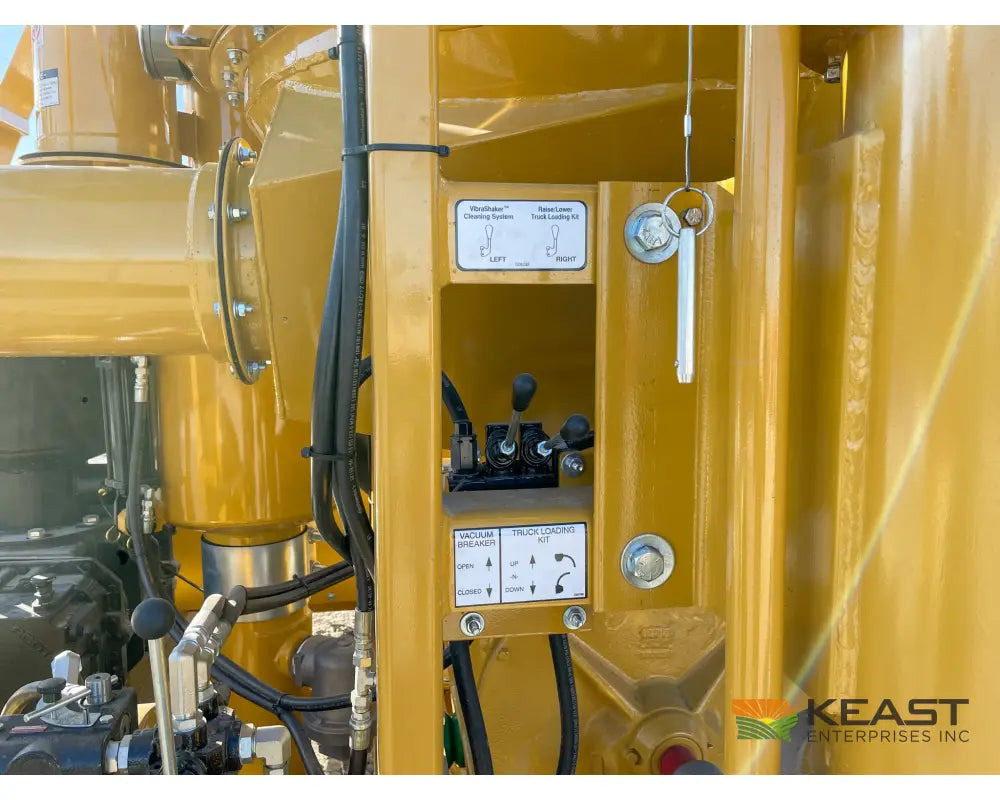

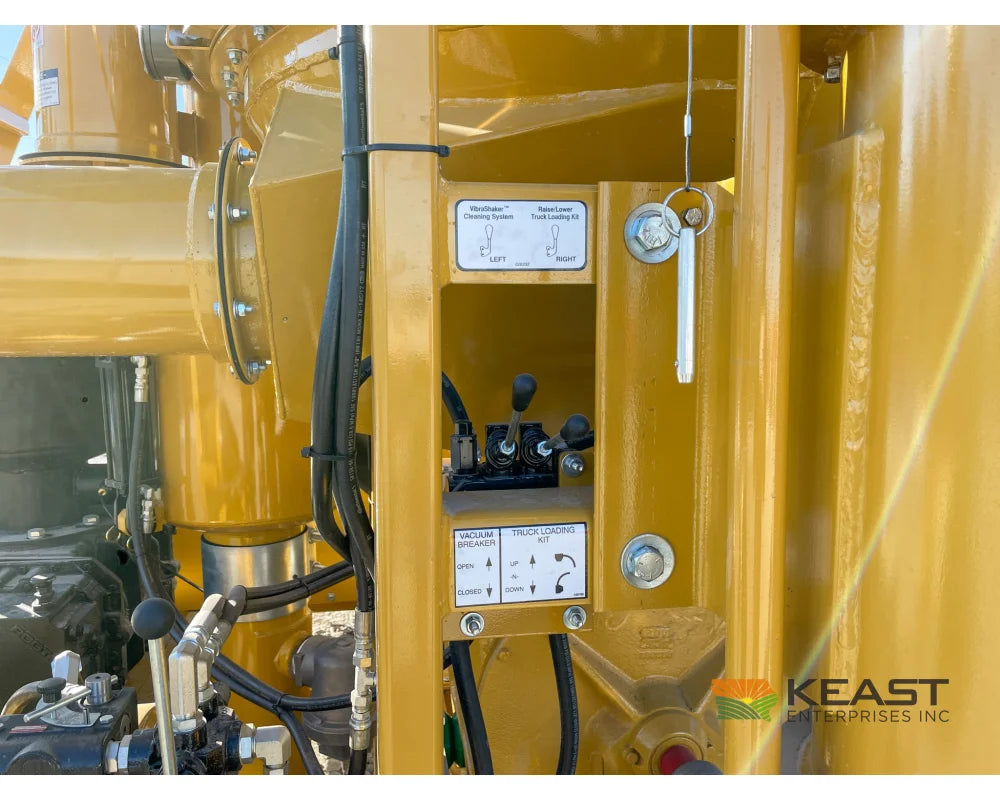

Hydraulic Swivel Truck-Loading: Hydraulic swivel/rotation for discharge positioning during truck loading, reducing the need for machine moves.

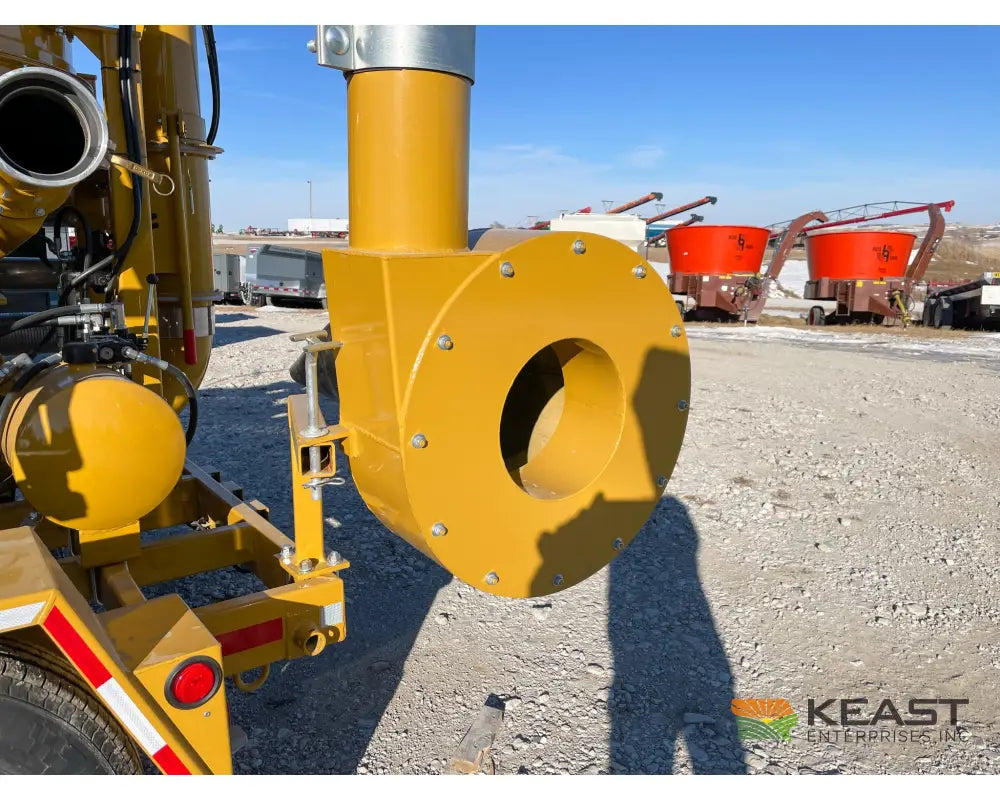

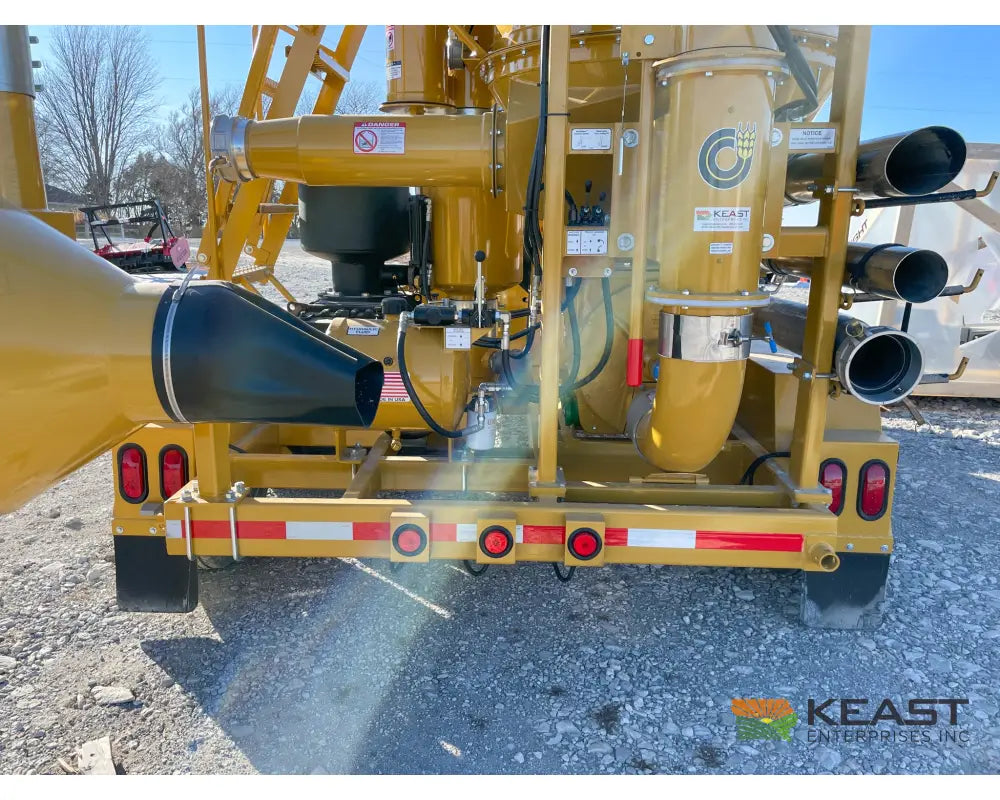

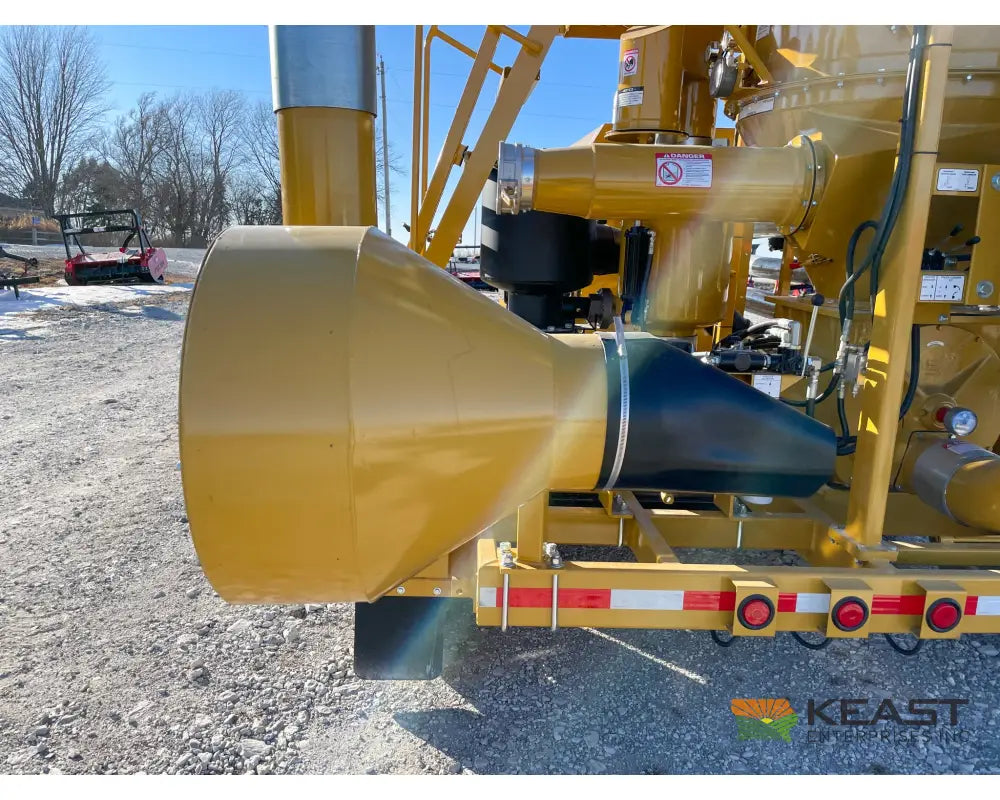

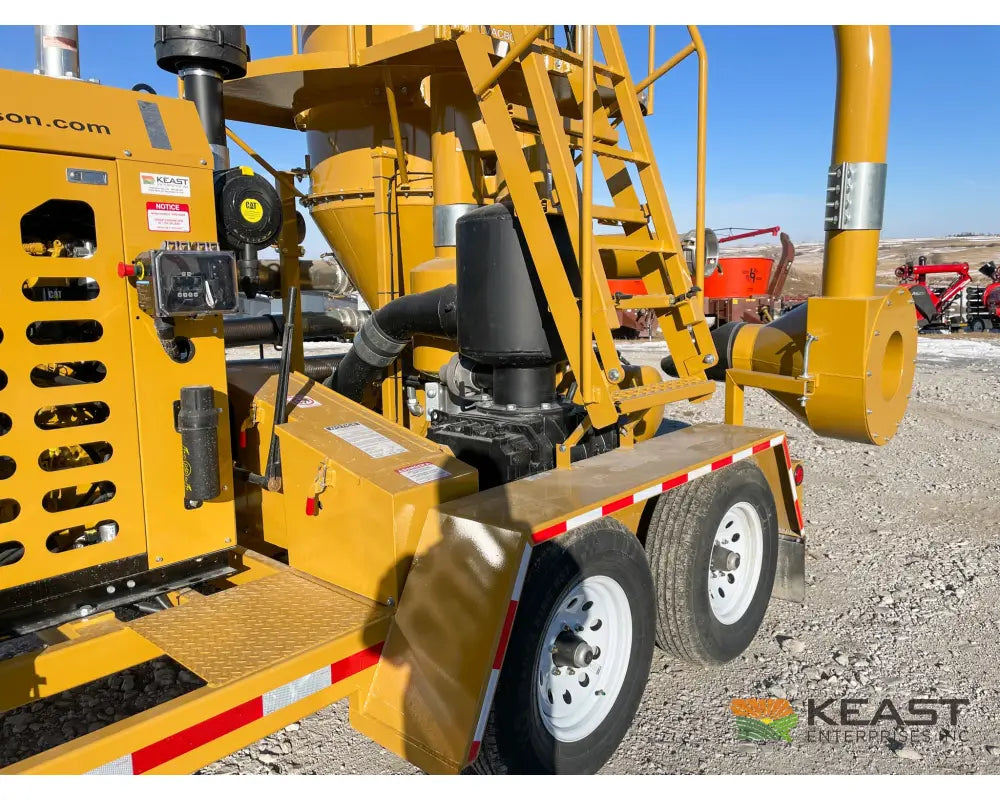

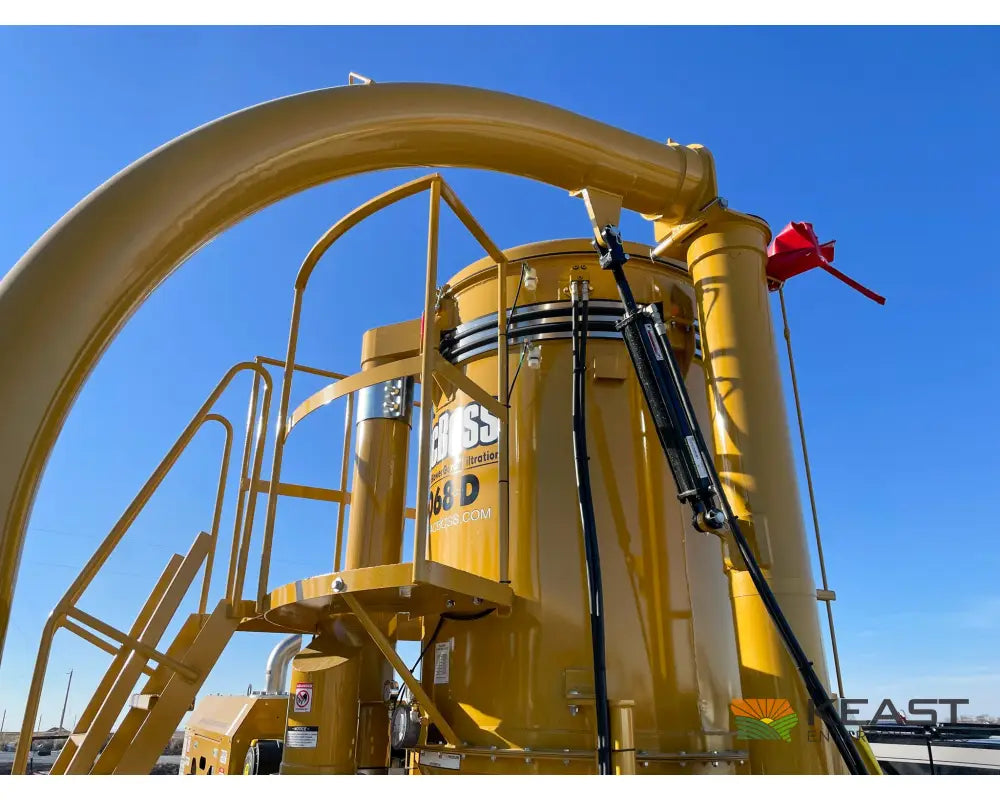

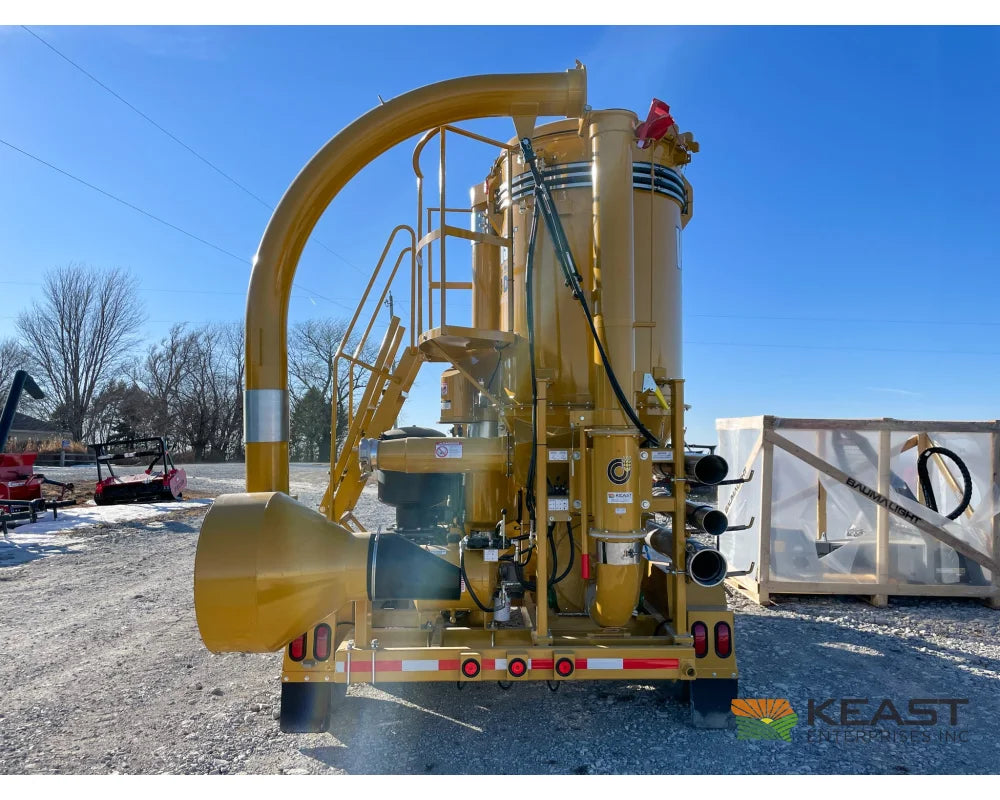

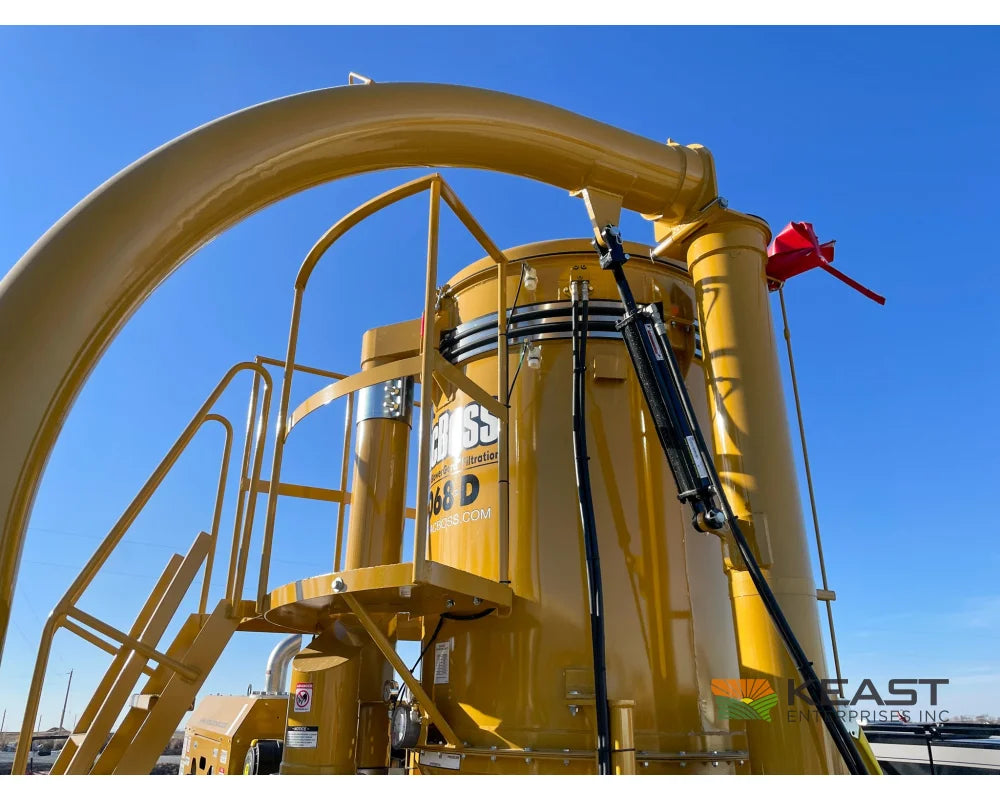

Extended Discharge: The extended discharge provides additional reach for truck loading and grain transfer.

Technical Specifications

Spec	Value
Model	VacBoss 6068D

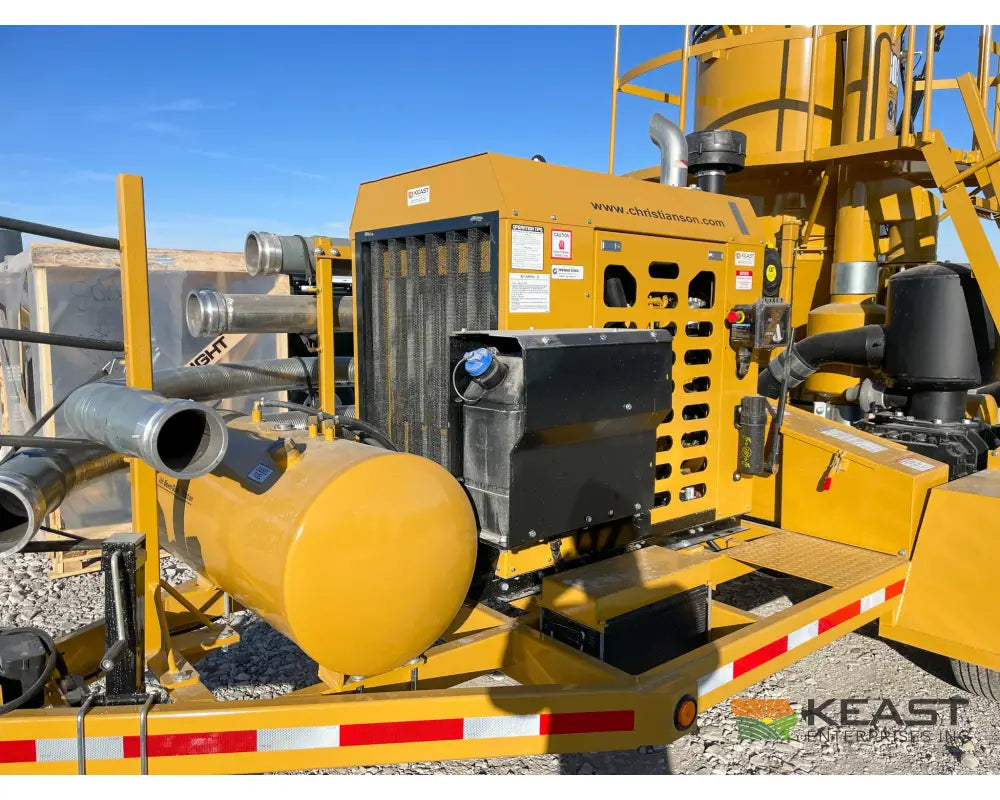

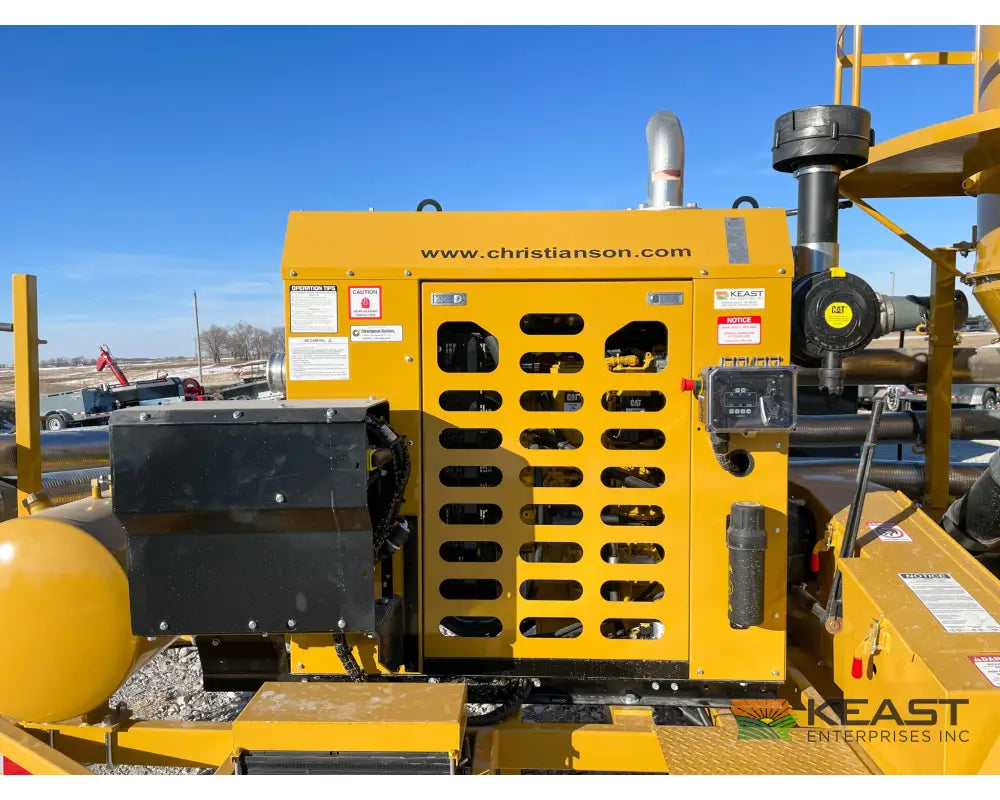

Power	Self-contained Diesel-powered
Rated capacity	5,000 bu/hr (application dependent)
Intake pipe diameter	6 in.
Truck-loading pipe diameter	8 in. (TLK pipe)

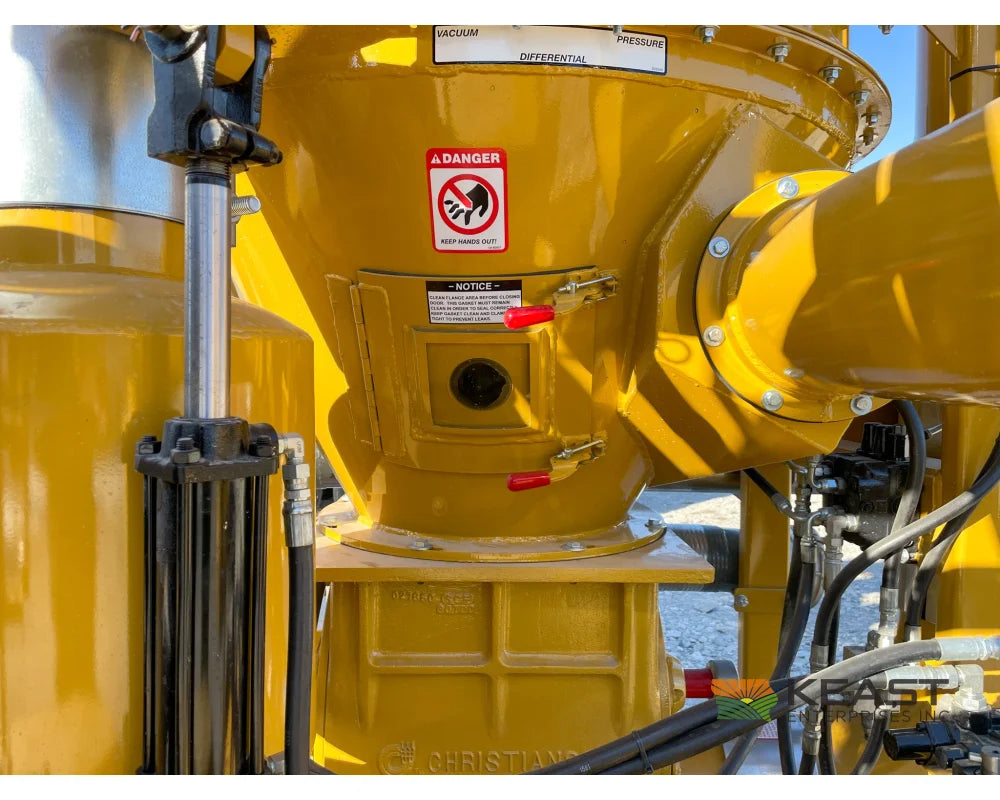

Airlock size	2.7 CFR
Engine	150 HP class
Filtration efficiency	~99.97% abrasive dust particle blocking
Inlet velocity reduction	Up to ~60% reduction

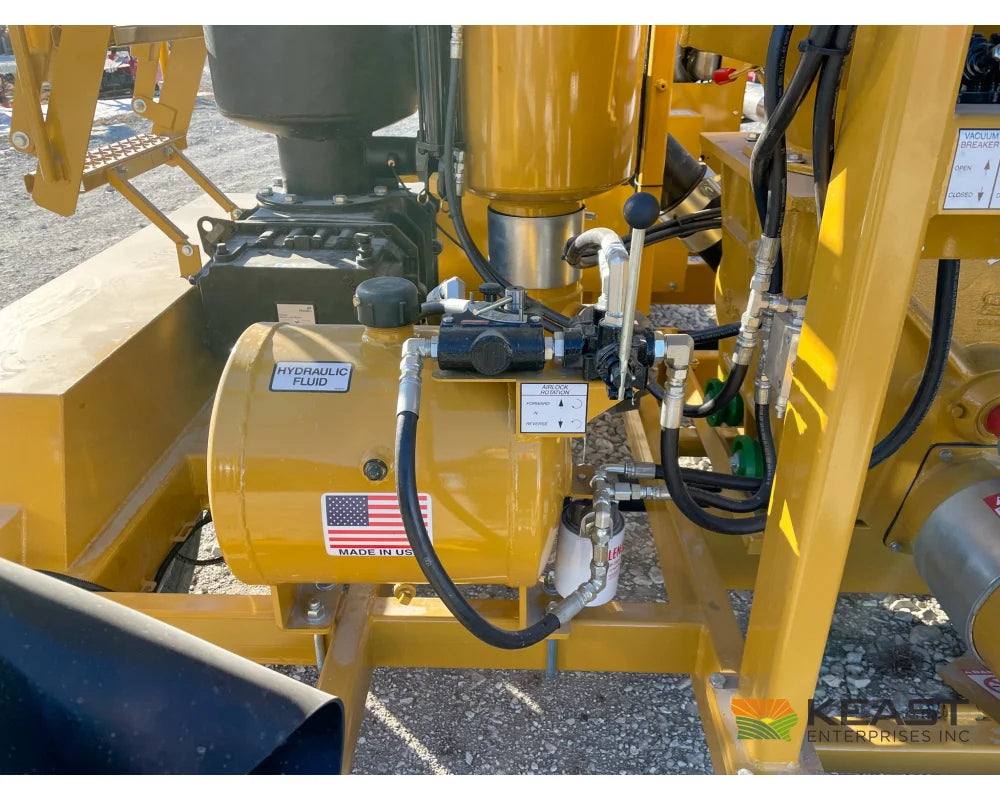

Discharge positioning	Hydraulic swivel / truck-loading rotation
Brand	Christianson

Related Equipment

Is the VacBoss 6068D self-powered?

Yes. The 6068D configuration uses a diesel power package rather than tractor PTO power.

What information is needed to confirm the grain vac configuration?

Send us the grain, expected transfer distance, bin layout, required hose, and desired capacity so we can review the configuration.
