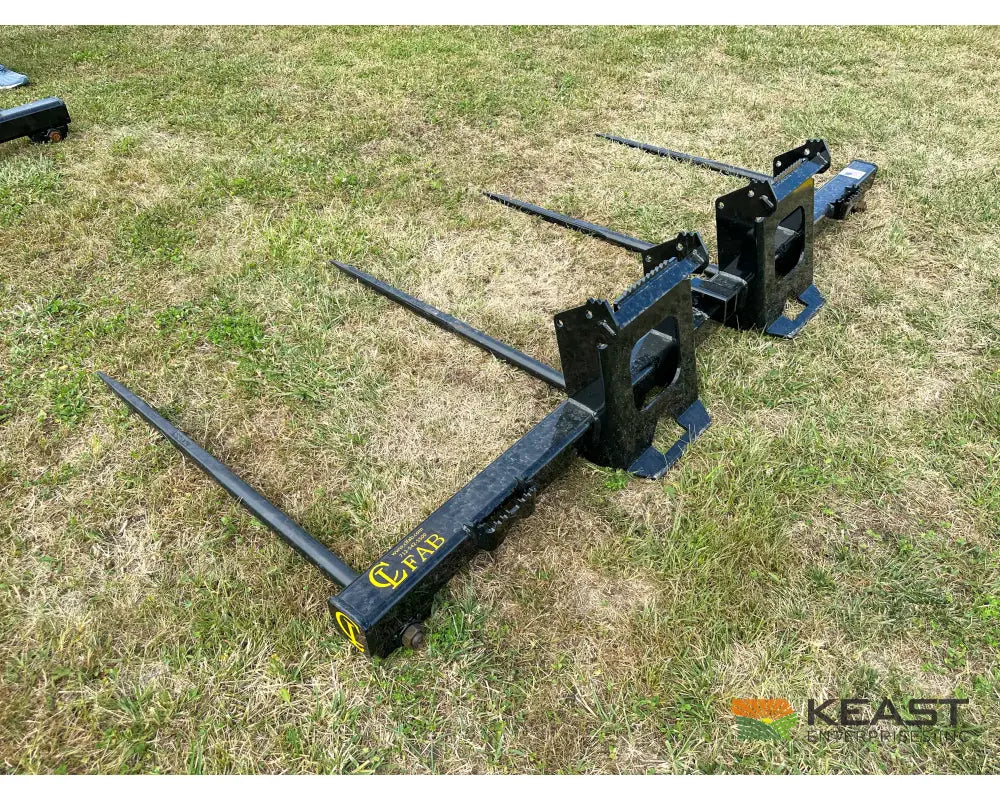

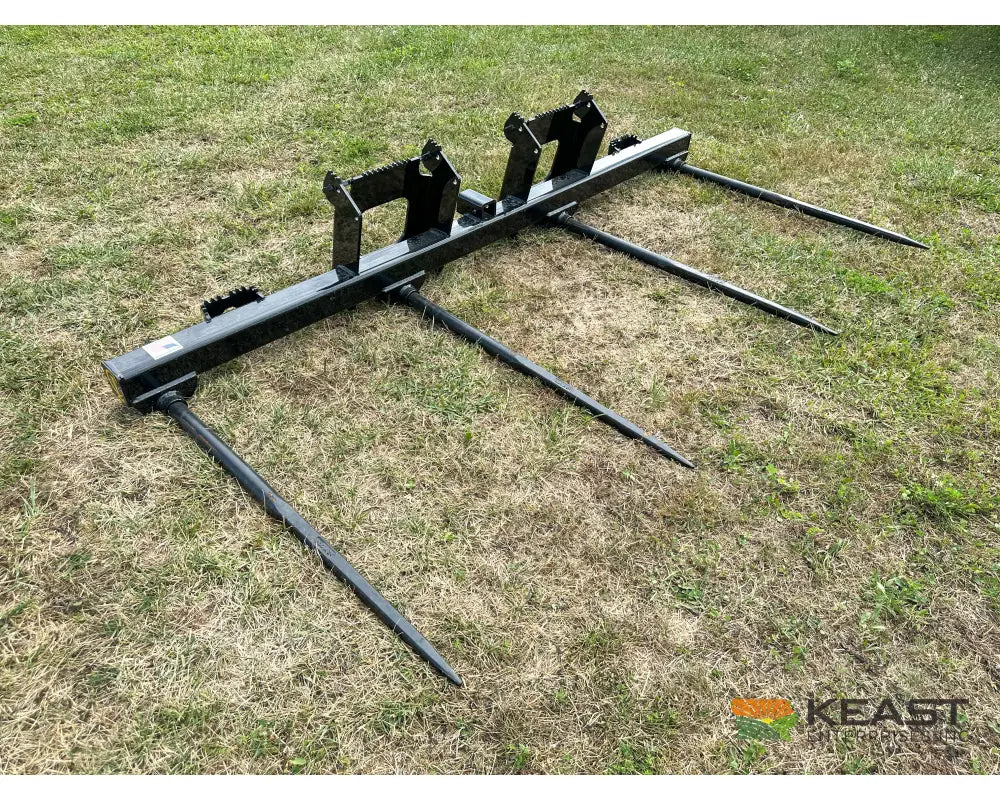

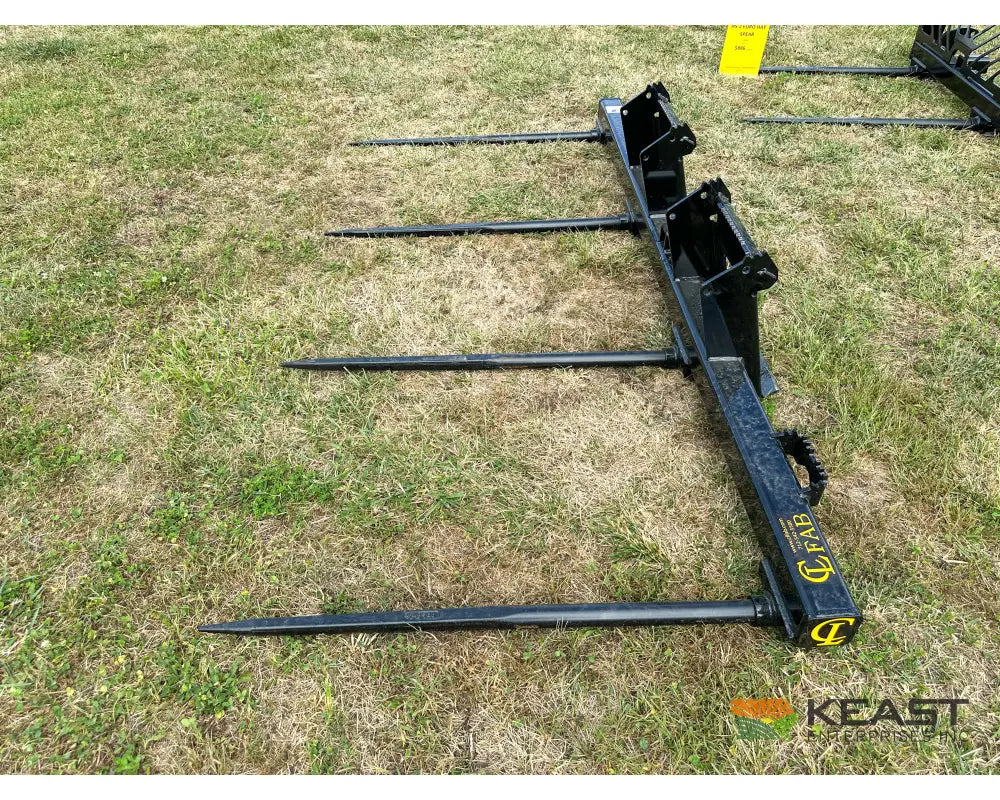

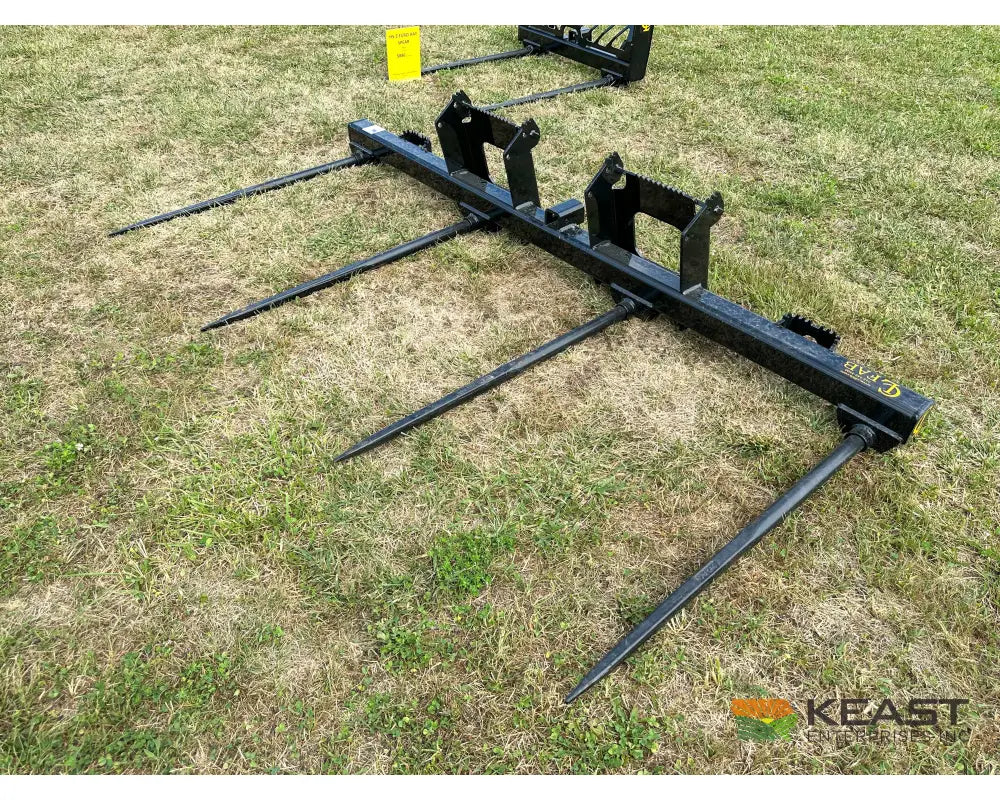

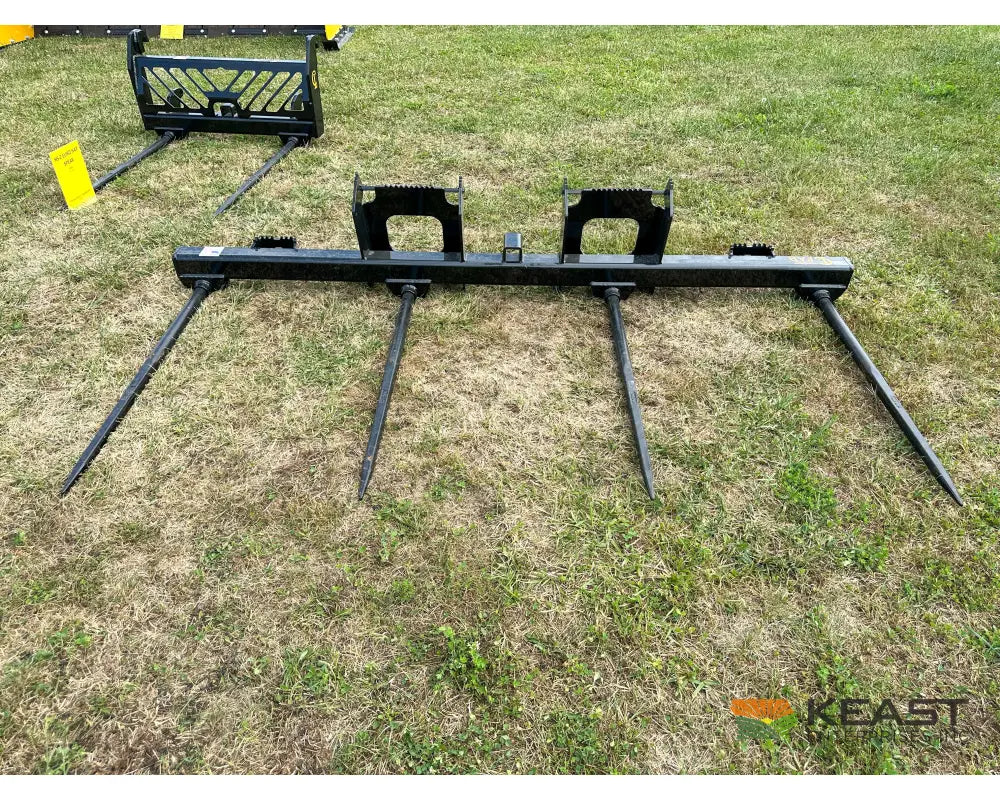

CL Fabrication EZ Bale 102" Four Spike Bale Spear, 4x 49″ Spears, Skid Steer Mount

Overview

The CL Fabrication 102" Four Spike Bale Spear is a universal skid steer quick-attach bale spear built to carry two round bales with a wide, stable frame and four tapered forged spears. With a 102" working width and long spear reach, it’s designed for efficient bale handling in hay yards, livestock operations, and daily feeding work where you want secure penetration and predictable carry.

This frame uses a rigid, high-strength structure with formed mount plates welded to heavy wall tubing, plus taper-seat spears for easier removal and service. It’s finished with abrasive blasting and powder coat for durability, and uses heavy skid steer hook bar construction to keep engagement solid on standard skid steer mount machines.

Key Features

102" wide frame for two round bales
Wide stance improves stability and makes it easier to transport two bales in one trip.

Four 49" forged taper body spears
Forged, tapered spears are built for strong penetration and dependable bale retention.

43" useable spear length
Deep, practical penetration length for stable handling during transport and loading.

3,500 lb rating per spear
Each spear is rated to handle demanding bale work within machine limits.

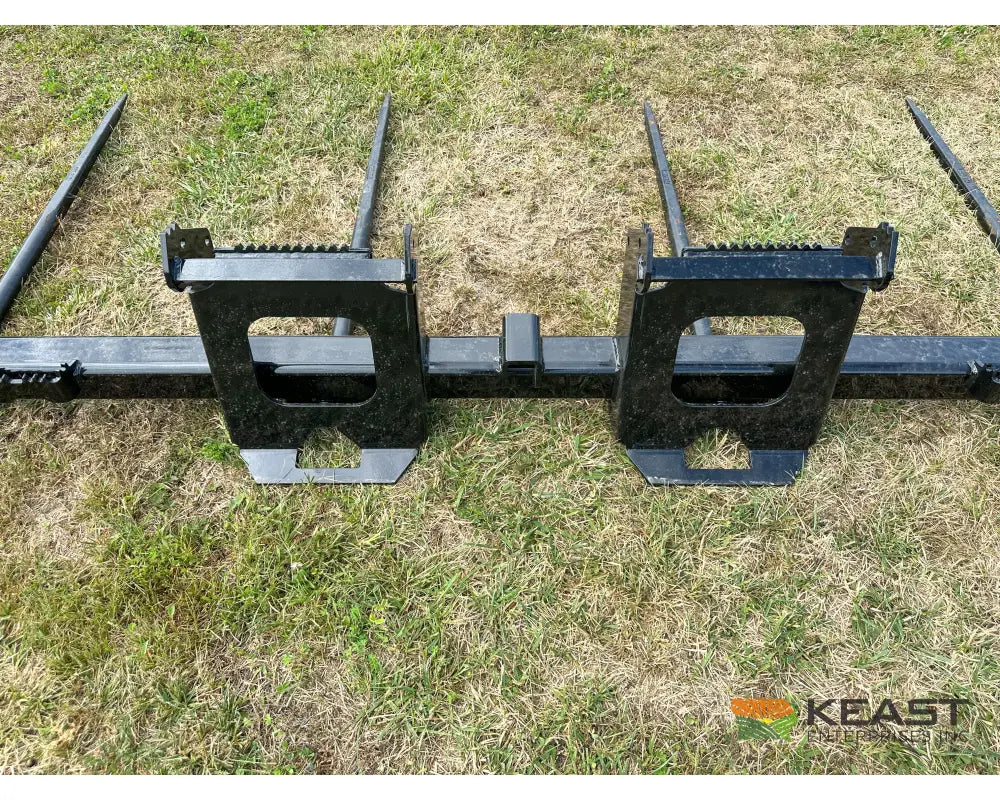

Patented formed mount plate design
3/8" formed plates tied into the frame for a rigid, simple, high-strength structure.

Heavy wall cross tube frame
4" x 4" x 3/8" tube construction adds stiffness for long-term durability.

Universal skid steer quick attach (SSQA)
Fast hookup on standard skid steer mounts without special adapters.

Heavy upper hook bars
1/2" thick x 1.50" upper hook bars are built for solid engagement and longevity.

Abrasive blasted and powder coated
Surface prep and coating for better adhesion and corrosion resistance over time.

Technical Specifications
