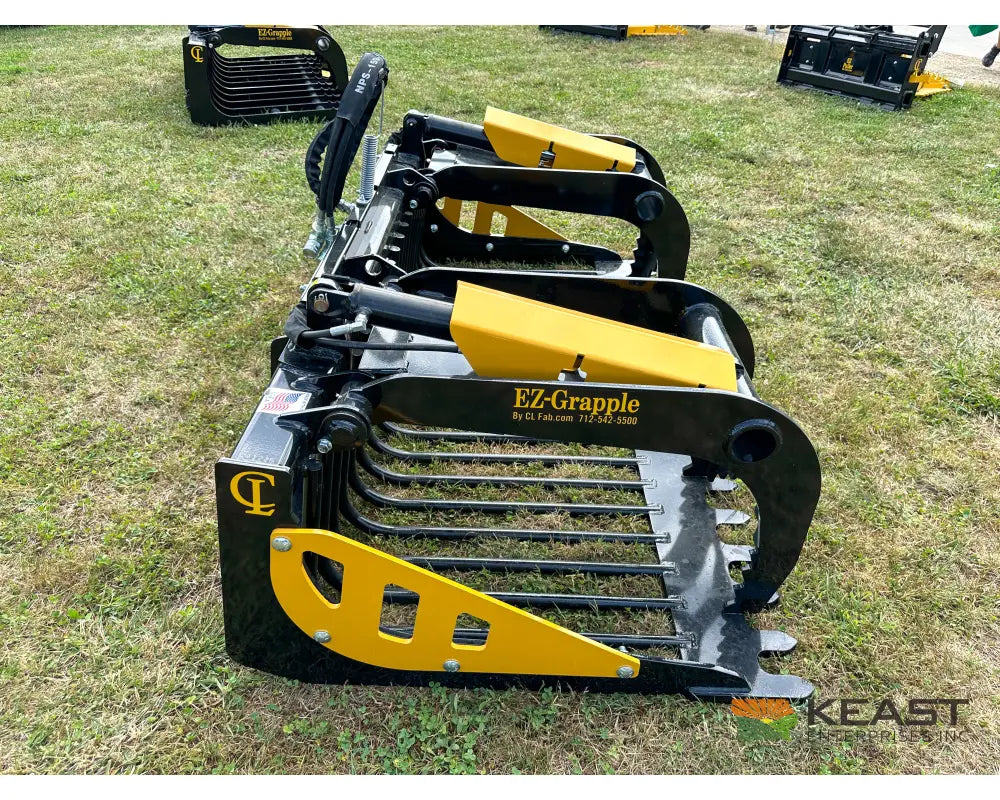

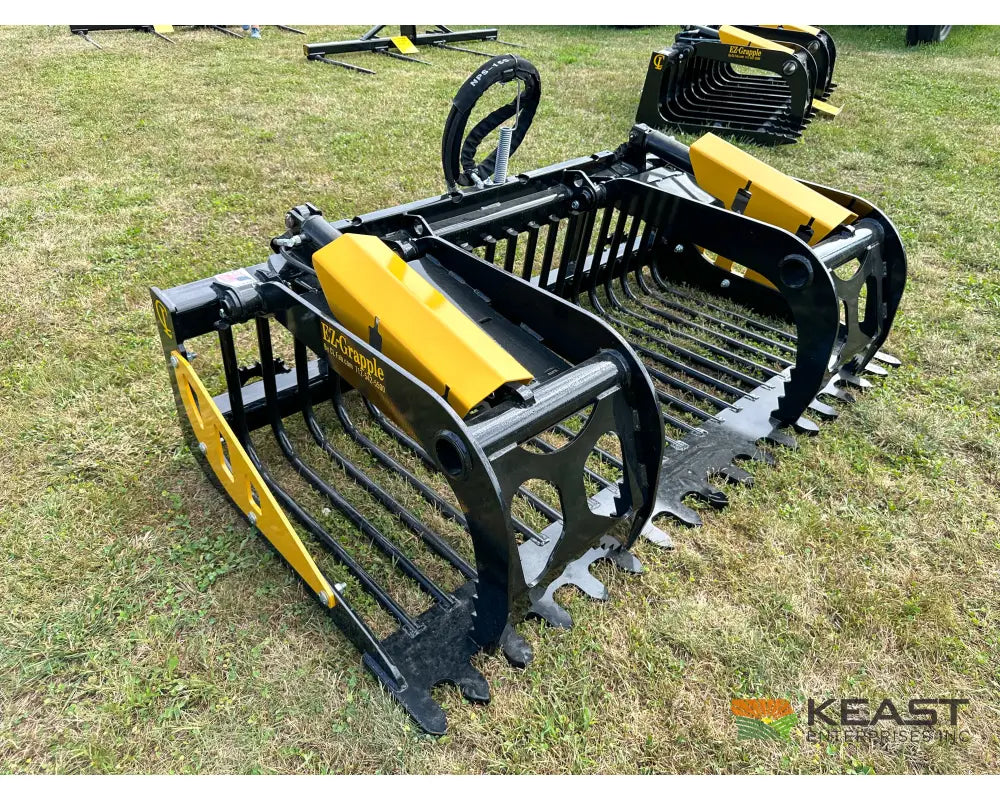

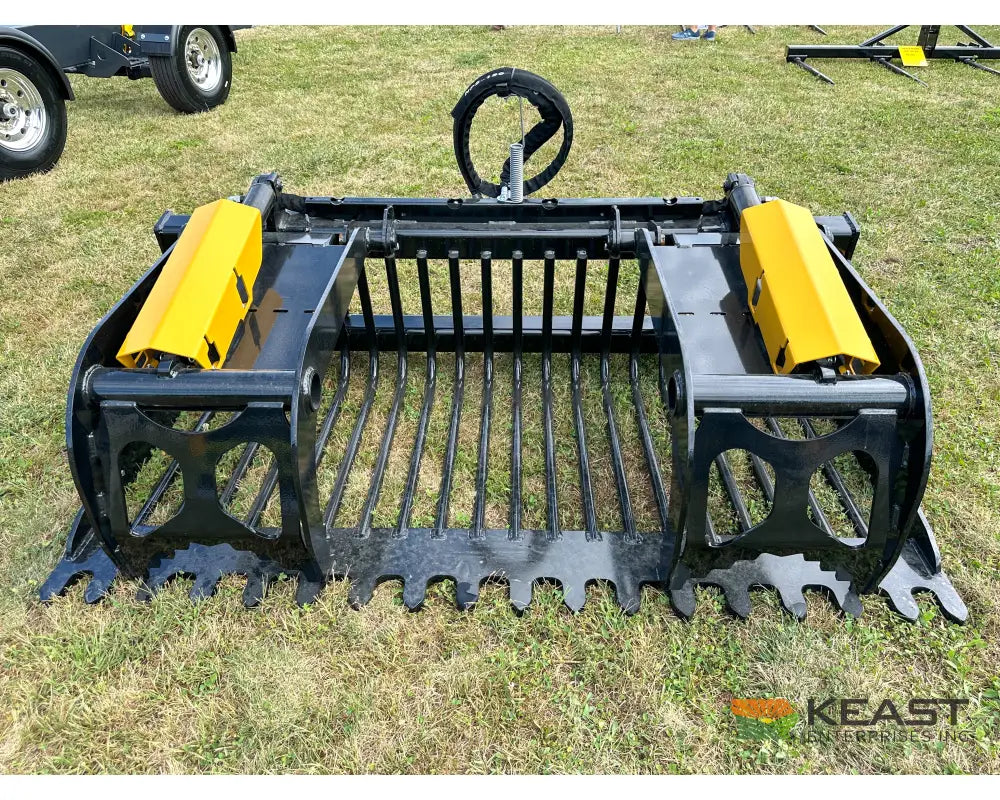

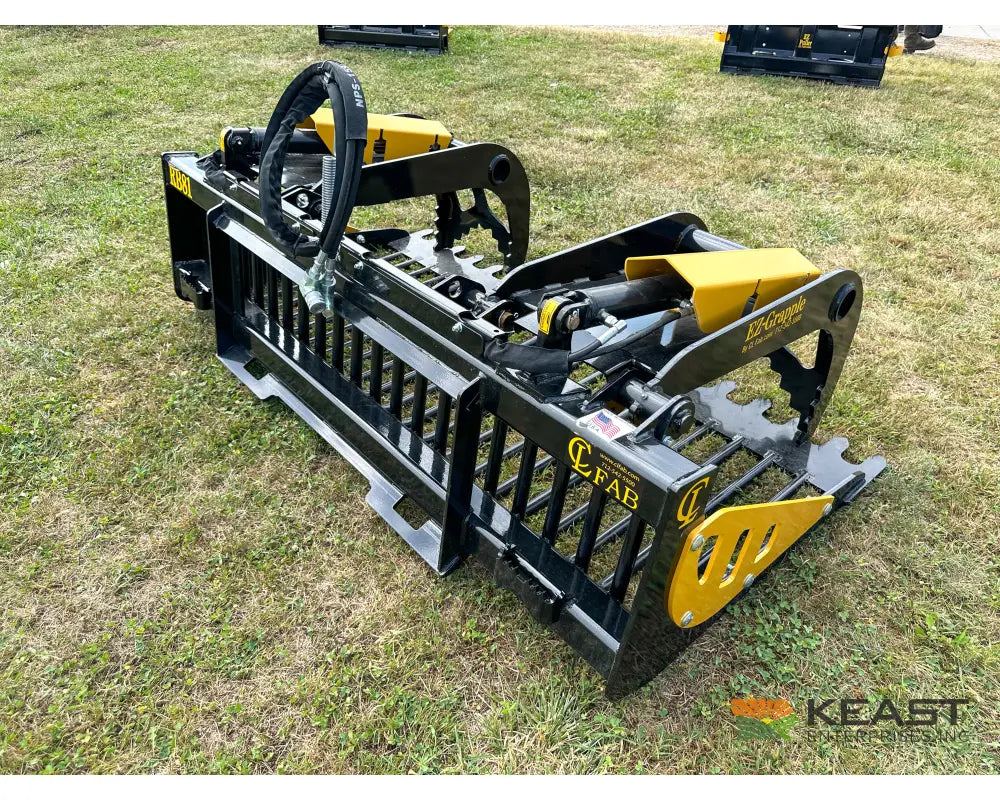

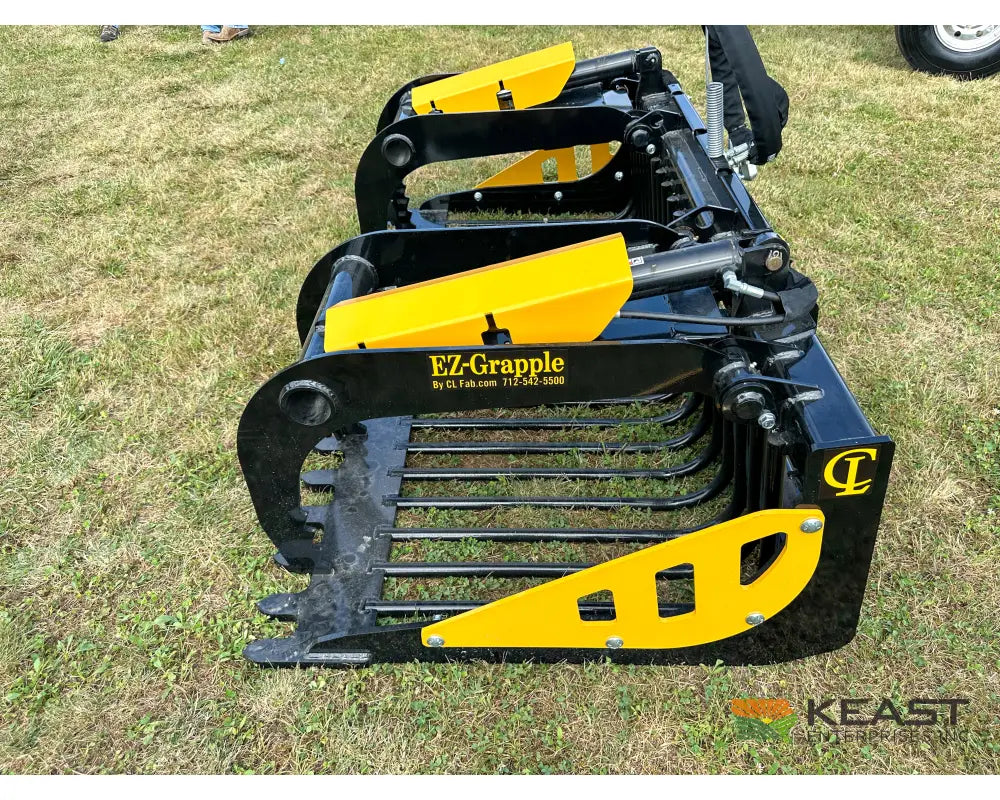

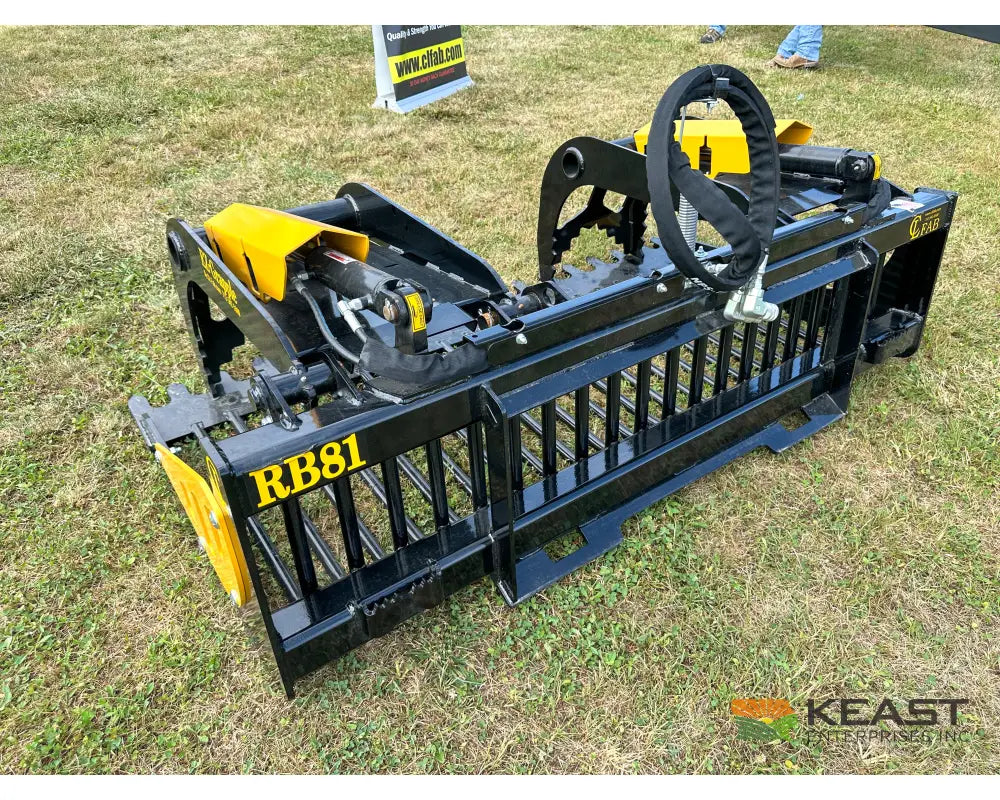

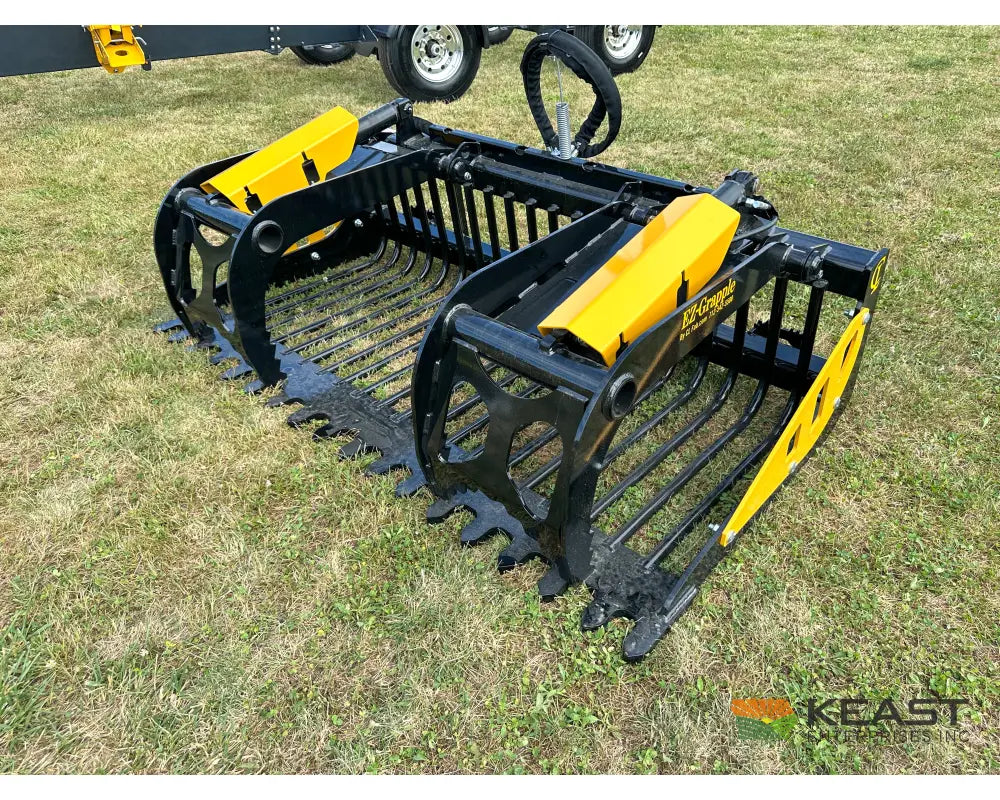

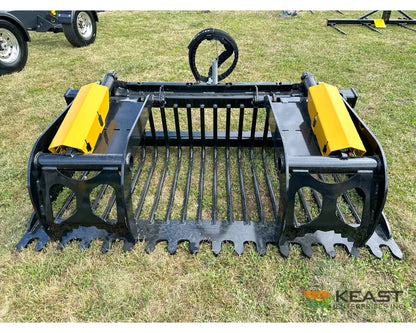

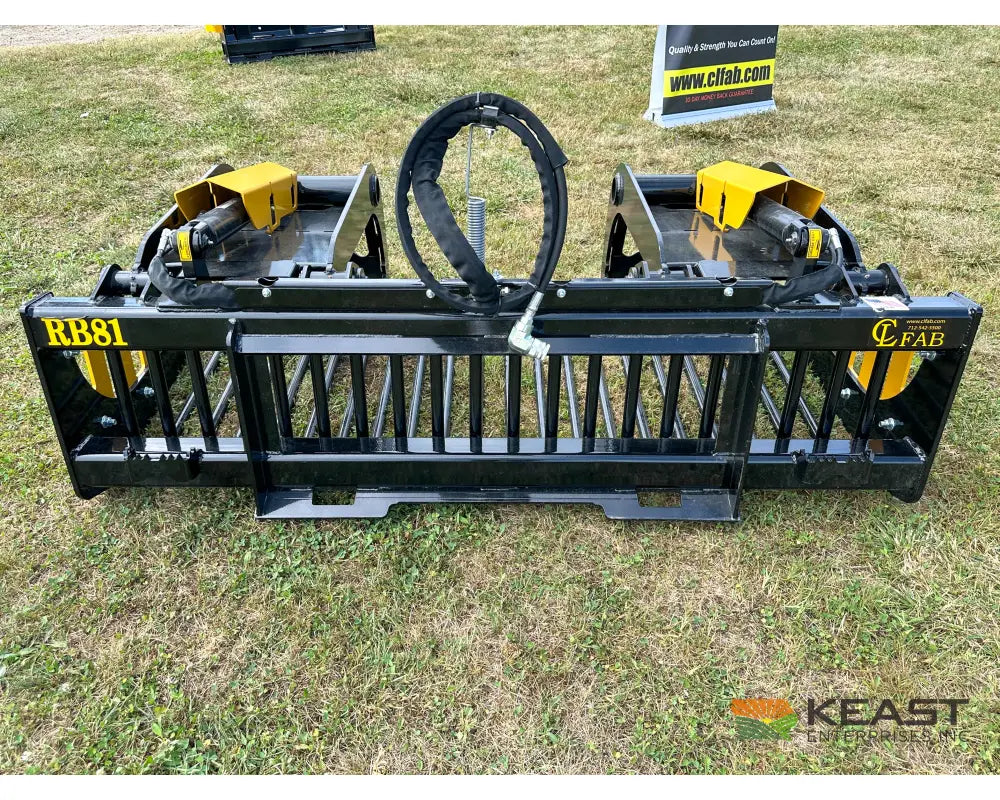

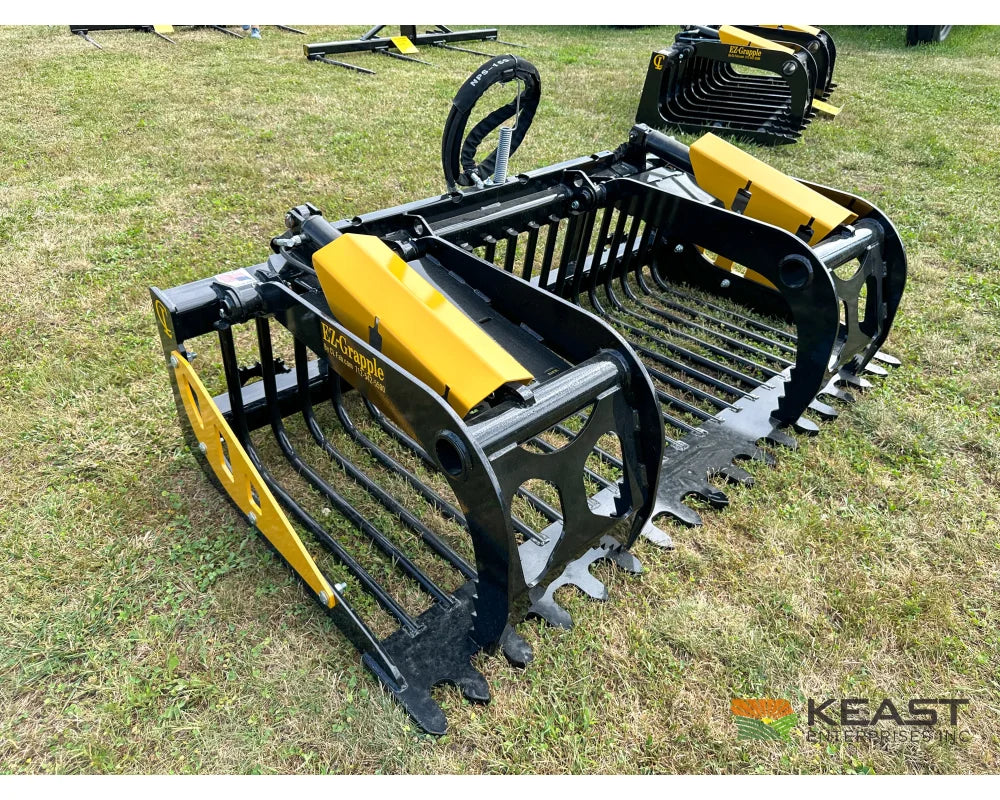

CL Fabrication EZ Grapple, 81″ Width, 50″ Opening, 1/2″ AR400 Tines, Skid Steer Mount

Name: CL Fabrication EZ Grapple, 81″ Width, 50″ Opening, 1/2″ AR400 Tines, Skid Steer Mount
Brand: CL Fabrication
Price: 5116.00 USD
Availability: InStock

$5,116.00 USD

Sale Sold out

Free Shipping in the Continental U.S.

In Stock

How Reservations Work

Click Reserve Now - No Payment Required at checkout to reserve this product for 7 days. After you checkout, our team will reach out to accept tax exemptions, offer financing options, collect payment, and arrange pickup or delivery. No payment needed until you're ready.

How Shipping Works

We ship equipment nationwide using trusted freight carriers and parcel services to make sure your order arrives safely and on time.

Orders are usually processed within 1–2 business days, you’ll receive tracking information as soon as your shipment is on the way.

Most deliveries arrive within 4-9 business days, depending on your location.

For questions about shipping or delivery, call us at 712-566-1033 or email sales@keastenterprises.com

Accepted Payment Methods

We offer several payment options to make your purchase as easy as possible. At checkout, you can pay securely via credit card, or reserve products with no money down.

After completing checkout with a product reservation, we will reach out with flexible payment options including check, ACH, wire transfer, or financing on approved credit.

Payments are processed safely through our website's secure platform, which uses 256-bit SSL encryption and PCI DSS Level 1 compliance to protect your personal and financial information.

If you have questions about payment methods or want to learn more about our financing options, our team is happy to help. Call us at 712-566-1033 or email sales@keastenterprises.com.

Overview

The CL Fabrication 81" EZ HD Grapple is a skid steer grapple built to grab and carry trees, brush, roots, logs, and demolition debris that won’t stay contained in a bucket. With an 81" working width and a 50" opening, it’s sized for faster cleanup and land work while still giving you controlled clamping for awkward, shifting loads.

Heavy-duty components are built from AR400 steel, and the frame is designed for rigidity with large tube construction, guarded cylinders, and reinforced tine structure. This grapple runs off your skid steer auxiliary hydraulics and uses greasable pivot points to keep daily maintenance straightforward in real-world brush and debris handling.

Key Features

81" working width
Wide coverage for faster brush handling, stacking, and cleanup.

50" maximum opening
Large opening range to clamp bulky, awkward material securely.

AR400 upper and lower tines
1/2" thick AR400 tines for strength and abrasion resistance in hard use.

Heavy frame tube construction
4" x 4" x 1/4" upper and lower frame tubes for rigidity under load.

Guarded hydraulic cylinders and rods
Protects key hydraulic components from impacts in brush and debris.

Reinforced tine brace
1/2" thick one-piece AR400 brace between tine points for added strength.

Greasable pivot design
1.5" CF1045 pivot pins with thick-wall greasable bushings at all pivot points.

Skid steer quick attach
Fast, universal hookup for skid steers and compact track loaders.

Abrasive blasted and powder coated
Surface prep and finish for better adhesion and long-term corrosion resistance.

Technical Specifications

Feature	Specification
Make	CL Fabrication
Model	EZ Grapple EZ-5081 (81")
Mount / Interface	Skid Steer Quick Attach (SSQA)
Working Width	81"
Grapple Opening	50"
Tines	10
Tine Spacing	9"
Tine Material / Thickness	AR400 steel, 1/2" thick (upper & lower)
Frame Tubes	4" x 4" x 1/4" (upper & lower)
Hydraulic Cylinders	2.5" x 8" welded cylinders
Cylinder / Rod Protection	Guarded
Pivot Pins	1.5" diameter, CF1045
Pivot Points	Thick-wall greasable bushings
Overall Height (open)	57"
Front-to-Rear Depth	47.5"
