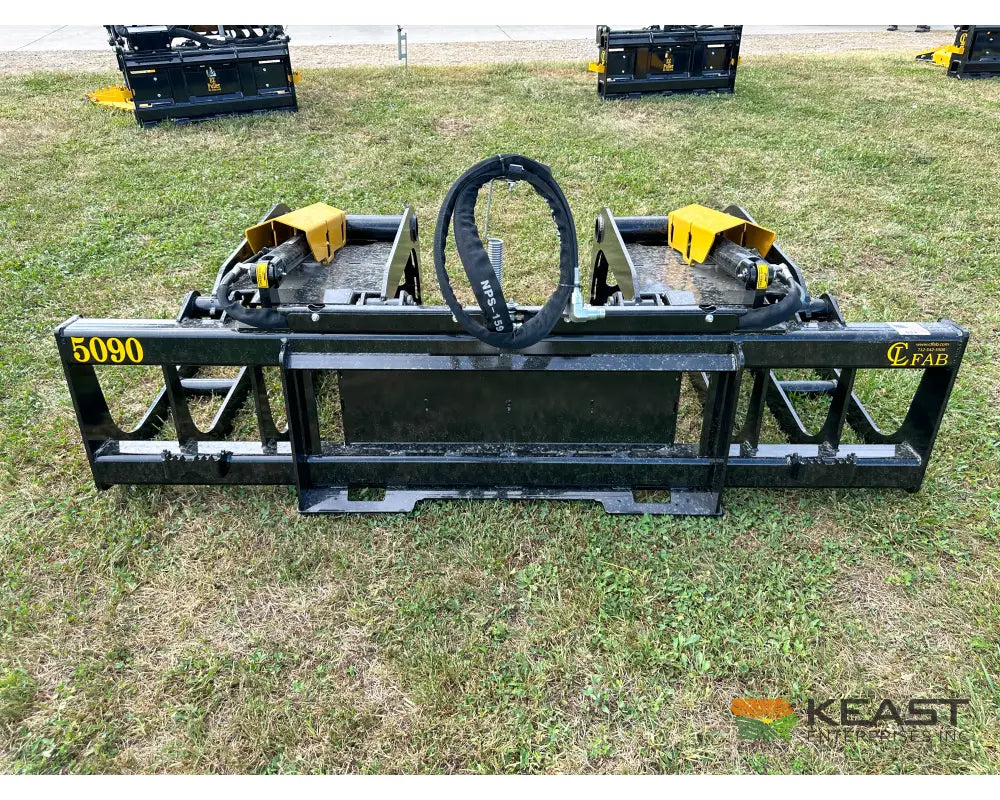

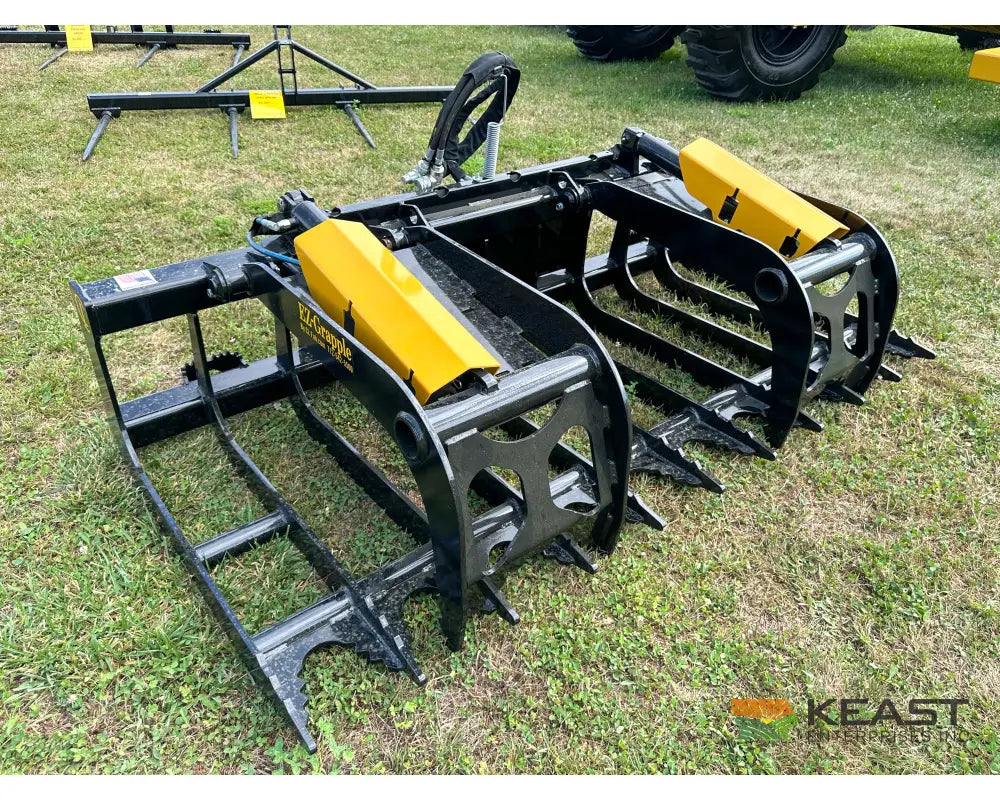

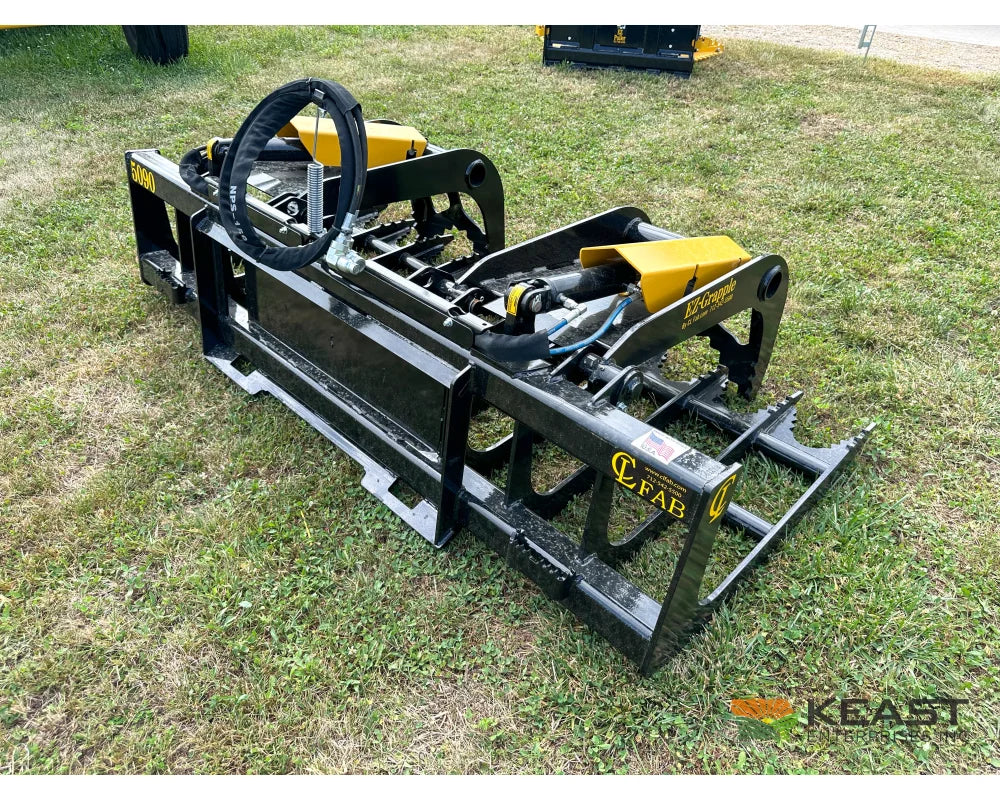

CL Fabrication EZ Grapple, 90″ Width, 50″ Opening, 1/2″ AR400 Tines, Skid Steer Mount

Name: CL Fabrication EZ Grapple, 90″ Width, 50″ Opening, 1/2″ AR400 Tines, Skid Steer Mount
Brand: CL Fabrication
Price: 5291.00 USD
Availability: InStock

$5,291.00 USD

Sale Sold out

Free Shipping in the Continental U.S.

In Stock

How Reservations Work

Click Reserve Now - No Payment Required at checkout to reserve this product for 7 days. After you checkout, our team will reach out to accept tax exemptions, offer financing options, collect payment, and arrange pickup or delivery. No payment needed until you're ready.

How Shipping Works

We ship equipment nationwide using trusted freight carriers and parcel services to make sure your order arrives safely and on time.

Orders are usually processed within 1–2 business days, you’ll receive tracking information as soon as your shipment is on the way.

Most deliveries arrive within 4-9 business days, depending on your location.

For questions about shipping or delivery, call us at 712-566-1033 or email sales@keastenterprises.com

Accepted Payment Methods

We offer several payment options to make your purchase as easy as possible. At checkout, you can pay securely via credit card, or reserve products with no money down.

After completing checkout with a product reservation, we will reach out with flexible payment options including check, ACH, wire transfer, or financing on approved credit.

Payments are processed safely through our website's secure platform, which uses 256-bit SSL encryption and PCI DSS Level 1 compliance to protect your personal and financial information.

If you have questions about payment methods or want to learn more about our financing options, our team is happy to help. Call us at 712-566-1033 or email sales@keastenterprises.com.

Overview

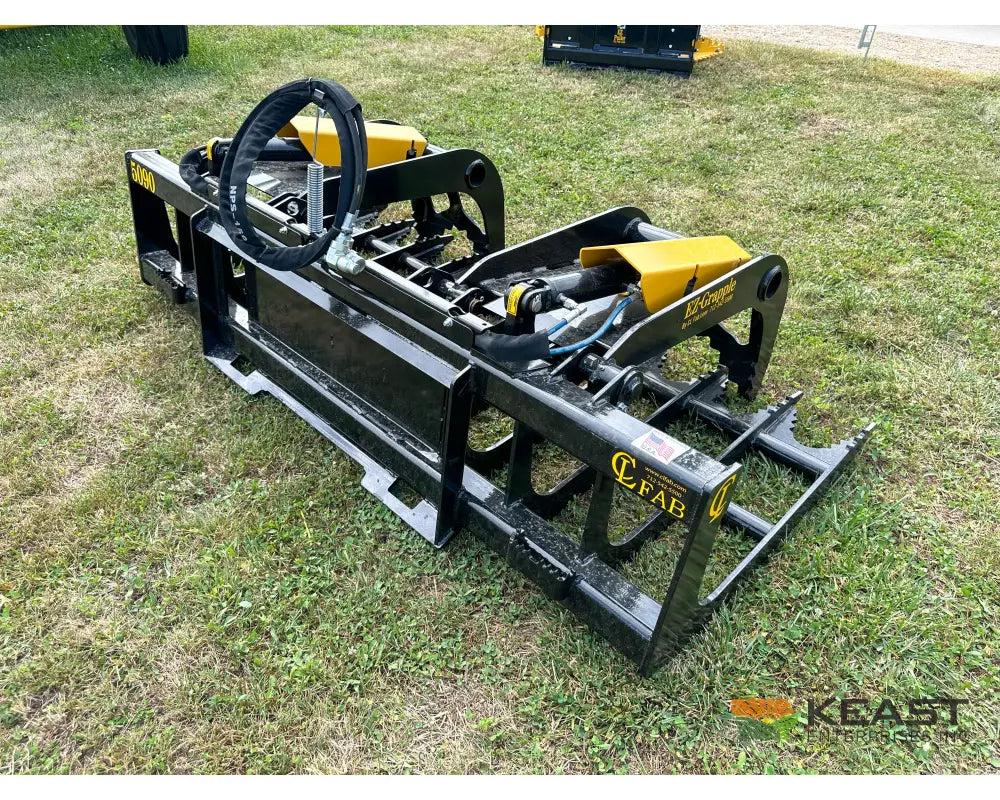

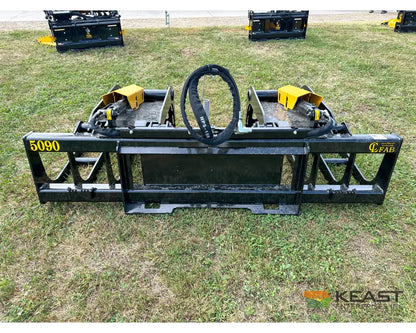

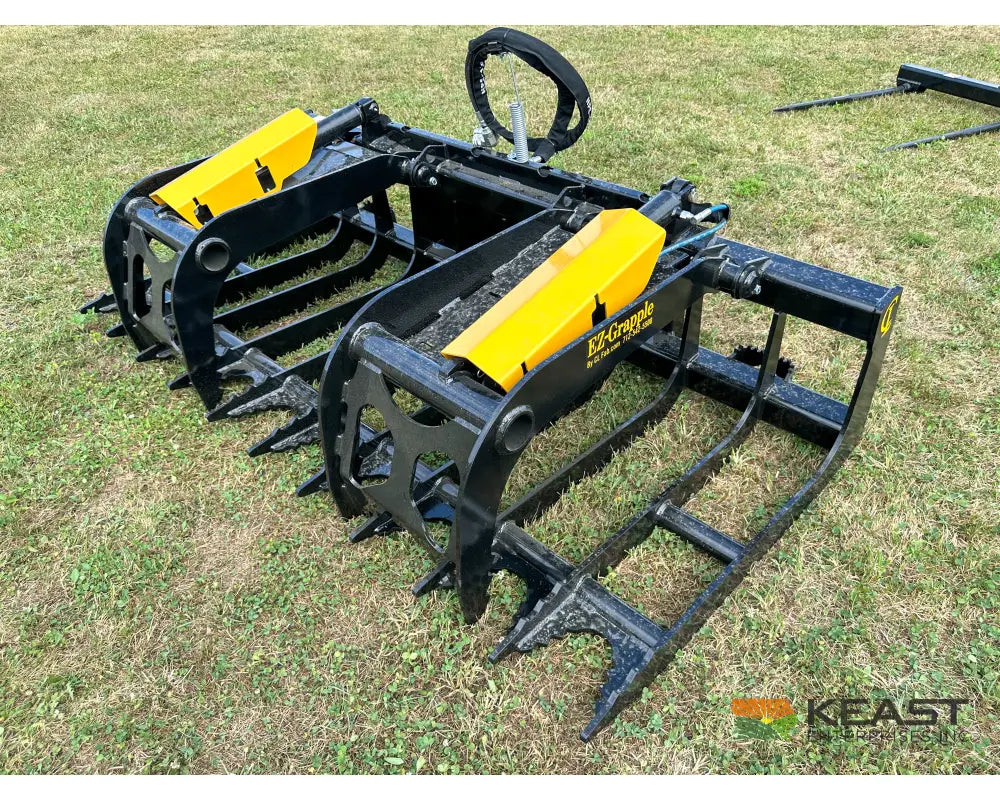

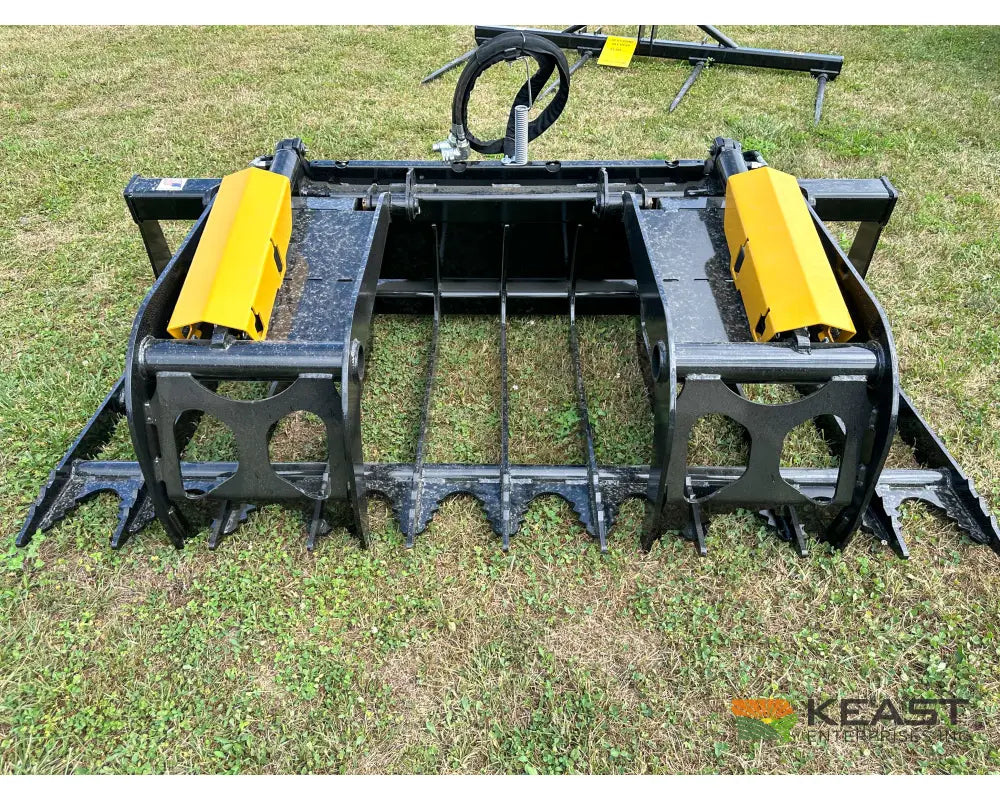

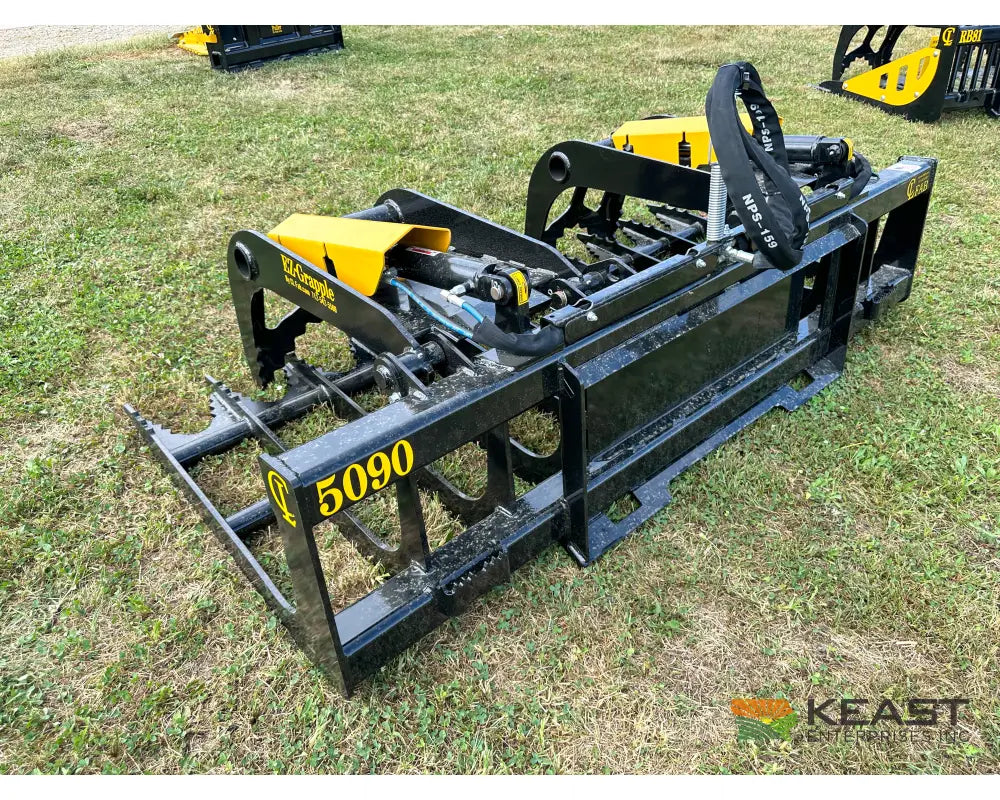

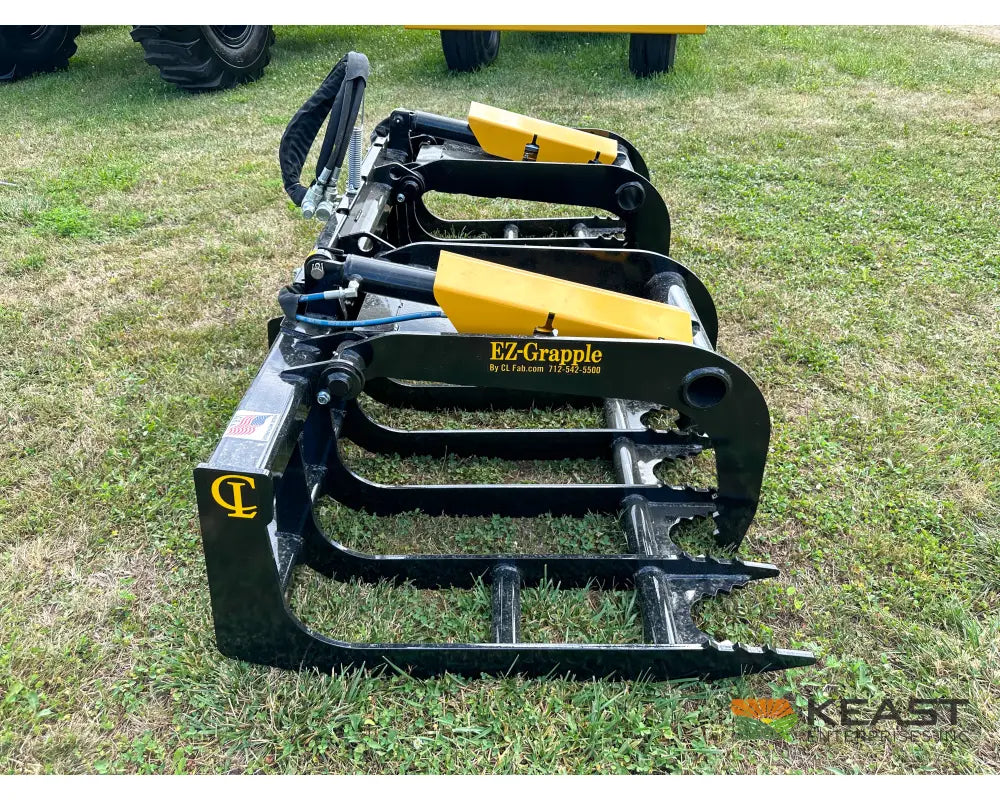

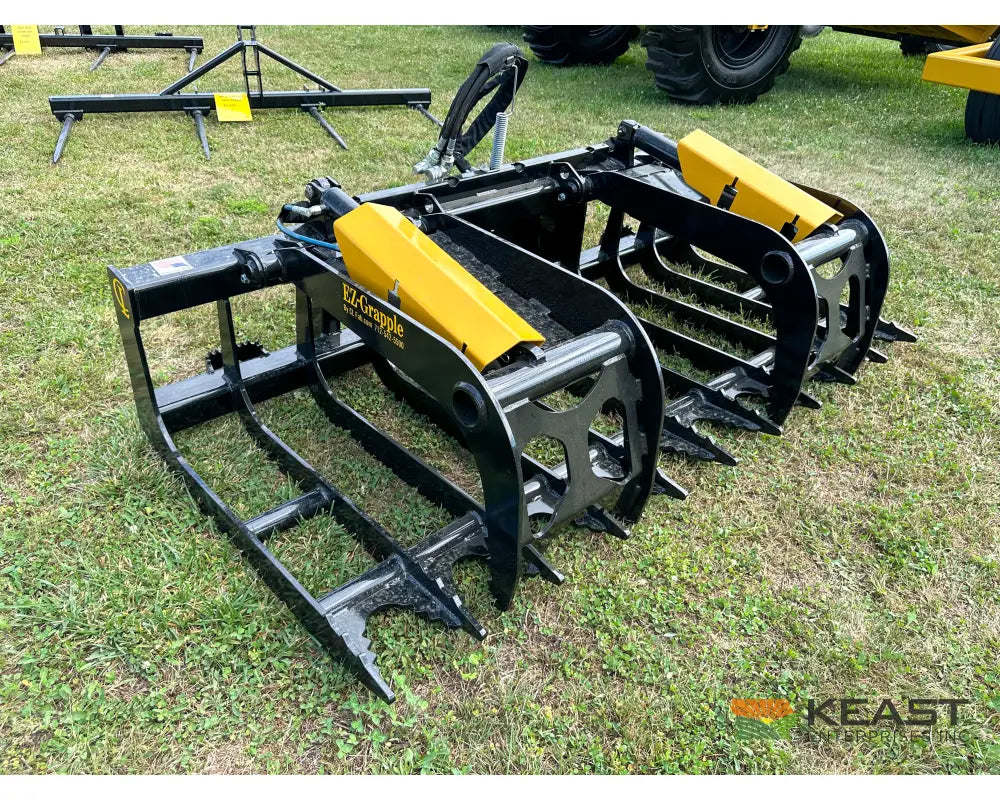

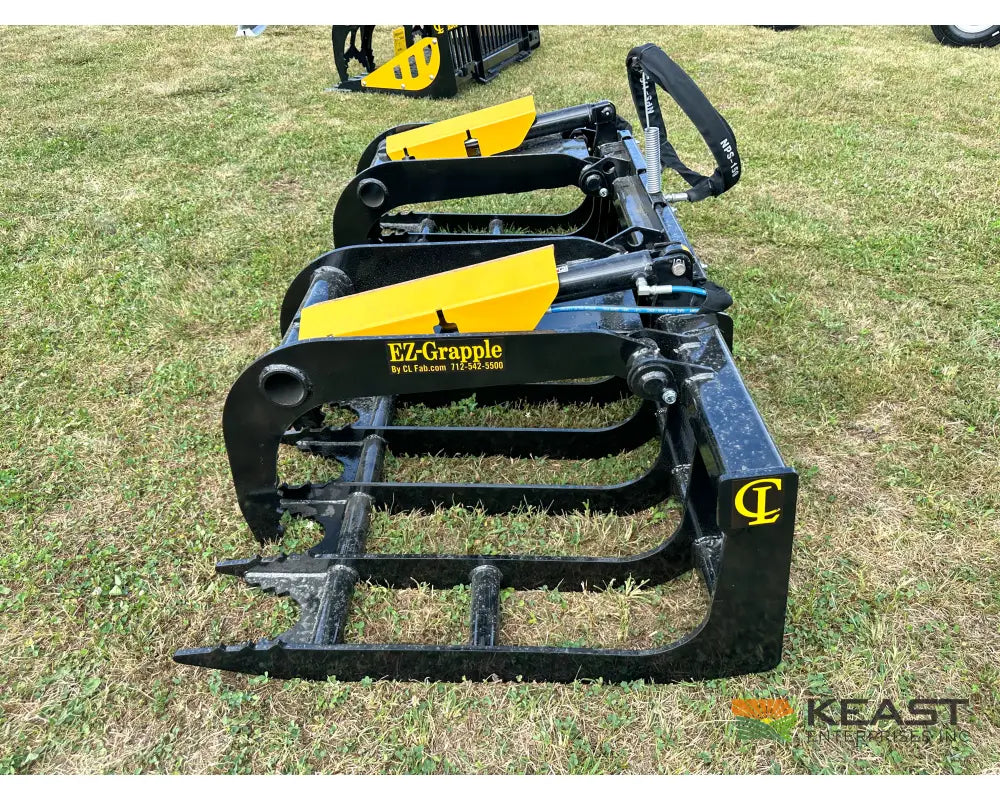

The CL Fabrication 90" EZ HD Grapple is a skid steer quick-attach grapple designed for grabbing, carrying, and loading trees, brush, roots, logs, and demolition debris that won’t stay contained in a bucket. With a full 90" working width and a 50" grapple opening, it’s built to cover more ground per pass while keeping bulky, irregular loads clamped and controlled.

This grapple is built with AR400 steel as standard in the upper and lower tines, reinforced wear structure, and a heavy tube-frame backbone for rigidity under load. Guarded hydraulic cylinders and greasable pivot points support long-term service in rough cleanup work, and the low-profile, open-tine design helps with visibility and material penetration compared to a solid bucket.

Key Features

90" working width
Wide coverage for faster brush handling, land cleanup, and stacking bulky material.

50" grapple opening
Large opening range to clamp oversized loads securely for transport and loading.

1/2" AR400 upper & lower tines
AR400 steel is standard for strength and abrasion resistance in high-wear areas.

Heavy 4" x 4" frame tubes
4" x 4" x 1/4" upper and lower frame tubes add rigidity for demanding work.

Dual welded hydraulic cylinders
2.5" x 8" welded cylinders provide consistent clamping control.

Guarded cylinders and rods
Helps protect key hydraulic components from impacts in brush and debris.

AR400 one-piece tine brace
1/2" thick AR400 brace between tine points reinforces the tine structure.

Greasable pivot design
1.5" diameter CF1045 pivot pins through thick-wall greasable bushings at all pivot points.

Abrasive blasted & powder coated
Surface prep and finish for stronger adhesion and longer-lasting corrosion resistance.

Optional narrow tine spacing
4" lower tine spacing is available as an option for smaller material retention.

Technical Specifications

Feature	Specification
Make	CL Fabrication
Model	EZ Grapple EZ-5090 (90")
Mount / Interface	Skid Steer Quick Attach (SSQA)
Working Width	90"
Grapple Opening	50"
Tines	11
Tine Spacing	9" (optional 4" lower tine spacing available)
Tine Material / Thickness	AR400 steel, 1/2" thick (upper & lower)
Frame Tubes	4" x 4" x 1/4" (upper & lower)
Hydraulic Cylinders	(2) 2.5" x 8" welded
Pivot Pins	1.5" diameter CF1045
Pivot Points	Thick-wall greasable bushings
Overall Height (open)	57"
Front-to-Rear Depth	47.5"
Weight	1,060 lb
Finish	Abrasive blasted and powder coated
