Demco 36' Hopper Bottom Grain Trailer, 1,020 Bushel Heaped Capacity, Roll Tarp

Name: Demco 36' Hopper Bottom Grain Trailer, 1,020 Bushel Heaped Capacity, Roll Tarp
Brand: Demco
Price: 42789.00 USD
Availability: InStock

$42,789.00 USD

Sale Sold out

Explore financing options For qualifying equipment, subject to credit approval.

In stock

Call Us 712-566-1033

We'll reach out to confirm order details before fulfillment.

Demco 36' Hopper Bottom Grain Trailer, 1,020 Bushel Heaped Capacity, Roll Tarp

FET is included in the listed price. The Demco 36-foot steel hopper trailer provides 953 bushels of struck capacity and 1,020 bushels heaped. Its two-hopper layout exceeds 1,000 bushels heaped in a shorter trailer than the 40-foot model, making it a useful size to compare when both capacity and room around the bin site matter.

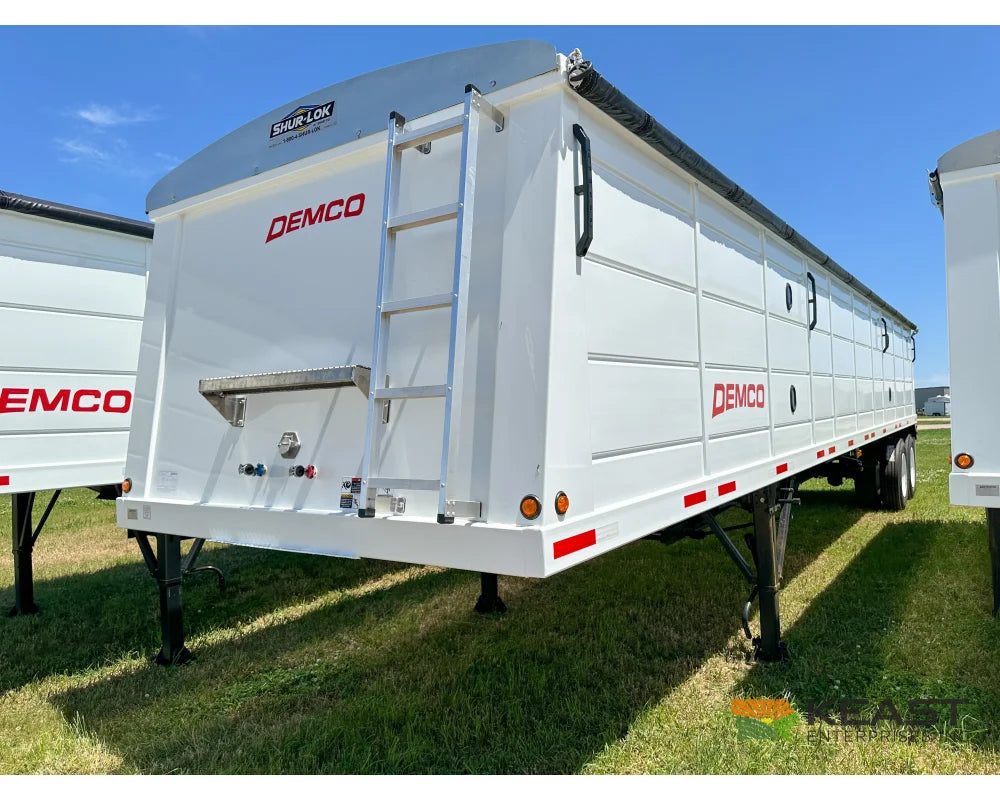

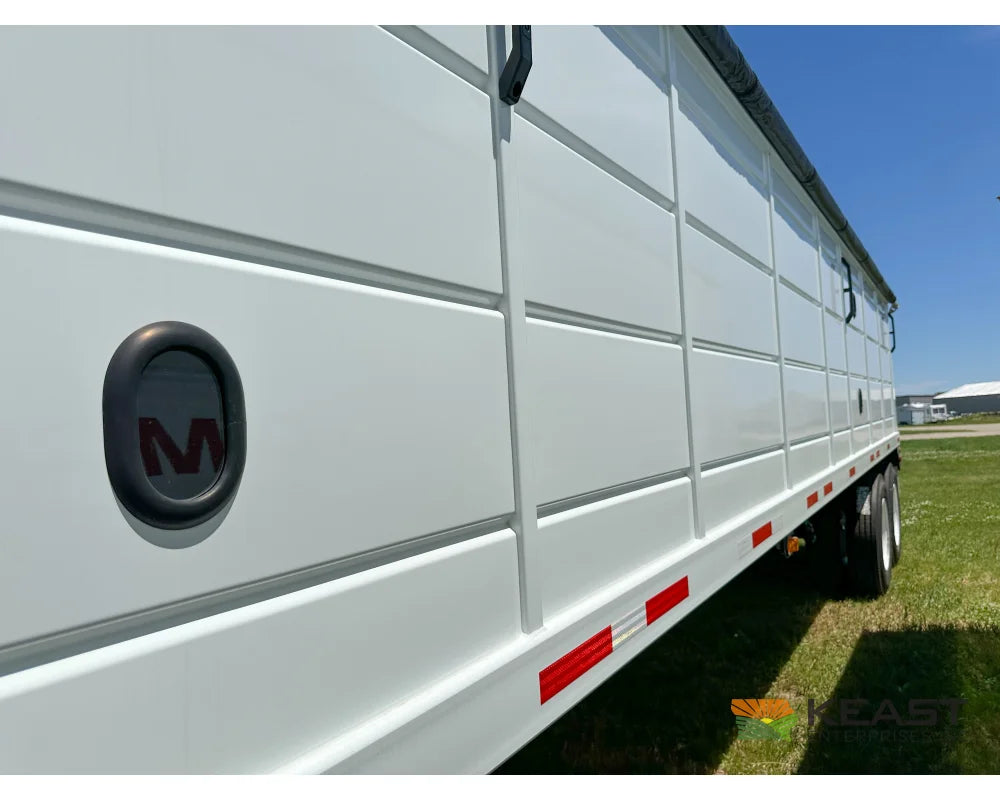

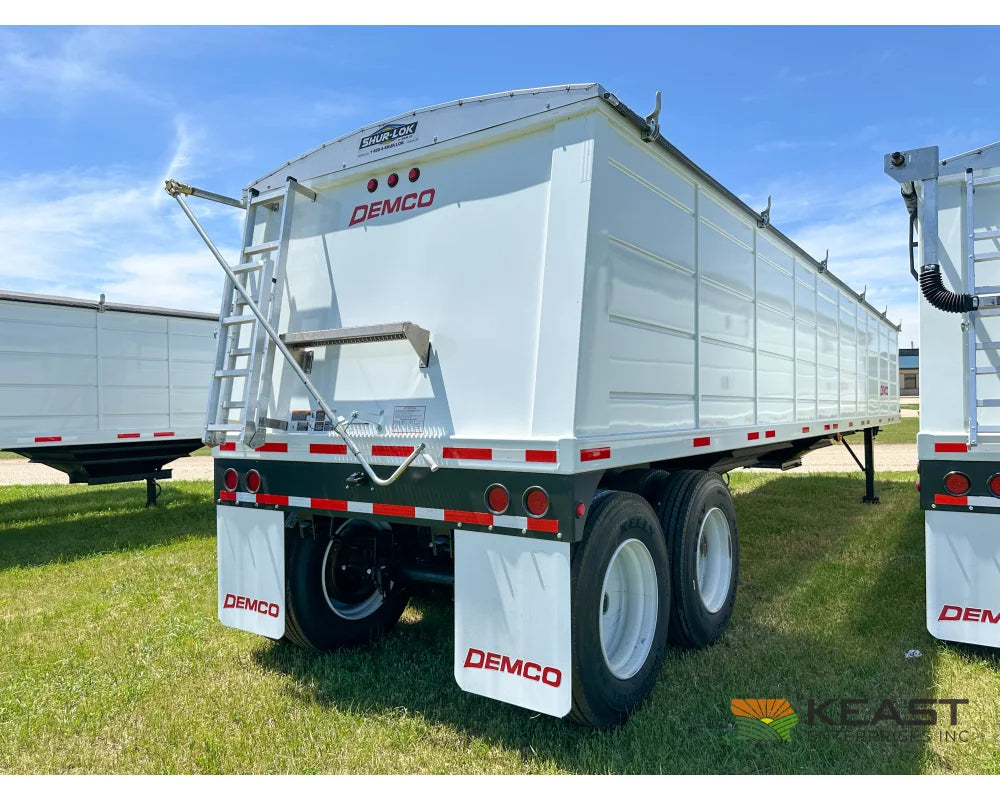

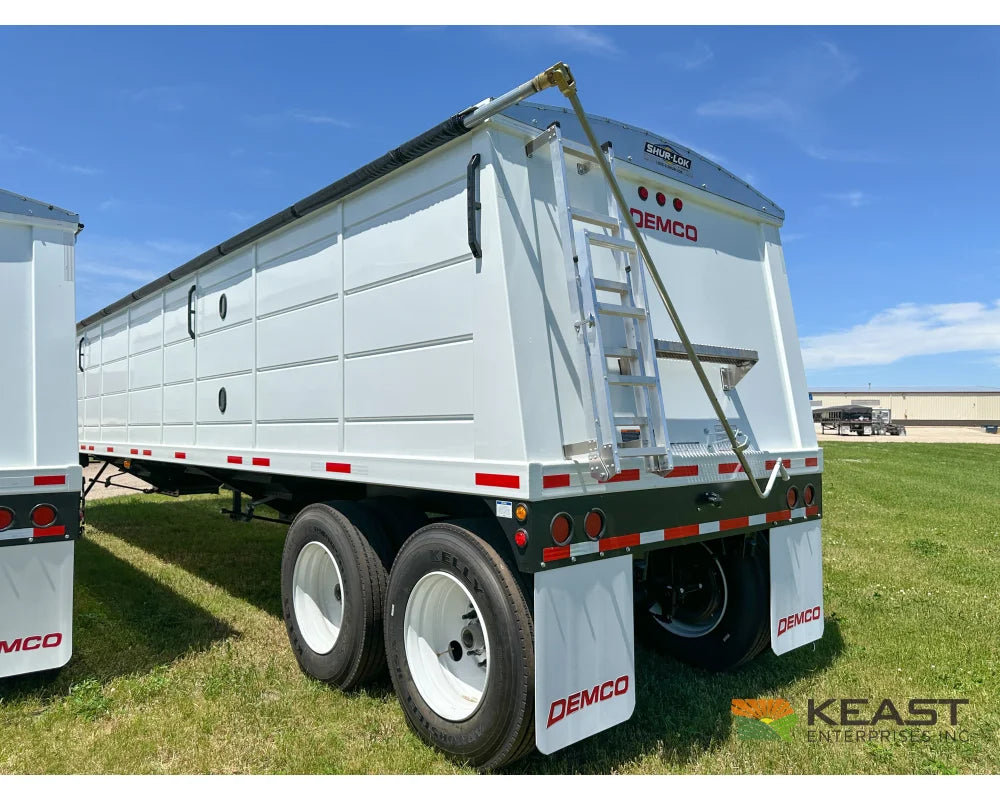

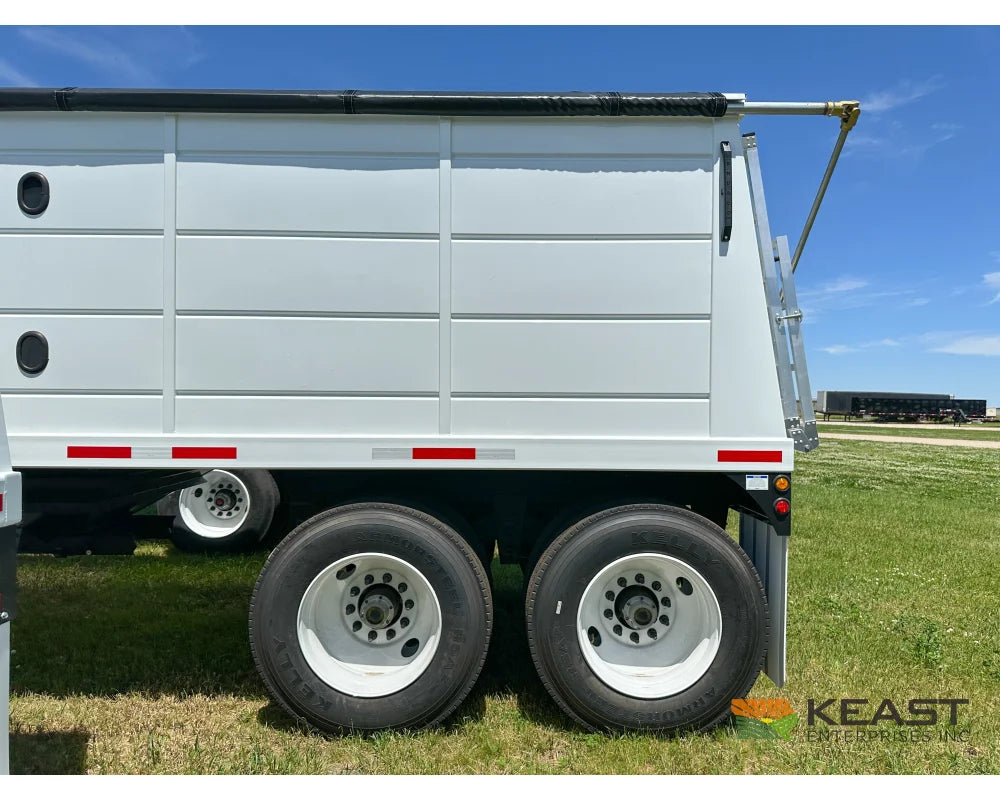

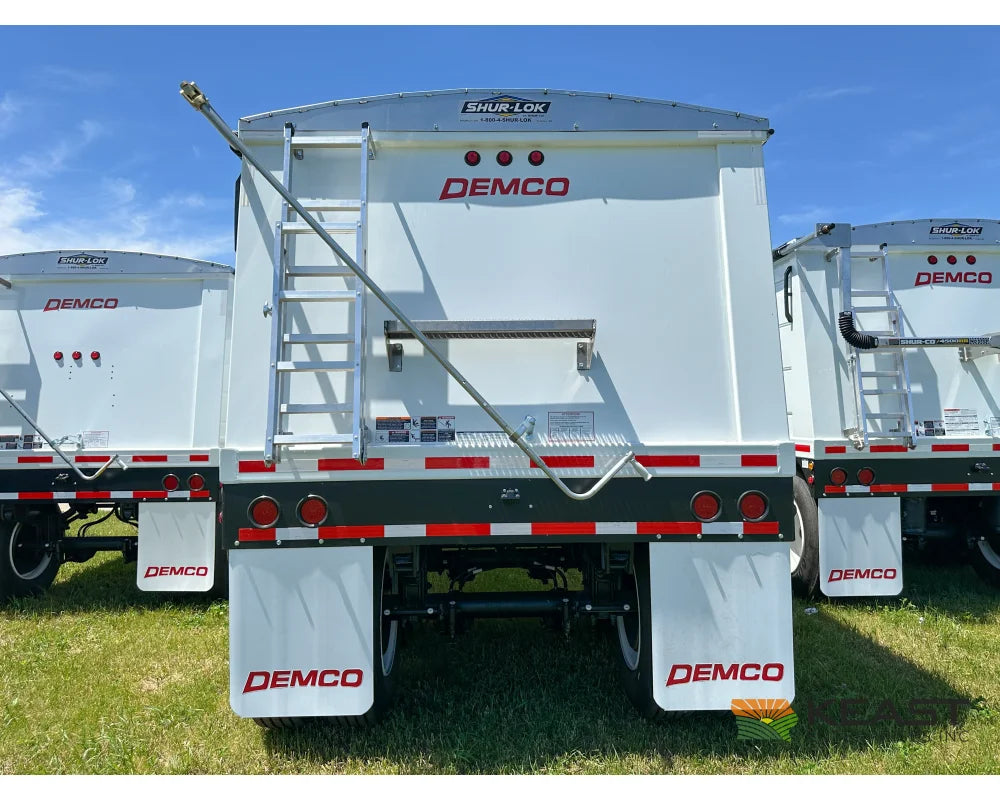

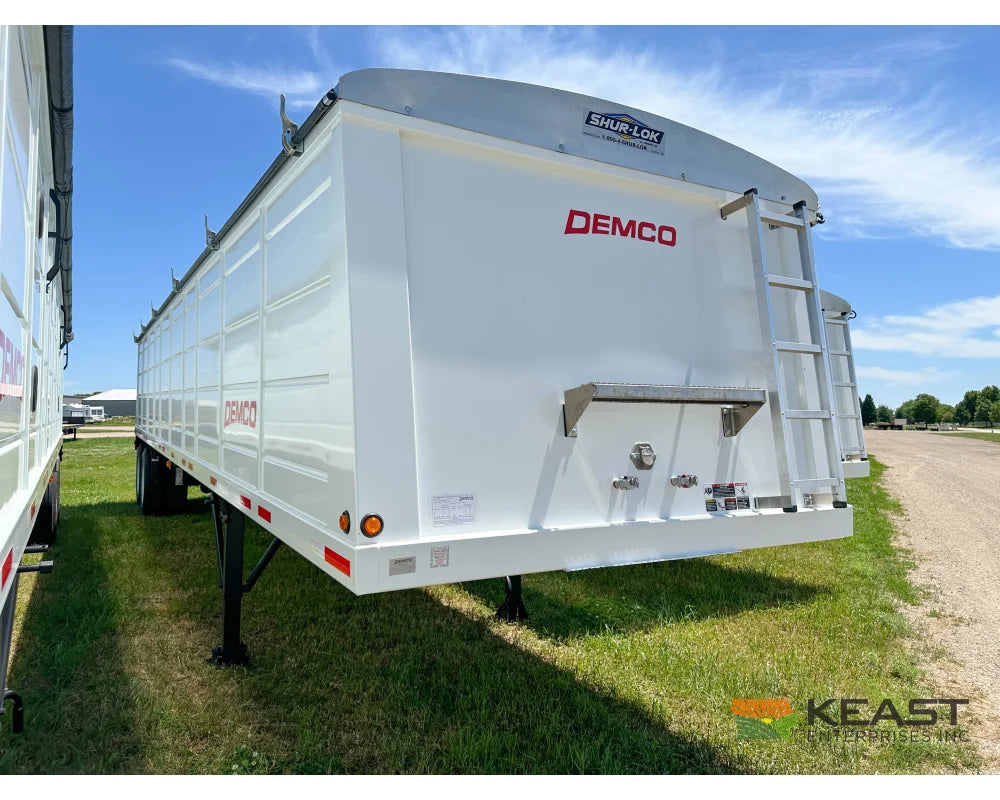

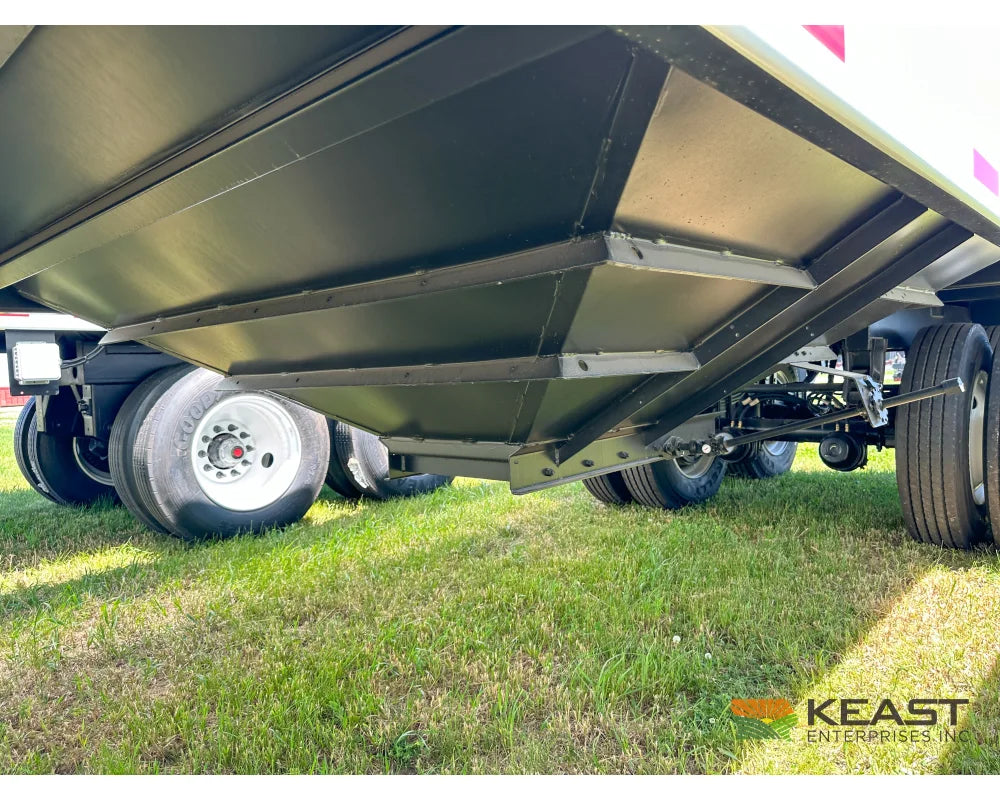

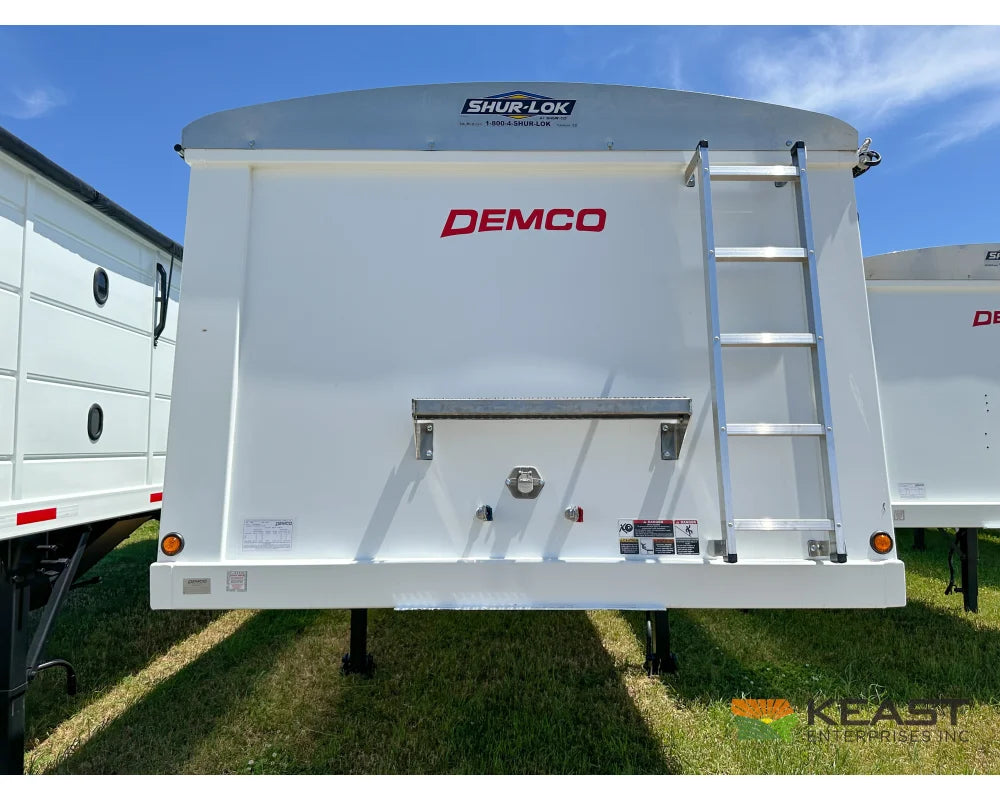

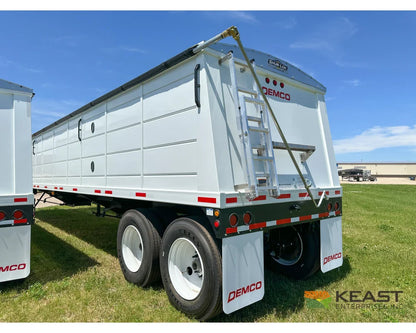

Each hopper has a 30-by-20-inch crank-operated sliding gate. This configuration also includes spring suspension, two 22,500-pound axles with ABS, 11R22.5 tires on 10-bolt steel wheels, and a Shur-Co roll tarp. Front and rear aluminum ladders, interior hopper rungs, sight windows, sealed LED lighting, and anti-sail mudflaps complete the loading and access equipment.

Specifications

Specification	Value
Body length	36 ft.
Capacity	953 bu. struck / 1,020 bu. heaped (1,191 cu. ft.)
Hoppers and gates	Two hoppers; 30 x 20 in. crank-operated gates
Sidewall height	66 in.
Overall width	98 in.
Ground to top rail	9 ft. 6 in.
Empty hopper clearance	25 in.

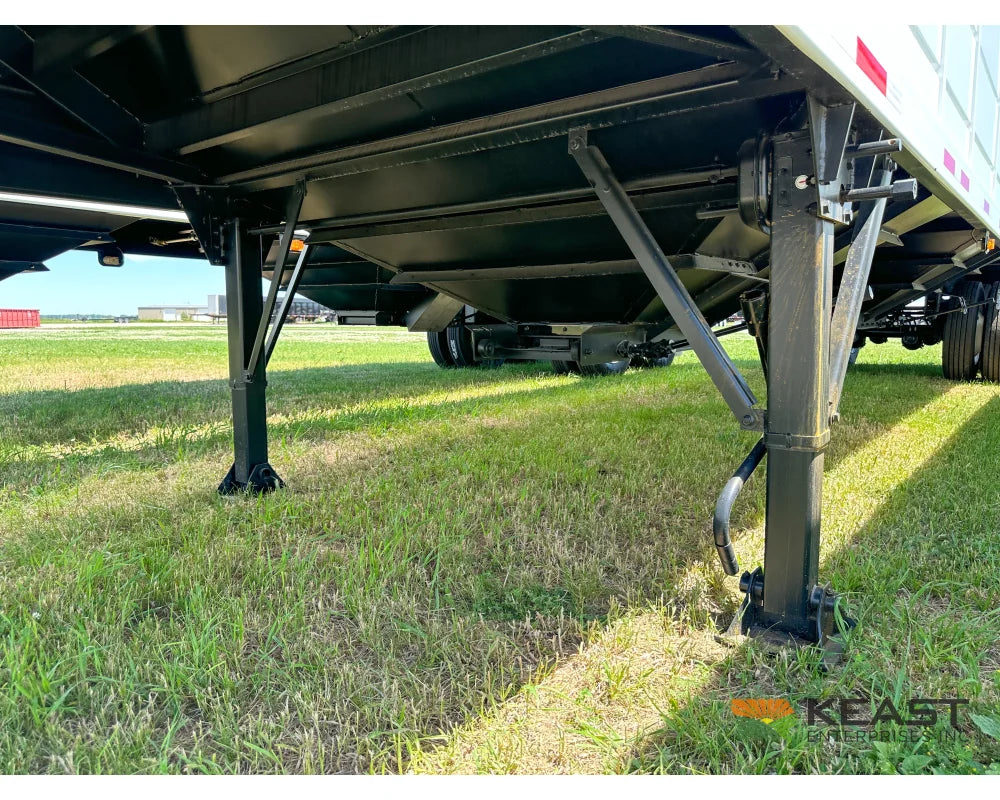

Kingpin to landing leg	98 in.
Hopper and floor slope	35 degrees

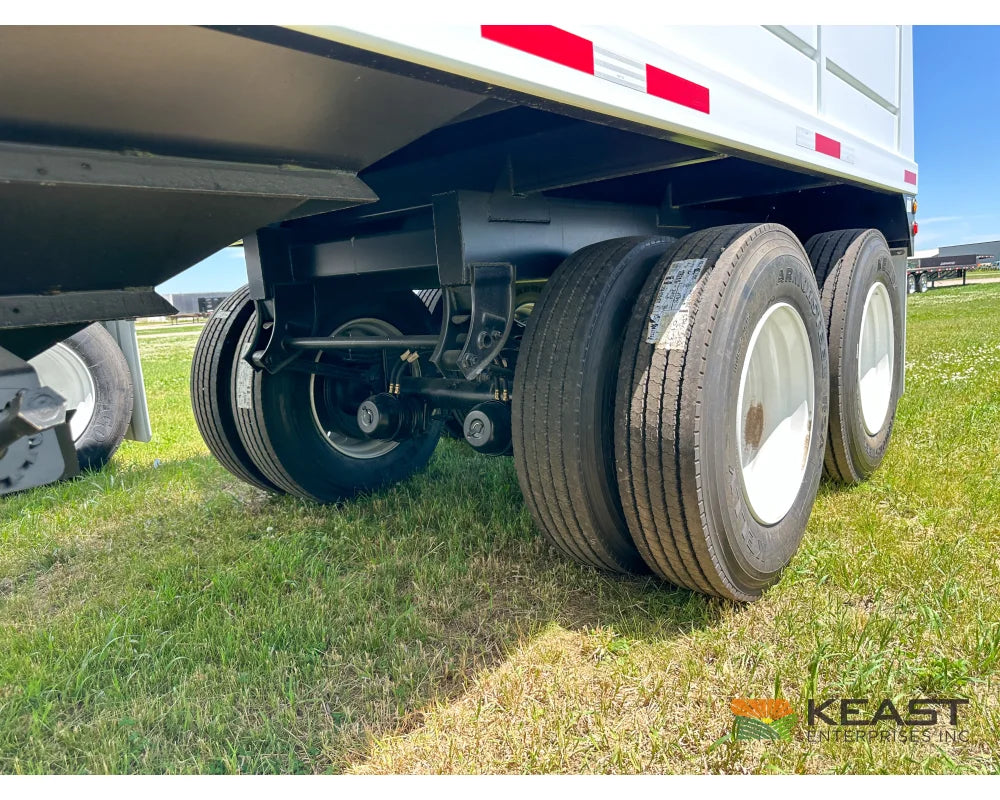

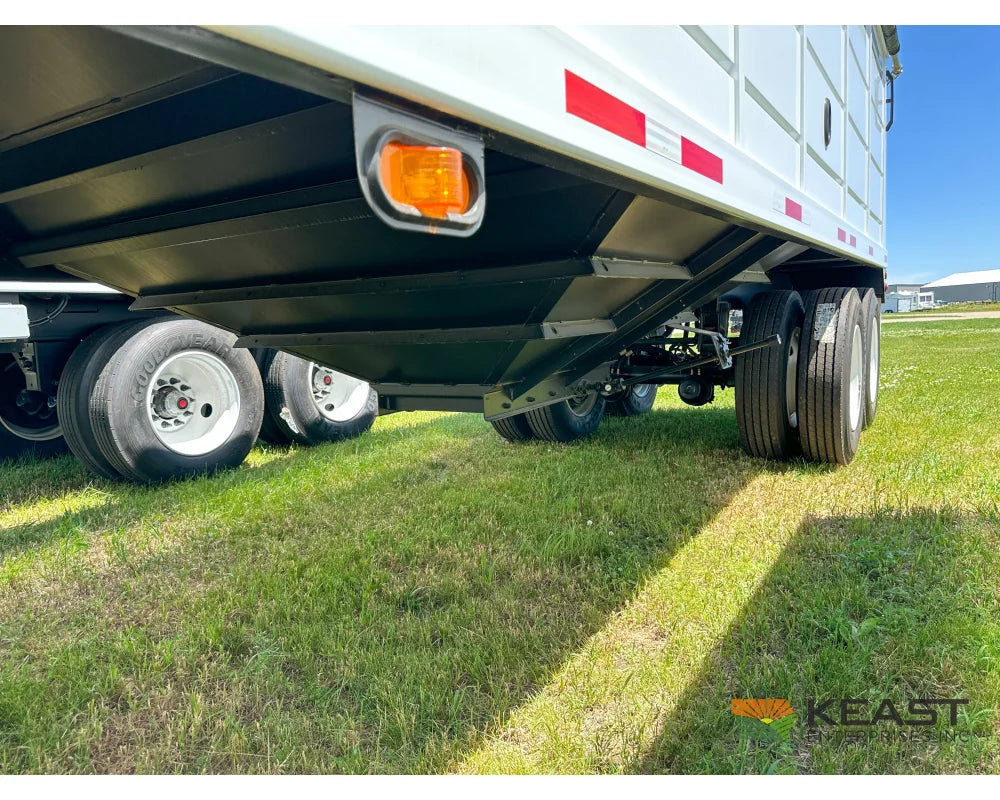

Running gear	Spring ride; two 22,500-lb. axles with ABS
Tires and wheels	11R22.5 tires on 10-bolt steel wheels
Tarp	Shur-Co roll tarp

The manufacturer's spring-ride reference weight is 10,400 pounds for the 36-foot model with 66-inch walls and 24.5 tires. The exact empty weight will vary with the tires and installed options, so payload and legal road weight should be figured from the completed trailer's build information or an actual scale weight.
