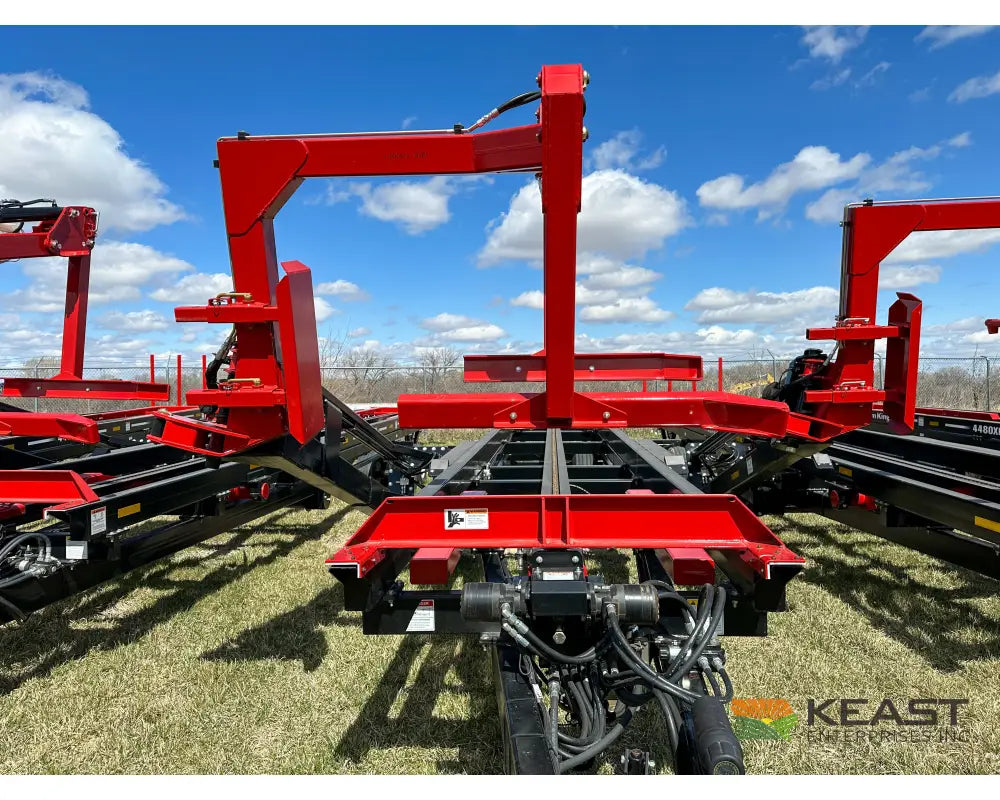

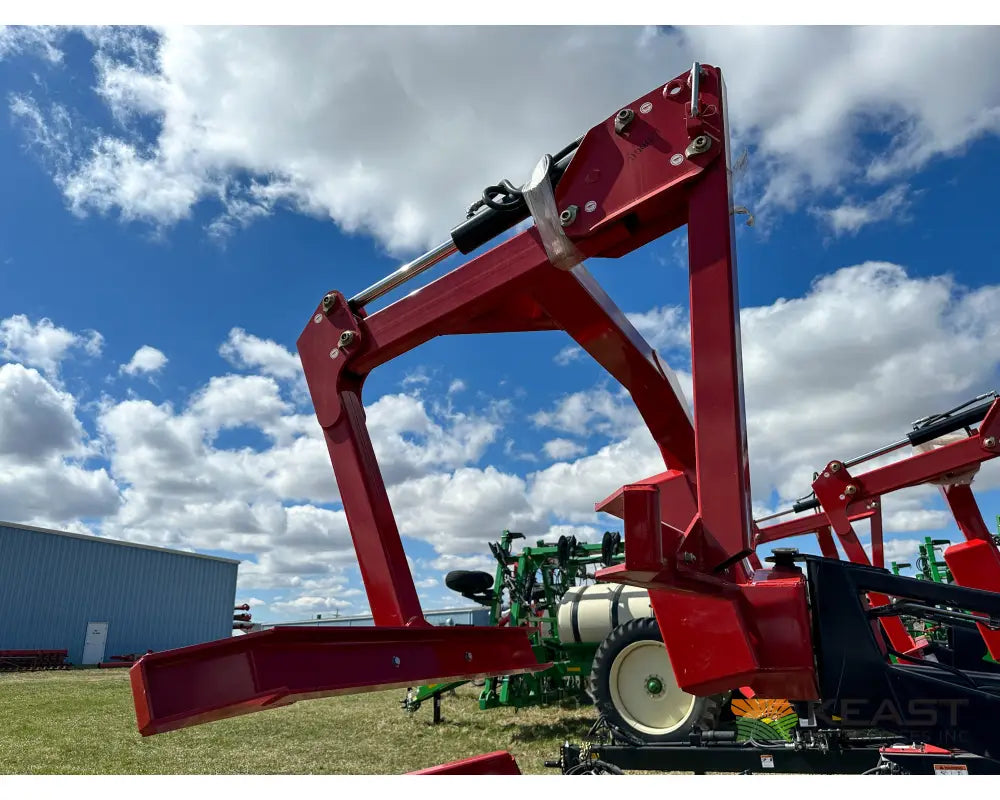

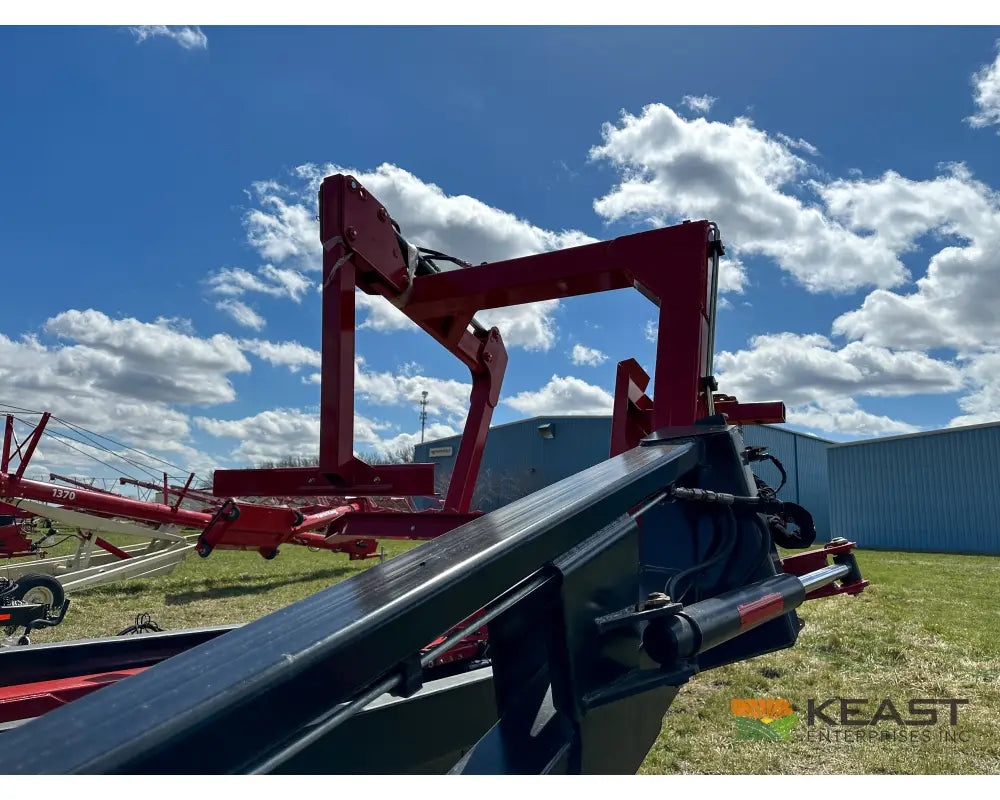

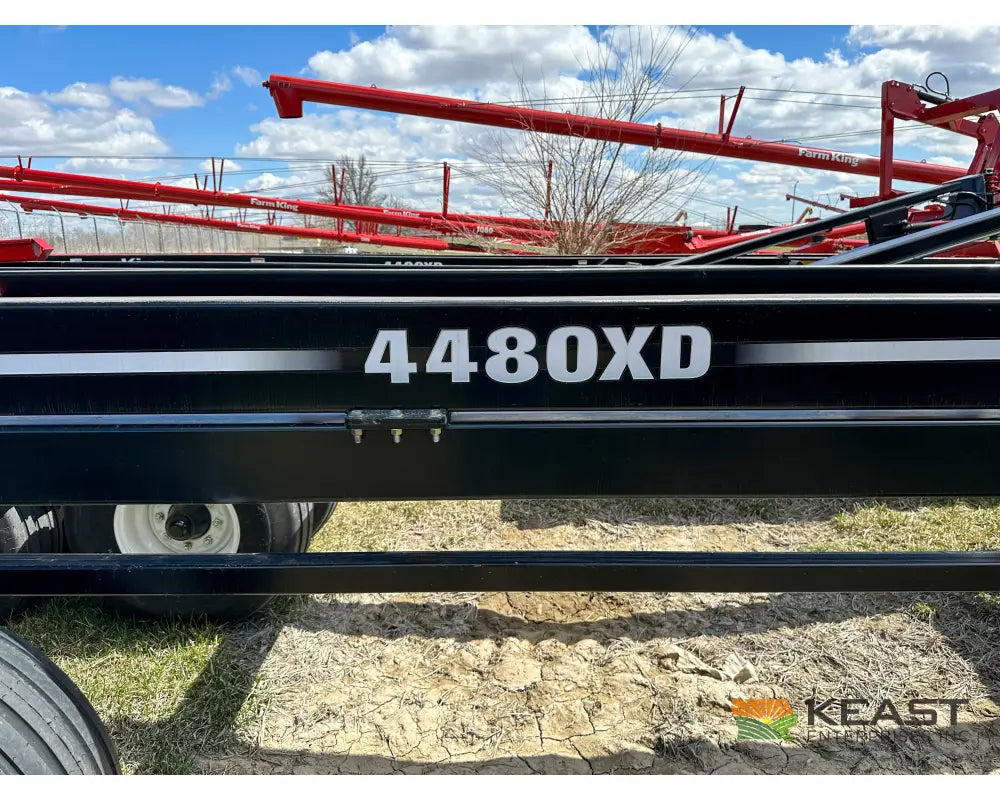

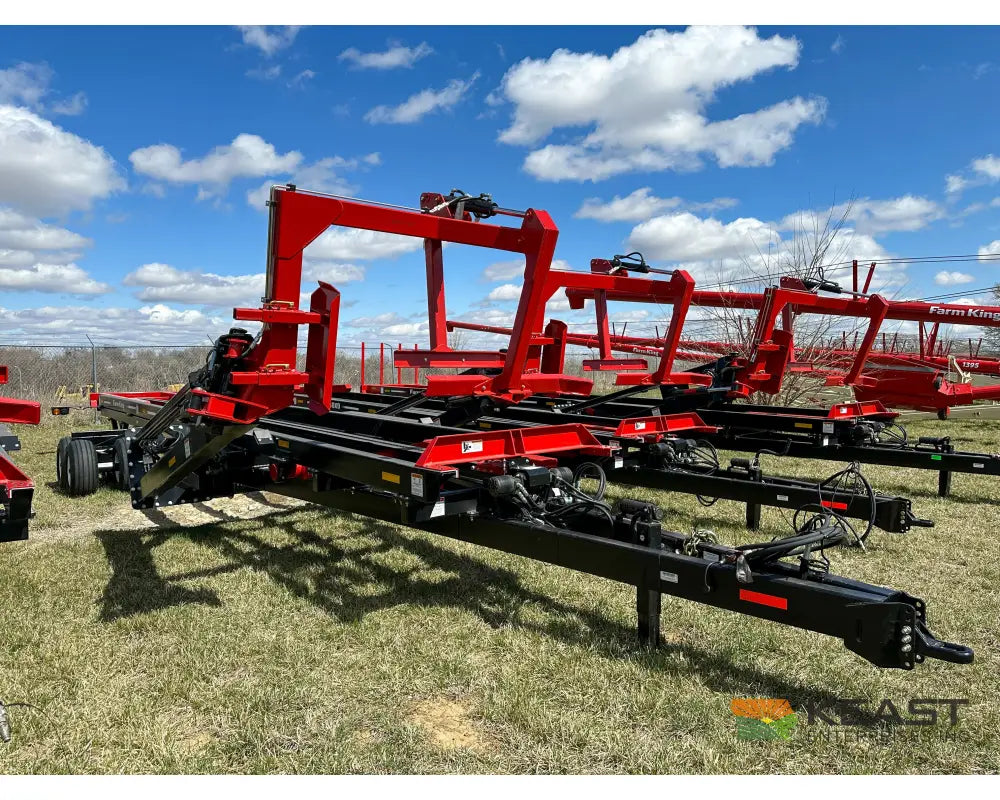

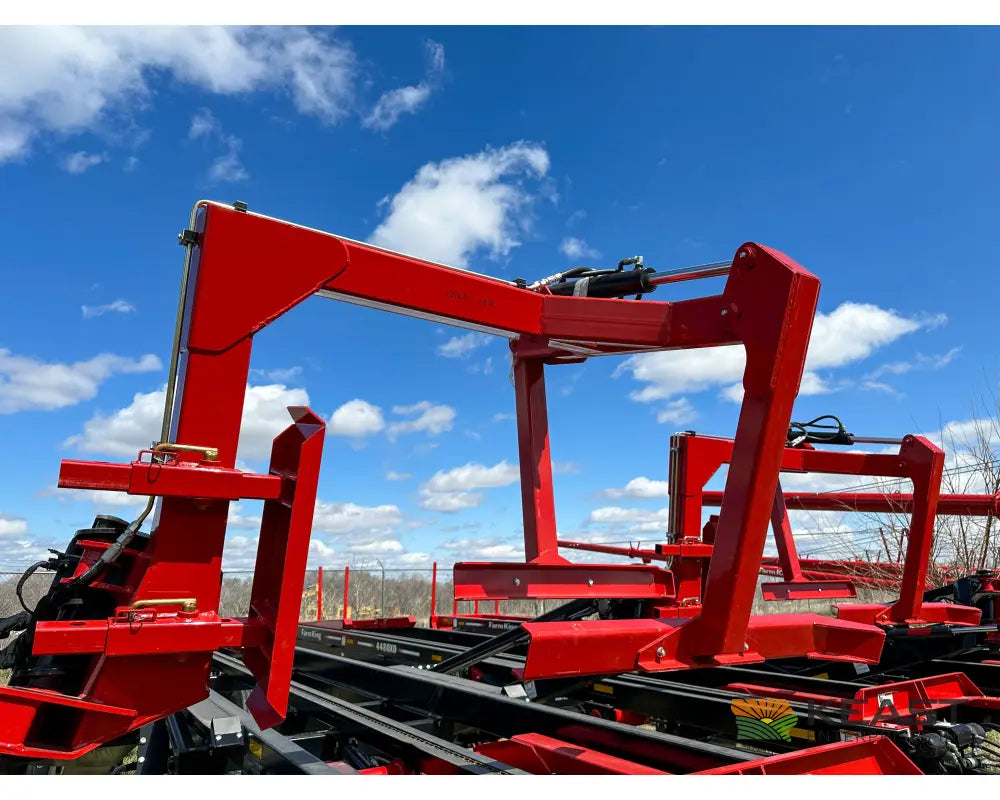

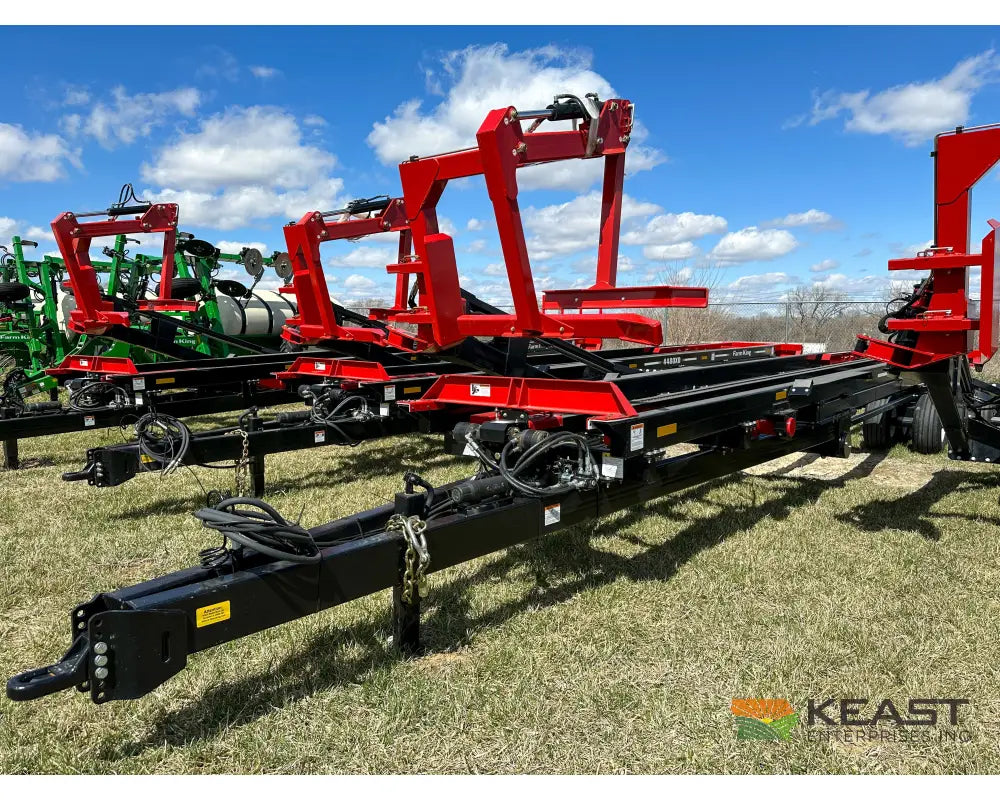

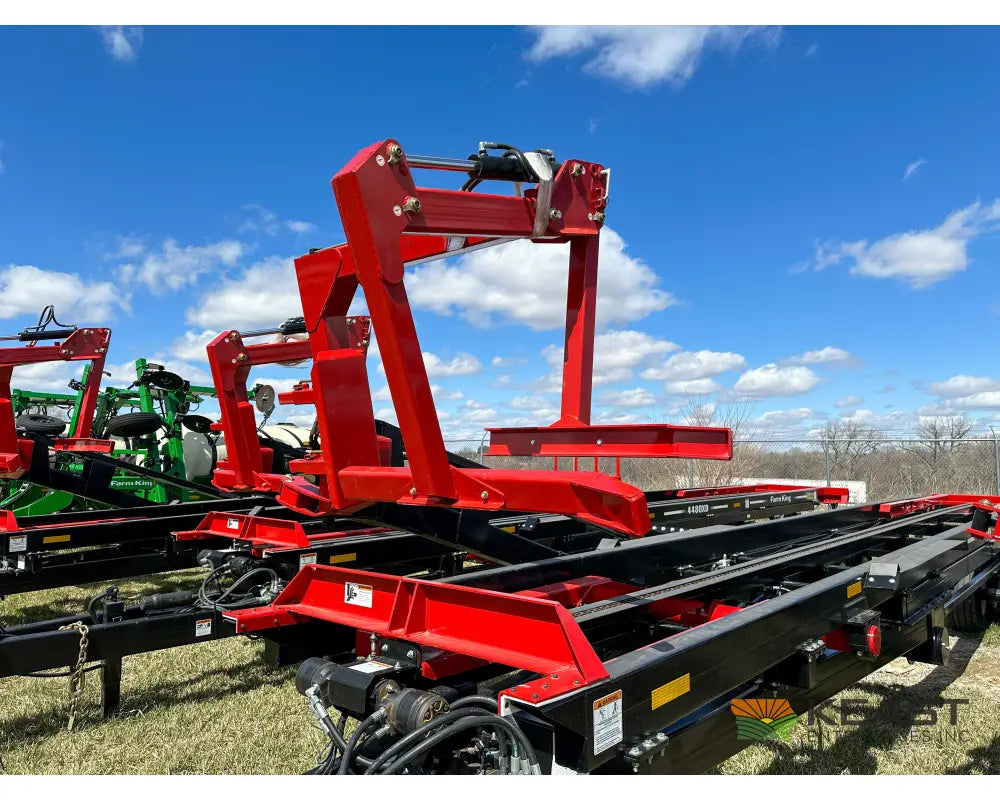

Farm King 4480XD Square Bale Carrier, Up to 24 Bale Capacity, Self Loading Arm

Overview

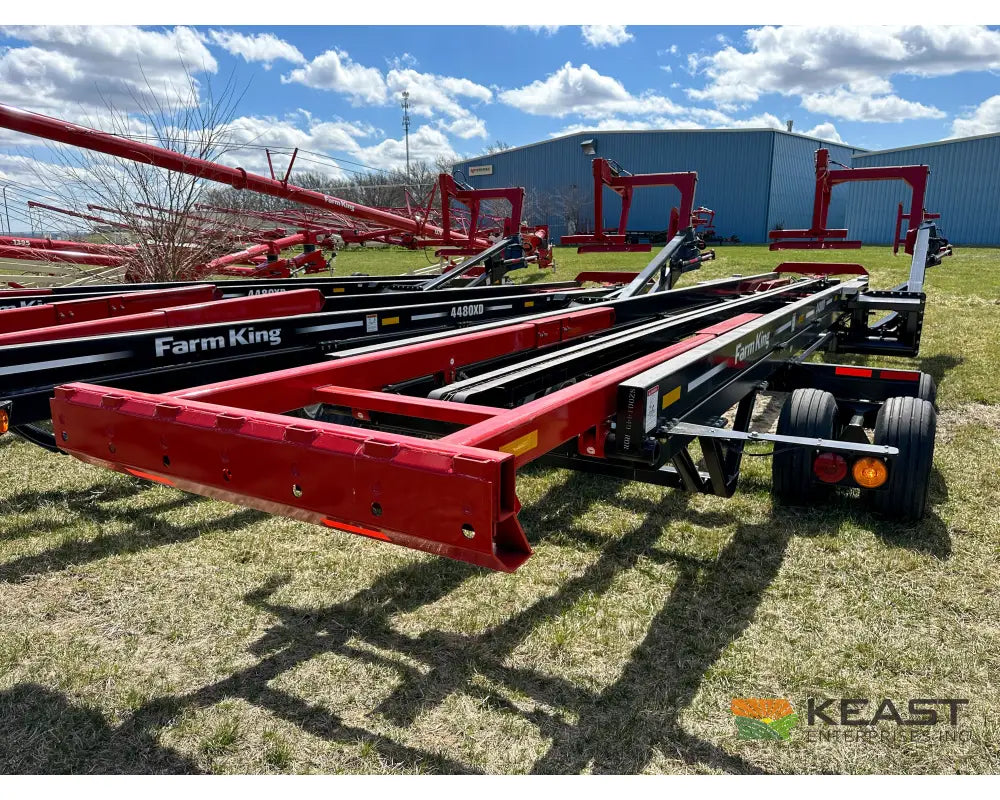

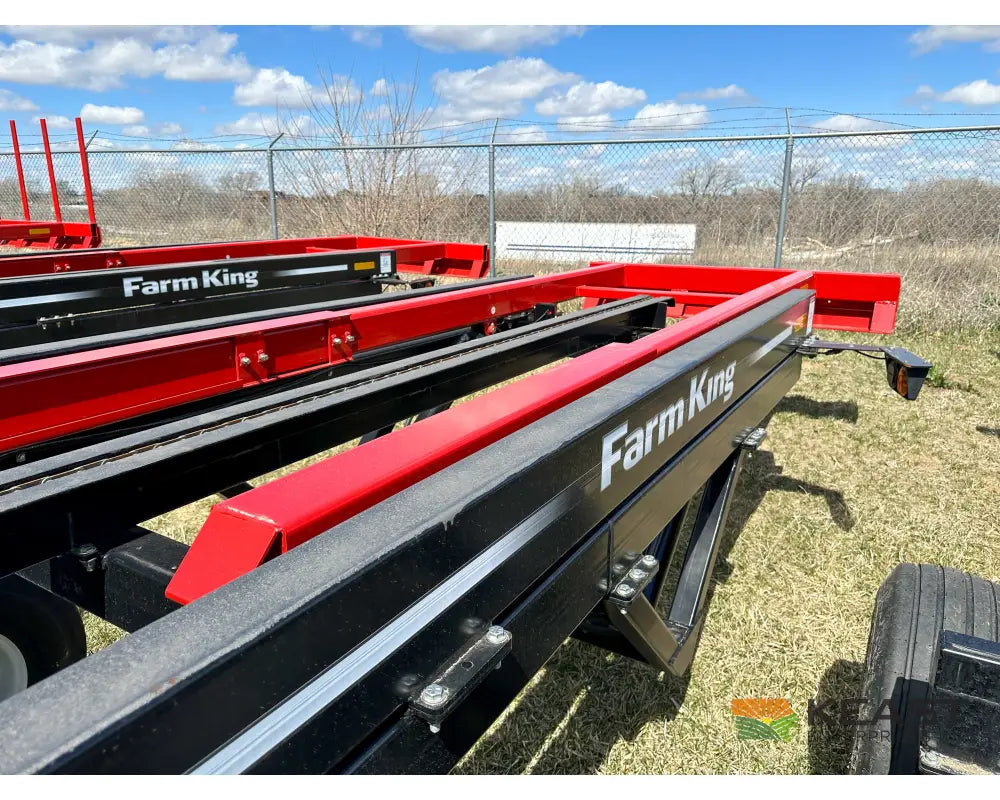

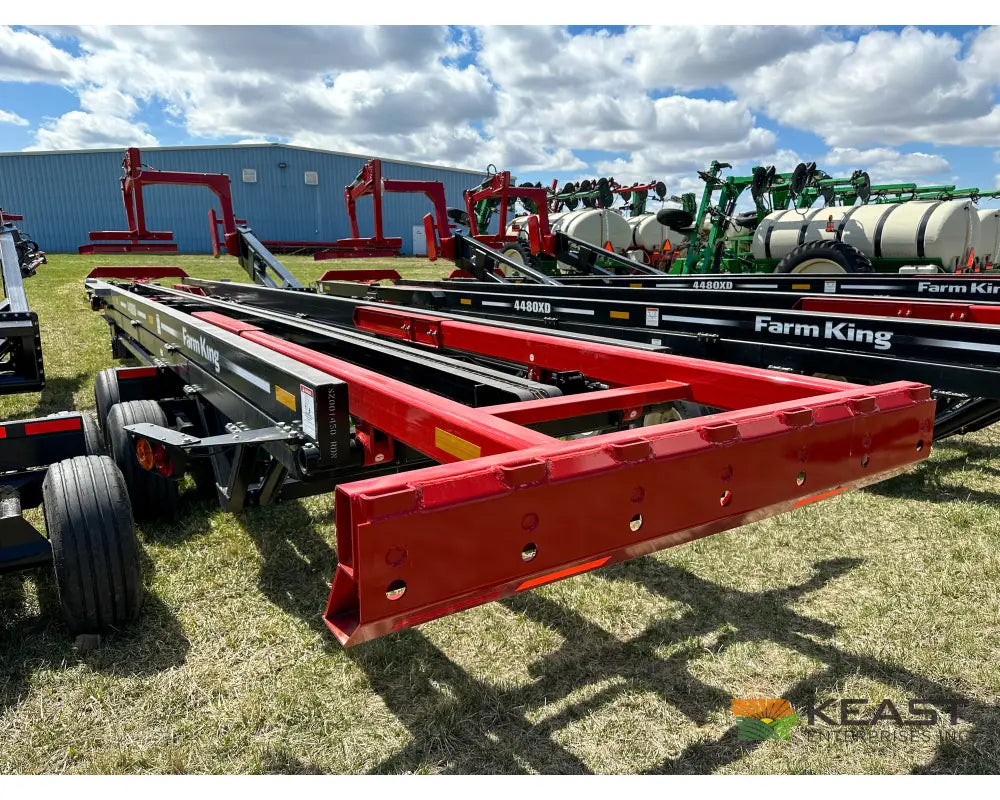

The Farm King 4480XD is a rugged square bale carrier with a 4″ × 8″ steel beam undercarriage, walking-tandem axles, up to 25,000 lb of bale capacity, and low-maintenance design. Its 34′ usable deck, hydraulic pusher, tilt-back rear deck for quick unloading, and graphite-coated deck beams make handing the nine 4′×4′, eighteen 3′×4′, or twenty-four 3′×3′ bales per load as easy as possible.

Key Features

Heavy-Duty Structure

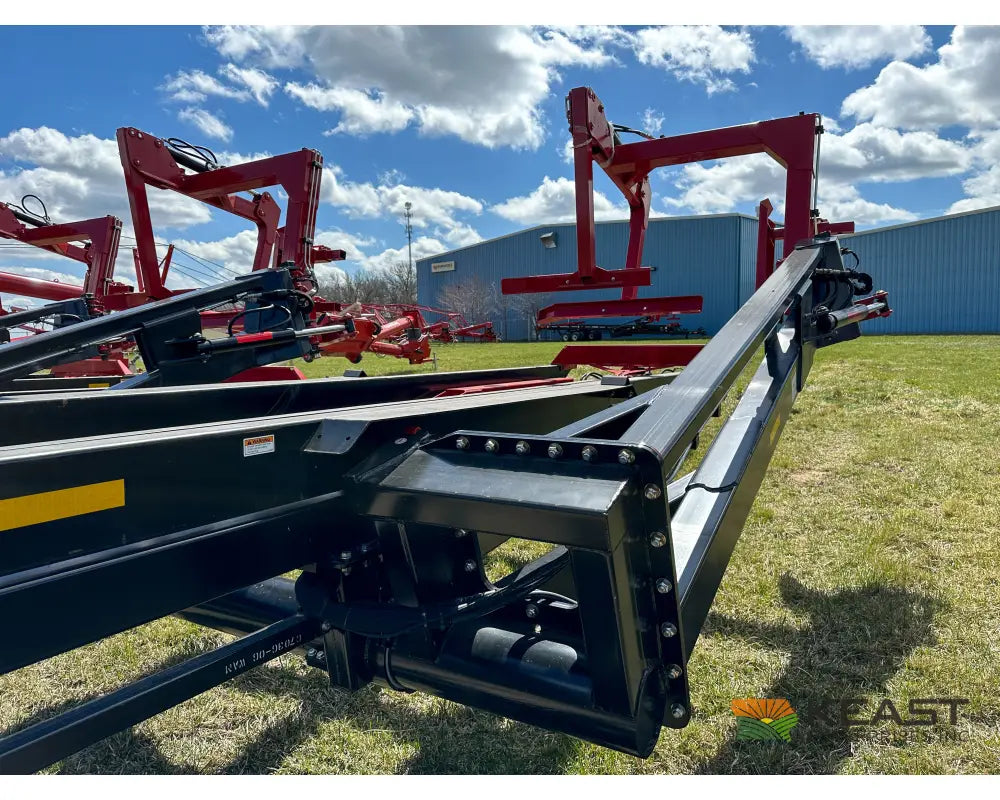

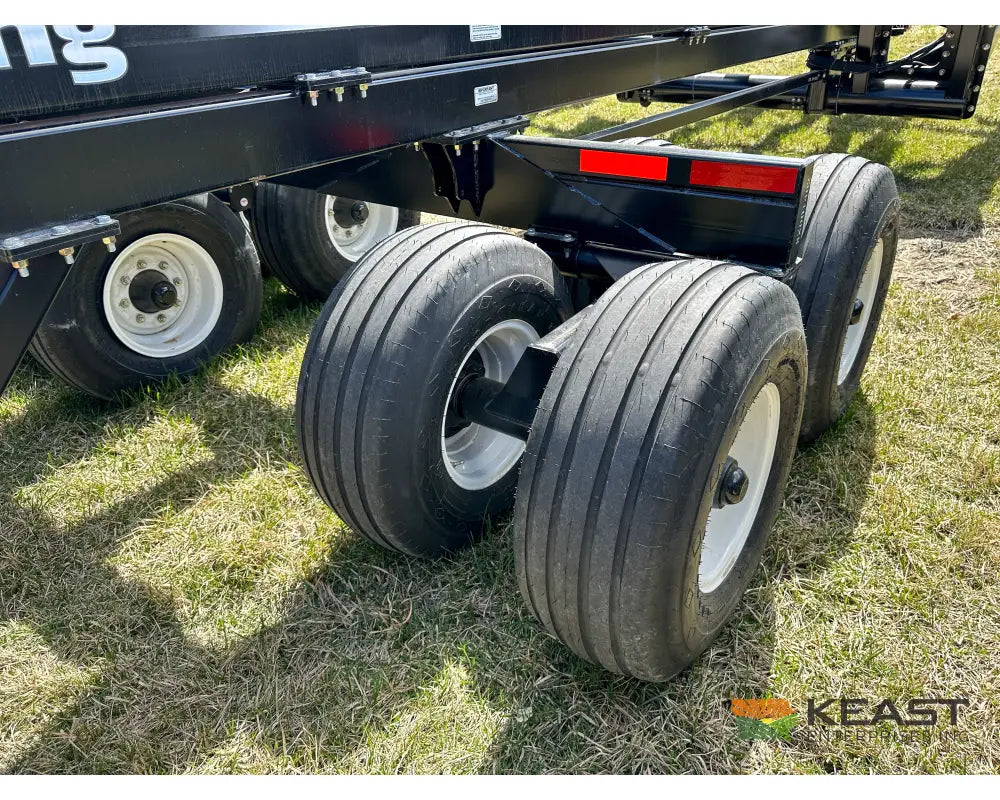

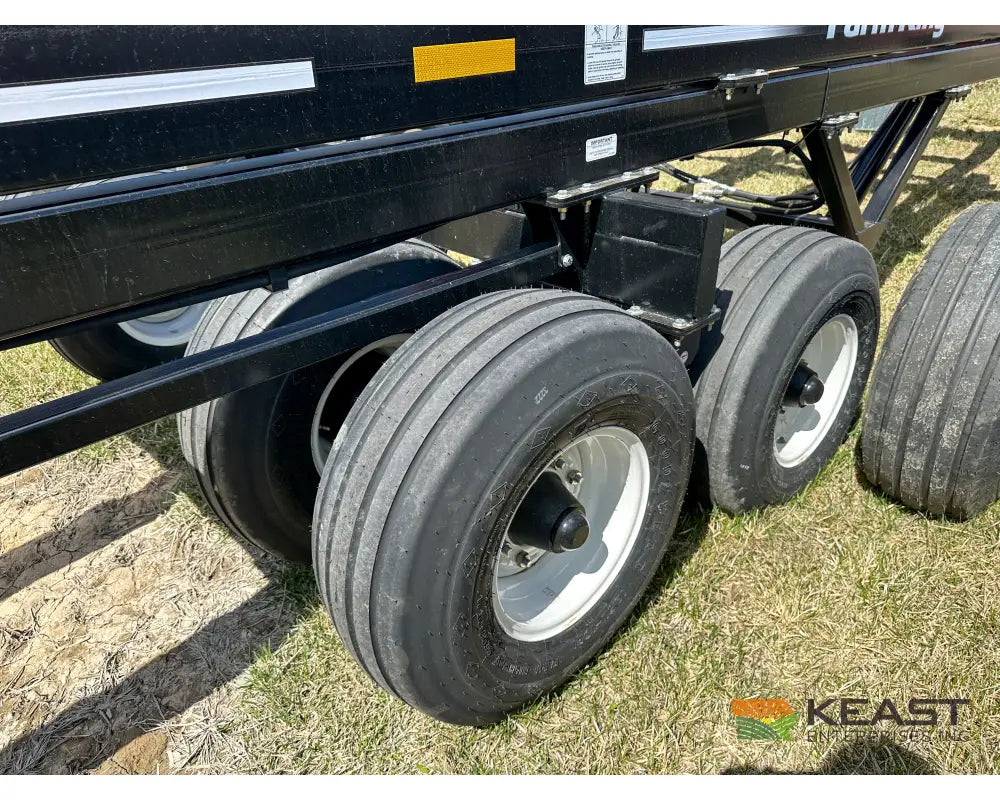

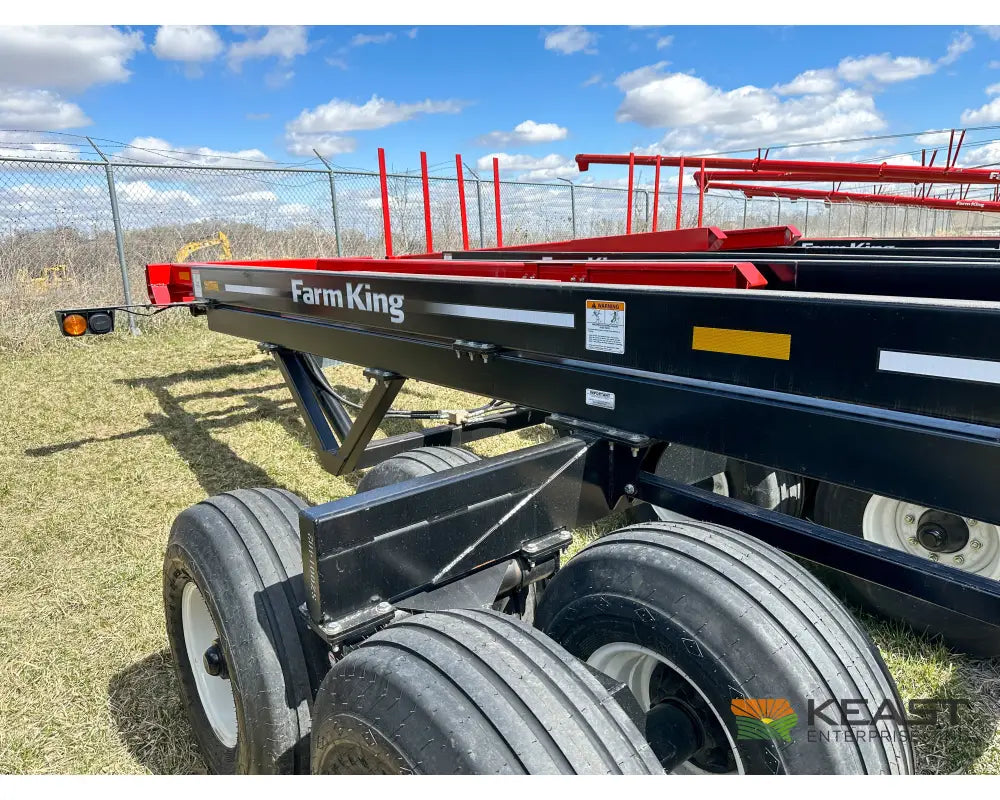

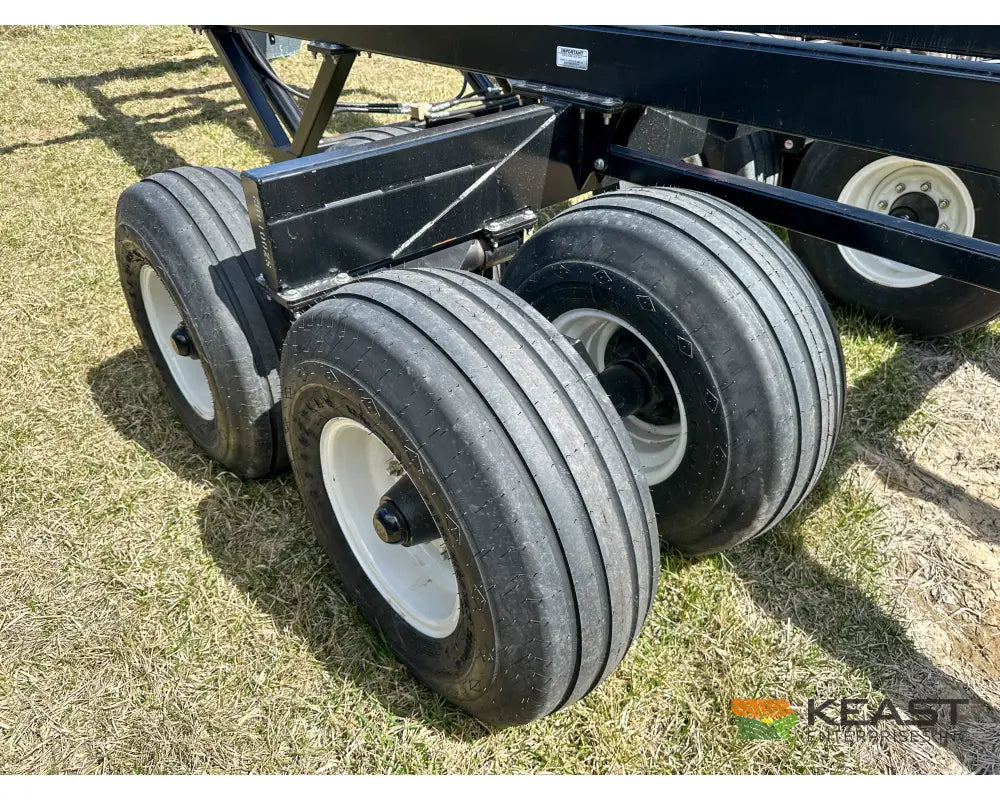

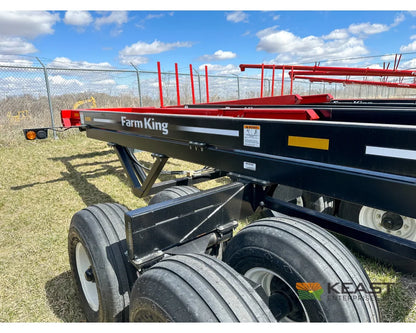

The 4″ × 8″ beam undercarriage, eight-bolt heavy-duty wheels, and walking-tandem axles offer durability and smooth travel under heavy loads.

Efficient Unloading with Tilt-Back Deck
Tilting the rear deck deposits the bottom row of bales onto the ground; then the hydraulic pusher finishes unloading with minimal repositioning.

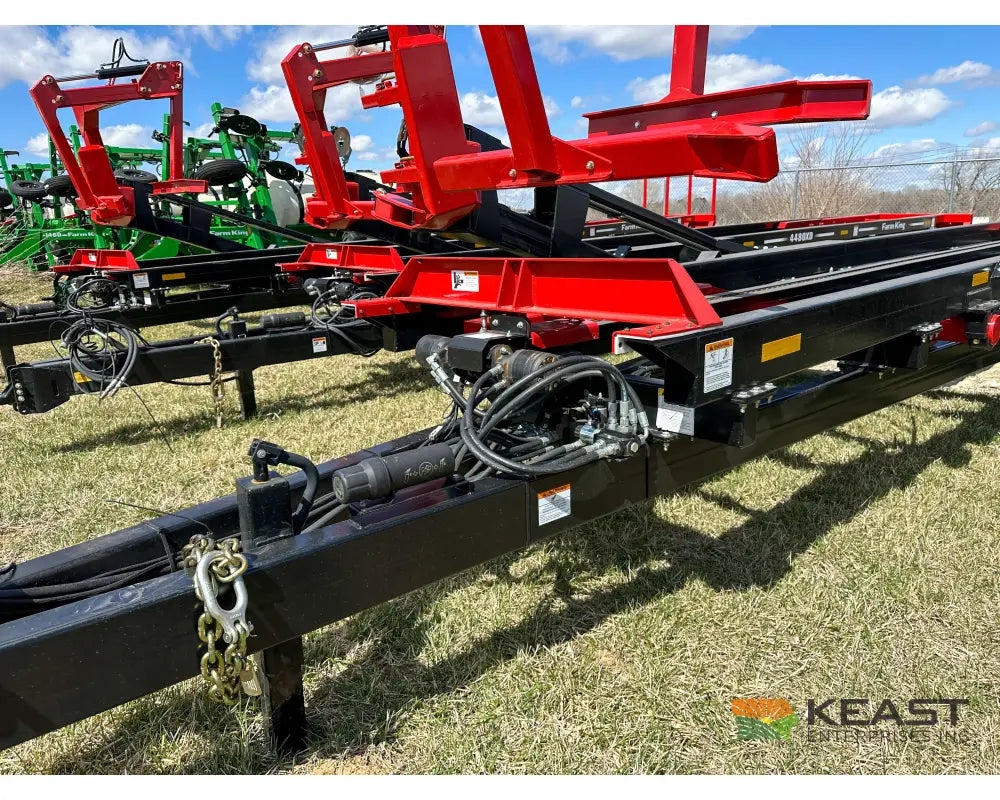

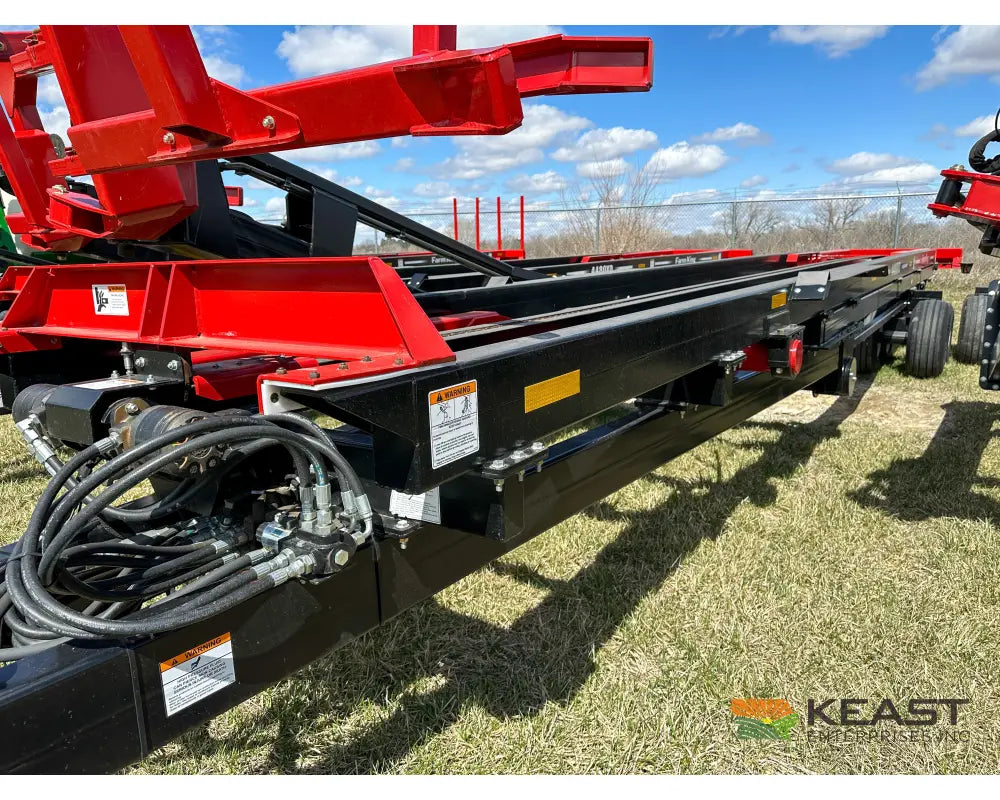

Sensor-Adjusted Hydraulic Pusher
Dual 22.2 cu in motors push bales rearward while a built-in sensor detects resistance and automatically shifts to low for more torque.

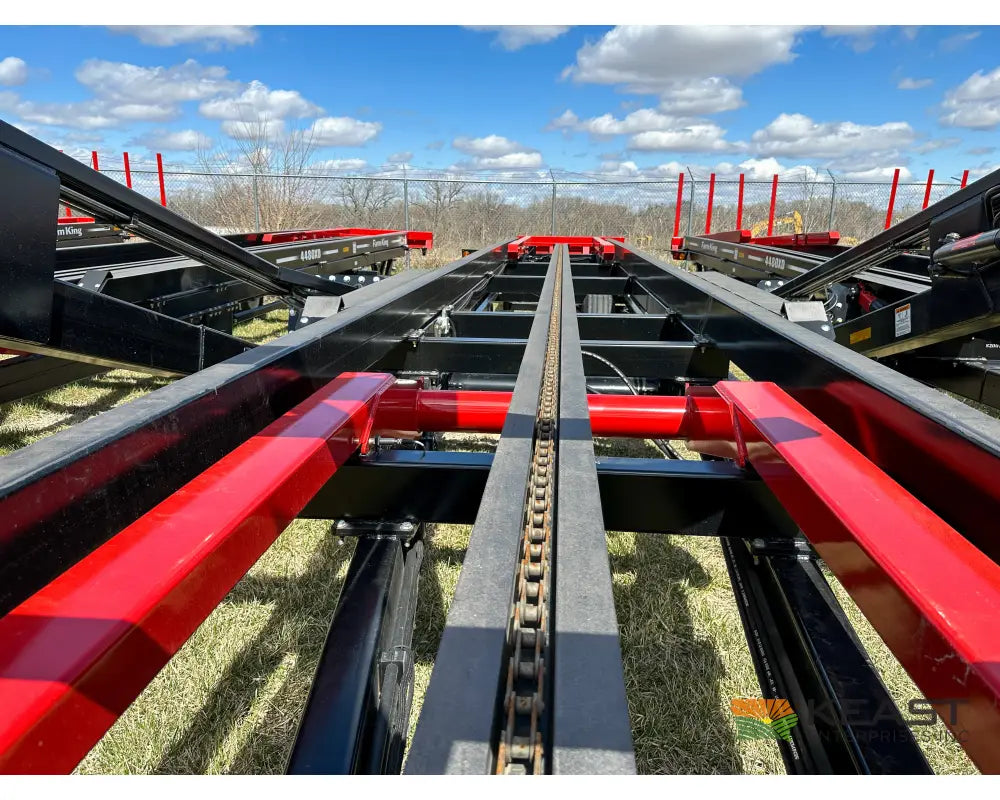

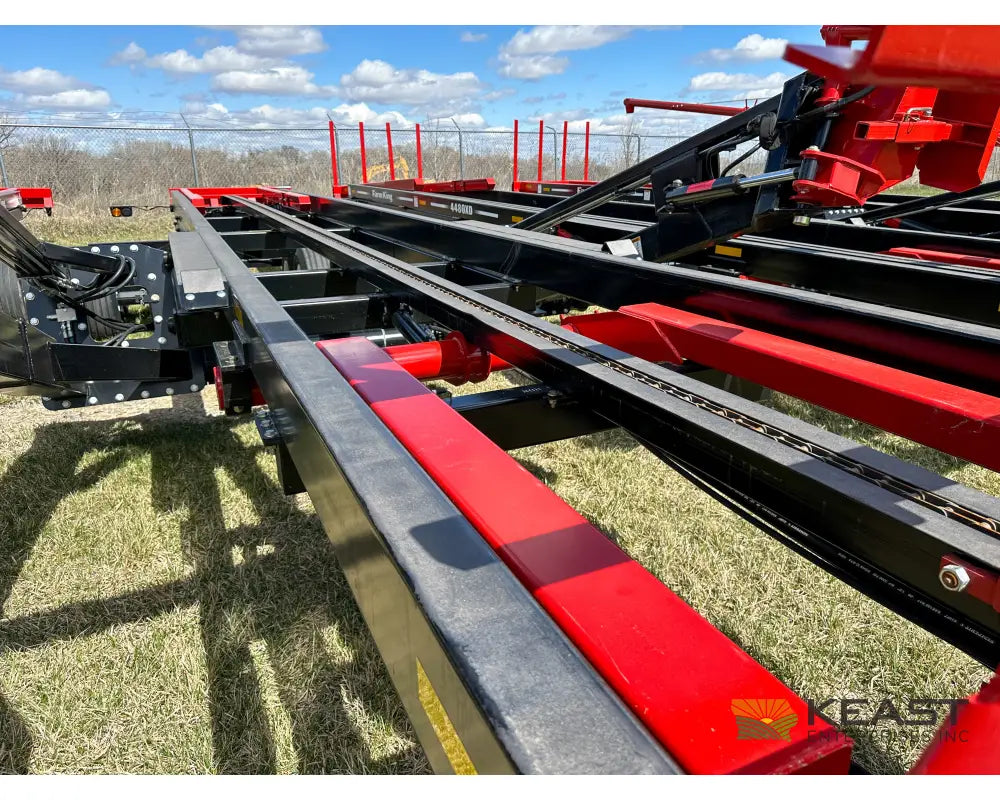

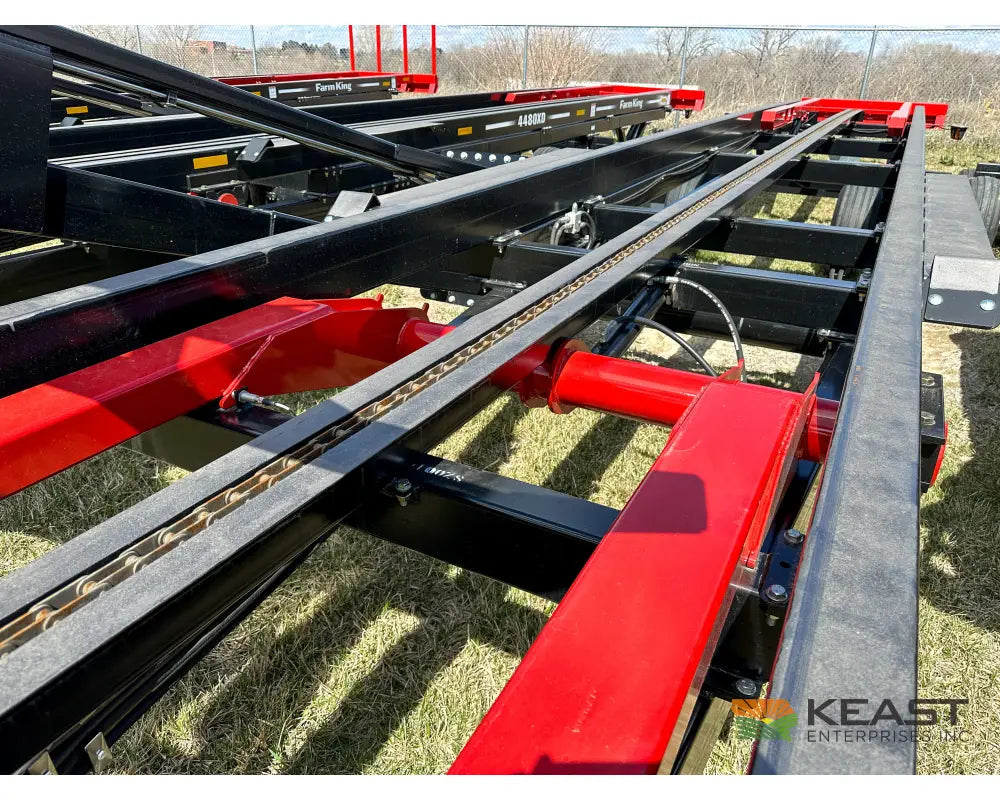

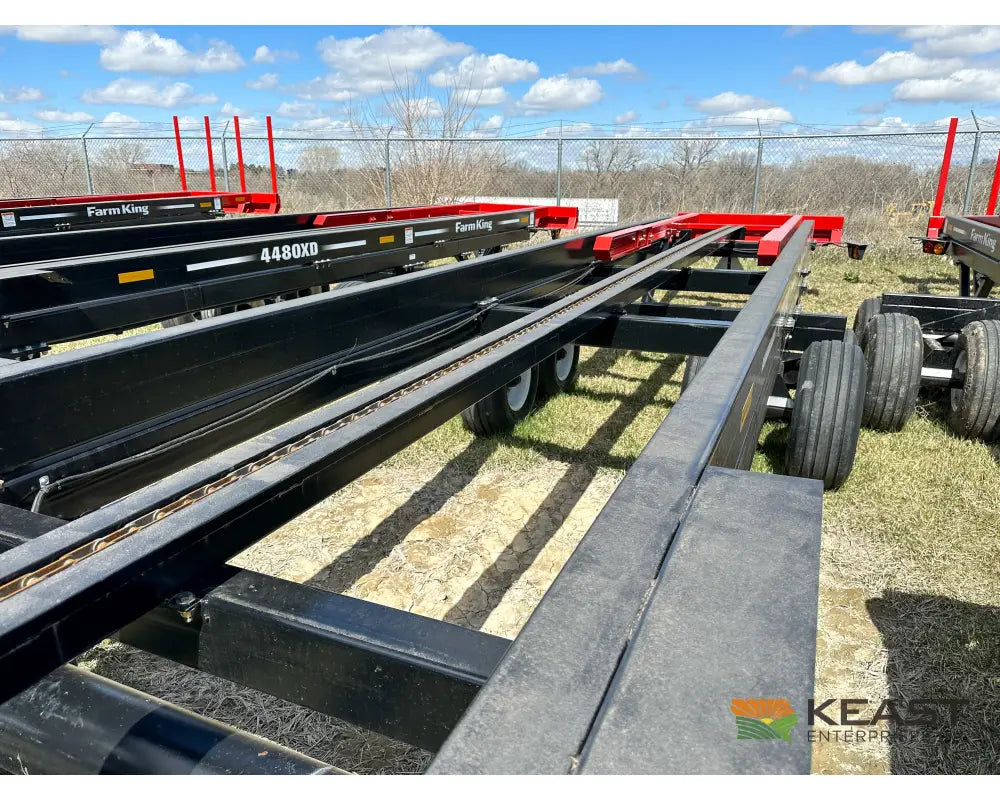

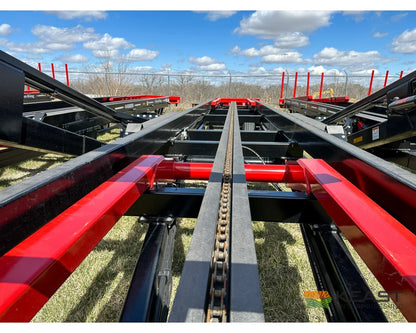

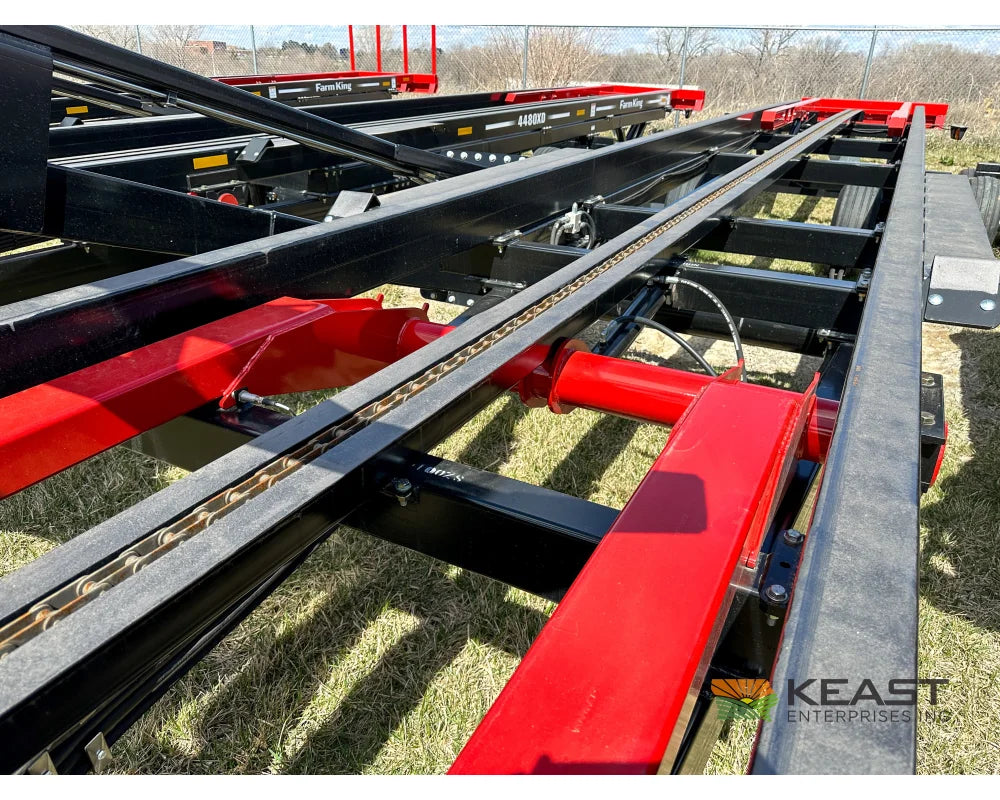

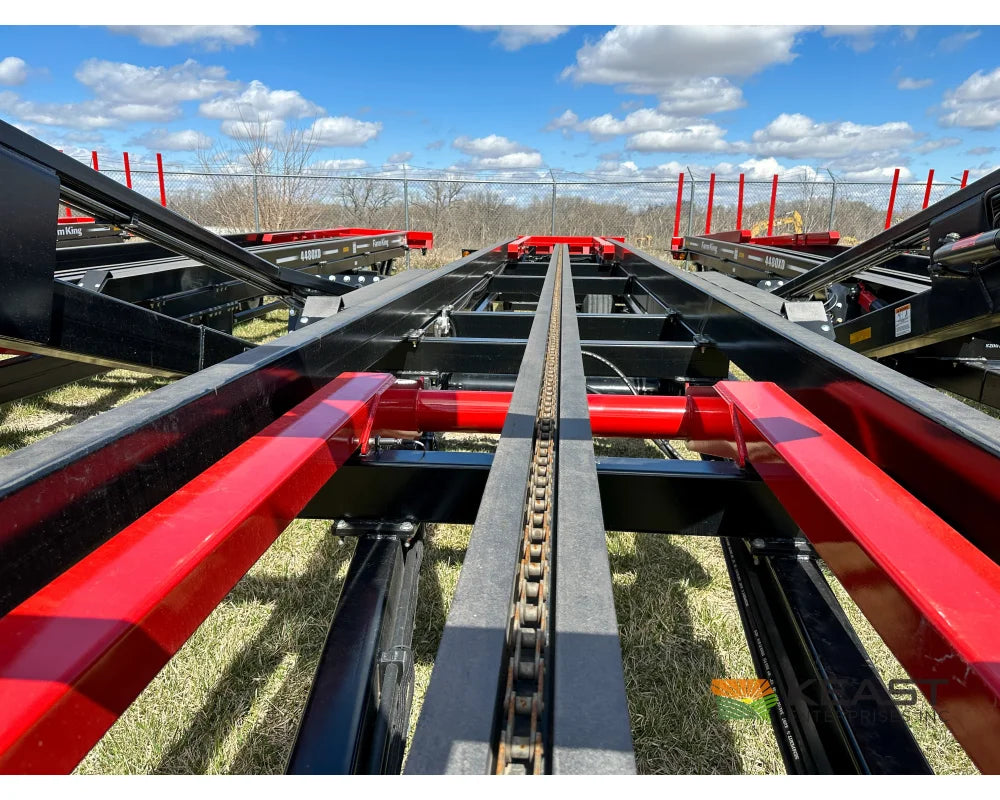

Recessed Chain Design
The push chain sits below the beams, preventing excess wear and protecting bales.

Technical Specifications

Performance Insights

Years of on-farm testing have refined the 4480XD, resulting in intuitive controls and consistent performance. The rear-deck tilt and pusher offer smooth unloading in tight spaces, while recessed chains and graphite-coated beams protect bales.

FAQ

How many bales can it carry?
Nine 4′×4′, eighteen 3′×4′, or twenty-four 3′×3′ square bales per load.

What tractor hydraulics are needed?
Requires ~25 gpm at 3,000 psi; compatible with open-center and closed-center systems

Does it protect bale strings?
Yes, chains are recessed and deck beams are graphite-coated to minimize stress.
