Hagedorn 5290 Manure Spreader - 540 Cu Ft Heaped Capacity, 425/65R22.5 Tires

Hagedorn 5290 Manure Spreader - 540 Cu Ft Heaped Capacity, 425/65R22.5 Tires

$49,085.00 USD
$49,085.00 USD
Sale Sold out
Free Shipping on Palletized Items, Truck Rates at Checkout

In Stock
  • Pay with Credit Card, Check, ACH, Wire, or EFBW Financing at Checkout

Overview

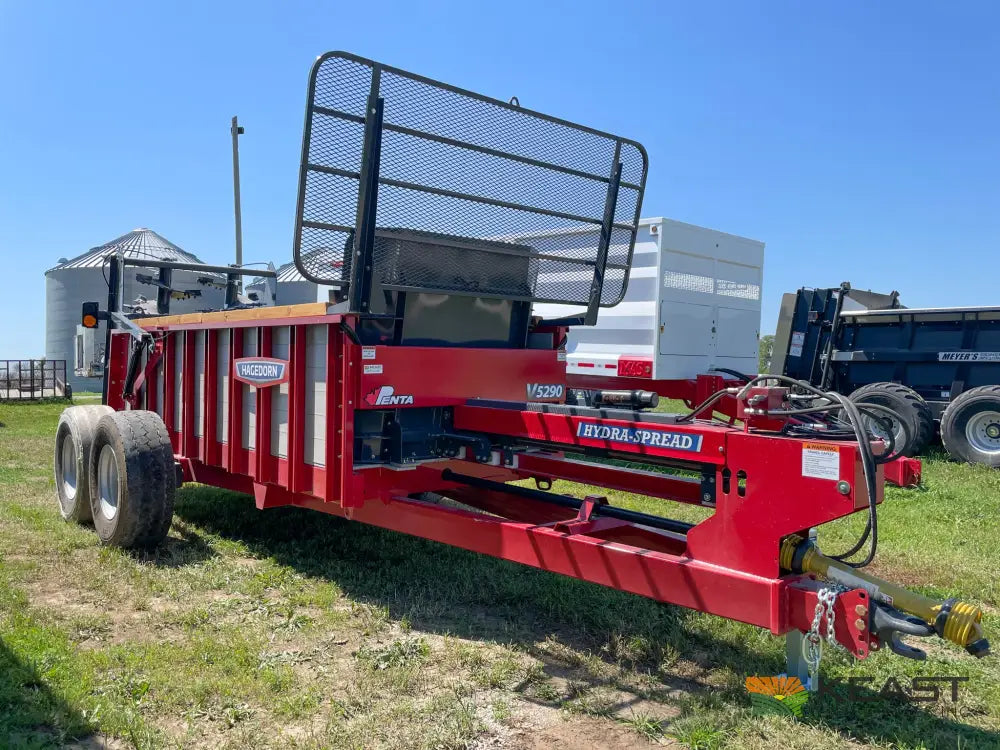

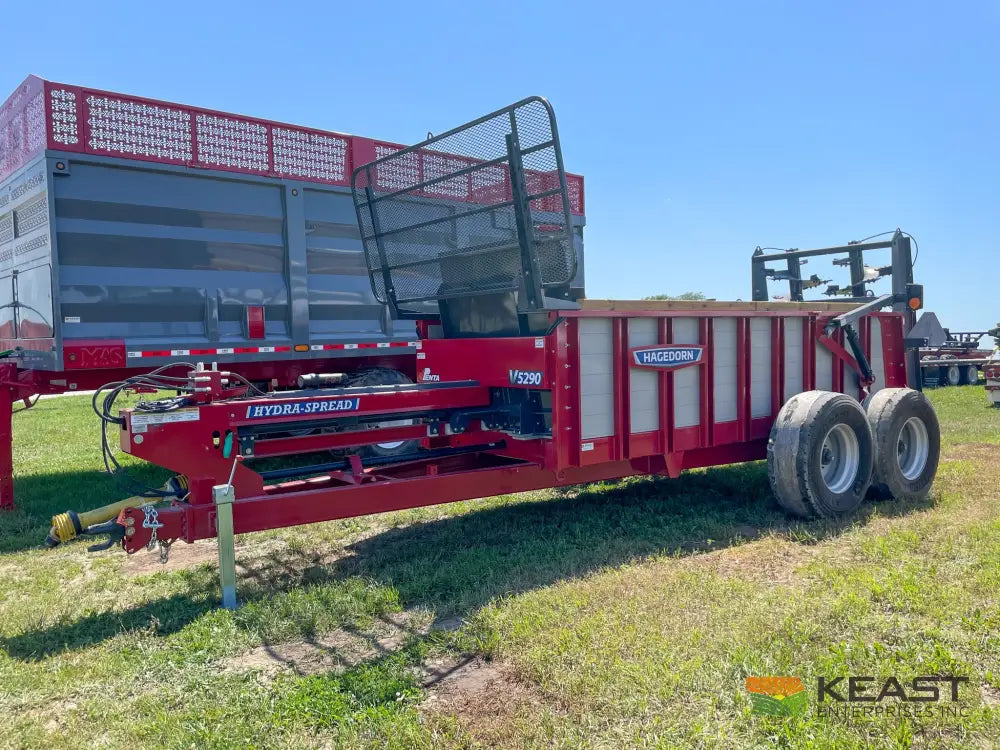

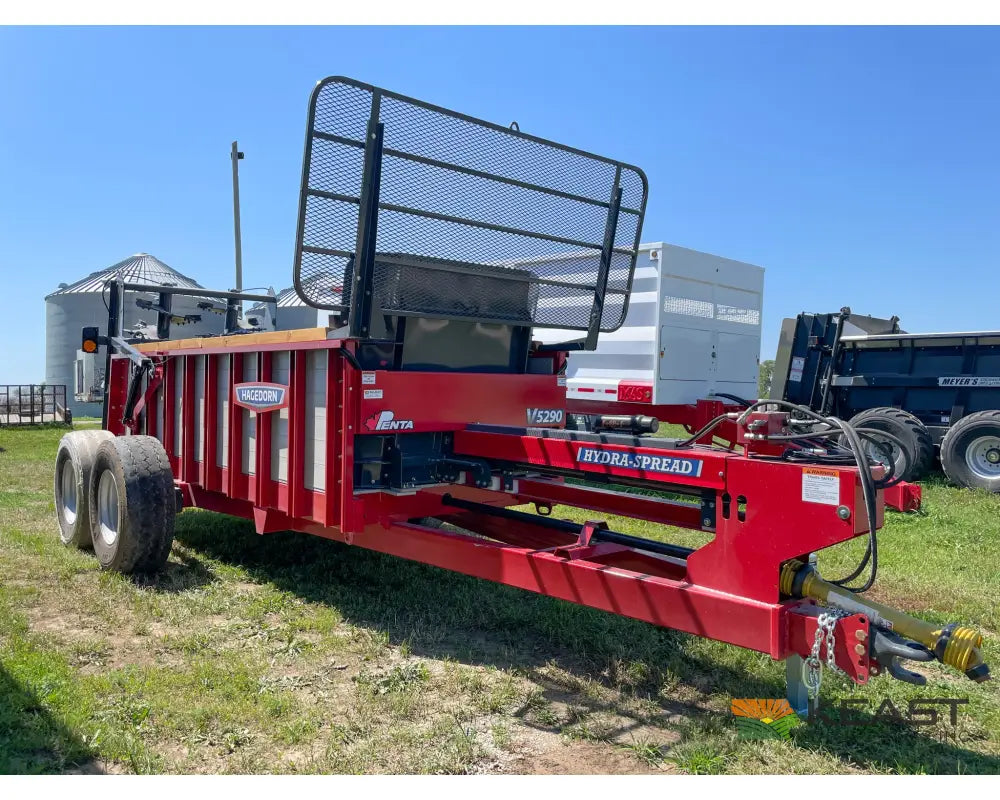

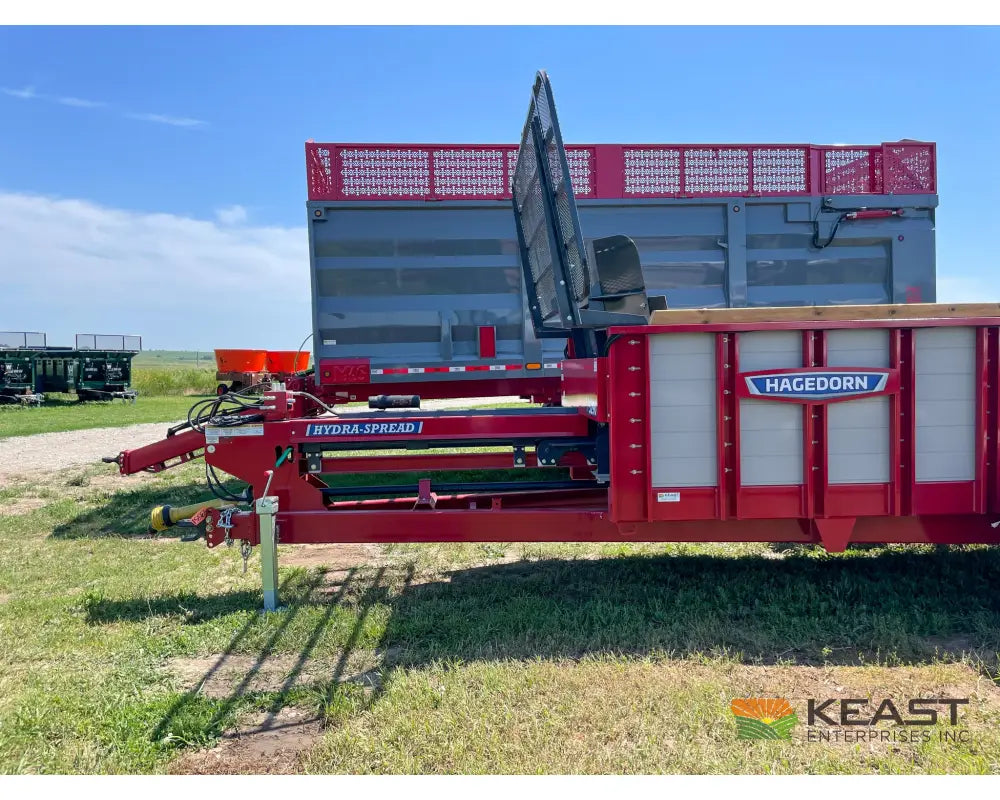

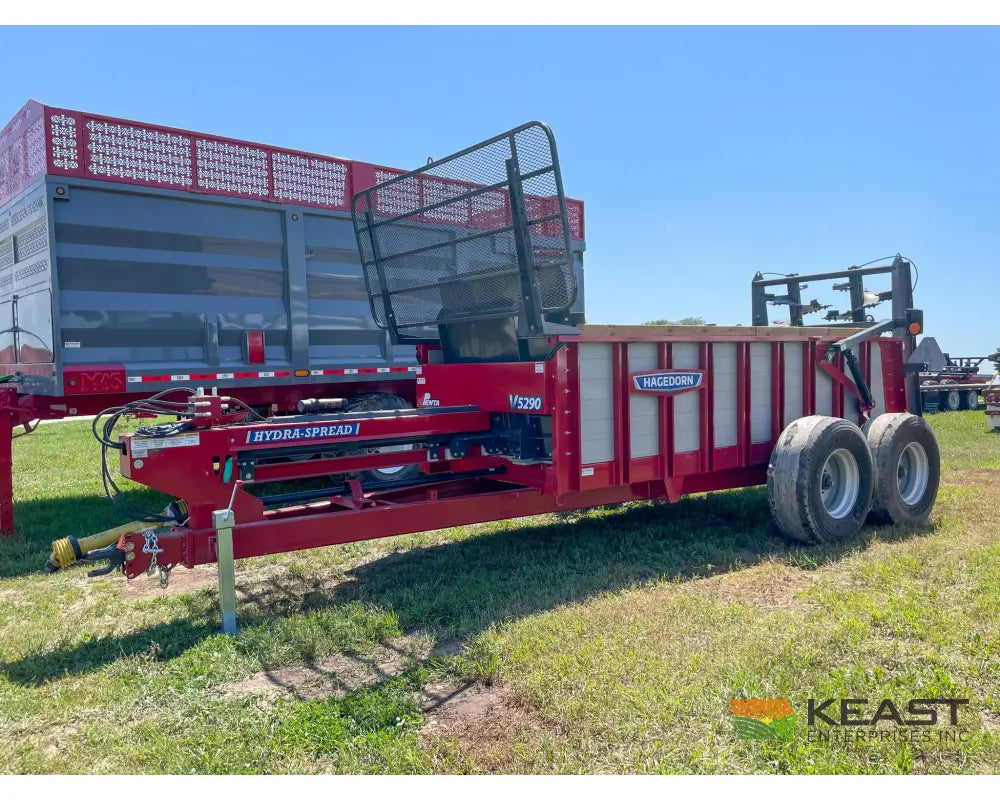

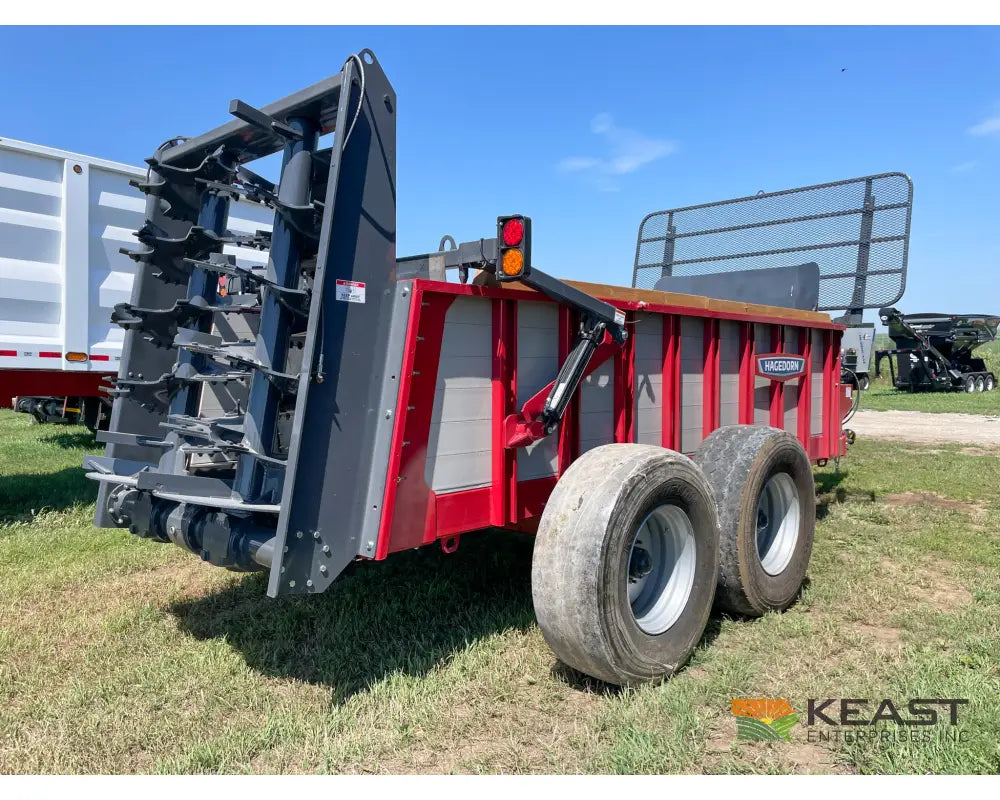

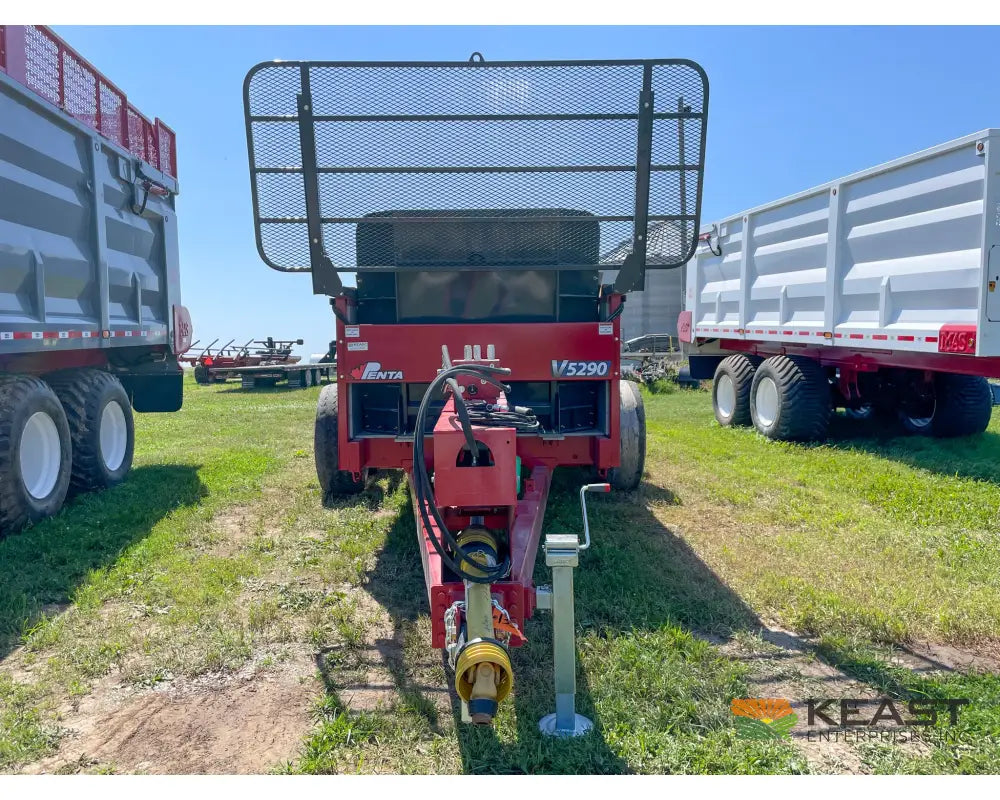

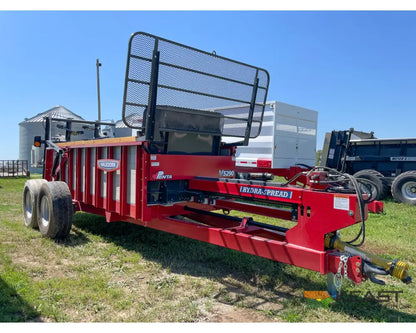

The Hagedorn Hydra‑Spread 5290 is a rugged, vertical-beater manure spreader with a 290 cu ft struck / 540 cu ft heaped capacity, built to make high capacity spreading easier than ever. Featuring a durable tandem axle frame rated for 24,000 lb, it travels smoothly across fields with 425/65R22.5 tires and Hagedorn’s Hydra‑Spread flow control for precise unloading. A sequencing valve ensures push-off only occurs after the endgate is fully open to minimize mechanical stress. Ideal for large livestock operations and custom applicators, the 5290 is built for reliable, high-volume performance.

Key Features

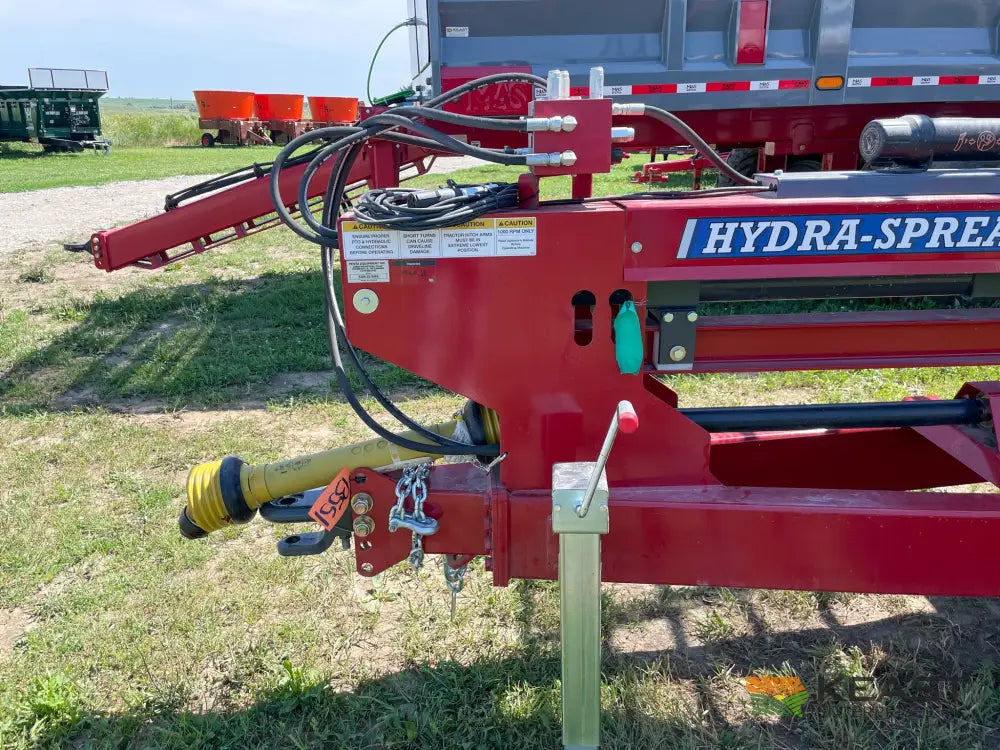

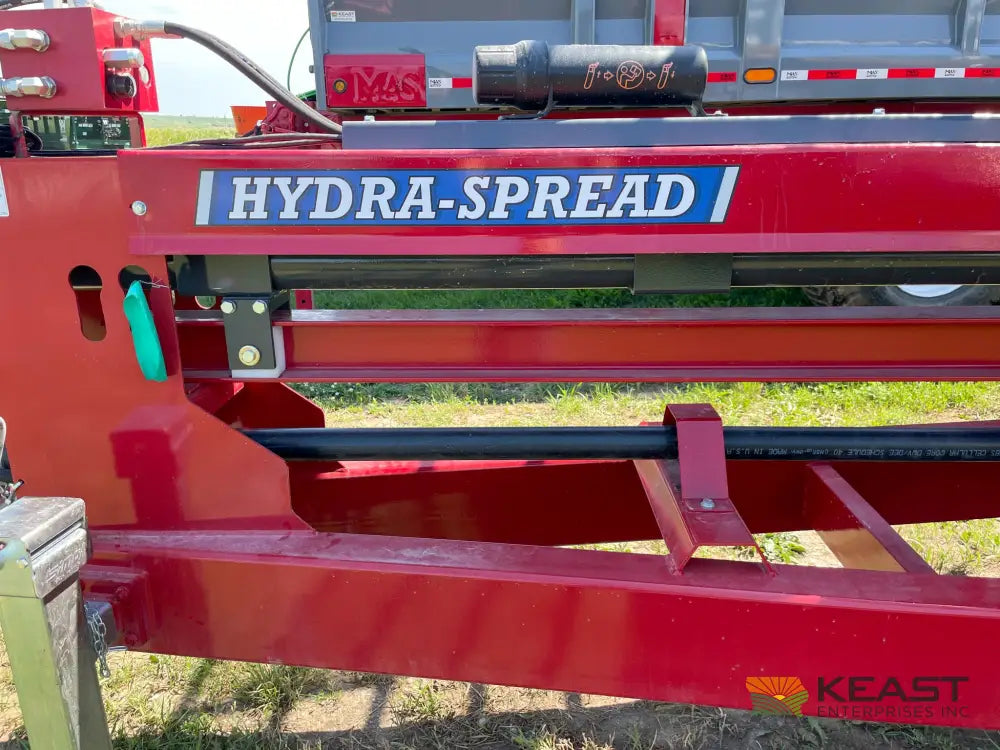

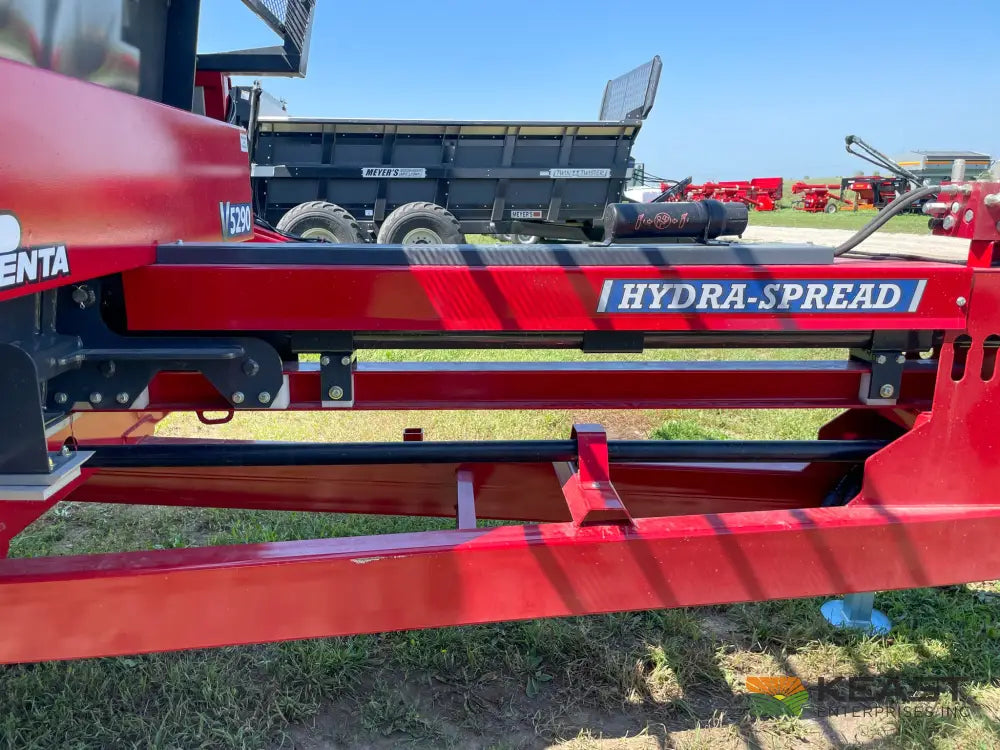

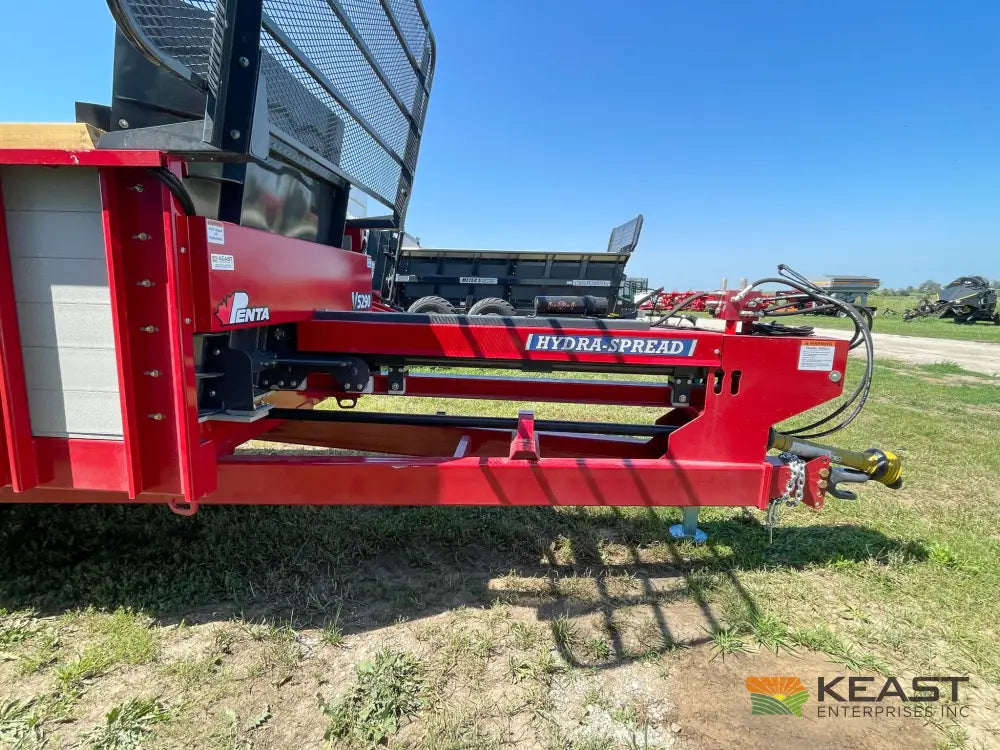

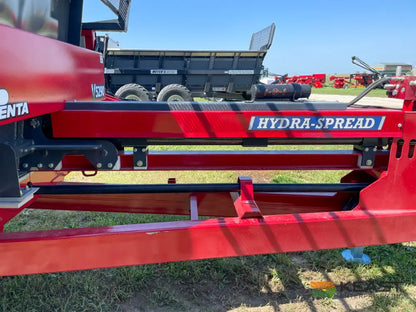

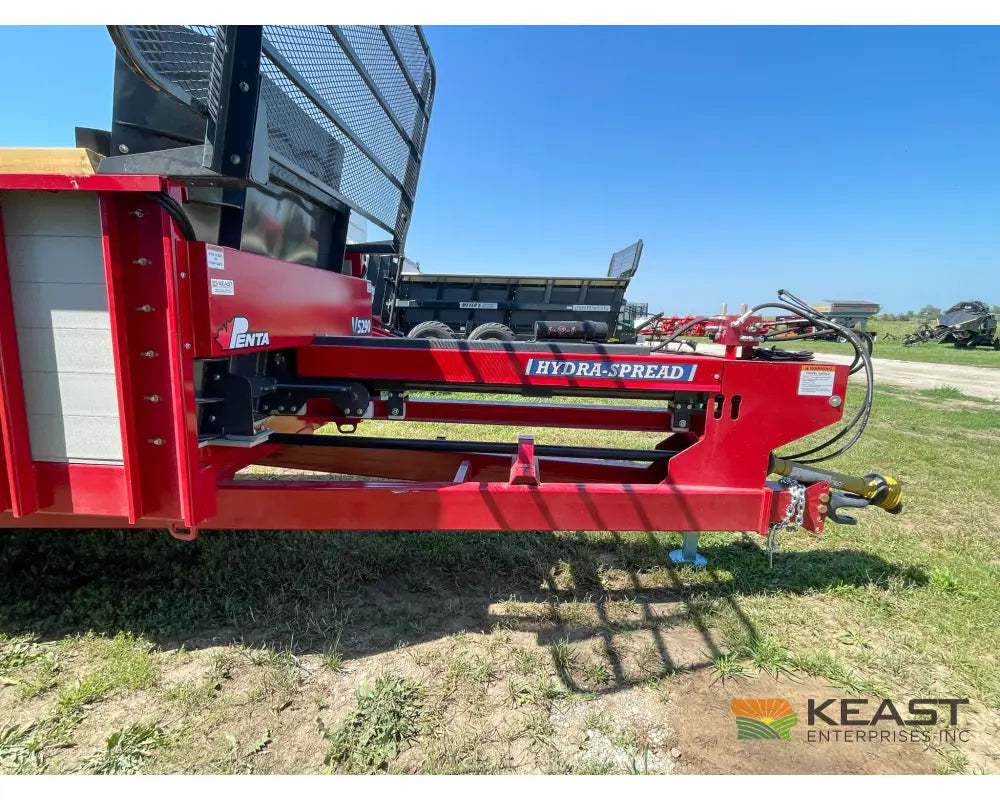

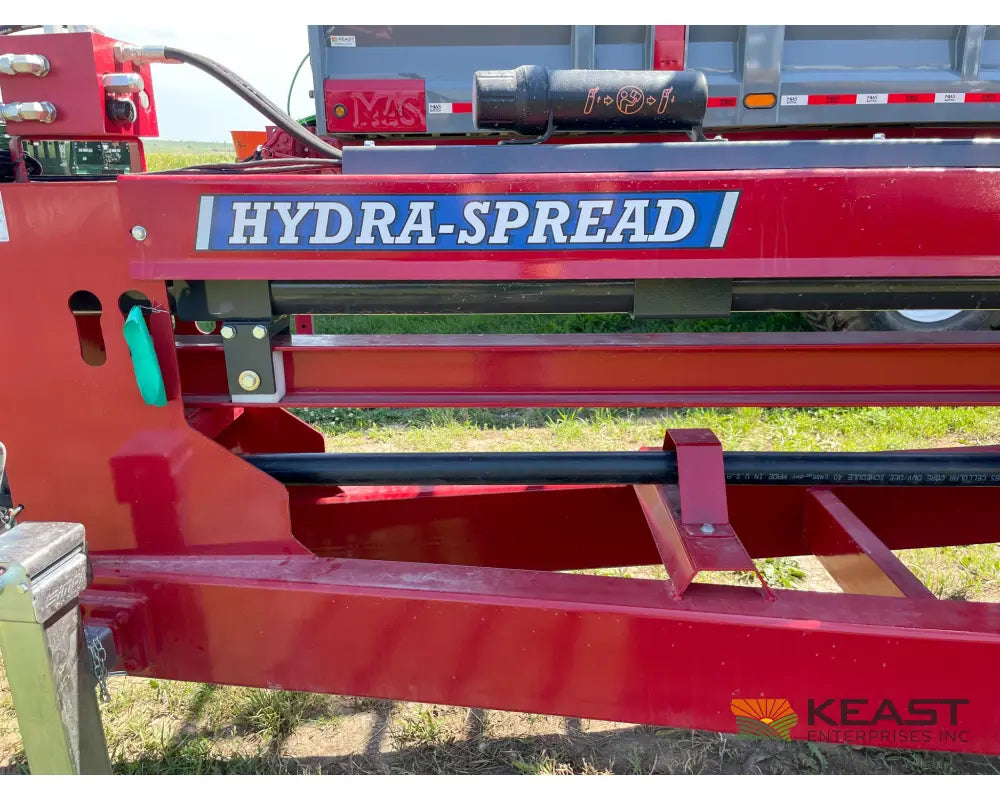

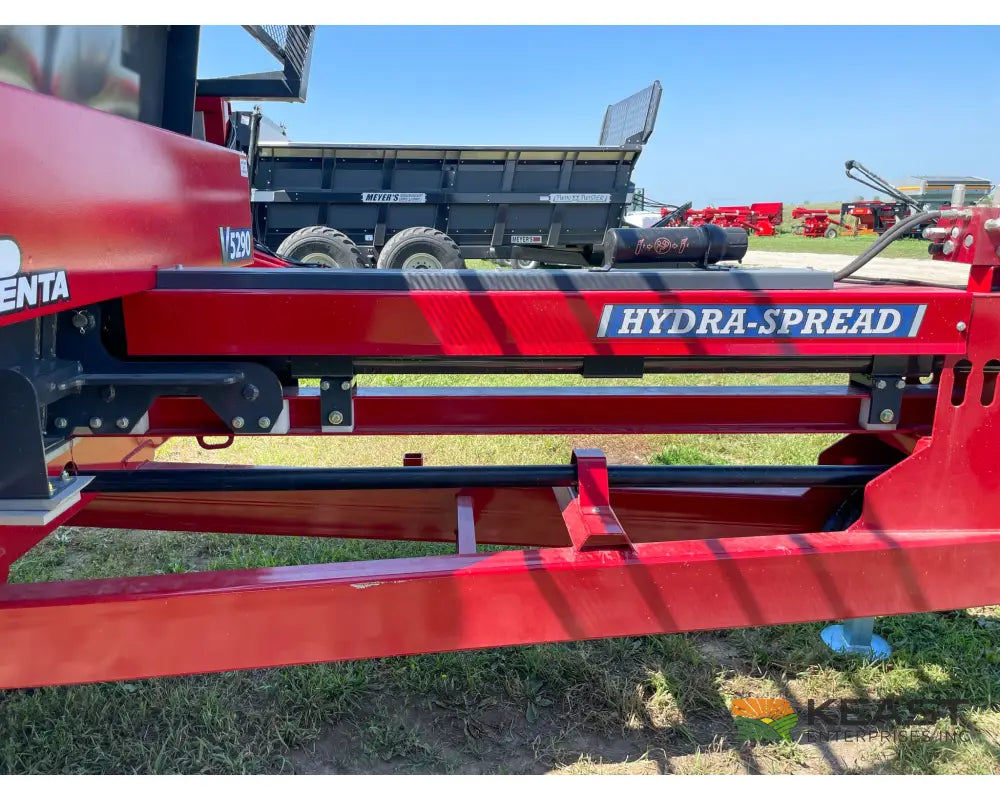

Hydra‑Spread Flow Valve
Hagedorn's unique hydraulic system improves the consistently of material flow with lower mechanical stress.

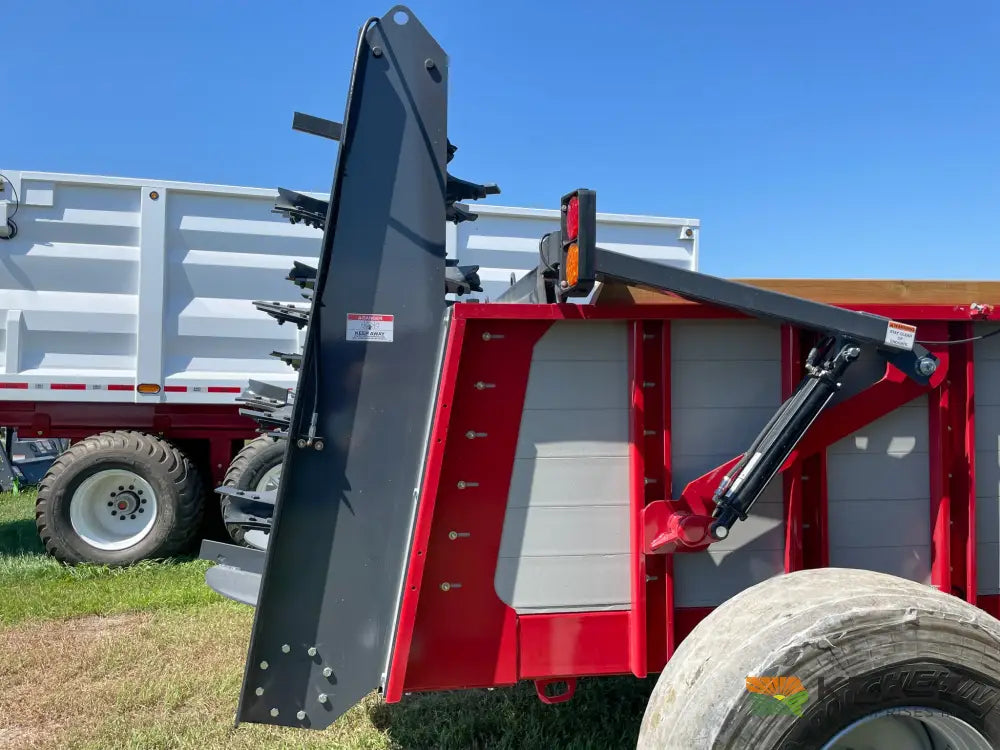

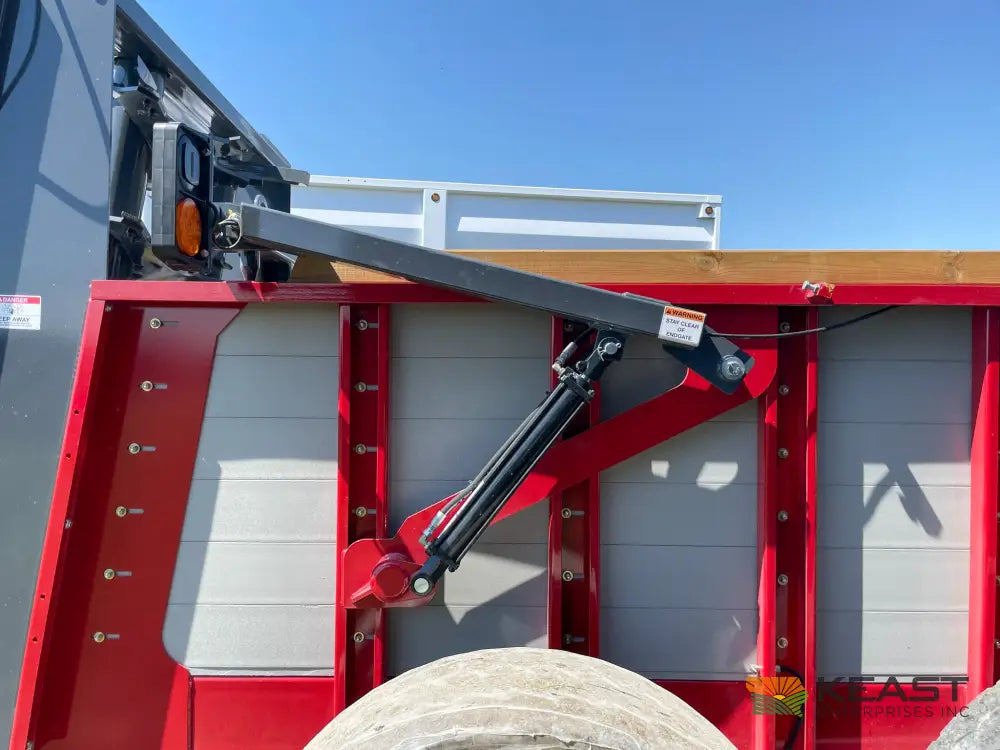

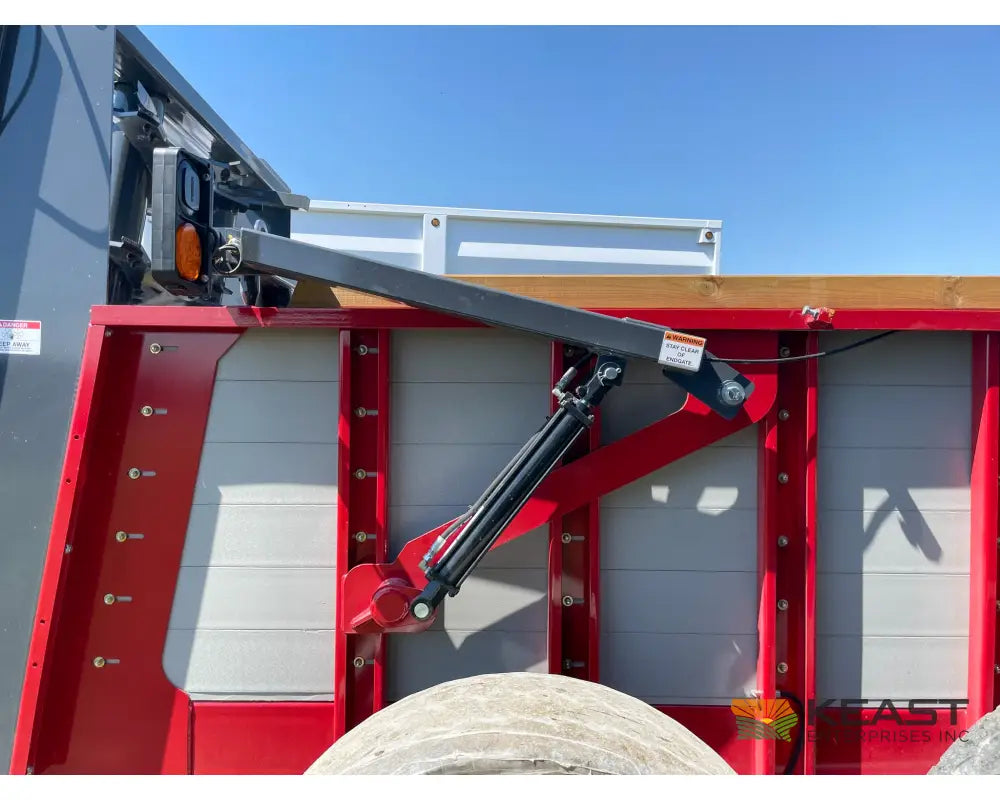

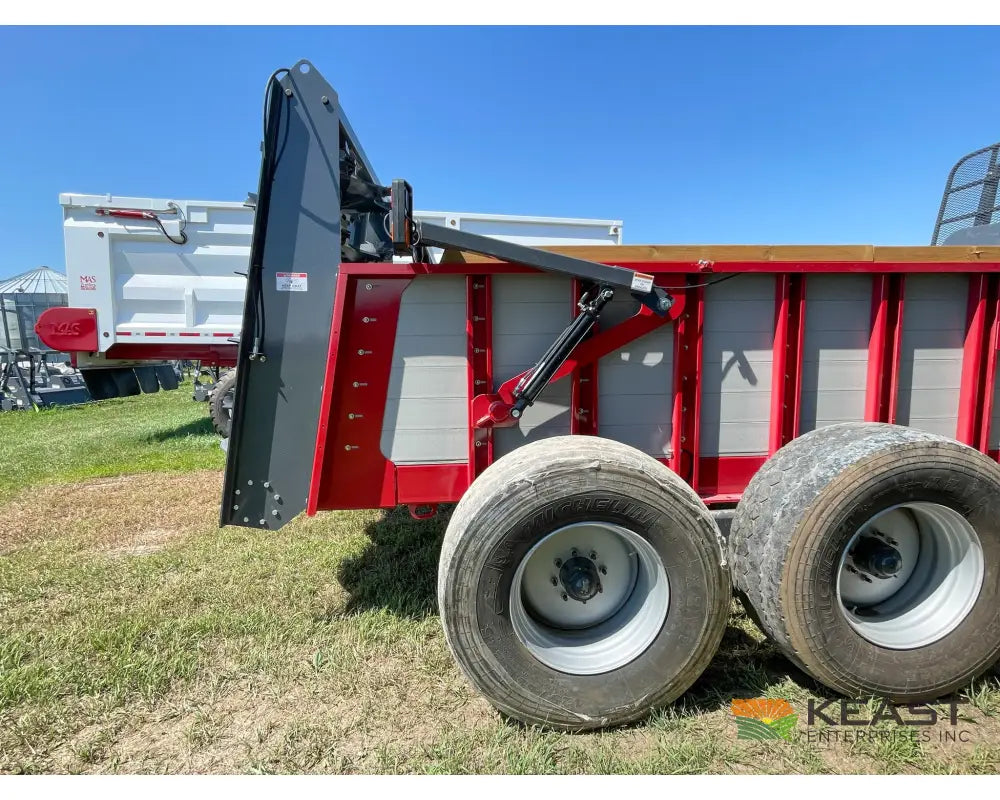

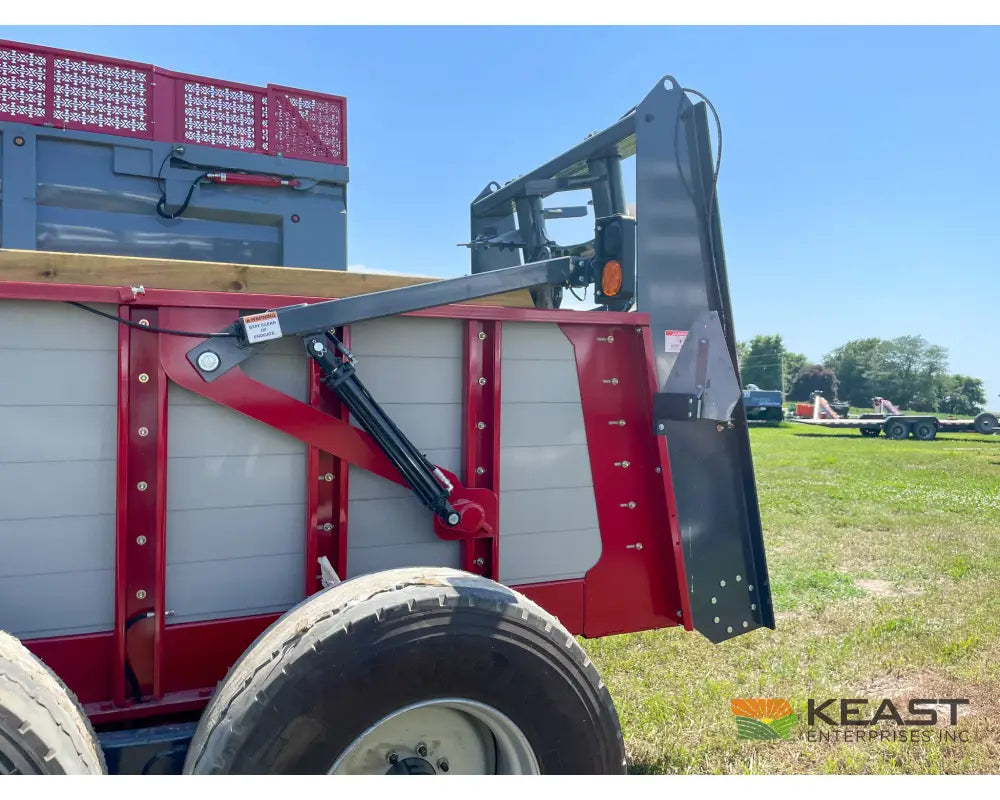

Sequencing Valve
Built-in sequencing prevents endgate damage, reducing wear and avoiding damage from premature gate engagement.

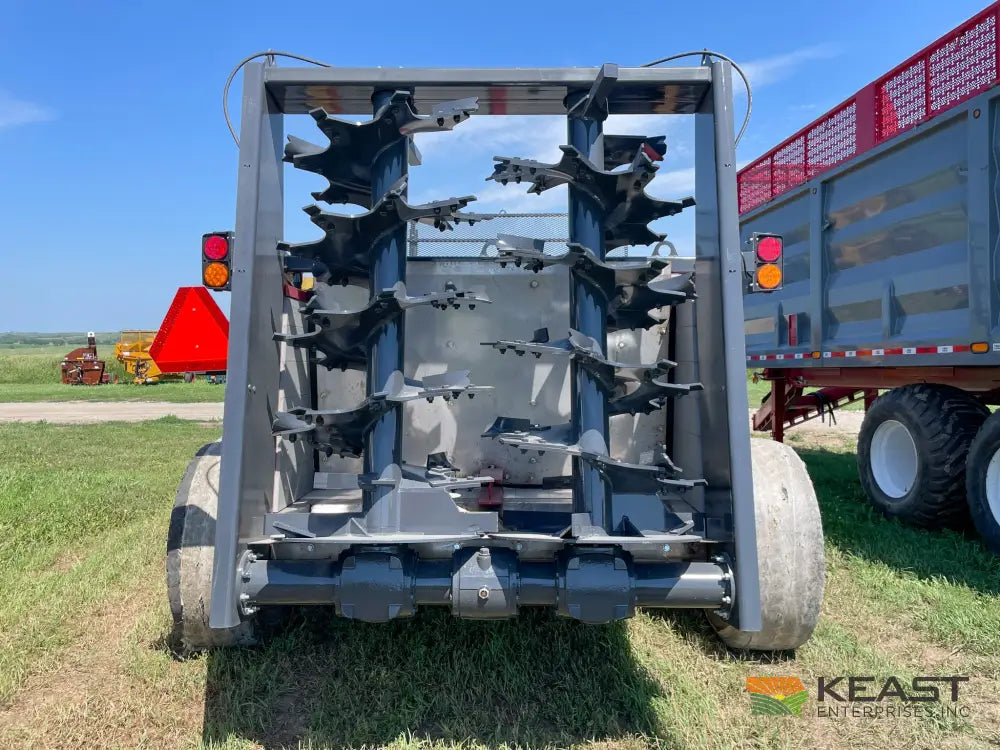

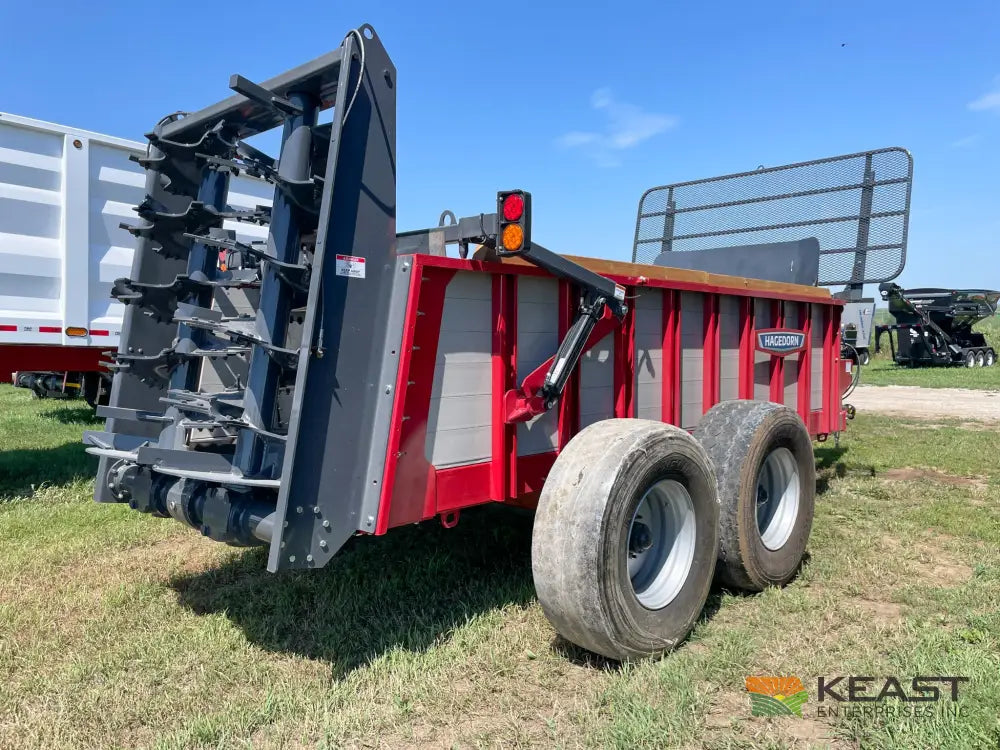

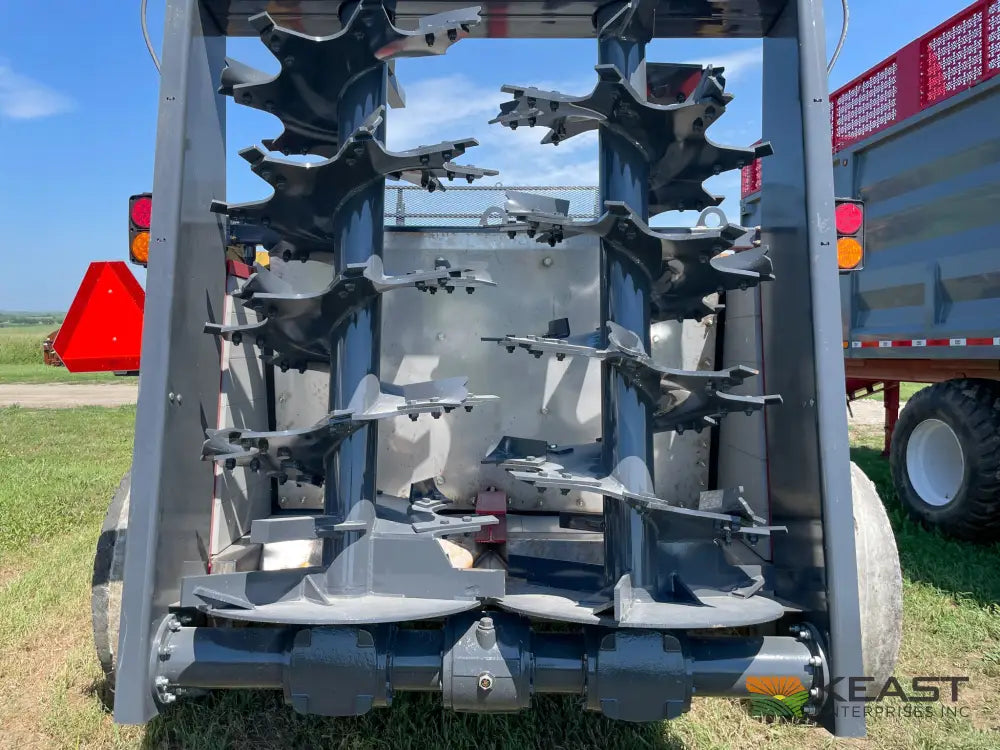

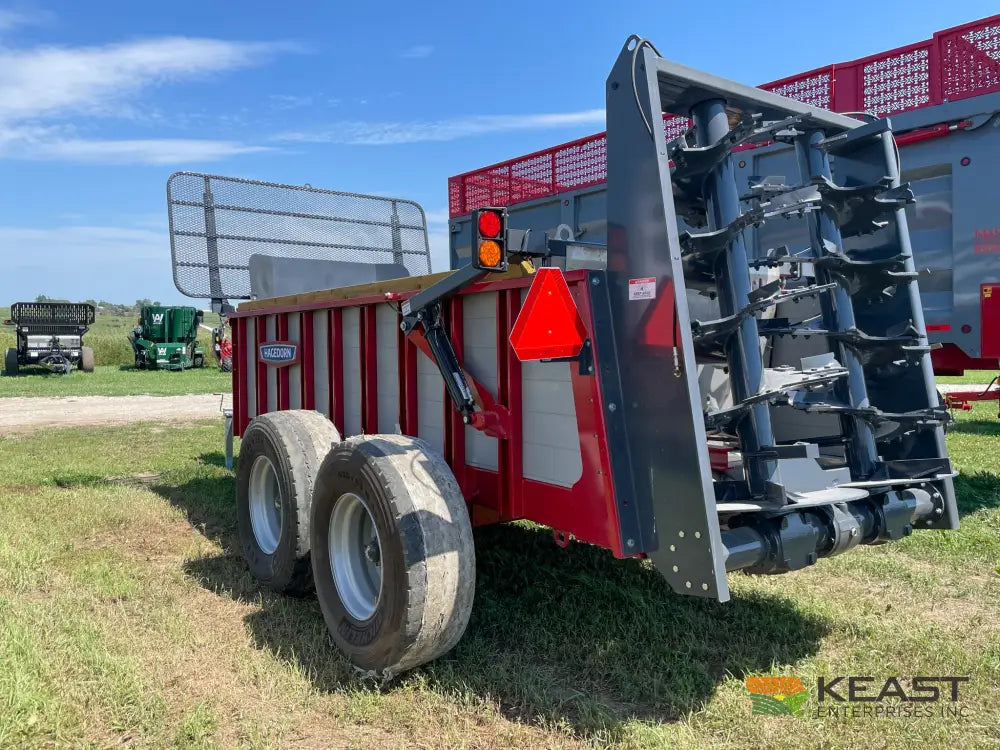

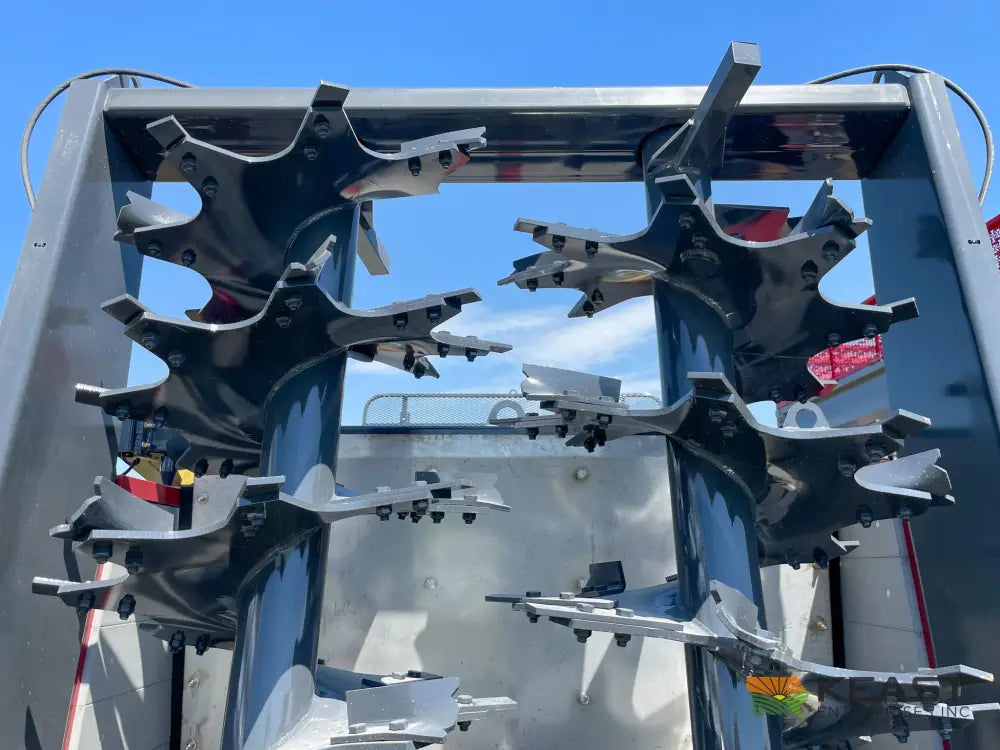

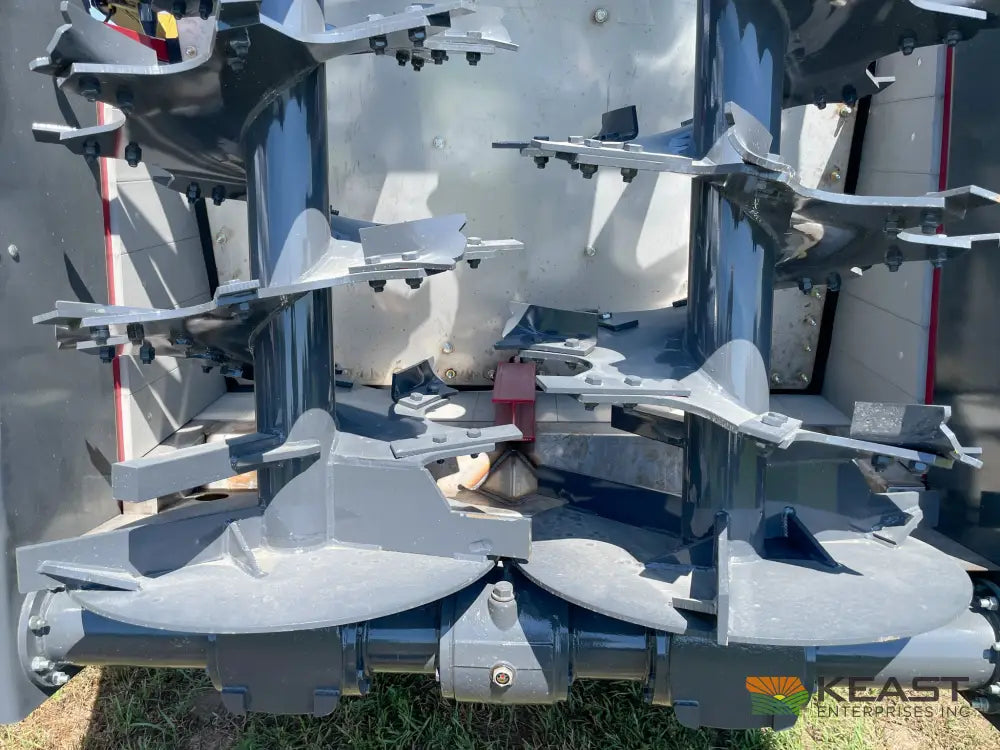

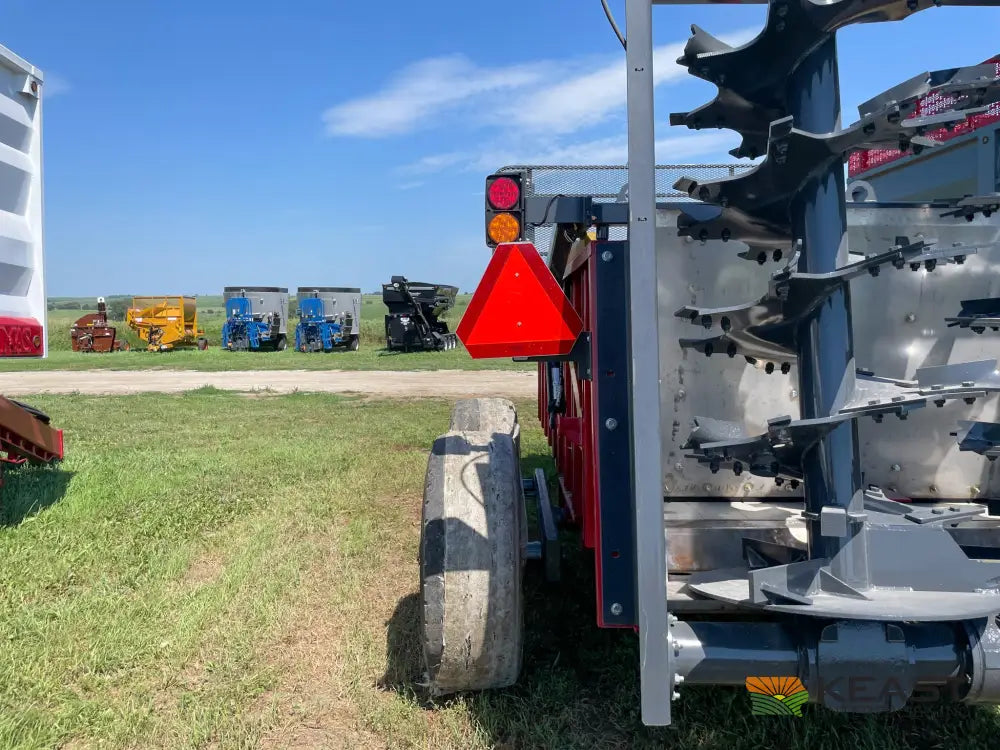

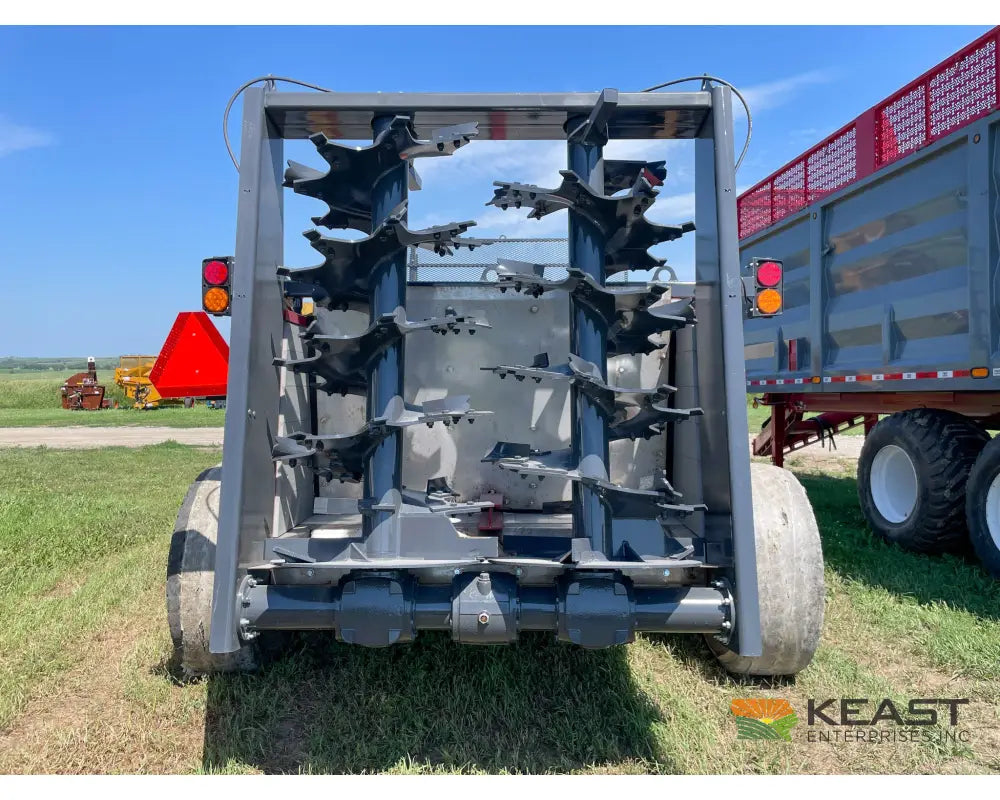

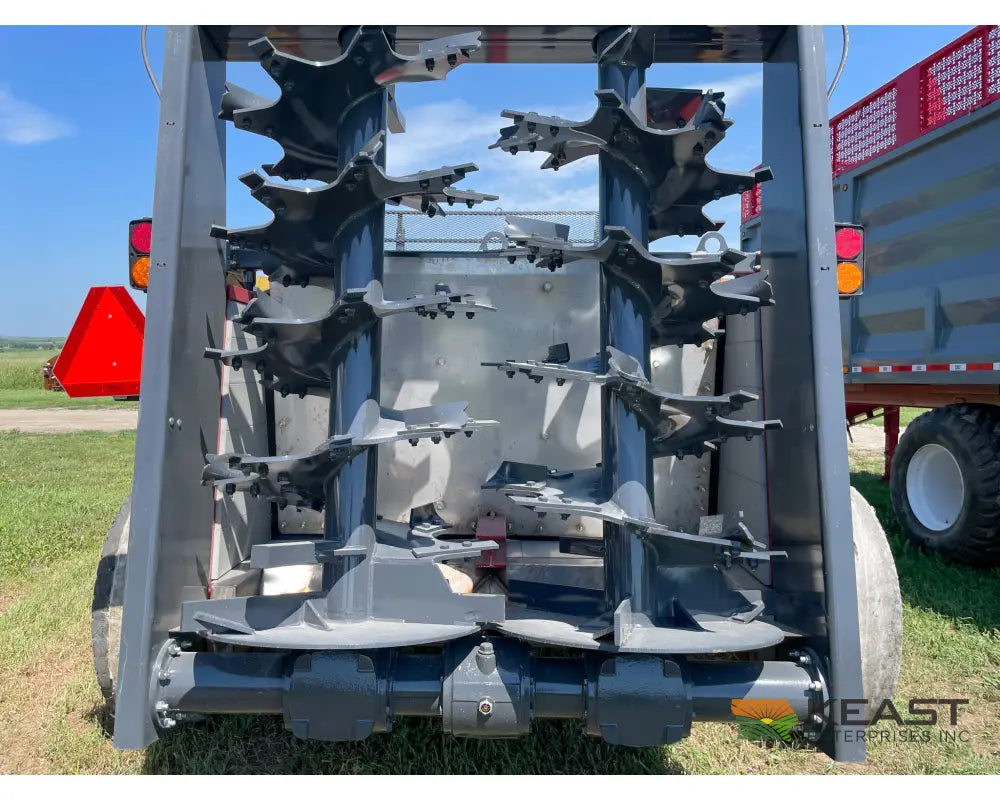

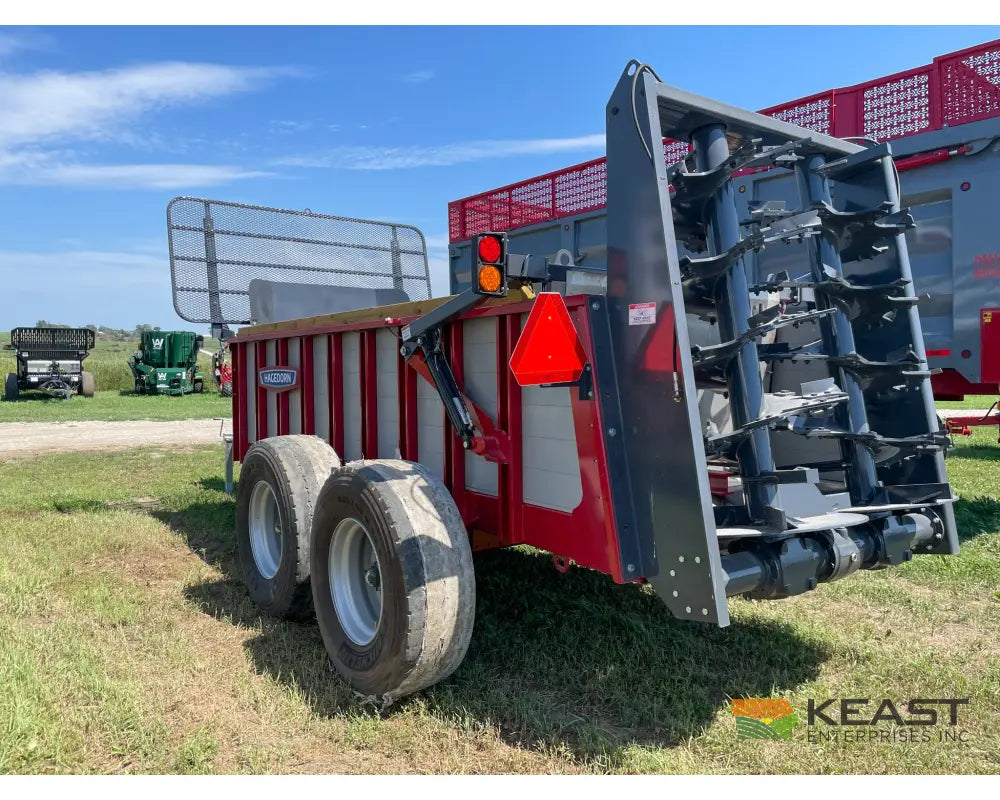

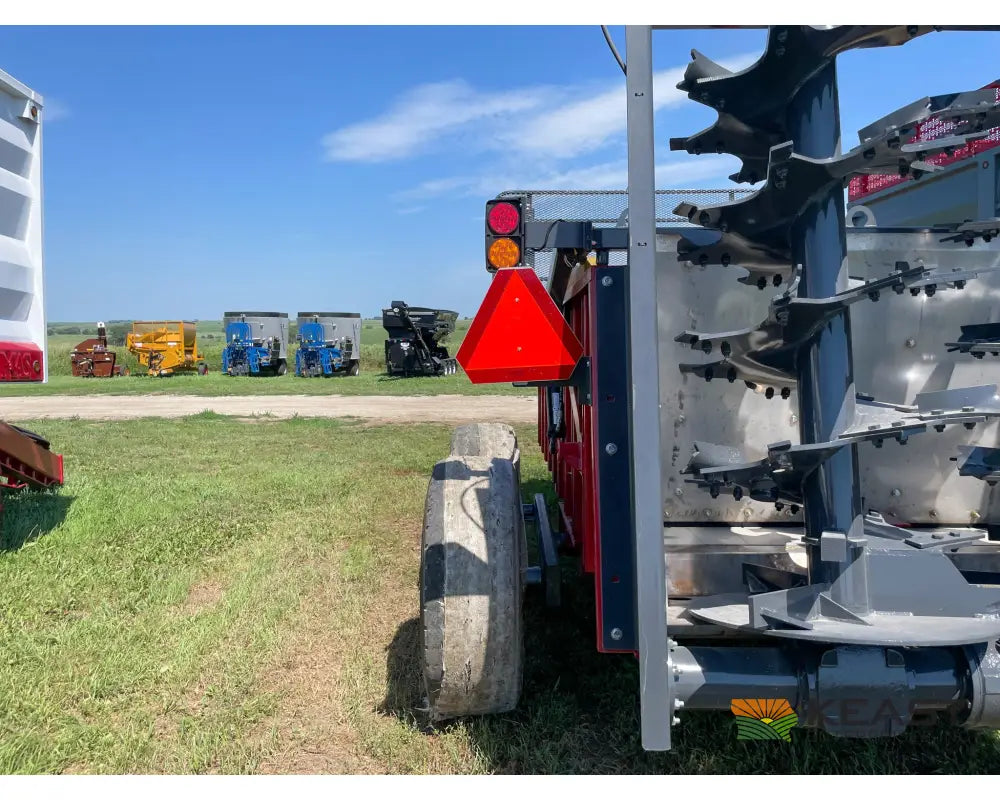

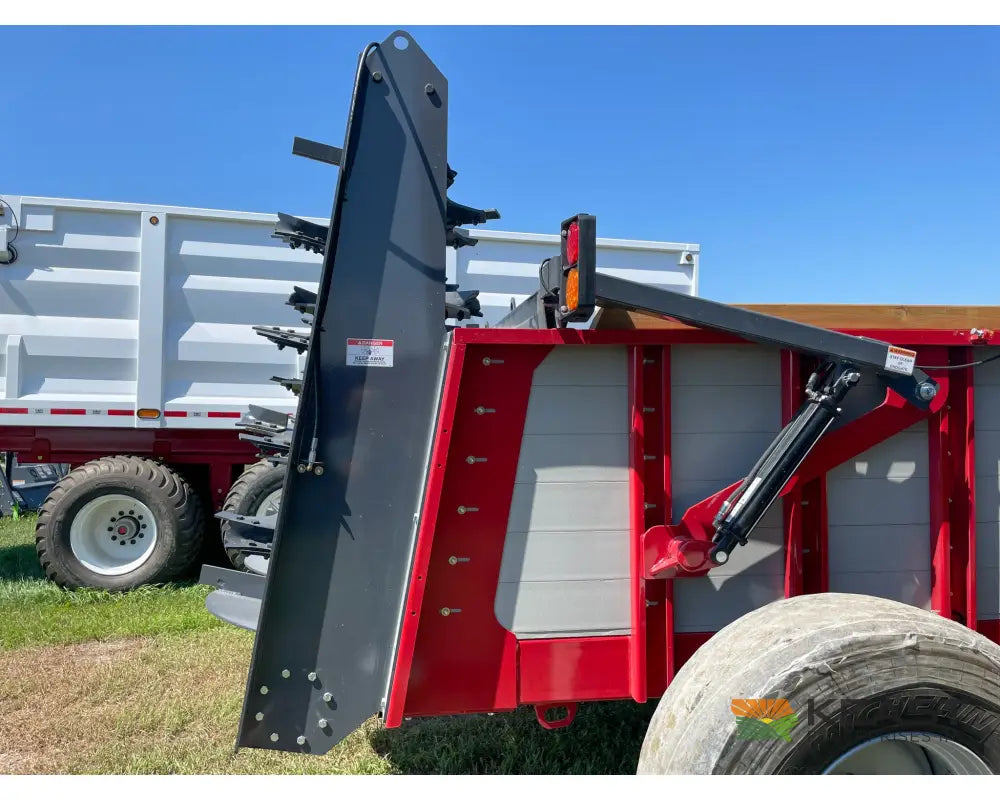

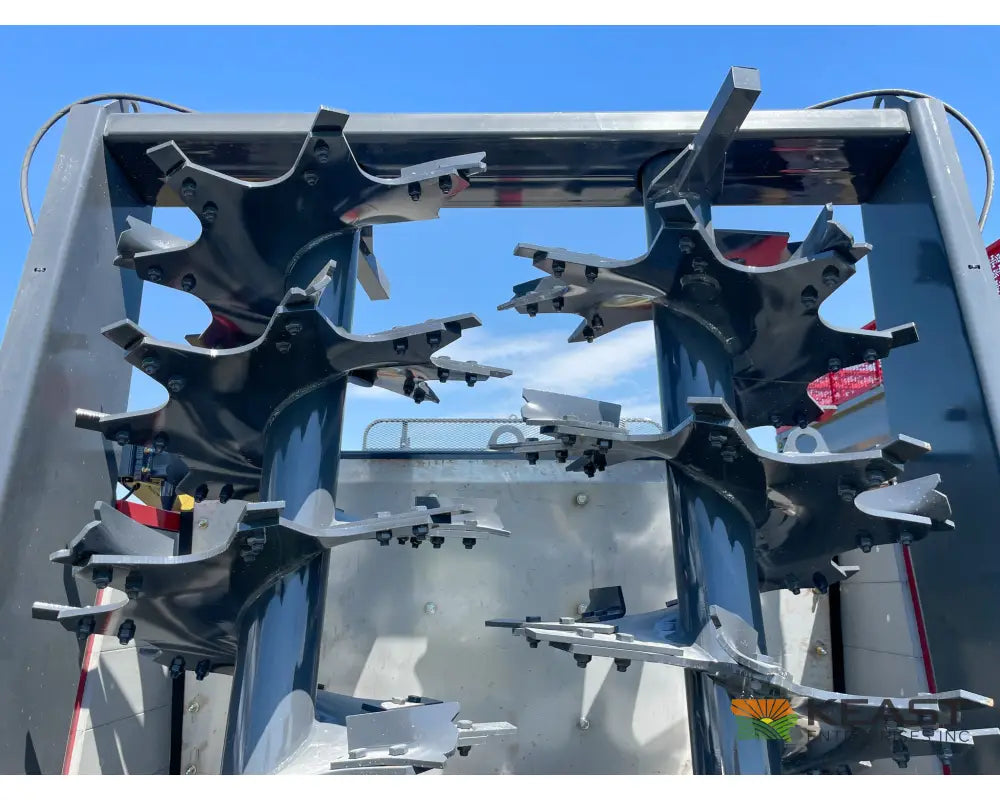

Dual Vertical Beaters
Two Hagedorn-built vertical-beaters turn up to 420 RPM to break up and uniformly spread material with integrated stone guards to protect against debris.

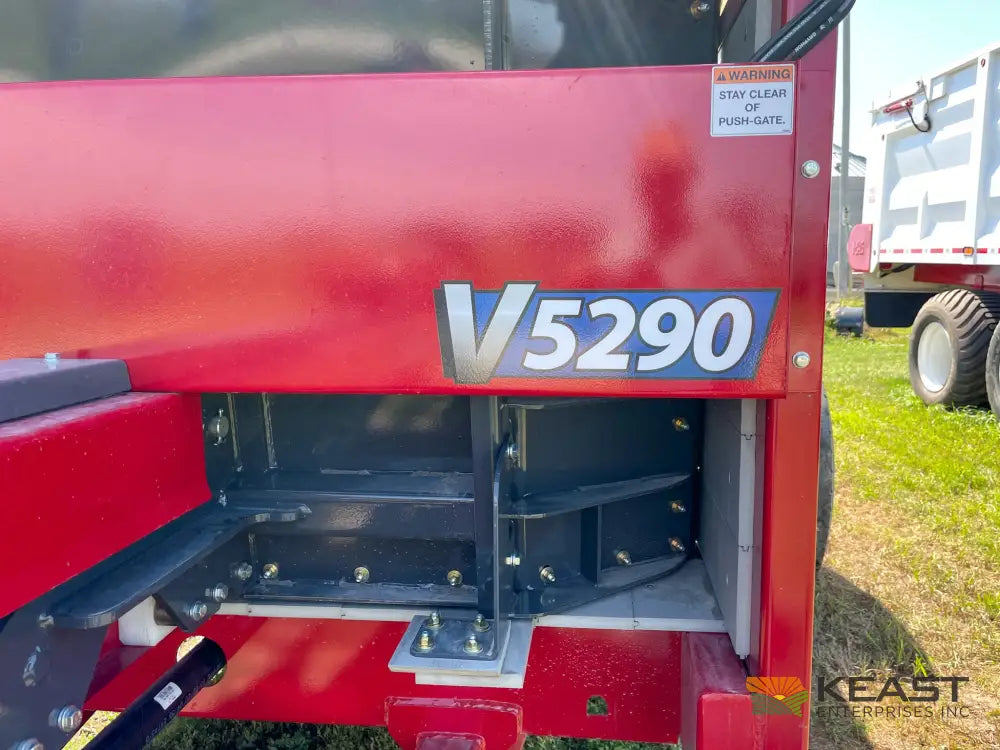

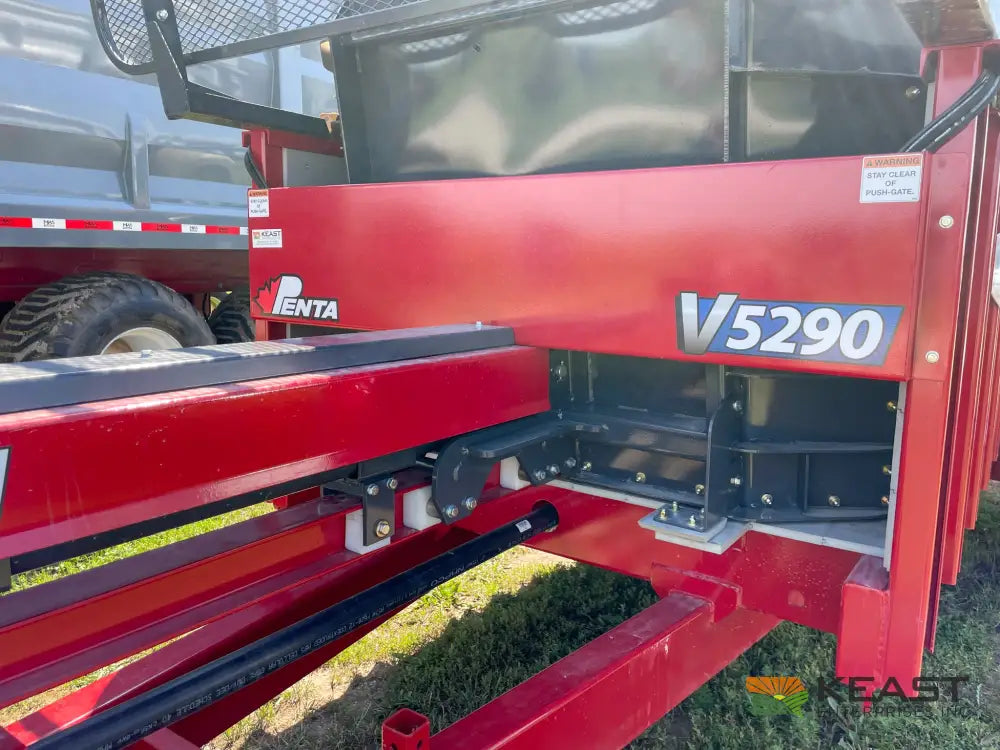

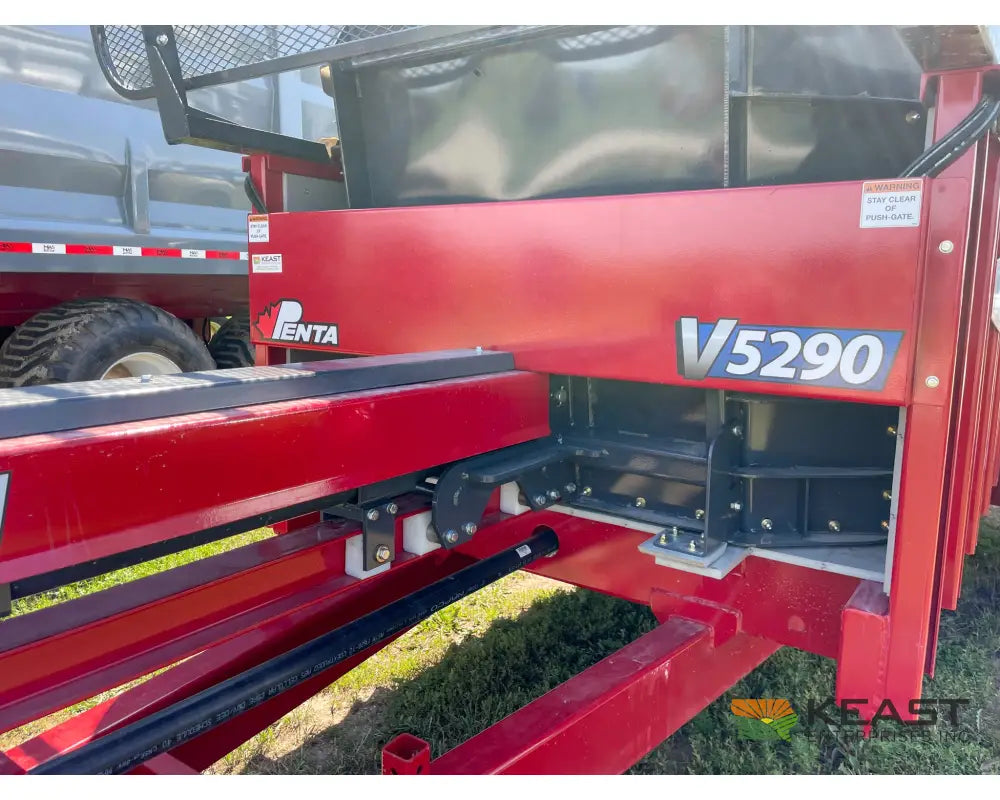

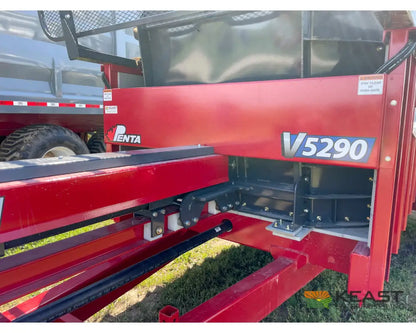

Heavy-Duty Push-off Cylinders
The 5290s rugged hollow-rod cylinders, designed and made in North America, are built to last longer than the competition.

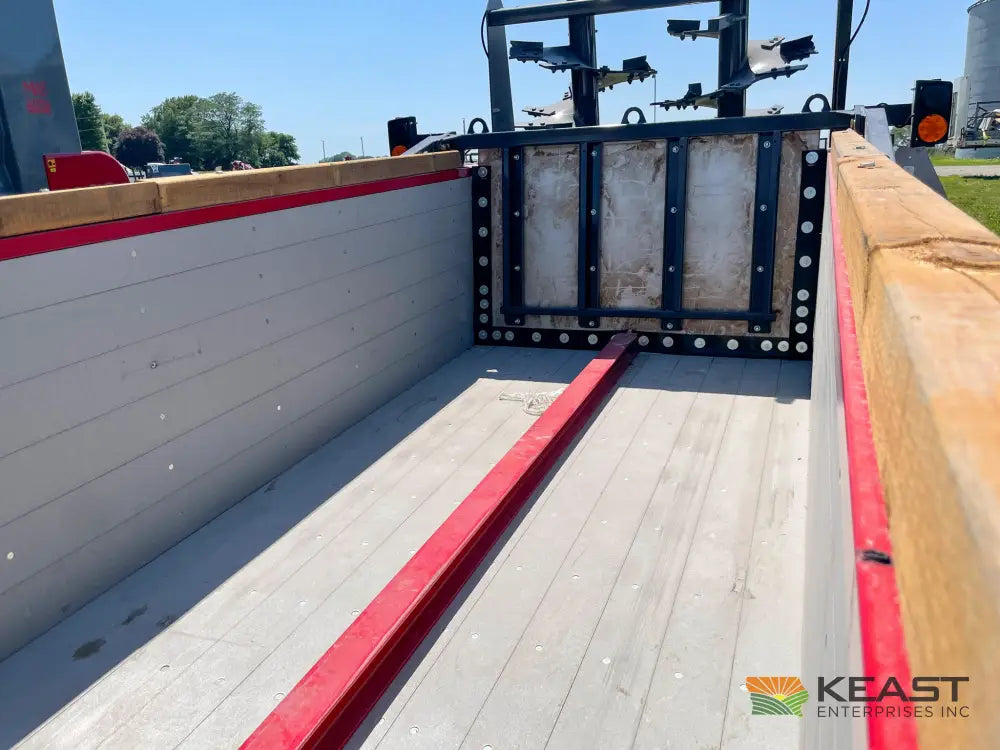

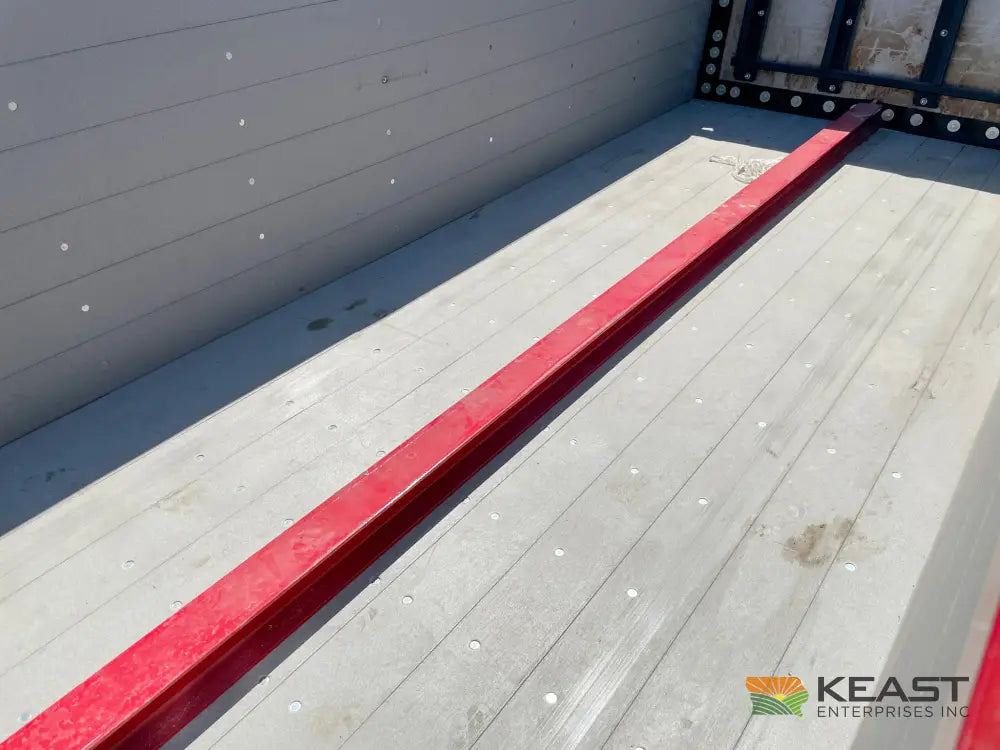

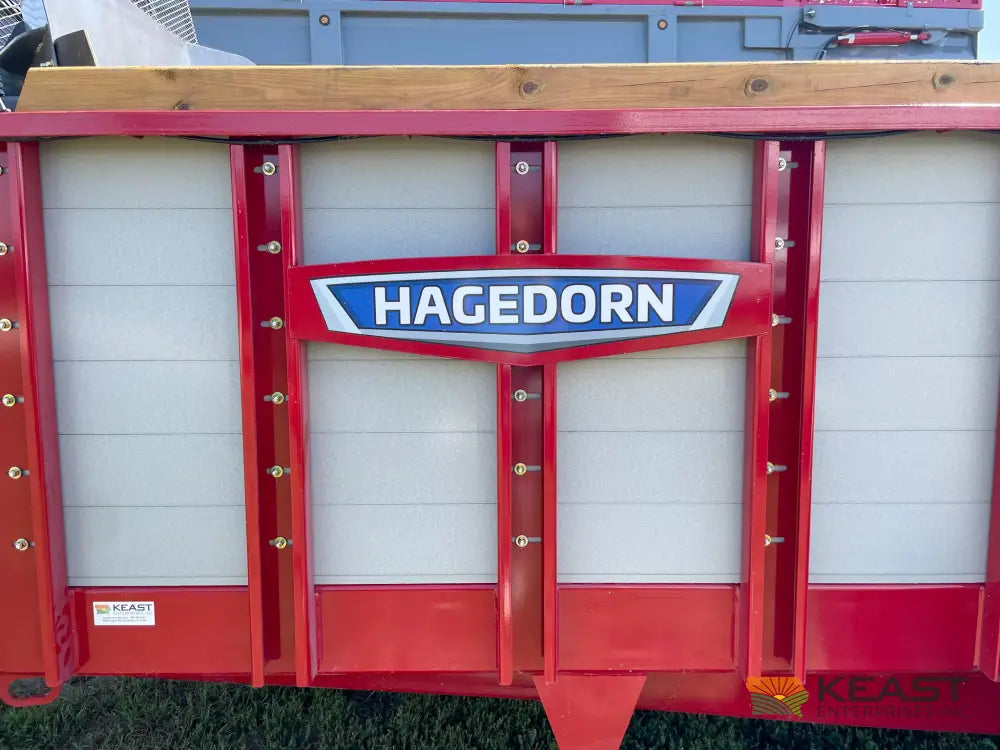

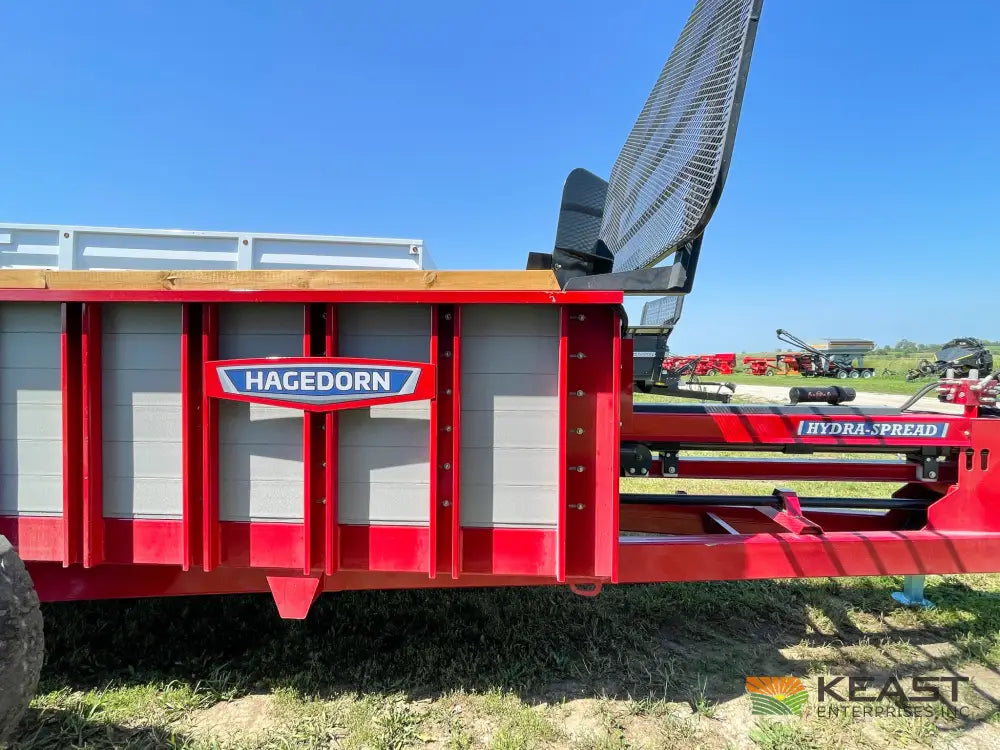

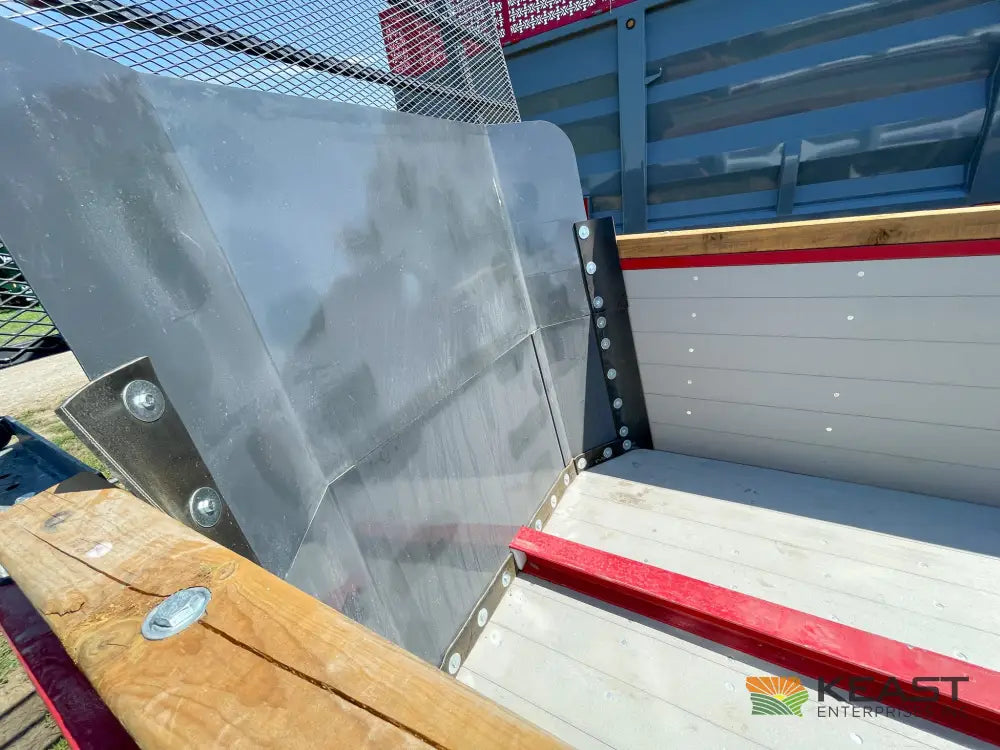

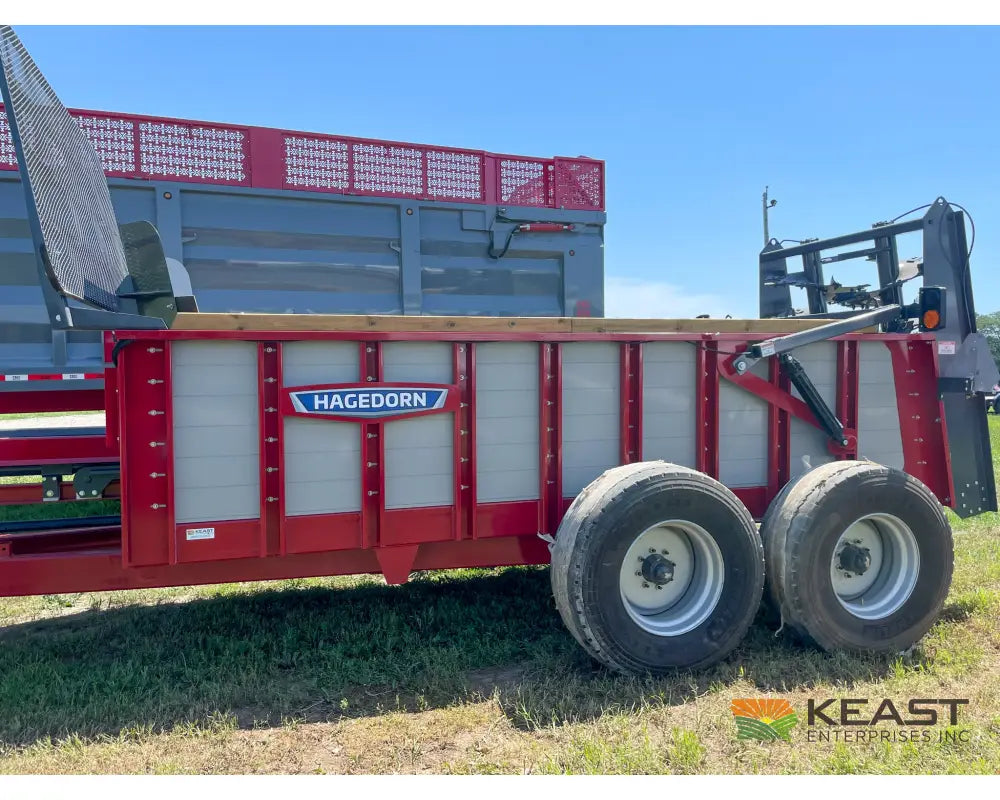

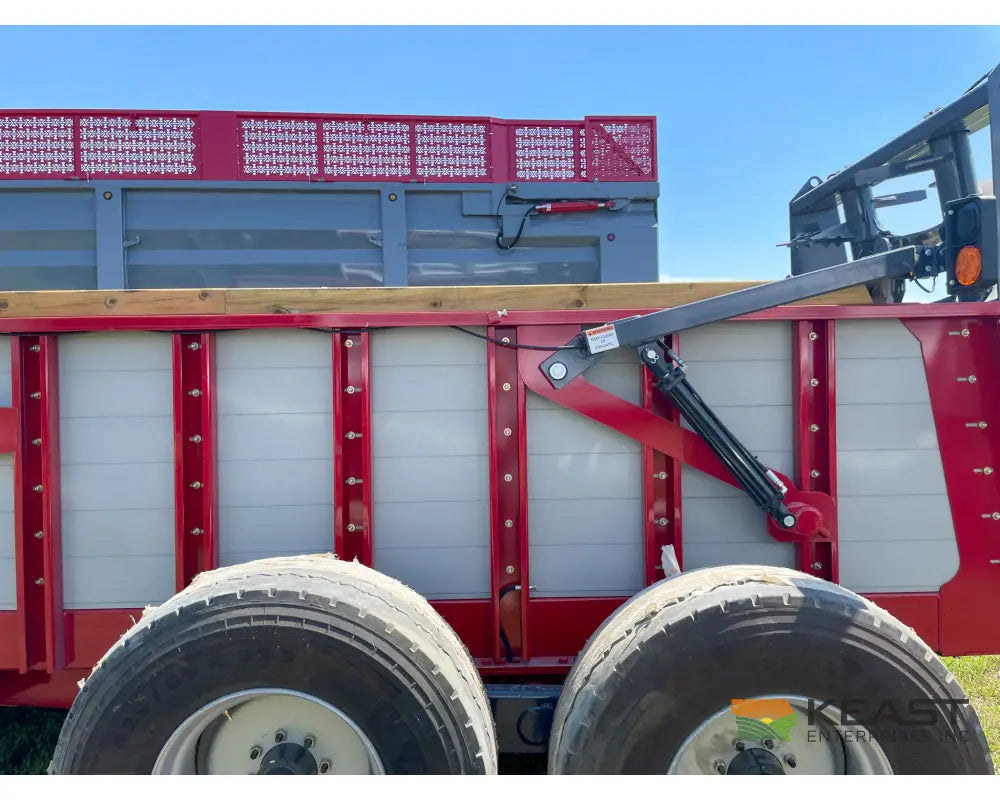

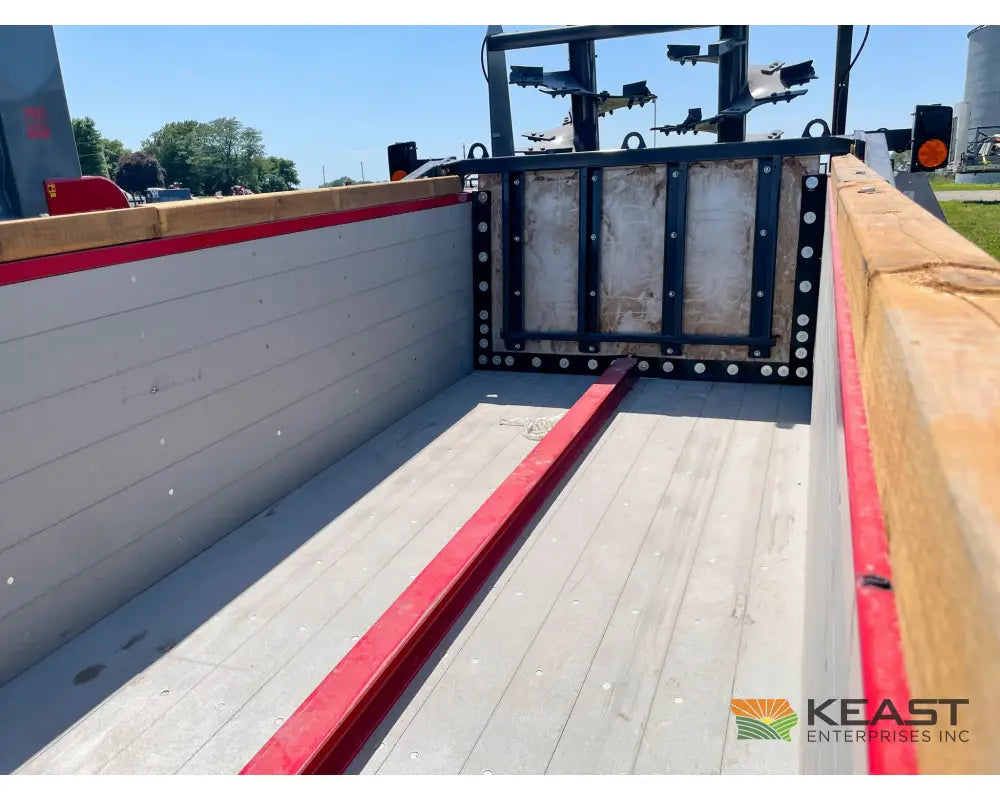

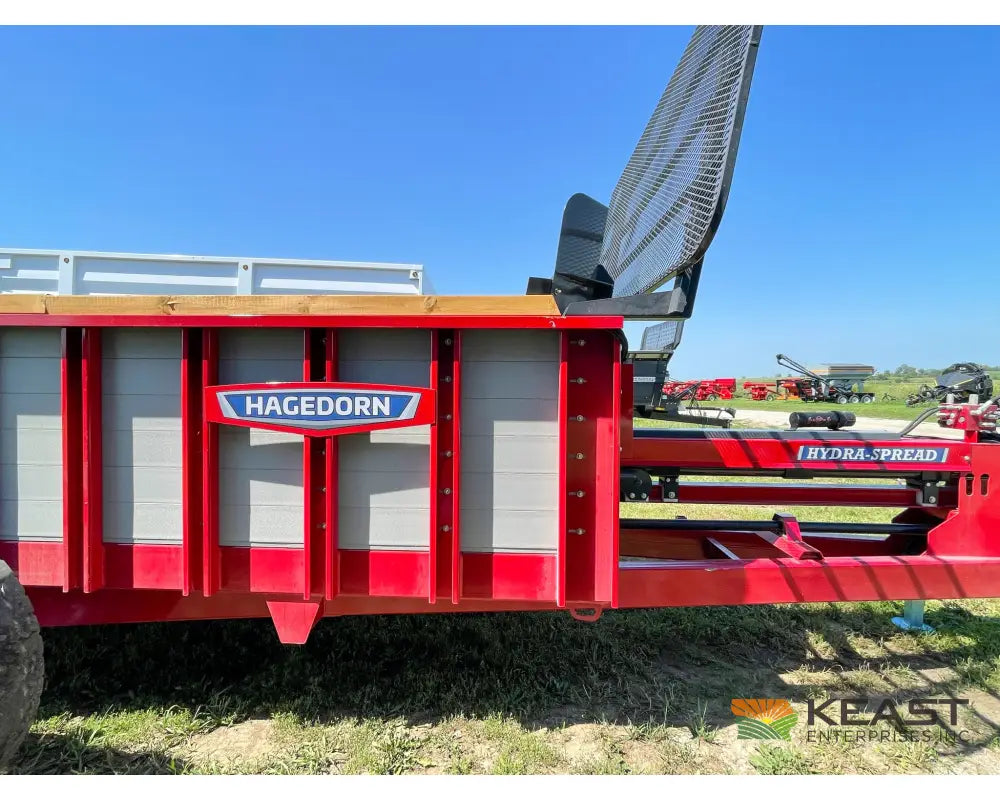

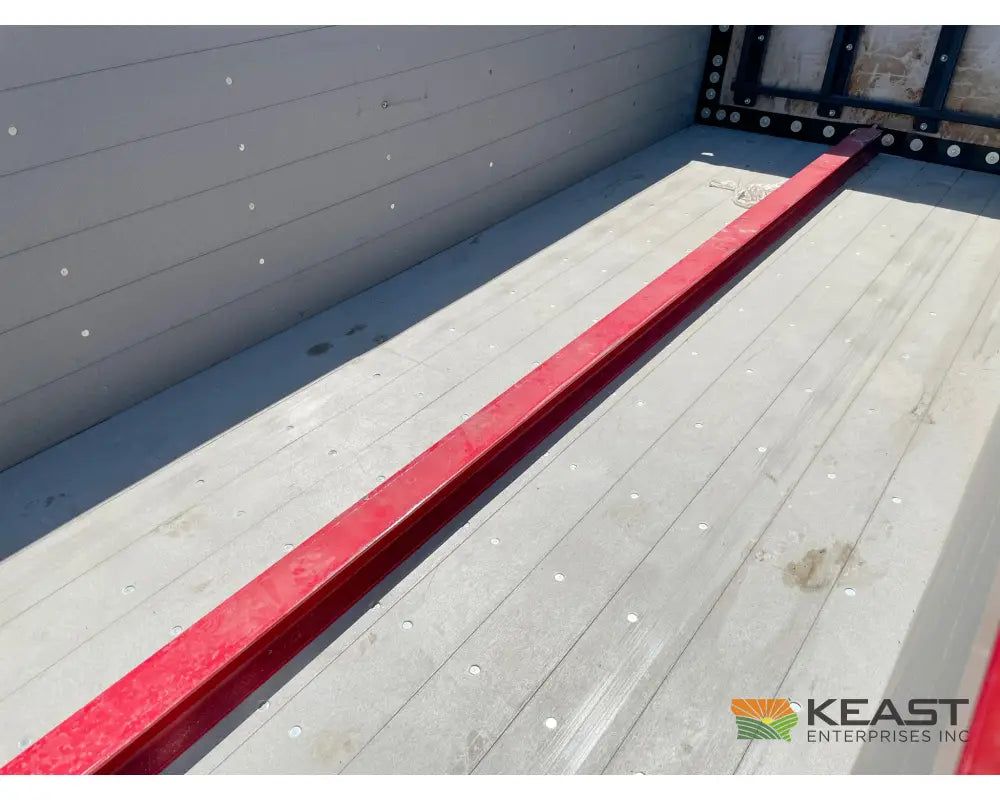

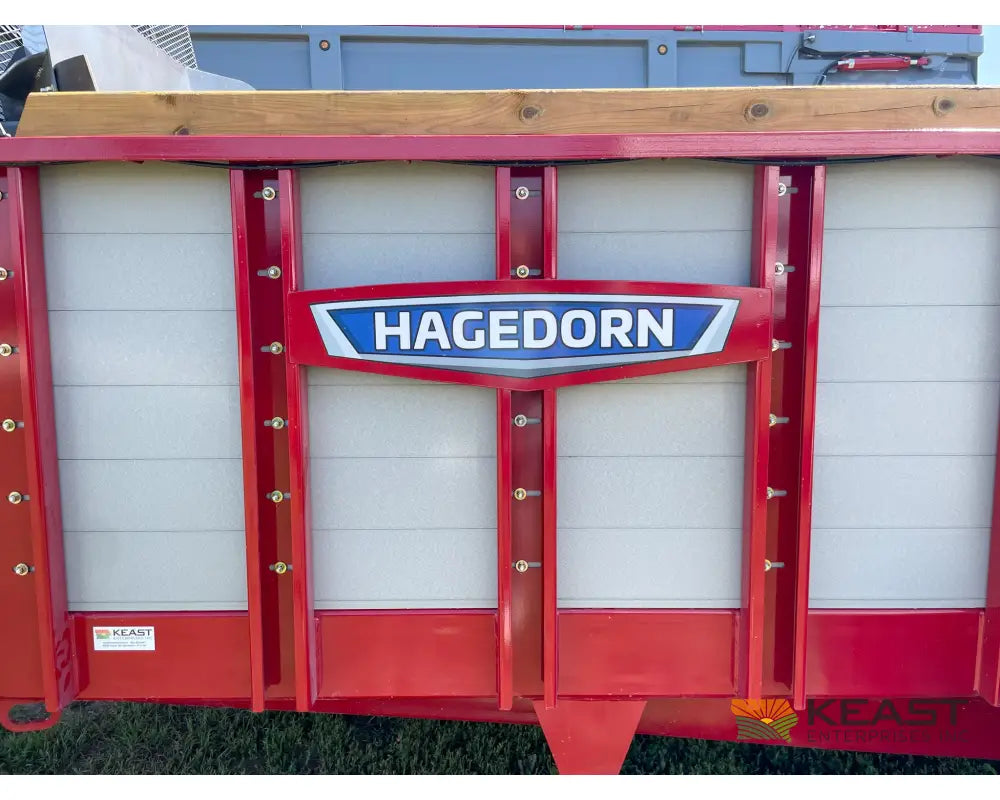

Poly Sideboards
Replaceable poly boards reduce friction and wear on the material flow, while tolerating years of heavy use.

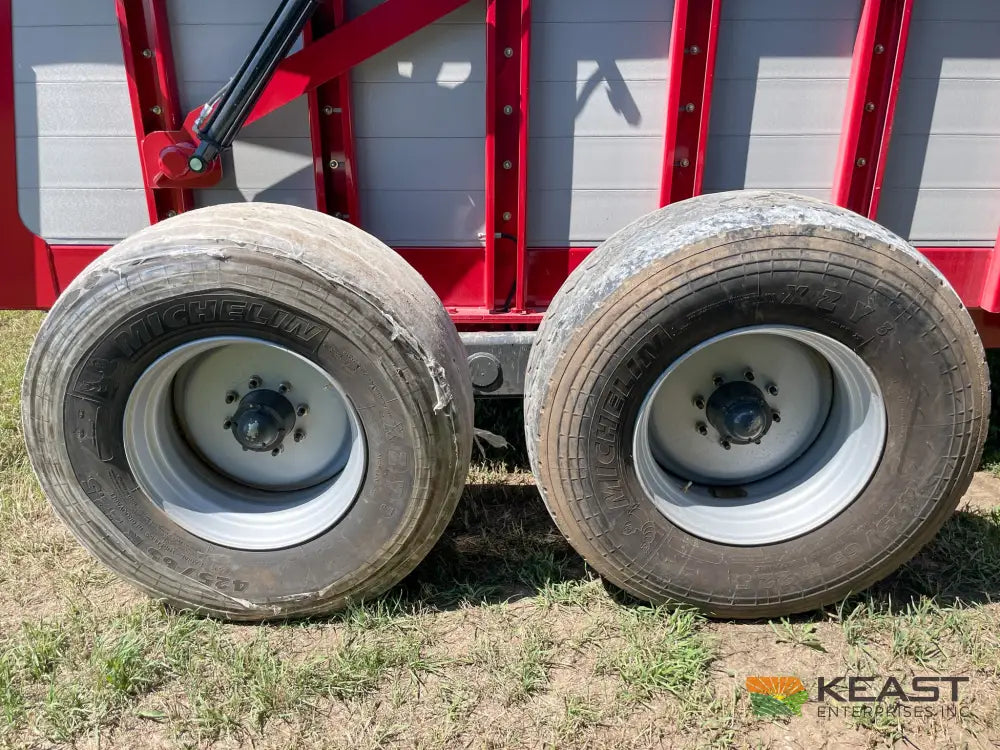

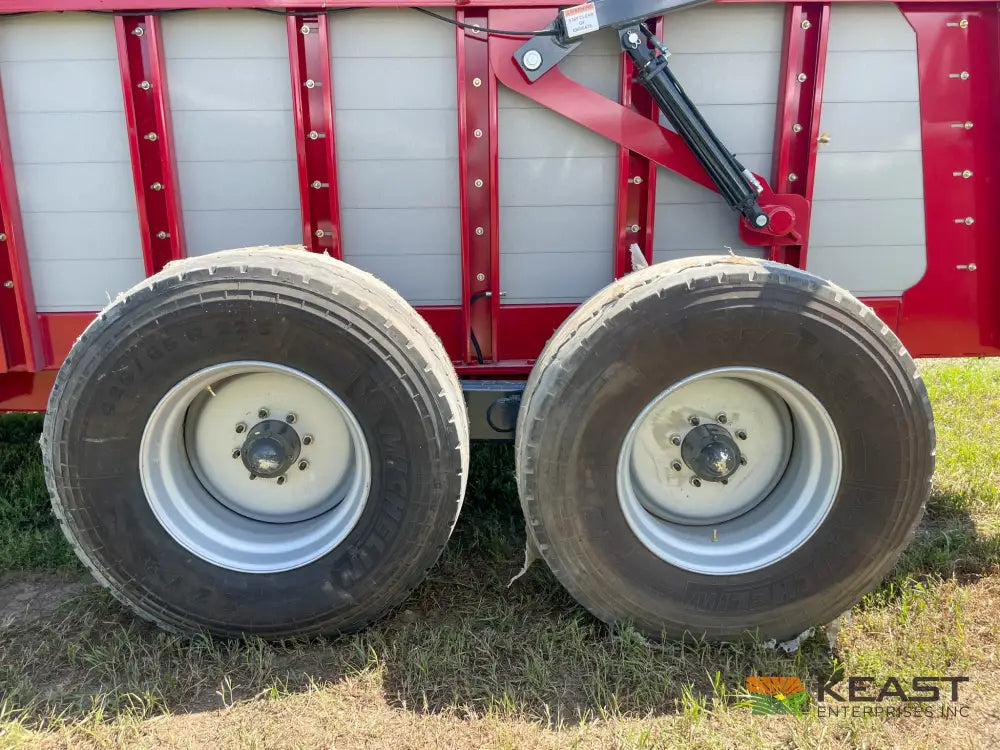

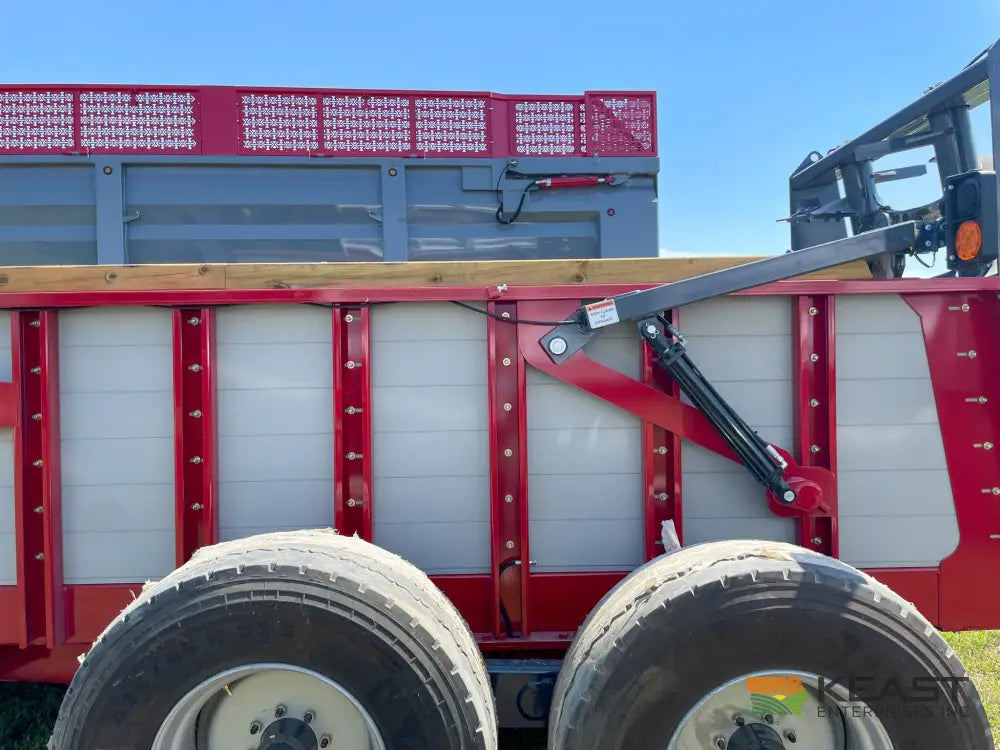

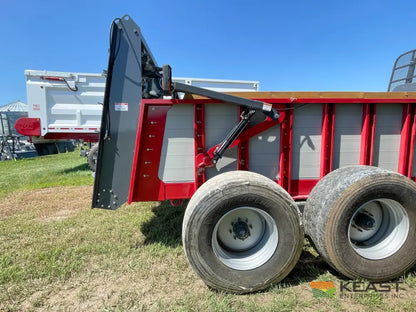

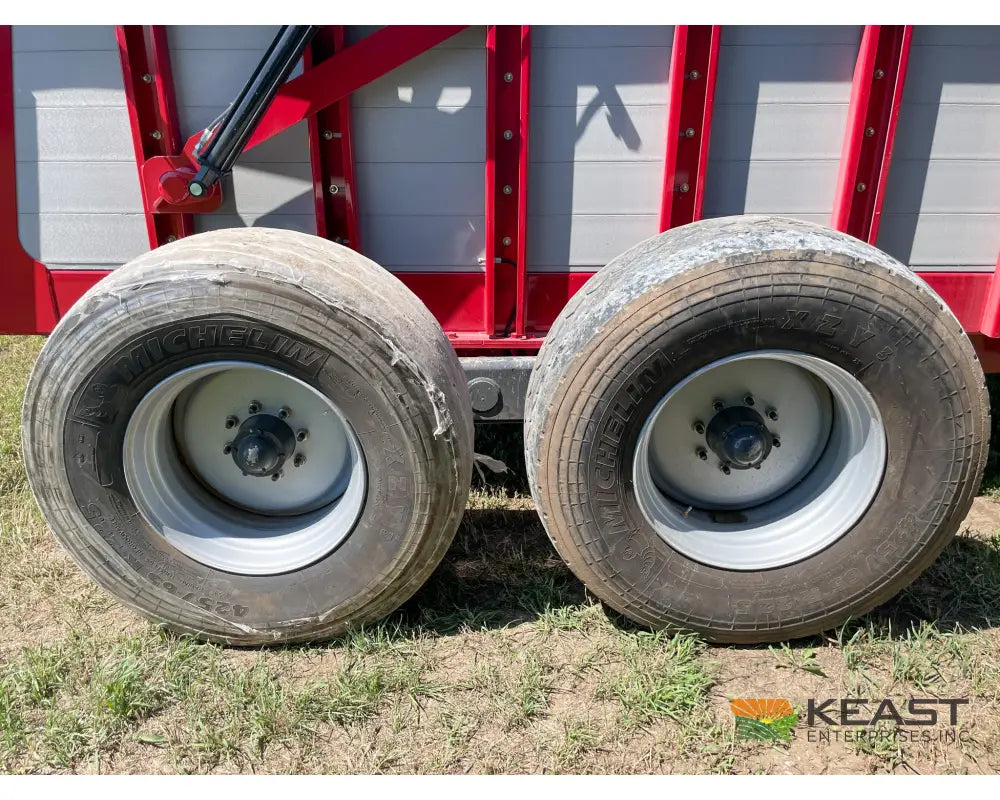

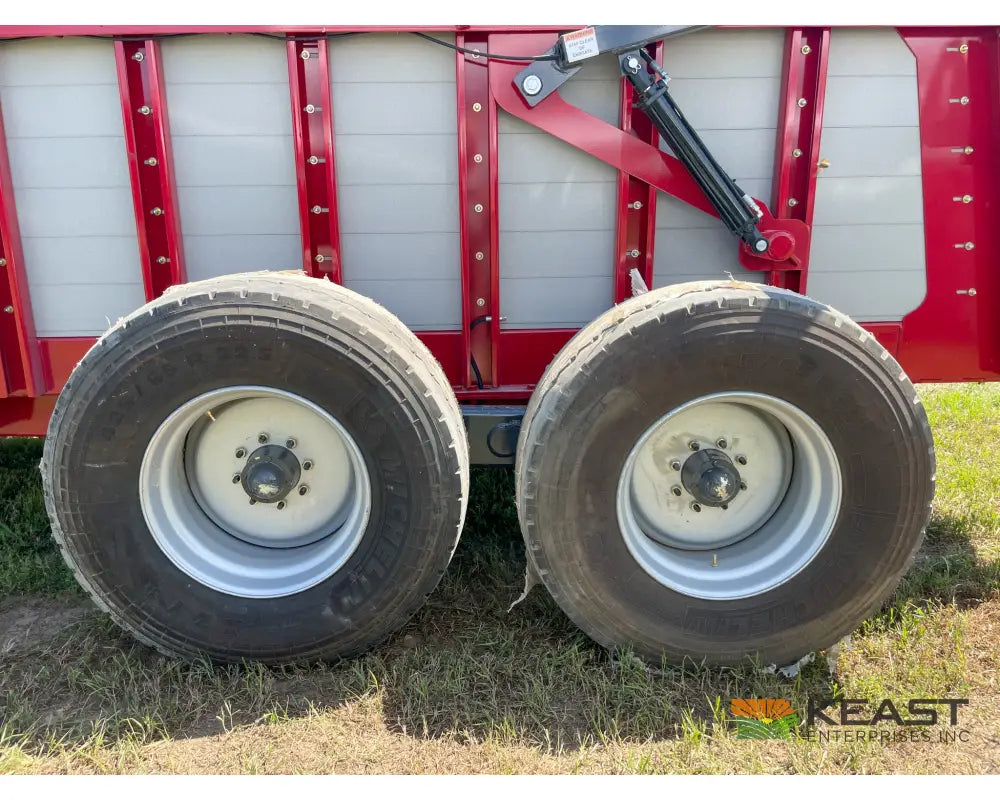

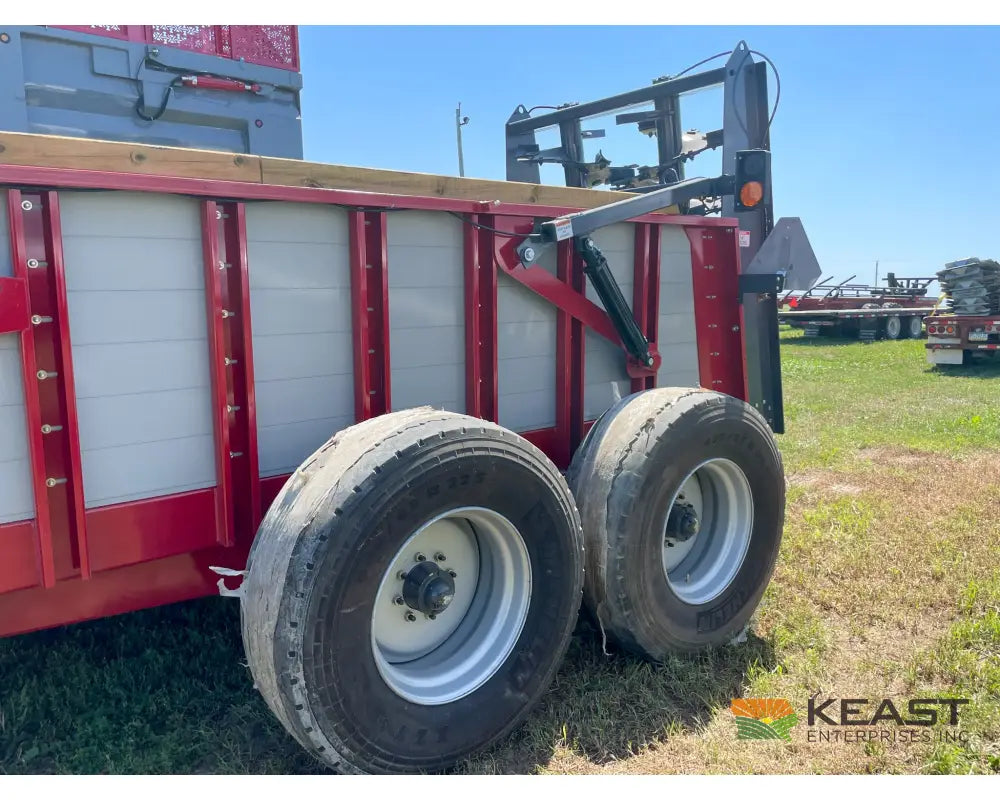

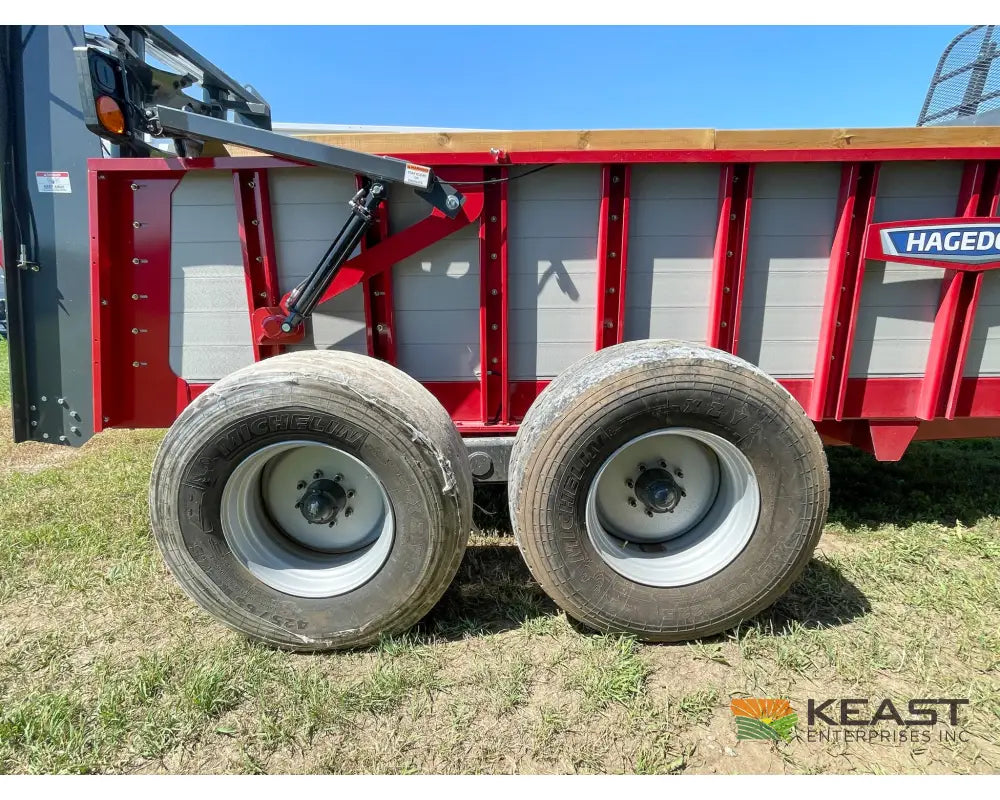

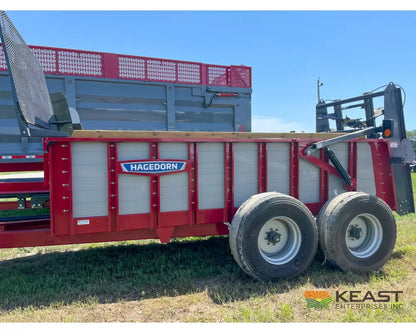

24,000 lb Tandem Axles
Oscillating tandem axles with 12,000 lb hubs spread load effectively and reduce soil compaction while keeping load height manageable.

Technical Specifications

Feature Specification
Struck Capacity 290 cu ft (8.2 m³)
Heaped Capacity ~540 cu ft (14.8 m³)
Carrying Capacity 24,000 lb (10,850 kg)
Tires 425/65R22.5 flotation style
Beater Diameter/Speed 34.6″ / 420 RPM
Sequencing Valve Built-in
Push-off Cylinders Hollow-rod, up to 17’ stroke
Flow Valve Hydra‑Spread, internal bypass
Sideboards Material High-density polyethylene

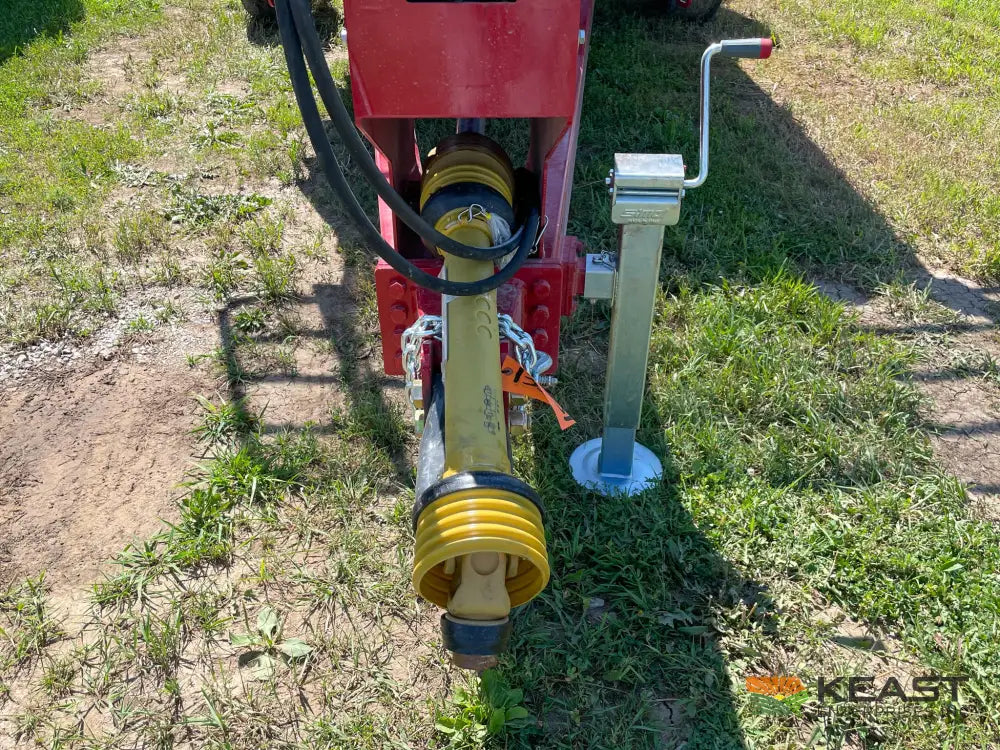

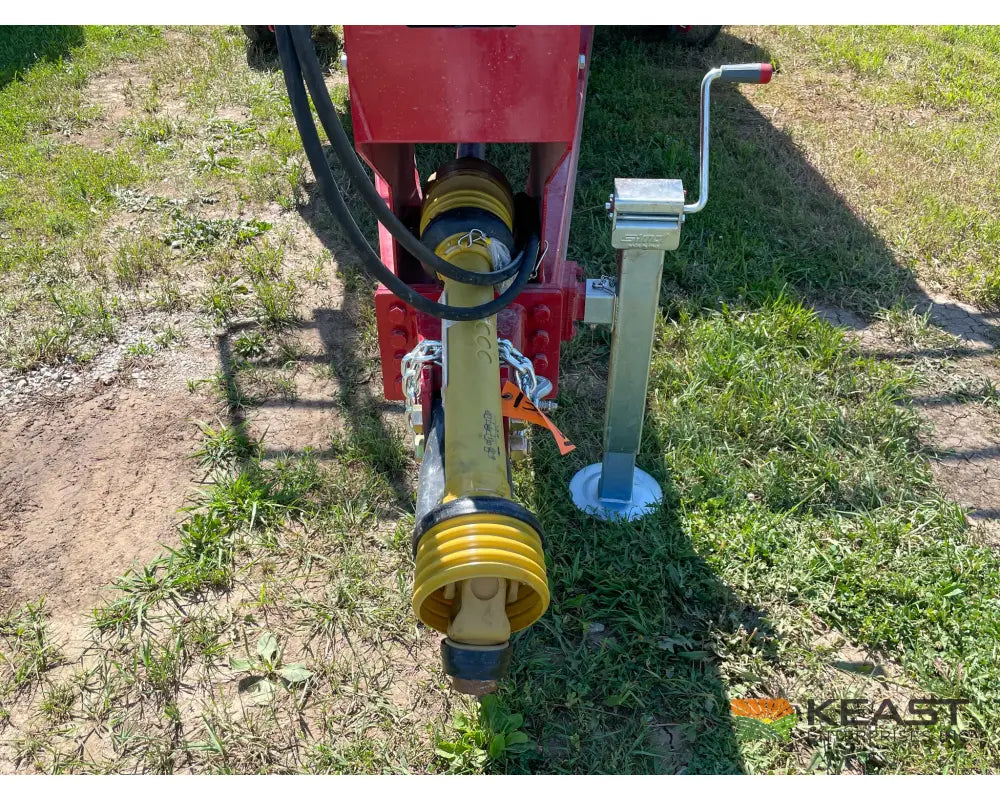

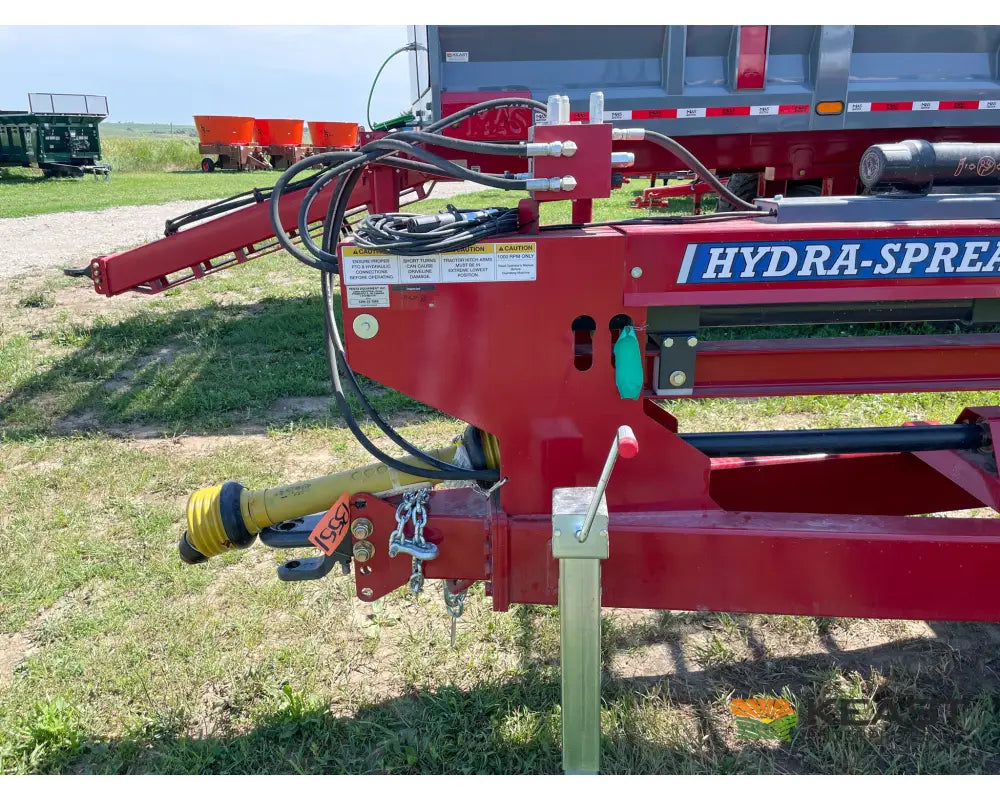

PTO 1000 RPM PTO
Recommended HP 125 HP minimum

FAQ

What is the capacity of the 5290?
It holds 290 cu ft struck (about 421 bushels) and 540 cu ft heaped.

How do push-off cycles initiate?
The hydraulic sequencing valve ensures the endgate opens before push-off begins, eliminating stress from mis-timing.

How does it handle field terrain?
The 5290's oscillating tandem axles and 425 tires reduce compaction and provide a smooth ride over uneven ground. Optional floatation tires are also available.
