Haybuster H-1135 Tilt Tub Grinder, 11' Tub, 50" Hammermill

Name: Haybuster H-1135 Tilt Tub Grinder, 11' Tub, 50" Hammermill
Brand: Haybuster
Price: 119572.00 USD
Availability: InStock

$119,572.00 USD

Sale Sold out

MSRPCall for retail price

Explore financing options For qualifying equipment, subject to credit approval.

In stock

Call Us 712-566-1033 Shipping & Delivery

We'll reach out to confirm order details before fulfillment.

Haybuster H-1135 Tilt Tub Grinder, 11' Tub, 50" Hammermill

View full details

Description

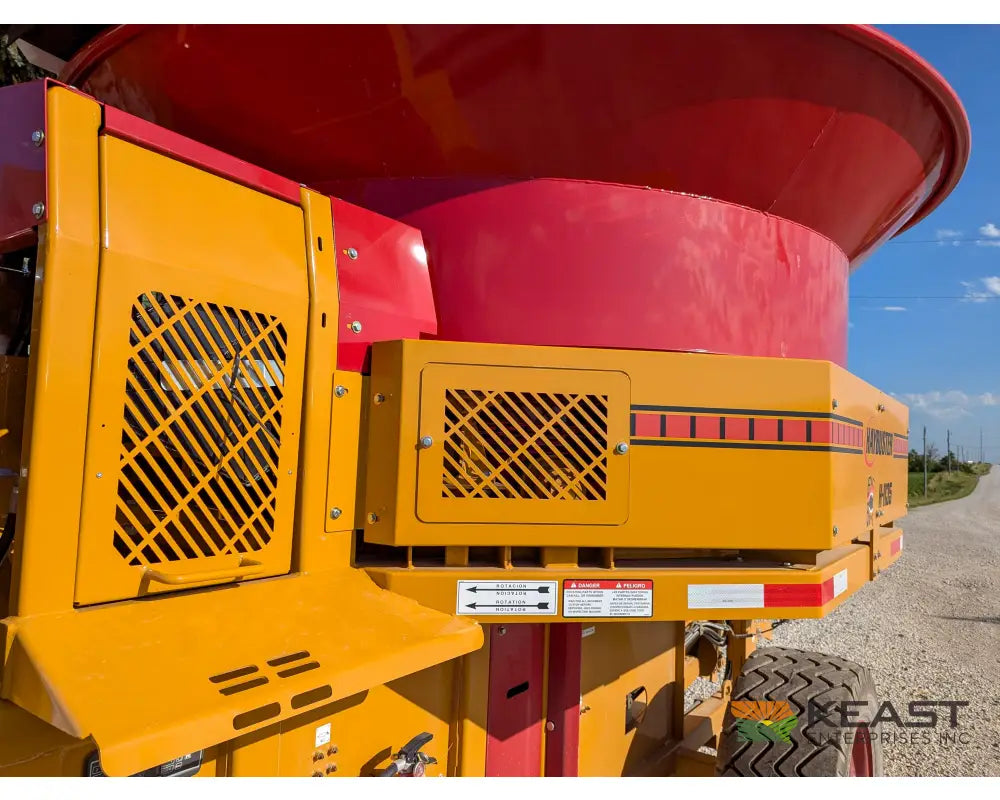

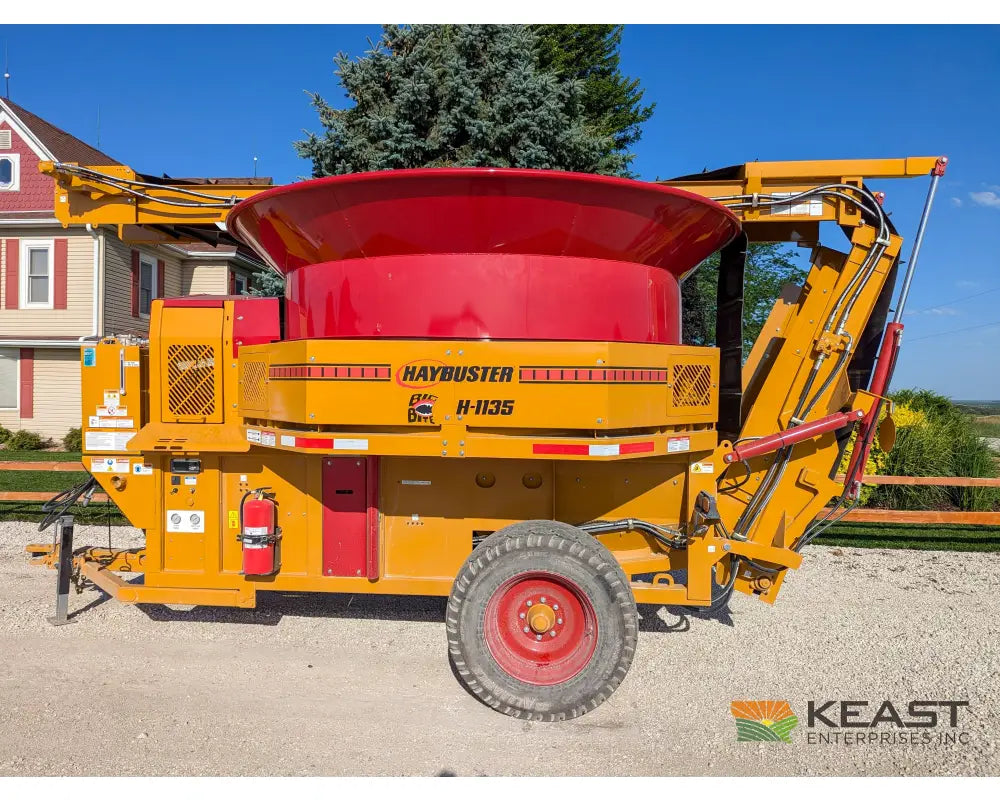

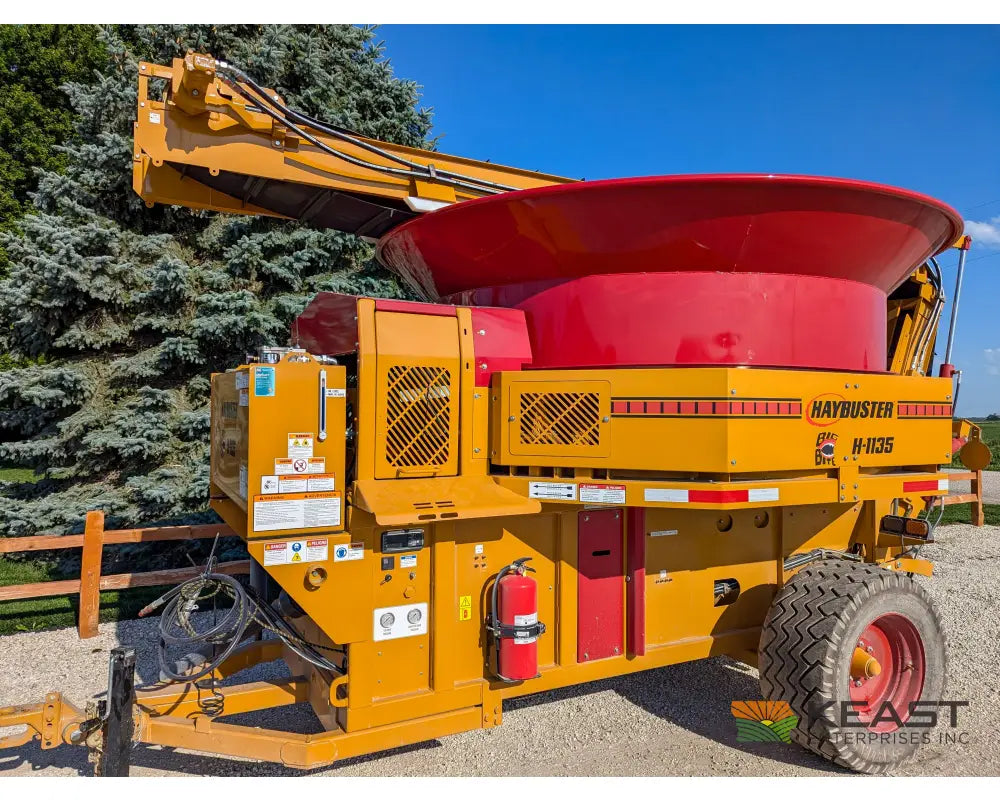

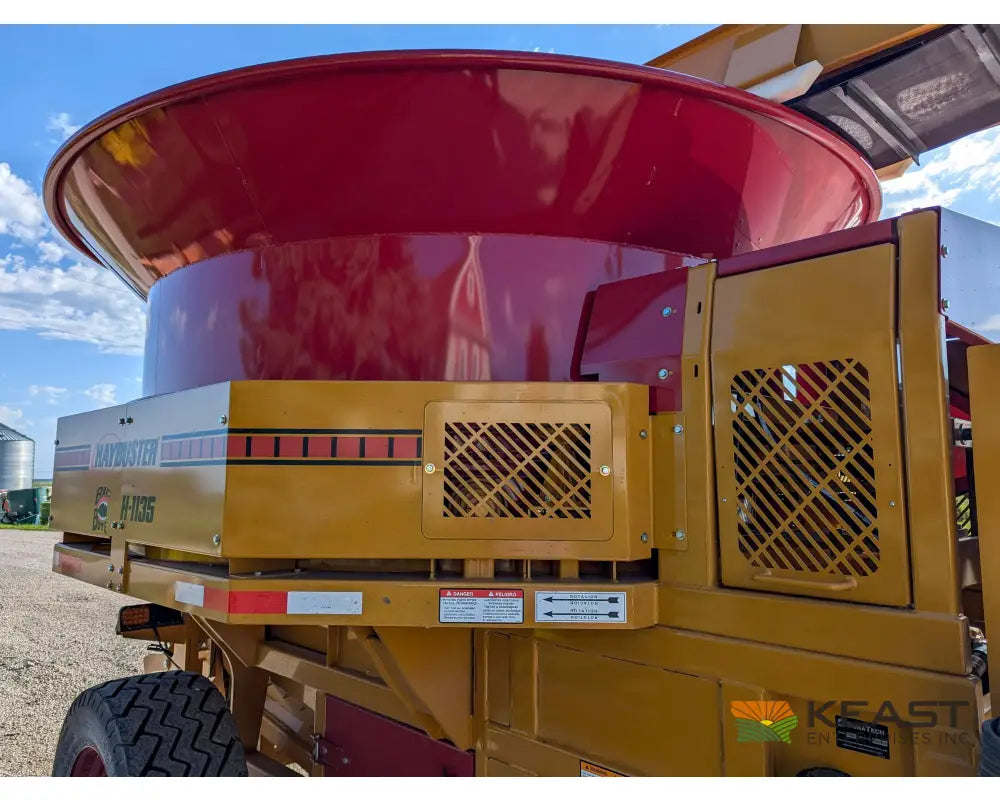

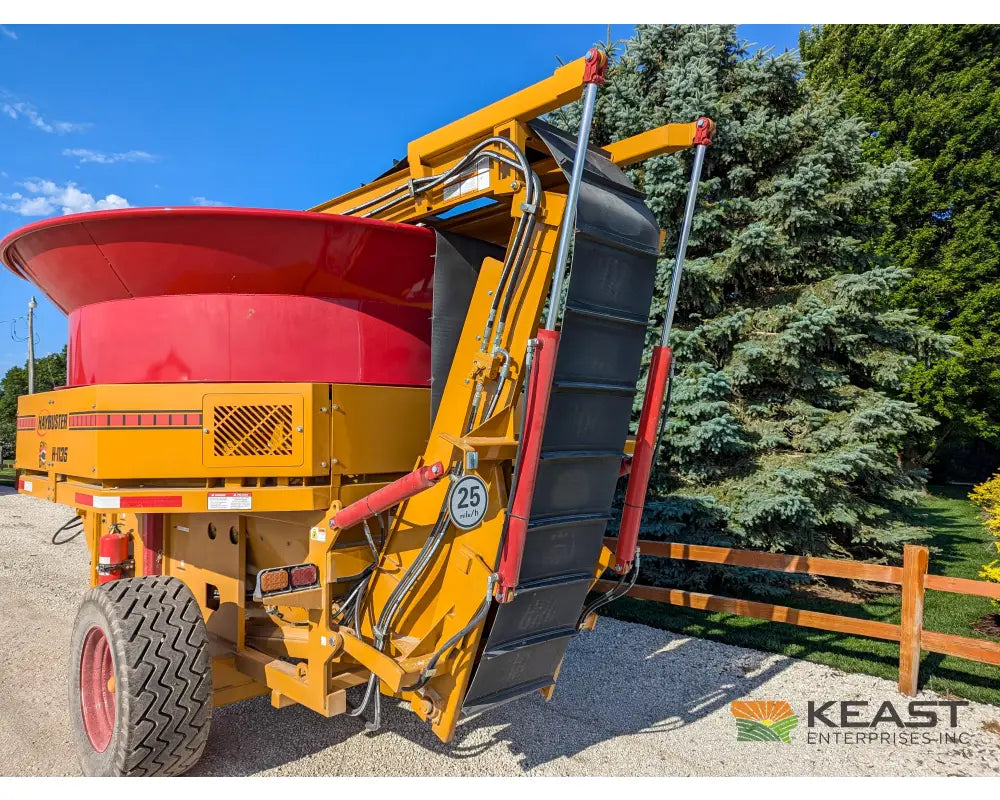

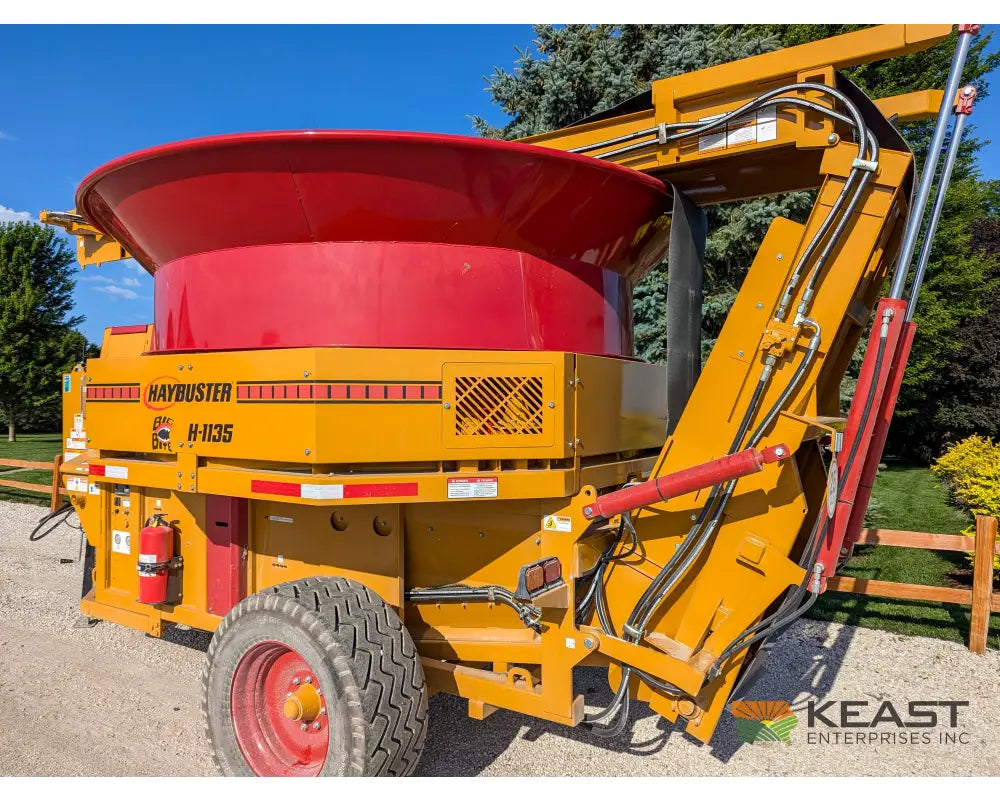

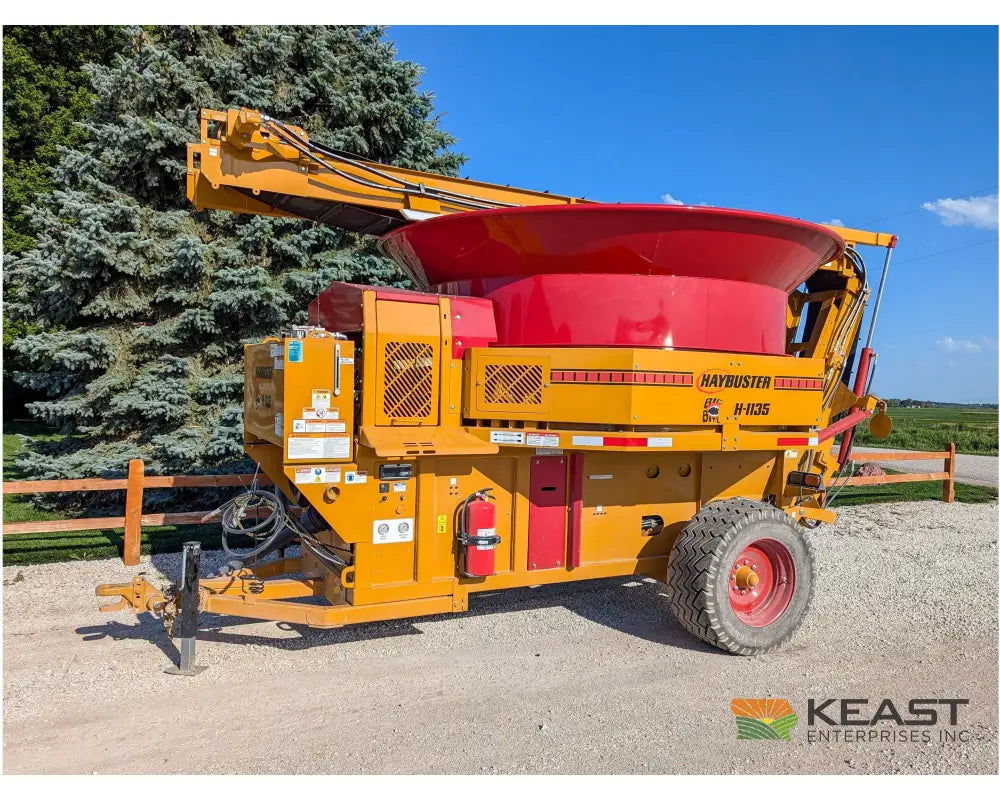

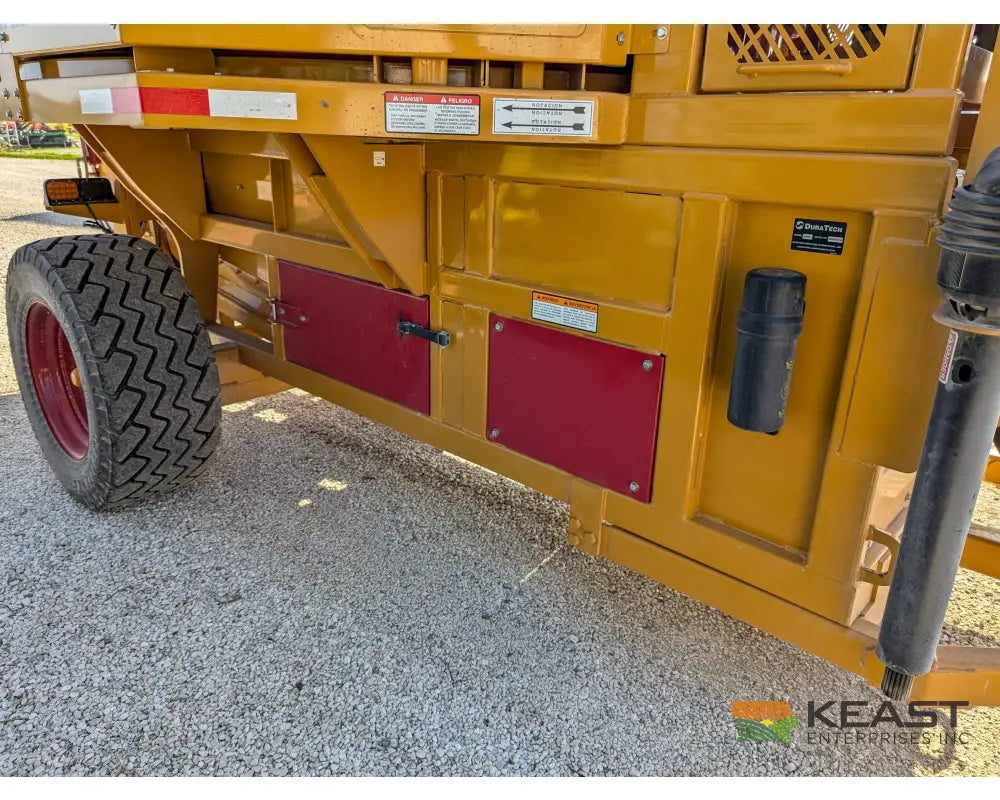

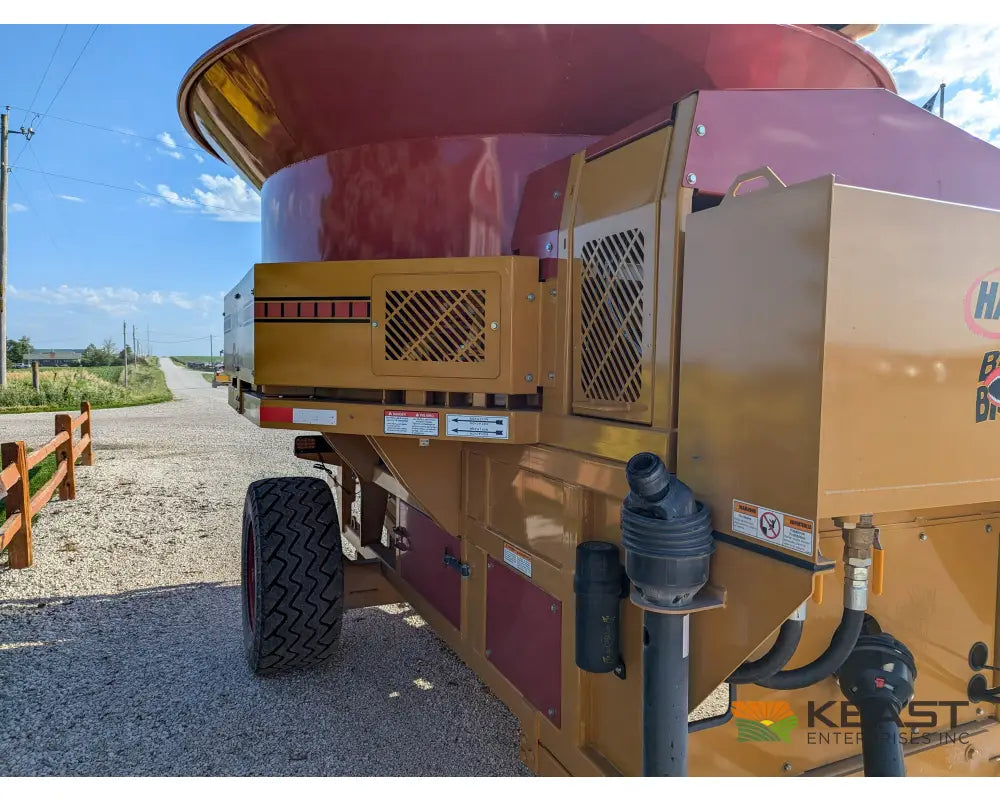

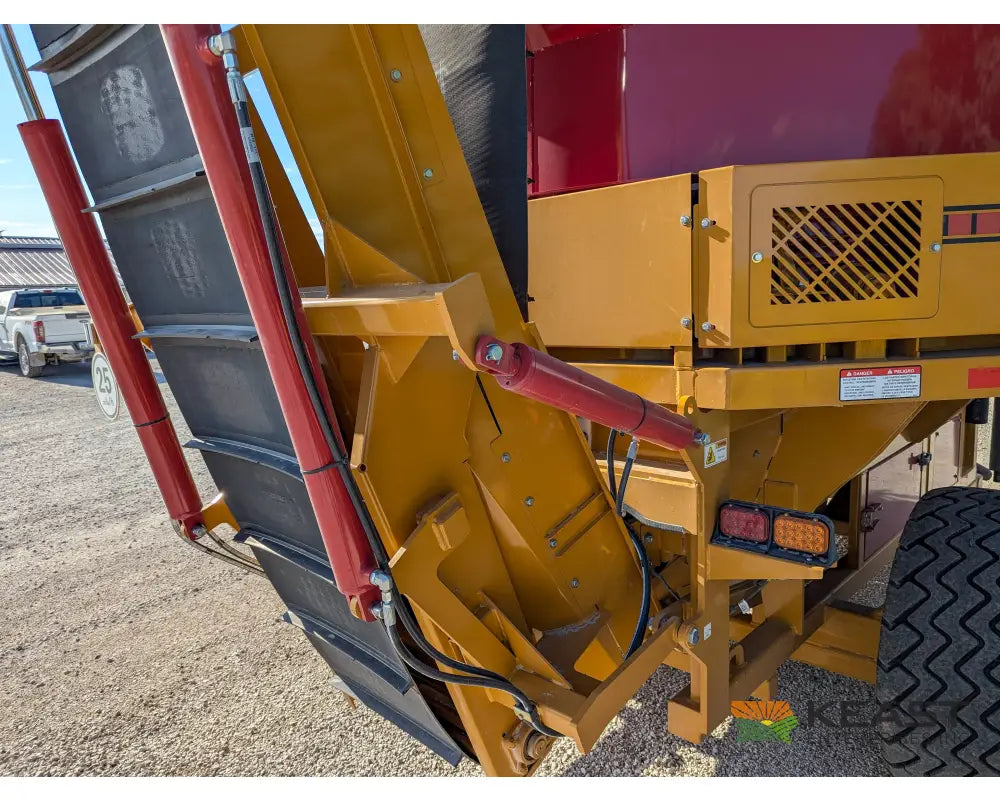

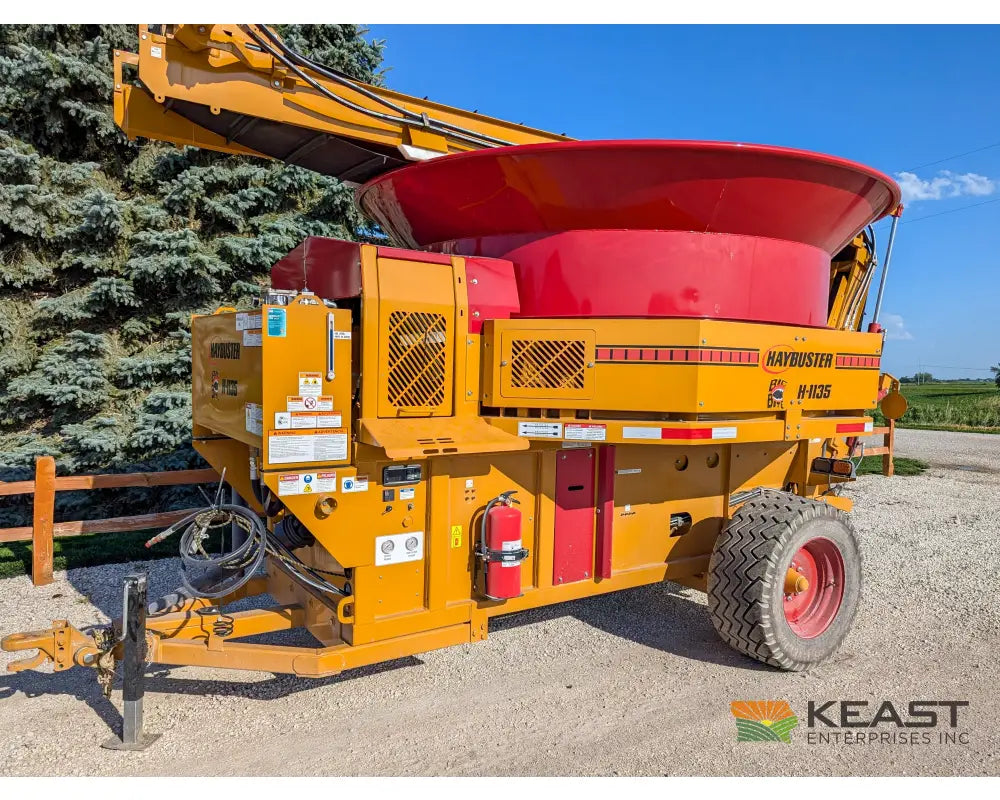

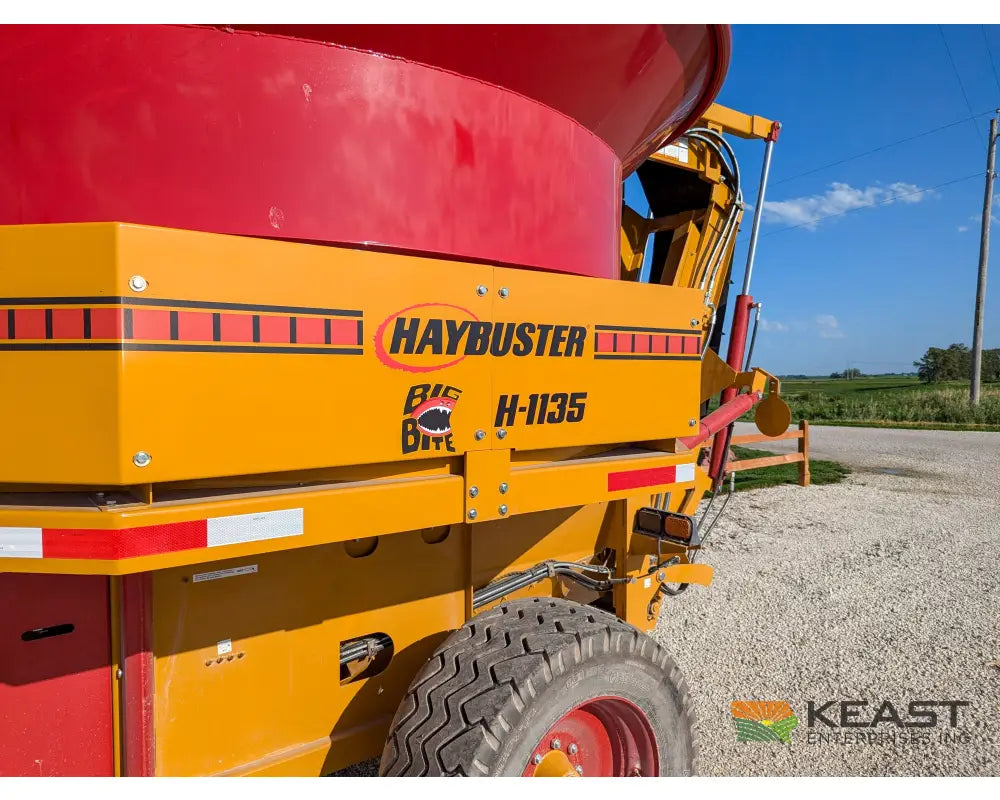

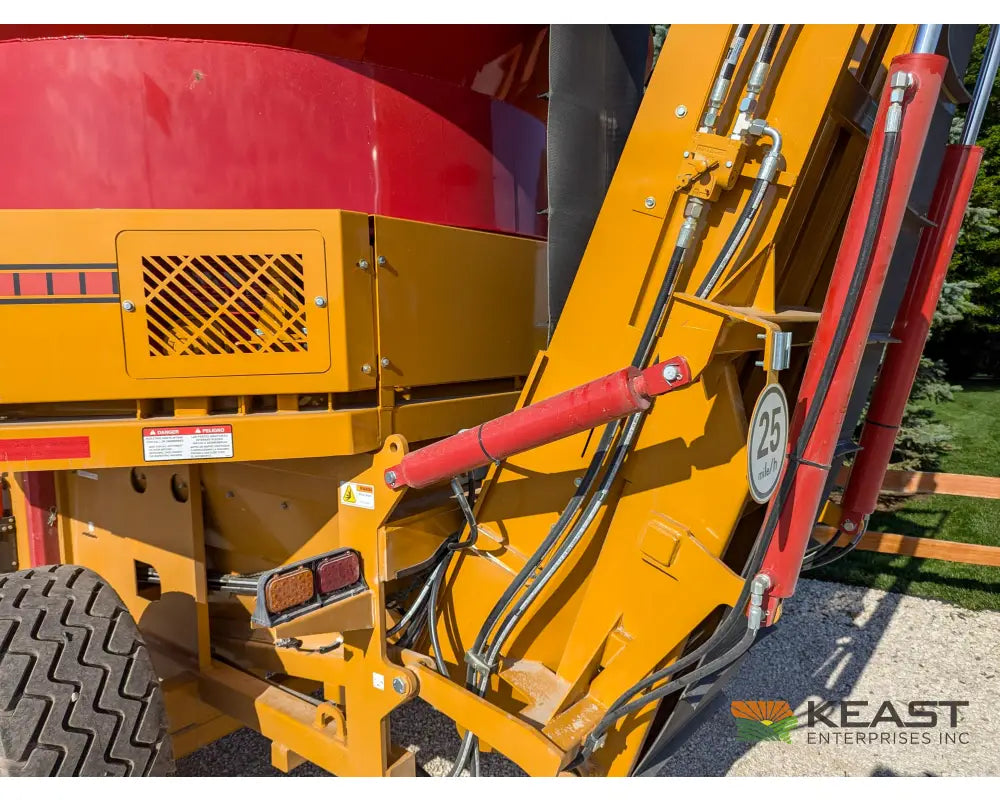

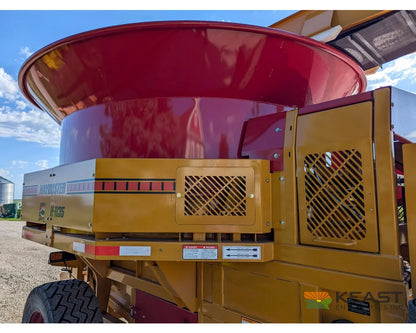

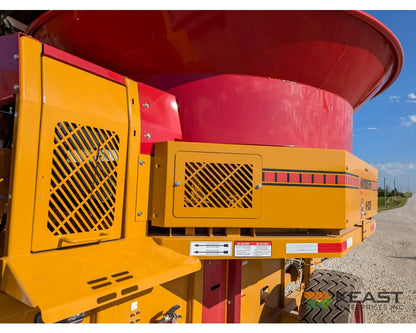

The Haybuster H-1135 Big Bite is a PTO tub grinder for processing hay, straw and crop residue in larger feeding and bedding operations. The rear-mounted hammermill uses forged swinging hammers, with twin belly augers carrying ground material to a hydraulic folding stacking conveyor.

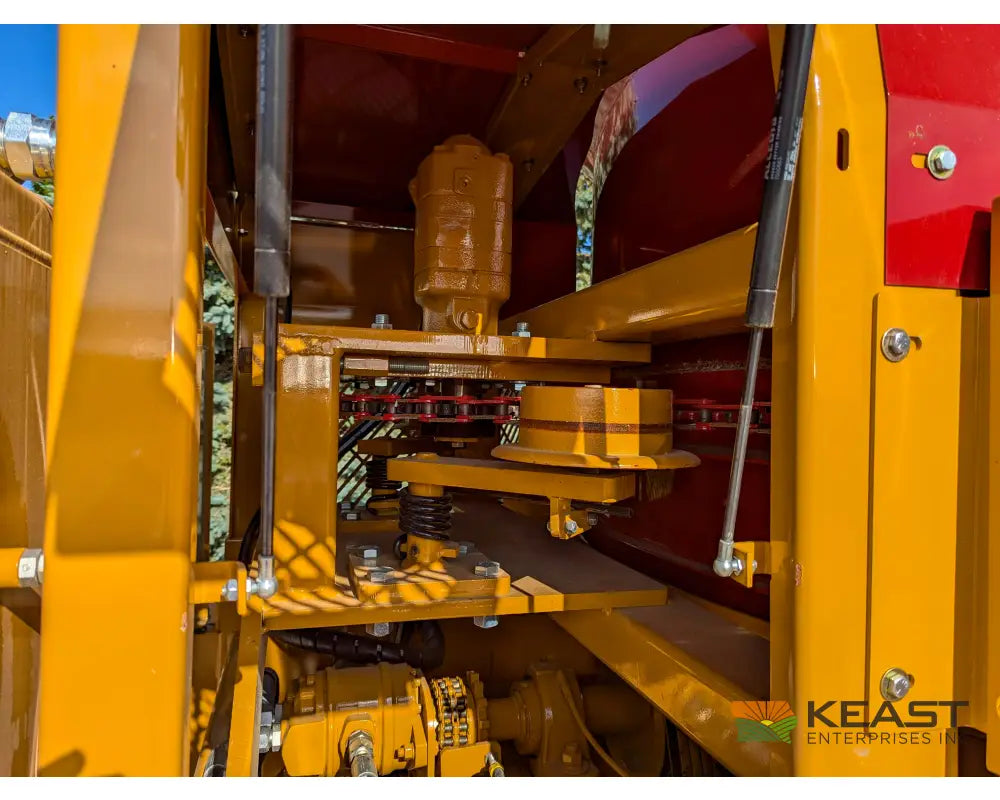

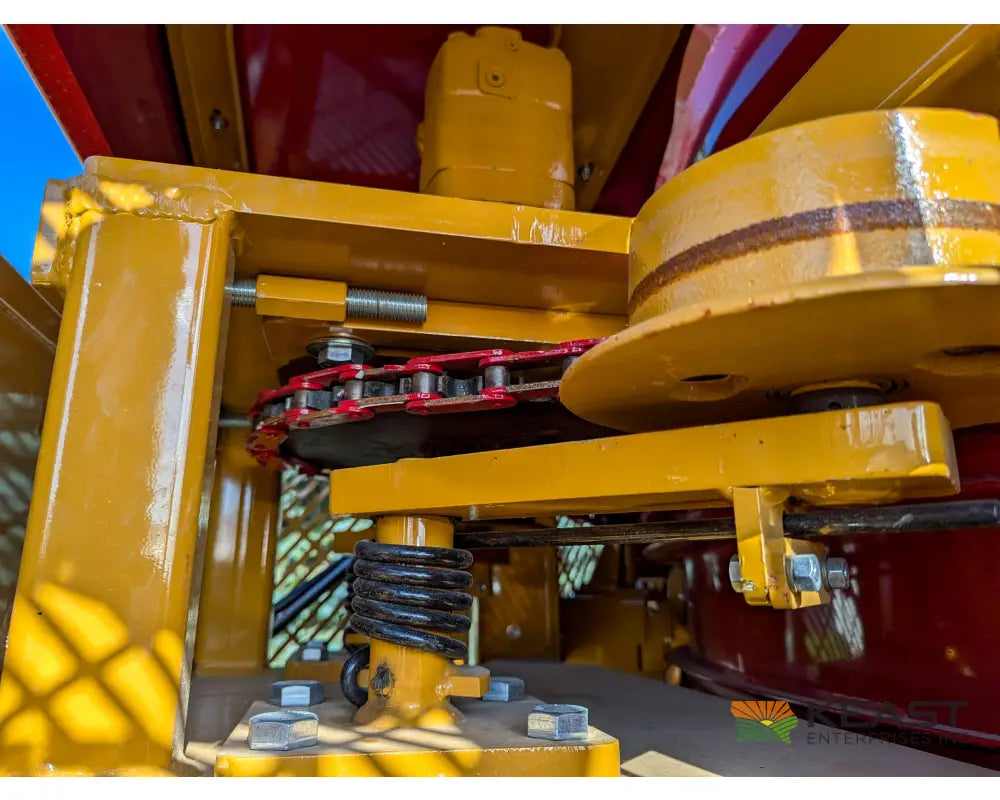

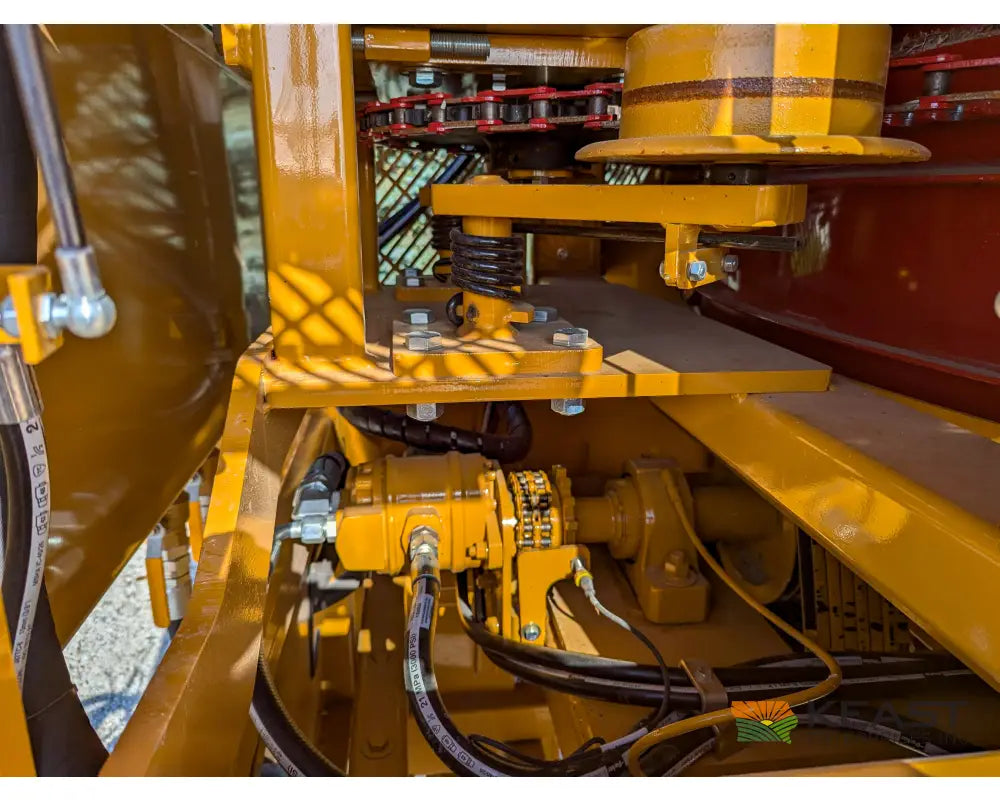

An electronic governor adjusts tub feed to engine load. Remote controls operate tub direction and speed and conveyor height. The tub tilts for service access, and the eight-belt hammermill drive uses spring tensioning.

Grain grinding requires the optional hopper and suitable screens. Two screen halves must be selected with the machine; slug-buster and other feeding equipment can be specified for tough hay or crop residue.

Specifications

Specification	Details
Tub Diameter (flare)	11 ft. 3 in.
Tub Depth / Base Diameter	50″ / 8′11″ (1.27 m / 2.72 m)
Hammermill Length	50″ with 88 forged ½″ hammers on 3½″ shaft
Feed Opening	28″ × 52″ (71 × 132 cm)

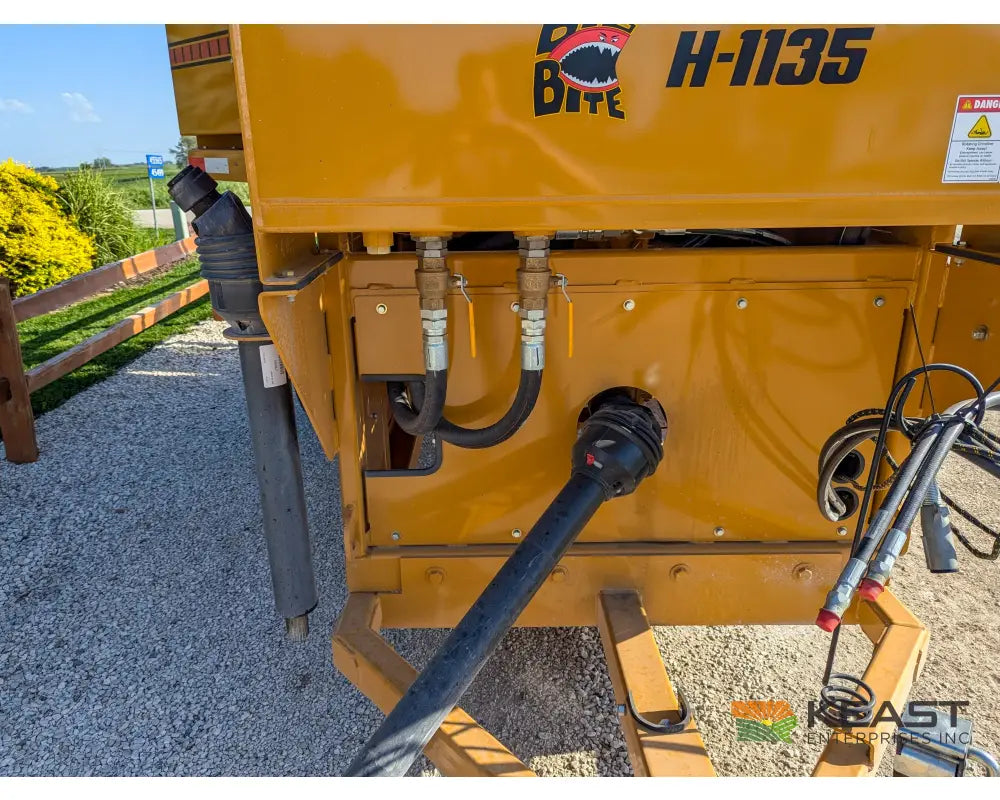

PTO-Driven Belts	8 × 5-VP belts, 1,000 RPM PTO, 21- or 20-spline shaft
Tub Rotation Control	Electronic governor; hydraulic valve with reverse
Conveyor Size & Lift	24″ × 26′ cleated; stacks up to 18′6″
Belly Augers	Dual 12″ × 4′6″, hydraulically driven
Tub Tilt	Full 90° hydraulic tilt
PTO Power Requirement	200–315 PTO HP
Hydraulic Requirement	8 GPM at 1,500 psi; two double-acting valves
Weight	14,500 lb (6,577 kg)
Transport Dimensions (L×W×H)	21′8″ × 11′4″ × 10′7″ (6.6 × 3.45 × 3.2 m)
Tub Loading Height	9′2″ (2.79 m)

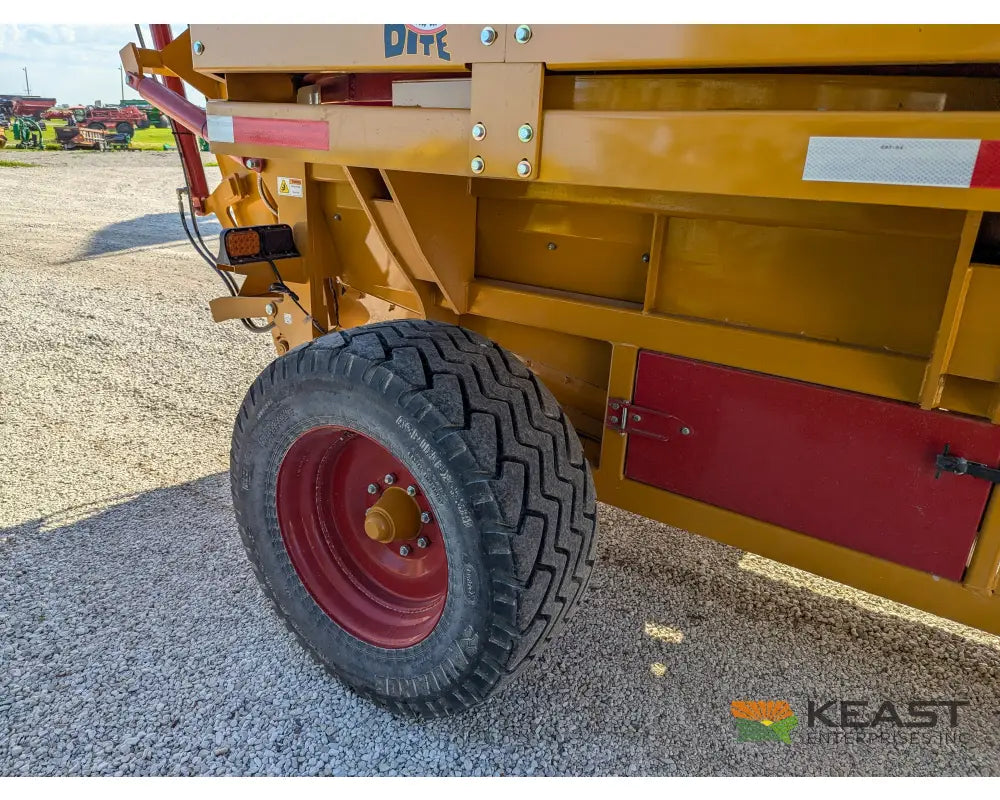

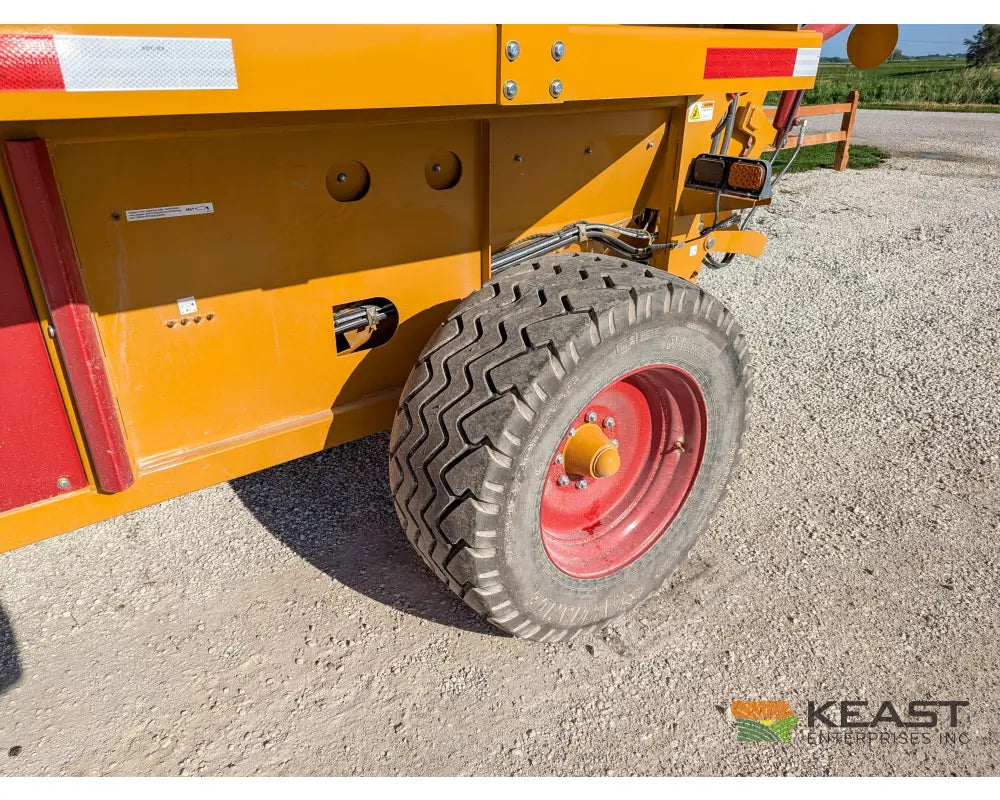

Tires & Hitch	445/50R×22.5 super-single; clevis hitch
Electrical System	12 V DC

We can review the tractor's PTO shaft, hydraulic valves and available power alongside the material and finished grind. The governor manages feed during operation; clearing a blockage or servicing the grinder requires the shutdown and isolation procedures in the manual.
