Hurricane Ditcher Model 24 Ditcher, 36" Impeller

Name: Hurricane Ditcher Model 24 Ditcher, 36" Impeller
Brand: Hurricane Ditcher
Price: 24808.00 USD
Availability: InStock

$24,808.00 USD

Sale Sold out

Explore financing options For qualifying equipment, subject to credit approval.

In stock

Call Us 712-566-1033

We'll reach out to confirm order details before fulfillment.

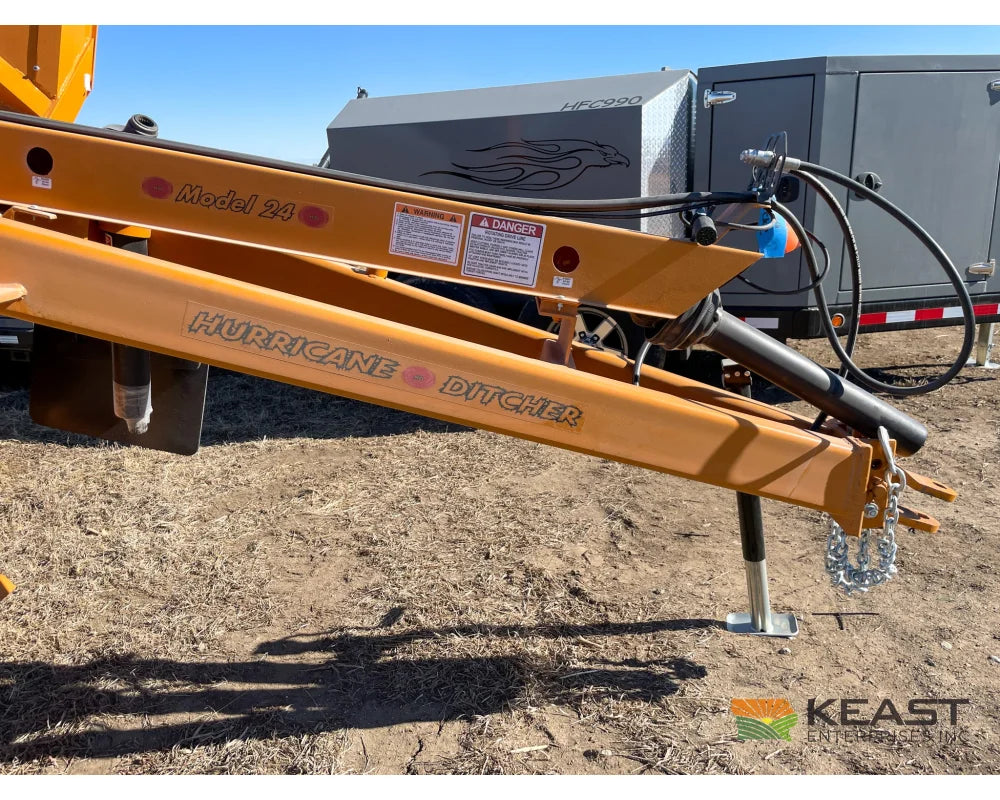

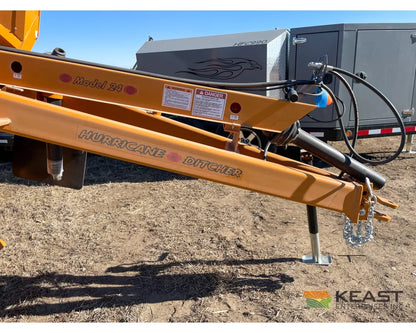

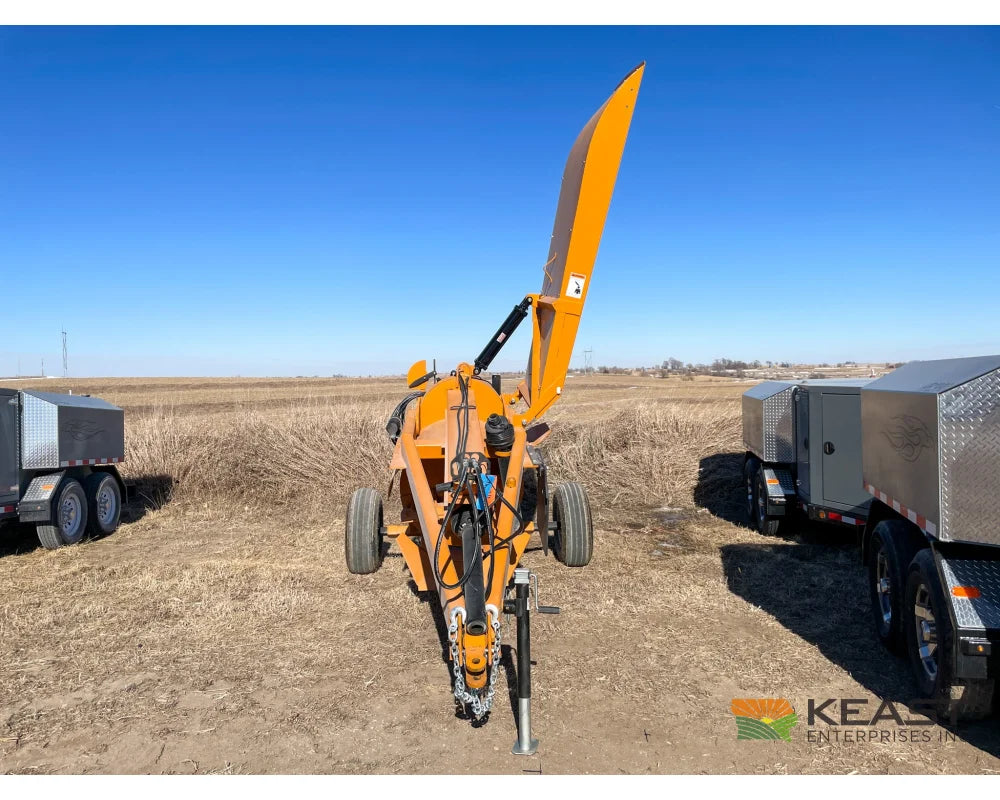

Hurricane Ditcher Model 24 Ditcher, 36" Impeller

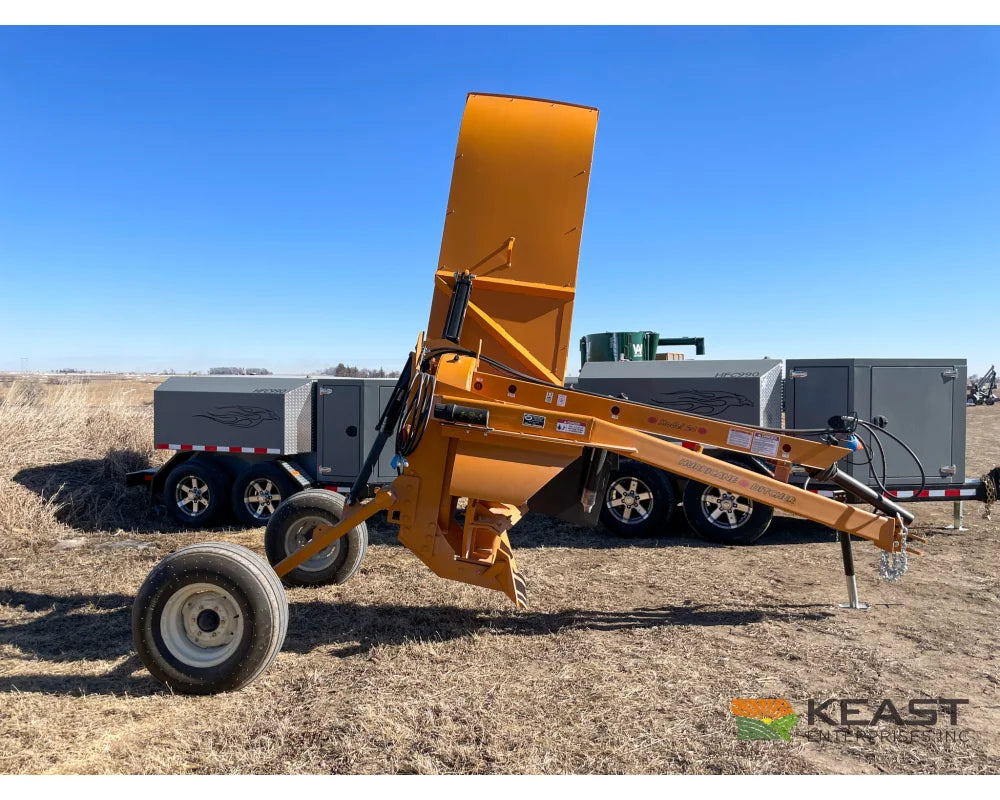

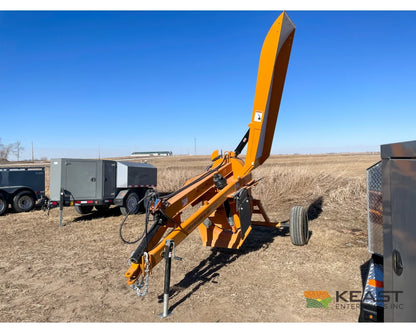

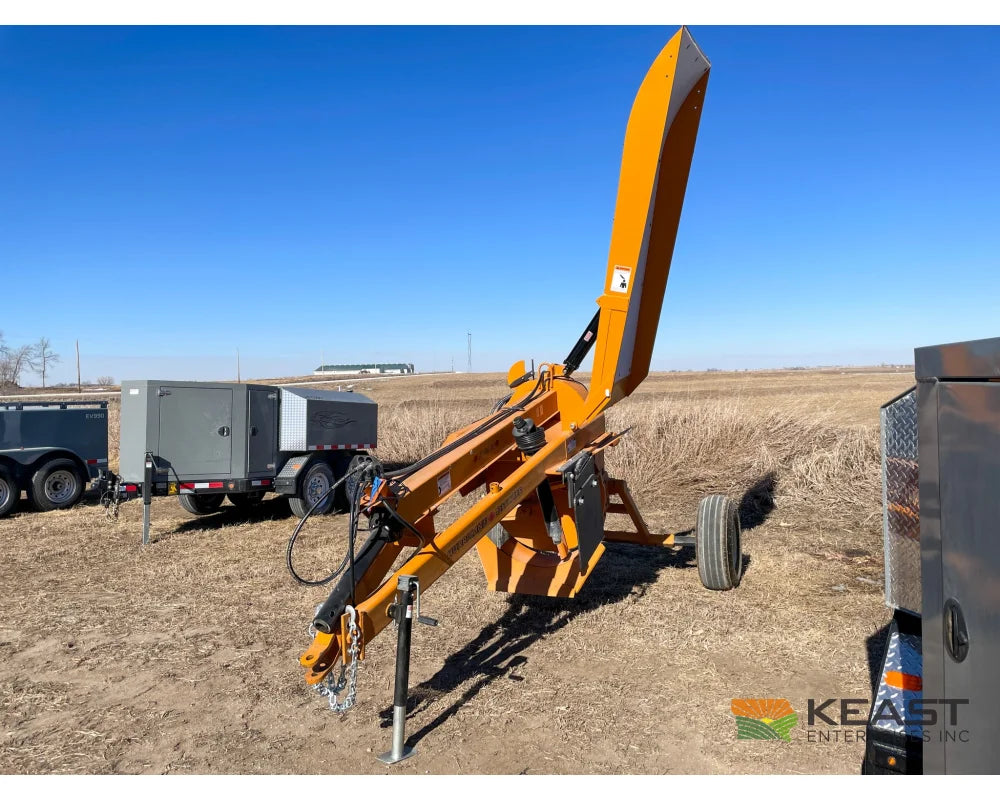

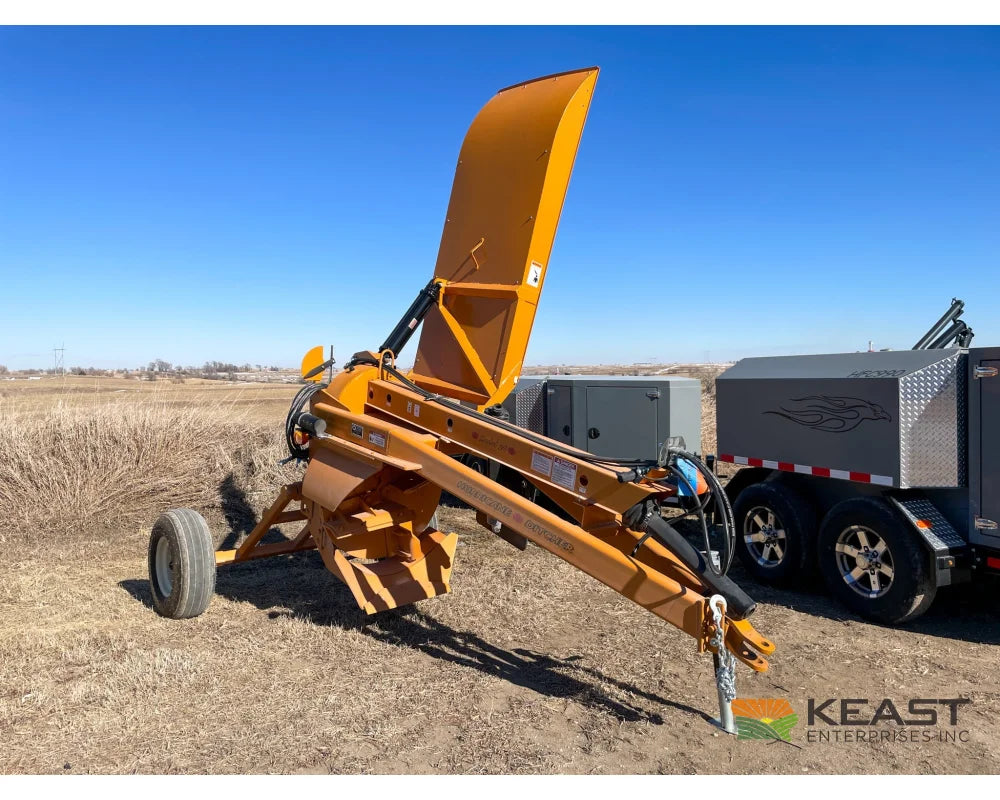

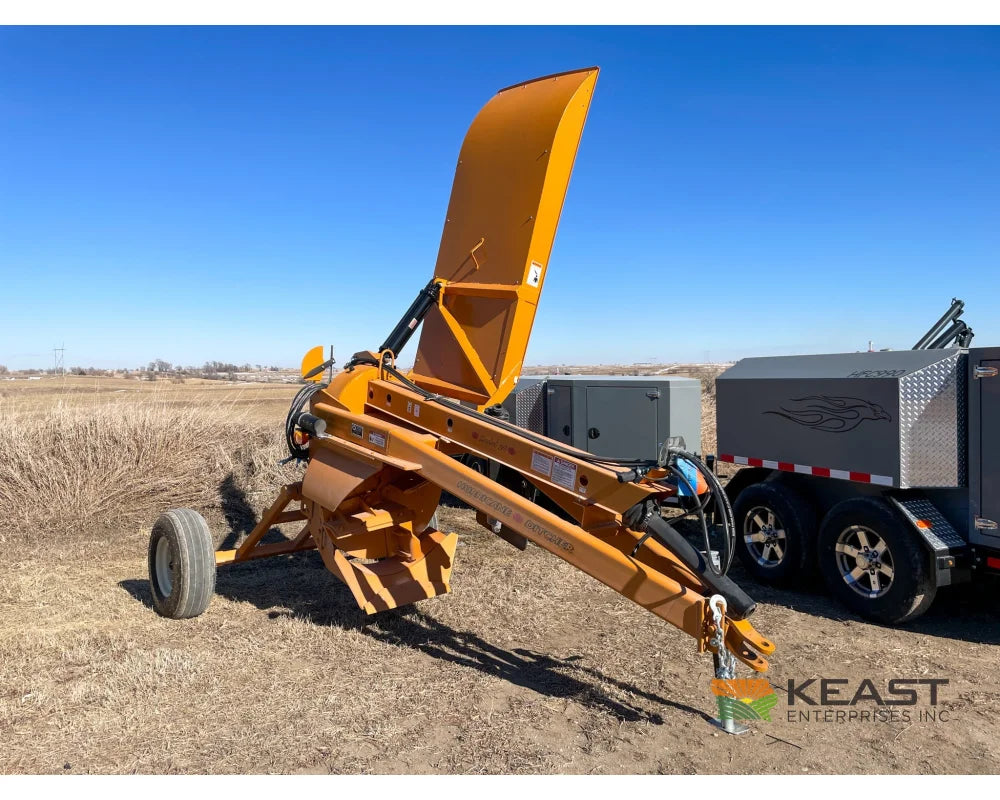

The Hurricane Model 24 is a pull-type ditcher-terracer for drainage channels, waterway maintenance and terrace work. Its rotary wheel cuts a flat-bottomed channel and discharges the excavated soil to the left.

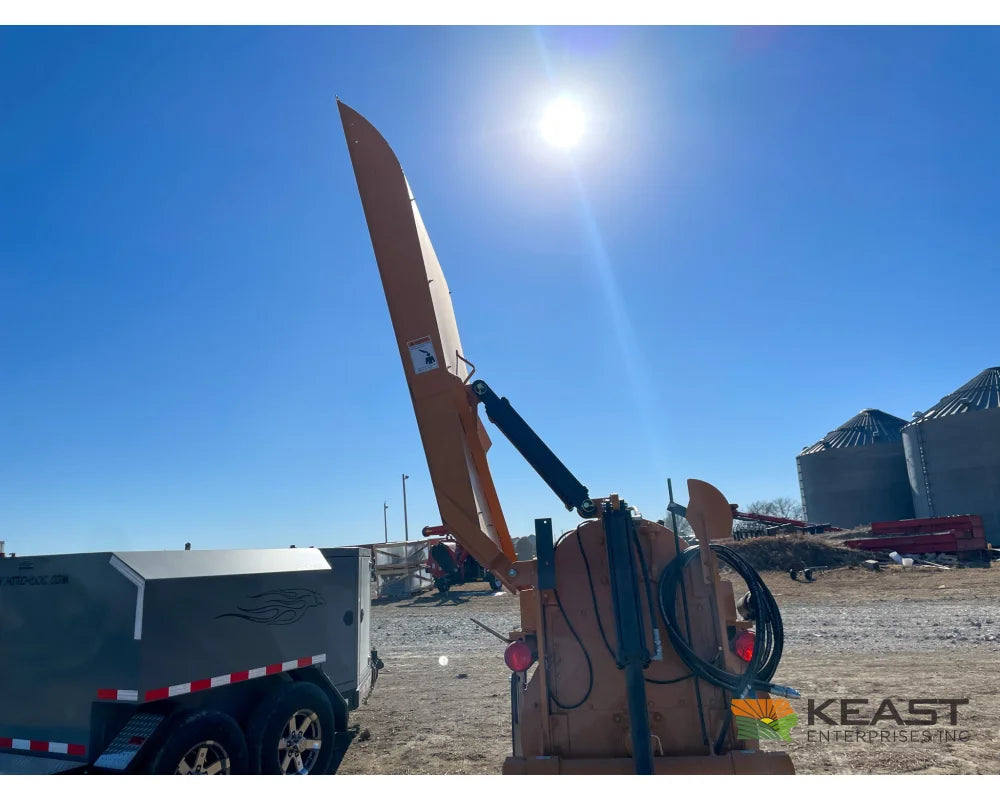

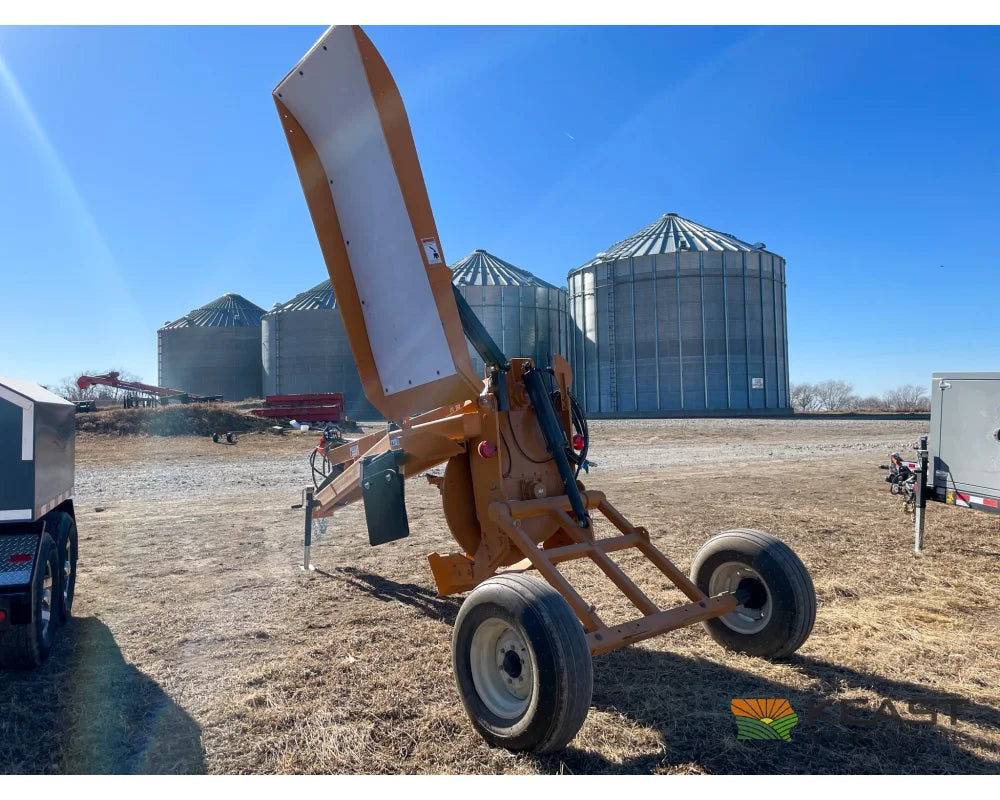

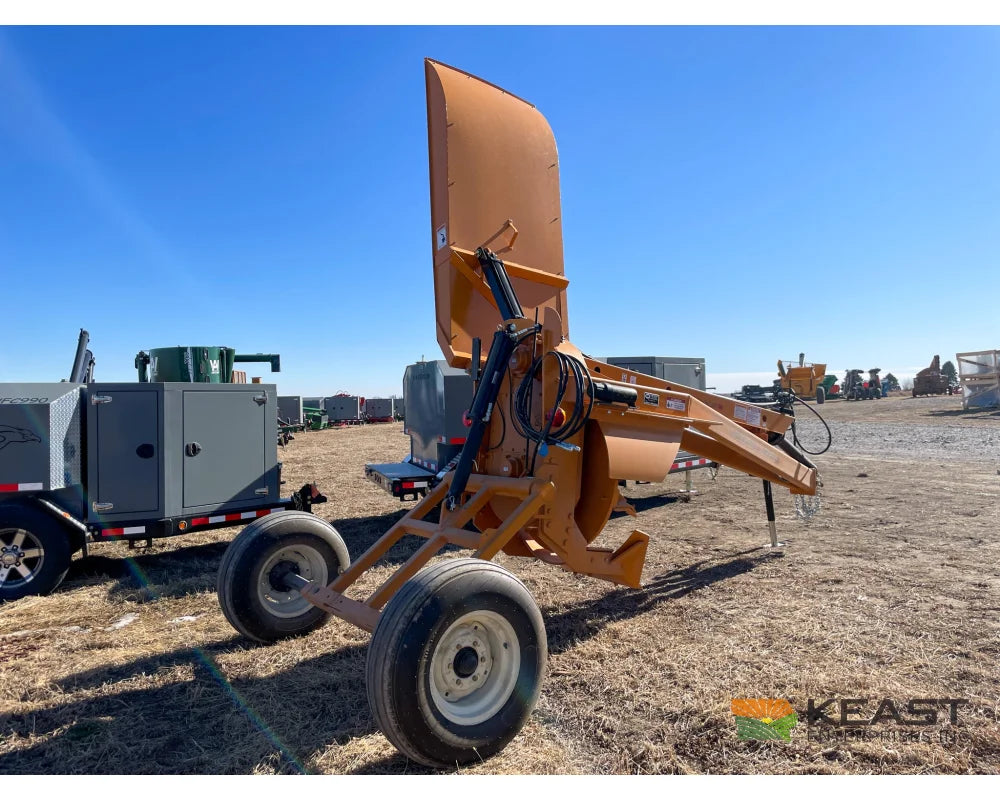

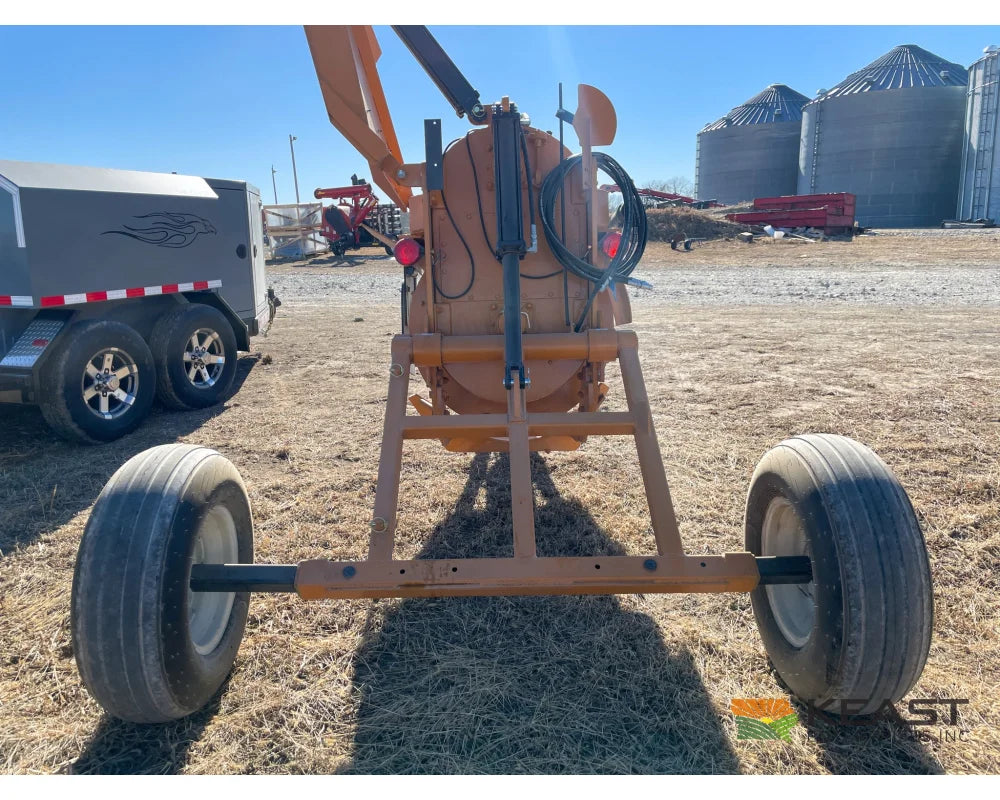

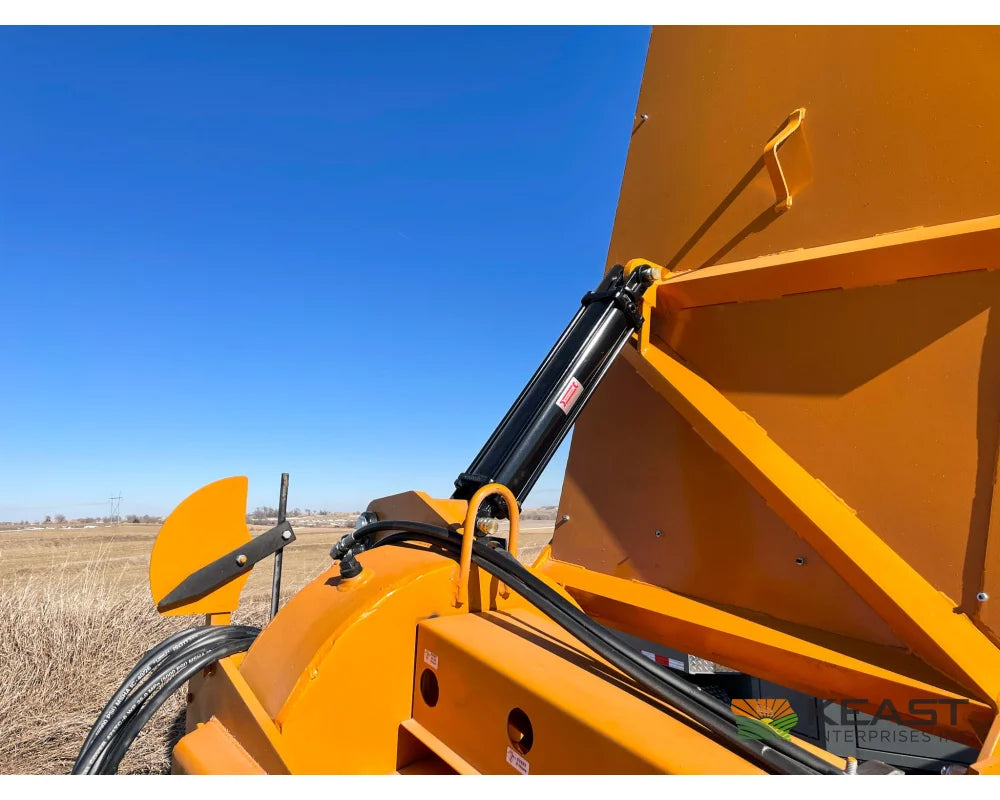

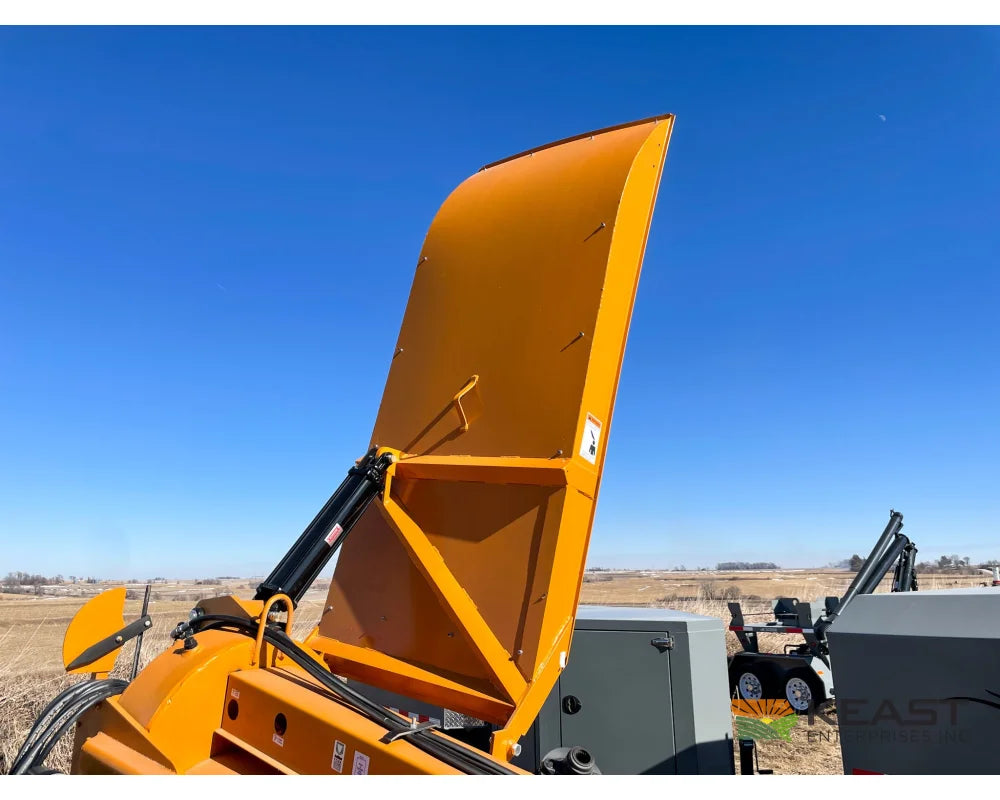

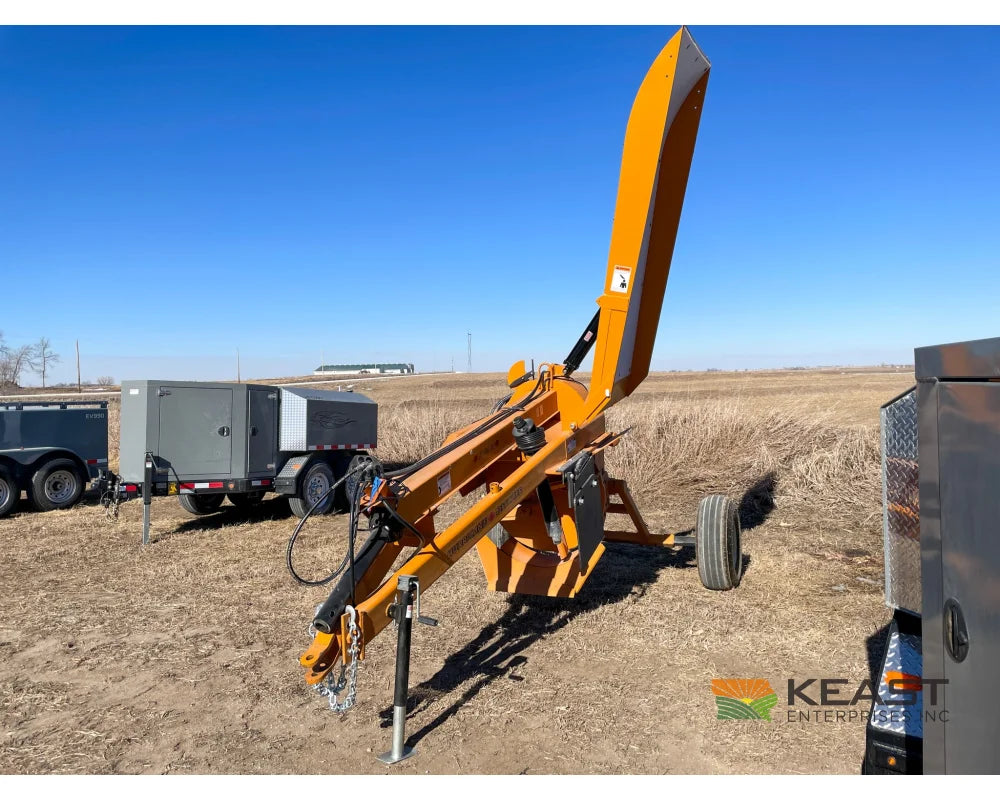

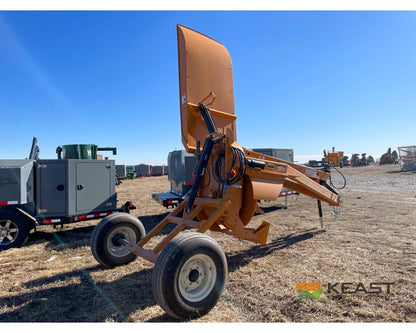

Hydraulic depth control works through the rear wheels, while telescoping axles give the tires room to straddle the ditch. Hard-surfaced paddles can be rebuilt as they wear. The optional terracing shield contains and directs the discharged soil when it needs to be placed closer to the machine.

Specifications

Specification	Details

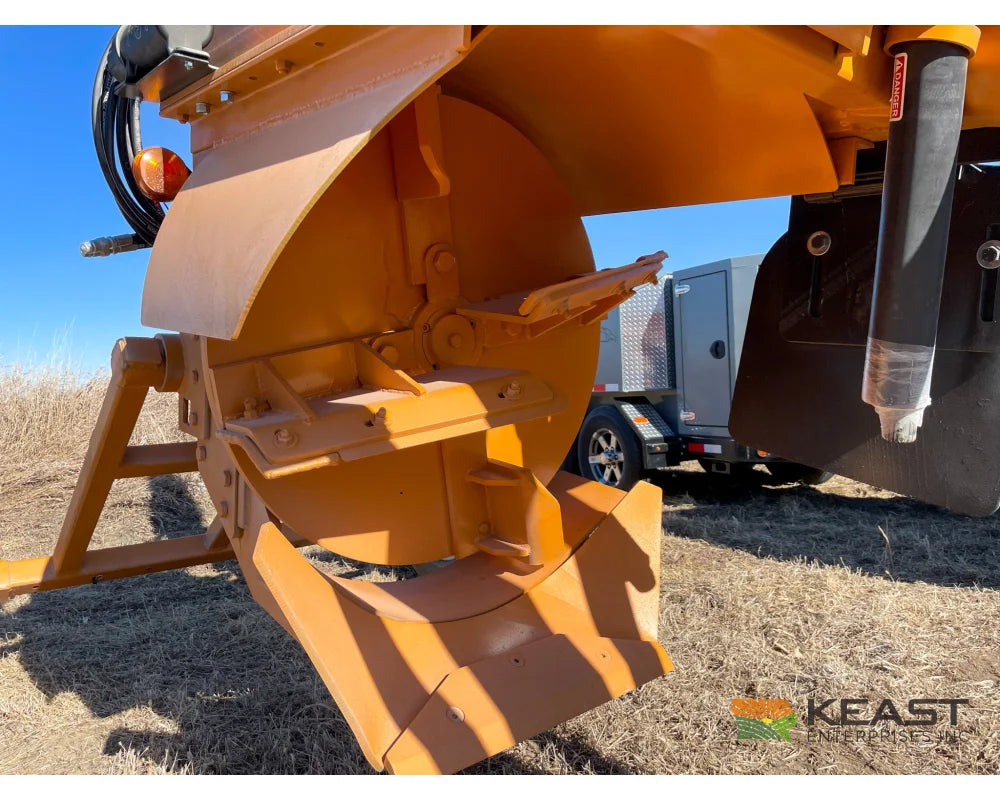

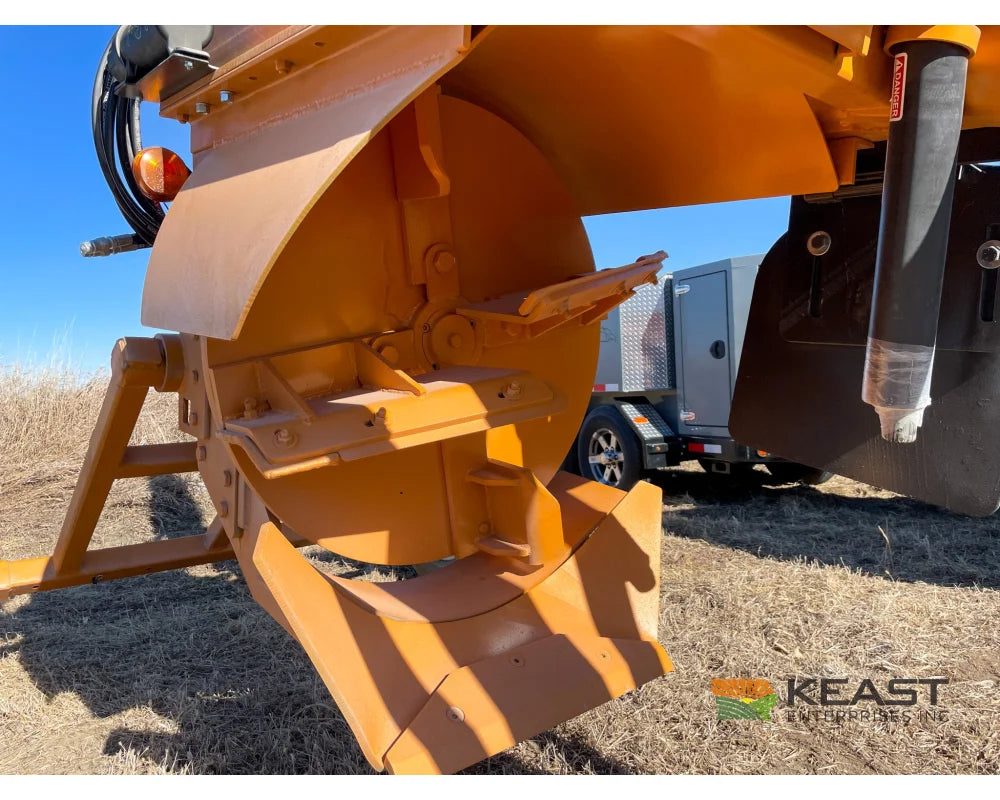

Impeller Wheel	36″ with four hard-faced T1 steel paddles
Cutting Wheel Width	24 in.
Maximum Single-Pass Cut	Up to 10 in.
Maximum Cut in Multiple Passes	Up to 28 in.

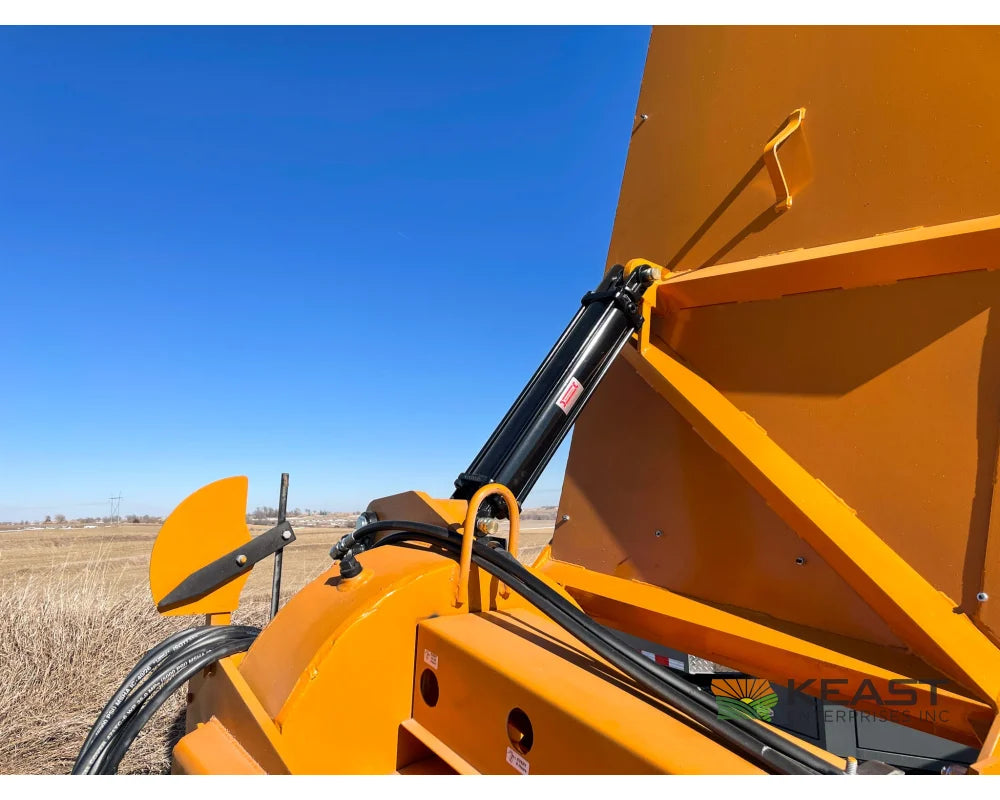

Depth Control	Hydraulic

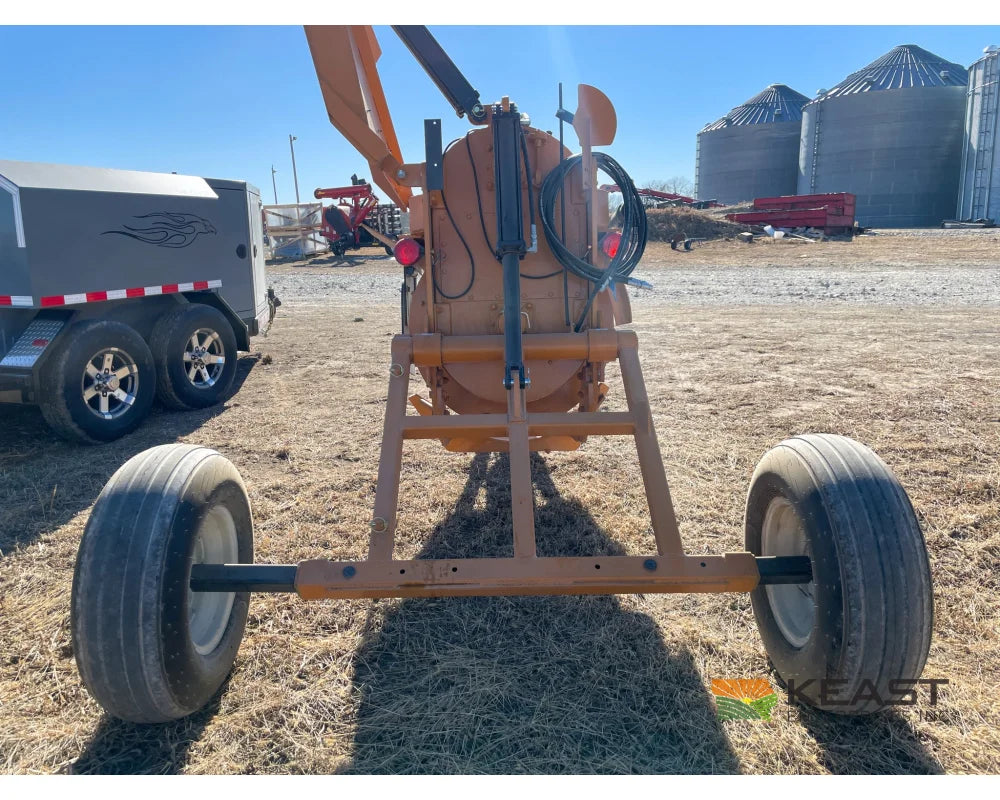

Rear Axle	Telescoping

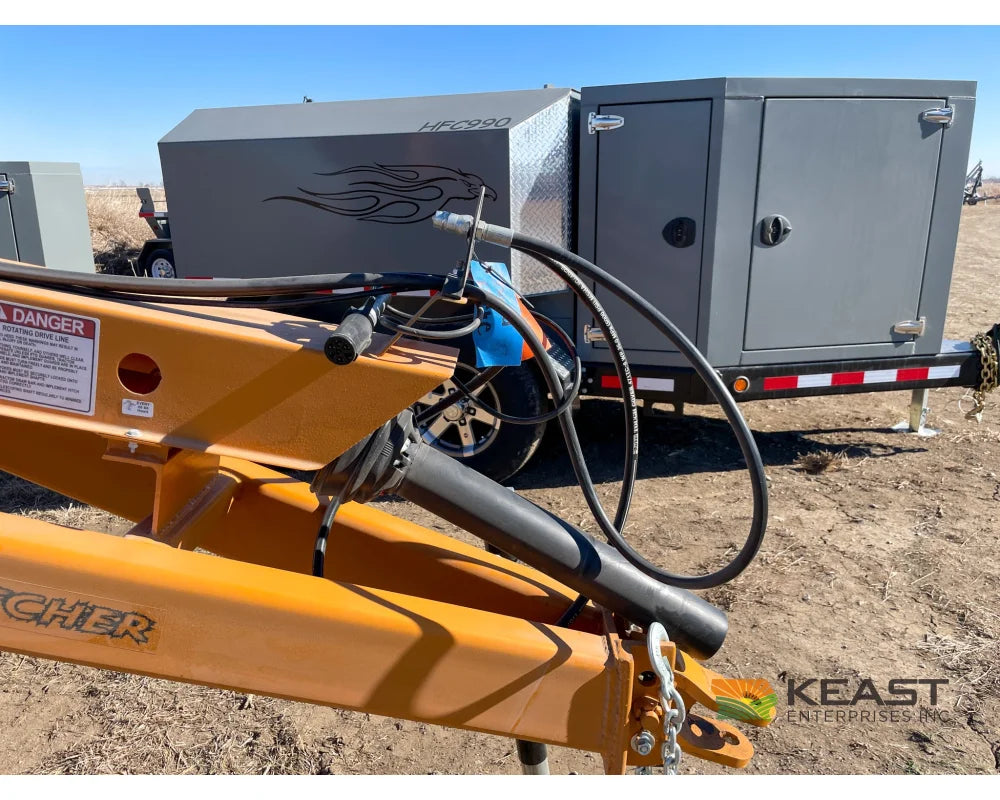

PTO Requirements	Series 55, 1,000 RPM with shear bolts
Tractor HP Range	Suggested 100-180 HP
Drive	Double 80 roller chain, oil bath, tensioner
Weight	Approximately 3,200-3,600 lb depending on configuration

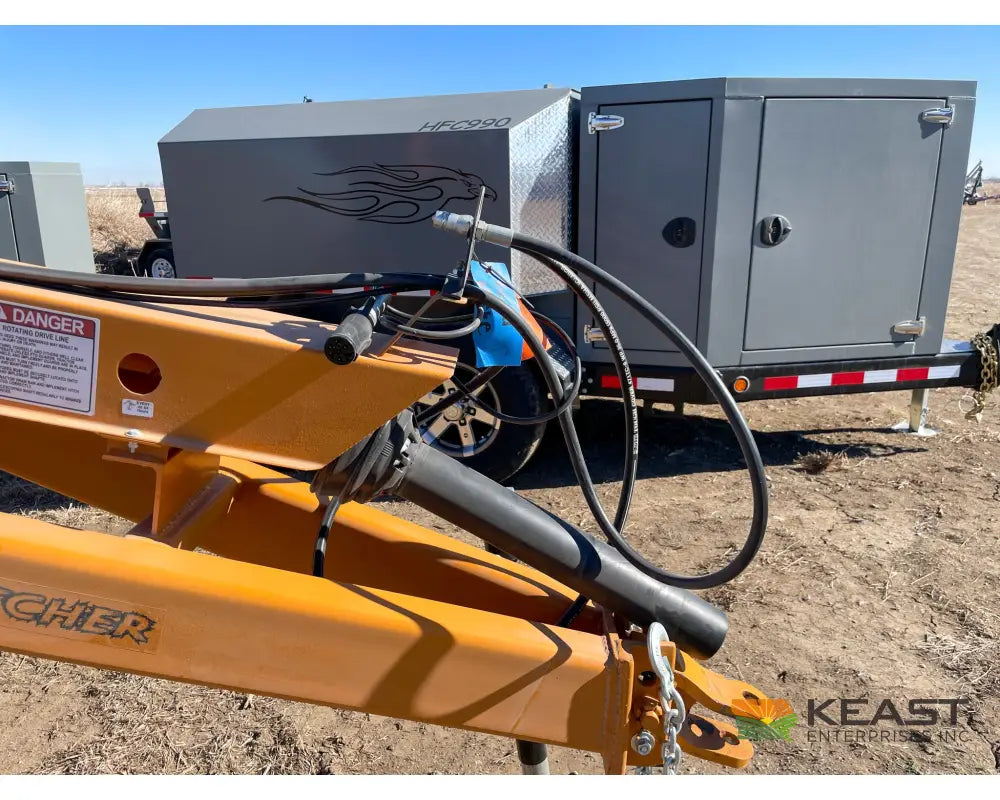

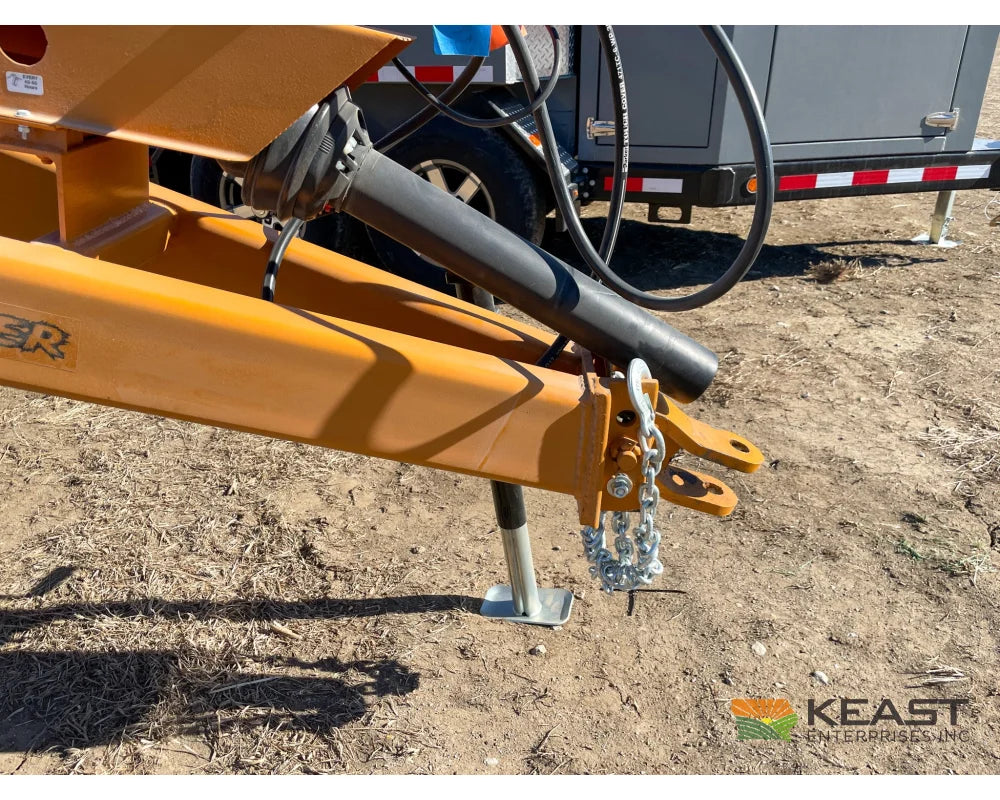

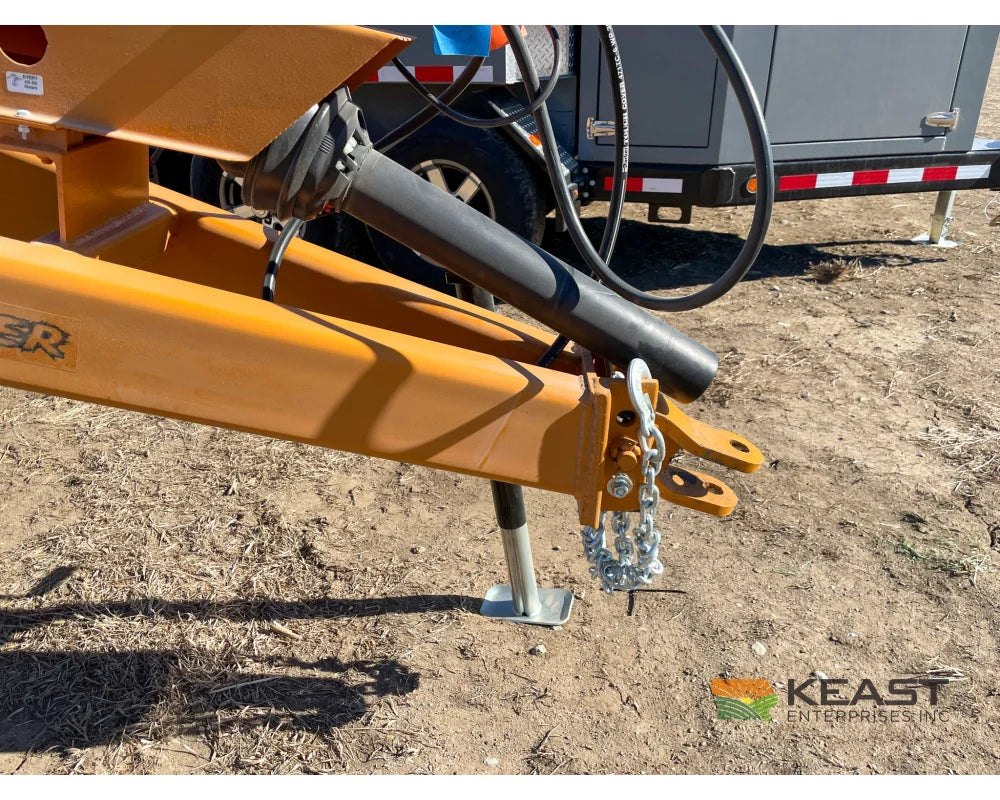

Hitch Type	Clevis hitch

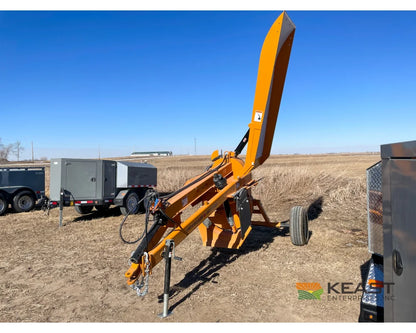

Optional Add-Ons	Terracing shield, deflector shield, laser/GPS ready

For terrace work or sites with limited room beside the ditch, we can review the shield and grade-control options with you. Tractor power, soil and the depth of each pass affect production. Match the PTO spline and shaft length before hookup, and plan a clear discharge area along the full working length.
