Hutchinson HX 10-83 Auger, 10" x 83', Swingaway Hopper

Hutchinson HX 10-83 Auger, 10" x 83', Swingaway Hopper

$28,318.00 USD
$28,318.00 USD
Sale Sold out

Explore financing options For qualifying equipment, subject to credit approval.

In stock

Call Us 712-566-1033 Shipping & Delivery

We'll reach out to confirm order details before fulfillment.

Hutchinson HX 10-83 Auger, 10" x 83', Swingaway Hopper
View full details

Description

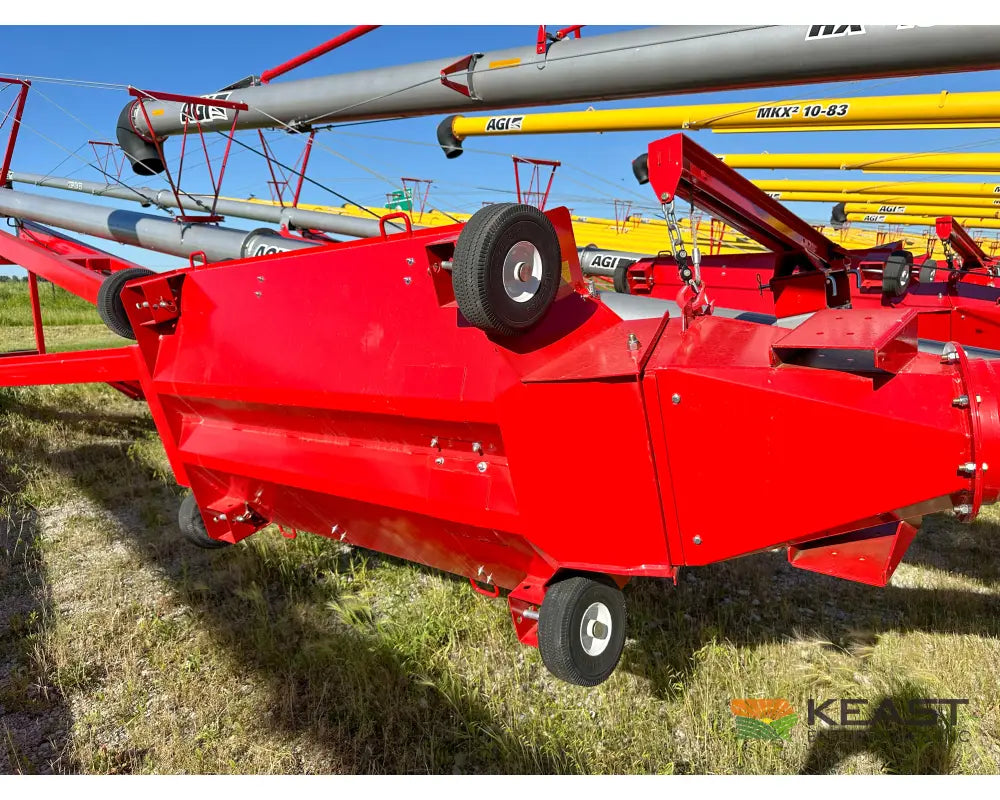

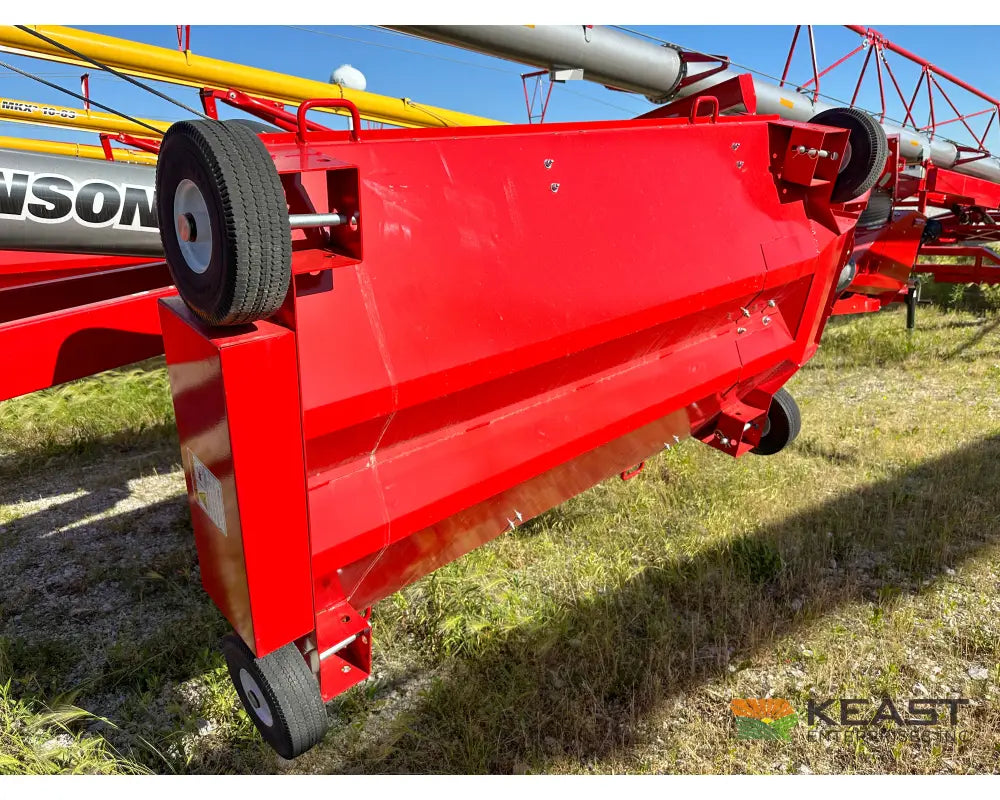

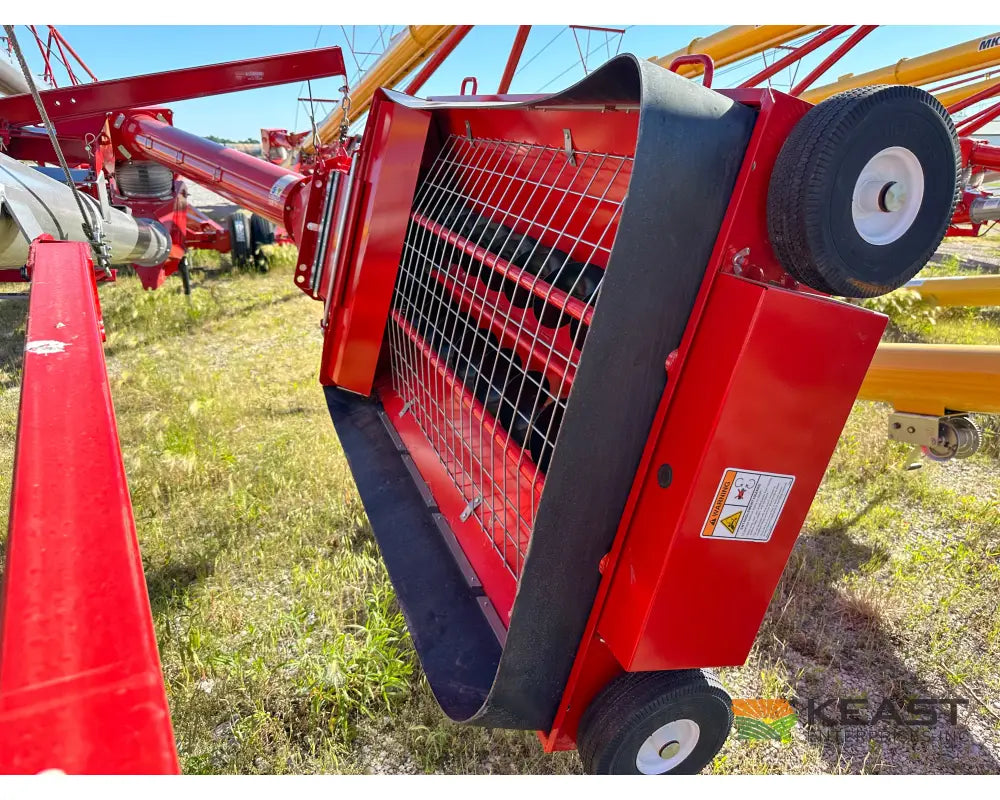

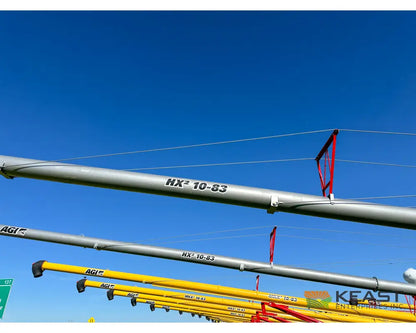

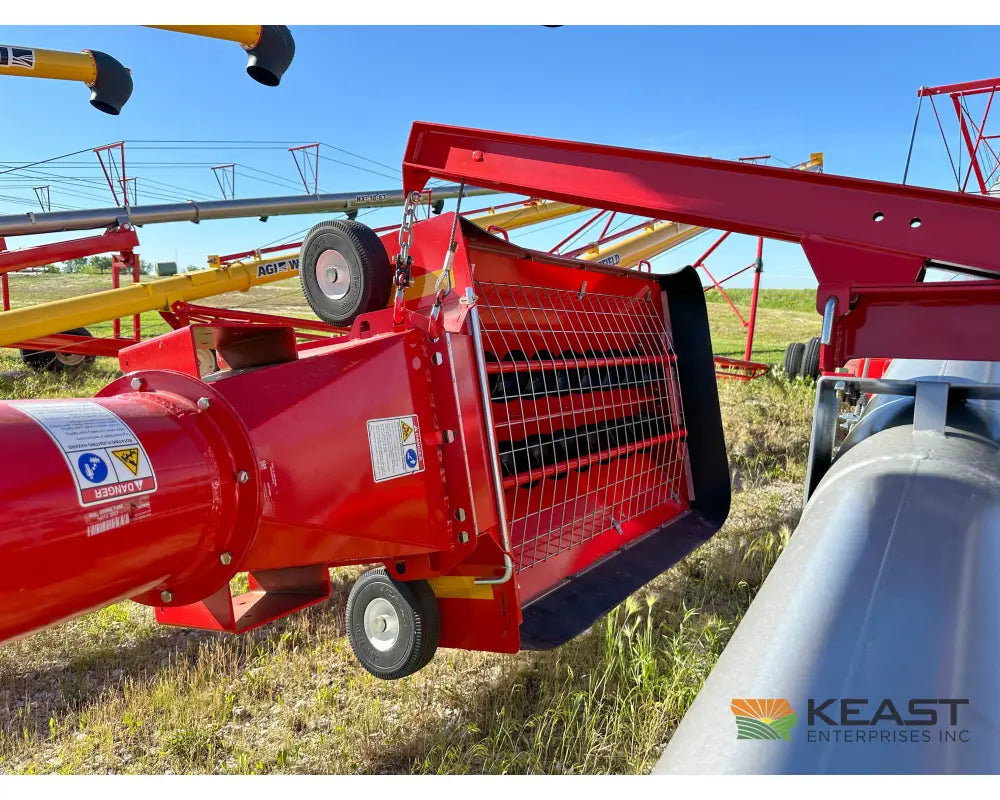

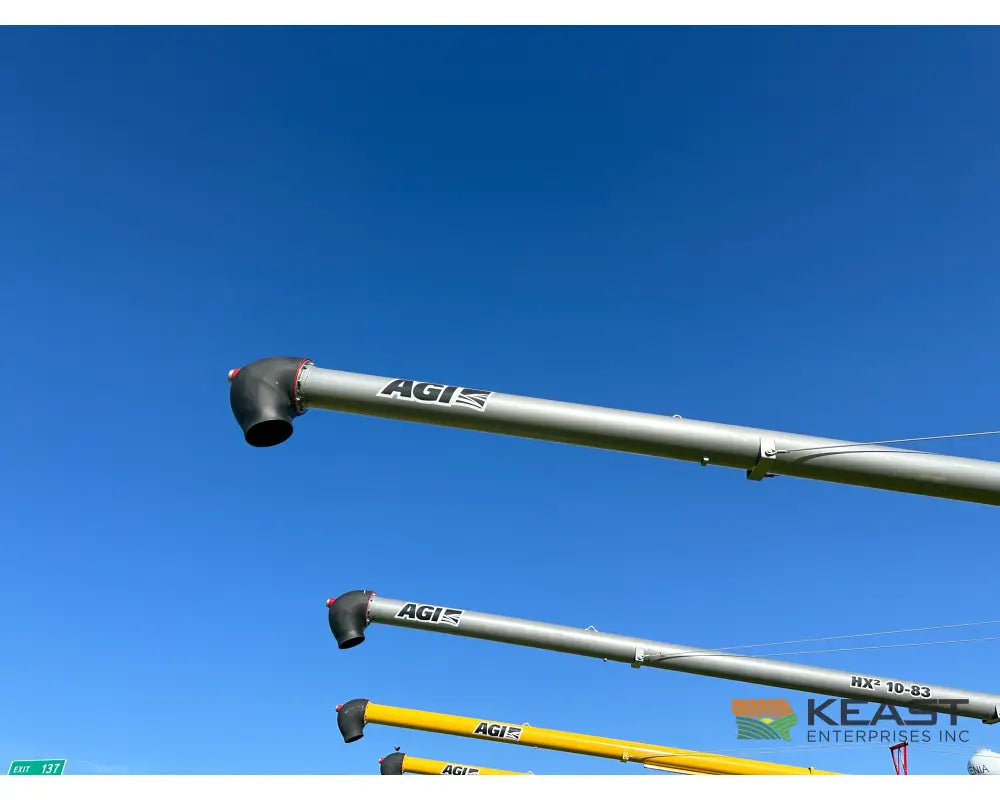

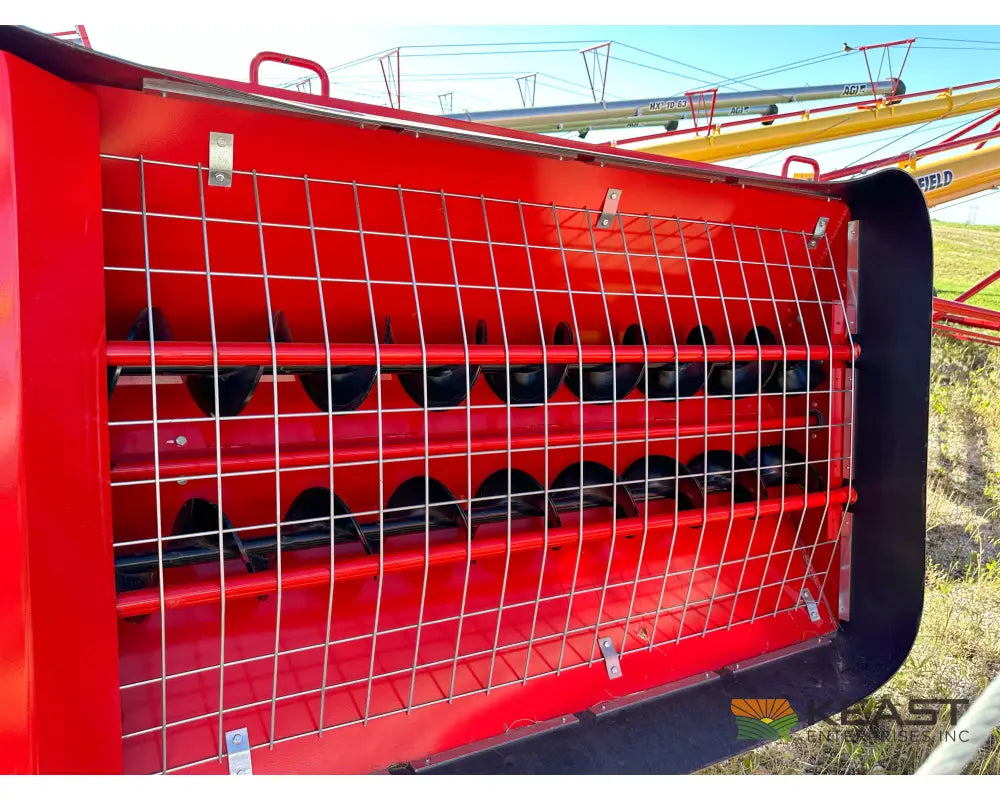

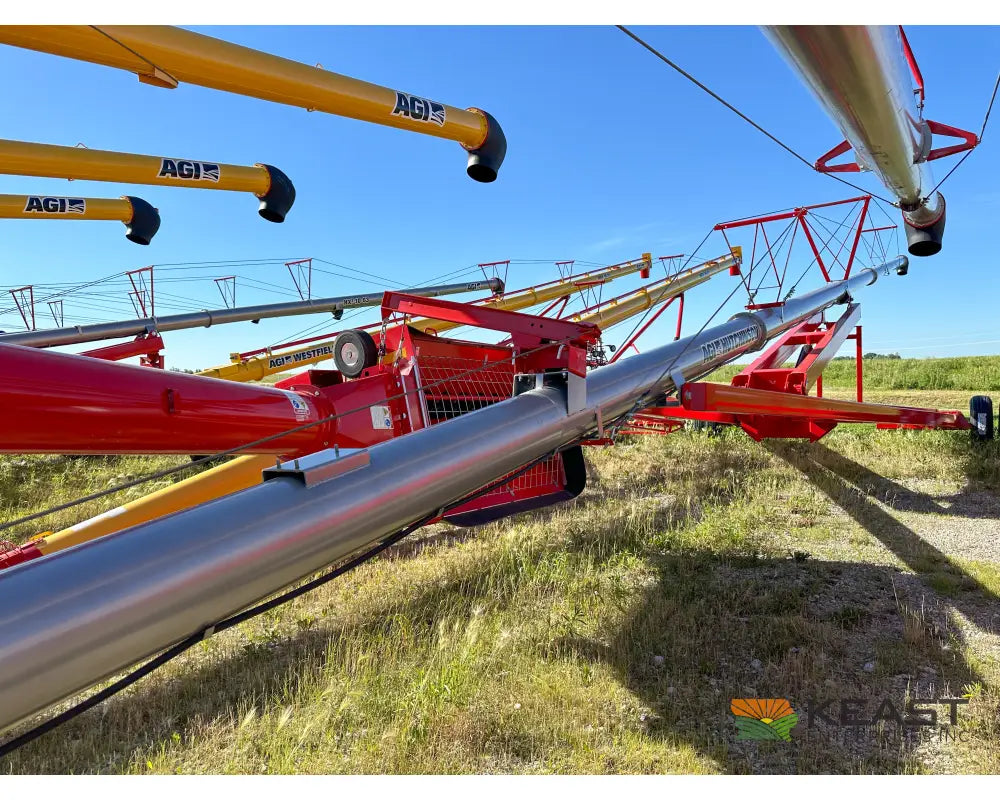

The Hutchinson HX 10-83 is an 83-foot swing-away auger for unloading trailers into grain bins. The longer tube provides additional reach, with a low-profile hopper that can be positioned under the trailer and hydraulic lift for the main auger.

AGI's HX10 operating manual lists a 6,600-bushel-per-hour unloading rate for this family. The rate at your bin will vary with crop, moisture, angle and hopper feeding, so it is worth checking the receiving equipment as well as the auger.

Specifications

Specification Details
Auger Size 10 in. x 83 ft.
Published Capacity Up to 6,600 bu/hr; HX10 manual rating
Tractor Power 75 HP
PTO 540 RPM
Transport Length 85 ft. 1 in.
Transport Height 13 ft. 4 in.
Discharge Clearance 11 ft. 8 in. minimum; 55 ft. 3 in. maximum
Maximum Reach to Wheels 40 ft. 11 in.
Approximate Weight 4,362 lb.
Hydraulic Pressure to Raise Auger 1,600 PSI

The table includes discharge clearance and transport dimensions for planning around taller bins and farm buildings. Send us the inlet height, setback and truck approach and we can check where the hopper and tractor will sit, including the hydraulic pressure needed to raise the auger.
