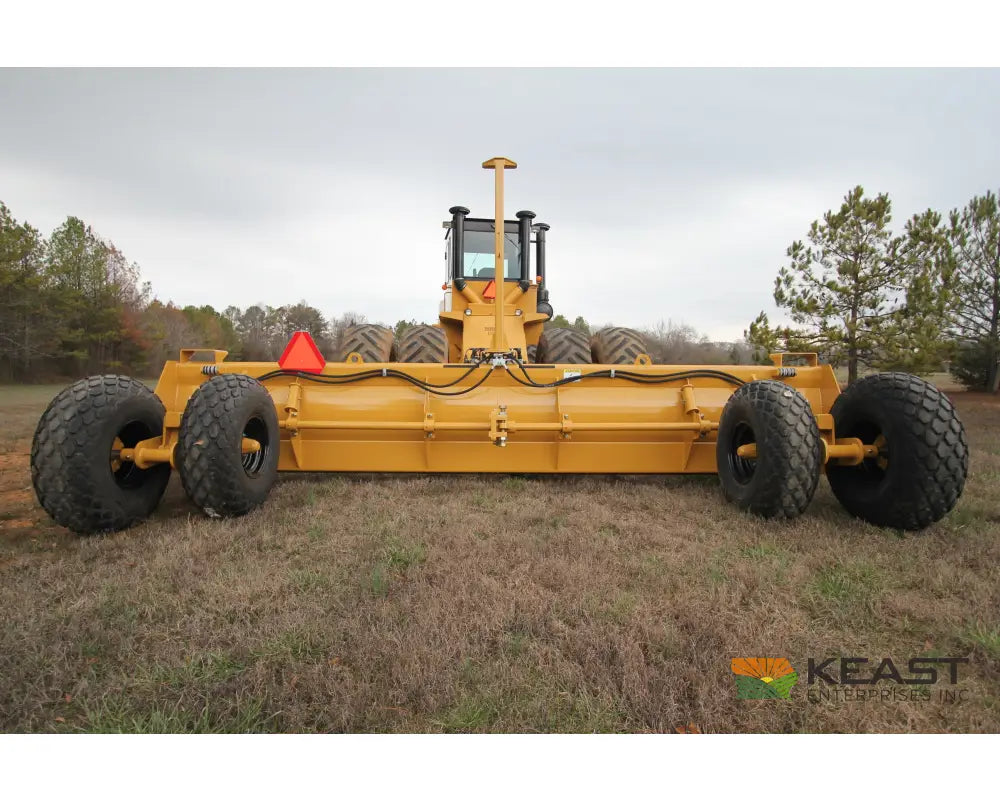

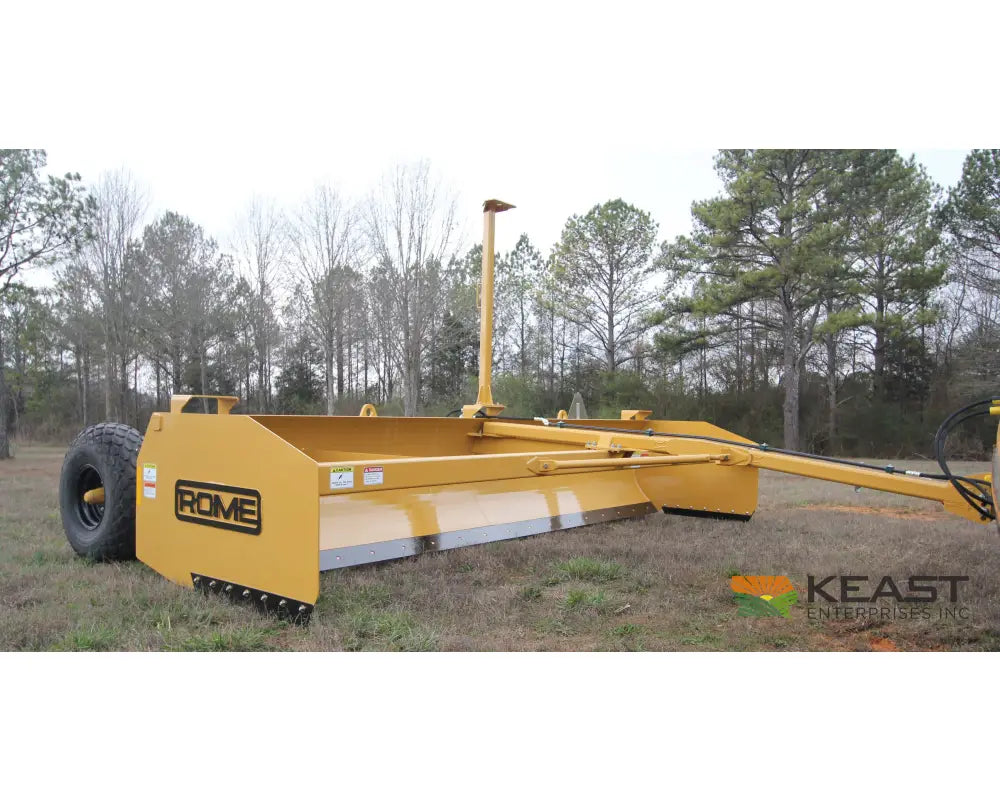

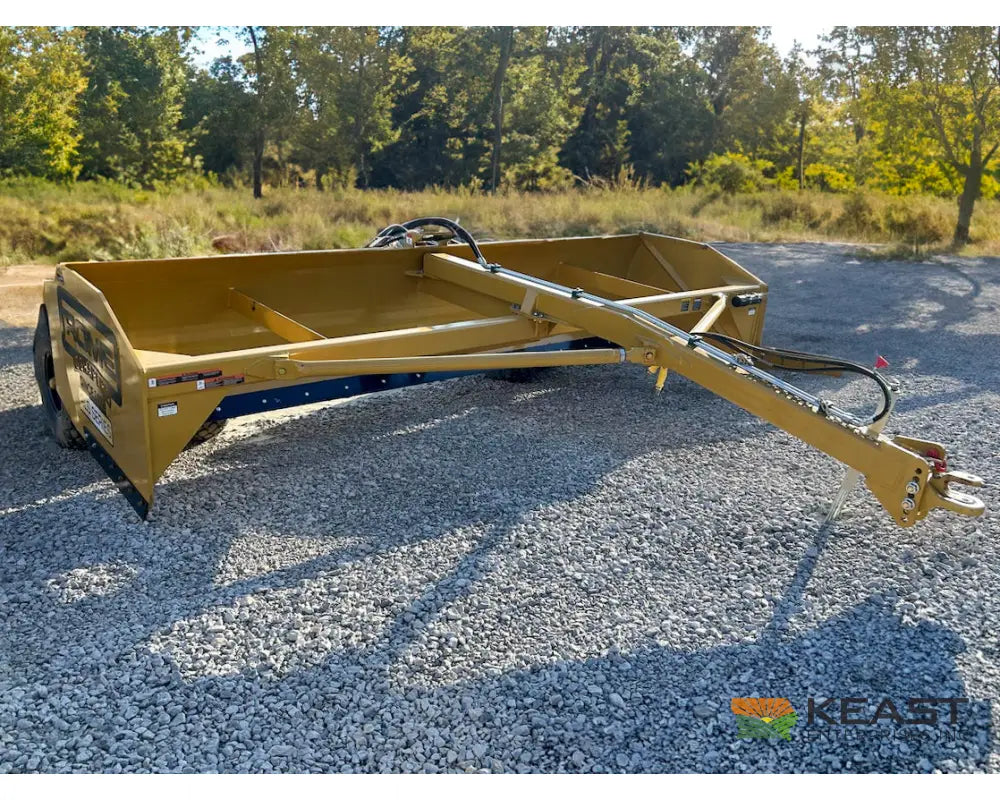

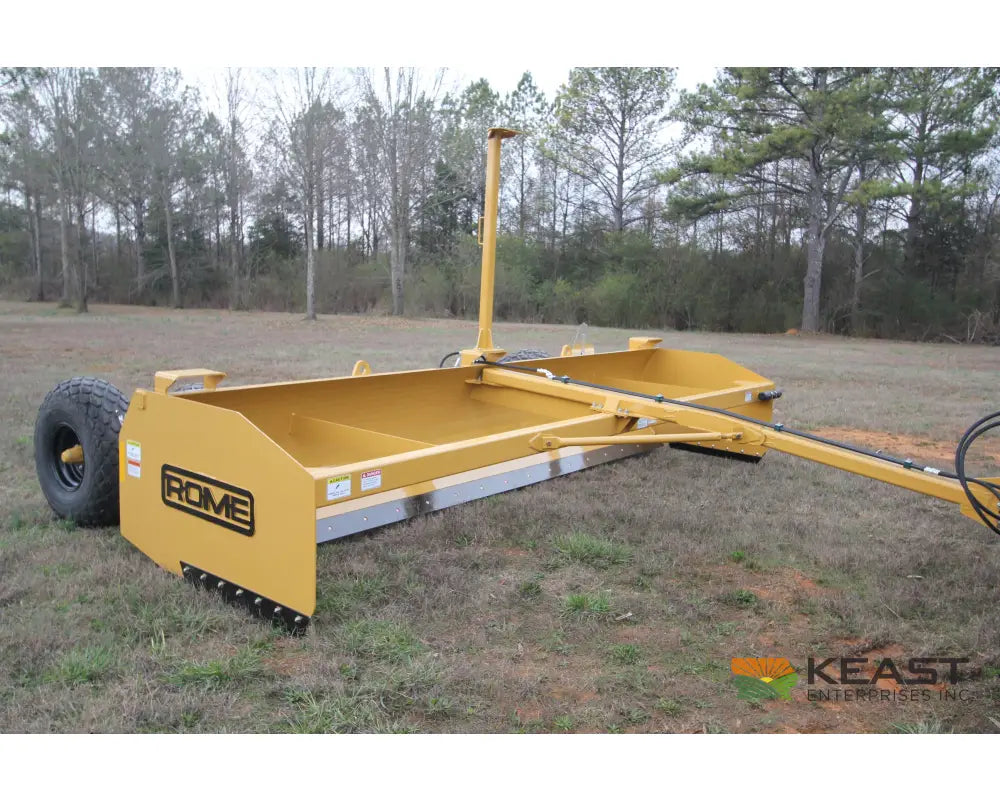

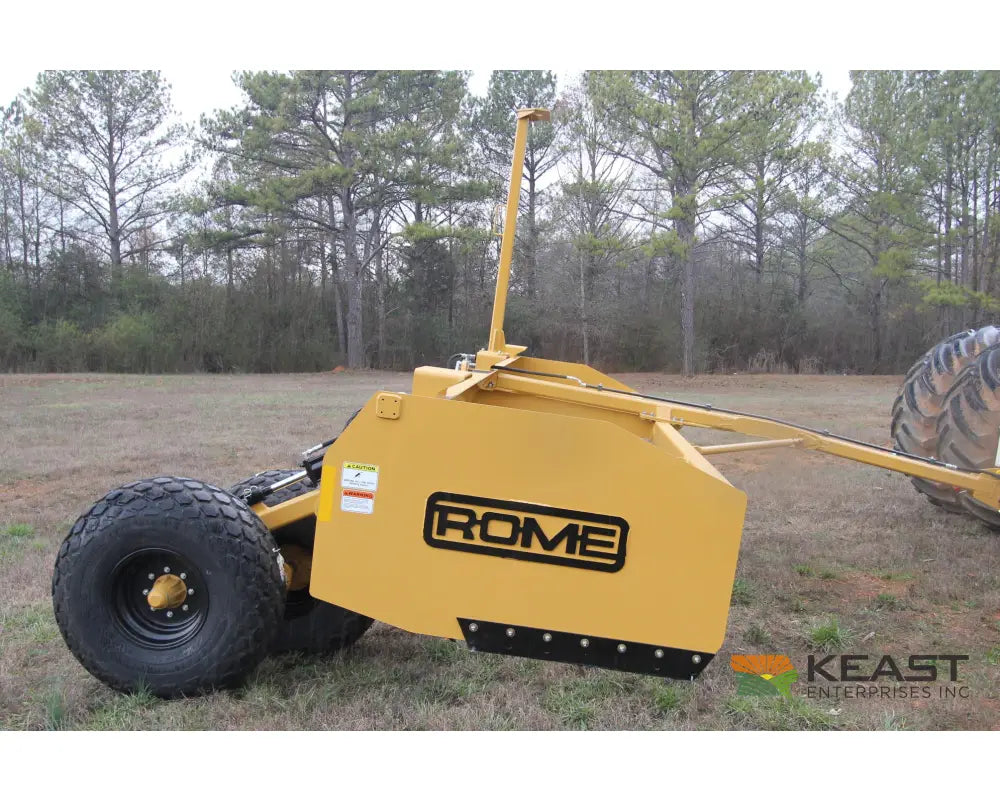

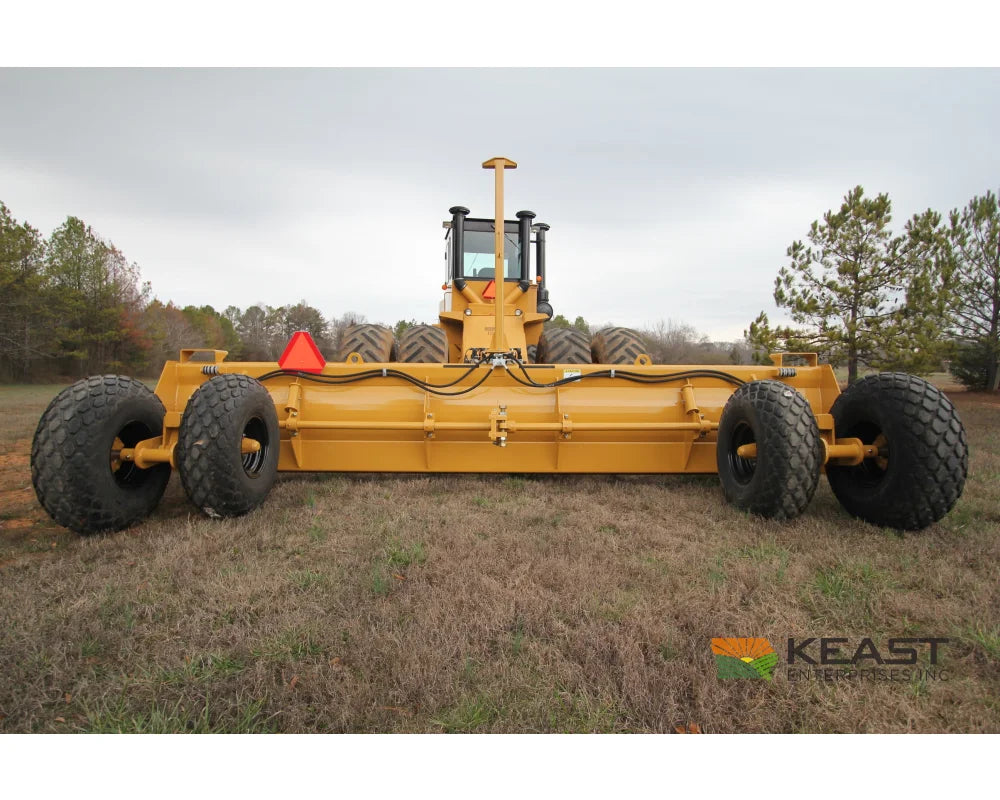

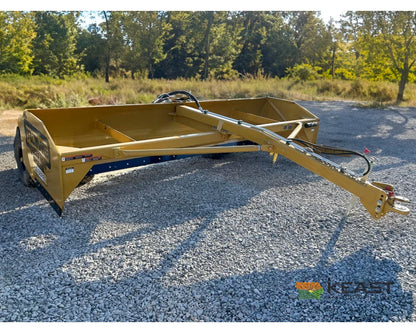

Rome RLS-16 16' Bottomless Drag Scraper, 8.9 Yard, Replaceable Side Cutter Bits

The Rome RLS-16 is a bottomless drag scraper for field leveling, road maintenance and rebuilding washed-out terraces. Its wide cutting edge moves soil across the surface, with hydraulic control for setting the cut and a walking-beam undercarriage for ground support.

Replaceable side cutter bits and reversible main cutting edges provide serviceable wear surfaces. The adjustable front clevis helps match the drawbar height. A single laser-receiver platform is included; the laser valve group and additional receiver platform are optional equipment.

Specifications

Specification	Details
Working Width	16 ft
Capacity	8.9 cu. yd.
Maximum Cutting Depth	Up to 3 in
Suggested Tractor HP	150 engine HP at 4 mph; 225 engine HP at 6 mph
Weight	6575 lbs
Overall Length	18'
Mounting Platform	Single laser-receiver platform included
Tire Setup	Offset walking-beam configuration
Hydraulics	One rear tractor circuit required

Rome's suggested engine power increases with working speed and varies with soil conditions and added scraper weight. We can review the tractor, soil and grade-control equipment with you so the hydraulic connections and control package suit the job.
